Fuses Price (Pack of 5)

Shopping Cart

GMA0.5
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 1/2 A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA1
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 1A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA1.5
(Sold in packs of five fuses.
20mm long x 5mm diameter)
 Rated at 1.5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA2
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 2A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA2.5
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 2.5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA3
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 3A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA3.5
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 3.5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA4
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 4A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA5
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 5A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA6.3
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 6.3A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

GMA8
(Sold in packs of five fuses.
20mm long x 5mm diameter)
Rated at 8A
(GMA fuses are smaller European fuses 5mm diameter
x 20mm long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC0.25
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 0.25A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC0.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 0.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC1
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 1A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC1.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 1.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC2
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 2A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC2.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 2.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC3
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 3A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC3.5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 3.5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC4
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 4A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC5
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 5A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC6
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 6A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC8
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 8A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC10
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 10A
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$2.95 (Pack of 5 fuses)

AGC1SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 1A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)

AGC1.5SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 1.5A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)

AGC2SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 2A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)

AGC2.5SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 2.5A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)

AGC3SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 3A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)

AGC4SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 4A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)

AGC5SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 5A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)

AGC6SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)
Rated at 6A SLO-BLO
(AGC fuses are larger American fuses 1/4" diameter
x 1 1/4" long.   Measure your old fuse).
$4.95 (Pack of 5 fuses)


Diodes


Part No. Description Price Each Shopping Cart
1N4148 Glass Signal Diode $0.12

1N4007 1A / 1000V PIV $0.12

1N4937 1A High Speed $0.65

SF14 1A High Speed $0.72

KBPC808
8A Bridge,
800PIV
0.75" x 0.75" x 0.25"
$2.95

KBU1004
10A Bridge,
400PIV
$3.75

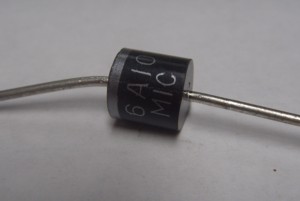

6A10
6A Diode,
1000PIV
$1.50

1N5353/NTE5131
(Equiv to NTE5131.  Used in 90's vintage Crate® & Fender® Amps)
16V 5W Zener $1.95

1N4744A 15V 1W Zener $1.00


Larger Transistors
"2S" prefix has been omitted ... C3890 = 2SC3890 Description Price Each Shopping Cart
C3890 Power Supply Switching Transistor $1.75

C4073 Power Supply Switching Transistor $2.35

C4130 Power Supply Switching Transistor $2.90

C4418 Power Supply Switching Transistor $1.35

C4953 Power Supply Switching Transistor $2.79

TIP142 NPN Silicon Darlington Power Transistor $6.99

TIP147 PNP Silicon Darlington Power Transistor $6.99

HSC-1 Single-Use Heatsink Compound Pack $0.99

Output Modules
TDA2030 OUTPUT CHIP, COMMONLY FOUND IN Crate®, FENDER, KORG AND MANY OTHERS.  5 PINS.  RATED 14 WATT OUTPUT.
Part #TDA2030
$6.95

TDA2040 OUTPUT CHIP, COMMONLY FOUND IN Crate®, FENDER, KORG AND MANY OTHERS.  5 PINS.  RATED 22 WATT OUTPUT.
Part #TDA2040
$6.95

TDA2050 OUTPUT CHIP, COMMONLY FOUND IN Crate®, FENDER, KORG AND MANY OTHERS.  5 PINS.  OBSOLETE.   USE LM1875T AS A REPLACEMENT.
Part #TDA2050
$6.95
TDA7240A OUTPUT CHIP, COMMONLY FOUND IN TRAYNOR, YORKVILLE AND MANY OTHERS.  7 PINS.  RATED 20 WATT OUTPUT.
Part #TDA7240A
$4.95


Click on photo for
larger view
LM1875T OUTPUT CHIP, COMMONLY FOUND IN Crate®, RMS, KORG AND MANY OTHERS.  5 PINS.  RATED 20 WATT OUTPUT.  REPLACES TDA2050.
Part #LM1875T
$3.40


Click on photo for
larger view
LM3886TF OUTPUT CHIP, COMMONLY FOUND IN Marshall®, AND MANY OTHERS.  11 PINS.  RATED 68 WATT OUTPUT INTO 4 OHMS.
Part #LM3886TF
$12.95


Click on photo for
larger view
LM4765T OUTPUT CHIP, COMMONLY FOUND IN LINE 6® SPIDER MODELS, AND MANY OTHERS.  15 PINS.
Part #LM4765T
$8.95


Click on photo for
larger view
TDA7293 OUTPUT CHIP, COMMONLY FOUND IN Crate®, Marshall® AND MANY OTHERS.  15 PINS.  RATED 100 WATT OUTPUT, AT UP TO 120V SUPPLY.
Part #TDA7293 / TDA7293V
$11.95


TDA7294 OUTPUT CHIP, COMMONLY FOUND IN Crate®, Marshall® AND MANY OTHERS.  15 PINS.  RATED 100 WATT OUTPUT AT UP TO 80V SUPPLY.
Part #TDA7294 / TDA7294V
$11.95


STK401-140 OUTPUT CHIP, STEREO 120 WATTS PER CHANNEL, DUAL RAIL POWER SUPPLY AT UP TO +/- 70V.
Part #STK401-140
$11.95

One left in stock




Click on photo for
larger view

Marshall® TSL100/TSL122 Main Circuit Board
This is the replacement main PC board for both the Marshall® TSL100 and TSL122.   Does not fit any other Marshall® model.  Replacing this board fixes the common problem of drifting bias on the power tubes in these amplifiers.   Original Marshall® , made in England, Marshall® part number
TL10-60-02-01.    Note:  Included with this board we provide installation guidelines and the schematic of the PC board.     We recommend only experienced amplifier technicians attempt replacing this board.
Part #PCB-217

$254.95

SPECIAL ORDER
Lead time is currently 3-4 weeks

SPECIAL ORDER
Lead time is currently 3-4 weeks


Click on photo for
larger view

Marshall® DSL50 Main Circuit Board
This is the replacement main PC board for the Marshall® DSL50.   Does not fit any other Marshall® model.  Replacing this board fixes the common problem of drifting bias on the power tubes in these amplifiers.   Original Marshall® , made in England, Marshall® part number DL50-60-00
Note:  Included with this board we provide installation guidelines and the schematic of the PC board.     We recommend only experienced amplifier technicians attempt replacing this board.
Part #PCB-117

$245.95

SPECIAL ORDER
Lead time is currently 3-4 weeks


SPECIAL ORDER
Lead time is currently 3-4
weeks


Click on photo for
larger view

Marshall® DSL100 Main Circuit Board
This is the replacement main PC board for the Marshall® DSL100.   Does not fit any other Marshall® model.  Replacing this board fixes the common problem of drifting bias on the power tubes in these amplifiers.   Original Marshall® , made in England, Marshall® part number JCM2-60-02
Note:  Included with this board we provide installation guidelines and the schematic of the PC board.     We recommend only experienced amplifier technicians attempt replacing this board.
Part #PCB-157

$245.95

SPECIAL ORDER
Lead time is currently 3-4
weeks

SPECIAL ORDER
Lead time is currently 3-4
weeks


Click on photo for
larger view
TIP142 NPN DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN Crate®, Marshall®, Fender® AND MANY OTHERS.
Part #TIP142
$5.05


Click on photo for
larger view
TIP147 PNP DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN Crate®, Marshall®, Fender® AND MANY OTHERS.
Part #TIP147
$5.10



Click on photo for
larger view
SINGLE-USE HEATSINK COMPOUND.   ELECTRONIC DEVICES MOUNTED ON HEATSINKS DON'T REQUIRE A LOT OF THERMAL CONDUCTION GREASE, BUT THEY DO REQUIRE A SMALL DAB TO ENSURE THAT THEY WON'T OVERHEAT.   THIS PACK CONTAINS SUFFICIENT AMOUNT FOR ONE APPLICATION.
Part #HSC-1
$0.99


Regulators
  Description Price Each Shopping Cart
7815 +15V 1amp Voltage Regulator - Metal Tab $0.90

7915 -15V 1amp Voltage Regulator - Metal Tab $0.90


Small Signal Transistors



"2S" prefix has been omitted ... A933 = 2SA933

Description Price Each Shopping Cart

A933

TO-92 Case

$0.50

A999
(Replaces A984)
TO-92 Case $0.65

B641 M-68 Case $0.58

B643 M-68 Case $0.72

C2274 TO-92 Case $0.64

C3203 TO-92 Case $0.59

C3616 TO-92 Case $1.12

D1330 M-68 Case $0.85

D1458 M-68 Case $0.93

D2144

TO-92 Case $0.72

2N6426

TO-92 Case
NPN Darlington
Used by Mesa Boogie
$0.45


Opto-Isolators



Part No:

Description Price Each Shopping Cart

PC817

Opto-Isolator

$1.20

TLP621 Opto-Isolator
(replaces ON3131)
$1.14

PS2501 Opto-Isolator $0.98



Click on photo for
larger view
Revisit™ VTL5C1 OPTO-ISOLATOR
Replaces VTL5C1 from Vactec or Excelitas at an affordable price.   Used in many Mesa-Boogie and Crate models in the channel switching circuit.  100dB dynamic range, fast response (2.5ms turn-on), very high dark resistance (50 M Ohm).  Light resistance 200 Ohms at 20mA LED current.  See datasheet here.
Part #
VTL5C1
$4.95




Op-Amps



Part No:

Description Price Each Shopping Cart

Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP
Part #NJM4558-D
$1.00

Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532
$1.50

Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534
$1.50

Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068
$1.50

Op-Amp, switchable, used in Marshall® and Kustom amps.  8-pin DIP.  May be labeled as 2120D, M2120, or M5201
Part #NJM2120D
$2.95

Op-Amp, very low offset voltage.   Used in some effects pedals, such as the ProCo RAT.
Part #OP07
$2.95

Low-power version of the TL072 Dual Op-Amp in 8-pin DIP package.  Draws only 400uA.   Great for battery-operated effects - increased battery life.
Part #TL062CP
$2.00

Low-noise, JFET input, TL071Single Op-Amp in 8-pin DIP package.  Also TL071CN.
Part #TL071CP
$1.50

Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.  Also TL072CN.
Part #TL072CP
$1.50

DG212CJ
Click on photo for
larger view

QUAD IC SWITCH, used in certain Marshall® amps, including some of the ValveState models.     16 Pin DIP.
Part #DG212CJ
$7.95


4808-3004
From the 3M Company ... 8-pin DIP socket, fits all of the 8-pin op-amps above.   We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
#4808-3004
$0.35

Relays
  Description Price Each Shopping Cart

RLY-12
12V DC DIP Relay 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including Crate®, Peavey®, Mesa Boogie®, Marshall®, etc.   Check coil voltage on existing relay to ensure compatibility $9.95

RLY-24 24V DC DIP Relay 24V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including Fender®, Marshall® and others.  Original Fender® part # 0036613000.  Check coil voltage on existing relay to ensure compatibility $9.95
