Hardware |
|
|
![](ecb129_small.jpg)
Click on photo for
larger view |
REPLACEMENT RUBBER TREAD FOR
Dunlop™ WAH PEDALS
Dunlop™ Crybaby standard foot tread with
adhesive backing. 55mm wide at heal end, 67mm wide at toe end,
193mm long.Original replacement part
for Dunlop™ 105Q Crybaby Bass Wah, Dunlop™ 535Q Crybaby Multi-Wah, Dunlop™ 95Q
Crybaby Q-Wah, GCB80, Dunlop™ GCB95 Original Crybaby, Dunlop™ Dunlop™ GCB95
Original CrybabyF Crybaby Classic Wah, Dunlop™ JD-4S Rotovibe Expression
Pedal, Dunlop™ UV1FC Univibe Controller Pedal and others.
Part #D-ECB129 |
$10.95 |
|
![](ecb31_small.png)
Click on photo for
larger view |
REPLACEMENT
SWITCH FELT FOR
Dunlop™ WAH PEDALS
Dunlop™ felt pad with adhesive - attaches to
underside of foot platform, cushions contact with toe switch.
Approximately 11/16" in diameter.Original replacement part
for Dunlop™ 105Q Crybaby Bass Wah, Dunlop™ 535Q Crybaby Multi-Wah, Dunlop™ 95Q
Crybaby Q-Wah, GCB80, Dunlop™ GCB95 Original Crybaby, Dunlop™ Dunlop™ GCB95
Original CrybabyF Crybaby Classic Wah, Dunlop™ JD-4S Rotovibe Expression
Pedal, Dunlop™ UV1FC Univibe Controller Pedal and others.
Part #D-ECB031 |
$2.99 |
|
![](ecb590_small1.jpg)
Click on photo for
larger view |
REPLACEMENT
HOUSING SCREWS FOR MXR™ PEDALS
Set of 4 housing screws for MXR™, Way Huge and
other pedals which use 6-32 x 1/2" screws, including pedals which use Bud or
Hammond style enclosures.Replacement
screws for Dunlop™ DCB10 DC Brick, MXR™ M101 Phase 90, MXR™ M102 Dyna Comp,
MXR™
M103 Blue Box, MXR™ M104 Distortion+, MXR™ M115 Distortion III, MXR™ M132
SuperComp, MXR™ M133 Micro Amp, MXR™ M134 Stereo Chorus, MXR™ M169 Carbon Copy
Analog Delay, MXR™ M173 Classic 108 Fuzz, MXR™ M182 El Grande Bass Fuzz,
MXR™
MC401 Custom Audio Electronics Boost, MXR™ MC402 Boost Overdrive, Dunlop™ ZW44 Zakk Wylde Overdrive and others.
Part #D-ECB590 |
$0.59
(for a set of 4 screws) |
|
![](p-ecb-151_small.gif)
Click on photo for
larger view |
Dunlop™ RUBBER FEET, SET OF 4.
Made for Dunlop™ Crybaby and Vox™ Wah pedals, and other applications where small rubber feet are needed. Screws included. Rubber feet are 5/8" diameter x 1/4" tall.
Part #D-ECB151 |
$6.95 |
|
![](ecb127_small.jpg)
Click on photo for
larger view |
RACK,
ORIGINAL Dunlop™™
Original Dunlop™ replacement rack for wah
pedals (roll pin included : 0.77" length x 0.07" diameter - for mounting the
rack to the treadle).
The rack has 14 teeth and mounts to the underside of the treadle piece (rocking
structure) of a wah pedal. The teeth of the rack interlock with the teeth of the
wah potentiometer gear (i.e. pinion), thereby rotating the potentiometer's shaft
as the treadle is rocked back and forth.
Part #D-ECB127 |
$3.79 |
|
![](ecb244_small.gif)
Click on photo for
larger view |
Dunlop™ DROP-IN BATTERY BOX FOR CRYBABY.
New style replacement
battery holder for Dunlop™ CryBaby pedals. Works with all GCB95 style Crybaby pedals with a rectangular cutout in the bottom panel for the battery. Replaces the original battery clip which was prone to breaking. Original
Dunlop™ replacement part.
Part #D-ECB244 |
$3.95 |
|
![](ecb-124_small2.gif)
Click on photo for
larger view |
Dunlop™™
Replacement rubber grommets for many models of
Dunlop™ Wah pedals.
Set of 12 (3 each of 4 sizes) bumpers includes:
- 3 pieces measuring about 0.38" diameter x
0.35" height (with 0.13" diameter center hole)
- 3 pieces measuring about 0.38" diameter x
0.21" height (no hole)
- 3 pieces measuring about 0.38" diameter x
0.16" height (no hole)
- 3 pieces measuring about 0.38" diameter x
0.13" height (no hole)
Commonly, two front bumpers are fastened
underneath the toe-end of the treadle and one rear bumper is fastened underneath
the heel-end of the treadle. Alternate bumper heights allow you to customize the
fit and feel when stepping into the footswitch or rocking back to a maximum open
treadle position.
Part #D-ECB124 |
$10.95 |
|
![](ecb152_small1.jpg)
Click on photo for
larger view |
BOTTOM PLATE WITH BATTERY DOOR AND CLIP,
Dunlop™™ Bottom Plate with Battery Box for GCB-95. Original Dunlop™ replacement part. Includes the D-ECB244 battery box (above) and 4 rubber feet.
Part #D-ECB152 |
$25.95 |
|
|
Electronics
/ Fasel Inductors |
|
|
![](pcbgcb95_small.jpg)
Click on photo for
larger view |

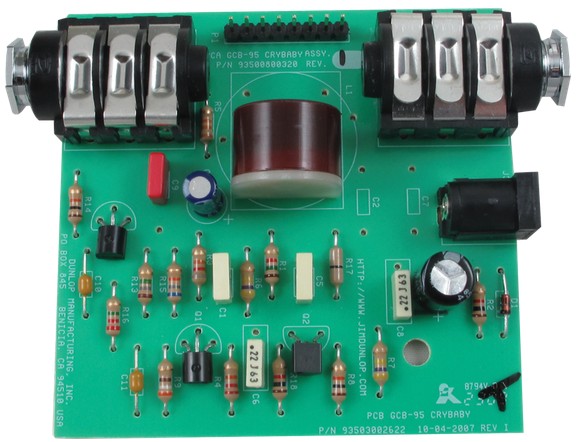

CRYBABY REPLACEMENT CIRCUIT BOARD WITH RED FASEL INDUCTOR
Original Crybaby replacement circuit board for pedals made after 1990 (GCB-95). Contains sought-after red Fasel inductor. Original
Dunlop™ replacement part.
Note: Does not fit the very latest CryBaby version - the GCB-95F
(Version F).
Part #D-ECB25-FI |
$49.95 |
|
![](faselyellow_small.GIF)
Click on photo for
larger view |
FASEL INDUCTOR
The Fasel inductor is back! These near-mythical inductors are the key to the singing tonal sweep every wah player lusts for but
is unable to capture with a new pedal. The ultimate upgrade to your current wah, these magic bullets are available exclusively from
Dunlop™, the new worldwide agent for Fasel of Italy. Your wah will finally give up the lush harmonic sparkle you
have always heard in your head but could never coax from you rig. The yellow inductor is designed to give the vintage vibe sound. Use the red inductor for the cleanest sound possible.
Part #D-ECBFI-01 |
$28.95 |
|
![](p-ecb-fi-02_small1.gif)
Click on photo for
larger view |
FASEL INDUCTOR
The Fasel inductor is back! These near-mythical inductors are the key to the singing tonal sweep every wah
player lusts for but is unable to capture with a new pedal. The ultimate upgrade to your current wah, these magic bullets are available exclusively from
Dunlop™, the new worldwide agent for Fasel of Italy. Your wah will finally give up the lush harmonic sparkle you
have always heard in your head but could never coax from you rig. The red inductor is designed to give the cleanest sound possible. Use the yellow inductor for the vintage vibe
sound.
Part #D-ECBFI-02 |
$28.95 |
|
|
Adapters and Powering |
|
|
![](pps916_small5.jpg) Click on photo for larger view |
REVISIT EFFECTS PEDAL POWER SUPPLY 9V DC, 1.6
amps.
Input voltage from 100V AC to 240V AC. Output 9 volts DC,
1600mA, fully regulated. Connector is a 2.1mm inner
diameter, center negative, outside sleeve positive. Perfect for
most pedals which are 9V battery powered. This compact
supply will power up to 10 pedals (assuming each pedal requires 160mA or
less). For powering
multiple
pedals, see the DCC10X8 cable, below. Part #PPS-916 |
$14.95 | |
![](dcc10x8_small3.jpg)
Click on photo for
larger view |
REVISIT
PEDAL POWER DAISY CHAIN CABLE
Connect up to 10 Pedals with this Power Cable from a single power supply.
This daisy chain is the industry standard 2.1mm size. There are 1 in and 10
outs. It is well made, has right angle plugs and built with 22AWG wire.
Total length is 8 feet. The amperage capacity of the power supply you use
with this cable needs to be at least as large as the sum of all of the current
requirements of your pedals. For example, if each pedal requires
160mA (or 0.16 amps), the power supply needs to be capable of at least 10 x 0.16 =
1.6 amps (or 1600mA)
Part #DCC10X8 |
$9.95 |
|
![](ebs239_small.jpg)
Click on photo for
larger view |
PEDAL 9V
EMERGENCY BATTERY SUPPLY
Consists of a 9V battery clip wired to a 2.1mm x 5mm power connector - wired
for positive center. Add a 9V battery and you have a quick emergency
power source for a pedal with a dead battery. You know, you carry a
few spare 9V batteries with you to a gig, but when your pedal dies during a set
there is no time between songs to take it apart to swap the battery.
With this ingenious device, you will be up and running again in seconds.
If you need a negative center power source for a particular pedal, add the
PRC-127 cord below to reverse the polarity. 9V Battery not
included.
Part #EBS-239 |
$1.99 |
|
![](prc129_small.jpg)
Click on photo for
larger view |
REVISIT
POLARITY REVERSING ADAPTER CABLE
Fixes the frustrating problem of having a power supply designed for "center
pin positive" and a pedal which requires "center pin negative". Or
vice-versa! This ingenious adapter cable reverses the center pin
with the outside ring, allowing you to successfully use a "backwards" pedal with
your pedal power supply. The connectors are the popular 2.1mm x 5.5mm
size. 5 inches long.
Part #PRC-129 |
$2.29 |
|
![](1953591_small.jpg)
Click on photo for
larger view |
POWER CONNECTOR Adapter 2.1mm to 2.5mm
The two most common connectors for AC
Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm. The outside
diameter of these connectors are identical, but one uses a larger pin than the
other, and therefore they are not compatible. This Adapter has a
2.1mm pin in the back, with a 2.5mm hole in the front, for cases where the pin
in your pedal is just a tiny bit too large for the Adapter.
Part #195-3591 |
$2.99 |
|
![](1953604_small.jpg)
Click on photo for
larger view |
POWER CONNECTOR Adapter 2.5mm to 2.1mm
The two most common connectors for AC
Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm. The outside
diameter of these connectors are identical, but one uses a larger pin than the
other, and therefore they are not compatible. This Adapter has a
2.5mm pin in the back, with a 2.1mm hole in the front, for cases where the pin
in your pedal is just a tiny bit too small for the Adapter connector, and your
power is intermittent when you move the Adapter cable.
Part #195-3604 |
$2.99 |
|
![](bp573_small.jpg)
Click on photo for
larger view |
POWER BARREL PLUG
Replacement barrel power plug for many
A127apters. Connector is the popular 2.1mm x 5.5mm barrel plug found on many Adapters.
Soldering required to attach to cable.
Part #BP-573 |
$0.99 |
|
![](9vbc_small.jpg)
Click on photo for
larger view |
9V BATTERY CLIP.
Commonly found in effects pedals. Simple, durable construction.
5 3/4" red and black leads
Part #9VBC |
$0.45 |
|
|
ICs |
|
|
![](8-pindip_small.jpg) |
Op-Amp, 4558, very common in amplifiers, mixers, power amps. 8-pin DIP
Part #NJM4558-D |
$1.00 |
|
![](8-pindip_small.jpg) |
Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532 |
$1.50 |
|
![](8-pindip_small.jpg) |
Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534 |
$1.50 |
|
![](8-pindip_small.jpg) |
Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068 |
$1.50 |
|
![](8-pindip_small.jpg) |
Op-Amp, switchable, used in Marshall™ and Kustom amps. 8-pin DIP.
Improved replacement for 2120D, M2120, or M5201. This chip has
a higher slew rate and increased bandwidth product as compared with the original
op-amps. The original versions have been phased out of
production.
Part #NJM2121D |
$2.95 |
|
![](8-pindip_small.jpg) |
Op-Amp, very low offset voltage. Used in some effects pedals, such as the ProCo RAT.
Part #OP07 |
$2.95 |
|
![](8-pindip_small.jpg) |
Low-current, JFET input, TL062 Dual Op-Amp in
8-pin DIP package. Compatible with TL072 designs, with significantly
lower current draw. Good choice for battery-operated pedals to
increase battery life.
Part #TL062 |
$1.00 |
|
![](8-pindip_small.jpg) |
Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.
Also TL071CN.
Part #TL071CP |
$1.50 |
|
![](8-pindip_small.jpg) |
Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.
Also TL072CN.
Part #TL072CP |
$1.50 |
|
![](8-pindip_small.jpg) |
High slew rate, JFET input, TL082 Dual Op-Amp in
8-pin DIP packag
Part #TL082 |
$1.00 |
|
![](16pindip_small.jpg)
DG212CJ
Click on photo for
larger view |

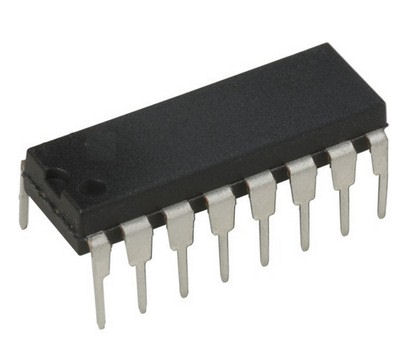

QUAD IC SWITCH, used in certain Marshall™ amps,
including some of the ValveState models. 16 Pin DIP.
Part #DG212CJ |
$7.95 |
|
![](4808-3004-cp_small.jpg)
4808-3004 |
From the 3M Company ... 8-pin DIP socket, fits all of the
8-pin op-amps above. We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
#4808-3004 |
$0.35 |
|
|
Footswitches |
|
|
![](hfn4_small.jpg)
Click on photo for
larger view |
Hex footswitch nut, pack of
4
These replacement nuts fit all
Carling™
brand footswitches and toggle switch and some (but not
all) other switches which are not made by Carling™.
Carling™
toggle switches are used in Fender™
amps. Hex outer
surface (9/16"), M12 thread for 15/32" bushing.
Part
HFN-4 |
$0.99
(for a pack of 4 nuts) |
|
![](ecb035_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
DPDT
Replacement DPDT footswitch for MXR™ and
Dunlop™ pedals. Made by Carling™ for Dunlop™
Original replacement part for:
Dunlop™ BG95 Buddy Guy Wah, Dunlop™ GCB95F Crybaby Classic Wah, Dunlop 535Q
Crybaby Wah, Dunlop™ JD-F2 Fuzz
Face Distortion, Dunlop™ JH-F1 Hendrix Fuzz Face, Dunlop™ JH-OC1 Jimi Hendrix
Octavio, MXR™ M101 Phase 90, MXR™ M102 Dyna Comp, MXR™ M103 Blue Box, MXR™ M104
Distortion+, MXR™ M107 Phase 100, MXR™ M134 Stereo Chorus, MXR™ M169 Carbon Copy
Analog Delay, MXR™ MC401 Custom Audio Electronics Boost, MXR™ MC404 Custom Audio
Electronics Wah, Dunlop™ SW95 Crybaby Slash Wah
Part #FS-435 |
$19.95 |
|
![](fs492_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
Carling™ BRAND, SPDT
Toe switch found in many type of footswitches, including the Dunlop™ Crybaby and Vox™ Wah
pedals. Made by Carling™. Also found in the vintage versions of the
MXR™ Phase 90 and
Phase 45. Has 3 electrical terminals (single pole, double throw).
Solder lugs for wire. NOT for the latest version Crybaby
Version F (GCB-095F) - see the FS-435 above for the Version F pedals.
Dunlop™ part number D-ECB069
Part #FS-492 |
$17.50 |
|
![](fs498pc_small.jpg)
Click on photo for
larger view |
FOOT SWITCH,
DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Used in a number of Dunlop™/MXR™ pedals, as well as factory guitar amp
footswitch boxes. Has 6 electrical terminals (double pole, double throw).
Part #D-ECB068 |
$6.95 |
|
![](ecb554_small.jpg)
Click on photo for
larger view |
FOOT SWITCH,
ALPHA MINIATURE DPDT,
LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many Dunlop/MXR stomp boxes.
Used in later revisions of the MXR Micro Amp, Carbon Copy, and others.
Also used in the later CSP101SL and M101 versions of the MXR Phase 90, MXR M107
Phase 100, MXR Dime
Distortion, MXR Bass Octave Deluxe, MXR Custom Badass Modified O.D., MXR Custom
Badass 78 Distortion, MXR Bass Distortion, MXR Bass Envelope Filter, MXR Bass
Fuzz Deluxe, MXR Bass Compressor, MXR Fullbore Metal, MXR M117R Flanger, MXR
Supercomp, MXR Microamp, MXR M134 Stereo Chorus, MXR M135 SmartGate, MXR M148
Micro Chorus, M169 Carbon Copy .
Dunlop part number ECB554. The
physical size of the pushbutton is the same as all of the other switches - only
the rectangular body of the switch is smaller for more compact spaces.
This is a "firm-click" switch - not a momentary. Switch is
marked "L" on the side (for locking). This switch is NOT the
same as the FS-211-PC switch - the D-ECB554 is an extended length switch for Dunlop™ / MXR
pedals only.
Part #D-ECB554 |
$14.95 |
|
![](ecb553_small.jpg)
Click on photo for
larger view |
TACTILE SWITCH,
DUNLOP, FOR WAH PEDALS
Original replacement part for Dunlop™
105Q Crybaby Bass Wah and Dunlop™ 95Q Crybaby Q-Wah.
Part #D-ECB553 |
$1.95 |
|
![](ScreenHunter%2022%20(03)_small.png)
Click on photo for
larger view |

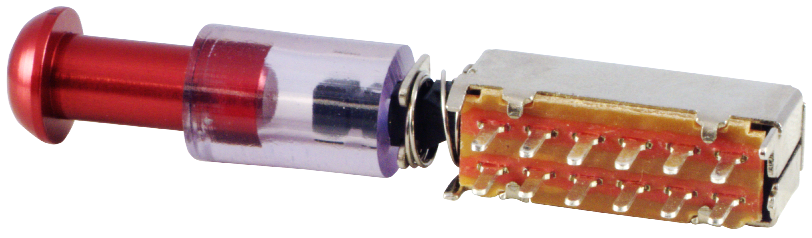

KICK SWITCH, DUNLOP, USED ON VARIOUS
DUNLOP
PEDALS. ORIGINAL DUNLOP PART NUMBER ECB233. Used in
a variety of specialized Dunlop pedals. Has 12 pins for
soldering to a PC board in the pedal, circuit is a 4PDT (4 pole, double throw)
Part #D-ECB-233 |
$16.95 |
|
![](ecb234_small2.jpg)
Click on photo for
larger view |
KICK SWITCH, DUNLOP, USED ON
THE ROTOVIBE
DUNLOP
PEDALS. Used in
the Dunlop Rotovibe pedal. Has 6 pins for
soldering to a PC board in the pedal, circuit is a DPDT (double pole, double throw)
Part #D-ECB-234 |
$16.95 |
|
![](fs498_small4.jpg)
Click on photo for
larger view |
FOOT SWITCH,
DPDT, LATCHING, FOR SWITCHING AND EFFECTS.
Electrically equivalent to FS-497, but with a smaller switch body. Has 6 electrical terminals (double pole, double throw). Solder lugs for wire
connections. Used in many brands of effects pedals and
footswitches. Original
footswitch for Dunlop™ Fuzz Face JD-F2. Dunlop™ part number ECB136
Part #FS-498 |
$3.95 |
|
![](fs493_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
Carling™ BRAND, SPST,
LATCHING, REPLACEMENT FOR Fender™, ETC.
Carling™ SPST footswitch. Used in Fender™ etc. Reverb/tremolo/channel switching pedals.
Has 2 electrical terminals (single pole, single throw).
Solder lugs for wire.
Part #FS-493 |
$9.95 |
|
![](fs552_small10.jpg)
Click on photo for
larger view |
FOOT SWITCH,
MOMENTARY, SPST,
NORMALLY OPEN
SPST footswitch,
soft touch
pushbutton footswitch. Normally open. These are good for tap tempos, loopers
(such as the Electro Harmonix 720 Stereo Looper) and anywhere you want the
option for a constant or fast foot tap. They're also ok for hand use as they're
not too hard to push with fingers. Has 2 electrical terminals (single pole, single throw).
Solder lugs for wire, normally open.
Part #FS-552 |
$4.95 |
|
![](fs497_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
Carling™ BRAND, DPDT,
LATCHING, FOR SWITCHING AND EFFECTS.
Has 6 electrical terminals (double pole, double throw).
Solder lugs for wire.
Part #FS-497 |
$13.95 |
|
![](ecb035_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
DPDT
Replacement DPDT footswitch for MXR™ and
Dunlop™ pedals.
Original replacement part for:
Dunlop™ BG95 Buddy Guy Wah, Dunlop™ GCB95F Crybaby Classic Wah, Dunlop 535Q
Crybaby Wah, Dunlop™ Crybaby Multiwah 535Q, Dunlop™ JD-F2 Fuzz
Face Distortion, Dunlop™ JH-F1 Hendrix Fuzz Face, Dunlop™ JH-OC1 Jimi Hendrix
Octavio, MXR™ M101 Phase 90, MXR™ M102 Dyna Comp, MXR™ M103 Blue Box, MXR™ M104
Distortion+, MXR™ M107 Phase 100, MXR™ M134 Stereo Chorus, MXR™ M169 Carbon Copy
Analog Delay, MXR™ MC401 Custom Audio Electronics Boost, MXR™ MC404 Custom Audio
Electronics Wah, Dunlop™ SW95 Crybaby Slash Wah
Part #FS-435 |
$19.95 |
|
![](fs211pc_small.jpg)
Click on photo for
larger view |
FOOT SWITCH,
ALPHA MINIATURE DPDT,
LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many stomp boxes. The
physical size of the pushbutton is the same as all of the other switches - only
the rectangular body of the switch is smaller for more compact spaces.
This is a "firm-click" switch - not a momentary. Switch is
marked "L" on the side (for "latching").
Part #FS-211-PC |
$6.95 |
|
![](fs211_small2.jpg)
Click on photo for
larger view |
FOOT SWITCH,
ALPHA DPDT, LATCHING, SOLDER
LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it has solder lugs for wire
attachment. Made for effects boxes that do not have a PC board under
the footswitch. The physical size of the pushbutton is the same as all of
the other switches - only the rectangular body of the switch is smaller for more
compact spaces. This is a "firm-click" switch - not a momentary.
Switch is marked "L" on the side (for "latching").
Part #FS-211 |
$6.95 |
|
![](fs311_small5.jpg)
Click on photo for
larger view |
FOOT SWITCH,
ALPHA 3PDT, LATCHING, SOLDER
LUGS, FOR SWITCHING AND EFFECTS. LOW PROFILE
Solder lugs for wire attachment, low profile, small body size for compact
spaces. Made for effects boxes that do not have a PC board under
the footswitch. 3PDT - perfect for true bypass plus an additional contact
for LED switching. Body size is 17mm L x 13.5mm W x 13mm H. This is a "firm-click" switch - not a momentary.
Switch is marked "L" on the side (for "latching").
Part #FS-311 |
$6.95 |
|
![](fs211pcm_small.jpg)
Click on photo for
larger view |
FOOT SWITCH,
ALPHA DPDT, MOMENTARY, PC MOUNT, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it is a slightly softer-click
momentary (no firm
click) for those pedals which require a momentary switch. Switch is
marked "M" on the side for momentary. Momentary switches
do not latch - once the switch is released, the contacts revert to their normal
state. Pins for PC
board mounting. The physical size of the pushbutton is the same as all of
the other switches - only the rectangular body of the switch is smaller for more
compact spaces. Note: With momentary PC Mount switches, it
is necessary to check the pins with a meter and determine the normally open and
normally closed pins, comparing to the original switch and design before
installing. Otherwise, it is possible to install a momentary switch
"backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-211-PC-M |
$6.95 |
|
![](fs211m_small1.jpg)
Click on photo for
larger view |
FOOT SWITCH,
ALPHA DPDT, MOMENTARY, SOLDER
LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC-M, except it has solder lugs for wire
attachment. This switch is a slightly softer-click momentary (no firm click) for those pedals
which require a momentary switch. Switch is marked "M" on the side for
momentary. Momentary switches do not latch - once the switch
is released, the contacts revert to their normal state. Made for effects boxes that do not have a PC board
under the footswitch. The physical size of the pushbutton is the same as
all of the other switches - only the rectangular body of the switch is smaller
for more compact spaces. Note: With momentary switches, it
is necessary to check the pins with a meter and determine the normally open and
normally closed pins, comparing to the original switch and design before wiring.
Otherwise, it is possible to install a momentary switch "backwards" (reversed
180 degrees) and the device will not work properly.
Part #FS-211-M |
$6.95 |
|
![](fs430m_small.jpg)
Click on photo for
larger view |
FOOT SWITCH,
DIGITECH, SPDT, MOMENTARY,
PC MOUNT This switch is the replacement foot switch for DigiTech foot controllers:
- RP1000
- Vocalist Live 3
- Control 2
Part #FS-430M |
$6.95 |
|
![](fs498_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection
rather than a latching connection. Solder lugs for wire,
a
Note: With momentary switches, it is necessary to check the pins
with a meter and determine the normally open and normally closed pins, comparing
to the original switch and design before wiring. Otherwise, it is possible
to install a momentary switch "backwards" (reversed 180 degrees) and the device
will not work properly.
Part #FS-503 |
$3.95 |
|
![](spdtmom2_small3.jpg)
Click on photo for
larger view |
FOOT SWITCH,
SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important: This is one of two types of momentary 3-pin SPDT
footswitches using the same footprint. Click on the diagram to the
left, compare the switching with your requirements. The other switch
is the FS-602-PC, with the opposite switching logic. Customer is
responsible for testing and selecting the switch with the correct switching
logic - Studio Sound Electronics is not responsible if the wrong switch is
selected. Made for switching and effects units which require a momentary connection
rather than a latching connection. Has 3 PC board terminals.
Part #FS-502-PC |
$4.95 |
|
![](spdtmom1_small3.jpg)
Click on photo for
larger view |
FOOT SWITCH,
SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important: This is one of two types of momentary 3-pin SPDT
footswitches using the same footprint. Click on the diagram to the
left, compare the switching with your requirements. The other switch
is the FS-502-PC, with the opposite switching logic. Customer is
responsible for testing and selecting the switch with the correct switching
logic - Studio Sound Electronics is not responsible if the wrong switch is
selected. Made for switching and effects units which require a momentary connection
rather than a latching connection. Has 3 PC board terminals.
Part #FS-602-PC |
$4.95 |
|
![](fs498pc_small.jpg)
Click on photo for
larger view |
FOOT SWITCH,
DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection
rather than a latching connection. PC terminals,
a
Used in the 5-way foot controller on the Marshall™ TSL-100 amps for the reverb
and effects switches.
Marshall™ Part number SWTP-00047. Also fits some Blackstar™ HT Dual
Footpedals. Blackstar™ part #MCSWH02014. Note:
With momentary PC Mount switches, it is necessary to check the pins with a meter
and determine the normally open and normally closed pins, comparing to the
original switch and design before installing. Otherwise, it is possible to
install a momentary switch "backwards" (reversed 180 degrees) and the device
will not work properly.
Part #FS-503-PC |
$3.95 |
CURRENTLY UNAVAILABLE
|
![](p-h501_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
3PDT, SOLDER LUGS,
LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw) Good quality, made in Taiwan. Commonly found in effects pedals which have "true bypass".
Solder lugs for wire.
Part #FS-501 |
$5.95 |
|
![](fs501pc_small.gif)
Click on photo for
larger view |
FOOT SWITCH,
3PDT, PC MOUNT,
LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw) Good quality, made in Taiwan. Commonly found in effects pedals which have "true bypass".
Made for PC mounting.
Part #FS-501-PC |
$5.95 |
|
![](fs504_small.jpg)
Click on photo for
larger view |
FOOT SWITCH,
4PDT, SOLDER LUGS,
LATCHING, FOR SWITCHING AND EFFECTS.
Has 12 electrical terminals (4 pole, double throw) For
use in effects pedals which have "true bypass".
Solder lugs for wire. Four poles allow additional features and
switching options for your own design, such as additional LED indicators in
addition to "true bypass". With 4PDT, the options you can create in
switching are limited only by your imagination!
Part #FS-504 |
$8.95 |
|
|
Jacks |
|
|
![](ecb040_small3.jpg)
Click on photo for
larger view |
JACK, STEREO,
MXR / Dunlop™ TYPE WITH EXTRA RING CONTACT
Exclusive Dunlop™ jack - used in several MXR and Dunlop™ pedals. Has additional off-normal contact on the ring conductor.
Chrome ferrule nut is included.
Part #D-ECB040 |
$5.95
|
|
![](j303_small.gif)
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED,
AUTHENTIC Lumberg™
German craftsmanship in a compact 1/4" jack. Mono, open circuit.
Perfect for tight fits in pedals.
Part #J-303 |
$2.89 |
|
![](j304_small.gif)
Click on photo for
larger view |
JACK, 1/4",
STEREO, OPEN CIRCUIT, WIRED,
AUTHENTIC Lumberg™
German craftsmanship in a compact 1/4" jack. Stereo, open circuit.
Perfect for tight fits in pedals. Commonly used as the input jack in many
pedals.
Part #J-304 |
$2.99 |
|
![](j11_small.jpg)
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output. Includes nut and washer.
Part #J-11 |
$4.29 |
|
![](jl11_small.jpg)
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L11 |
$5.39
|
|
![](jl11w_small5.jpg)
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING,
ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation
washers keep the jack from making contact with your chassis. This leaves the
jack ungrounded which is needed in certain applications.
Part #J-L11W |
$5.79 |
|
![](j12a_small.jpg)
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Found in vintage Fender™ (and other) amps as the input jack.
Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main
speaker out jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550). Peavey part number 71466004.
Part #J-12A |
$4.79 |
|
![](jl12a_small.jpg)
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT
(SHORTING), WIRED, Switchcraft™, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L12A |
$5.50 |
|
![](jl12aw_small1.jpg)
Click on photo for
larger view |
JACK, 1/4", MONO,
TIP SHUNT, WIRED, Switchcraft™,
LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but
includes a set of isolation washers.
The
isolation washers keep the jack from making contact with your chassis. This
leaves the jack ungrounded which is needed in certain applications.
Commonly used in older Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville
amps to
replace the fragile input jacks.
Part #J-L12AW |
$5.99 |
|
![](j12b_small.jpg)
Click on photo for
larger view |
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™
Used with T/R/S plugs for either balanced connections or stereo connections. Also very common in guitars with active pickups, and as the input jack on some effects pedals.
The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Fender part number 0013043000.
Part #J-12B |
$4.35 |
|
![](jl12b_small1.jpg)
Click on photo for
larger view |
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L12B |
$5.99 |
|
![](j13b_small.png)
Click on photo for
larger view |
JACK, 1/4", TIP/RING/SLEEVE, WITH
TIP SHUNT. Switchcraft 13B Jack.
Tip/Ring/Sleeve
Switchcraft jack. Tip has a shunt contact, ring contact is open
circuit.
Part #J-13B |
$6.95 |
|
![](isw3069_small.jpg)
Click on photo for
larger view. Jack is in the picture to demonstrate how the washers
are installed - jack is NOT included with the washers. |
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal
bushings. Used to mount standard jacks in a 1/2" diameter chassis
hole, while insulating the metal bushing (ground) of the jack from the chassis.
ID 3/8", OD 1/2". Works great when replacing isolated plastic jacks with a
more durable metal jack, which is frequently done on the input jacks of the
Fender™ Hot Rod Deville/Deluxe and Blues Deville/Deluxe. Two washers
are used on each jack, and the "shoulders" are placed facing each other through
the chassis. The washers not only isolate the ground of the jack
electrically for noise reduction, but also stabilize the jack in the 1/2"
diameter hole. Jack shown in picture NOT included. Works
well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13,
J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069 |
$0.49
(For a pair of washers. Each jack needs two washers.) |
|
Click on photo for
larger view |
JACK, 1/4", OPEN CIRCUIT
STEREO, HAND WIRED, Switchcraft™
STYLE,
NON-ISOLATED
METAL BUSHING
Common input jack in guitars, hand-wired effects pedals. 2 pins T/S,
open circuit, non-switched. Nut and washer included.
Part #J-111X |
$4.39 |
|
Click on photo for
larger view |
JACK, 1/4", OPEN CIRCUIT
STEREO, HAND WIRED, Switchcraft™
STYLE,
ISOLATED
NYLON BUSHING
Common input jack in guitars, hand-wired effects pedals. 2 pins
T/S,
open circuit, non-switched, nylon bushing for ground isolation. Nut and washer included.
Part #J-N111X |
$3.99 |
|
Click on photo for
larger view |
JACK, 1/4", OPEN CIRCUIT
STEREO, HAND WIRED, Switchcraft™
STYLE,
NON-ISOLATED
METAL BUSHING
Common input jack in guitars, hand-wired effects pedals. 3 pins T/R/S,
open circuit, non-switched. Nut and washer included.
Part #J-112BX |
$4.50 |
|
Click on photo for
larger view
|
JACK, 1/4", OPEN CIRCUIT
STEREO, HAND WIRED, Switchcraft™
STYLE,
ISOLATED
NYLON BUSHING
Common input jack in guitars, hand-wired effects
pedals. 3 pins T/R/S,
open circuit, non-switched, nylon bushing for isolation. Nut and washer included.
Part #J-N112BX |
$4.50 |
|
Click on photo for
larger view
|
JACK, 1/4", CLOSED CIRCUIT
STEREO, HAND WIRED, Switchcraft™
STYLE,
METAL BUSHING
Common input jack in guitars, hand-wired effects pedals. T/R/S
closed circuit, switched, metal bushing, 5 pins for wiring. Nut and washer included.
![](114.gif)
Part #J-114BX |
$4.99 |
|
Click on photo for
larger view |
JACK, 1/4", CLOSED CIRCUIT
STEREO, HAND WIRED, Switchcraft™
STYLE,
METAL BUSHING
Tip is switched
(normally
closed), ring conductor is not switched. 4 pins for wiring, metal bushing. Used in DOD™
and other brands. Nut and washer included.
Part #J-114BX-A |
$4.99 |
|
![](j580_small4.jpg)
Click on photo for
larger view |
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps,
as well as Marshall™ , B52, Trace Elliot, Orange, etc. NOT used in Crate™, Ampeg™. 4 PC board terminals. Chrome nut has male threads, jack has female threads. Leads from jack come straight down from the contacts to go into the PC board. With nut and washer.
Part #J-580 |
$3.99 |
|
![](j581_small5.jpg)
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as
Marshall™ , B52, Trace Elliot, Orange, etc and Dunlop™™/MXR™ products. NOT used in Crate™, Ampeg™
(see J-581L for those). 6 PC board terminals. Chrome nut has male threads, jack has female threads. Leads from jack come straight down from the contacts to go into the PC board. With nut and washer.
Part #J-581 |
$4.49 |
|
![](ecb040_small3.jpg)
Click on photo for
larger view |
JACK, STEREO, MXR / Dunlop™ TYPE WITH EXTRA RING CONTACT
Exclusive MXR / Dunlop™ jack - used in several MXR and Dunlop™ pedals. Has additional off-normal contact on the ring conductor.
Chrome nut is included.
Part #D-ECB040 |
$5.95
|
|
![](jnut38-6_small13.jpg)
Click on photo for
larger view |
SAVE WITH MULTIPACK!
JNUT-38 JACK NUT AND WASHER, METAL,
SWITCHCRAFT™, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots. Set of
6 washers and 6 nuts.
Part #JNUT-38-6 |
$4.50
(Set of 6 washers and 6 nuts) |
|
![](jnut38_small.jpg) |
JACK NUT AND WASHER, METAL,
SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38 |
$0.89
(Set of 1 washer and 1 nut) |
|
|
Knobs |
|
|
![](k828_small1.jpg)
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Small size 0.78"
(20mm) diameter, 0.43" (11mm) tall, fits
smooth 1/4" shaft. Silver top is ridged, similar to the cap on a
Marshall knob. Classic look found on Boss FX units.
With set screw.
Part #K-828 |
$1.50 |
|
![](k348_small1.jpg)
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Medium size 0.91"
(23mm) diameter, 0.5" (12mm) tall, fits
smooth 1/4" shaft. Smooth silver top. Classic look found on
Boss FX units.
With set screw.
Part #K-348 |
$1.95 |
|
![](k372_small1.jpg)
Click on photo for
larger view |
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
CLASSIC LOOK FOUND ON BOSS EFFECTS PEDALS
Large size 1.06" (27mm) diameter, 0.6"
(15mm) tall, fits
smooth 1/4" shaft. Smooth silver top. Classic look found on
Boss FX units. With set
screw.
Part #K-372 |
$1.95 |
|
![](ecb-130_small.gif)
Click on photo for
larger view |
Dunlop™
MXR™ KNOB, BLACK KNOB WITH WHITE LINE
Original Dunlop™ MXR™ Knob - as used on the Phase 90 and other
MXR™ pedals.
With set screw.
Part #D-ECB130 |
$5.99 |
|
![](k829_small.jpg)
Click on photo for
larger view |
REPRODUCTION OF THE MINI MXR™ KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small
MXR™ Knob.
Also works great as a replacement on many Orange Amps. Diameter (bottom):
20mm, Height: 11.45mm
With Set Screw. Datasheet
Part #K-829 |
$1.99 |
|
![](ecb-131_small.gif)
Click on photo for
larger view |
Dunlop™
MXR™ KNOB COVER
Original Dunlop™ MXR™ Knob Cover - as used on the Phase 90 and other MXR™ pedals.
Part #D-ECB131 |
$3.79 |
|
![](k559_small3.jpg)
Click on photo for
larger view |
REPRODUCTION OF THE DAVIES 1900H KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small
1900H Davies knob.
Looks great on pedals. 1/4" Shaft, Size-Diameter 12.7mm, height 15.9mm,
With Set Screw.
Part #K-559 |
$1.99 |
|
![](k1400_small.jpg)
Click on photo for
larger view |
DAVIES STYLE 1400 REPRODUCTION KNOB.
Replaces the Dunlop™ ECB245 knob. Small knob, 11/16" diameter x
13/32" high. For 1/4" smooth shaft - with set screw.
Part #K-1400 |
$1.99 |
|
![](k147_small.jpg)
Click on photo for
larger view |
DAVIES STYLE 1470 REPRODUCTION KNOB.
Used on a number of classic effects pedals.
Larger knob, 1" diameter (at the base) x 1/2" high.
Pointer extends about 3mm beyond the outside rim of the knob. Black
thermoset plastic, for 1/4" smooth shaft - with
brass set screw.
Part #K-1470 |
$1.99 |
|
|
Pots |
|
|
![](ecb424b_small1.png)
Click on photo for
larger view |
POT, GEARED, 100K, DUNLOP HOT
POTZ II FOR USE ON DUNLOP CRYBABY
The Jim Dunlop ECB-424B Hot Potz II 100K
Potentiometer is a replacement for Dunlop Crybaby wah pedals.
Features super long life and is sealed to keep all dirt, grime and grease out of
the pot.
Part #D-ECB-424B |
$39.99 |
|
![](ecb424a_small1.png)
Click on photo for
larger view |

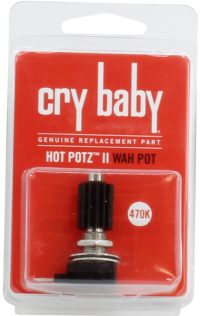

POT, GEARED,
470K, DUNLOP HOT POTZ II FOR USE ON DUNLOP JIMI HENDRIX CRYBABY
The Jim Dunlop ECB-424A Hot Potz II 470K
Potentiometer is a replacement for Dunlop Jimi Hendrix Crybaby wah pedals and
the GCB80 High Gain Volume Pedal.
Features super long life and is sealed to keep all dirt, grime and grease out of
the pot.
Part #D-ECB-424A |
$39.99 |
|
![](rvwahpot_small.GIF)
Click on photo for
larger view |
POT, GEARED, 100K, FOR USE ON
Dunlop™ CRYBABY AND Vox™ WAH PEDALS
Smooth operation, very similar to original pots as used in the Dunlop™ and Vox™ pedals. Replacement pot for
Dunlop™, Vox, etc., Wah pedals with gear & rack operation. Nut and washers included. 100K as used in most wah pedals. (Note - not for pedals where the control pot is PC board mounted, such as the Crybaby 535Q.) Soldering is required to install this replacement pot. Unlike the original sealed pot (or the replacement sealed Hot Potz), this pot has a slot where cleaning fluid may be sprayed.
Part #R-VWAH |
$11.95 |
|
![](alphamed_small4.gif)
Click on photo for
larger view |
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING,
MEDIUM SHAFT (10mm LONG).
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is
10mm. Click on photo for more detail.
Select Pot Value in Options
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-VM16M-XX |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 10K OHM AUDIO, (A10K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V10KA-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 10K OHM LINEAR, (B10K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V10KL-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 20K OHM LINEAR, (B20K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
Part #P-V20KL-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 25K OHM LINEAR, (B25K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
Part #P-V25KL-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 50K OHM AUDIO, (A50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V50KA-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 50K OHM LINEAR, (B50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V50KL-M16S |
$3.95 |
|
![](p-vb50kx2-16mm-s_small1.jpg)
Click on photo for
larger view |
POT, DUAL 50K OHM LINEAR, (B50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V50KLX2-M16S |
$6.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 50K OHM REVERSE AUDIO, (C50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V50KC-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 100K OHM AUDIO, (A100K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V100KA-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 100K OHM LINEAR, (B100K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V100KL-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 250K OHM AUDIO, (A250K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V250KA-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 250K OHM LINEAR, (B250K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V250KL-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 500K OHM AUDIO, (A500K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V500KA-M16S |
$3.95 |
|
![](pv16mms_small.jpg)
Click on photo for
larger view |
POT, 1 MEG OHM AUDIO, (A1M), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is 6.5mm. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the JN-1018 nut found in this section)
Part #P-V1MA-M16S |
$3.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 1K LINEAR TAPER, (B1K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-1KB |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 2K LINEAR TAPER, (B2K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-2KB |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 5K AUDIO TAPER, (A5K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-5KA |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 5K LINEAR TAPER, (B5K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-5KB |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |

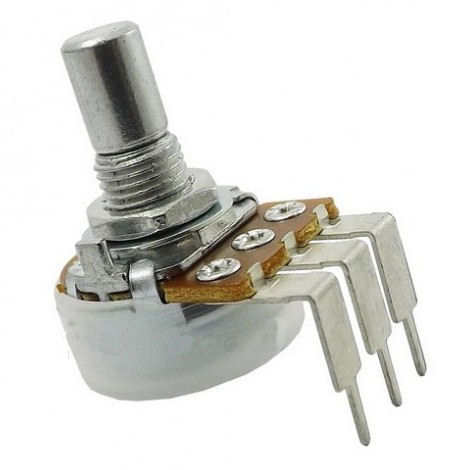

POT, 10K AUDIO TAPER, (A10K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-10KA |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |
POT, 10K LINEAR TAPER, (B10K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-10KB |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 25K AUDIO TAPER, (A25K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-25KA |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |
POT, 25K LINEAR TAPER, (B25K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-25KB |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 50K AUDIO TAPER, (A50K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-50KA |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |
POT, 50K LINEAR TAPER, (B50K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-50KB |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |
POT, 100K AUDIO TAPER, (A100K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-100KA |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |
POT, 100K LINEAR TAPER, (B100K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY,
7mm DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT,
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-100KB |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 250K AUDIO TAPER, (A250K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-250KA |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |
POT, 250K LINEAR TAPER, (B250K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY,
7mm DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT,
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-250KB |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 500K AUDIO TAPER, (A500K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-500KA |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 500K LINEAR TAPER, (B500K), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY,
7mm DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-500KB |
$2.95 |
|
![](pv41_small.jpg)
Click on photo for
larger view |
POT, 1 MEG AUDIO TAPER, (A1M), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha.
Part #P-V41-1MA |
$2.95 |
|
![](pv41dc_small.jpg)
Click on photo for
larger view |
POT, 1 MEG LINEAR TAPER, (B1M), PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm
DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT
For use in many brands of effects pedals. For use with 1/4" type
set-screw knobs. INCLUDES NUT & WASHER.
(For spare or replacement nut,
order the JN-1018 nut found in this section).
Made by Alpha, body enclosed in thin plastic dust seal for extra long life.
Part #P-V41-1MB |
$2.95 |
|
