Prices good now through August 31, 2017
(while supplies last)


Click on photo for
larger view
CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD ELECTROLYTIC, 16uF/450V PACK OF 5.   Save with multi-pack!    Get 5 of the Ruby Gold popular 16uF/450V capacitors for 1/2 off the single price!   Many Fender Deluxe Reverb amplifiers from the 1960s and 1970s use 5 of this size capacitor.  Ruby Gold capacitors are used by many original amplifier manufactures in the Europe and the U.S.A.  Ruby Gold Capacitors are rated at 105° C for longer life, improved stability in the hot environment of tube amplifiers, and increased protection against electrolyte deterioration.
Part #RG-CAP-16/450X3
$12.95
(For a pack of 5 Ruby Gold 16uF/450V Axial Capacitors)



Click on photo for
larger view
CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD ELECTROLYTIC, 22uF/500V PACK OF 3.   Save with multi-pack!    Get 3 of the Ruby Gold popular 22uF/500V capacitors for 1/3 off the single price!   Many Fender vintage amplifiers use 3 of this size capacitor.  Ruby Gold capacitors are used by many original amplifier manufactures in the Europe and the U.S.A.  Ruby Gold Capacitors are rated at 105° C for longer life, improved stability in the hot environment of tube amplifiers, and increased protection against electrolyte deterioration.
Part #RG-CAP-22/500X3
$11.95
(For a pack of 3 Ruby Gold 22uF/500V Axial Capacitors)



Click on photo for
larger view
CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD ELECTROLYTIC, 70uF/350V PACK OF 2.   Save with multi-pack!    Get 2 of the Ruby Gold popular 70uF/450V capacitors for 1/3 off the individual price!   Many of the following Fender amps use 2 of this size capacitor:   Bandmaster Reverb 1968-1974, Dual Showman Reverb 1969-1971, Pro Reverb 1965-1972, Showman Reverb AA768, Super Reverb 1964-1974, Twin Reverb 1963-1968, and Vibroverb AB763.  Ruby Gold capacitors are used by many original amplifier manufactures in the Europe and the U.S.A.  Important:   Note the polarity alignment of the existing 70uF capacitors before removing them from the amplifier!    The two capacitors are installed with opposing polarity, and it very important to get them aligned correctly.
Part #RG-CAP-70/350X2
$9.95
(For a pack of 2 Ruby Gold 70uF/350V Axial Capacitors)



Click on photo for
larger view
FENDER® STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  INCLUDES INTEGRAL BASE FOR TWIST-LOCK TUBE SHIELD.        Fits 12AX7, 12AU7, 12AT7, etc.   Sturdy Micalex construction, for 3/4"  hole.  Solder tabs for wire connections.   Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TS-325S tube shield, or vintage Fender® tube shields.   Used in Fender® vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.   Also applicable to early Marshall® designs.
Part #TS-9-700-WS
Special Price!
$1.99


Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  PC MOUNT, MICALEX.    9 pin ceramic PC mount socket, stand-off mounting, 3/4" diameter, 3/4" tail diameter.  For bottom mounting (mounted from the inside of the chassis, below the chassis hole).   Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.    Micalex replacement for the tube sockets in the Fender® Blues Junior, Pro Junior, and the Fender® Hot Rod Deluxe/Deville and Blues Deluxe/Deville.  Fender part number 0029167049.
Part #TS-9-620-WS
Special Price!
$1.69


Click on photo for
larger view
10-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  PC MOUNT, MICALEX.    9 pin ceramic PC mount socket, stand-off mounting, 3/4" diameter, 3/4" tail diameter.  For bottom mounting (mounted from the inside of the chassis, below the chassis hole).   Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.    Fender part number 0029167049.    Used in the Fender® Blues Junior, and the Fender® Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Part #TS-9-620-10
Special Price!
$12.95
(for a 10-pack of tube sockets)


Click on photo for
larger view
FUSE HOLDER, Fender® STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE
Fender® style fuse holder, replacement for many other brands.   Twist-lock cap.   Durable, rugged design - better than OEM.  Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-201-WS
Special Price!
$2.95



Click on photo for
 larger view
PLUG, MALE XLR TYPE, NICKEL
Heavy-duty construction.  3-pin, similar to Switchcraft A3M.  Limited quantity available.
Part XLR-A3M


$1.99




Click on photo for
 larger view
PLUG, FEMALE XLR TYPE, NICKEL
Heavy-duty construction.  3-pin, similar to Switchcraft A3F.  Limited quantity available.
Part XLR-A3F


$1.99




Click on photo for
larger view
IEC POWER CONNECTOR, NON-FUSED, PCB TYPE, SNAP-IN ATTACHMENT TO PANEL
Popular IEC type AC connector.   Pins on rear, designed to connect to PC board ... however, it is possible to solder wires up to 18ga in size to the pins on the rear of the connector.   Designed to snap into 0.8" x 1.10" rectangular panel hole.   Original Schurter part number 6150-5515.   Data sheet here.
Part #ACS-52
$0.99



CAPACITOR SET, PANASONIC, 2200uF/25V   Set of 6 radial-lead 2200uF/25V Panasonic ECA-1EM222 series electrolytic capacitors, rated at 85° C.   26mm tall x 12.5mm diameter.   Fresh, brand new, at a great price.

Part #2200-25WS

Special Price!
$1.99
for a set of 6 capacitors



CAPACITOR, direct replacement for LCR type capacitors popular in Marshall® JCM900 series amps.    This is a dual can style capacitor 32uF/32uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.
Part #ELC-CAP-3232
Special Price!
$6.95



RESISTOR, CARBON COMPOSITION.    New production, 1/2 watt.   1500 Ohms, 5%.    Common size for 6L6 grid stopper resistors in vintage Fender® amps!
Part #1500CC1/2
Special Price!
$0.39

RESISTOR, CARBON COMPOSITION.    New production, 1/2 watt.   100K Ohms, 5%.    Common size for plate resistors in vintage Fender® amps!
Part #100KCC1/2
Special Price!
$0.39



Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JN-916

JACK, 1/4", Low Profile 9-PIN.    Generic 9-pin 1/4" Jack, low profile.   Gold trim ring.   See larger view of dimensions here.   This jack has an extra-long nose (11.5mm) and short bullnose threads.   Will work in some 9-pin applications, but not all.   Strongly suggest comparing dimensional drawing with requirements.  Limited quantity.

NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JN-916, BELOW
Part #J-550
Special Price!
$0.99







Click on photo for
larger view
USB CONNECTOR, "B" type.   USED IN YAMAHA, KORG, ROLAND, Others. Korg part number CON0001079, as found in the Korg SV1-73, and Triton Extreme.  Also found in the Access Virus T1, Akai MPK49 and MPK61, Alesis Q25, Q49, QX25, QX49, Dave Smith Prophet 12, Edirol PCR Series, M-Audio Axiom 49, Axiom Pro 49, Axiom 61, Axiom Pro 61, KeyRig Series, Keystation Series and Key Studio, Roland PCR Series Controllers, and Yamaha MM6, MM8, and S90, as well as other brands and models not listed.  Line 6 part number 21-21-0001, as found in many Line 6 guitar processors.
Part #J-437
Special Price!
$1.00



Click on photo for
larger view

JACK PLATE, BLACK METAL
For two 1/4" jacks.  Steel dish pre-punched for mounting two 1/4" phone jacks. Constructed of heavy-duty 1.2 mm/.047" steel.  Works well with the Switchcraft J-11 jacks that we carry.  Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 4" x 4 3/8".   Requires 2-7/8" x 3-1/4" cutout.
Part #JP-345

Special Price!
$5.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 3 1/2" x 5 1/8".   Cabinet cutout size should be 2 1/2" x 4 1/8".
Part #JP-334

Special Price!
$6.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 4" x 4 3/8".   Requires 2-7/8" x 3-1/4" cutout.
Part #JP-028

Special Price!
$5.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two 1/4" jacks and two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Works well with the Switchcraft J-11 1/4" jacks that we carry.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 3 1/2" x 5 1/8".   Cabinet cutout size should be 2 1/2" x 4 1/8".
Part #JP-338

Special Price!
$7.50


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two 1/4" jacks and two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Works well with the Switchcraft J-11 1/4" jacks that we carry.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 4" x 4 3/8".   Requires 2-7/8" x 3-1/4" cutout.
Part #JP-322

Special Price!
$6.50


Click on photo for
larger view
0.68 OHM 2 WATT RESISTOR, XICON, METAL FILM FLAMEPROOF, PACK OF 10.  Incredible deal on these 0.68 ohm resistors.  2 watts, used as emitter resistors, in switched mode power supplies, and more!   This low price is for a pack of 10 resistors!

Part #D68R2W-10

Special Price!
$0.50
(for a pack of 10 resistors)



CAPACITOR, direct replacement for LCR type capacitors popular in Marshall® JCM900 series amps.    This is a dual can style capacitor 32uF/32uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 60 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great tone and reliability.
Part #FT-3232
Special Price!
$9.95



Click on photo for
larger view

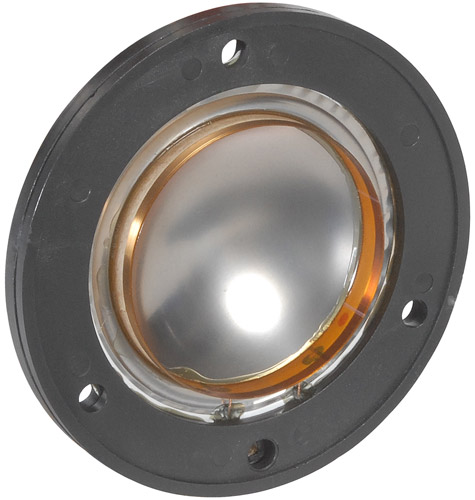

Genuine  Eminence Diaphragm
8 Ohms

REPLACEMENT 8-OHM AUDIO DIAPHRAGM.  TITANIUM COMPRESSION DRIVER, 2" DIAMETER VOICE COIL, 80 WATTS, 8 OHM IMPEDANCE, 1,200-20,000HZ.   USED IN MANY PROFESSIONAL HORN DRIVERS, INCLUDING YAMAHA AND CARVIN.
Part #
PSD2002-8DIA
We have just one of these left in stock!

Special Price!
$33.95

Stock no:
PSD2002-8DIA
8 Ohms
$33.95


We have just one of
these left in stock!


Click on photo for
larger view
Genuine  Eminence Diaphragm
16 Ohms

REPLACEMENT 8-OHM AUDIO DIAPHRAGM.  TITANIUM COMPRESSION DRIVER, 2" DIAMETER VOICE COIL, 80 WATTS, 16 OHM IMPEDANCE, 1,200-20,000HZ.   USED IN MANY PROFESSIONAL HORN DRIVERS, INCLUDING YAMAHA AND CARVIN.
Part #
PSD2002-16DIA

Special Price!
$33.95

Stock no:
PSD2002-16DIA
16 Ohms
$33.95
