Fender® Capacitor Kits


Click on photo for
larger view
Fender® Electrolytic Capacitor Kits
Fender capacitor kits contain all of the main filter, decoupling filter, bias filter and preamp cathode bypass electrolytic capacitors for most amps from the blackface and silverface eras.   The kits are assembled from premium capacitors made by F&T of Germany (filter capacitors) and Illinois Capacitor  (cathode bypass capacitors).
Prices starting at $32.95 Click here to see the full selection of Fender capacitor kits.
  Fender® Front Panel Rehab Kits for Vintage Blackface & Silverface (60s & 70s)


Click on photo for
larger view
Fender® Front Panel Rehab Kit for one channel amplifiers    For vintage Fender® amps made before 1980 from the original blackface and silverface eras.  Not for reissues.  Contains two Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors.  Also contains a new bright switch with screws, and a new pilot light (your choice of color).   Scratchy, intermittent jacks and bright switch?    Pilot light dim, or intermittent?   This kit will take care of those problems.   Add a potentiometer kit for a complete front panel component replacement.  (Note:  On Bronco, Champ and Vibro Champ, the switch in this kit replaces the power switch).   Select lamp jewel color in options.   Fits the following one-channel amplifiers:   Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface),  Princeton (1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764 (Blackface 1964-67, Silverface 1968-1982).  Select lamp jewel color in options.
Part #FPRK-1-X
$16.50

Select Option:


Quantity:



Click on photo for
larger view
Fender® Front Panel Rehab Kit for two channel amplifiers    For vintage Fender® amps made before 1980 from the original blackface and silverface eras.  Not for reissues.  Contains four Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus four 68K and two 1 Meg carbon composition resistors.  Also contains two new bright switches with screws, and a new pilot light (your choice of color).   Scratchy, intermittent jacks and bright switch?    Pilot light dim, or intermittent?   This kit will take care of those problems.   Add a potentiometer kit for a complete front panel component replacement.
Bandmaster (1964-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1964-1982), Bassman 10 (Silverface 1972-1982), Concert (1964-1965 Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman (1967-69 Silverface), Dual Showman Reverb (1968-1981), Pro (1964-1965 Blackface), Pro Reverb (1965-1982 Blackface and Silverface), Quad Reverb (1972-1979 Silverface) Showman (1964-1967 Blackface), Showman (1968-1970 Silverface), Super Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979), Tremolux (1964-1966 Blackface), Twin Reverb (1963-1982 Blackface and Silverface), Vibrolux (1964 Blackface), Vibrolux Reverb (1964-1982 Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb (1964 Blackface).

Select lamp jewel color in options.

Part #FPRK-2-X
$25.95

Select Option:


Quantity:

  Fender® Input Jack Replacement Kits for Vintage Tweed, Blonde, Brown, Blackface & Silverface (50s, 60s & 70s)


Click on photo for
larger view
Fender® Input Jack Replacement Kit for one channel amplifiers (or for just one channel of a two-channel amp).    For vintage Fender® amps made before 1980 from the original tweed, blonde, brown, blackface and silverface eras.  Contains two Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors.   This is the input circuit replacement kit for the following one-channel amplifiers:   Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface), Champ 5E1 (1955-1956), Champ 5F1 (1956-1964), Princeton (1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764 (Blackface 1964-67, Silverface 1968-1982).
Part #FJK-1
$7.99



Click on photo for
larger view
Fender® Input Jack Replacement Kit for two channel amplifiers.    For vintage Fender® amps made before 1980 from the original tweed, blonde, brown, blackface and silverface eras.  Contains four Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus four 68K and two 1 Meg carbon composition resistors.   This is the input circuit replacement kit for the following two-channel amplifiers:   Bandmaster (1956-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1961-1982), Bassman 10 (Silverface 1972-1982), Concert (1959-1965 Brown and Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman (1967-69 Silverface), Dual Showman Reverb (1968-1981), Harvard 6G10 (1955-1962 Tweed), Pro (1960-1965 Brown and Blackface), Pro Reverb (1965-1982 Blackface and Silverface), Quad Reverb (1972-1979 Silverface) Showman (1960-1967 Blonde and Blackface), Showman (1968-1970 Silverface), Super (1960-1963 Brown), Super Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979), Tremolux (1955-1966 Tweed, Blonde and Blackface), Twin (1958-1963 Tweed and Blonde), Twin Reverb (1963-1982 Blackface and Silverface), Vibrosonic (1959-1963 Brown), Vibrolux (1961-1964 Brown and Blackface), Vibrolux Reverb (1964-1982 Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb (1963-1964 Brown and Blackface).
Part #FJK-2
$15.99



  Fender® Power Tube Socket Replacement Kits for Vintage Blackface & Silverface (60s & 70s)

Click on photo for
larger view
Fender® Vintage Amp (60s Blackface and 70s Silverface) Power Tube Socket replacement kit.    For vintage Fender® amps (NOT Reissues!) from the original blackface and silverface eras which have two power tubes (6L6 or 6V6).   Contains two phenolic 8-pin sockets, two "bear trap" retainers, four mounting screws, two 470 ohm screen grid resistors (Metal-Film Flameproof for safety), and two carbon composition 1500 ohm control grid resistors.   Princeton and Princeton Reverb do not need the resistors.   Perfect for Vibrolux Reverb, Vibroverb, Super Reverb, Deluxe Reverb, Pro Reverb, Bassman, Bandmaster Reverb, Tremolux, etc.
Part #FPTSK-2
$10.95


Click on photo for
larger view
Fender® Vintage Amp (60s Blackface and 70s Silverface) Power Tube Socket replacement kit.    For vintage Fender® amps (NOT Reissues!) from the original blackface and silverface eras which have four power tubes (6L6).   Contains four phenolic 8-pin sockets, four "bear trap" retainers, eight mounting screws, four 470 ohm screen grid resistors (Metal-Film Flameproof for safety), and four carbon composition 1500 ohm control grid resistors.   Perfect for Twin Reverb, Showman and Dual Showman, Quad Reverb, Bassman 100, etc.
Part #FPTSK-4
$20.95

  Fender® Vibrato Rebuild Kits and other parts for the Vibrato circuit.   Vintage Blackface & Silverface (1963-1981)

Click on photo for
larger view
Fender® VIBRATO REBUILD KIT
For all vintage blackface and silverface Fender amplifiers with vibrato from the 1963-1981 era (not reissue models).   If you have vibrato problems, changing the vibrato 12AX7 oscillator tube should be the first step (2nd preamp tube away from the power tubes).   If that doesn't solve the problem, changing the components contained in this kit should do the trick.   Contains 3 phase shift ceramic disc capacitors and one optoisolator.   More info here.
Part #VRK-1
$12.95


Click on photo for
larger view

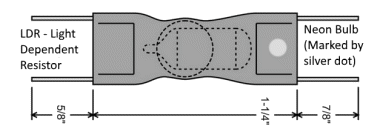

Fender® VIBRATO OPTOISOLATOR LDR ("BUG")
Used in the vibrato circuit of vintage Fender®  Blackface and Silverface amps.  Replaces Fender® part number 0037836000

Part #LDR-1020
$9.95


CAPACITOR, CERAMIC DISC, RADIAL.
  Replacement for the ceramic disc vibrato phase shift capacitors in vintage Blackface and Silverface Fender® amplifiers from the 60s and 70s.   Rated at 500 volts.  Available in .01uF and .02uF (See Options to select value)   Tips:  (1) If you would like to slow down the vibrato speed range (popular for jazz players):  There are three caps in the vibrato phase shift circuit - two .01s and a .02.  You can slow the vibrato speed down by replacing the .01s with .02s (so that all three ceramic disc caps are .02).  (2) Background ticking sound in the vibrato?   Install a .02 cap from ground to the leg of the optoisolator that connects to the 10 Meg resistor (brown/black/blue).

Part #C-CD-XX
$0.75

Select Option:


Quantity:


Click on photo for
larger view

Fender® RCA VIBRATO SHORTING PLUG   Did you know that on vintage Fender® amps (Blackface, Silverface), the reverb will work without a footswitch plugged in, but the vibrato will not?   This handy-dandy little RCA shorting plug will fix that problem, if you do not own or prefer not to use a footswitch on your vintage 60s or 70s Fender® amp.   Just plug this little RCA plug gadget into the vibrato footswitch jack on the back panel, and your vibrato will come alive.    Turn the intensity knob to zero to cut out the vibrato when this plug is inserted.  Note:  Does not apply to Vibro Champ, Princeton, or Princeton Reverb amps.  Inserting this plug turns the vibrato off in those models, removing the plug turns it on.
Part #FSP-100
$1.99



Fender® Jewel Kits




Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL KIT, Fender®, Peavey®, Mesa Boogie®, many others.   Kit of 6 jewels - change your light color as often as you like.   Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115
$12.99



Fender® Switch Kits



Click on photo for
larger view
SWITCH KIT, SLIDE, DPDT (6 TERMINALS)  Replacement For Bright Switch In 60's And 70's Fender® Amps, Kit Of 2 Switches, With Screws.    Click here for physical specifications.  For most Fender® blackface and silverface amps with two channels and "bright" or "deep" switches on both channels.    Kit contains 2 switches and 4 mounting screws.
Part #SW-242X2
$3.29
(Set of 2 switches and
4 screws)



Click on photo for
larger view
SAVE WITH MULTIPACK!  2 SWITCHES, CARLING® SPST TOGGLE, Original Carling® replacement for 60s and 70s Fender® power and standby switches.  Change both the power and standby switches on your Fender® at the same time, and save!
Part #SW-495X2
$8.95


Click on photo for
larger view
SAVE WITH MULTIPACK!  3 SWITCHES: Two Carling® SPST toggle switches and one Carling® SPDT toggle switch. Original replacement for 60's and 70's Fender® Amps (Power, standby, and ground switches). Change the power,  standby, and ground switches on your Fender® at the same time, and save!
Part #SW-4945
$13.99



Fender® Knob Kits



Click on photo for
larger view
MULTI-PACK KNOB, Fender®, SET-SCREW, SET OF 6 - SAVE!
Genuine Fender® amp knobs, skirted with 1-10 numbering.  Traditional "Witches Hat" design.   For vintage Fender® amps in the original blackface and silverface series.  Fits 1/4" shaft, with set-screw.   Original Fender® part number 0990930000.
Part #FVSK-6
$17.95


Click on photo for
larger view
KNOB, Fender®, Vintage Cream, Set of 6
Fender® part number 0990933000.  "Fender® Barrel" knob, cream white with brass inset and set-screw as used by:  Fender® 1960-1964 for the Fender® Bassman, Showman and Bandmaster Amp, and for several Fender® Custom Shop and Fender® Reissue amps:  Tone Master, Custom Vibrolux Reverb, Vibroking, Super Sonic Amp (blonde) etc.  Set of 6 knobs.
Part #K-315-6
$12.95
(for pack of 6 knobs)


  Fender® Amp Trim Refurb Kits


Click on photo for
 larger view
Fender® LARGE CABINET AMP COSMETIC REFURB KIT  For original 1960's blackface and pre-1975 silverface Fender® Twin Reverb, Super Reverb, Pro Amp, Pro Reverb, Concert, Vibrosonic models which use 5 5/8" long chassis straps.   Also fits some Piggyback amps such as certain Bassman, Bandmaster, Showman models - check length of chassis straps to determine correct kit.    Model not listed? - Contact us.   Not for amps made after 1974, not for reissued blackface and silverface amps.  Contains original Fender® handle with mounting hardware, 5 5/8" chassis straps with bolts and keps nuts, chrome sphinx glides, set of cabinet corners with mounting screws.   Spruce up the looks of your vintage  amp!    For additional refurbishing, see the Fender® logo plates here, Fender® knobs here, Fender® lamp jewels here and Fender® casters here
Part #FRK-5
$34.95



Click on photo for
 larger view
Fender® MEDIUM CABINET AMP COSMETIC REFURB KIT  For original 1960's blackface and pre-1975 silverface Fender® Deluxe, Deluxe Reverb, Princeton, Princeton Reverb, Tremolux, Musicmaster Bass, Vibrolux Reverb models which use 4 5/8" long chassis straps.   Also fits some Piggyback amps such as certain Bassman, Bandmaster, Showman models - check length of chassis straps to determine correct kit.   Model not listed? - Contact us.   Not for amps made after 1974, not for reissued blackface and silverface amps.  Contains original Fender® handle with mounting hardware, 4 5/8" chassis straps with bolts and keps nuts, chrome sphinx glides, set of cabinet corners with mounting screws.   Spruce up the looks of your vintage  amp!    For additional refurbishing, see the Fender® logo plates here, Fender® knobs here, Fender® lamp jewels here and Fender® casters here
Part #FRK-4
$33.95



Click on photo for
 larger view
Fender® SMALL CABINET AMP COSMETIC REFURB KIT  For original 1960's and pre-1975 silverface Fender® Champ, Vibro Champ, Bronco models which use 3 5/8" long chassis straps.    Model not listed? - Contact us.   Not for amps made after 1974, not for reissued blackface and silverface amps.  Contains original Fender® handle with mounting hardware, 3 5/8" chassis straps with bolts and keps nuts, chrome sphinx glides.   Spruce up the looks of your vintage  amp!    For additional refurbishing, see the Fender® logo plates here, Fender® lamp jewels here and Fender® knobs here
Part #FRK-3
$26.95


Pots for Blonde and Brown Series Amps from
1960-1963 (Brownface)
(Not Reissues)
Fender amps from 1960-1963 underwent many design changes, as Leo Fender was in a period of experimentation to achieve the ultimate Fender sound, so it is very difficult to assemble accurate pot kits.   We do offer these individual pots which cover most of the needs of the "brownface" era.    For the model number and version, look on the tube chart in the back of the amp.

Click on photo for
larger view

POT - 24MM, SOLID SHAFT
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender® and others.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$1.99
Select Option:

Quantity:


Click on photo for
larger view
POT -  350K AUDIO WITH 70K TAP, 9MM BUSHING, FENDER® BROWNFACE SERIES TREBLE POT
16mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 9mm" bushing, solder lugs. Special manufacture, to replace the treble pots on certain Fender® 1961-1963 Brownface models, such as Bassman 6G6, Concert 6G12A, Pro 6G5A, Showman 6G14, Super 6G4A, Tremolux 6G9, Vibrolux 6G11, and the Vibroverb 6G14.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-350KA-70KT
$4.95


Pots for Original Tweed Amps from 1947-1959
(Not Reissues)


Click on photo for
larger view

POT - 24MM, SOLID SHAFT
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender® and others.   For a downloadable pot cross-reference for Fender tweed models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$1.99
Select Option:

Quantity:


Click on photo for
larger view

POT - 1 MEG AUDIO TAPER, 3/8" BUSHING, WITH SPST ROTARY SWITCH
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs, with rotary SPST (two terminal) switch.  Replacement for the volume control with AC switch on the 5C1 Champ, 5E1 Champ, 5F1 Champ, 5B3 Deluxe.   Replacement for the tone control with AC switch on the 5B2 Princeton, 5C2 Princeton, and 5D2 Princeton.  For a downloadable pot cross-reference for Fender tweed models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-1MA-RS
$4.95

Fender® Modification Kits



(Picture for illustrative purposes only - actual kit components will vary from this photo)


FENDER "BLACKFACE" KIT  This kit changes the circuit design of your late 60s or 70s vintage Silverface Fender® Amp to the original "Blackface" amps of the early-to-mid 60s.   Most players agree that the pre-CBS blackface amps sounded much better than the silverface successors designed by the CBS engineers.   With this kit, you can take your amp back to the Leo Fender design.  In addition, you also restore the bias-setting capability of the amp in place of the "balance" control.   These modifications are completely reversible, and no permanent changes to the chassis (such as drilling holes, etc) are required.  The kit includes 9 resistors, 4 capacitors and instructions.   Note:  This kit does NOT apply to the silverface Bronco, Champ, Deluxe Reverb, Princeton Reverb, or VibroChamp.

Part #FBK-1

$11.95



Click on photo for
 larger view
FENDER BRIGHT PULL SWITCH   Some of the smaller vintage Fender blackface and silverface amps from the 60s and 70s omitted the bright switch ... and by doing so, they do not have the tonal options of their larger big brothers.   This mod kit adds the "Bright Switch" option to original vintage amps like the Champ, Bronco, VibroChamp, Princeton Reverb and Deluxe Reverb from the 60s and 70s.   This pull-switch pot replaces the volume control in these amps, and to engage the bright feature, you just pull out on the knob.   No holes to drill.  The pull-switch pot comes prewired with the bright capacitor.  You just transfer and solder the 3 wires from the old pot to the new pot.   Soldering is required - this is considered an easy modification.  Instructions included.   You will need two of these kits if you wish to equip both channels of a Deluxe Reverb amp.   Note:  Not for the reissue Princeton Reverb or Deluxe Reverb - original vintage amps only.

Part #FBSK-120

$14.95



Click on photo for
 larger view
FENDER VIBRATO PULL SWITCH   Converts the Vibrato Intensity control in many vintage amps to a pull switch intensity control to turn the vibrato on or off.  Comes with a prewired C50K pull-switch pot, and our FSP-100 shorting plug for the vibrato footswitch jack to initialize the vibrato.   May also be used in conjunction with the standard footswitch if you choose.  Pull out the knob for vibrato, push in to kill the vibrato.   You just transfer and solder the 2 wires (brown and yellow) from the old pot to the new pot/switch.   Soldering is required - this is considered an easy modification.  Instructions are found here.   Fits vintage 1960s and 1970s blackface and silverface Bandmaster, Bandmaster Reverb, Deluxe, Deluxe Reverb, Dual Showman Reverb, Pro Amp, Pro Reverb, Super Reverb, Tremolux, Twin Reverb, Vibrolux, Vibrolux Reverb, Vibroverb.   Does NOT fit the following amps:  Bronco, Princeton, Princeton Reverb, Showman Amp, VibroChamp, and ALL blackface or silverface reissue amps.

Part #FVPS-50

$19.95


(Picture for illustrative purposes only - actual kit components will vary from this photo)


FENDER "S-L-O-W-E-R  VIBRATO" KIT  This kit changes the circuit design of the vibrato to slow down the slow end of the vibrato speed control considerably, giving a much wider usable speed range.    Fast speed remains virtually unchanged, and the intensity remains the same.   Jazz players especially love the slower vibrato.  The official Fender vibrato "tick cure" is also included in this kit, as listed on a Fender service bulletin from several years ago.   The tick cure is not applicable and does not apply to Bronco, Princeton or VibroChamp circuits.  Kit includes necessary parts and instructions.   Soldering capability is required.

Part #FSVK-100

$3.50



Click on photo for
 larger view
FENDER EASY GAIN BOOST MOD  No drilling!  This pull switch on the vibrato intensity pot gives you a substantial gain boost in the vibrato channel, while also increasing clarity and bass response.   It works by completely removing the vibrato from the circuit.   Replaces the vibrato intensity control with a new pot that has a built-in pull switch.  Pull out the knob for stock Fender sound (with vibrato), push in the knob for gain boost (and no vibrato).   Comes with a prewired C50K pot with pull switch.   You just transfer and solder the 2 wires (brown and yellow) from the old pot to the new pot/switch.   Soldering is required - this is considered an easy modification.   Fits vintage 1960s and 1970s blackface and silverface Bandmaster, Bandmaster Reverb, Deluxe, Deluxe Reverb, Dual Showman Reverb, Pro Amp, Pro Reverb, Super Reverb, Tremolux, Twin Reverb, Vibrolux, Vibrolux Reverb, Vibroverb.   Does NOT fit the following amps:  Bronco, Princeton, Princeton Reverb, Showman Amp, VibroChamp, and ALL blackface or silverface reissue amps.

Part #FEGB-50

$18.95



Click on photo for
 larger view
FENDER TONE STACK BYPASS SWITCH - A250K  A unique modification to most Fender blackface and silverface amps.  This A250K control with pull switch mounts in the bass control position of 60s and 70s blackface and silverface models that do not have a middle control (for amps like the Twin Reverb, Super Reverb and Pro Reverb that do have a middle control in one or both channels, see the FTSL-10 kit)  With the switch pulled out, the tone stack is in place and the amp is stock.   With the switch pushed in, the tone stack is removed completely - the bass, treble pots have no function, and the traditional "mid scoop" of the Fender amp is gone.    The amp becomes much louder with a significant gain boost, more "raw", and has a significant mid boost.   The raw tone has a non-scooped mid similar to the no-tone-stack tweed amps of the 1950s such as the 5E3 Deluxe.  The pull-switch pot comes pre-wired with the 6.8K mid resistor.  Just remove the old bass pot and replace with the FTSL-250.  This mod is considered easy.    For most all blackface and silverface amps from the 60s and 70s with bass and treble controls (no mid control).    Not for the reissue blackface or silverface amps.

Part #FTSL-250

$19.95



Click on photo for
 larger view
FENDER TONE STACK BYPASS SWITCH - A10K  A unique modification to most Fender blackface and silverface amps.  This A10K control with pull switch mounts in the mid control position of 60s and 70s blackface and silverface models of the Twin Reverb, vibrato channel of the Super Reverb, or vibrato channel of the Pro Reverb that do have a middle control.  With the switch pulled out, the tone stack is in place and the amp is stock.   With the switch pushed in, the tone stack is removed completely - the bass, mid and treble pots have no function, and the traditional "mid scoop" of the Fender amp is gone.    The amp becomes much louder with a significant gain boost, more "raw", and has a significant mid boost.   The raw tone has a non-scooped mid similar to the no-tone-stack tweed amps of the 1950s such as the 5E3 Deluxe.  The pull-switch pot comes pre-wired.  Just remove the old middle pot and replace with the FTSL-10.  This mod is considered easy.    For blackface and silverface (60s and 70s)models of the Twin Reverb, vibrato channel of the Super Reverb, or vibrato channel of the Pro Reverb with bass, middle and treble controls.    Not for the reissue blackface or silverface amps.

Part #FTSL-10

$19.95

Fender® Pot Sets for Vintage Blackface & Silverface (60s & 70s), Blues Deluxe/Deville, Hot Rod Deluxe/Deville, '65 series Blackface Reissue
Cross Reference Table is at the bottom of this page



Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifiers ONLY:   Bandmaster Amp AD1269, Deluxe Amp AB763, Pro Amp AA763, Pro Amp AB763, Tremolux Amp AA763, Tremolux Amp AB763, Vibrolux Amp AA763, Vibrolux Amp AB763.   Contains 8 CTS pots - available with either nylon or metal shafts.  Also contains 3 replacement carbon comp resistors which are directly attached to certain pots in the kit.    Contains two 1MA, four 250KA, one 3MRA, one 50KRA CTS pots, plus two 6800 and one 100K carbon comp resistors.    Two volume, two treble, two bass, one speed, one intensity.   See Cross Reference Table
Part #FPK-101
Nylon shaft version
$28.95

Metal shaft version
$32.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifiers ONLY:   Bandmaster Reverb AA768, Bandmaster Reverb AA1069, Bandmaster Reverb AA270, Pro Reverb AB668, Pro Reverb AA1069, Pro Reverb AA270, Super Reverb AA763, Super Reverb AB763, Super Reverb AB568, Super Reverb AA1069, Super Reverb AA270.   Contains 10 CTS pots - available with either nylon or metal shafts.  Also contains 2 replacement carbon comp resistors which are directly attached to certain pots in the kit.    Contains two 1MA, four 250KA, one 10KA, one 100KB, one 3MRA, one 50KRA CTS pots, plus one 6800 and one 100K carbon comp resistors.    Two volume, two treble, one middle, two bass, one reverb, one speed, one intensity.  See Cross Reference Table
Part #FPK-102
Nylon shaft version
$36.95

Metal shaft version
$41.95


Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifiers ONLY:  Bassman AA165, Bassman AB165, Bassman AC568, Bassman AA270, Bassman AA371.   Contains 6 CTS pots  - available with either nylon or metal shafts.     Contains two 1MA, and four 250KA CTS pots   Two volume, two treble, two bass.  See Cross Reference Table
Part #FPK-103
Nylon shaft version
$19.95

Metal shaft version
$22.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifiers ONLY:   Deluxe Reverb AA763, Deluxe Reverb AB763, Deluxe Reverb AB868, Deluxe Reverb A1270, Deluxe Reverb A1172, Pro Reverb AA165, Vibrolux Reverb AA964, Vibrolux Reverb AB568, Vibrolux Reverb AA270, Vibroverb AA763, Vibroverb AB763.   Contains 9 CTS pots  - available with either nylon or metal shafts.  Also contains 3 replacement carbon comp resistors which are directly attached to certain pots in the kit.    Contains two 1MA, four 250KA, one 100KB, one 3MRA, one 50KRA CTS pots, plus two 6800 and one 100K carbon comp resistors.    Two volume, two treble, two bass, one reverb, one speed, one intensity.  See Cross Reference Table
Part #FPK-104
Nylon shaft version
$31.95

Metal shaft version
$35.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Metal shaft version shown in photo - also available with nylon shaft pots (except for the push-pull switch pot, which has a metal shaft in both versions)

Fender® Potentiometer Set for the following amplifier ONLY:   Deluxe Reverb with Volume Boost - Silverface, 1977-1980.   Contains 8 CTS pots  - available with either nylon or metal shafts and one CTS pot with metal shaft and push-pull switch.  Also contains 3 replacement carbon comp resistors which are directly attached to certain pots in the kit.    Contains two 1MA, four 250KA, one 100KB, one 3MRA, one 50KRA CTS pots, plus two 6800 and one 100K carbon comp resistors.    Two volume, two treble, two bass, one reverb, one speed, one intensity.  See Cross Reference Table
Part #FPK-104A
Nylon shaft version
$31.95

Metal shaft version
$35.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifiers ONLY:   Dual Showman Reverb AA768, Dual Showman Reverb AA769, Dual Showman Reverb AA270, Twin Reverb AB763, Twin Reverb AC568, Twin Reverb AA769, Twin Reverb AA270.   Contains 11 CTS pots - available with either nylon or metal shafts.   Also contains one replacement carbon comp resistor which is directly attached to the speed control pot in the kit.    Contains two 1MA, four 250KA, two 10KA, one 100KB, one 3MRA, one 50KRA CTS pots, plus one 100K carbon comp resistor.    Two volume, two treble, two middle, two bass, one reverb, one speed, one intensity.  See Cross Reference Table
Part #FPK-105
Nylon shaft version
$38.95

Metal shaft version
$43.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifier ONLY:   Princeton Amp AA964.  Contains 5 CTS pots - available with either nylon or metal shafts.  Also contains 2 replacement carbon comp resistors which are directly attached to certain pots in the kit.    Contains one 1MA, two 250KA,  one 3MRA, one 50KRA CTS pots, plus one 6800 and one 100K carbon comp resistors.    One volume, one treble, one bass, one speed, one intensity.  See Cross Reference Table
Part #FPK-106
Nylon shaft version
$17.95

Metal shaft version
$19.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifiers ONLY:   Princeton Reverb AA1164, Princeton Reverb B1270.  Contains 6 CTS pots - available with either nylon or metal shafts.  Also contains 2 replacement carbon comp resistors which are directly attached to certain pots in the kit.    Contains one 1MA, two 250KA, one 100KB, one 3MRA, one 50KRA CTS pots, plus one 6800 and one 100K carbon comp resistors.    One volume, one treble, one bass, one reverb, one speed, one intensity.  See Cross Reference Table
Part #FPK-107
Nylon shaft version
$20.95

Metal shaft version
$23.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view

Nylon shaft version shown in photo - also available with metal shaft pots.

Fender® Potentiometer Set for the following amplifiers ONLY:   Showman Amp AA763, Showman Amp AB763.  Contains 9 CTS pots - available with either nylon or metal shafts.  Also contains 2 replacement carbon comp resistors which are directly attached to certain pots in the kit.    Contains two 1MA, four 250KA, one 10KA, one 3MRA, one 50KRA CTS pots, plus one 6800 and one 100K carbon comp resistors.    Two volume, two treble, one middle, two bass, one speed, one intensity.  See Cross Reference Table
Part #FPK-108
Nylon shaft version
$31.95

Metal shaft version
$35.95

Select Option:


Quantity of Kits Ordered:


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - 65 TWIN REVERB REISSUE.  Contains all 11 control pots as found in the 65 Twin Reverb Reissue, from 1991 to the present.  Does not include the bias pot.
INCLUDES NUTS & WASHERS

Part #FPK-109
$43.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - 65 DELUXE REVERB REISSUE.  Contains all 9 control pots as found in the 65 Deluxe Reverb Reissue, from 1993 to the present.  Does not include the bias pot.
INCLUDES NUTS & WASHERS

Part #FPK-110
$35.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - 65 SUPER REVERB REISSUE.  Contains all 10 control pots as found in the 65 Super Reverb Reissue, from 2001 to the present.  Does not include the bias pot.
INCLUDES NUTS & WASHERS

Part #FPK-111
$39.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - 65 PRINCETON REVERB REISSUE.  Contains all 6 control pots as found in the 65 Princeton Reverb Reissue, from 2008 to the present.  Does not include the bias pot.
INCLUDES NUTS & WASHERS

Part #FPK-112
$23.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - HOT ROD DELUXE AND HOT ROD DEVILLE (ORIGINAL VERSIONS - NOT VERSION III).  Contains all 8 control pots as found in the Hot Rod Deluxe and Hot Rod Deville models, from 1996 to 2010.  Does not include the Hot Rod Deluxe III or Hot Rod Deville III (with black control panel).
INCLUDES NUTS & WASHERS

Part #FPK-113
$31.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - BLUES DELUXE AND BLUES DEVILLE (ORIGINAL VERSIONS - NOT REISSUE VERSIONS).  Contains all 8 control pots as found in the original Blues Deluxe and Blues Deville models, from 1993 to 2004.  For the Blues Deluxe Reissue and Blues Deville Reissue models from 2005 to the present, see the FPK-115 kit below.
INCLUDES NUTS & WASHERS
Part #FPK-114
$31.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - BLUES DELUXE REISSUE AND BLUES DEVILLE REISSUE.  Contains all 8 control pots as found in the Blues Deluxe Reissue and Blues Deville Reissue models, from 2005 to the present.
INCLUDES NUTS & WASHERS
Part #FPK-115
$31.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - BLUES JUNIOR.  Contains all 6 control pots as found in the Blues Junior and Blues Junior III (all versions) from 1993 to the present.
Part #FPK-116
$39.95



Cross Reference Table:



Amplifier Model and Date Code

Pot Set


Bandmaster Amp AD1269 (Silverface) FPK-101
Bandmaster Rev AA768 (Silverface) FPK-102
Bandmaster Reverb AA1069 (Silverface) FPK-102
Bandmaster Reverb AA270 (Silverface) FPK-102
Bassman AA165 (Blackface) FPK-103
Bassman AB165 (Blackface) FPK-103
Bassman AC568 (Silverface) FPK-103
Bassman AA270 (Silverface) FPK-103
Bassman AA371 (Silverface) FPK-103
Blues Deluxe/Deville (Original - 1993-2004) FPK-114
Blues Deluxe/Deville (Reissue - 2005-Present) FPK-115
Blues Junior (1993-Present) FPK-116
Deluxe AB763 (Blackface) FPK-101
Deluxe Reverb AA763 (Blackface) FPK-104
Deluxe Reverb AB763 (Blackface) FPK-104
Deluxe Reverb AB868 FPK-104
Deluxe Reverb A1270  (Silverface) FPK-104
Deluxe Reverb A1172 (Silverface) FPK-104
Deluxe Reverb with Volume Boost (1977-1980) FPK-104A
65 Deluxe Reverb Reissue (1993-present)
(NOT for the Deluxe Reverb II)
FPK-110
Dual Showman Reverb AA768 FPK-105
Dual Showman Reverb AA270 (Silverface) FPK-105
Dual Showman Reverb AA769 (Silverface) FPK-105
Hot Rod Deluxe/Deville (Original - Not III) FPK-113
Princeton AA964 (Blackface) FPK-106
Princeton Reverb AA1164 (Blackface) FPK-107
Princeton Reverb B1270 (Silverface) FPK-107
65 Princeton Reverb Reverb Reissue (2008-present) (NOT for the Princeton Reverb II) FPK-112
Pro Amp AA763 (Blackface) FPK-101
Pro Amp AB763 (Blackface) FPK-101
Pro Reverb AA165 (Blackface) FPK-104
Pro Reverb AB668 FPK-102
Pro Reverb AA1069 (Silverface) FPK-102
Pro Reverb AA270 (Silverface) FPK-102
Showman Amp AA763 (Blackface) FPK-108
Showman Amp AB763 (Blackface) FPK-108
Super Reverb AA763 (Blackface) FPK-102
Super Reverb AB763 (Blackface) FPK-102
Super Reverb AB568 FPK-102
Super Reverb AA1069 (Silverface) FPK-102
Super Reverb AA270 (Silverface) FPK-102
65 Super Reverb Reissue (2001-present) FPK-111
Tremolux Amp AA763 (Blackface) FPK-101
Tremolux Amp AB763 (Blackface) FPK-101
Twin Reverb AB763 (Blackface) FPK-105
Twin Reverb AC568 FPK-105
Twin Reverb AA769 (Silverface) FPK-105
Twin Reverb AA270 (Silverface) FPK-105
65 Twin Reverb Reissue (1991-present)
NOT for Twin Reverb II, or other Twin versions
FPK-109
Vibrolux Amp AA763 (Blackface) FPK-101
Vibrolux Amp AB763 (Blackface) FPK-101
Vibrolux Reverb AA964 (Blackface) FPK-104
Vibrolux Reverb AB568 FPK-104
Vibrolux Reverb AA270 (Silverface) FPK-104
Vibroverb AA763 (Blackface) FPK-104
Vibroverb AB763 (Blackface) FPK-104

For brown and blonde "brownface" models from 1960-1963, see our pots here

Don't see your exact amp model (with identical date code)?    Contact us for more information.

Have a 1970s silverface amp with Master Volume?   Contact us for more information.

Can't find the date code?    No tube chart in the cabinet?  Contact us for more information.

The date code for blackface and silverface amplifiers from the 1960s and 1970s is located on the tube chart inside the back of the amplifier cabinet.  The following is a Super Reverb AB763:



Copyright ©2017 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions
