Fender® 120VAC Power Cords (for North America)

We carry a complete selection of Fender® Amplifier parts for both vintage and modern amps.

Back to Fender® Parts Index




Description

Price Purchase

Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common Replacement Cord For Many Guitar Amps, Power Amps, Effects Units, Etc. Standard Nema 5-15 Plug For North American Use At 110-120 Volts Ac. Iec Connector At Equipment End. Used Only In North America.

Part #PC-300
$5.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Replacement Cord For Many Guitar Amps, Power Amps, Effects Units, Etc. 10 Ft Length Give Extra Flexibility In Equipment Placement, Reduces Use Of Extension Cords. Standard Nema 5-15 Plug For North American Use At 110-120 Volts Ac. Iec Connector At Equipment End. Used Only In North America.
Part #PC-600
$10.95


Click on photo for
larger view

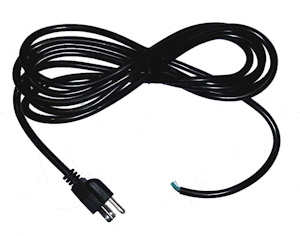

EXTRA-LONG Revisit™ 12 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT12
$13.95


Click on photo for
larger view
Revisit™ 8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #PC-183SJT8
$9.95


Click on photo for
larger view
Fender® 8 ft POWER CORD, 3-WIRE, 18ga, SJT type, .187 TAB ends.   Black and White wires terminated in 0.187 (3/16) inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 8 feet, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   Fender® part number 0026527000.    Found in the Fender® Roc Pro 700, Roc Pro 1000, Princeton 112, Princeton 112 Pluse, KXR60, KXR100, Frontman 15B, Deluxe 112, Deluxe 112 Plus, BXR 100, Acoustasonic Junior.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026527
$12.95


Click on photo for
larger view
Fender® 8 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 8 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   Fender® part number 0026541049.    Found in the Fender® Vibrosonic, Custom Vibrolux, Ultimate Chorus, Rumble Bass, Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior, Acoustasonic SFX, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, BXR200, 57 Twin Amp Reissue   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541
$12.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 12 feet, cord thickness is 0.30 inches (about 9/32" or 7.3mm).   Replaces Fender® part number 0026541049 with a longer 12 ft cord option for more convenience.    Longer cord for the Fender® Vibrosonic, Custom Vibrolux, Ultimate Chorus, Rumble Bass, Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior, Acoustasonic SFX, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, BXR200, 57 Twin Amp Reissue   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541-12
$16.95


Click on photo for
larger view
Fender® style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender® amps.   Designed for 5/16" cord diameter.   Click here for specific dimensions of chassis hole.   For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing strain reliefs can be a frustrating job.   Standard pliers just don't get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on AC power cord strain reliefs and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$10.95


Click on photo for
larger view

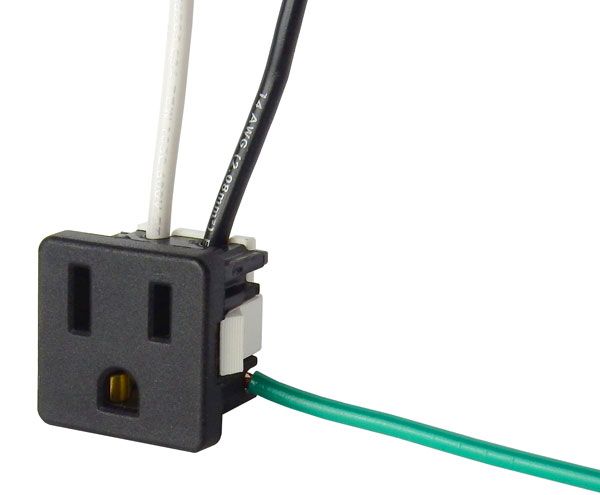

PANEL-MOUNT AC CONVENIENCE OUTLET
Black 3-conductor grounded outlet. Snap-mounts into 7/8" x 7/8" square chassis hole. 0.187" Quick Connect / Solder terminals. Rated 15A/125VAC UL, CSA.   Makes a great convenience outlet for rear panels of amplifiers.   Works well on Music Man amps.

Part #ACS-058
$2.95


Click on photo for
larger view
3-PRONG TO 2-PRONG ADAPTER, NORTH AMERICA ONLY, 125V, 15A
Used to connect a 3-wire plug to a 2-wire AC socket.    Non-polarized, ground connection via screw.  North America only.
Part #BLP-514
$0.69


Limited stock on hand at this time
