TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL
WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE . Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. 9-Pin tube
socket is made of sturdy Micalex. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Requires 3/4" hole in chassis. Solder lugs for wire connection to tube
socket.
Shield, base and socket.
Part #TS-370 |
$4.99 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.
Includes new base, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Shield and base only - socket not included.
Part #TS-325S |
$2.29 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL,
SET OF 6.
Includes new bases, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
This is a great kit to replaced all 6 of the tube shields in many Fender™ amps
with 6 preamp tubes. Shield and base only - socket not included.
Part #TS-325S-6 |
$12.95 |
|
(TUBE NOT INCLUDED)
Click on photo for
larger view |
 Revisit™ PRE-AMP TUBE DAMPER
RINGS.
Use two (or three) of these rings around a pre-amp tube to reduce noise and
microphonics. An economical alternative to more expensive tube dampers.
Will withstand high temperatures of pre-amp tubes, reusable when you change
tubes. Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes. These
dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6 |
$4.95
(Set of 6 rings) |
|
Click on photo for
larger view |
 Fender™ PRE-AMP TUBE
STABILIZER.
Replacement high-temperature foam tube stabilizer for Fender™ Hot Rod Deluxe
and Hot Rod Deville amps. This foam block slides over the first two preamp
tubes. This genuine Fender™ replacement is made in the USA.
Part #ST-718 |
$18.95 |
|
Click on photo for
larger view |
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.
Used in Fender™ and many other amps. 1 1/2" mounting
centers. Made by Belton. Fender part number 099072500.
Part #TC-142 |
$2.25
|
|
Click on photo for
larger view |
 SMALL TUBE RETAINER WITH SPRINGS, DESIGNED FOR EL84 OR 6BQ5 TUBES.
A better way to support EL84 or 6BQ5 power tubes. Top bracket
has a hole for the glass nub at the top of the tube. Mounts to the
same screws that hold the tube socket.
Part #TR-148 |
$2.49
|
|
Click on photo for
larger view |

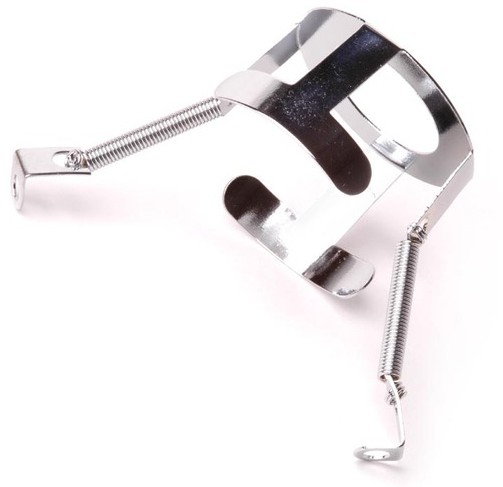

TUBE RETAINER WITH SPRINGS, DESIGNED FOR 6V6, 5AR4, GZ34, 6SN7 TUBES.
Spring loaded retainer for 6V6 or smaller 5881 power tubes. Also
works with most 6SN7 preamp tubes and most 5AR4 or GZ34 rectifier tubes. Mounts to the
same screws that hold the tube socket.
Part #TR-149 |
$2.89
|
|
Click on photo for
larger view |
Fender™ Vintage Amp (60s Blackface and 70s Silverface) Power Tube Socket
replacement kit. For vintage Fender™ amps (NOT Reissues!)
from the original blackface and silverface eras which have two power tubes (6L6
or 6V6). Contains two phenolic 8-pin sockets, two "bear trap" retainers, four
mounting screws, two 470 ohm screen grid resistors (Metal-Film Flameproof for
safety), and two carbon composition 1500 ohm control grid resistors.
Princeton and Princeton Reverb do not need the resistors.
Perfect for Vibrolux Reverb, Vibroverb, Super Reverb, Deluxe Reverb, Pro Reverb,
Bassman, Bandmaster Reverb, Tremolux, etc.
Part #FPTSK-2 |
$13.95 |
|
Click on photo for
larger view |
Fender™ Vintage Amp (60s Blackface and 70s Silverface) Power Tube Socket
replacement kit. For vintage Fender™ amps (NOT Reissues!)
from the original blackface and silverface eras which have four power tubes
(6L6). Contains four phenolic 8-pin sockets, four "bear trap" retainers,
eight mounting screws, four 470 ohm screen grid resistors (Metal-Film Flameproof
for safety), and four carbon composition 1500 ohm control grid resistors.
Perfect for Twin Reverb, Showman and Dual Showman, Quad Reverb, Bassman 100,
etc.
Part #FPTSK-4 |
$26.95 |
|
Click on photo for
larger view |
OCTAL TUBE KEYWAY, SET OF 2
If you have a cherished octal power
tube or rectifier with a broken keyway, here is a great solution. By cleaning
the remainder of the broken keyway from the tube base and properly installing
this keyway replacement (a little dab of silicone sealant works great to hold it
in place), your tube can safely be reinstalled into your equipment.
These great tube-savers are sold in sets of 2. Note: When using an adhesive to secure the keyway to the tube base, DO NOT use a
water-based glue. Silicone sealant (RTV) which is acryllic-based or
butyl-based is fine. Latex sealant or hot-glue is NOT.
Part #OTK8-2 |
$8.99
(for a set of 2 tube keyways) |
|
Click on photo for
larger view |
OCTAL TUBE BASE, SOLD
INDIVIDUALLY
Octal tube bases are used to construct tube socket savers, solid-state
rectifiers, bias probes, etc. 8-pin plug with room inside the base
for circuitry and wiring. Sold individually.
Part #OTB-100 |
$3.99 ea |
|
Click on photo for
larger view |
TUBE SOCKET, OCTAL 8-PIN, commonly used with the Octal Tube Base to build
bias probes, tube socket savers, tube extenders, etc. This socket
has no mounting bracket.
Part #TS-8-810 |
$4.40 |
|
Click on photo for
larger view |
PHENOLIC TUBE SOCKET FOR OCTAL TUBES. EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall™ (including the JCM900 Series), and many others. Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes. For 1" to 1 1/8" hole. Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.
Unlike some phenolic tube sockets on the market, this one fits the 1" hole found
in most vintage Fenders.
Part #TS-8-600 |
$5.70 |
|
Click on photo for larger view |
CERAMIC 8-PIN PC MOUNT OUTPUT
TUBE OR RECTIFIER TUBE SOCKET, crimped
bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting centers,
1" to 1 1/4" chassis hole. Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3,
and GZ34 rectifier tubes. Used in Peavey, Fender, and other brands where the
tube socket is mounted to a PC board.
Click here for additional specs. Fender part number 0057238000
or 0029343000.
Part #TS-8-807 |
$3.50
|
|
Click on photo for larger view |
CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET,
crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting
centers, 1" to 1 1/4" chassis hole. Fits 6L6, EL34, 6V6 output tubes, and
5U4, 5Y3, and GZ34 rectifier tubes.
Click here for additional specs.
Fender part number 0990724000, or 023580.
Part #TS-8-807W |
$3.95
|
|
|
Click on photo for
larger view
|

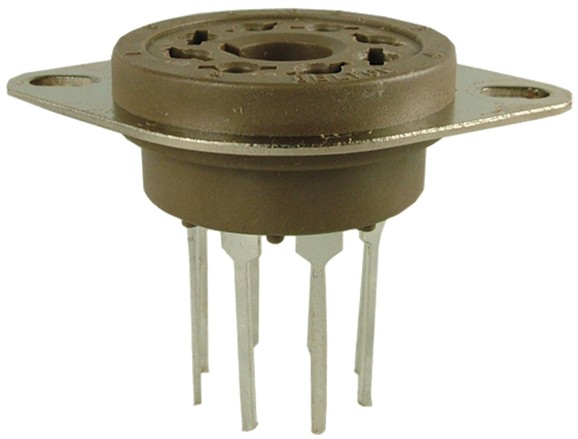

Socket - Belton,
Micalex, 8 Pin, Octal PC Mount, Long Lead
Micalex, PC mount,
long leads (Belton) - MB/MT. 1 ˝" mounting centers 1 1/4" chassis hole.
Applicable for use with all types of electric and electronic equipment using
vacuum tubes. Paddle saddle mounting, easy mount with the saddle of extruded
screw hole. Phosphorous bronze pin terminal with
tin plating, glass fiber field PPS Insulating
material
Part # TS-8-209 |
$3.50
|
|
Click on photo for
larger view |
FENDER™
STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs.
Fender part number 0023606049.
Part #TS-9-700 |
$4.49
|
|
Click on photo for
larger view |
6-PACK OF FENDER™
STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart.
Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs. Pack of 6 tube sockets. Mounting screws not
included - recommend the SC-410-6 screws (2 packs of 6 screws needed for 6 tube
sockets). It is also possible to use 1/8 inch pop rivets to mount these
sockets. Replaces
Fender part number 0023606049.
Part #TS-9-700-6 |
$25.99
(for 6 sockets) |
|
Click on photo for
larger view |
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. For 3/4" hole. Bottom mounting (mounted from the inside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the

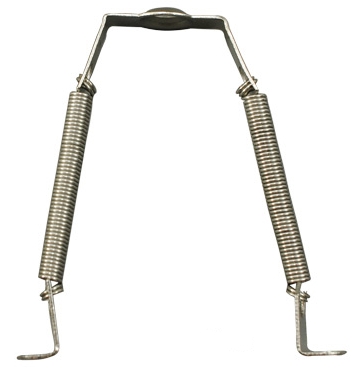

TR-144, TR-146, or TC-148 tube retainers, or the TS-325S tube shield.
Part #TS-9-601 |
$2.49
|
|
Click on photo for
larger view |
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. For 3/4" hole. Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the TR-144, TR-146
OR TC-148 tube retainers, or the TS-325S tube shield.
Part #TS-9-610 |
$2.49
|
|
Click on photo for
larger view |

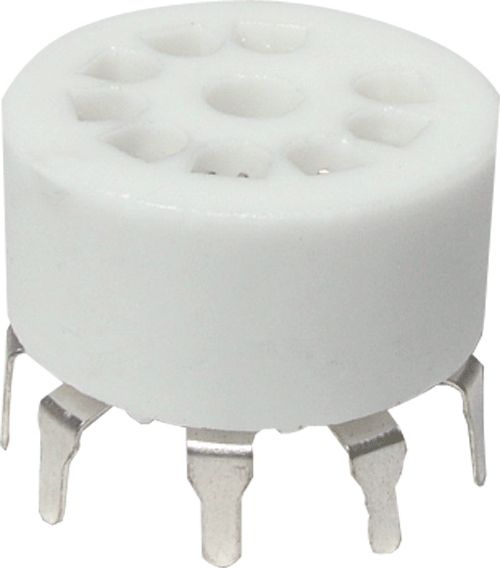

TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, CERAMIC. 9 pin ceramic PC mount socket, stand-off mounting, 0.82" diameter, 3/8" tall
above PC board. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Part #TS-9-223 |
$2.49 |
|
Click on photo for
larger view |
 TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Micalex replacement for the tube sockets in the Fender™ Blues Junior, Pro
Junior, and the Fender™ Hot
Rod Deluxe/Deville and Blues Deluxe/Deville.
Fender part number 0029167049.
Also used in Gibson™ Goldtone series amplifiers.
Part #TS-9-620 |
$2.69 |
|
Click on photo for
larger view |
3-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. This 3-pack replaces all of the
sockets for the 12AX7 preamp tubes in the Fender™ Blues Junior, Hot Rod
Deluxe/Deville and Blues Deluxe/Deville.
Also used in Gibson™ Goldtone series amplifiers.
Part #TS-9-620-3 |
$7.79
(for a 3-pack of tube sockets) |
|
Click on photo for
larger view |
5-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. This 5-pack replaces all 5 tube
sockets in the Fender™ Blues Junior. Also used in Gibson™ Goldtone series
amplifiers.
Part #TS-9-620-5 |
$12.49
(for a 5-pack of tube sockets) |
|
Click on photo for
larger view |
10-PACK, TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, MICALEX. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits
12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Fender part number 0029167049. Used in the Fender™ Blues
Junior, and the Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Used in Gibson™ Goldtone series amplifiers.
Part #TS-9-620-10 |
$23.90
(for a 10-pack of tube sockets) |
|
Click on photo for
larger view |
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. PC MOUNT, CERAMIC. 9 pin ceramic PC mount socket, stand-off mounting,
3/4" diameter, 3/4" tail diameter. For bottom mounting (mounted
from the inside of the chassis, below the chassis hole). Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.
Ceramic replacement for Gibson™ Goldtone series amplifiers. Ceramic
replacement for the tube sockets in the Fender™ Blues Junior, and the Fender™
Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Part #TS-9-217 |
$2.69 |
|
Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
|
