Fuse Holders


  Fuse Holders

Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, USED ON VINTAGE Marshall® AMPS
Marshall® style fuse holder. Snap-in mount for chassis hole diameters between 5/8" and 11/16".   Flush design, fuse cap removed with screwdriver.  Rugged, reliable, tough - better than OEM.   Used on Marshalls from the 60's, 70's and 80's.  Fits AGC size fuses.
Part #FH-200
$3.95


Click on photo for
larger view
FUSE HOLDER, Fender® STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE
Fender® style fuse holder, replacement for many other brands.   Twist-lock cap.   Durable, rugged design - better than OEM.  Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-201
$3.95


Click on photo for
larger view

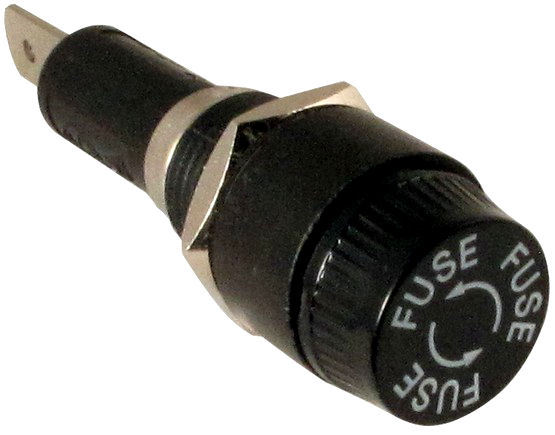

FUSE HOLDER, TWEED Fender® STYLE,  High quality used with AGC type fuse. Also a good choice for Mesa Boogie.
Vintage 50's Fender® style fuse holder, replacement for many other brands, especially Mesa Boogie.   Twist-lock cap.   Durable, rugged design - better than OEM.   Low profile so that cap does not extend beyond rear amp cabinet.   Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-301
$3.95


Click on photo for
larger view
FUSE HOLDER, LOW PROFILE SCREWDRIVER ACCESS TYPE, HIGH QUALITY USED WITH AGC TYPE FUSE.   Useful in many different types of equipment because of its low profile - less protrusion from the panel means less likelihood of damage to the holder.   Requires flat screwdriver or #1 Phillips screwdriver for removal of fuse.  Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-2304
$3.95


Click on photo for
larger view
REPLACEMENT CAP FOR FUSE HOLDER - Peavey®
Cap for fuse holder found in many Peavey® products.   Common failure item in Peavey®.   Peavey® part number
70900281
Part #FH-203
$3.99


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-815 FUSE HOLDERS - Marshall®
Cap for mains and HT fuse holders found on the Marshall® JCM900 series. Cap for the "HT" fuse holder only in the JCM2000 series (TSL100, TSL122, DSL100, etc).   The Mains fuse holder in the TSL and DSL models uses the FH-816 cap (below).   Also fits the FH-820 fuse holder.
Part #FH-204
$2.95


Click on photo for
larger view

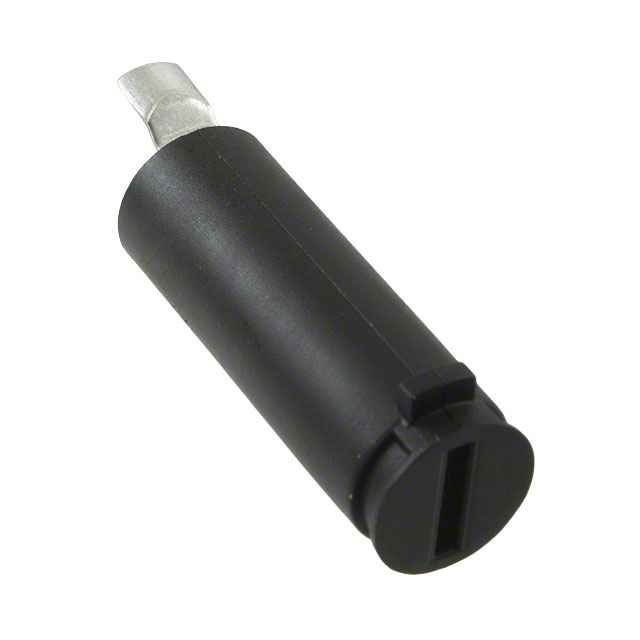

ORIGINAL REPLACEMENT CAP FOR FH-810 FUSE HOLDER - Marshall®
Cap for the "Mains" fuse holder found on the Marshall® JCM2000 series (TSL100, TSL122, DSL100, etc).  The HT fuse holder in the TSL and DSL models uses the FH-204 cap (above).  Common failure item in Marshall®.   Designed to work with AGC type fuses (1/4" x 1 1/4")   If you would like to switch your TSL or DSL Mains Fuse to a GMA fuse (5mm x 20mm), order the FH-815 fuse cap below.
Part #FH-816
$2.95


Click on photo for
larger view
ALTERNATE CAP FOR FH-810 FUSE HOLDER - Marshall® - FOR GMA STYLE FUSE
Cap for the "Mains" fuse holder found on the Marshall® JCM2000 series (TSL100, TSL122, DSL100, etc).  NOTE:   This cap is NOT the original cap - this cap will change the type of fuse used in in the Mains fuse holder from the original AGC type to the GMA type (GMA is the same physical size (5mm x 20mm) as used in the HT fuse holder).
Part #FH-815
$2.95


Click on photo for
larger view

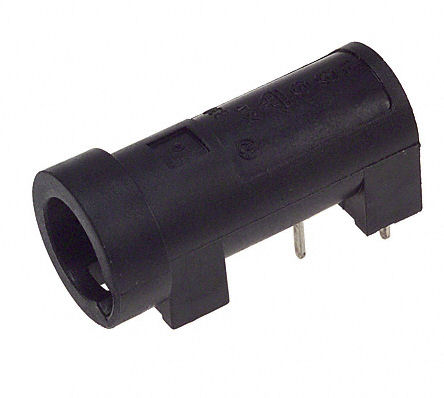

ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall®
Replacement for mains and HT fuse holders found on the Marshall® JCM900 series. Replacement fuse holder for the HT fuse only in the TSL and DSL models in the JCM2000 series (TSL100, TSL122, DSL100, etc.) Includes the FH-204 cap (above).  Common failure item in Marshall®.   Designed to work with GMA type fuses (5mm x 20mm)
Part #FH-830
$5.95


Click on photo for
larger view

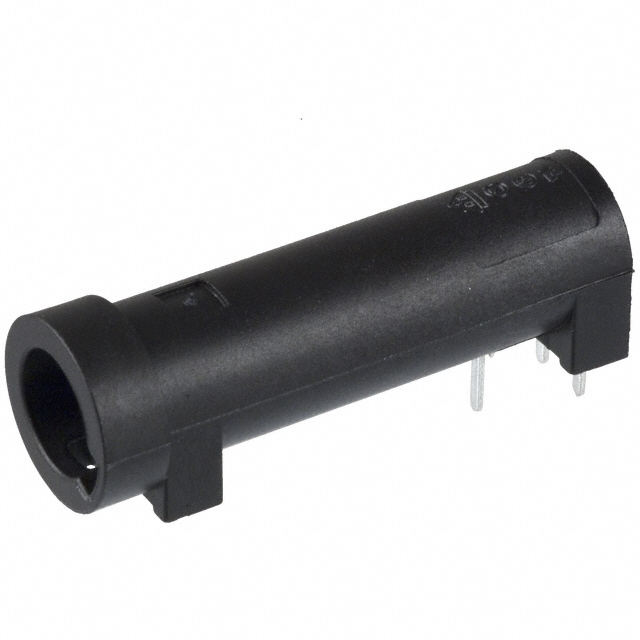

ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall®
Replacement fuse holder for the Mains fuse only in the JCM2000 TSL and DSL models (TSL100, TSL122, DSL100, etc).  Includes the FH-816 cap (above).  Common failure item in Marshall®.  Not for the JCM900 series - JCM900 series amps use the FH-830 as both the mains and HT fuse holders.   Designed to work with AGC type fuses (1/4" x 1 1/4").   May be converted to GMA fuses with the FH-815 cap.
Part #FH-810
$5.95


Click on photo for
larger view

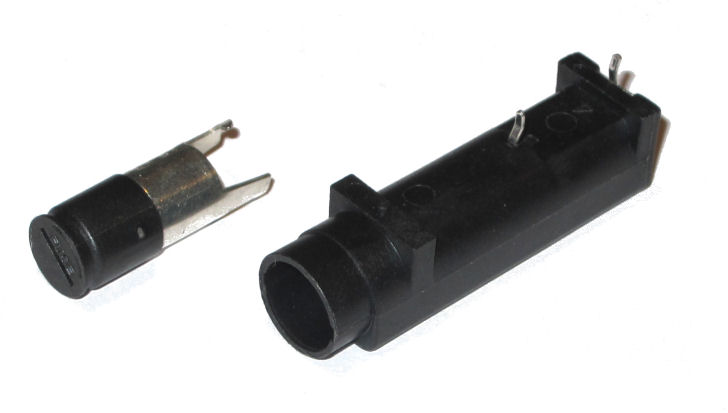

FUSE HOLDER -  Peavey®, Fender®, many other brands - AGC or MDL (1/4 inch x 1 1/4 inch) TYPE FUSE
Fuse holder found in many styles of guitar amplifiers, power amps and effects units.  For example, this fuse holder is used in the Peavey Valve King series.  Also used by Fender® - Fender® part number 0022546000.    PC Board mounted.   Uses AGC type 1/4" x 1 1/4" fuse.  Fuse cap is removed and inserted with flat screwdriver.
Part #FH-2709
$7.99


Click on photo for
larger view
FUSE HOLDER -  PC Board mounted - GMA or GDC TYPE FUSE (5mm x 20mm)
Fuse holder found in many styles of guitar amplifiers, power amps and effects units.  PC Board mounted.   Uses GMA or GDC type mini fuses 5mm x 20mm.   Fuse cap is removed and inserted with flat screwdriver.

Part #FH-862
$7.99


Click on photo for
larger view
FUSE HOLDER -  Panel mounted - GMA or GDC TYPE FUSE (5mm x 20mm)

Fuse holder found in many styles of European guitar amplifiers, power amps and effects units.  Panel mounted, suitable for .187" quick connects or solder connections.   Uses GMA or GDC type mini fuses 5mm x 20mm.  Fuse cap is removed and inserted with flat screwdriver.   Replacement fuse cap is the FH-204.   Cap is included with the holder.   See data sheet here

Part #FH-8
20
$4.99


Click on photo for
larger view

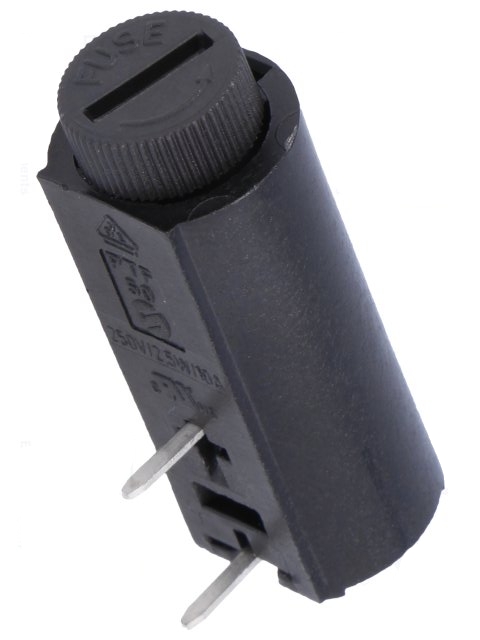

FUSE HOLDER -  Egnater®, Orange®, Trace Elliot®, other brands - GMA OR GDC TYPE FUSE (5mm X 20mm)

Fuse holder found in many models of  Egnater®, Orange® and Trace Elliot® amplifiers.   Designed for the 5mm x 20mm mini glass fuse (GMA or GDC type).  PC Board mounted.

Part #PTF-50
$3.95
