Front Panels and Jack Plates




Hardware



Description & Part No.

Price Purchase


Click on photo for
larger view
Revisit™ SPEAKER HARNESS COMPLETE WITH GENUINE SWITCHCRAFT #11 JACK and 24" SPEAKER WIRE FOR SINGLE SPEAKER.  Preassembled for speaker cabinets with one speaker.  Includes Switchcraft #11 jack, and 24 inch Teflon™-insulated 18 ga speaker wire terminated in 3/16" push-on speaker connectors. For two-speaker cabinets, see the SCH-2411X2, below.
Part #SCH-2411
$8.99




Click on photo for
larger view
Revisit™ SPEAKER HARNESS COMPLETE WITH GENUINE SWITCHCRAFT #11 JACK and 24" SPEAKER WIRE FOR TWO SPEAKER CABINET.  Preassembled for speaker cabinets with two speakers in parallel.  Includes Switchcraft #11 jack, and 24 inch Teflon™-insulated 18 ga speaker wire terminated in 3/16" push-on speaker connectors, plus an additional 24" jumper cable.
Part #SCH-2411X2
$14.99



Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender® jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Jack not included - order separately.  For size specifications, click here.
Part #JP-180
$1.39




Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer.   Outside diameter 2 inches (51mm). Designed to fit flush against a 1 1/8" (29mm) cabinet hole.    Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$3.95




Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH GENUINE SWITCHCRAFT #11 JACK and 24" SPEAKER WIRE.  Preassembled - includes 2" diameter single jack mounting plate with Switchcraft #11 jack preinstalled with lock washer and trim washer, and 24 inch Teflon™-insulated 18 ga speaker wire terminated in 3/16" push-on speaker connectors. Outside jack plate diameter 2 inches (51mm). Designed to fit flush against a 1 1/8" (29mm) cabinet hole.    Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to speaker, attach plate to cabinet.   For two-speaker cabinets, see the JPH-182, below.
Part #JPH-180
$10.95




Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH GENUINE SWITCHCRAFT #11 JACK and 24" SPEAKER WIRE, PLUS ADDITIONAL 24" JUMPER.  Preassembled - includes 2" diameter single jack mounting plate with Switchcraft #11 jack preinstalled with lock washer and trim washer, and 24 inch Teflon™-insulated 18 ga speaker wire terminated in 3/16" push-on speaker connectors. Outside jack plate diameter 2 inches (51mm). Designed to fit flush against a 1 1/8" (29mm) cabinet hole.  Includes a second 24 inch Teflon™-insulated 18 ga speaker wire terminated in 3/16" push-on speaker connectors to connect to a second speaker in the same cabinet.   Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to speakers, attach plate to cabinet.
Part #JPH-182
$15.95



Click on photo for
larger view
Fender® STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster, Showman, etc).    Complete with long-bushing Switchcraft jack with nut and trim washer, and two chrome jack ferrules for the inside and outside of the cabinet back.  For wood panels between 3/8 inch and 1/2 inch thick.   Keep your vintage Fender® cabinet looking original!

Part #JPC-577
$16.95


Click on photo for
larger view
Fender® STYLE SPEAKER CABINET JACK PLATE AND HARNESS ASSEMBLY  As used on blackface and silverface speaker cabinet (Bassman, Bandmaster, Showman, etc).    Complete with long-bushing Switchcraft jack with nut and trim washer, two chrome jack ferrules for the inside and outside of the cabinet back, and prewired to a 24" Teflon™ insulated speaker wire with 5/16" push-on speaker connectors.   The JPH-577 jack plate is designed to work with cabinet backs which are between 3/8" and 1/2" thick.
Part #JPH-577
$24.95



Click on photo for
larger view

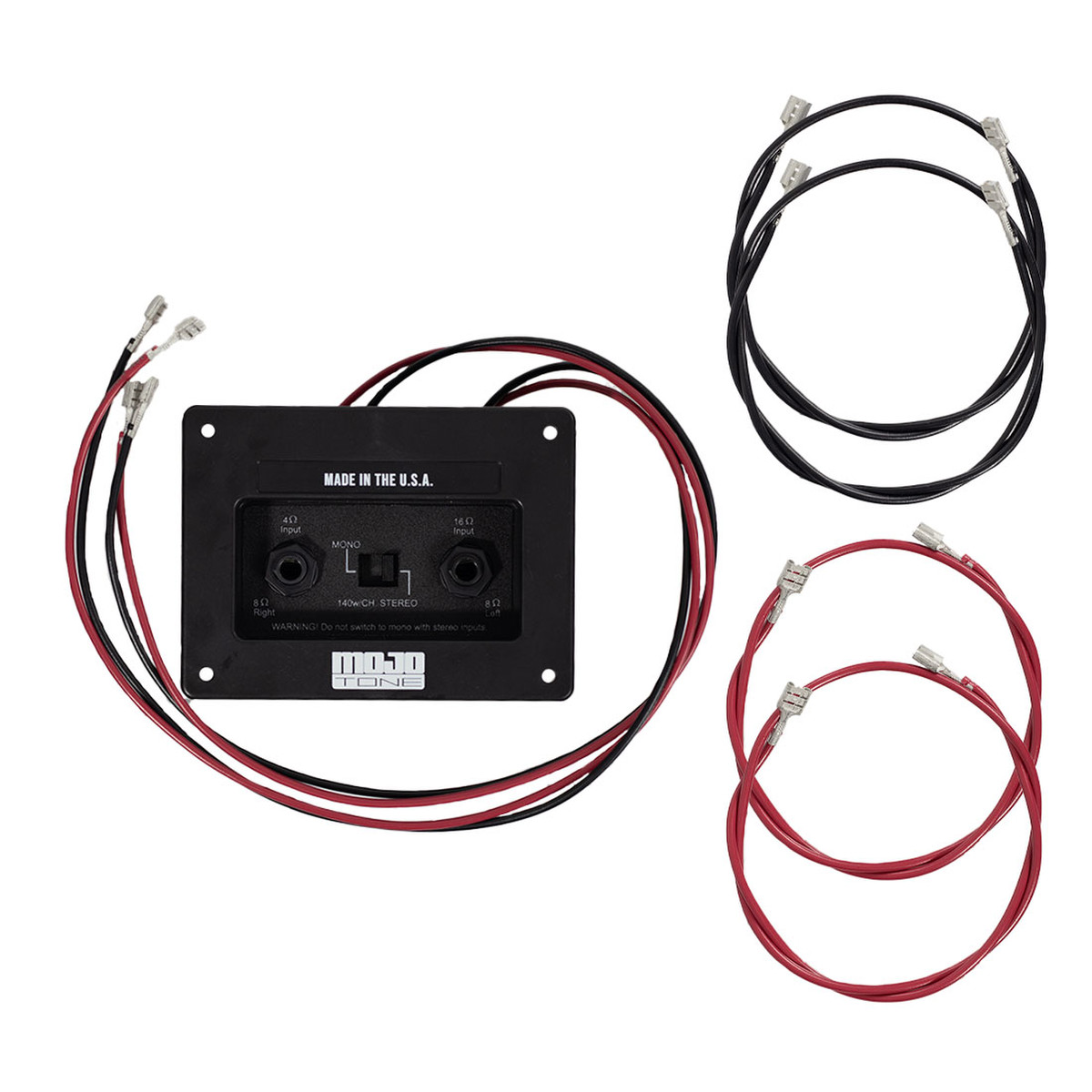

JACK PLATE, MONO/STEREO PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in. Customizable label set at the common 4/16 Ohm Mono and 8 Ohm Stereo. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.  Direct easy replacement for many existing small jack dishes.   No soldering required.  Complete wiring directions included - click here for more details.
Can be used for the following configurations:
  • 4 ohm mono
  • 8 ohm left + 8 ohm right stereo
  • 8 ohm left only mono
  • 8 ohm right only mono
  • 16 ohm mono

Part #CJP-1

$23.95




Click on photo for
larger view

Marshall® JACK PLATE, STEREO / MONO
Original Marshall® jack plate as found on the  Marshall® 1960A, 1960B, Vintage Modern 425A or 425B Marshall® 4x12 cabinets.

Part #JP-800

$48.50


Click on photo for
larger view

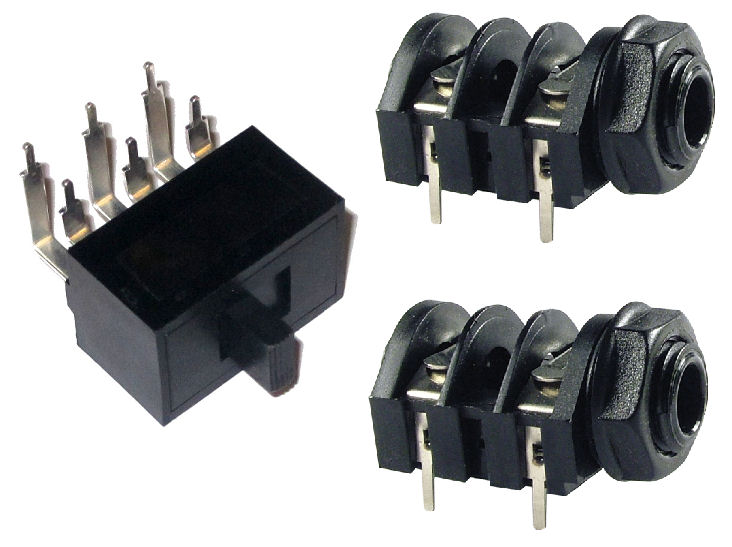

Marshall® JACK PLATE REPAIR KIT
Replaces the common failure parts on the JP-800 mono/stereo jack plate (shown above) as found on the 1960A, 1960B, Vintage Modern 425A or 425B Marshall® 4x12 cabinets.   Kit contains both jacks and a new mono/stereo select switch.   If the plastic housing and the PC board are intact, this kit replaces all of the functional components on the jack plate.
Part #RK-800

$14.00


Click on photo for
larger view

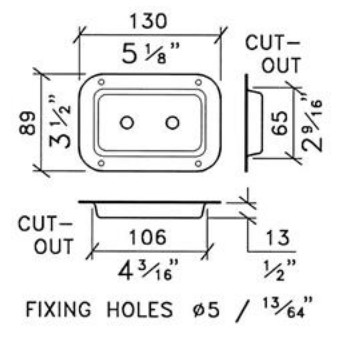

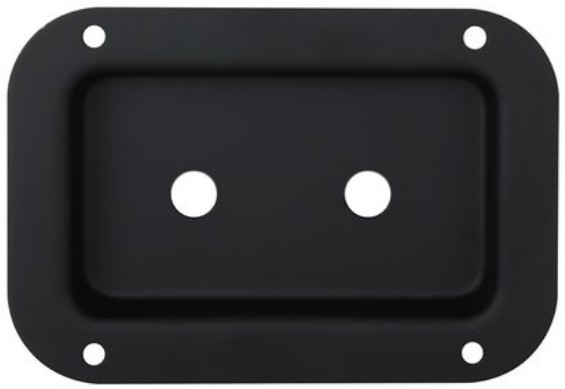

JACK PLATE, BLACK METAL
For two 1/4" jacks.  Steel dish pre-punched for mounting two 1/4" phone jacks. Constructed of heavy-duty 1.2 mm/.047" steel.  Works well with the Switchcraft J-11 jacks that we carry.  Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 4" x 4 3/8".   Requires 2-7/8" x 3-1/4" cutout.
Part #JP-345

$5.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 3 1/2" x 5 1/8".   Cabinet cutout size should be 2 1/2" x 4 1/8".
Part #JP-334

$6.95


Click on photo for
larger view

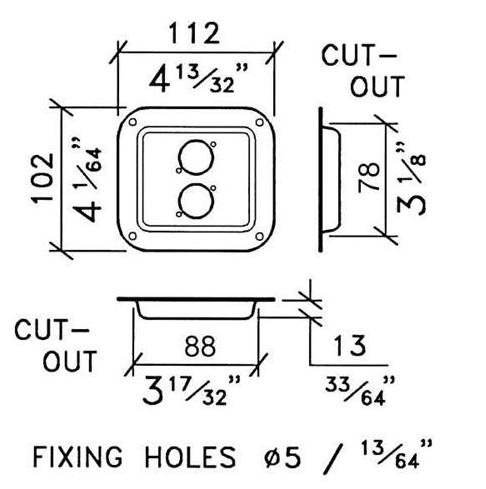

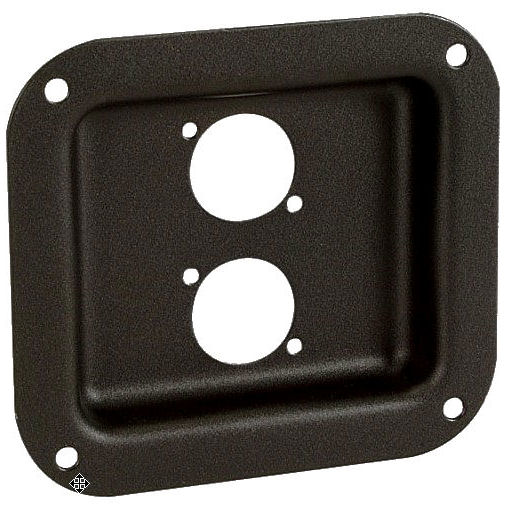

JACK PLATE, BLACK METAL
For two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 4" x 4 3/8".   Requires 2-7/8" x 3-1/4" cutout.
Part #JP-028

$5.95


Click on photo for
larger view

JACK PLATE, BLACK METAL
For two 1/4" jacks and two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Works well with the Switchcraft J-11 1/4" jacks that we carry.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 3 1/2" x 5 1/8".   Cabinet cutout size should be 2 1/2" x 4 1/8".
Part #JP-338

$7.50


Click on photo for
larger view

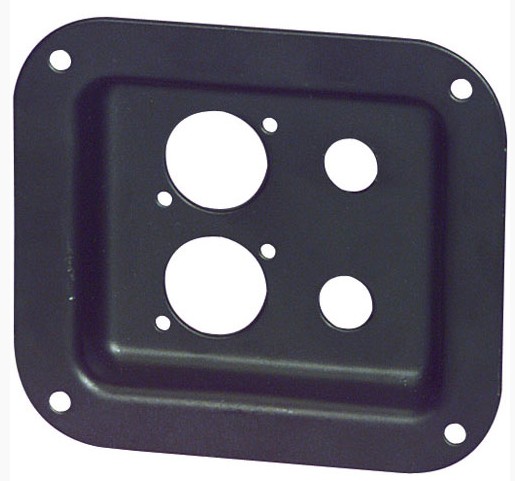

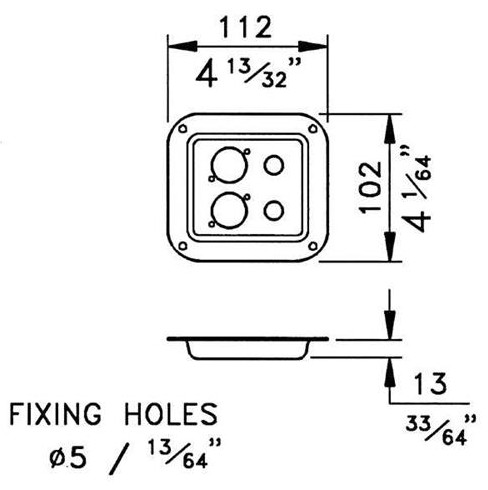

JACK PLATE, BLACK METAL
For two 1/4" jacks and two Neutrik Speakon connectors, such as our J-NL4MD-V or J-NL4MP-2.  Works well with the Switchcraft J-11 1/4" jacks that we carry.  Steel dish pre-punched. Constructed of heavy-duty 1.2 mm/.047" steel. Black powdercoat finish.  Jacks not included - order separately.  Dimensions: 4" x 4 3/8".   Requires 2-7/8" x 3-1/4" cutout.
Part #JP-322

$6.50


Click on photo for
larger view
JACK PLATE, BLACK PLASTIC, DUAL 1/4" JACK, SIZE 3 3/8" x 3 3/8".   Designed to fit in a 3" round hole, easily cut in a cabinet with a 3" hole saw.   Jack mounting hole is 3/8", for most Switchcraft type jacks but can easily be enlarged for other jack types.  Easy to install, economical.   Priced per jack plate.   Jacks not included - order separately.
Part #JP-225
$1.99
