Jacks

Jacks
  Switchcraft


Description & Part No.

Price

Purchase


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$2.25


Click on photo for
larger view

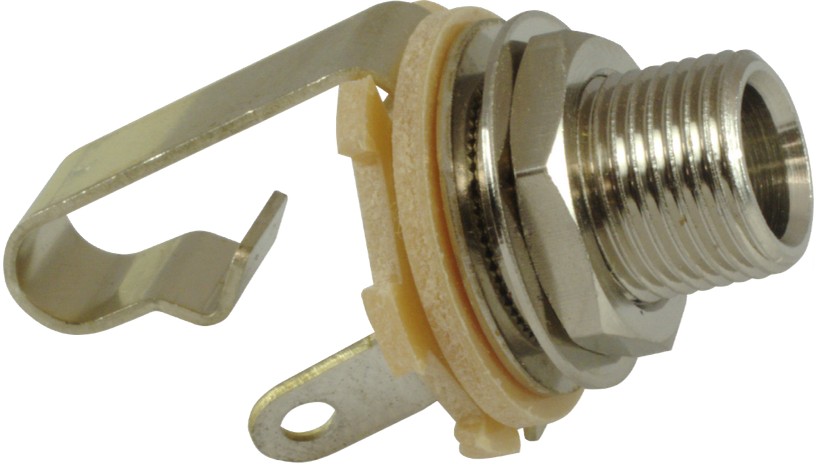

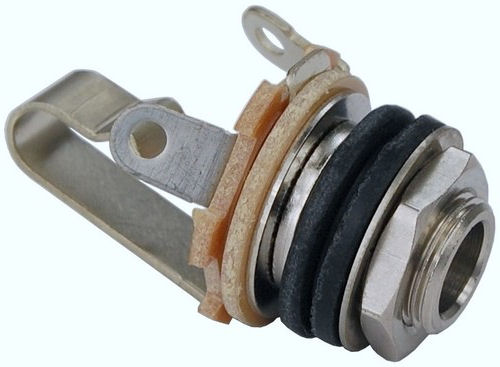

JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L11
$2.95



Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®
Found in vintage Fender
® (and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender part number 0021550000 (originally 021550).
Part #J-12A
$2.79


Click on photo for
larger view

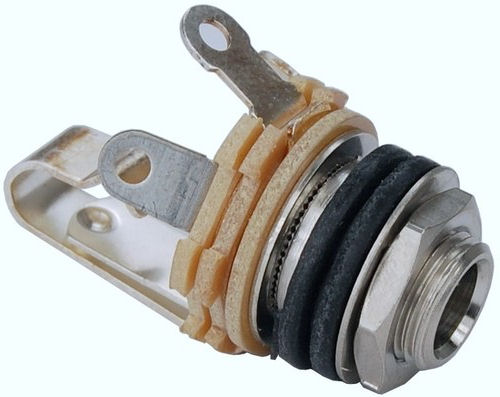

JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$2.99


Click on photo for
larger view

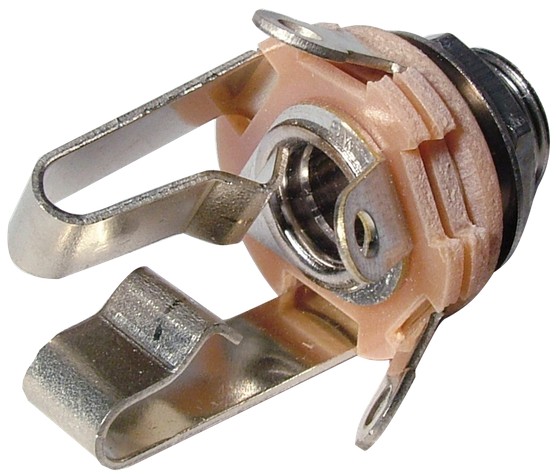

JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft®
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Part #J-12B
$2.99


Click on photo for
larger view

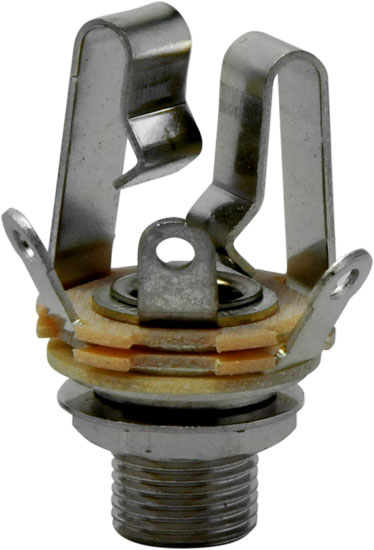

JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft®, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12B
$3.99


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft®
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early Fender models.
Part #J-13
$6.99


Click on photo for
larger view

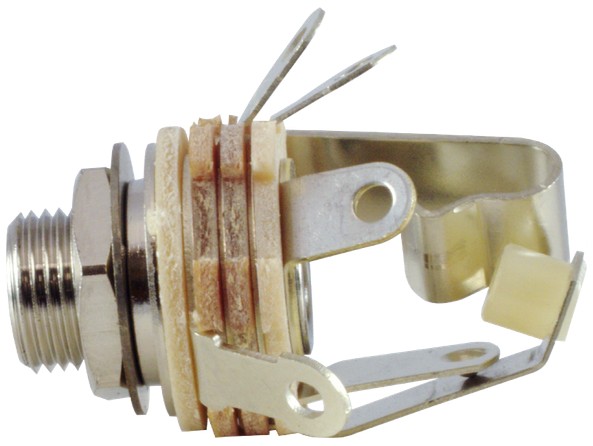

JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place.   Used in
a number of Fender models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models).  Original Fender part number 0041701000 (originally 042701).   Also found in some Peavey amps, such as the Classic 50 speaker jack.
Part #J-13A
$6.99


Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069
$0.49
(For a pair of washers.  Each jack needs two washers.)



Click on photo for
larger view
JACK, Threaded, two conductor.   Commonly used on Shure microphones from the 1960's-1980's.   Also used to mate with input connectors on certain vintage PA systems (Bogen, etc).  Switchcraft 2501F.  Nearly obsolete, these connectors are getting more difficult to find.
Part #2501F
$8.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

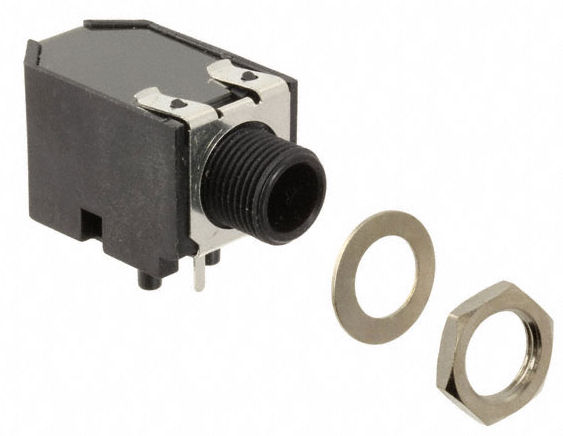

JACK, 1/4", MONO, CLOSED CIRCUIT MONO, PC MOUNT, Switchcraft®, NON-ISOLATED
Common PC mount input jack.   3 pins. Shield tied to chassis mount.
NUT & WASHER
 NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.

Part #J-112APC
$3.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

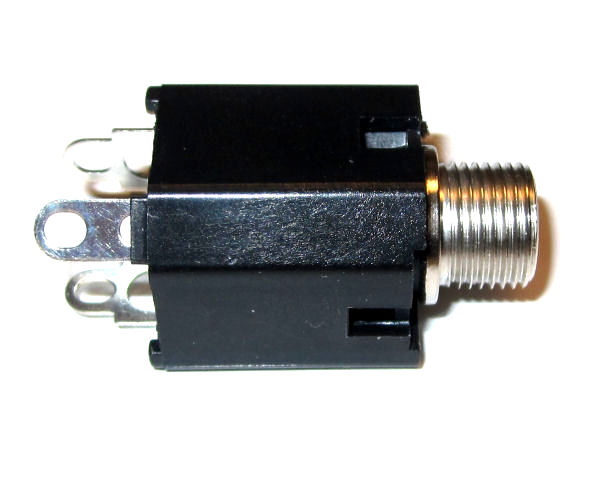

JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft®, NON-ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-112BX
$4.50


Click on photo for
larger view


Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

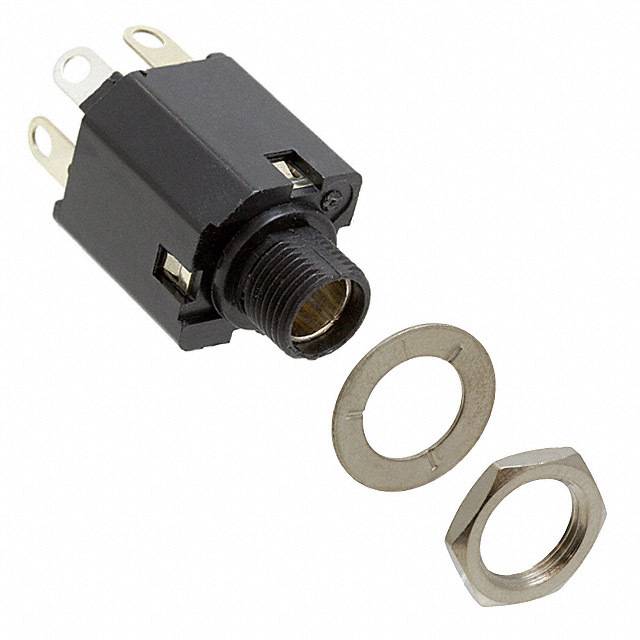

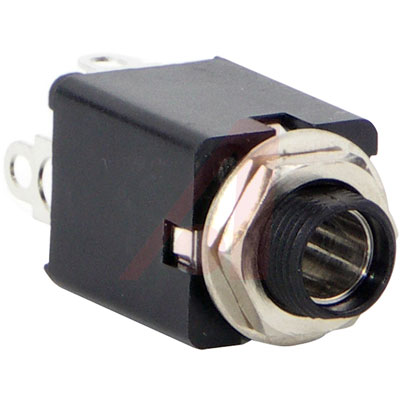

JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft®, ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched, nylon bushing.  Nut and washer not included.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.

Part #J-N112BX
$4.50


Click on photo for
larger view


Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

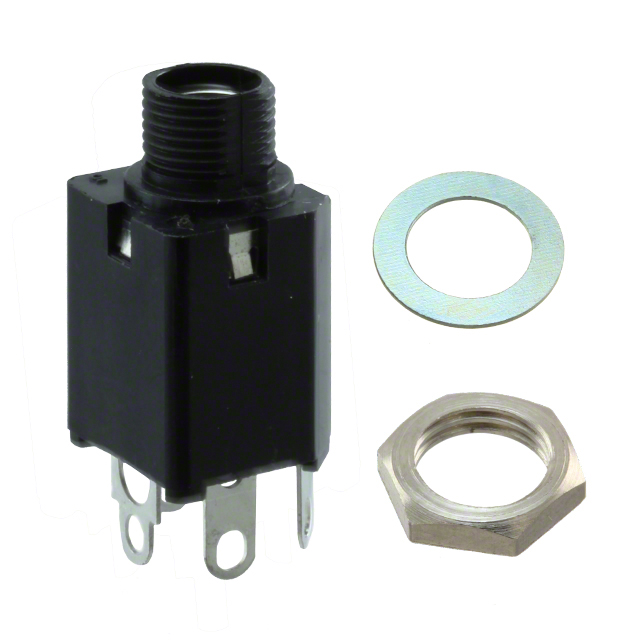

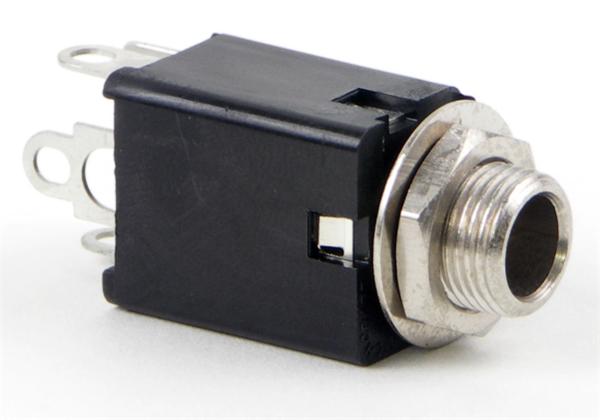

JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft®, METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  T/R/S closed circuit, switched, metal bushing, 5 pins for wiring.  Nut and washer not included.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.

Part #J-114BX
$4.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

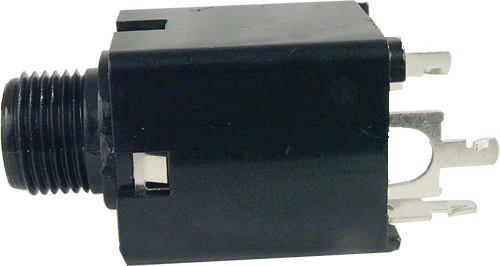

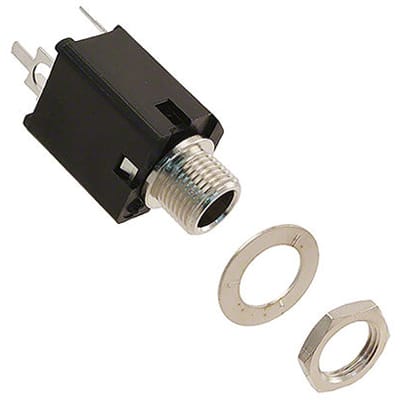

JACK, 1/4",  OPEN CIRCUIT STEREO, PC MOUNT, Switchcraft®, ISOLATED NYLON BUSHING
Common PC mount input jack.  3 pins stereo, open circuit, non-switched.  Nylon bushing ; shield is not tied to chassis mount.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-N112BPC
$3.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

JACK, 1/4", STEREO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft®, NYLON THREADS, NON-ISOLATED, 5 PINS
Common input jack in Crate
® & Ampeg® products.  Ground tied to chassis mount.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
  Part #J-114PC
$4.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

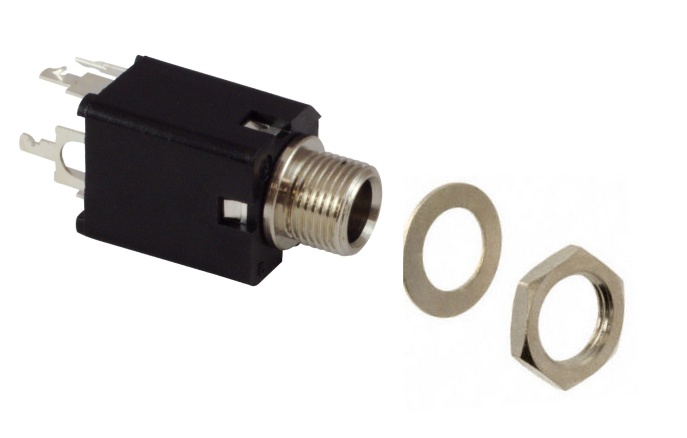

JACK, 1/4", Peavey® ORIGINAL, PC MOUNT, MONO, 4 PINS.
This jack is unusual in that two different pins
contact the tip of the plug.  One of the tip contacts is switched (normally closed).  This jack is exclusive to Peavey®.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-521
$3.50


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

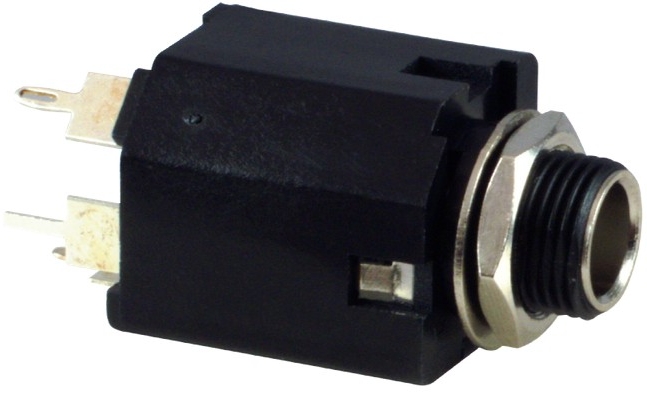

JACK, 1/4", Peavey® ORIGINAL, PC MOUNT, MONO, 4 PINS, INSULATED.
This jack is unusual in that two different pins
contact the tip of the plug.  One of the tip contacts is switched (normally closed).  This jack is exclusive to Peavey®.   Same as J-521 except that the threads are insulated.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-522
$3.75


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Both tip and ring conductors are switched (normally closed).   Used in Peavey® and other brands.  Same as J-524, except that the threads are insulated.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-523
$4.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed)  Made by Neutrik.   Used in Peavey®, Mackie and other brands.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-524
$3.75


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

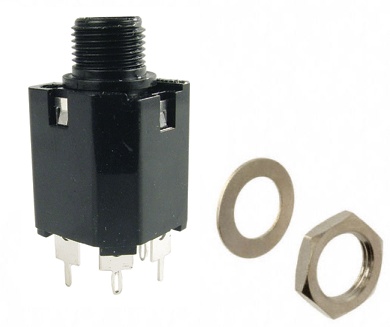

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Both tip and ring conductors are switched (normally closed).   Used in Peavey® and other brands.  Same as J-523, except that the pins are smaller for insertion into smaller PC holes.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-527
$4.50


Click on photo for
larger view

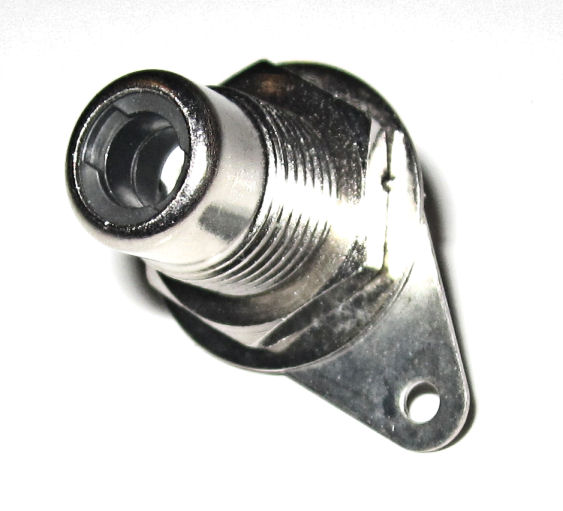

RCA JACK, PANEL MOUNT

Exact replacement for the reverb tank and footswitch jacks on the rear panel of Fender Blackface and Silverface amplifiers.   Made by Switchcraft.   Nut is included.
Part #J-122

$3.99

  Jalco/Kobiconn


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

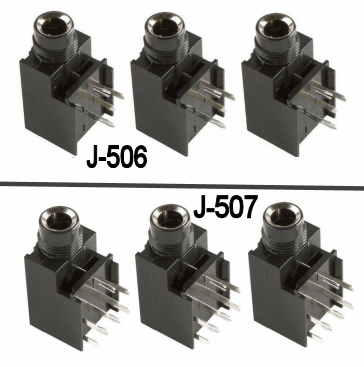

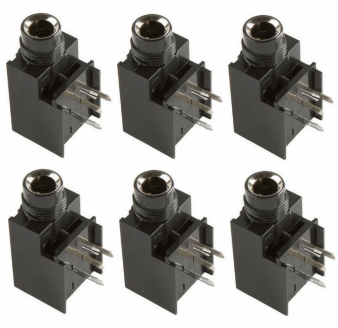

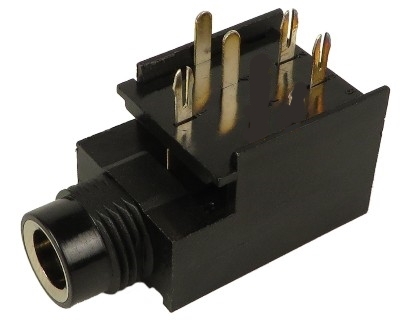

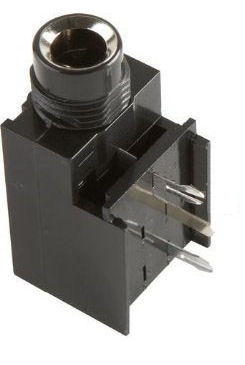

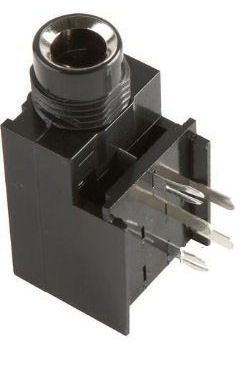

JACK, 1/4", TIP/SLEEVE 4 PIN, PC MOUNT, Fender®, AMPS 1988 - Present.
Fender
® PC mount 1/4" jack. Mono 4 pin. Fits certain Fender® amp models 1988 - present.  Also commonly found on Hartke® amps.    Fender part number 0990912000.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part # J-506

$2.99



Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

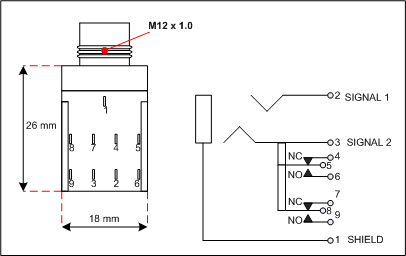

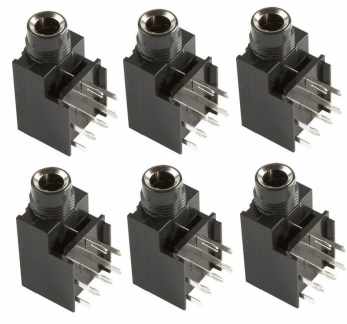

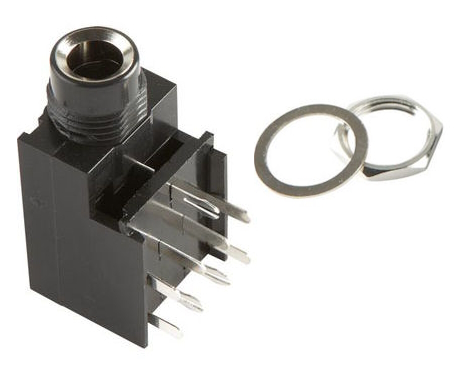

JACK, 1/4", TIP/RING/SLEEVE, 9 PIN, PC MOUNT, Fender®, AMPS 1988 - Present.
Fender
® PCB mount 1/4" jack.  Stereo, 9 pin. Fits certain Fender® amp models 1988 - present.   Used as the input jack on the Ultimate Chorus, Princeton Chorus, and similar solid-state models from the 1990's.  Fender part number 0990913000.   Click here for specifications.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-507

$3.49



Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

JACK, 1/4", TIP/RING/SLEEVE, 7 PIN, PC MOUNT, Hartke® Amps.  Hartke® PCB mount 1/4" jack.  7 pins.   Fits several Hartke® amp models 1990 - present.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-545

$5.95

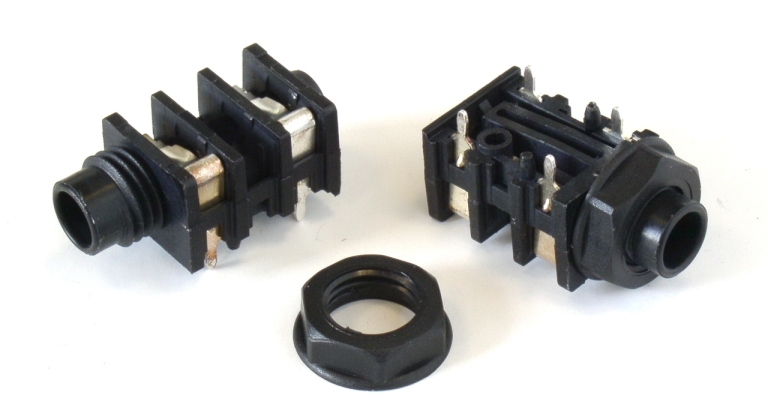

Both the original jack and the new replacement jacks are shown below.  Click on the photo for a larger view

Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

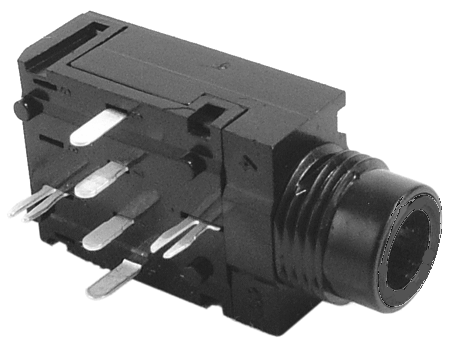

JACK, 1/4", Marshall® ORIGINAL, MG SERIES, 6 Pins
Used in the Marshall® G50RCD, G80RCD and G100RCD as the input jack.   This jack was discontinued by Marshall and unavailable for over a year.    Now, there is a substitute  jack from Marshall that works perfectly as a replacement.   Note - the original jack had a chrome ring around the jack entrance, but the new one does not.   That is the only cosmetic difference.   The original nut will fit the new jack, and the PC board footprint and functionality is the same.

NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-530
$9.50


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

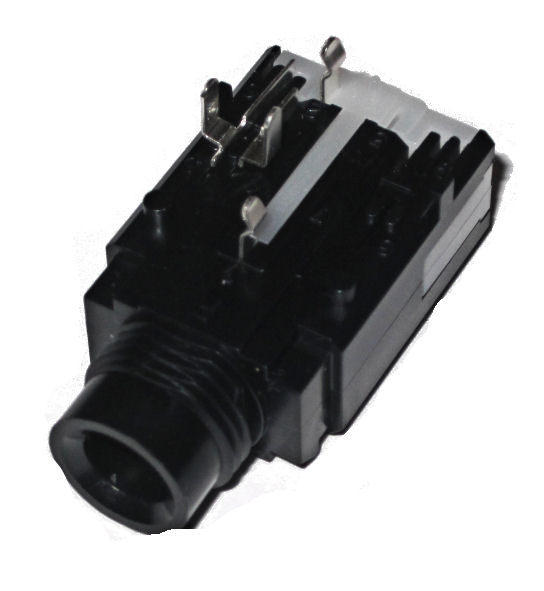

JACK, 1/4", Marshall® ORIGINAL, TSL100, 9-PIN.  Used as the Effects A and Effects B return jack on the rear panel of the TSL-100. Also used as the headphone jack in certain Marshall ValveState models, including the VS265.  Original Marshall part number J3D86074 or CON005007.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-6074
$11.95


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

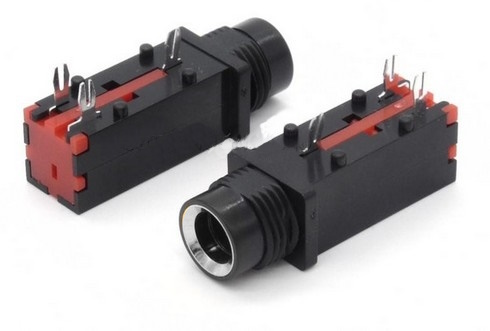

JACK, 1/4", Marshall® ORIGINAL, MG SERIES, INPUT, LINE OUT, FOOTSWITCH,  PC MOUNT, HAS RED STRIPE, ALSO USED IN YAMAHA, KORG, FENDER.
Used in certain Marshall® G-series amps from the late 90's  - compare with original jack.    Does not have chrome trim ring around the opening, as did some of the earlier versions of this jack.   Check the back of the existing jack - if the back is red, this would be the correct replacement.   Used as the input jack and the line out jack in the Marshall G15RCD.   Used as the input, line out and footswitch jack in the Marshall G30RCD.   Used as the line out, footswitch, FX send and return jacks in the Marshall G50RCD.   Used as the input jack on certain Fender SideKick amps, such as the SideKick Chorus 20.

NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-531
$5.75


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

JACK, 1/4", Marshall® ORIGINAL, MG SERIES, USED AS CD OUTPUT JACK, PC MOUNT,  ALSO USED IN YAMAHA.
Used in certain Marshall® G-series amps from the late 90's - compare with original jack.   Used as the CD input jack in the Marshall G15RCD and the G30RCD.   Original Marshall part number J1031.   Also used in Yamaha, Korg, and others.   Roland part number #13449148 (YKB21-5009).
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-532
$6.75


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

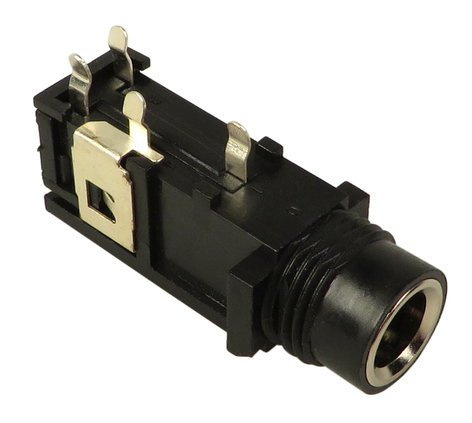

JACK, 1/4", STEREO, 4-PIN, INPUT, MADE BY KOBICONN, USED IN Marshall®, KORG, YAHAMA & OTHERS, PC MOUNT  This jack replaces Korg part #454004400 (YKB21-5010) and Roland part #13449263 (YKB21-5005).    Also used in the Casio PX-310 keyboard.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-533
$4.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

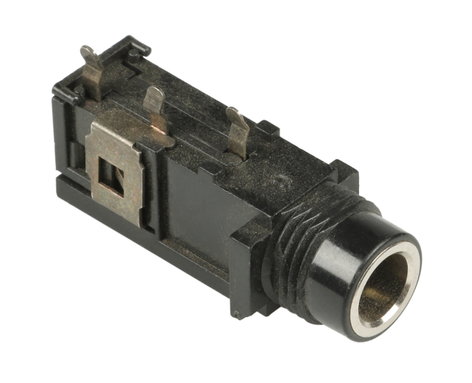

JACK, 1/4", MONO, 3-PIN, INPUT, MADE BY KOBICONN, USED IN Marshall®, KORG, YAHAMA & OTHERS, PC MOUNT
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-539
$4.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order J-5KN-NUT, below.

JACK, 1/4", 7-PIN, HEADPHONE,  USED IN MARSHALL, YAMAHA & OTHERS, PC MOUNT
Used as the headphone jack in the Marshall G15RCD and G30RCD.   Original Marshall part number V4550.   Used as the headphone jack in Yamaha models YPR6, HE6, PSR520, YPR8, and other models.   Original Yamaha part number LB10187R.

NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER J-5KN-NUT, BELOW
Part #J-540
$9.95

NUT, CHROME, KOBICONN TYPE.
Fits J-506, J-507, J-530, J-531, J-532, J-533, J-539, J-540.   Also includes matching washer (not shown).
Part #J-5KN-NUT

$1.00

  Cliff

Click on photo for
larger view

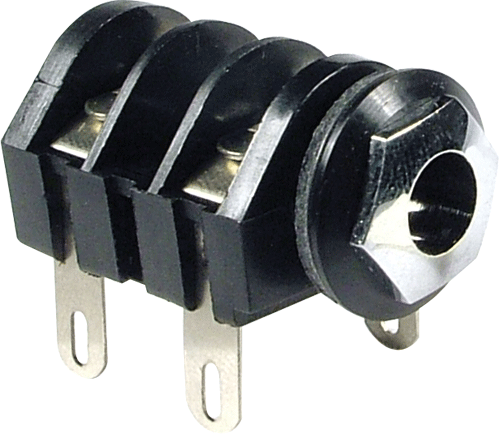

JACK, 1/4", MONO PLASTIC, CLIFF, SOLDER TERMINALS,  CHROME NUT
4 solder terminals, switched. Used in "hand-wired" British amps, as well as other brands.  Chrome nut has male threads, jack has female threads.  With nut and washer.
Part #J-501
$3.99


Click on photo for
larger view

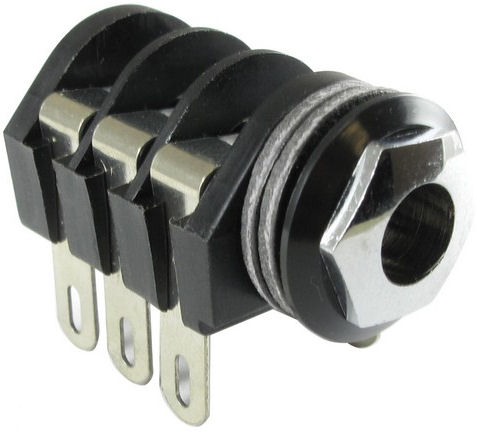

JACK, 1/4", STEREO PLASTIC, CLIFF, SOLDER TERMINALS,  CHROME NUT
6 solder terminals, switched. Used in "hand-wired" British amps, as well as other brands.  Chrome nut has male threads, jack has female threads.  With nut and washer.
Part #J-501-S
$3.99


Click on photo for
larger view
JACK, 1/4", MONO PLASTIC, CLIFF, SOLDER TERMINALS,  REPLACEMENT FOR Marshall®
4 solder terminals, switched. Used in "hand-wired" Marshall®TM amps, as well as other brands.  With nut and washer.
Part #J-502
$2.99


Click on photo for
larger view

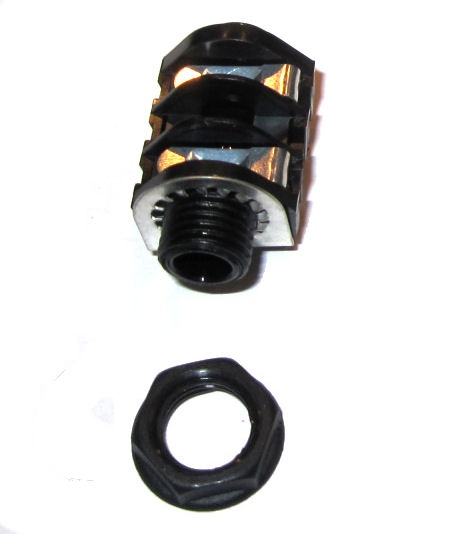

JACK, 1/4", MONO PC MOUNT PLASTIC, CLIFF, REPLACEMENT FOR Marshall® and other brands.
4 PC board terminals, switched. Used in modern Marshall®TM amps, or as a replacement part for Marshall®TM JCM 900 cabinets. Used in many brands of amps and other equipment.   With nut and washer.
Part #J-503
$2.99


Click on photo for
larger view

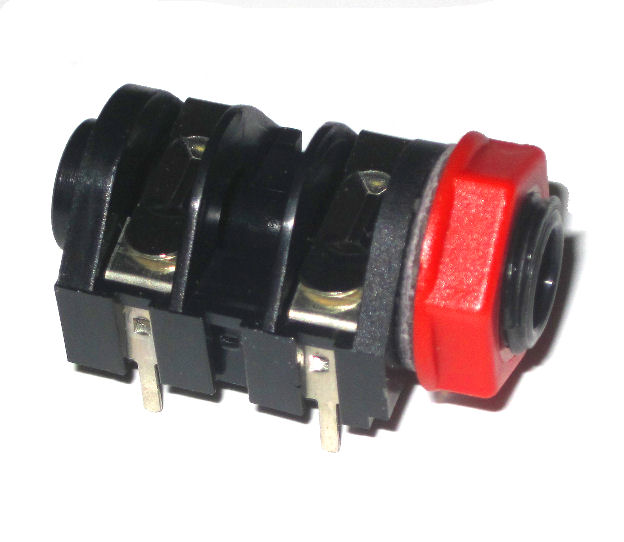

JACK, 1/4", MONO PC MOUNT PLASTIC, CLIFF,  RED NUT, REPLACEMENT FOR Marshall® SPEAKER JACKS.
4 PC board terminals, switched. Used in modern Marshall®TM amp heads (JCM2000 series TSL and DSL, for example) as the output jack for the speaker cabinet.  With red nut and washer.
Part #J-503R
$3.49


Click on photo for
larger view

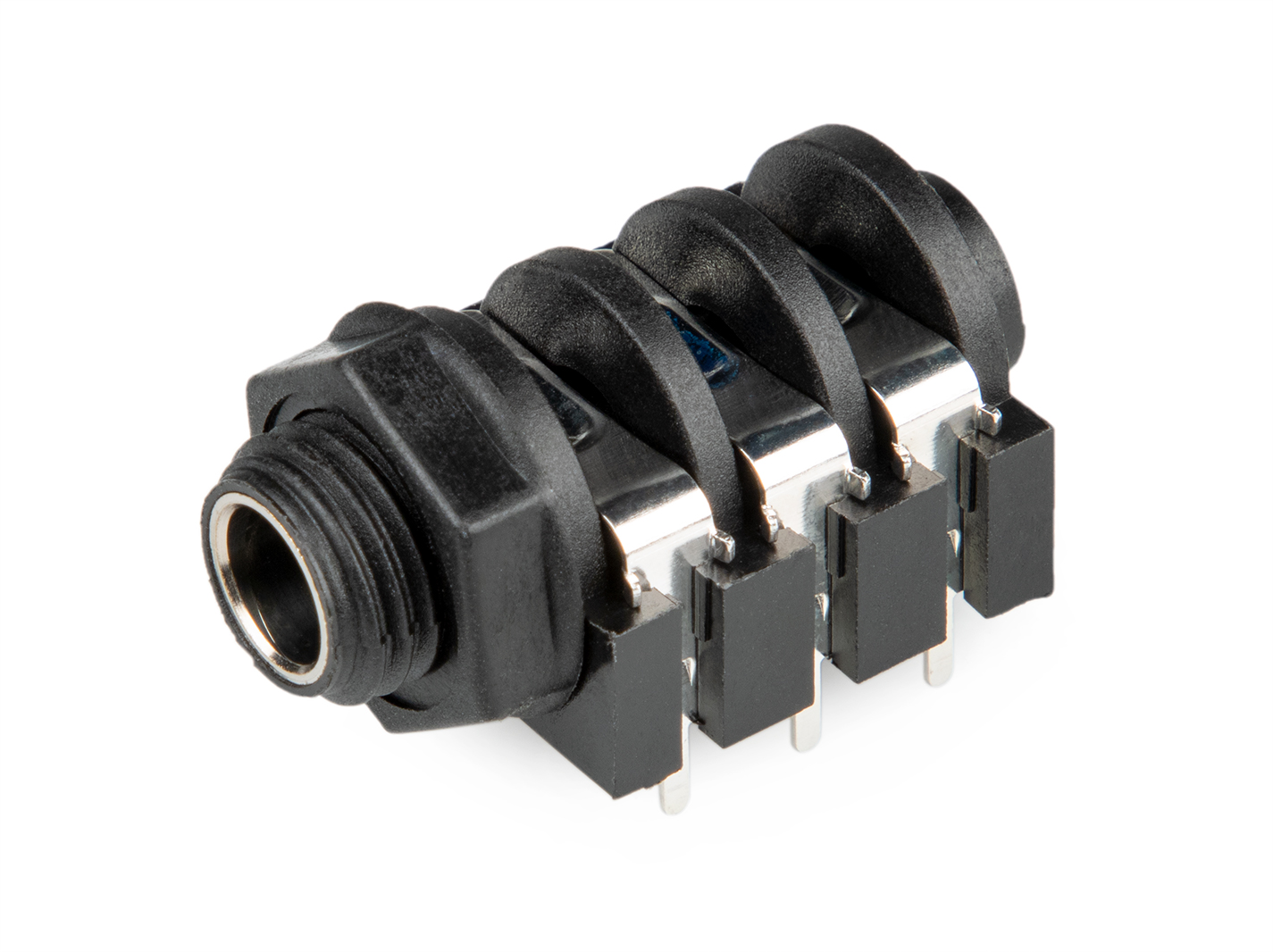

JACK, 1/4", MONO, CLOSED CIRCUIT, PC MOUNT, CLIFF, CHROME RING
Mono jack. 4 PC board terminals, switched.  Same as J-503 jack, with the addition of the chrome ring around the entrance.  Used in Line 6® amps as well as some other brands. Also used in Electro Harmonix products.  May be used to replace the J-503 to "upgrade" the looks of any amp using the J-503 type jack.   With nut and washer.
Part #J-503C
$2.99


Click on photo for
larger view

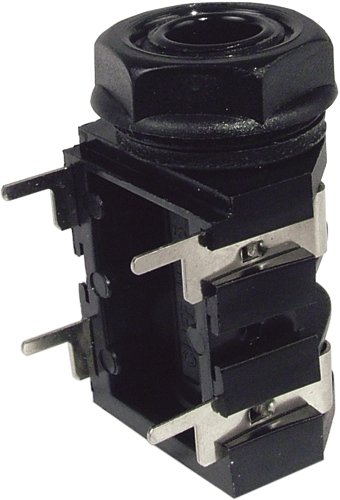

JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG Common input jack in Crate®, Ampeg®, others.  4 pins, PC mount, with nut and washer.  Note "L-Leg" pins as shown in photo.
Part #J-503L
$3.79


Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, EXTRA-TALL LEGS.  Common input jack in certain B-52®, Epiphone®, and other specialty brand amps.   Also may be used as a replacement for the rear panel jacks FX loop jacks on the Marshall MG100DFX and also as the speaker jacks on the MG100HDFX.  4 pins, PC mount, with nut and washer.  Note extended straight pins as shown in photo, causing the jack to sit about 1/4" above the PC board.
Part #J-503SL
$3.45


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC MOUNT, CLIFF

Stereo input jack. 6 PC board terminals, switched. Used in modern Marshall® amps as well as many other brands. Used in many PA and recording consoles, Marshall® bass heads, Line 6® amps, and "rack" units.   With nut and washer.
Part #J-504
$3.50


Click on photo for
larger view

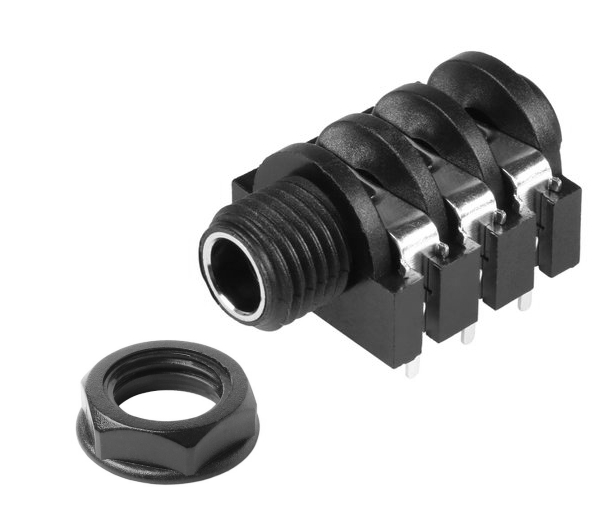

JACK, 1/4", STEREO, CLOSED CIRCUIT, PC MOUNT, CLIFF, CHROME RING
Stereo input jack. 6 PC board terminals, switched.  Same as J-504 jack, with the addition of the chrome ring around the entrance.  Used in Line 6® amps as well as some other brands.  Also used in Electro Harmonix products.  May be used to replace the J-504 to "upgrade" the looks of any amp using the J-504 type jack.   With nut and washer.
Part #J-504C
$3.50


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG Common input jack in Crate®, Ampeg®, others.  6 pins, PC mount, with nut and washer.   Note "L-Leg" pins as shown in photo.
Part #J-504L
$3.95


Click on photo for
larger view
JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG, TIP-SLEEVE, 4 PINS.   Common input, footswitch or effects loop jack exclusive to Crate® and Ampeg®.   (Other brands with chrome-nut jacks use a straight pin jack such as the J-580.)  4 pins, PC mount, with chrome nut and washer.   Note "L-Leg" pins as shown in photo.   Original Crate or Ampeg part number 39-119-01.
Part #J-580L
$5.95

Click on photo for
larger view
JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, L-LEG, TIP-RING-SLEEVE, 6 PINS.   Common input, footswitch or effects loop jack exclusive to Crate®, Ampeg®.   (Other brands with chrome-nut jacks use a straight pin jack such as the J-581.)  6 pins, PC mount, with chrome nut and washer.   Note "L-Leg" pins as shown in photo.   Original Crate or Ampeg part number 39-120-01.
Part #J-581L
$6.50

Click on photo for
larger view
JACK, 1/4", STEREO PLASTIC, CLIFF, SOLDER TERMINALS,  REPLACEMENT FOR Marshall®
6 solder terminals, switched. Used in "hand-wired" Marshall®TM amps, as well as other brands.  With nut and washer.
Part #J-505
$3.50


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT, PC MOUNT, CLIFF - WHITE   Identical to the J-503 above, except in white.  How cool is that!  Mono input jack. 4 PC board terminals, switched. Used in modern Marshall® amps, as well as many other brands.  With nut and washer.
Part #J-555
$3.99


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC MOUNT, CLIFF - WHITE   Identical to the J-504 above, except in white.  How cool is that!  Stereo input jack. 6 PC board terminals, switched. Used in modern Marshall® amps, as well as many other brands. Used in many PA and recording consoles, Marshall® bass heads, Line 6® amps, and "rack" units.   With nut and washer.
Part #J-556
$3.99


Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, STRAIGHT LEG (NOT L-LEG!)
Common input jack some "boutique" and independent brand amps.  NOT used in Crate®, Ampeg®. 4 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-580
$3.99


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, CLIFF, STRAIGHT LEG (NOT L-LEG!)
Common input jack some "boutique" and independent brand amps, as well as Dunlop®/MXR products.  NOT used in Crate®, Ampeg® (see J-581L for those).   6 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-581
$4.49


Click on photo for
larger view
JACK, STEREO, DUNLOP TYPE WITH EXTRA RING CONTACT
Exclusive Dunlop jack - used in several Dunlop pedals.  Has additional off-normal contact on the ring conductor.  Chrome nut is included.
Part #ECB-040
$5.95




Click on photo for
larger view
JACK NUT, PLASTIC, CLIFF, REPLACEMENT FOR Marshall® AND OTHERS
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks
 Part #J-5NT
$0.50


Click on photo for
larger view
JACK NUT, PLASTIC, CLIFF, RED
Replacement nut for the J-502, J-503, J-504, J-505, J-503L and J-504L.
Red nuts on these jacks typically are used on later model Marshall amps to designate the 'speaker' jacks.
Part #J-5NTR
$0.60


Click on photo for
larger view
JACK NUT, PLASTIC, CLIFF, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L and J-504L black jacks, if you wish to create a two-tone effect.
Part #J-5NTW
$0.60


Click on photo for
larger view
JACK NUT/FERULE, CHROME, CLIFF
Replacement nut for the J-501, J-501S, J-580 and J-581 jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   There are many types of generic jacks on the market (including those used in Ampeg and Crate) with finer thread nuts.   This nut will not fit those jacks.   Washer is not included with this nut.
Part #JN-200
$0.60

  Rean/Neutrik

Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

JACK, 1/4", Used in Fender® and Peavey®, PCB, MONO CLOSED CIRCUIT
PCB mono closed circuit.   Fender part number 0051658000.  Original Peavey part numbers
71462088 and 71466164.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-525
$5.99


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Made by Rean - used in many Peavey® models.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-526
$4.50


Click on photo for
larger view
JACK NUT AND WASHER, METAL
Replacement jack nut and washer set as used on the J-521, J-522, J-523, J-524, J-525, J-527, J-563, J11, J12A, and J114PC jacks.   Replacement jack nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall pots.
Part #JNUT-38
$0.99


Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069
$0.49
(For a pair of washers.  Each jack needs two washers.)



Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order
J-510 or J-5NT, below.

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Fender®, Peavey, others.
Fender
® PCB mount 1/4" jack.  Fender part number 0053450000.   Stereo, 6 pin. Fits certain Fender® amp models 1999 - present (including certain jacks on the Hot Rod Deluxe & Deville, and Blues Deluxe & Deville).  Also fits Peavey, Gallien-Krueger and other brands. Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.  Note: You can also use the black plastic Cliff nut on this jack, and some models are designed that way.  If you need the black plastic nut to fit this jack, order #J-5NT, further down this page.
Part #J-508

$3.50


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38, below.

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Metal 3/8" Threads, Fender®, AMPS 1999 - Present.
Fender
® PCB mount 1/4" jack. Stereo, 6 pin.  Fender part number 0059889000.  Fits certain Fender® amp models 1999 - present (including the input jack on the Bassman 250).  Identical to J-508 jack above, except for the metallic threads, which uses a different size nut.  Nut NOT included.   Reuse existing nut or order nut separately as part #J-NUT38.
Part #J-563

$ 3.95


Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order
J-510 or J-5NT, below.

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Half-thread (Bullnose)
PCB mount 1/4" jack. Stereo, 6 pin. Identical to J-508 jack above, except for the shorter threads. Used in many models of guitar amps, mixers and power amps, including Yorkville.  Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.  Note: You can also use the black plastic Cliff nut on this jack, and some models are designed that way.  If you need the black plastic nut to fit this jack, order #J-5NT, further down this page.
Part #J-562

$ 3.95


Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-510 or J-5NT, below.

JACK, 1/4", MONO, REAN TYPE, PC MOUNT, Fender®, Peavey, others.
Fender
® PCB mount 1/4" jack. Mono, 4 pin. Fits certain Fender® amp models 1999 - present (including certain jacks on the Hot Rod Deluxe & Deville, and Blues Deluxe & Deville).  Also fits Peavey, Gallien-Kruger and other brands. Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.  Note: You can also use the black plastic Cliff nut on this jack, and some models are designed that way.  If you need the black plastic nut to fit this jack, order #J-5NT, further down this page.   Fender part number 0051658000.  Peavey part number 71466323.
Part #J-509

$2.95


Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-510 or J-5NT, below.

JACK, 1/4", MONO, REAN TYPE, PC MOUNT, Half-thread (Bullnose)
PCB mount 1/4" jack. Mono, 4 pin. Identical to J-509 jack above, except for the shorter threads. Used in many models of guitar amps, mixers and power amps, including Yorkville.  Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.  Note: You can also use the black plastic Cliff nut on this jack, and some models are designed that way.  If you need the black plastic nut to fit this jack, order #J-5NT, further down this page.
Part #J-561

$ 3.50


Click on photo for
larger view

NUT, CHROME, REAN TYPE, Fender®, AMPS 1999 - Present.
Fender
® nut, fits J-508 and J-509 jacks.   (Note:  you can use this nut on the Cliff J-502, J-503, J-504, J-505, J-503L and J-504L jacks as well, if you wish to change your amp's appearance.)
Part #J-510

$ 0.60


Click on photo for
larger view

NUT, CHROME, MACKIE TYPE.
Used primarily on Mackie brand power amp and powered mixer speaker jacks, but may be used on any unit that uses one of the following jacks.  (Note:  you can use this nut on the Cliff J-501, J-501S, J-502, J-503, J-503L, J-504, J-504L, J-505, J-508, and J-509 jacks)
Part #J-NRJ-NUT

$ 1.10


Click on photo for
 larger view
JACK, CHASSIS INSERT, FEMALE XLR.   Made by Neutrik.  Used in Peavey® and Crate® mixers as well as other brands.  This connector has been DISCONTINUED by the manufacturer.   We currently have only 7 of these left in stock.   After those are sold, there will be no more.
Part #J-528
$6.99


Click on photo for
larger view
JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR PC BOARD (SOLDER PINS).   Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including Behringer®.

Part #J-NL4MD-V
$4.95


Click on photo for
larger view
JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR WIRE ATTACHMENT (3/16" PUSH ON CONNECTORS OR SOLDER TABS).   Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including Peavey®.

Part #J-NL4MP-2
$4.95


Click on photo for
larger view
JACK, LOCKING 1/4", CHASSIS-MOUNT - MADE FOR SOLDERED WIRE CONNECTIONS.   Made by Neutrik # NJ3FP6C. Exact replacement for locking jack used on Ibanez® bass guitars.   Fits in standard hole for XLR jacks.   Holds 1/4" plug securely - plug cannot be removed until unlock tab is depressed.   Fits in 23mm (0.90") diameter hole.
Part #J-NJ3FP6C
$8.95


Click on photo for
larger view
JACK, MALE XLR, CHASSIS-MOUNT - MADE FOR CONNECTION TO HORIZONTAL PC BOARD.   Made by Neutrik # NC3MAH.   Exact replacement for many chassis mount XLR connectors from a variety of manufacturers.   See the detailed drawing showing footprint, PCB pin layout here.
Part #J-XLR-3MC
$1.95


Click on photo for
larger view
JACK, FEMALE XLR, CHASSIS-MOUNT - MADE FOR CONNECTION TO HORIZONTAL PC BOARD.   Made by Neutrik # NC3FAH.   Exact replacement for many chassis mount XLR connectors from a variety of manufacturers.   See the detailed drawing showing footprint, PCB pin layout here.
Part #J-XLR-3FC
$1.95


Click on photo for
larger view
JACK, COMBNATION XLR and 1/4", CHASSIS-MOUNT - FOR PC BOARD, VERTICAL MOUNT.   Made by Neutrik # NCJ6FA-V. Exact replacement for for many combo XLR-1/4" jacks.  With push latch as shown.  Download the complete engineering drawing showing the pin layout here.
Part #J-NCJ6FA-V
$3.49


Click on photo for
larger view
JACK, COMBNATION XLR and 1/4", CHASSIS-MOUNT - FOR PC BOARD, HORIZONTAL MOUNT.   Made by Neutrik # NCJ6FI-H. Exact replacement for for many combo XLR-1/4" jacks.   With push latch as shown.  Download the complete engineering drawing showing the pin layout here.
Part #J-NCJ6FI-H
$5.49


Click on photo for
larger view

Neutrik Rean NYS2202 1/4" Mono Jack Thick Panel
1/4" phone jack for thick panels, etc., 2-pole (TS), long-threaded bushing with washer and nut, and full metal housing. Jack head mounts flush to panel.  Nut and washer are included.
Part #NYS2202

$3.50


Click on photo for
larger view

Neutrik Rean NYS221 1/4" Stereo Jack Thick Panel
1/4" phone jack for thick panels, guitar bodies, etc. with special designed head for guitar strap, 3-pole (TRS), long-threaded bushing with washer and nut, and full metal housing.
Part #NYS221

$3.50

  Miscellaneous


Click on photo for
larger view

DC POWER JACK
Handy way to add a power jack for an AC/DC adaptor to an existing devices.   Connector fits the popular 2.1mm x 5.5mm barrel plug found on many adaptors.   Normally closed switch, so that an internal battery may be switched on or off automatically as the adaptor is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative adaptors.  Fits 1/2" chassis hole.
Part #J-750
$1.49


Click on photo for
larger view

DC POWER JACK
Replacement Barrel DC power jack for many pedals, keyboards, etc which use a PC board mounted DC power jack.  Connector fits the popular 2.1mm x 5.5mm barrel plug found on many adaptors.   Normally closed switch, so that an internal battery may be switched on or off automatically as the adaptor is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative adaptors.
Part #BJK-118
$0.99


Click on photo for
larger view

DC POWER JACK
Replacement Barrel DC power jack for many pedals, keyboards.  Connector fits the popular 2.1mm x 5.5mm barrel plug found on many adaptors.   Normally closed switch, so that an internal battery may be switched on or off automatically as the adaptor is connected.   IMPORTANT NOTE:    The metal case of this jack will be connected to the outer terminal of the plug - the jack is not isolated.    If the potential on the outer part of the plug is also used as ground, this connector will work fine on metal housings.    Otherwise, use the J-750 for full isolation.  Not recommended for AC output adaptors, as AC voltage is normally not connected to ground.    If the housing where this plug is to be mounted is plastic, there shouldn't be any problems.   Datasheet here.
Part #BJK-844
$0.99


Click on photo for
larger view

POWER BARREL PLUG
Replacement barrel power plug for many AC Adaptors.  Connector is the popular 2.1mm x 5.5mm barrel plug found on many adaptors.   Soldering required to attach to cable.
Part #BP-573
$0.99


Click on photo for
larger view

Dual Chassis-Mount Banana Binding Posts.   Used on the rear panel of many power amplifiers.  Red and black posts, accepts either single or dual banana plugs. Mounts in two 1/2" holes on 3/4" centers, panel thickness up to 1/4". 15A rating, gold plated contacts.
Part #BP-263

$4.99


Click on photo for
larger view
Peavey binding post, pc mount, black.   Found on several models of Peavey power amplifiers.   Red type also available, below.  Fits standard banana plugs.
Part #BP-277
$6.50


Click on photo for
larger view
Peavey binding post, pc mount, red.   Found on several models of Peavey power amplifiers.   Black type also available, above.  Fits standard banana plugs.
Part #BP-278
$6.50


Click on photo for
larger view
JACK, CHASSIS MOUNT, DIN, 6 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps.  Also used by Genz Benz and other manufacturers.

Part #J-520
$3.75


Click on photo for
larger view
JACK, CHASSIS MOUNT, DIN, 7 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps.  Also used by Mesa Boogie, Genz Benz and other manufacturers.

Part #J-516
$3.75


Click on photo for
larger view
JACK, CHASSIS MOUNT, DIN, 8 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps.  Also used by Genz Benz and other manufacturers.

Part #J-518
$3.75

  Jack Nuts

Click on photo for
larger view
JACK NUT AND WASHER, METAL
Replacement jack nut and washer set as used on the J-521, J-522, J-523, J-524, J-525, J-527, J-563, J11, J12A, and J114PC jacks.   Replacement jack nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall pots.
Part #JNUT-38
$0.99

NUT, CHROME, KOBICONN TYPE.
Fits J-506, J-507, J-530, J-531, J-532, J-533, J-539, J-540.   Also includes matching washer (not shown).
Part #J-5KN-NUT

$1.00


Click on photo for
larger view

NUT, CHROME, REAN TYPE, Fender®, AMPS 1999 - Present.
Fender
® nut, fits J-508 and J-509 jacks.   (Note:  you can use this nut on the Cliff J-502, J-503, J-504, J-505, J-503L and J-504L jacks as well, if you wish to change your amp's appearance.)
Part #J-510

$ 0.60


Click on photo for
larger view

NUT, CHROME, MACKIE TYPE.
Used primarily on Mackie brand power amp and powered mixer speaker jacks, but may be used on any unit that uses one of the following jacks.  (Note:  you can use this nut on the Cliff J-501, J-501S, J-502, J-503, J-503L, J-504, J-504L, J-505, J-508, and J-509 jacks)
Part #J-NRJ-NUT

$ 1.10


Click on photo for
larger view
JACK NUT, PLASTIC, CLIFF, REPLACEMENT FOR Marshall® AND OTHERS
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks
 Part #J-5NT
$0.50


Click on photo for
larger view
JACK NUT, PLASTIC, CLIFF, RED
Replacement nut for the J-502, J-503, J-504, J-505, J-503L and J-504L.
Red nuts on these jacks typically are used on later model Marshall amps to designate the 'speaker' jacks.
Part #J-5NTR
$0.60


Click on photo for
larger view
JACK NUT, PLASTIC, CLIFF, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L and J-504L black jacks, if you wish to create a two-tone effect.
Part #J-5NTW
$0.60


Click on photo for
larger view
JACK NUT/FERULE, CHROME, CLIFF
Replacement nut for the J-501, J-501S, J-580 and J-581 jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   There are many types of generic jacks on the market (including those used in Ampeg and Crate) with finer thread nuts.   This nut will not fit those jacks.   Washer is not included with this nut.
Part #JN-200
$0.60



Copyright ©2014 Studio Sound Electronics - All Rights Reserved
