Marshall®
Corners & Handles

We carry a complete selection of Marshall® Amplifier parts for both vintage and modern amps.

Back to Marshall® Amp Parts Index


Photo Description & Part No. Price Purchase


Click on photo for
larger view
Marshall® CORNERS, COMPLETE SET
Front and rear corner set, ¾" radius. Includes 4 front corners, 4 rear corners, and 28 gold rivets for attaching corners to cabinet.

Part #MC-109
$17.95
(For a set of 8 corners with 28 rivets)



Click on photo for
larger view
Marshall® CORNERS, FRONT OF CABINET
Front corner set, ¾" radius. Includes 12 gold rivets for attaching to cabinet.

Part #MC-1091
$9.95
(For a set of 4 corners with 12 rivets)



Click on photo for
larger view
Marshall® CORNERS, REAR OF CABINET
Rear corner set, ¾" radius. Includes 16 gold rivets for attaching to cabinet.

Part #MC-1090
$9.95
(For a set of 4 corners with 16 rivets)



Click on photo for
larger view
Marshall® RIVETS
For attaching Marshall® corners to cabinets.  Gold, package of 12 rivets.
Part #MR-109
$4.95
(For a set of 12 gold rivets)



Click on photos for
larger view


(Assembled)

Marshall® HANDLE
Genuine Marshall® Handle for modern heads and combo amps.   Used primarily on JCM900, JCM2000, larger ValveState, and JVM series amps, along with some later JCM800.   Original Marshall® part number M-PACK-00031.    Kit contains:
  • (2) Countersunk screws - M5 x 0.8, overall length of 25 mm
  • (2) Mounting brackets
  • (2) Black bracket covers with Marshall® logo
  • (1) Rubber handle with metallic insert
  • Center-to-center screw mounting distance is 8 3/8" (213mm).
  • Overall length of assembled and mounted handle is 10¼" (260mm).
  • Replacement screws are the Marshall® SC-404 screws, below

Part #MAH-294

$16.99


Click on photo for
larger view

Marshall® METRIC HANDLE SCREWS
Pack of 2 metric handle screws for Marshall®   MAH-294 handle.   Original Marshall® , designed to work with the OEM metric T-Nuts.   Set of 2 Flat-head counter-sunk Phillips,  M5 x 0.8, length 25 mm.   Found primarily on JCM900, JCM2000, larger Valvestate, and JVM series amps, along with some later JCM800.
Part #SC-404
$1.99
(for a pack of 2 Marshall® metric screws)




Click on photos for
larger view

VINTAGE Revisit™ REISSUE GOLD/BLACK HANDLE - Marshall® JCM-800 style
Marshall® Handle for vintage heads and combo amps.   Used on some early JCM800 series.    Kit contains:
  • (2) Mounting brackets
  • (2) Gold bracket covers
  • (1) Rubber handle strap with metallic insert
  • Center-to-center screw mounting distance is 9 inches between the inside two screws, and 10 inches between the outside two screws.
  • Overall length of assembled and mounted handle is 11¼" (286mm).
  • Mounting screws are NOT included - use the SC-404 screws for most Marshall amps.   Two sets of SC-404 screws needed (4 screws total)

Part #MAH-287

$16.99



Click on photos for
larger view


VINTAGE Revisit REISSUE GOLD/BLACK HANDLE - JMP, JTM "PLEXI"
Handle for vintage Marshall® heads and combo amps.   Replacement for the original Marshall® JMP, JTM "Plexi" series.    Kit contains:
  • (2) Mounting brackets
  • (2) Gold bracket covers
  • (1) Rubber handle strap with metallic insert
  • Center-to-center screw mounting distance is 9 1/2" (241mm).
  • Overall length of assembled and mounted handle is 10.7" (272mm).
  • Mounting screws are NOT included

Part #MAH-288

$16.99


Click on photo for
larger view

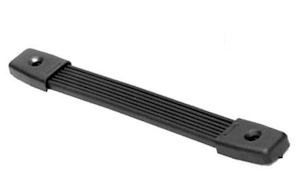

Revisit™ BLACK GUITAR AMP HANDLERugger black rubber handle strap, steel reinforced.  Black metal caps.   Screws not included - recommend using 10-32 type screws along with a 10-32 T-Nut for secure mounting.   Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 to 8 3/8 inches apart.   Total length of handle when properly mounted is 9 3/4".   Makes a good economical replacement for black strap/black end cap large Marshall® handles (JCM900, JCM2000, JVM, larger ValveState, some later JCM800's)  On Marshall® installs, recommend using the SC-404B black-top M5 x 0.8 countersunk screws.
Part #GAH-1
$6.99


Click on photo for
larger view

'BLACK TOP' METRIC HANDLE SCREWS
Pack of 2 stainless-steel flat-top countersunk handle screws for use with black end-cap handles on Marshall® amps, such as our GAH-1.  Set of 2 Flat-head counter-sunk Phillips, M5 x 0.8, length 25 mm, head only is finished in satin black to match black end caps.  For use only on Marshall® amps with original factory T-Nuts for mounting handle.
Part #SC-404B
$2.29
(for a pack of 2 screws)
