Marshall®
Footswitch Boxes

We carry a complete selection of Marshall® Amplifier parts for both vintage and modern amps.

Back to Marshall® Amp Parts Index



Click on photo for
larger view

Marshall® STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall® footswitch - same quality, just without the Marshall® logo and Marshall® price tag.  Sturdy metal construction.    Mono 1/4" Plug, 16 ft. cable.   Standard design - footswitch operation shorts the tip to the sleeve - will work with other makes and models of amplifiers as well as Marshall®.   Replaces Marshall® stock numbers P801 and PEDL-00008.   Works with the Marshall® models 1962, 8040, 2555, 2550, 2558, 2553, 2554.   JTM60 models:  JTM600-610-615-612-622.   JCM600 models 600-601-602.   JCM900 models 2100-2500-2501-2101-2502.   JTM30 models 310-312.   DBS models 7200-7400-72410-72115.  Rackmount amps 9100-9200.   MG Series I model G50RCD.    IBS models 3520-5522-3540.
Part #FBS-470
$20.95


Click on photo for
larger view

Marshall® STYLE FOOTSWITCH W/LED  Revisit™ aftermarket replacement for the original Marshall® footswitch - same quality, just without the Marshall® logo and Marshall® price tag.  Sturdy metal construction.  Replaces Marshall® stock numbers PED801 and PEDL-00001.   Fits the Marshall® DSL100, DSL201 and DSL50, and the ValveState models VS65R and VS30R.   Also the MG Series I model G30RCD.

Also works with the Crate VC3112 Vintage Club 30 and Crate VC5112 Vintage Club 50.   Mono 1/4" Plug, 16 ft. cable.   LED indicates condition of switch.  Can be rewired internally to work with other amplifiers.    Click here for wiring diagram.   NOTE:   Will not work with many amplifiers, even those that used LED's on the original footswitch, without rewiring.   Electronics background suggested.    Also - will generally NOT work with amplifiers which did not have an LED indicator on the original footswitch.
Part #FBS-470L

$21.95


Click on photo for
larger view

Marshall® STYLE DUAL FOOTSWITCH
Revisit™ aftermarket replacement for the original Marshall® dual footswitch - same quality, just without the Marshall® logo and Marshall® price tag.  Sturdy metal construction.  Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.  Latching switches.   Replaces Marshall® stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010, PEDL-00015, PEDL-00017.   Fits the Marshall® JCM900 series:  4100-4500-4101-4501-4102-4502.   The JCM800 series 2210-2205-4210-4212-4211.   The ValveState series:  8080-8100-8200-8280-8240.   The MG Series 1: G80RCD-G100RCD.   The Acoustic Soloist:  AS80R.

Can work with other makes and models of amplifiers as well as Marshall® - commonly used on most models of Trace Elliot guitar amps (not the bass amps, however).   Also used on Gibson® Goldtone amplifiers, and Framus Ruby I, Ruby II, CS, and Red Rogue models.   1/4" Stereo plug, 16 ft. cable.    Will also work on the Fender 1990s and 2000s Reissue 65 Twin-Super-Deluxe-Princeton Reverb amps.
Part #FBS-471

$24.95


Click on photo for
larger view

Marshall® STYLE DUAL FOOTSWITCH W/LED  Revisit™ aftermarket replacement for the original Marshall® footswitch - same quality, just without the Marshall® logo and Marshall® price tag.  Sturdy metal construction.   Replaces Marshall® stock number PED802, PED802A, PEDL-00013, PEDL-00016.  Fits the Marshall® DSL401, VS100R, VS102R, VS100RH, VS230R, VS232R.

Also works with the Crate BV120H Blue Voodoo 120 Head.  Stereo 1/4" Plug, 16 ft. cable.   LEDs indicate condition of switches.  Can be rewired internally to work with other amplifiers.    Click here for wiring diagram.    NOTE:   Will not work with many amplifiers, even those that used LED's on the original footswitch, without rewiring.   Electronics background suggested.    Also - will generally NOT work with amplifiers which did not have LED indicators on the original footswitch.
Part #FBS-471L

$26.95


Click on photo for
larger view

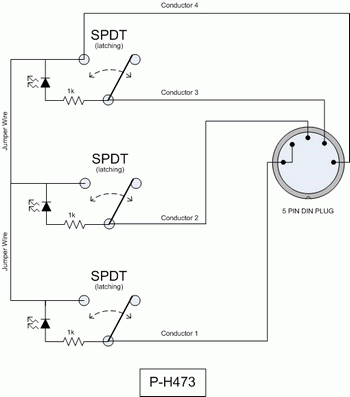

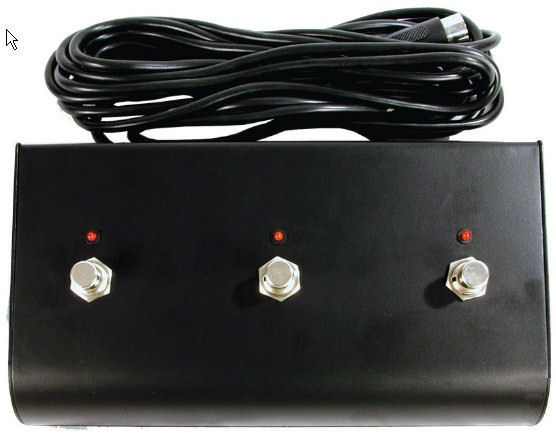

Marshall® STYLE TRIPLE FOOTSWITCH W/LED   Revisit™ aftermarket replacement for the original Marshall® footswitch - same quality, just without the Marshall® logo and Marshall® price tag.  Equivalent to the Marshall® PED-803 and the Marshall® PEDL-10014.  Sturdy metal construction.   Fits only the Marshall® VS265.   Connector is a 5-pin DIN plug, 16 ft. cable.   LEDs indicate condition of switches.  Click here for wiring diagram.    Will not work with amplifiers other than the Marshall® ValveState VS265R.
Part #FBS-473L
$36.95
