JCM900 Series Parts
JCM900 Series amps include the following model numbers:   2100, 2101, 2500, 2501, 2502, 4100, 4101, 4102, 4500, 4501, 4502, 2100SL-X, 2101SL-X, 2500SL-X, 2501SL-X, 2502SL-X

We carry an extensive selection of Marshall® Amplifier parts for both vintage and modern amps.

Back to Marshall® Amp Parts Index



Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, GENUINE CLIFF

4 PC board terminals, switched.  Used in many brands of amps and other equipment.   With nut and washer.  Original Cliff UK part number CL1169.
Part #J-503
$1.99


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", MONO PC MOUNT PLASTIC, GENUINE CLIFF UK, PACK OF 6
4 PC board terminals, switched.  Used in many brands of amps and other equipment.   Pack of 6 jacks, with nuts and washers.  Original Cliff UK part number  CL1169.
Part #J-503-6
$9.99
(Set of 6 jacks)



Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, GENUINE CLIFF UK,  RED NUT, REPLACEMENT FOR Marshall® SPEAKER JACKS.
4 PC board terminals, switched. Used in modern Marshall®TM amp heads (JCM2000 series TSL and DSL, for example) as the output jack for the speaker cabinet.  With red nut and washer.
Part #J-503R
$2.39


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF UK
Stereo input jack. 6 PC board terminals, switched.  With nut and washer.  Original Cliff UK part number CL1227.
Part #J-504
$2.29


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF UK, PACK OF 6
Stereo input jack. 6 PC board terminals, switched.  Pack of 6 jacks, with nuts and washers.  Original Cliff UK part number CL1227.
Part #J-504-6
$10.99
(Set of 6 jacks)



Click on photo for
larger view
JACK NUT, PLASTIC, GENUINE CLIFF UK, REPLACEMENT FOR Marshall® AND OTHERS.
Replacement jack nut as found on the J-503, J-504 jacks.
Part #J-5NT
$0.50


Click on photo for
larger view
JACK NUT MULTI-PACK - SAVE!   6 JACK NUTS, PLASTIC, GENUINE CLIFF UK, REPLACEMENT FOR Marshall® AND OTHERS.
Replacement jack nut as found on the  J-503, J-504 jacks
Part #J-5NT-6
$2.39


Click on photo for
larger view
JACK NUT, PLASTIC, GENUINE CLIFF UK, RED
Replacement nut for the J-503, J-504.
Red nuts on these jacks typically are used on later model Marshall® amps to designate the 'speaker' jacks.
Part #J-5NTR
$0.60


Click on photo for
larger view
Complete Marshall® POT KIT, 8 SINGLE GANG POTS AND 1 DUAL GANG POT.   ORIGINAL Marshall® REPLACEMENT PARTS.
Complete replacement pot kit for the Marshall® JCM900 amp models 2100, 2101, 2500, 2501 and 2502 with 8 pots on the front panel and 1 effects level pot on the rear panel.
NOT for the 2100SL-X, 2101SL-X, 2500SL-X, 2501SL-X or 2502SL-X - see the MPK-9 pot kit for those SL-X models

Part #MPK-1
$24.95


Click on photo for
larger view
Complete Marshall® POT KIT, 10 SINGLE GANG POTS AND 1 DUAL GANG POT.   ORIGINAL Marshall® REPLACEMENT PARTS.
Complete replacement pot kit for the Marshall® JCM900 amp models 4100, 4101, 4102, 4500, 4501 and 4502 Dual Reverb with 10 pots on the front panel and 1 effects level pot on the rear panel.
Part #MPK-2
$29.95


Click on photo for
larger view
Complete Marshall® POT KIT, 8 SINGLE GANG POTS AND 1 DUAL GANG POT.   ORIGINAL Marshall® REPLACEMENT PARTS.
Complete replacement pot kit for the Marshall® JCM900 SL-X amp series, including the models 2100SL-X, 2101SL-X, 2500SL-X, 2501SL-X and 2502SL-X  with 8 pots on the front panel and 1 effects level pot on the rear panel.
Part #MPK-9
$24.95


Click on photo for
larger view
Complete Marshall® POT KIT, 17 SINGLE GANG POTS AND 1 DUAL GANG POT.   ORIGINAL Marshall® REPLACEMENT PARTS.  MARSHALL 30th ANNIVERSARY 6100/6101.
Although technically not part of the JCM900 series, we include this kit here because the 30th Anniversary models 6100 and 6101 were introduced during the 1990s, in 1992.  Complete replacement pot kit for the Marshall® 30th Anniversary 6100 head and 6101 combo amplifiers with 17 pots on the front panel and 1 effects level pot on the rear panel.
Part #MPK-10
$45.95


Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.  ORIGINAL Marshall® REPLACEMENT PART.
Used in Marshall® Valvestate I, JCM900 and JCM600 Series. Used in Marshall® models: 8040, 8080, 8100, 8200, 8240, 8280, JCM900 Models: 2100, 2101, 2500, 2501, 4100, 4500, 4101, 4102, 4501, 4502, SL-X 2100, SL-X 2500, 6100, 6101, JTM600 and JTM30 Series.  Also used in other amps besides Marshall®.   Available values:  B4.7K, B10K, B22K, B50K, A100K, B100K, C100K, B220K, and A1M.   Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-VM16-XX
$2.95

Select Option:


Quantity:


Click on photo for
larger view
POT, 10K OHM X2 LINEAR DUAL, (B10K), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING.  ORIGINAL Marshall® REPLACEMENT PART.
Used in Marshall® Valvestate I, JCM900 and JCM600 Series. Also used in the JMP1 Preamp as Output Level Control.  Used in Marshall® models: 8040, 8080, 8100, 8200, 8240, 8280, JCM900 Models: 2100, 2101, 2500, 2501, 2502, 4100, 4500, 4101, 4102, 4501, 4502, SL-X 2100, SL-X 2500, 6100, 6101, JTM600 and JTM30 Series.  Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 11.5mm.  Fits many other amps besides Marshall®.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V10KLX2-M16
$6.95


Click on photo for
larger view
KNOB, Original Marshall®, PUSH ON KNURLED
Standard original Marshall® control knob, push-on type.  Designed for the "knurled" type control shafts, such as the 16mm potentiometers shown above.   Used on the JCM900 series amplifiers.  Original Marshall® part.

Note:  Marshall® recently switched to a new subcontractor to produce these knobs (late in 2016).   These new knobs are (1) more of an "orangey" shade of gold than the previous Marshall® knobs and (2) the gold caps have more of a matte finish than the previous caps which were shinier.  These new Marshall® knobs are unfortunately less likely to match the existing knobs on your amplifier.
Part #MKPT

$2.99
(Single Knob)


Click on photo for
larger view
KNOB SET, Original Marshall®, PUSH ON KNURLED, SET OF 6.   Standard original Marshall® control knob, push-on type, set of 6 knobs.   Used on JCM900 series amplifiers. Original Marshall® part.

Note:  Marshall® recently switched to a new subcontractor to produce these knobs (late in 2016).   These new knobs are (1) more of an "orangey" shade of gold than the previous Marshall® knobs and (2) the gold caps have more of a matte finish than the previous caps which were shinier.  These new Marshall® knobs are unfortunately less likely to match the existing knobs on your amplifier.
Part #MKPT-6

$12.95
(Set of 6 knobs)


Click on photo for
larger view
KNOB SET, Revisit™ Quality Clone of Marshall® Knobs, Push-on Knurled, Set of 6. Excellent quality aftermarket Marshall® control knobs, push-on type, set of 10 knobs.   Designed for the "knurled" type control shafts.   Found on a variety of Marshall® amps, including the JCM-800, JCM-900, some MG series and ValveState series, and others.   Note:   In most cases, the gold color on the new knob will be deeper than the other old knobs on your amp - the gold caps on Marshall® knobs fade over time.   Especially true if your amp is ~20 years old or greater (JCM800 and JCM900, for example).  Due to copyright reasons, there are differences between the Revisit™ clone knobs and the original Marshall® knobs that we want you to be aware of.   The clone knobs' gold tops are smoother than the originals, and the clone knobs are a very dark brown (almost black) while the original knobs are more of a dark chocolate brown.
Part #MKCPT-6
$9.95
(Set of 6 knobs)


Click on photo for
larger view
KNOB SET, Revisit™ Quality Clone of Marshall® Knobs, Push-on Knurled, Set of 10.   Excellent quality aftermarket Marshall® control knobs, push-on type, set of 10 knobs.  Designed for the "knurled" type control shafts (JCM900).     Nothing perks up the tired looks of a road-worthy Marshall® like a complete new set of knobs.   Older Marshalls typically have knobs where some of the gold caps have fallen off, and the other gold caps have faded to look more like silver than gold.    It used to be a bit pricey to swap out the complete set of knobs on some of the JCM900's, but with this new set of aftermarket Marshall® knobs, it's affordable.    This set of 10 knobs is perfect for many JCM900 series models with 10 control pots, such as the 2101, 2501, 4100, 4101, 4102, 4500, 4501, and 4502.   Quality reproduction of the original Marshall® knobs at half of the cost.  Due to copyright reasons, there are differences between the Revisit™ clone knobs and the original Marshall® knobs that we want you to be aware of.   The clone knobs' gold tops are smoother than the originals, and the clone knobs are a very dark brown (almost black) while the original knobs are more of a dark chocolate brown.
Part #MKCPT-10
$14.95
(Set of 10 knobs)


Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$5.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Replacement cord for many guitar amps, power amps, effects units, etc. 10 ft length giveS extra flexibility in equipment placement, reduces use of extension cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
IEC POWER CONNECTOR, NON-FUSED, WIRED TYPE, SCREW ATTACHMENT TO PANEL
Popular IEC type AC connector found in many amplifiers and effects units.   Designed to mount in 0.8" x 1.10" rectangular panel hole.   Screw holes are 1.57" apart, center-to-center.  Connectors are for 1/4" push on terminals, or may be soldered.  Rated at 10 amps.
Part #P-S2-106
$2.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL Marshall® , FOUND IN Marshall® JCM900 and JCM2000 SERIES
For JCM900 series and JCM2000 series.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by 125VAC.  Does your old Marshall® power switch from the JCM800 era have five terminals?   See the SW-492 switch instead.
Part #SW-491
$8.95


Click on photo for
larger view
ROCKER SWITCH, BLACK, USED AS STANDBY SWITCH IN Marshall® JCM SERIES & OTHERS
Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   15/16" x 1 1/16" x 1" deep.
Part #SW-490
$7.95


Click on photo for
larger view
SAVE WITH MULTIPACK!  THIS SET CONTAINS BOTH THE POWER AND THE STANDBY ROCKER SWITCHES, USED IN Marshall® JCM SERIES & OTHERS
Lighted power switch has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by either 125VAC or 250VAC.  Standby switch has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   15/16" x 1 1/16" x 1" deep.  Does your old Marshall® power switch have five terminals?  Click here to learn how to modify the wiring so that you may use the the power  switch in this set.
Part #SW-4901
$11.99


Click on photo for
larger view
Marshall® Impedance/Mode Selector switch.  Correct replacement for PCB mount impedance and high-low (pentode-triode) mode switch found on the back of many Marshall® JCM900 and JCM2000 series amplifiers.  Also used as the impedance switch in Marshall® 4x12 Cabinets (such as the 1960 series cabinets).    Found in other British-made amplifiers and cabinets as well.  Marshall® part number S208.
Part #SW-4500
$7.95


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-815 FUSE HOLDERS - Marshall®
Cap for mains and HT fuse holders found on the Marshall® JCM900 series. Cap for the "HT" fuse holder only in the JCM2000 series (TSL100, TSL122, DSL100, etc).   The Mains fuse holder in the TSL and DSL models uses the FH-816 cap (below).
Part #FH-204
$2.95


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall®
Replacement for mains and HT fuse holders found on the Marshall® JCM900 series. Replacement fuse holder for the HT fuse only in the TSL and DSL models in the JCM2000 series (TSL100, TSL122, DSL100, etc.) Includes the FH-204 cap (above).  Common failure item in Marshall®.   Designed to work with GMA type fuses (5mm x 20mm)
Part #FH-830
$5.95

CAPACITOR, direct replacement for LCR type capacitors popular in Marshall® JCM900 series amps.    This is a dual can style capacitor 32uF/32uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 60 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great tone and reliability.
Part #FT-3232
$9.95

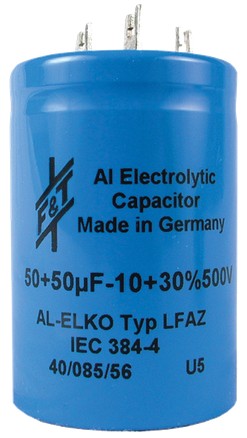

CAPACITOR, direct replacement for LCR type capacitors popular in Marshall® JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 60 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great tone and reliability.
Part #FT-5050
$11.95


CAPACITOR, direct replacement for LCR type capacitors popular in Marshall® JCM900 series amps.    This is a dual can style capacitor 32uF/32uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.
Part #LCR-3232
$9.95

CAPACITOR, direct replacement for LCR type capacitors popular in Marshall® JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.
Part #LCR-5050
$9.95

CAPACITOR CLAMP, for LCR-5050 or other 1 3/8" diameter can style capacitors.

Part #CC-122

$1.95

RESISTOR, SANDBLOCK 470 OHM, 5 WATT.
Part #470W5
$0.99

RESISTOR, FLAMEPROOF, 1000 OHM, 5 WATT.    Commonly used as the screen grid resistor in many tube amps.
Part #1000W5
$0.99


Click on photo for
larger view
TUBE RETAINER WITH SPRINGS, DESIGNED FOR 6L6 OR EL34 TUBES.   USED IN Marshall® AND MANY OTHER AMPS.
Part #TC-141
$1.95


Click on photo for
larger view
LARGE TUBE RETAINER WITH SPRINGS, DESIGNED FOR 6550 OR KT-88 TUBES.

Part #TC-143
$2.25



Click on photo for
larger view
PHENOLIC TUBE SOCKET FOR OCTAL TUBES.  EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall® (including the JCM900 Series), and many others.    Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes.   For 1" to 1 1/8" hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.
Part #TS-8-600
$2.99


Click on photo for
larger view
TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS.      Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.   For 3/4"  hole.  Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart.   Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-610
$2.49



Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.  Includes new base, if needed.  Spring in top of shield which fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for earlier Marshall® models (JMP through the JCM900 series, for example) and many other brands - base is included.  Holes in base spaced 1 1/8" apart.

Part #TS-325S
$1.95


Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SET OF 6.  Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender® and many other brands.  Holes in base spaced 1 1/8" apart.

Part #TS-325S-6
$8.95


Revisit™ 100 WATT OUTPUT TRANSFORMER, Marshall® .  Replacement for Marshall® JCM900 series 100 Watt amps (2100, 2101, 4100, 4101, 4102, 6100, 6101) and for Marshall® JCM2000 series 100 Watt amps (DSL100, TSL100, TSL122).  Output Taps: 4/8/16 ohm
Z Mount with 2-1/2'' x 3-1/8'' mounting bolt centers.

Part #
TFO-900
$119.95



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1DShort Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output.   Mounts on vertical wall, long axis horizontal, connectors down.   Primarily found in the Marshall® 4100, 4101, 4102, 4500, 4501, 4502, 5150, 5205, 8080, 8100, 8240, AS50, AS50R, AS80R, AVT50, AVT50H, JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622, MA50C, G25R, G50RCD, VS100R, VS100RH, VS102R, VS230, VS232, VS265, and VS65R.    See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #8DB2C1D

"Bringing back the sound of vintage Accutronics tanks"

$29.99



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB3C1BShort Tank, Long Decay, input impedance 310 ohms, output 2575 ohms, insulated input and grounded output.  Mounts horizontal, open side down.   Primarily used by  Marshall® JCM900.    See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.

Part #8DB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$29.99



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2B1FShort Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input and insulated output. Mounts on vertical wall with long axis vertical, input side up.   See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #8FB2B1F

"Bringing back the sound of vintage Accutronics tanks"

$29.99



Click on photo for larger view

Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3C1BShort Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.   See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #8FB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$29.99



Click on photo for
larger view

Rubber mounting grommets for reverb tanks, package of four.
Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4
$1.99
(For a pack of 4 grommets - In Stock)



Click on photo for
larger view

3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173
$3.95
In Stock



Click on photo for
larger view

4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174
$4.95
In stock



Click on photo for
larger view

5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 5 feet long.
Part #RC-17
5
$5.95
In stock



Click on photo for
larger view
Marshall® CORNERS, COMPLETE SET
Front and rear corner set, ľ" radius. Includes 4 front corners, 4 rear corners, and 28 gold rivets for attaching corners to cabinet.  For heads, combos and straight speaker cabinets.   Will not fit slanted speaker cabinets, such as the 1960A.

Part #MC-109
$17.95
(For a set of 8 corners with 28 rivets)



Click on photo for
larger view
Marshall® CORNERS, FRONT OF CABINET
Front corner set, ľ" radius. Includes 12 gold rivets for attaching to cabinet.  For heads, combos and straight speaker cabinets.   Will not fit slanted speaker cabinets, such as the 1960A.

Part #MC-1091
$9.95
(For a set of 4 corners with 12 rivets)



Click on photo for
larger view
Marshall® CORNERS, REAR OF CABINET
Rear corner set, ľ" radius. Includes 16 gold rivets for attaching to cabinet.  For heads, combos and speaker cabinets.

Part #MC-1090
$9.95
(For a set of 4 corners with 16 rivets)



Click on photo for
larger view
Marshall® RIVETS
For attaching Marshall® corners to cabinets.  Gold, package of 12 rivets.
Part #MR-109
$4.95
(For a set of 12 gold rivets)


Click on photos for
larger view


(Assembled)

Marshall® HANDLE
Genuine Marshall® Handle for modern heads and combo amps.   Used primarily on JCM900, JCM2000, larger ValveState, and JVM series amps, along with some later JCM800.   Original Marshall® part number M-PACK-00031.    Kit contains:
  • (2) Countersunk screws - M5 x 0.8, overall length of 25 mm
  • (2) Mounting brackets
  • (2) Black bracket covers with Marshall® logo
  • (1) Rubber handle with metallic insert
  • Center-to-center screw mounting distance is 8 3/8" (213mm).
  • Overall length of assembled and mounted handle is 10Ľ" (260mm).
  • Replacement screws are the Marshall® SC-404 screws, below

Part #MAH-294

$16.99


Click on photo for
larger view

Marshall® METRIC HANDLE SCREWS
Pack of 2 metric handle screws for Marshall®   MAH-294 handle.   Original Marshall® , designed to work with the OEM metric T-Nuts.   Set of 2 Flat-head counter-sunk Phillips,  M5 x 0.8, length 25 mm.   Found primarily on JCM900, JCM2000, larger Valvestate, and JVM series amps, along with some later JCM800.
Part #SC-404
$1.99
(for a pack of 2 Marshall® metric screws)



Click on photo for
larger view
Marshall® LOGO, WHITE PLASTIC, 9" LONG
The 9 inch long Marshall® logo - medium size.    As used on the 1922, TSLC212, 4203, 4502, 5002, 5010, 5205, 8020, 8040, 8100, AVT50, AVT50H, AVT150, JVM410, MG412A, 2266C, VS100RH, VS102R, VS112, VS230, VS232, VS265, TSL122, 5275, B150, 3203, MG100RCD,  and some other models  This logo is 9" long - please measure the old logo in order to ensure that you order the correct size.   Does NOT fit most Marshall® heads, does NOT fit the larger MG series amps.
Part #ML-901
$17.95


Click on photo for
larger view
Marshall® LOGO, WHITE PLASTIC, 11" LONG
The 11 inch long Marshall® logo - large size.  As used on the 2100, 2205, 2203, 2204, 2210, 2550, 2553, 2554, 2558, 4102, 4001, 4210, 4211, 4212, 4100, 4101, 4103, 4010, 4500, 5213, 5210, 5212, DSL100,  1986, 1960B cabinet, 1959JMP, 1936, TSL100, 6100, 6101, JCM1959, 2558V, 3005, 2555SL, AS1960, 2100SLX, TSL60, 1987JCM,  DSL50, 3005, 1960AX,  and some other models  This logo is 11" long - please measure the old logo in order to ensure that you order the correct size.
Part #ML-1101
$19.95


Click on photo for
larger view
Marshall® TOP VENT, 8 SCREW HOLES, MOST JCM800 AND JCM900 HEADS
This original Marshall vent is for most JCM800 and JCM900 heads from the 1980s and 1990s.   Check the measurement of your existing vent - the MV-211 vent measures 17 5/8" x 3".
Part #MV-211
$9.95


Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS WITH WASHERS, Marshall® METRIC
Replacements for the standard M6 metric screws used to hold the chassis in virtually every Marshall® head.  Washers included.     Also used in other British amps, including some Trace Elliot and Orange models.  Package of 4 stainless steel screws, with 4 washers.
Part #MCB-4
$2.99
(Set of 4 screws w/washers)




Click on photo for
larger view
STAINLESS STEEL COMBO CHASSIS SCREWS, Marshall® METRIC (NOT BLACK!)  SET OF 4 SCREWS.
Unpainted replacements for the standard M6 metric screws used to hold the chassis in virtually every larger Marshall® combo (typically 50 watts & up).   Note that these screws are plain stainless steel - NOT BLACK LIKE THE ORIGINALS.  You may paint the top black if you choose.  We recommend that you only paint the top - do not paint the threads.  35mm long, replaces Marshall part number MESCRW00001.   Found in the JTM610, JTM612, JTM612, JTM615, JTM622, JCM601, JCM602, 2101, 2501, 2502, 4101, 4102, 4501, 4502, TSL601, TSL601, and TSL122.   Washers not included.   Set of 4 screws.
Part #MCS-5140-4
$2.29
(Set of 4 screws)


Click on photo for
larger view
Marshall® CHASSIS WASHERS
Replacements for the standard washers used with the MCB-4 chassis screws under virtually every Marshall® head.   Package of 4 washers.
Part #MCW-4
$0.49
(Set of 4 washers)



Click on photo for
larger view
CHASSIS CAGE NUTS, Marshall® M6 METRIC
Replacements for the standard M6 metric cage nuts used on the chassis in virtually every Marshall® head.   Package of 4 cage nuts.   Mates with the MCB-4 or MCS-5140-4 screws, above.
Part #MCN-4
$4.59
(Set of 4 nuts)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR CLOSED BACK CABINETS (SUCH AS Marshall® ).  Set of 8 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with either the CW-400 or CW-501 cup washers.
Part #
SC-400-8
$1.99
(for a pack of 8 screws)





Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 16) FOR CLOSED BACK CABINETS (SUCH AS Marshall® ).  Set of 16 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with either the CW-400 or CW-501 cup washers.   A set of 16 screws completely replaces all of the screws on most Marshall® 4-12 cabinets.
Part #
SC-400-16
$3.69
(for a pack of 16 screws)





Click on photo for
larger view
Marshall® HEAD BACK PANEL STAINLESS STEEL SCREWS AND WASHERS (SET OF 4) FOR FULL SIZE HEADS.  Set of 4 screws, Stainless Steel, 1 1/4" long, Phillips, oval head, with matching cup washers.  Fits most all large Marshall® heads, from the JVM and JTM series from the 60s through the JCM-800, JCM-900, JCM-2000 and JVM series.    Note:  The screw heads in this package have a slight oval shape, as opposed to many Marshall® head back panel screws which have a flat head.  This oval shape helps improve the "bite" of the screwdriver, and helps prevent the screw head from being mangled over time.
Part #
MBP-4
$1.49
(for a pack of 4 screws and 4 washers)



Click on photo for
larger view

Marshall® STYLE FOOTSWITCH
 Revisit™ replacement for the original Marshall® footswitch - same quality, just without the Marshall® logo and Marshall® price tag.  Sturdy metal construction.    Mono 1/4" Plug, 16 ft. cable.   Standard design - footswitch operation shorts the tip to the sleeve - will work with other makes and models of amplifiers as well as Marshall® .
Part #FBS-470
$20.95


Click on photo for
larger view

Marshall® STYLE DUAL FOOTSWITCH
 Revisit™ replacement for the original Marshall® footswitch - same quality, just without the Marshall® logo and Marshall® price tag.  Sturdy metal construction.  Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.  Can work with other makes and models of amplifiers as well as Marshall® .   Stereo 1/4" Plug, 16 ft. cable.
Part #FBS-471
$24.95


Click on photo for
larger view

Marshall® JACK PLATE, STEREO / MONO
Original Marshall® jack plate as found on the  Marshall® 1960A, 1960B, Vintage Modern 425A or 425B Marshall® 4x12 cabinets.  Includes all wiring, terminated in 0.250" (6.3mm) Fast-on connectors.   Also includes a pack of 0.1875" (4.8mm) Fast-on connectors for conversion of the wiring if your speakers have the smaller terminals.
Part #JP-800

$48.50


Click on photo for
larger view

Marshall® JACK PLATE REPAIR KIT
Replaces the common failure parts on the JP-800 mono/stereo jack plate (shown above) as found on the 1960A, 1960B, Vintage Modern 425A or 425B Marshall® 4x12 cabinets.   Kit contains both jacks and a new mono/stereo select switch.   If the plastic housing and the PC board are intact, this kit replaces all of the functional components on the jack plate.
Part #RK-800

$14.00


Strat®, Stratocaster®, Esquire®, Telecaster®, Tele®, Jazzmaster®, Jaguar®, Mustang®, P.Bass®, J.Bass® and Fender® are registered trademarks of Fender® Musical Instruments. The replacement necks and bodies are for a Fender® or Squier® by Fender® guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster®, Telecaster®, J.Bass®, P.Bass® and Tele® Bass are registered trademarks of Fender® Musical Instruments Co.
Peavey® is a registered trademark of Peavey® Electronics Corporation.
Marshall® is a registered trademark of Marshall® Amplification Plc.
Mesa Boogie® is a registered trademark of MESA/Boogie® Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2017 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions
