Peavey Pots


Click on photo for
larger view

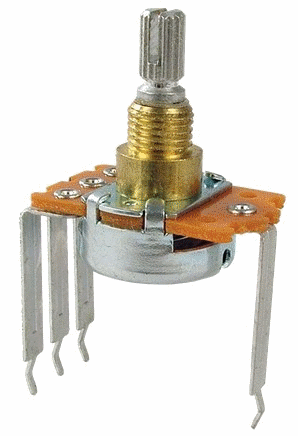

POT, Peavey® "SPIDER" TYPE,  PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft, and is designed to replace some earlier Peavey spider pots with knurled plastic shafts.   Select part number/value in Options.
DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018.

NEW PEAVEY # OLD PEAVEY # VALUE CENTER NOTCH
31190337 71190337 A10K NO
31190336 71190336 B10K NO
31190326 71190326 B20K NO
31190335 71190335 B50K NO
31190340 71190340 B50K YES
31190338 71190338 A100K NO
31190339 71190339 A250K NO
31190311 71190311 A1M NO

Part #P-VS-XX

$6.95

Select Option:


Quantity:


Click on photo for
larger view

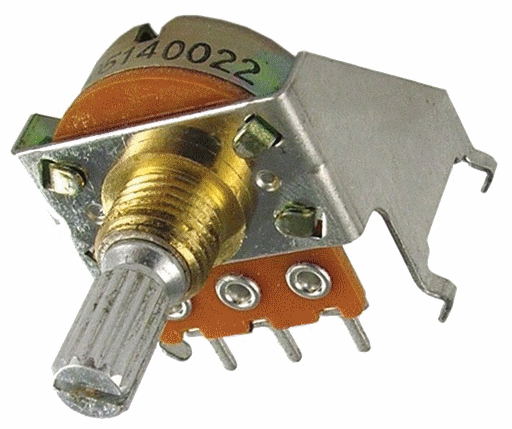

POT, Peavey® "BRACKET" TYPE, PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.  Select part number/value in Options.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT.

NEW PEAVEY # OLD PEAVEY # VALUE COMMENTS
31190528 71190528 A10K AUDIO
31190510 71190510 B10K LINEAR
31190523 71190523 C10K REV. AUDIO
31190518 71190518 B20K LINEAR
31190511 71190511 B50K LINEAR
31190517 71190517 B100K LINEAR
31190531 71190531 C100KX2 DUAL REV. AUDIO
31190514 71190514 A250K AUDIO
31190515 71190515 B250K LINEAR
31190516 71190516 A1M AUDIO
31190522 71190522 A1M 5% 5% AUDIO

Part #P-VB-XX

$5.95

Select Option:


Quantity:


Click on photo for
larger view
POT, PEAVEY 50K LINEAR W/PULL SWITCH, 24MM BODY  Used in the original Peavey CS800 Power Amps and also the CS400 series that had the red power switch. Original Peavey part # 71190274.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JNUT-38 NUT.
Part #P-V50KL-SW
$19.95


Click on photo for
larger view

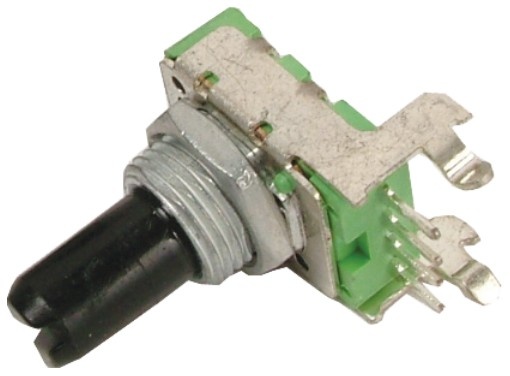

Peavey Pot, Plastic D-Shaft, 11mm, PC-mount with bracket, for Peavey Studio Pro 112.  This pot has 4 pins.  Includes mounting nut.

NEW PEAVEY # OLD PEAVEY # VALUE STUDIO PRO 112
FUNCTION
31190900 71190900 B10K REVERB LEVEL
31190903 71190903 B20K CLEAN & LEAD MID
31190906 71190906 A100K CLEAN VOLUME
31190907 71190907 A200K LEAD PRE GAIN, LEAD HIGH
31190908 71190908 B200K LEAD POST GAIN
31190910 71190910 A1M CLEAN & LEAD LOW

Part #P-VKG-XX

$6.95

Select Option:


Quantity:


Click on photo for
larger view

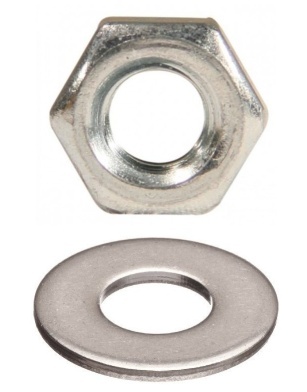

JACK NUT, METAL
Replacement nut for the Peavey bracket pots (P-VBxxxx) and the Peavey spider pots (P-VSxxxx).
Part #JN-1018
$0.39


Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT®, SET OF 6
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$3.99
(Set of 6 washers and 6 nuts)


JACK NUT AND WASHER, METAL, SWITCHCRAFT®
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view
GRAPHIC EQ FADER, Peavey® , 50K LINEAR, (B50K), PC MOUNT, 45mm   Used for the graphic equalizer controls in many Peavey mixers.  Body length is 60mm, travel is 45mm.  Original Peavey part # 31190108 and 31190094.   Uses the Peavey K425 knob.
Part #PSP-50KL-45M
$5.95
