10-Conductor Ribbon Cable 3"
Used to interconnect circuit boards in a variety of amps.

• 3 inches long
• 10 conductors set at 0.1 inch spacing - complete cable is 1 inch wide
• Bare wire termination for soldering to PC board at 0.1" hole spacing - no connectors
• May be easily cut with an X-Acto knife to make a cable of fewer than 10 conductors.
Not recommended for use in the Fender Hot Rod Deluxe / Deville or Blues Deluxe / Deville.    The ribbon cables used in those amps have ribbon cables with conductors set at 0.156" spacing - this cable is too narrow for that application.

Part #RJ-310
$0.99





Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP
Part #NJM4558-D
$1.00

Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532
$1.50

Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534
$1.50

Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068
$1.50

Low-power version of the TL072 Dual Op-Amp in 8-pin DIP package.  Draws only 400uA.   Great for battery-operated effects - increased battery life.
Part #TL062CP
$2.00

Low-noise, JFET input, TL071Single Op-Amp in 8-pin DIP package.  Also TL071CN.
Part #TL071CP
$1.50

Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.  Also TL072CN.
Part #TL072CP
$1.50


4808-3004
From the 3M Company ... 8-pin DIP socket, fits all of the 8-pin op-amps above.   We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
Part #4808-3004
$0.35

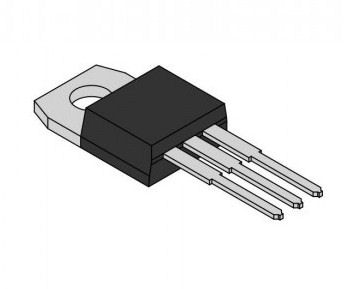

+15V 1 amp Voltage Regulator - Metal Tab
Part #7815
$0.90

-15V 1 amp Voltage Regulator - Metal Tab
Part #7915
$0.90
