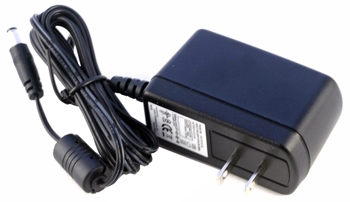

REVISIT EFFECTS PEDAL POWER SUPPLY 9V DC, 1.6 amps.   Input voltage from 100V AC to 240V AC.   Output 9 volts DC, 1600mA, fully regulated.   Connector is a 2.1mm inner diameter, center negative, outside sleeve positive.  Perfect for most pedals which are 9V battery powered.   This compact supply will power up to 10 pedals (assuming each pedal requires 160mA or less).   For powering multiple pedals, see the DCC10X8 cable, below.
Part #PPS-916
$12.95


Click on photo for
larger view

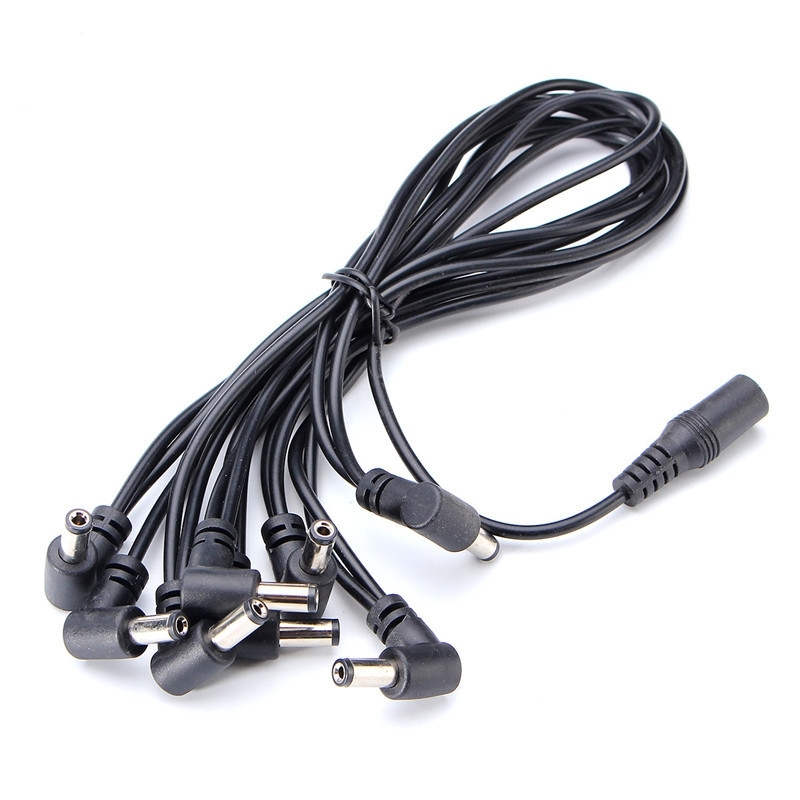

REVISIT PEDAL POWER DAISY CHAIN CABLE
Connect up to 10 Pedals with this Power Cable from a single power supply.  This daisy chain is the industry standard 2.1mm size. There are 1 in and 10 outs. It is well made, has right angle plugs and built with 22AWG wire.  Total length is 8 feet.  The amperage capacity of the power supply you use with this cable needs to be at least as large as the sum of all of the current requirements of your pedals.   For example, if each pedal requires 160mA (or 0.16 amps), the power supply needs to be capable of at least 10 x 0.16 = 1.6 amps (or 1600mA)

Part #DCC10X8
$9.95


Click on photo for
larger view

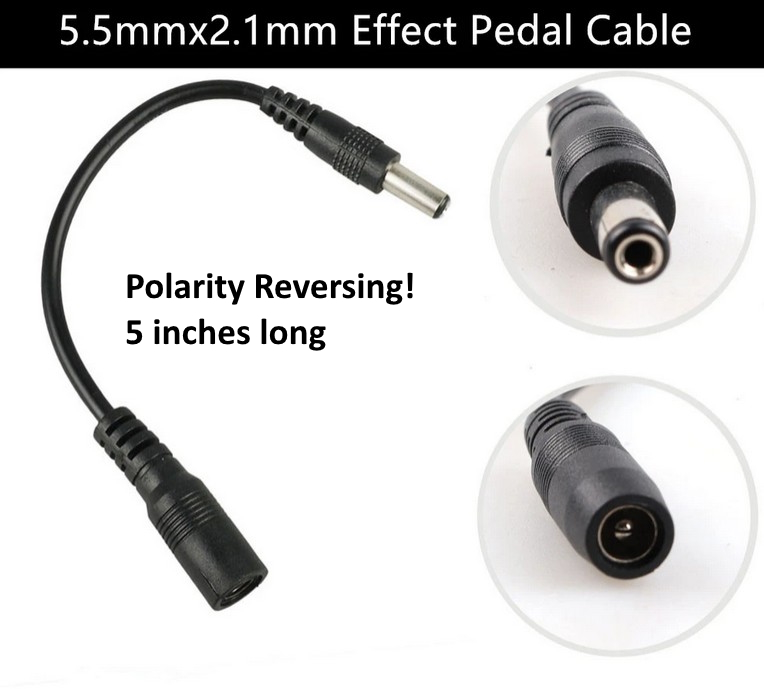

REVISIT POLARITY REVERSING ADAPTER CABLE
Fixes the frustrating problem of having a power supply designed for "center pin positive" and a pedal which requires "center pin negative".    Or vice-versa!    This ingenious adapter cable reverses the center pin with the outside ring, allowing you to successfully use a "backwards" pedal with your pedal power supply.    The connectors are the popular 2.1mm x 5.5mm size.    6 inches long, with a right-angle plug to connect with the pedal.

Part #PRC-127
$1.69


Click on photo for
larger view

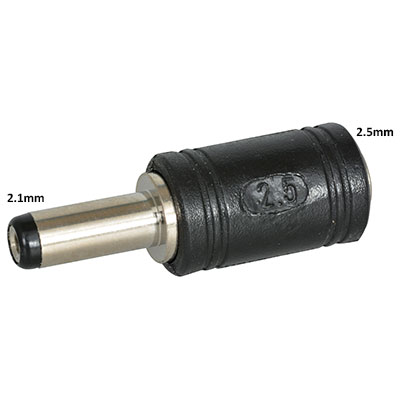

POWER CONNECTOR Adapter 2.1mm to 2.5mm
The two most common connectors for AC Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these two connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible.   This Adapter has a 2.1mm pin in the back, with a 2.5mm hole in the front, for cases where the pin in your pedal is just a tiny bit too large for the Adapter.
Part #195-3591
$2.99


Click on photo for
larger view

POWER CONNECTOR Adapter 2.5mm to 2.1mm
The two most common connectors for AC Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these two connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible.   This Adapter has a 2.5mm pin in the back, with a 2.1mm hole in the front, for cases where the pin in your pedal is just a tiny bit too small for the Adapter connector, and your power is intermittent when you move the Adapter cable.
Part #195-3604
$2.99


Click on photo for
larger view

POWER JACK
Handy way to add a power jack for an AC/DC Adapter to an existing devices.   Connector fits the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the Adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative Adapters.  Fits 1/2" chassis hole.
Part #J-750
$1.49


Click on photo for
larger view

POWER BARREL PLUG
Replacement barrel power plug for many AC Adapters.  Connector is the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Soldering required to attach to cable.
Part #BP-573
$0.99



Click on photo for
larger view
9V BATTERY CLIP.
Commonly found in effects boxes.   Simple, yet durable construction.    5 3/4" red and black leads.

Part #9VBC
$0.45


Click on photo for
larger view

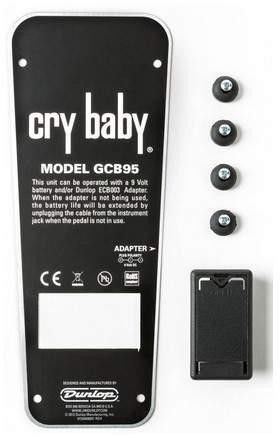

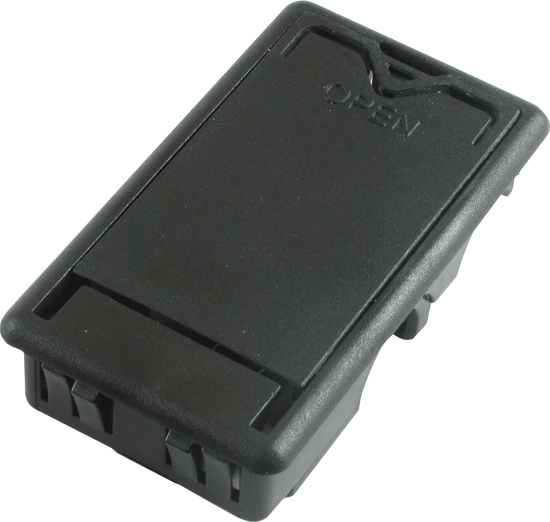

Dunlop® DROP-IN BATTERY BOX FOR CRYBABY.
New style replacement battery holder for Dunlop® CryBaby pedals.   Works with all GCB95 style Crybaby pedals with a rectangular cutout in the bottom panel for the battery.   Replaces the original battery clip which was prone to breaking.  Original Dunlop® replacement part.
Part #D-ECB244
$2.95


Click on photo for
larger view
REPLACEMENT PAD - Dunlop® RUBBER SLIDE, MEDIUM
Original Dunlop® "slide pad medium" (4 ½" x 3 ⅜").

Perfect fit for MXR® Phase 100 and other similarly sized pedal enclosures, including Hammond® Mfg 1590BB.

Self adhesive backing allows it to be easily secured to the bottom of an enclosure's cover plate. Use as an alternative means to rubber feet for adding grip between the pedal and the floor.

Can be easily trimmed with scissors to fit smaller Dunlop® pedals (such as the MXR® Phase 45 or Phase 90) or pedals of other brands.

Part #D-ECB502

$1.79


Click on photo for
larger view

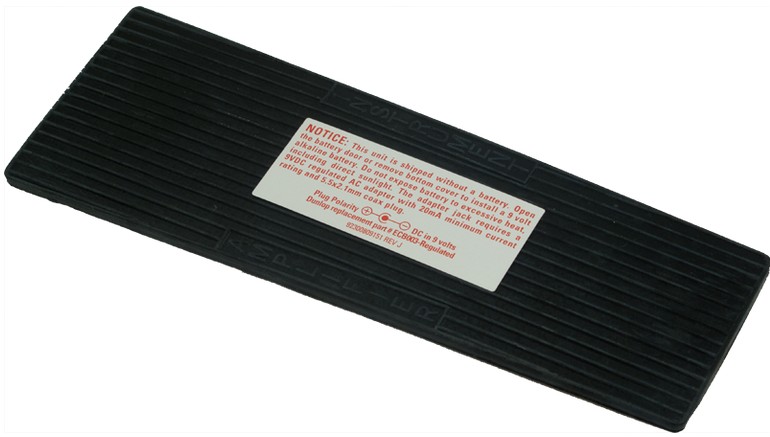

REPLACEMENT RUBBER TREAD FOR Dunlop® WAH PEDALS
Dunlop® Crybaby standard foot tread with adhesive backing.   55mm wide at heal end, 67mm wide at toe end, 193mm long.

Original replacement part for Dunlop® 105Q Crybaby Bass Wah, Dunlop® 535Q Crybaby Multi-Wah, Dunlop® 95Q Crybaby Q-Wah, GCB80, Dunlop® GCB95 Original Crybaby, Dunlop® Dunlop® GCB95 Original CrybabyF Crybaby Classic Wah, Dunlop® JD-4S Rotovibe Expression Pedal, Dunlop® UV1FC Univibe Controller Pedal and others.

Part #D-ECB129

$3.50


Click on photo for
larger view
REPLACEMENT SWITCH FELT FOR Dunlop® WAH PEDALS
Dunlop® felt pad with adhesive - attaches to underside of foot platform, cushions contact with toe switch.  Approximately 11/16" in diameter.

Original replacement part for Dunlop® 105Q Crybaby Bass Wah, Dunlop® 535Q Crybaby Multi-Wah, Dunlop® 95Q Crybaby Q-Wah, GCB80, Dunlop® GCB95 Original Crybaby, Dunlop® Dunlop® GCB95 Original CrybabyF Crybaby Classic Wah, Dunlop® JD-4S Rotovibe Expression Pedal, Dunlop® UV1FC Univibe Controller Pedal and others.

Part #D-ECB031

$1.99


Click on photo for
larger view
REPLACEMENT HOUSING SCREWS FOR MXR® PEDALS
Set of 4 housing screws for MXR®, Way Huge and other pedals which use 6-32 x 1/2" screws, including pedals which use Bud or Hammond style enclosures.

Replacement screws for Dunlop® DCB10 DC Brick, MXR® M101 Phase 90, MXR® M102 Dyna Comp, MXR® M103 Blue Box, MXR® M104 Distortion+, MXR® M115 Distortion III, MXR® M132 SuperComp, MXR® M133 Micro Amp, MXR® M134 Stereo Chorus, MXR® M169 Carbon Copy Analog Delay, MXR® M173 Classic 108 Fuzz, MXR® M182 El Grande Bass Fuzz, MXR® MC401 Custom Audio Electronics Boost, MXR® MC402 Boost Overdrive, Dunlop® ZW44 Zakk Wylde Overdrive and others.

Part #D-ECB590

$0.59
(for a set of 4 screws)

  Cables


Click on photo for
larger view

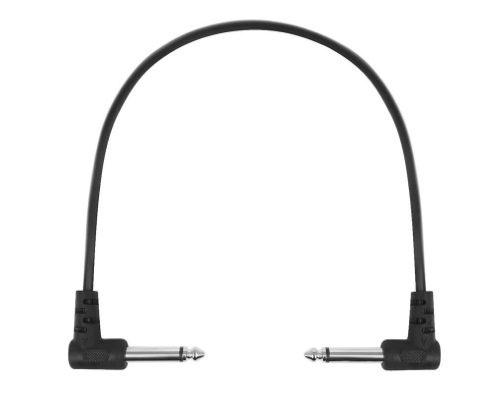

8 INCH INSTRUMENT CABLE BY Revisit™
Short 8 inch connecting cable, shielded, with right-angle metal plugs at each end.   Designed as a reliable interconnection cable between pedals.  8 inches long (203mm)
Part #EC-5022
$2.89



Click on photo for
larger view
14' LINE 6® STYLE RJ-45 CABLE BY Revisit™
Very sturdy yet flexible cable for connecting Line 6 Floorboards, Pods, etc to Line 6 amplifiers.   Special FlexBend connector provides extra protection against tab breakage and accidental disconnection.  14 feet long (4.25 meters)
Part #FBC-14
$12.95



Click on photo for
larger view
20 ft LINE 6® STYLE RJ-45 CABLE BY Revisit™
Very sturdy yet flexible cable for connecting Line 6 Floorboards, Pods, etc to Line 6 amplifiers.   Special FlexBend connector provides extra protection against tab breakage and accidental disconnection.  20 feet long (6 meters)
Part #FBC-20
$15.95

  Lamps/LEDs

Click on photo for
larger view
REPLACEMENT BULB FOR MORLEY® EFFECTS AND VOLUME PEDALS
Long life replacement bulb used for both the pilot lamp and also to drive the photocell in all Morley pedals from 1983 through current models.  Pedal not working?   In most cases, it just needs a new bulb.
Part #L-387
$1.99


Click on photo for
larger view
BRIGHT 5mm DIFFUSED RED LED
Standard 5mm (3/16") diameter red LED found in many guitar amplifiers and effects pedals.   On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 resistor resistor, and for 15 volts, a 1K resistor.

Part #LED-5R-D
$0.59


Click on photo for
larger view
SUPER-BRIGHT 5mm RED WATERCLEAR LED
Standard 5mm (3/16") diameter waterclear red LED found in many guitar amplifiers and effects pedals.   A red waterclear LED looks clear when it is off, and emits a bright red light when power is applied.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 resistor resistor, and for 15 volts, a 1K resistor.

Part #LED-5R-WC
$0.59



Click on photo for
larger view
5mm LED BEZEL (fits in 8mm hole)  Available in black or chrome!  Mounting bezel for standard 5mm (3/16") diameter LEDs found in many guitar amplifiers and effects pedals.  Not plastic ... these bezels are metal, with metal threads and a metal nut and lock washer.   Long threads for mounting in thicker panels up to 5mm thick.  Nylon insert holds the LED.   LED may be removed from the rear side without removing the bezel from the panel.  Fits our LED-5R-D, LED-5R-WC, and any other standard 5mm LED.  LED not included.
Part #LDB-1
$0.59

Select Option:


Quantity:


LED Colors Available:

Click on photo for
larger view
BEZEL-MOUNTED LED WITH BUILT-IN RESISTOR
The ultimate time saver!  This is an LED mounted in a bezel with a resistor and shrink wrapped wires.
Length is 19mm long - 16mm of which is below the mounting area.  These Prewired LEDs are designed for 8V to 12V DC - no dropping resistor needed.   The length of the wire is about 6.5"   Mounting hole is 8mm, LED color choice is red, amber, green, blue or white.
Part #LED-725-X
$1.95

Select Option:


Quantity:

  Switches

Click on photo for
larger view

Hex footswitch nut, pack of 4

These replacement nuts fit all Carling® brand footswitches and toggle switch and some (but not all) other switches which are not made by Carling®.   Carling® toggle switches are used in Fender® amps.  Hex outer surface (9/16"), M12 thread for 15/32" bushing.

Part HFN-4

$0.99
(for a pack of 4 nuts)


Click on photo for
larger view
FOOT SWITCH, CARLING® BRAND, SPDT
Found in many type of footswitches, including the earlier versions of the Dunlop® Crybaby Wah pedals (NOT the version F - see FS-435 below for Crybaby GCB-095F).  Has 3 electrical terminals (single pole, double throw)Solder lugs for wire.   Made by Carling
®.
Part #FS-492
$9.95

FOOT SWITCH, CARLING® BRAND, SPST, REPLACEMENT FOR Fender®, ETC.
Carling SPST footswitch. Used in Fender® etc. Reverb/tremolo/channel switching pedals.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire.   Made by Carling
®
Part #FS-493
$9.95

FOOT SWITCH, MOMENTARY, SPST, NORMALLY OPEN
SPST footswitch,
soft touch pushbutton footswitch. Normally open. These are good for tap tempos, loopers (such as the Electro Harmonix 720 Stereo Looper) and anywhere you want the option for a constant or fast foot tap. They're also ok for hand use as they're not too hard to push with fingers.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire, normally open.
Part #FS-552
$4.95

FOOT SWITCH, CARLING® BRAND, DPDT, FOR SWITCHING AND EFFECTS.
Has 6 electrical terminals (double pole, double throw)Solder lugs for wire.   Made by Carling
®
Part #FS-497
$13.95


Click on photo for
larger view
FOOT SWITCH, DPDT, MADE BY CARLING®
Replacement DPDT footswitch for MXR® and Dunlop® pedals.

Original replacement part for:
Dunlop® BG95 Buddy Guy Wah, Dunlop® GCB95F Crybaby Classic Wah, Dunlop® JD-F2 Fuzz Face Distortion, Dunlop® JH-F1 Hendrix Fuzz Face, Dunlop® JH-OC1 Jimi Hendrix Octavio, MXR® M101 Phase 90, MXR® M102 Dyna Comp, MXR® M103 Blue Box, MXR® M104 Distortion+, MXR® M107 Phase 100, MXR® M134 Stereo Chorus, MXR® M169 Carbon Copy Analog Delay, MXR® MC401 Custom Audio Electronics Boost, MXR® MC404 Custom Audio Electronics Wah, Dunlop® SW95 Crybaby Slash Wah.   Made by Carling
®.
Part #FS-435
$15.95

FOOT SWITCH, DPDT, FOR SWITCHING AND EFFECTS.
Electrically equivalent to FS-497, but with a smaller switch body.  Has 6 electrical terminals (double pole, double throw).   Solder lugs for wire.
Part #FS-498
$3.95

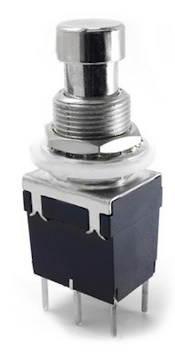

FOOT SWITCH, DPDT, PC MOUNT, FOR SWITCHING AND EFFECTS.
Electrically equivalent and physically the same body size as the FS-498, but made for direct connection to a PC board.  Found in the Line 6® XPS-AB power supply for their Variax guitars.  Has 6 electrical terminals (double pole, double throw).
Part #FS-498-PC
$3.95


Click on photo for
larger view
FOOT SWITCH, SPDT, LATCHING, FOR SWITCHING AND EFFECTS - Marshall® TYPE.
Has 3 electrical terminals (single pole, double throw).   Solder lugs for wire. Commonly found in Marshall® footswitch boxes, as well as other brands.  Marshall® part number SWP802.
Part #FS-398
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Has 3 electrical terminals (single pole, double throw). Solder lugs for wire. This is a "soft click" momentary switch - not latching.   See drawing for switch open/closed arrangement.
Part #FS-398-M
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, PC MOUNT, FOR SWITCHING AND EFFECTS - Marshall® TYPE
Electrically equivalent and physically the same body size as the FS-398, but made for direct connection to a PC board.  Found in the some Marshall® footswitch boxes with PC board design. Has 3 electrical terminals (single pole, double throw).
Part #FS-398-PC
$3.95


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many stomp boxes.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" latching switch - not a momentary.   Switch is marked "L" on the side (for locking).  This is a shorter version than used in MXR® pedals - will not fit MXR®!    Order the D-ECB554 for MXR® pedals.
Part #FS-211-PC
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it has solder lugs for wire attachment.   Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for locking).
Part #FS-211
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, MOMENTARY, PC MOUNT, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it is momentary (no firm 'click') for those pedals which require a momentary switch.  Switch is marked "M" on the side for momentary.   Pins for PC board mounting.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  Note:   With momentary PC Mount switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before installing.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.

Part #FS-211-PC-M
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, MOMENTARY, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC-M, except it has solder lugs for wire attachment.  This switch is momentary (no firm 'click') for those pedals which require a momentary switch.  Switch is marked "M" on the side for momentary.    Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-211-M
$6.95


Click on photo for
larger view
FOOT SWITCH, DIGITECH, SPDT, MOMENTARY, PC MOUNT
This switch is the replacement foot switch for DigiTech foot controllers:
  • RP1000
  • Vocalist Live 3
  • Control 2

Part #FS-430M

$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many Dunlop®/MXR® stomp boxes. Used in later revisions of the MXR® Micro Amp, Carbon Copy, and others.   Also used in the later CSP101SL and M101 versions of the MXR® Phase 90, MXR® M107 Phase 100, MXR® Dime Distortion, MXR® Bass Octave Deluxe, MXR® Custom Badass Modified O.D., MXR® Custom Badass 78 Distortion, MXR® Bass Distortion, MXR® Bass Envelope Filter, MXR® Bass Fuzz Deluxe, MXR® Bass Compressor, MXR® Fullbore Metal, MXR® M117R Flanger, MXR® Supercomp, MXR® Microamp, MXR® M134 Stereo Chorus, MXR® M135 SmartGate, MXR® M148 Micro Chorus, M169 Carbon Copy  .   Dunlop® part number ECB554. The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for locking).  This switch is NOT the same as the FS-211-PC switch - the D-ECB554 is an extended length switch for Dunlop®® / MXR® pedals only.
Part #D-ECB554
$9.95

FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a "hard" connection (no "click").  Solder lugs for wire.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to wire a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503
$3.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-602-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.   Made for switching and effects units which require a momentary connection rather than a "hard" connection (no "click").  PC terminals.  Has 3 terminals.

Part #FS-502-PC
$3.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-502-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.   Made for switching and effects units which require a momentary connection rather than a "hard" connection (no "click").  PC terminals.  Has 3 terminals.   Used in the 5-way foot controller on the Marshall® TSL-100 amps for the clean, crunch and lead switches.

Part #FS-602-PC
$3.95

FOOT SWITCH, DPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Made for switching and effects units which require a momentary connection rather than a "hard" connection (no "click").  PC terminals.   Used in the 5-way foot controller on the Marshall® TSL-100 amps for the reverb and effects switches.    Marshall® Part number SWTP-00047.   Also fits some Blackstar® HT Dual Footpedals.    Blackstar® part #MCSWH02014.  Note:   With momentary PC Mount switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before installing.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-503-PC
$3.95

FOOT SWITCH, 3PDT, SOLDER LUGS, LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw).     Commonly found in effects pedals which have "true bypass".   Solder lugs for wire.
Part #FS-501
$5.95


Click on photo for
larger view
FOOT SWITCH, 3PDT, PC MOUNT, LATCHING, FOR SWITCHING AND EFFECTS.
Has 9 electrical terminals (3 pole, double throw)    Commonly found in effects pedals which have "true bypass".   Made for PC mounting.
Part #FS-501-PC
$5.95


Click on photo for
larger view
FOOT SWITCH, 4PDT, SOLDER LUGS, LATCHING, FOR SWITCHING AND EFFECTS.
Has 12 electrical terminals (4 pole, double throw)     For use in effects pedals which have "true bypass".   Solder lugs for wire.   Four poles allow additional features and switching options for your own design, such as additional LED indicators in addition to "true bypass".   With 4PDT, the options you can create in switching are limited only by your imagination!
Part #FS-504
$8.95

FOOT SWITCH, REPLACEMENT FOR BOSS EFFECT PEDALS
Replacement for Boss effects pedals, SPST momentary, push switch. Mounts in square hole approximately .55" x .55" x 1.08" overall length including terminals.
Part #FS-511
$3.49


Click on photo for
 larger view
FOOTSWITCH, PC MOUNT, TACTILE TYPE
Common switch found in Line 6 floor pedals (such as the Pod XT Live, DL4), Digitech floor controllers (such as the Control ONE), and older DOD pedals.   12mm x 12mm (about 1/2" x 1/2" x 1/4" tall).  Line 6 part number 24-31-0100.
Part #FS-100
$1.95


Click on photo for
 larger view
FOOTSWITCH, PC MOUNT, TACTILE TYPE
Common switch found in Ibanez effects pedals, such as the TS9 Tube Screamer.   12mm x 12mm (about 1/2" x 1/2").   Height of switch from under the base to the top of the plunger is about 7mm.   Data Sheet here.
Part #FS-621
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1mm PLUNGER HEIGHT
6mm x 6mm square (¼" x ¼").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.0mm above top of switch (about the thickness of a credit card).   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary).     For through-the-hole mounting on PC boards.
Part #TS-5126
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT
6mm x 6mm square (¼" x ¼").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary.    For through-the-hole mounting on PC boards.   Fits the Line 6 Alchemist, Bass POD XT Live, FBV Shortboard MKII, Floor POD Plus, M9, M13, POD HD300, POD HD400, POD HD500, POD X3 Live, POD XT Live, Spider Valve HD100, Spider Jam, Spider IV SERIES, Spider IV1508, HD500X.    Line 6 part number 24-31-1105
Part #TS-5127
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT, 2 LEGS
6mm x 6mm square (¼" x ¼").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc.  2 legs, SPST, normally open, momentary.     For through-the-hole mounting on PC boards.   Fits a number of guitar processors, amplifiers, and effects pedals of various brands.
Part #TS-5144
$0.99


Click on photo for
larger view
SWITCH, SLIDE, DPDT (6 TERMINALS), Used in some Electro Harmonix AC powered effects pedals, such as the Memory Man.   Click here for physical specifications.   Two screws are included with the switch.
Part #SW-242S
$1.79


Click on photo for
larger view

MOUNTING SCREWS
for the SW-242S slide switch (above) Set of two machine screws, (metric M3x0.5x6) designed to fit the SW-242S slide switch.

Part #SCR-242
$0.59
(Set of 2 screws)



ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE THE FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (North)   2. Series Humbucker / Coil Tap (South)   3. Pickup On/Off   4. Kill Switch
Part #SW-MTS-S11
$1.95


ON-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, PC BOARD TERMINALS  ON-ON SWITCHING (NO CENTER OFF POSITION).
Same as the SW-MTS-S11 above, except designed for PC board insertion.

Part #SW-MTS-S11-PC
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE THE FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Off / Coil Tap (South)
2. Coil Tap (North) / Series Humbucker / Coil Tap (South)

Part #SW-MTS-S101
$1.95


ON-OFF-ON
SPDT

Click on photo for
larger view
SWITCH, MINI SPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING
Same as the SW-MTS-S101 above, except designed for PC board insertion.

Part #SW-MTS-S101-PC
$1.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE THE FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker / Coil Tap (taps 2 humbuckers )   2. In phase / Reverse Phase   3. Series Humbucker/Parallel Humbucker   4.  Series / Parallel (neck and bridge pickups)
Part #SW-MTS-D11
$2.95


ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-ON SWITCHING (NO CENTER OFF POSITION).
Same as the SW-MTS-D11 above, except designed for PC board insertion.

Part #SW-MTS-D11-PC
2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION).
IN GUITARS, COMMONLY USED TO PROVIDE THE FOLLOWING SWITCHING OPTIONS:

1. Series Humbucker / Off / Coil Tap (North)   2. Series Humbucker / Off / Coil Tap (South)   3. Coil Tap (North) / Series Humbucker / Coil Tap (South)
4. In Phase / Off / Out of Phase
5. Series / Off / Parallel

Part #SW-MTS-D101
$2.95


ON-OFF-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, PC BOARD TERMINALS  ON-OFF-ON SWITCHING
Same as the SW-MTS-D101 above, except designed for PC board insertion.

Part #SW-MTS-D101-PC
$2.95


ON-ON-ON
DPDT

Click on photo for
larger view
SWITCH, MINI DPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON-ON SWITCHING (WITH SPLIT-ON CENTER POSITION)
IN GUITARS, COMMONLY USED TO PROVIDE THE FOLLOWING SWITCHING OPTIONS:
1. Series Humbucker/Coil Tap/Parallel Humbucker   2.   Humbucker/Coil Tap/Humbucker Out of Phase     3.  Neck Pickup/Both Pickups/Bridge Pickup
Part #SW-MTS-D111
$3.95


ON-ON
3PDT

Click on photo for
larger view
SWITCH, MINI 3PDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC)    SOLDERED WIRE TYPE TERMINALS.   ON-ON SWITCHING (NO CENTER POSITION)  (Note:  Color of switch body may vary from photo)

Part #SW-MTS-311
$3.95


Click on photo for
larger view
UNIVERSAL NON-LIGHTED ROCKER SWITCH
Has 2 electrical terminals on back of switch. 1/4" push-on terminals, or solder directly to terminals.   Rated 15A @ 125VAC, 10A @ 250VAC.   Rocker is colored red.   Does NOT have an internal light.   Designed for 1 1/8" x 9/16" rectangular mounting hole.   Used in several brands of amplifiers and effects as the main power switch.
Part #SW-26
$2.95

  Wah Pedal Parts

Click on photo for
larger view
POT, GEARED, 100K, Dunlop® HOT POTZ II FOR USE ON Dunlop® CRYBABY
The Jim Dunlop® ECB24B Hot Potz II 100K Potentiometer is a replacement for Dunlop® Crybaby and Jimi Hendrix wah pedals. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB24B
$26.99


Click on photo for
larger view
POT, GEARED, 100K, FOR USE ON Dunlop® CRYBABY AND Vox® WAH PEDALS
Smooth operation, very similar to original pots as used in the Dunlop® and Vox® pedals.  Replacement pot for Dunlop®, Vox, etc., Wah pedals with gear & rack operation.  Nut and washers included.   100K as used in most wah pedals.  (Note - not for pedals where the control pot is PC board mounted, such as the Crybaby 535Q.)    Soldering is required to install this replacement pot.   Unlike the original sealed pot (or the replacement sealed Hot Potz), this pot has a slot where cleaning fluid may be sprayed.
Part #R-VWAH
$11.95


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 24mm (1") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Easily removable for cleaning of the pot.  Great for use on our R-VWAH wah pedal pots.
Part #DS-3824
$1.19


Click on photo for
larger view
Dunlop® RUBBER FEET, SET OF 4.
Made for Dunlop® Crybaby and Vox® Wah pedals, and other applications where small rubber feet are needed.   Screws included.    Rubber feet are 5/8" diameter x 1/4" tall.
Part #D-ECB151
$3.95


Click on photo for
larger view
RACK, ORIGINAL Dunlop®®
Original Dunlop® replacement rack for wah pedals (roll pin included : 0.77" length x 0.07" diameter - for mounting the rack to the treadle).
The rack has 14 teeth and mounts to the underside of the treadle piece (rocking structure) of a wah pedal. The teeth of the rack interlock with the teeth of the wah potentiometer gear (i.e. pinion), thereby rotating the potentiometer shaft as the treadle is rocked back and forth.

Part #D-ECB127
$2.79

LUBRICANT, Dunlop® CRYBABY AND Vox® WAH PEDALS
GC Electronics white lithium grease - lubricant used on rack, control pot gear, and on the rack clamp.   Large 1 3/4 oz tube - good for dozens of other household lubrication jobs.   Also used in VCRs, cassette decks, turntables and more.   Sold only in the United States.
Part #19-2302
$10.95

Sold only in the United States



Click on photo for
larger view
Dunlop® DROP-IN BATTERY BOX FOR CRYBABY.
New style replacement battery holder for Dunlop® CryBaby pedals.   Works with all GCB95 style Crybaby pedals with a rectangular cutout in the bottom panel for the battery.   Replaces the original battery clip which was prone to breaking.  Original Dunlop® replacement part.
Part #D-ECB244
$2.95


Click on photo for
larger view
Dunlop®® Replacement rubber grommets for many models of Dunlop® Wah pedals. If your wah pedal switches on and off too easily or you hear metal hitting metal when switching, the grommets may be worn or missing. These little rubber bumpers are easy to install yourself. 12 pieces total, assorted heights.
Dunlop® 105Q Crybaby Bass Wah, Dunlop® 535Q Crybaby Multi-Wah, Dunlop® 95Q Crybaby Q-Wah, Dunlop® BG95 Buddy Guy Wah, Dunlop® DB01 Dimebag Crybaby From Hell Wah, GCB80, Dunlop® GCB95 Original Crybaby, JD4S, Dunlop® JH1B Jimi Hendrix Signature Wah, MXR® MC404 Custom Audio Electronics Wah, Dunlop® SW95 Crybaby Slash Wah, Dunlop® UV1FC Univibe Controller Pedal
Part #D-ECB124
$4.95


Click on photo for
larger view
BOTTOM PLATE WITH BATTERY DOOR AND CLIP, Dunlop®® Bottom Plate with Battery Box for GCB-95. Original Dunlop® replacement part.  Includes the D-ECB244 battery box (above) and 4 rubber feet.
Part #D-ECB152
$19.95


Click on photo for
larger view
CRYBABY REPLACEMENT CIRCUIT BOARD WITH RED FASEL INDUCTOR
Original Crybaby replacement circuit board for pedals made after 1990 (GCB-95). Contains sought-after red Fasel inductor. Original Dunlop® replacement part.  Note:   Does not fit the very latest CryBaby version - the GCB-95F (Version F).
Part #D-ECB25-FI
$32.95


Click on photo for
larger view
FASEL INDUCTOR
The Fasel inductor is back! These near-mythical inductors are the key to the singing tonal sweep every wah player lusts for but is unable to capture with a new pedal. The ultimate upgrade to your current wah, these magic bullets are available exclusively from Dunlop®, the new worldwide agent for Fasel of Italy. Your wah will finally give up the lush harmonic sparkle you have always heard in your head but could never coax from you rig.  The yellow inductor is designed to give the vintage vibe sound.  Use the red inductor for the cleanest sound possible.
Part #D-ECBFI-01
$18.95


Click on photo for
larger view
FASEL INDUCTOR
The Fasel inductor is back! These near-mythical inductors are the key to the singing tonal sweep every wah player lusts for but is unable to capture with a new pedal. The ultimate upgrade to your current wah, these magic bullets are available exclusively from Dunlop®, the new worldwide agent for Fasel of Italy. Your wah will finally give up the lush harmonic sparkle you have always heard in your head but could never coax from you rig.  The red inductor is designed to give the cleanest sound possible.   Use the yellow inductor for the vintage vibe sound.
Part #D-ECBFI-02
$18.95


Click on photo for
larger view
JACK, STEREO, Dunlop® TYPE WITH EXTRA RING CONTACT
Exclusive Dunlop® jack - used in several MXR® pedals.  Has additional off-normal contact on the ring conductor.  Chrome nut is included.
Part #D-ECB040
$5.95




Click on photo for
larger view
9V BATTERY CLIP.
Commonly found in effects boxes.   Simple, yet durable construction.    5 3/4" red and black leads.

Part #9VBC
$0.45

  Adapters and Powering


Click on photo for
larger view

REVISIT PEDAL POWER DAISY CHAIN CABLE
Connect up to 10 Pedals with this Power Cable from a single power supply.  This daisy chain is the industry standard 2.1mm size. There are 1 in and 10 outs. It is well made, has right angle plugs and built with 22AWG wire.  Total length is 8 feet.  The amperage capacity of the power supply you use with this cable needs to be at least as large as the sum of all of the current requirements of your pedals.   For example, if each pedal requires 200mA (or 0.2 amps), the power supply needs to be capable of at least 10 x 0.2 = 2.0 amps (or 2000mA)

Part #DCC10X8
$9.95


Click on photo for
larger view

REVISIT POLARITY REVERSING ADAPTER CABLE
Fixes the frustrating problem of having a power supply designed for "center pin positive" and a pedal which requires "center pin negative".    Or vice-versa!    This ingenious adapter cable reverses the center pin with the outside ring, allowing you to successfully use a "backwards" pedal with your pedal power supply.    The connectors are the popular 2.1mm x 5.5mm size.    6 inches long, with a right-angle plug to connect with the pedal.

Part #PRC-127
$1.69


Click on photo for
larger view

POWER CONNECTOR Adapter 2.1mm to 2.5mm
The two most common connectors for AC Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible.   This Adapter has a 2.1mm pin in the back, with a 2.5mm hole in the front, for cases where the pin in your pedal is just a tiny bit too large for the Adapter.
Part #195-3591
$2.99


Click on photo for
larger view

POWER CONNECTOR Adapter 2.5mm to 2.1mm
The two most common connectors for AC Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible.   This Adapter has a 2.5mm pin in the back, with a 2.1mm hole in the front, for cases where the pin in your pedal is just a tiny bit too small for the Adapter connector, and your power is intermittent when you move the Adapter cable.
Part #195-3604
$2.99


Click on photo for
larger view

POWER JACK
Handy way to add a power jack for an AC/DC Adapter to an existing devices.   Connector fits the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the Adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative Adapters.  Fits 1/2" chassis hole.
Part #J-750
$1.49


Click on photo for
larger view

POWER BARREL PLUG
Replacement barrel power plug for many AC Adapters.  Connector is the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Soldering required to attach to cable.
Part #BP-573
$0.99



Click on photo for
larger view
9V BATTERY CLIP.
Commonly found in effects boxes.   Simple, yet durable construction.    5 3/4" red and black leads.

Part #9VBC
$0.45


Click on photo for
larger view
Dunlop® DROP-IN BATTERY BOX FOR CRYBABY.
New style replacement battery holder for Dunlop® CryBaby pedals.   Works with all GCB95 style Crybaby pedals with a rectangular cutout in the bottom panel for the battery.   Replaces the original battery clip which was prone to breaking.  Original Dunlop® replacement part.
Part #D-ECB244
$2.95

  ICs

Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP
Part #NJM4558-D

$1.00

Low-noise 5532 Dual Op-Amp in 8-pin DIP package.
Part #NE5532
$1.50

Low-noise 5534 Single Op-Amp in 8-pin DIP package.
Part #NE5534
$1.50

Low-noise 2068 Dual Op-Amp in 8-pin DIP package.
Part #NJM2068
$1.50

Op-Amp, switchable, used in Marshall® and Kustom amps.  8-pin DIP.  May be labeled as 2120D, M2120, or M5201
Part #NJM2120D

$2.95

Op-Amp, very low offset voltage.   Used in some effects pedals, such as the ProCo RAT.
Part #OP07

$2.95

Low-power version of the TL072 Dual Op-Amp in 8-pin DIP package.  Draws only 400uA.   Great for battery-operated effects - increased battery life.
Part #TL062CP
$2.00

Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package.  Also TL071CN.
Part #TL071CP
$1.50

Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package.  Also TL072CN.
Part #TL072CP
$1.50

DG212CJ
Click on photo for
larger view

QUAD IC SWITCH, used in certain Marshall® amps, including some of the ValveState models.     16 Pin DIP.
Part #DG212CJ

$7.95


4808-3004
From the 3M Company ... 8-pin DIP socket, fits all of the 8-pin op-amps above.   We recommend installing a socket first whenever you replace an op-amp - it makes future repairs much quicker and easier!
#4808-3004
$0.35


1N34A GERMANIUM DIODE  Popular in distortion pedals for signal clipping at lower forward voltage.   Peak reverse voltage 45VDC.  Reverse voltage 20V.   Peak forward current 150mA.  DO-7 glass case.

Part #1N34A
$0.75

  Jacks

Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
Part #J-11
$2.25


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L11
$2.95


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.

Part #J-L11W
$3.49


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®
Found in vintage Fender
® (and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender® part number 0021550000 (originally 021550).
Part #J-12A
$2.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$2.99


Click on photo for
larger view
JACK, 1/4", MONO, TIP SHUNT, WIRED, Switchcraft®, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but includes a set of isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.   Commonly used in older Fender® Hot Rod Deluxe/Deville and Blues Deluxe/Deville amps to replace the fragile input jacks.
Part #J-L12AW
$3.49


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft®
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Part #J-12B
$2.99


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft®, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12B
$3.99


Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Tip has a shunt contact, ring contact is open circuit.

Part #J-13B
$6.95


Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Both tip and ring have a shunt contact.
Part #J-14B
$6.95


Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender® Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069
$0.49
(For a pair of washers.  Each jack needs two washers.)


5 PIN MIDI CONNECTOR, PCB   Female, right angle.  Pin spacing 2.54mm (0.1").   2A 100VAC - 1A 24VDC.   Often found in keyboards, rack mount MIDI-controlled processors, etc.
Part #J-1010
$1.95


Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft® STYLE, NON-ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  2 pins T/S, open circuit, non-switched.  Nut and washer included.

Part #J-111X
$4.39



Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft® STYLE, ISOLATED NYLON BUSHING
Common input jack in guitars, hand-wired effects pedals.  2 pins
T/S, open circuit, non-switched, nylon bushing for ground isolation.  Nut and washer included.

Part #J-N111X
$3.99


Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft® STYLE, NON-ISOLATED METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched.  Nut and washer included.

Part #J-112BX
$4.50



Click on photo for
larger view
JACK, 1/4",  OPEN CIRCUIT STEREO, HAND WIRED, Switchcraft® STYLE, ISOLATED NYLON BUSHING
Common input jack in guitars, hand-wired effects pedals.  3 pins T/R/S, open circuit, non-switched, nylon bushing for isolation.  Nut and washer included.

Part #J-N112BX
$4.50



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft® STYLE, METAL BUSHING
Common input jack in guitars, hand-wired effects pedals.  T/R/S closed circuit, switched, metal bushing, 5 pins for wiring.  Nut and washer included.

Part #J-114BX
$4.99



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft® STYLE, METAL BUSHING
Tip is switched  (normally closed), ring conductor is not switched.  4 pins for wiring, metal bushing. Used in DOD® and other brands.   Nut and washer included.

Part #J-114BX-A
$4.99



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Roland® AND Boss® STYLE, METAL BUSHING
Tip is switched  (normally closed), ring conductor is not switched.  4 pins for wiring, metal bushing. Used in some Boss® and Roland® products and other brands.   Nut and washer included.
Part #J-102
$3.99


Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as Marshall® .  NOT used in Crate®, Ampeg®. 4 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-580
$3.99


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as Marshall® and Dunlop®®/MXR® products.  NOT used in Crate®, Ampeg® (see J-581L for those).   6 PC board terminals.  Chrome nut has male threads, jack has female threads.  Leads from jack come straight down from the contacts to go into the PC board.   With nut and washer.
Part #J-581
$4.49


Click on photo for
larger view
JACK, STEREO, Dunlop® TYPE WITH EXTRA RING CONTACT
Exclusive Dunlop®® jack - used in several MXR® pedals.  Has additional off-normal contact on the ring conductor.  Chrome nut is included.
Part #D-ECB040
$5.95



Click on photo for
larger view
JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, EXTENDED PCB PINS, TIP-RING-SLEEVE, 6 PINS.   Usually found in amplifiers or pedals built in China or Taiwan.   Frequently used in Kustom® products.  6 pins, PC mount, with chrome nut and washer.   Note "extended" pins as shown in photo.   For data sheet showing dimensions, click here
Part #J-581SL
$1.99


Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT®, SET OF 6
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$3.99
(Set of 6 washers and 6 nuts)


JACK NUT AND WASHER, METAL, SWITCHCRAFT®
Genuine Switchcraft® nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender® blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall® pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view

DC POWER JACK
Handy way to add a power jack for an AC/DC Adapter to an existing devices.   Connector fits the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the Adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative Adapters.  Fits 1/2" chassis hole.
Part #J-750
$1.49


Click on photo for
larger view

DC POWER JACK
Replacement Barrel DC power jack for many pedals, keyboards, etc which use a PC board mounted DC power jack.  Connector fits the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Normally closed switch, so that an internal battery may be switched on or off automatically as the Adapter is connected.   Plastic housing isolates both conductors, so it may be used for either center positive or center negative Adapters.
Part #BJK-118
$0.99


Click on photo for
larger view

POWER BARREL PLUG
Replacement barrel power plug for many AC Adapters.  Connector is the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Soldering required to attach to cable.
Part #BP-573
$0.99

  Knobs

Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
Medium size 0.91" diameter, 0.5" tall, fits smooth 1/4" shaft.  Classic look found on vintage FX units.   With set screw.
Part #K-348
$1.95


Click on photo for
larger view
KNOB, BLACK KNOB WITH WHITE LINE, SILVER TOP, SET SCREW WITH BRASS INSERT.
Large size 1.02" diameter, 0.6" tall, fits smooth 1/4" shaft.   Classic look found on vintage amps.   With set screw.
Part #K-372
$1.95


Click on photo for
larger view
REPRODUCTION OF THE MINI MXR® KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small MXR® Knob.   Also works great as a replacement on many Orange Amps.  Diameter (bottom): 20mm, Height: 11.45mm
With Set Screw for smooth 1/4" shafts.    Datasheet

Part #K-829
$1.99


Click on photo for
larger view
REPRODUCTION OF THE DAVIES 1900H KNOB, BLACK KNOB WITH WHITE LINE
Reproduction of the small 1900H Davies knob.   Looks great on pedals.  1/4" Shaft, Size-Diameter 12.7mm, height 15.9mm, With Set Screw.
Part #K-559
$1.99


Click on photo for
larger view
REPRODUCTION OF THE DAVIES 1900 KNOB, CREAM KNOB WITH BLACK LINE, FOR KNURLED SHAFT (NO SET SCREW)
Reproduction of the small 1900 Davies knob.   Looks great on pedals.  1/4" Shaft, Size-Diameter 12.7mm, height 15.9mm, push-on, for knurled-shaft pots.
Part #K-190
$1.79


Click on photo for
larger view
ORIGINAL Dunlop® MXR® KNOB, BLACK KNOB WITH WHITE LINE
Original Dunlop® MXR® Knob - as used on the Phase 90 and other MXR® pedals.   1" diameter x 0.6" high.
Part #D-ECB130
$3.99


Click on photo for
larger view
Dunlop® MXR® KNOB COVER
Original Dunlop® MXR® Knob Cover - as used on the Phase 90 and other MXR® pedals.

Part #D-ECB131
$2.79


Click on photo for
larger view
DAVIES STYLE 1400 REPRODUCTION KNOB.
Replaces the Dunlop® ECB245 knob.    Small knob, 11/16" diameter x 13/32" high.    For 1/4" smooth shaft - with set screw.

Part #K-1400
$1.99


Click on photo for
larger view
KNOB, Medium, Black with White Line Indicator, for 1/4" smooth shaft, with set screw.    Great effects pedal knob.   0.75" diameter, 0.575" tall (19mm x 15mm)
Part #K-202
$1.99


Click on photo for
larger view
KNOB, Medium, Cream with Black Line Indicator.   Push-on, for knurled shaft pots (no set screw)  Great effects pedal knob.   0.75" diameter, 0.575" tall (19mm x 15mm)   Designed for push-on knurled 1/4" pot shafts (no set screw).
Part #K-151
$1.79


Click on photo for
larger view
KNOB, Medium, White with Black Line Indicator.   Push-on, for knurled shaft pots (no set screw)  Great effects pedal knob.   0.75" diameter, 0.575" tall (19mm x 15mm)   Designed for push-on knurled 1/4" pot shafts (no set screw).
Part #K-152
$1.79


Click on photo for
larger view
KNOB, Electro-Harmonix®, Black with Cross Slot and White Dot Indicator  1/4" smooth shaft, with set screw.    General control knob, fits all current EH pedals, plus a variety of other applications.    0.80" wide at the base, 0.62" wide at the top, 0.61" tall.
Part #K-344
$1.99


Click on photo for
larger view
KNOB, Electro-Harmonix®, Large Black with White Line Indicator  Push on for 1/4" Knurled Shaft.   Used on many current EH pedals, plus a variety of other applications.    1.00" wide, 0.62" tall.
Part #K-346
$1.99


Click on photo for
larger view
KNOB, Electro-Harmonix®, Small Black with White Line Indicator  Push on for 1/4" Knurled Shaft.   Used on many current EH pedals, plus a variety of other applications.    0.66" wide, 0.53" tall.
Part #K-347
$1.99

  Pots

Click on photo for
larger view
POT, GEARED, 100K, Dunlop® HOT POTZ II FOR USE ON Dunlop® CRYBABY
The Jim Dunlop® ECB24B Hot Potz II 100K Potentiometer is a replacement for Dunlop® Crybaby and Jimi Hendrix wah pedals. Features super long life and is sealed to keep all dirt, grime and grease out of the pot.
Part #D-ECB24B
$26.99


Click on photo for
larger view
POT, GEARED, 100K, FOR USE ON Dunlop® CRYBABY AND Vox® WAH PEDALS
Smooth operation, very similar to original pots as used in the Dunlop® and Vox® pedals.  Replacement pot for Dunlop®, Vox, etc., Wah pedals with gear & rack operation.  Nut and washers included.   100K as used in most wah pedals.  (Note - not for pedals where the control pot is PC board mounted, such as the Crybaby 535Q.)    Soldering is required to install this replacement pot.   Unlike the original sealed pot (or the replacement sealed Hot Potz), this pot has a slot where cleaning fluid may be sprayed.
Part #R-VWAH
$11.95


Click on photo for
larger view
POTENTIOMETER DUST CAP, for all 24mm (1") pots.   Slips over the case of the pot and helps keep out dust and contamination.  Easily removable for cleaning of the pot.  Great for use on our R-VWAH wah pedal pots.
Part #DS-3824
$1.19


Click on photo for
larger view
POT, BOOST OR "Q" CONTROL, DUNLOP 535Q and 95Q.
This is the either the boost volume control or the Q pot used in the 535Q and the 95Q Wah Pedals.  The boost is B500K, and the Q is B1K.  Select Pot Value in Options

Part #P-DUN-XX
$2.99

Select Option:


Quantity:


Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT (10mm LONG).
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.  Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-VM16M-XX
$3.95

Select Option:


Quantity:


Click on photo for
larger view
POT, 1 MEG OHM X2 LINEAR DUAL, (B1M), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER  THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 10mm.   Exact replacement for the volume control pots (both channels) on the Orange Dual Terror Amp.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V1MBX2-M16M
$6.95


Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT (6.5mm LONG).
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 6.5mm.   Click on photo for more detail.  Select Pot Value in Options
INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-VM16S-XX
$3.95

Select Option:


Quantity:


Click on photo for
larger view
POT, DUAL 50K OHM LINEAR, (B50K), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 6.5mm.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V50KLX2-M16S
$6.95


Click on photo for
larger view
POT, 5K  LINEAR, (B5K), PC MOUNT, 13mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT D-STYLE FLATTED 1/4" SHAFT.
Smaller than the common "dime-sized" 16mm pot, used in applications where a tighter density of pots is required, such as effects pedals.   Shaft length is 8.0mm, flat part of shaft is 7.0mm.  Threaded bushing is 7mm.  See complete dimensions here.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V5KL-M13
$3.95


Click on photo for
larger view
POT, 100K  LINEAR, (B100K), PC MOUNT, 13mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT D-STYLE FLATTED 1/4" SHAFT.
Smaller than the common "dime-sized" 16mm pot, used in applications where a tighter density of pots is required, such as effects pedals.   Shaft length is 8.0mm, flat part of shaft is 7.0mm.  Threaded bushing is 7mm.  See complete dimensions here.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V100KL-M13
$3.95


Click on photo for
larger view
POT, 500K  LINEAR, (B500K), PC MOUNT, 13mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT D-STYLE FLATTED 1/4" SHAFT.
Smaller than the common "dime-sized" 16mm pot, used in applications where a tighter density of pots is required, such as effects pedals.   Shaft length is 8.0mm, flat part of shaft is 7.0mm.  Threaded bushing is 7mm.  See complete dimensions here.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V500KL-M13
$3.95


Click on photo for
larger view
POT, 50K  AUDIO TAPER, (A50K), PC MOUNT, 13mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT D-STYLE FLATTED 1/4" SHAFT.
Smaller than the common "dime-sized" 16mm pot, used in applications where a tighter density of pots is required, such as effects pedals.   Shaft length is 8.0mm, flat part of shaft is 7.0mm.  Threaded bushing is 7mm.  See complete dimensions here.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V50KA-M13
$3.95


Click on photo for
larger view
POT, 500K  AUDIO TAPER, (A500K), PC MOUNT, 13mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SHORT D-STYLE FLATTED 1/4" SHAFT.
Smaller than the common "dime-sized" 16mm pot, used in applications where a tighter density of pots is required, such as effects pedals.   Shaft length is 8.0mm, flat part of shaft is 7.0mm.  Threaded bushing is 7mm.  See complete dimensions here.  INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1018 nut found in this section)
Part #P-V500KA-M13
$3.95


Click on photo for
larger view
POT, PC MOUNT RIGHT ANGLE, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, SMOOTH 1/4" (6mm) SHAFT FOR SET-SCREW TYPE KNOB
For use in many brands of effects pedals.  For use with 1/4" type set-screw knobs.
  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the JN-1018 nut found in this section).   Made by Alpha.
Part #P-V41-XX
$2.95

Select Option:


Quantity:


Click on photo for
larger view
POT, WIRE TERMINALS, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, KNURLED 1/4" SHAFT, SHAFT LENGTH 8mm
For use in many products where the pots are the smaller 16mm and are hand-wired.  Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 8mm.  Select Pot Value in Options
INCLUDES NUT & WASHER.
(For spare or replacement nut, order the JN-1018 nut found in this section).   Made by Alpha.
Part #P-VKM16-XX
$2.95

Select Option:


Quantity:

  Cord / Spring Kits

Click on photo for
larger view
ERNIE BALL JUNIOR VOLUME PEDAL CORD/SPRING KIT
This kit replaces the cord and spring in your Ernie Ball volume pedal.   This kit is for the Ernie Ball VP Jr Junior-Size volume pedals, including the
models 6180 and 6181 pedals.  Instructions included.
Part #EB-6172
$5.95

Only 1 left in stock!


Copyright ©2017 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions
