Power Cords




Power Cords

Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$5.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.   10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT, REDUCES USE OF EXTENSION CORDS.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
Revisit™ 1 ft POWER CORD, DETACHABLE, 3-WIRE, 16ga, 1 ft LONG, IEC CONNECTOR AT EQUIPMENT END.     Designed to be used inside equipment racks between power strips and equipment in order to reduce clutter.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-100
$2.95


Click on photo for
larger view

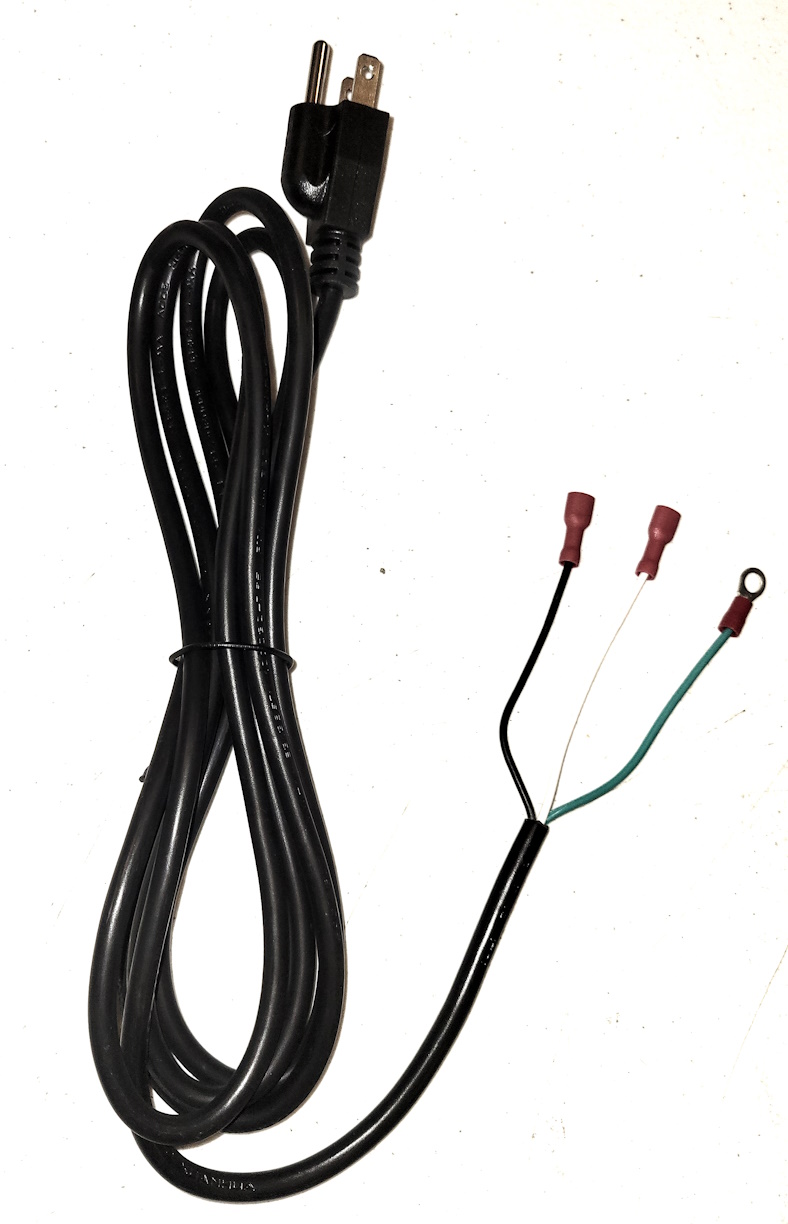

Fender® 8 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 8 feet, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   Fender® part number 0026541049.    Found in the Fender® Vibrosonic, Custom Vibrolux, Ultimate Chorus, Rumble Bass, Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior, Acoustasonic SFX, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, BXR200, 57 Twin Amp Reissue   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541
$12.95


Click on photo for
larger view

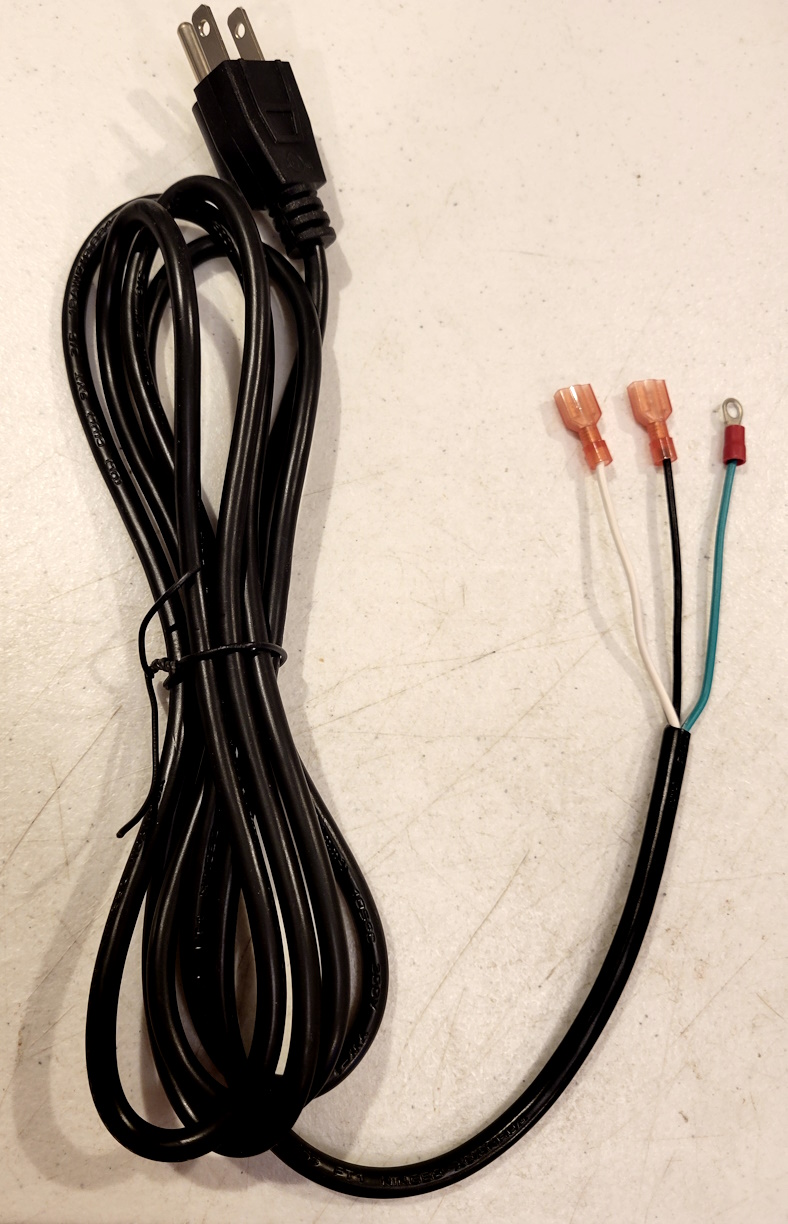

EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 12 feet, cord thickness is 0.30 inches (about 9/32" or 7.3mm).   Replaces Fender® part number 0026541049 with a longer 12 ft cord option for more convenience.    Longer cord for the Fender® Vibrosonic, Custom Vibrolux, Ultimate Chorus, Rumble Bass, Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior, Acoustasonic SFX, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, BXR200, 57 Twin Amp Reissue   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541-12
$16.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT12
$13.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT8
$9.95


Click on photo for
larger view
Fender® style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99


Click on photo for
larger view
3-PRONG TO 2-PRONG ADAPTER, NORTH AMERICA ONLY, 125V, 15A
Used to connect a 3-wire plug to a 2-wire AC socket.    Non-polarized, ground connection via screw.  North America only.
Part #BLP-514
$0.69

Limited stock on hand at this time


Click on photo for
larger view
PEAVEY CORD WRAP BRACKET.   THERE MUST BE A GAZILLION DIFFERENT PEAVEY AMPS WITH THESE CORD WRAP BRACKETS ON THE BACK.   VERY HANDY, AS MANY PEAVEY AMPS HAD SOME RATHER LONG HARD-WIRED NON-REMOVABLE CORDS.  BUT WHEN THEY BREAK AFTER MANY YEARS' USE, THEY'RE KIND OF USELESS.  REPLACE THEM NOW WITH THE ORIGINAL BRACKET.
(Bracket measures 2.45" horizontally. Mount measures .935" horizontally, and .941" vertically. Length of cylindrical shaft is .175" and the diameter is .19".)
Part #CW-119
$3.59
(each)
