Power Connectors and Strain Reliefs |
|
|
Click on photo for
larger view |

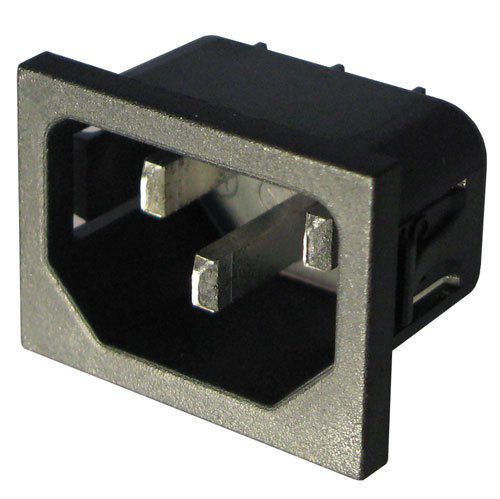

 IEC
POWER CONNECTOR, PEAVEY™,
NON-FUSED, PCB MOUNT
Used in the Peavey™ 6505+ 112 Combo (not 6505
or 6505+ heads), ValveKing series, including
the ValveKing 112 and 212 combos, and the ValveKing Head amplifiers.
Also used in the XR684 and XR1600F Powered Mixers, and the Peavey™
S14 and S24 mixing consoles.
Original Peavey™ part number 70901428 and
30901428.
Datasheet here.
Part #30901428 |
$5.95 |
|
Click on photo for
larger view |
IEC
POWER CONNECTOR, NON-FUSED, WIRED TYPE, SNAP-IN ATTACHMENT
TO PANEL
Popular IEC type AC connector found in many amplifiers and
effects units. Designed to snap into 0.8" x
1.10" rectangular panel hole. Connections are for 1/4"
push on terminals, or may be soldered. Rated at 10
amps.
Part
#P-S2-108 |
$2.95 |
|
Click on photo for
larger view |
IEC
POWER CONNECTOR, NON-FUSED, WIRED TYPE, SCREW ATTACHMENT TO
PANEL
Popular IEC type AC connector found in many amplifiers and
effects units. Designed to mount in 0.8" x 1.10"
rectangular panel hole. Screw holes are 1.57" apart, center-to-center. Connectors are for push-on terminals, or may be soldered. Rated at 10 amps.
Part
#P-S2-106 |
$2.95 |
|
Click on photo for
larger view |
IEC POWER CONNECTOR, VERTICAL,
DROP-IN REPLACEMENT FOR OLD BULGIN "PIGNOSE" CONNECTOR USED ON EARLY MARSHALL
AMPS
This connector by Bulgin has the same mounting specs as the original Bulgin
"Pig-Nose" AC connector on early Marshalls, including the JMP and JTM series.
Convert your early Marshall to use a convenient standard IEC power cord with
this IEC connector with matching screw holes. The original
"Pig-Nose" connectors and compatible power cords are obsolete and extremely rare
and expensive. This connector works with our PC-300 and PC-600 power
cords. Note: The mounting hole in the amp chassis
needs to be 29mm (1-1/8") in diameter in order for the BCR-579 connector to fit.
This is the case on most JMP and JTM models, but a few have a slightly smaller
hole and may require the hole to be enlarged.
Part #BCR-579 |
$6.50 |
|
Click on photo for
larger view |
IEC
POWER CONNECTOR, FUSED, WIRED TYPE, SNAP-IN ATTACHMENT TO
PANEL.
Popular IEC type AC connector found in many amplifiers and
effects units. Designed to snap into 1.25"
x 1.10" rectangular panel hole. Uses GMA type
fuses (5mm x 20mm). Space for spare fuse.
Rated up to 10 amps. Fuse not included.
Part
#P-S2-120-3 |
$3.95 |
|
Click on photo for
larger view |
IEC POWER CONNECTOR, FUSED, WIRED TYPE, SCREW ATTACHMENT TO PANEL.
Popular IEC type AC connector found in many Orange™ amplifiers. Designed
for screw mounting into 1.25" x 1.10" rectangular panel hole. Uses GMA type fuses (5mm x 20mm). Space for spare fuse. Rated up to 10 amps. Fuse not included.
Part #P-S2-719 |
$3.95 |
|
Click on photo for
larger view |
 IEC POWER CONNECTOR, AMPEG™, NON-FUSED, PCB MOUNT
Used in the Ampeg™ SVT-3-PRO, SVT-4-PRO, SVT-5-PRO, SVT-6-PRO,
B2R, B4R, B5R bass amplifiers. Original Ampeg™ part number
17-604-01.
Datasheet here.
Part #17-604-01 |
$5.95 |
|
Click on photo for
larger view |
15 AMP GROUNDED AC CONVENIENCE OUTLET WITH WIRES.
Leviton# 1374-001 or
equiv. Black, three-conductor outlet. Snap-mounts in 1"
square cutout. Rated 15 Amps @ 125Vac. Two 6" 14 AWG leads
and one 6" 16 AWG ground lead. UL, CSA. Used as a
convenience outlet on the back panel of some amplifiers.
Part #ACS-31 |
$4.79 |
|
Click on photo for
larger view |
LARGE
SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular
strain relief found on most vintage guitar amplifiers with
round power cords, including most vintage Fender™ amps.
Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the
job much easier, see the YTH-205 below.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
EXTRA-LARGE SIZED STRAIN RELIEF FOR 3/4" X
27/32" HOLE
RATHER HUGE!
strain relief found on
a few
larger vintage power amplifiers with very thick power cords. Designed for 11/32" cord diameter. Not
for guitar amps.
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below.
Part #SR-1300 |
$1.50 |
|
Click on photo for
larger view |
IEC
POWER CONNECTOR, MARSHALL™,
NON-FUSED, PCB MOUNT
Used in the Marshall™ JCM2000 series.
Original Marshall™ part number SKTP-00034.
Datasheet here.
Part #SKTP-00034 |
$5.95 |
|
Click on photo for
larger view |
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 |
$14.95 |
|
| |
Power Cables |
|
|
Click on photo for
larger view |
 Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR AT EQUIPMENT END. Common replacement cord for use on many
guitar amps, power amps, effects units, etc. Standard NEMA 5-15 plug
for North American use at 110-120 Volts AC. IEC connector at
equipment end. Used only in North America.
Part #PC-300 |
$6.95 |
|
Click on photo for
larger view |
Revisit™
10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC
CONNECTOR AT EQUIPMENT END. REPLACEMENT CORD FOR
MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.
10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT,
REDUCES USE OF EXTENSION CORDS. Standard NEMA
5-15 plug for North American use at 110-120 Volts AC.
IEC connector at equipment end. Used only in
North America.
Part #PC-600 |
$10.95 |
|
Click on photo for
larger view |
SUPER-LONG,
16 gauge
Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,
OUR LONGEST POWER CORD!
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or
7.9mm).
Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13
amps maximum. Used only in
North America.
Part #PC-163SJT15 |
$19.95 |
|
Click on photo for
larger view |

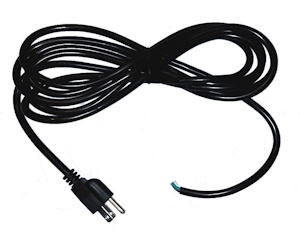

EXTRA-LONG
12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type. Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length is an
extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).
Wire gauge is 18AWG, rated at 10 amps.
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in
North America.
Part #PC-183SJT12 |
$13.95 |
|
Click on photo for
larger view |
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SJT8 |
$9.95 |
|
Click on photo for
larger view |
8
ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line". Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length 8 feet,
18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).
Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp
cords in smaller amplifiers where there was formerly a 2-wire cord without
ground. Standard NEMA 5-15 plug for North American use at 110-120 Volts
AC. Used only in North America.
Part #PC-183SVT8-TL |
$9.95 |
|
Click on photo for
larger view |
15 ft
EXTENSION CORD, 3-WIRE, 16ga, 13 Amps. Quality extension cord for use
on stage, at home, office or workshop. Cord length is 15 feet, 16 gauge,
3-wire cord thickness is 0.31 inches (about
5/16" or 7.9mm).
Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC,
13 amps maximum. Used only in
North America.
Part #EC-5301 |
$19.95 |
|
Click on photo for
larger view |
 Fender™
style reverb or AC cable clamp. Used on
Fender amps since the early 60s to hold the reverb cable to
the side of the cabinet. Clamp is 3/8" diameter,
comes with 3/4" screw for mounting. Also used in some
amplifiers to hold the AC cord to the cabinet wall.
Fender part number 022941. Works on many other
brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
