Parts for
Ampeg and
Crate Amps
Note:  Crate Amps is no longer in business as of 2009.  Most Crate parts that are not listed on our website are no longer available.

Hardware    Jacks    Pots    Knobs     Tremolo/Vibrato Modules
AC Power Items     Reverb Tanks    Switches    Relays    Fans

>

Click on photo for
larger view		 Revisit™ VTL5C1 OPTO-ISOLATOR
Replaces VTL5C1 from Vactec or Excelitas at an affordable price.   Used in many Mesa-Boogie and Crate models in the channel switching circuit.  100dB dynamic range, fast response (2.5ms turn-on), very high dark resistance (50 M Ohm).  Light resistance 200 Ohms at 20mA LED current.  See datasheet here.
Part #VTL5C1		 $4.95

Ampeg™ & Crate Hardware
 (Also see our complete line of hardware)



Click on photo for
larger view		 L-PAD FACE PLATE AND KNOB, for 3/8" diameter threaded bushing found on most L-Pad Level controls.    Face plate AND knob only!  L-Pad ordered separately.

Fits many bass cabinets including the SWR Goliath, Marcus Miller Golight 410, Workingman 8x10, Working Pro 2x10, Ampeg PN-210HLF, PN-410HLF, SVT-410HLF, SVT-610HLF, SVT-810SPC, BXT210M, BXT410HL4, PR-1528HE, PN-115HLF, PR-810H, PB-250, the Kustom G410H, the Engl B115 as well as many others.   This is the face plate and knob only - L-PAD itself ordered separately.   Raised lettering in charcoal gray instead of white.   3 1/8 inches in diameter, 7/8 inch depth into cabinet.   Requires 2 inch diameter hole for mounting.  Screws not included.
Part #LFP-380

 $4.50

8 Ohms

Click on photo for
larger view		 L-PAD, 8 Ohms, 3/8" threaded bushing (3/8" long), with plate, knob and hardware.   May also be used with the LFP-380 face plate and knob.    8 ohms - for use with 8 ohm speakers, horn drivers or tweeters.

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 8 ohm load. This L-pad is rated at 100 watts RMS, is designed to be used with 8 ohm loads, features a 3/8" shaft length, and comes with mounting hardware.   This style of L-Pad is found on many popular bass cabinets to control the horn/tweeter level.   2.5 inches in diameter, 1 inch thick.   Included face plate is 2 1/8" x 2 1/8".
Part #LPD-262

 $17.95

16 Ohms

Click on photo for
larger view		 L-PAD, 16 Ohms, 3/8" threaded bushing (3/8" long), with plate, knob and hardware.   May also be used with the LFP-380 face plate and knob.   16 ohms - for use with 8 ohm speakers, horn drivers or tweeters.

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 8 ohm load. This L-pad is rated at 100 watts RMS, is designed to be used with 16 ohm loads, features a 3/8" shaft length, and comes with mounting hardware.   This style of L-Pad is found on many popular bass cabinets to control the horn/tweeter level.   2.5 inches in diameter, 1 inch thick.   Included face plate is 2 1/8" x 2 1/8".
Part #LPD-261

 $17.95



Click on photo for
 larger view
 Ampeg™ "a" Logo
Used on modern Ampeg Speaker Cabinets, this 3 inch x 4 inch plastic logo is affordably priced.   Mounting screws not included.   Use LS-504 for mounting screws.  Mounting centers are 2 1/4" x 2 ⅜".
Part #AL-921		 $5.95



Click on photo for
 larger view
 Black Logo Mounting Screws
Set of 4 logo mounting screws.   These are #5 x 7/16" black oxide screws, set of 4.    Fit the AL-921 Ampeg logo, and the Fender FAL-912 logo.
Part #LS-504		 $0.99
(for a set of 4 screws)


Click on photo for
larger view		 TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   Used in Fender™ and many other amps.     1 1/2" mounting centers.  Made by Belton.  Fender part number 099072500.
 Part #TC-142		 $2.25


Click on photo for

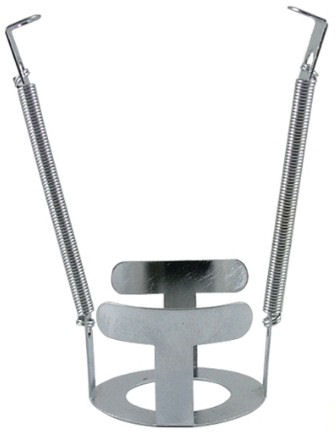

larger view		 LARGE TUBE RETAINER WITH SPRINGS, DESIGNED FOR 6550 OR KT-88 TUBES.

Part #TC-143		 $3.49


Click on photo for
larger view		 TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE .  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes.   9-Pin tube socket is made of sturdy Micalex.   Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   Requires 3/4" hole in chassis.  Solder lugs for wire connection to tube socket. Shield, base and socket.
 Part #TS-370		 $4.99


Click on photo for
larger view		 TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.  Includes new base, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.  Shield and base only - socket not included.

 Part #TS-325S		 $2.29


Click on photo for
larger view		 TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SET OF 6.  Includes new bases, if needed.  Spring in top of shield fits over the tube.  Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands.  Holes in base spaced 1 1/8" apart.   This is a great kit to replaced all 6 of the tube shields in many Fender™ amps with 6 preamp tubes.  Shield and base only - socket not included.

 Part #TS-325S-6		 $12.95


(TUBE NOT INCLUDED)

Click on photo for
larger view

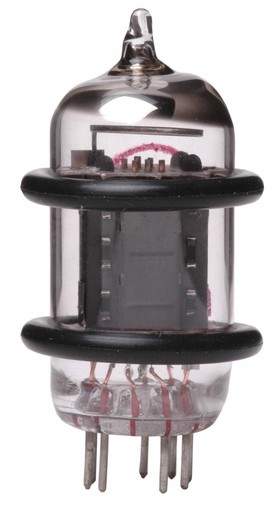

 Revisit™ PRE-AMP TUBE DAMPER RINGS.   Use two (or three) of these rings around a pre-amp tube to reduce noise and microphonics.  An economical alternative to more expensive tube dampers.   Will withstand high temperatures of pre-amp tubes, reusable when you change tubes.   Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes.   These dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6		 $4.95
(Set of 6 rings)


Click on photo for
larger view		 Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust.   Used to connect a ground wire to a screw and nut on a chassis.  Angled, with two holes for soldering wires.   With built-in lock washer to keep the screw and nut from loosening.   Designed for a #8 size screw.   Pack of 5 terminals.
Part #GL-113		 $1.39
(Pack of 5 terminals)




Click on photo for
larger view		 TERMINAL STRIPS, 6 LUG, SET OF 2.   Perfect for amplifier circuit additions or modifications.   Center post for mounting to chassis.   All 6 terminals are isolated from ground.  Each terminal strip is 2-5/8 inches long.   The lugs are set on 3/8 inch centers.   Each lug will accept wires up to 16ga - smaller gauge allows multiple wires to be connected to each lug.   Set contains 2 terminal strips as pictured.   Mounting hardware not included.
 Part #TS-825		 $2.99
(for a set of 2 terminal strips)



Click on photo for
larger view		 TERMINAL STRIPS, 7 LUG, SET OF 2.   Perfect for amplifier circuit additions or modifications.   End terminals on each strip are the mounting lugs, so they become a ground lug if attached to a metal chassis.   Each terminal strip is 2-5/8 inches long.   The lugs are set on 3/8 inch centers.   Each lug will accept wires up to 16ga - smaller gauge allows multiple wires to be connected to each lug.   Set contains 2 terminal strips as pictured.   Mounting hardware not included.
 Part #TS-712		 $3.69
(for a set of 2 terminal strips)


Click on photo for

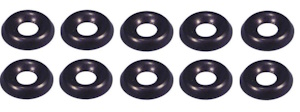

larger view		 CUP WASHER, BLACK METAL, PACK OF 10.  Used with #8 Black screws, on amps and speaker cabinets.
 Part #BCW-10		 $1.69
(pack of 10)



Click on photo for
larger view		 FENDER™ SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 12.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 12.
Part #SC-409-12		 $12.95
(For a pack of 12 screws with nuts and lock washers)



Click on photo for
larger view		 FENDER™ SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4.   Locking nut and washer included.  Phillips head.   Drill hole, insert and tighten screws into wood from front of baffle.  Install grill cloth, and you have professional speaker mounting studs.   Replacement for original Fender™ speaker mounting studs.   Fender™ part number 0992094000.   Set of 4.
Part #SC-409-4		 $3.50
(For a pack of 4 screws with nuts and lock washers)


Click on photo for
larger view		 ISOLATION WASHER - 3/8" - For #8 Screws

3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4

 $0.59
(For a set of 4 washers)


Click on photo for
larger view		 ISOLATION WASHER - 1/2" - For #10 Screws

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #SIW-50-4

 $0.69
(For a set of 4 washers)


Click on photo for
larger view		 BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #6 screw, 3/4 inch long, pack of 10.
Part #SCR-435		 $0.79
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1/2 inch long, pack of 10.
Part #BWS8-5		 $0.99
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 3/4 inch long, pack of 10.
Part #BWS8-75		 $1.10
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1 inch long, pack of 10.
Part #BWS8-1		 $1.25
(pack of 10)

BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.   Deep threads, sharp point, pan head with Philips drive.  #8 screw, 1-1/2 inches long, pack of 10.
Part #BWS8-15		 $1.39
(pack of 10)




Click on photo for
larger view		 CAGE NUT, ZINC, 10-32 THREAD.   Used on square-punched amp chassis rails to secure the chassis to the cabinet.   Frequently found in Peavey, Crate, Ampeg, other brands.   NOT used in Marshall™ - see the MCN-4.   Works with all 10-32 screws.   Verify screw thread before ordering, as not all cage nuts are 10-32.   Zinc coating retards oxidation.   Pack of 4 nuts.   Made in Canada by Hammond Industries.
Part CNA-1421		 $4.29
(pack of 4)


Click on photo for
larger view		 SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, effects units, larger floor effects pedals, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  0.84" diameter x 0.31" high.   Screws not included.    Set of 4 feet.
 Part #BRF-750 		$4.95
(pack of 4)


Click on photo for
larger view		 SMALL BLACK RUBBER FEET, SET OF 4.
 This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for smaller amps, amp heads, or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability.  Just under 1 inch - 15/16" diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8" tall.    Screws not included.    Set of 4 feet.
 Part #BRF-723 		$4.95
(pack of 4)


Click on photo for
larger view		 MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for large rack cabinets or speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 1" tall. Mounting screws not included.

 Part #BRF-1691 		$4.95
(pack of 4)


Click on photo for
larger view		 MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter (wide end) x 3/4" diameter (narrow end) x 0.85" tall.  Mounting screws not included.  Set of 4 feet.

 Part #BRF-9105 		$4.95
(pack of 4)


Click on photo for
larger view		 MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.
 Part #BRF-1692 		$4.95
(pack of 4)


Click on photo for

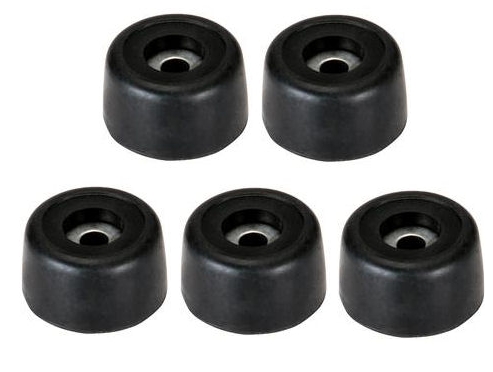

larger view		 MEDIUM BLACK RUBBER FEET, SET OF 5.
This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets. the integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 5/8" tall. Mounting screws not included.   This set of 5 works well for the main feet used on the Ampeg BA-210 when the cabinet is in the upright position.
 Part #BRF-1692-5 		$6.25
(pack of 5)


Click on photo for
larger view		 MEDIUM BLACK RUBBER FEET, SET OF 4.   Tapered: 1 3/16" Diameter At Small End, 1 1/4" Diameter At Large End. 1/2" Tall. Black Rubber With Metal Insert. Used To Support Effects, Amps, Mixers. Mounting Screws Not Included.
Part #BRF-9112		 $4.95
(pack of 4)


Click on photo for
larger view		 X-LARGE BLACK RUBBER FEET, SET OF 4.   Tapered -  1 5/8" Diameter At Large End, 1 1/4" At Small End. 3/4" Tall. Black Rubber With Metal Insert. Used To Support Amp Heads, Speaker Cabinets. Mounting Screws Not Included.
 Part #BRF-9107		 $7.95
(pack of 4)


Click on photo for

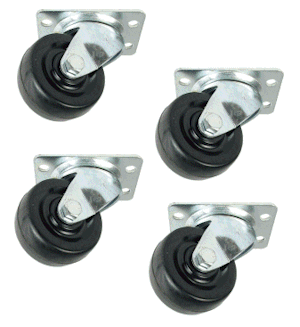

larger view		 Fender™ Style Flat Mount 2" Caster Wheels - Set of 4.    Great for Fender™ and many other brands of amps or cabinets.   Each wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.   Specifications found here.   Note:  Mounting screws NOT included.
Part #FCW-4F		 $29.95
(Set of 4 casters)

NOT SOLD OUTSIDE the USA


Click on photo for
larger view		 Fender™ Style Pop-Out 2" Caster Wheels - Set of 4.    Great for Fender™ and many other brands of amps or cabinets.   Each wheel capable supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.  The same type of removable caster wheels used on Fender™ amps since the 1960s.   Note:  Mounting screws NOT included.   Must drill 5/8" hole in bottom of cabinet to accommodate post for wheel.
Part #FCW-4R		 $29.95
(Set of 4 pop-out casters)

 NOT SOLD OUTSIDE the USA


Click on photo for
larger view		 Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, BLACK WITH BLACK STITCHING
 Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera, Blackstar, many others.    Handle length is 8-9/16 inches (8.57"), center-to-center mounting distance is 7-3/8 inches (7.38")   Black with black stitching, nickel mounts.   More details   Mounting screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-281		 $15.95

"SHORTY" AMP HANDLE



Click on photo for
larger view		 Revisit™  "SHORTY" AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, BLACK WITH BLACK STITCHING
Similar to the AH-281 handle above, but 1-3/4 inches shorter.  Handle length is 6-13/16 inches (6.80"), center-to-center mounting distance is 6 inches (5.98")   Black with black stitching, nickel mounts.    Mounting screws not included - use SC-402 or SC-403-4  screw pack.   This is a great handle to consider for smaller combo amps, practice amps, etc.   Delivers a professional quality look and reliability in a smaller size for smaller amps.  More details
Part #AH-281-S  "Shorty"		 $12.95


Click on photo for
larger view		 Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, DARK BROWN WITH BROWN STITCHING
 Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera, Blackstar, many others.    Handle length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8 inches (7.38")   Dark brown with brown stitching, nickel mounts.   More details   Mounting screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-270		 $15.95

ONLY ONE HANDLE LEFT IN STOCK.   THIS HANDLE IS BEING DISCONTINUED.


Click on photo for
larger view		 Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, TAN WITH TAN STITCHING
 Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera, Blackstar, many others.    Handle length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8 inches (7.38")   Tan with tan stitching, nickel mounts.   More details   Mounting screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-108		 $15.95


Click on photo for
larger view		 Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, DARK BROWN WITH WHITE STITCHING
 Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera, Blackstar, many others.    Handle length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8 inches (7.38")   Dark brown with white stitching, nickel mounts.   More details   Mounting screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-318		 $15.95


Click on photo for
larger view		 Revisit™ AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, DEEP NAVY BLUE-GREY WITH WHITE STITCHING
 Good replacement for Ampeg, Mesa Boogie, Randall™, Bogner, Ashdown, Rivera, Blackstar, many others.    Handle length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8 inches (7.38")   Dark navy blue-grey with white stitching, nickel mounts.   More details   Mounting screws not included - use SC-402 or SC-403-4 screw pack.
Part #AH-319		 $16.95



Click on photo for
larger view		 Fender™ or Ampeg™ VINTAGE STYLE GUITAR AMP HANDLE, RAISED, BLACK STITCHED SIMULATED LEATHER. Black raised handle strap, made of simulated leather, replacement for Fender™ "tweed" style amps or vintage Ampeg amps (as well as other vintage amps).  Has slight "raised" bump near the center of the handle.   Black, white stitched.  5-7/8" from post position to post position, total length of strap when completely flat is 8-3/4".   Mounts and screws are included.
Part #GAH-782		 $15.95



Click on photo for
larger view		 Revisit™ BLACK GUITAR AMP HANDLE, WITH HARDWARE.   Rugged rubber black handle strap, steel reinforced.  Black metal caps.   Black 10-32 screws and  T-Nut mounting hardware are included.  Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 to 8 3/8 inches apart.   Total length of handle when properly mounted is 10 1/4".
Part #GAH-271B		 $11.99



Click on photo for
larger view		 Revisit™ GUITAR AMP HANDLE - BLACK.  Rugged rubber black handle strap, steel reinforced.  Black metal caps.   Screws not included - recommend using our SC-403B 10-32 type screws along with a 10-32 T-Nut for secure mounting.   Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 to 8 3/8 inches apart.   Total length of handle when properly mounted is 10 1/4".
Part #GAH-1		 $10.99


Click on photo for
larger view

 BLACK HANDLE SCREWS
 Pack of 2 stainless-steel handle screws finished in satin black for use with black end-cap handles, such as our GAH-1, OAH-456, or GAH-271B.  1-1/4" Long, 10-32 threads, finished in satin black to match black end caps.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".   See Data Sheet here
Part #SC-403B		 $0.99
(for a pack of 2 screws)



Click on photo for
larger view		 Revisit™ NICKEL/BLACK GUITAR AMP HANDLE - NICKEL, WITH HARDWARE.  Rugged rubber black handle strap, steel reinforced.  Nickel metal caps.   10-32 screws and  T-Nut mounting hardware are included. Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 inches apart.   Total length of handle when properly mounted is 10 1/4".  Not recommended for Fender, as the screws are set too far apart for Fender™ amp specifications.
Part #GAH-271C		 $10.99


Click on photo for
larger view

 HANDLE SCREWS
 Pack of 2 stainless steel handle screws for GAH-271C Handle.   1" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".  See Data Sheet here
Part #SC-403		 $0.99
(for a pack of 2 screws)


Click on photo for
larger view		 LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords.   Designed for 5/16" cord diameter (3 conductor 18ga power cable).   Click here for specific dimensions of chassis hole.   For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200		 $0.99


Click on photo for
larger view		 STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205		 $14.95


Click on photo for
larger view		 SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 1/4 inch diameter inner hole, and mounts in a 3/8 inch chassis hole.   Full datasheet here.
Part #RCG-739		 $0.49
each


Click on photo for
larger view		 LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE (GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 3/8 inch diameter inner hole, and mounts in a 1/2 inch chassis hole.   Full datasheet here.
Part #RCG-745		 $0.49
each

Ampeg Fans



Click on photo for
larger view		 ThermoCool Fan.  80 x 38mm Sleeve Bearing 23 CFM.
Thermocool axial fans provide enhanced cooling for a variety of electronic devices. Leading air flow technology is designed into every thermocool product resulting in reduced turbulence, low noise levels and a more energy efficient product. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.   This fan is the replacement for the fan used in the Ampeg SVT Classic, Ampeg™ part number 24-321-03.
Specifications: • Power: 120V AC, 60 Hz • Sleeve bearing • Lead wire connection • 0.13 amps • 2400 RPM • 28dB noise level • 23 CFM air flow • Dimensions: 80 mm (H) x 80 mm (W) x 38 mm (D)
[3 1/4" (H) x 3 1/4" (W) x 1 1/2" (D)]  For use on 110-120VAC System only, as found in North America.
Part #G8038HAS
 $21.95

Ampeg Tremolo & Vibrato Modules



Click on photo for

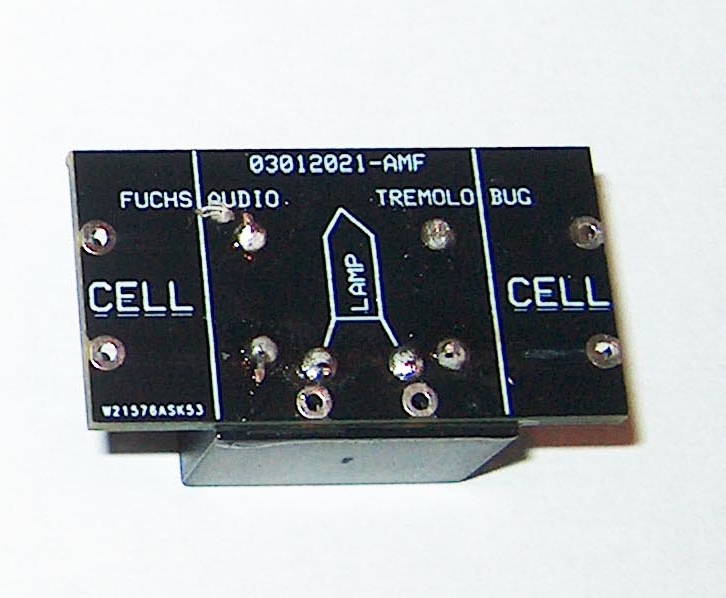

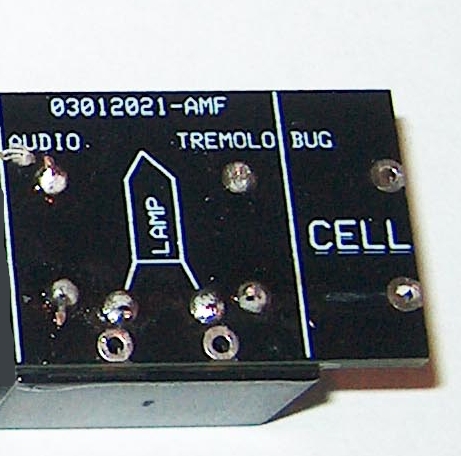

 larger view		 Fuchs Audio™ TREMOLO MODULE FOR VINTAGE AMPEG
Use for the following amp series:
  • GS12R Reverberocket II
  • GEMINI I, II, VI, G20, G15, GS15, GS15R
  • Not for earlier Reverberocket or Jets (no module used on these)

The TM1 will also replace the CL1110M  module in the  GU12 and AC12 amps.

NOTE;  Ampeg used basically the same units from 1963-1980. You will see these as a box or a tube, 4, 5 or 6 wire  versions, PC board mount or hardwired. These new replacement units have been made to allow for use in all circumstances..
Depending on the amp and how this unit is  mounted the new TM1 may exhibit a ticking noise.
Adjusting the location and/or adding electrical shielding may help.
You may also experience variation in the speed and  depth of the tremolo.
Trying different values of resistors in the circuit may also help with this.

For best results it is also recommended replacing the caps in and around  the Vibrato circuit (not included).
  • 1pc. 25/25 Electrolytic Capacitor
  • 3pc. .05 (.047/630v) Capacitors
  • This module is for amps featuring "Tremolo".   If your vintage Ampeg has "Vibrato" you need the VM-1 Vibrato module, below.
Part #TM-1
 $39.95


Click on photo for
 larger view		 Fuchs Audio™ VIBRATO MODULE FOR VINTAGE AMPEG
VM-1 Vibrato Module for the following vintage Ampeg amplifiers:
  • "X" Series, B12XT, B15X, B18X, B12XY, B15XY, B22X, B42X and others
  • GV Series, G-15V Gemini V, GV22, GV15
For best results it is also recommended replacing the caps in and around  the Vibrato circuit (not included)
  • 1pc. 25/25 Electrolytic Capacitor
  • 5pc. .05 (.047/630v) Capacitor
  • 1pc. .001/630v
  • 1pc. .005 (.0047/630v) Capacitors
  • 1pc. .1/630v Capacitor
NOTE; Depending on the amp and how this unit is  mounted the new VM1 may exhibit a ticking noise.  Adjusting the location and/or adding electrical shielding may help.

You may also experience variation in the speed and  depth of the Vibrato.  Trying different values of resistors in the circuit can also help with this.

This module is for amps featuring "Vibrato". If your vintage Ampeg has "tremolo" you may need the VM-1 Tremolo module, above.

Part #VM-1
 $49.95

Ampeg™ & Crate™ Jacks
(Also see our complete line of jacks)



Click on photo for
larger view		 WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and chrome nut jacks to provide proper spacing.   Jacks come with the washers included, but the washers are easily lost.  Without the washers, the jacks will not fit properly.

 Part #W-583		 $0.18
for each washer.
(Jacks not included).


 Click on photo for
larger view		 JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, L-LEG, TIP-SLEEVE, 4 PINS.   Generally found only in Crate or Ampeg products.   Common input, footswitch or effects loop jack exclusive to Crate™ and Ampeg™.   (Other brands with chrome-nut jacks use a straight pin jack such as the J-580.)  4 pins, PC mount, with chrome nut and washer.   Note "L-Leg" pins as shown in photo.   Original Crate or Ampeg part number 39-119-01.
 Part #J-580L

$4.59


Click on photo for
larger view		 JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, L-LEG, TIP-RING-SLEEVE, 6 PINS.   Generally found only in Crate or Ampeg products.  Common input, footswitch or effects loop jack exclusive to Crate™, Ampeg™.   (Other brands with chrome-nut jacks use a straight pin jack such as the J-581.)  6 pins, PC mount, with chrome nut and washer.   Note "L-Leg" pins as shown in photo.   Original Crate or Ampeg part number 39-120-01.
 Part #J-581L		 $4.95


Click on photo for

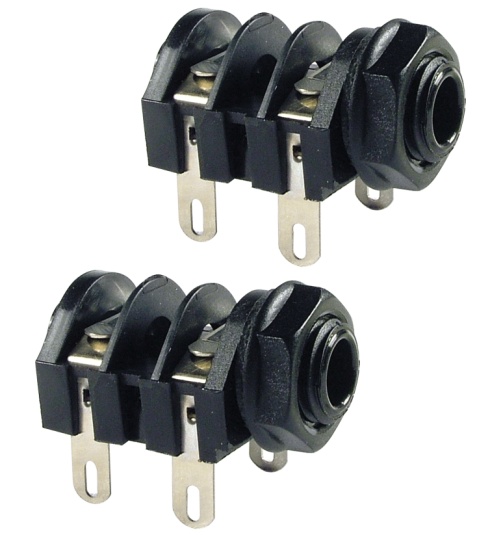

larger view		 JACK, 1/4", INPUT, CLOSED CIRCUIT, PC MOUNT, L-LEG, TIP-SLEEVE, 4 PINS Common input jack in Crate™, Ampeg™, others.   Ampeg and Crate™ part number 39-116-01.  4 pins, PC mount, with nut and washer.  Note "L-Leg" pins as shown in photo.
Part #J-503L		 $3.79


 Click on photo for
larger view		 JACK, 1/4", INPUT, CLOSED CIRCUIT, PC MOUNT, L-LEG, TIP-RING-SLEEVE, 6 PIN Common input jack in Crate™, Ampeg™, others.  Ampeg and Crate part number 39-117-01.  6 pins, PC mount, with nut and washer.   Note "L-Leg" pins as shown in photo.
 Part #J-504L		 $3.95


Click on photo for
larger view		 JACK NUT, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
  Part #J-5NT		 $0.50


Click on photo for
larger view		 JACK NUT MULTI-PACK - SAVE! 6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
 Part #J-5NT-6		 $2.39


Click on photo for
larger view		 JACK NUT/FERULE, CHROME, with BLACK PLASTIC BEZEL/WASHER - BRITISH CLIFF STYLE
Replacement nut and bezel washer for the J-501, J-501S, J-580, J-581, J-580L and J-581L jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   Note:  There are some generic jacks on the market with finer thread nuts.   This nut will not fit those jacks.   This nut is for BRITISH CLIFF STYLE jacks.   Bezel is included with this nut.
 Part #JN-200W		 $0.95


Click on photo for
larger view		 JACK NUT/FERULE, BLACK, with INTEGRAL  BLACK PLASTIC BEZEL - GENUINE CLIFF UK
Replacement nut and bezel washer which will fit the J-501, J-501S, J-580, J-581, J-580L, and J-581L jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   Note:  There are some generic jacks on the market with finer thread nuts.   This nut will not fit those jacks.   This nut is for genuine Cliff UK jacks.   Bezel is integral to the nut and cannot be removed.   This is the jack nut used on the Marshall JMP-1 Preamp, and on some versions of the Marshall DRP-1 Direct Recording Preamp.
 Part #JN-864		 $0.79



Click on photo for
larger view
 JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Both tip and ring are switched (normally closed).   Used in Peavey™ and other brands.  Same as J-523, except that the pins are narrow for insertion into smaller PC holes.  Nut and washer included.

Part #J-527		 $6.95

JACK NUT AND WASHER, METAL, SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38		 $0.89
(Set of 1 washer and 1 nut)


Click on photo for
larger view

Dual Chassis-Mount Banana Binding Posts.   Used on the rear panel of many power amplifiers.  Red and black posts, accepts either single or dual banana plugs. Mounts in two 1/2" holes on 3/4" centers, panel thickness up to 1/4". 15A rating, gold plated contacts.
Part #BP-263

$9.95


Click on photo for
larger view		 JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.
 Part #J-11		 $4.29


Click on photo for
larger view		 JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Found in vintage Fender™ (and other) amps as the input jack.   Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main speaker out jack.  Includes nut and washer.    Fender™ part number 0021550000 (originally 021550).   Peavey part number 71466004.
 Part #J-12A		 $4.79


Click on photo for
larger view		 JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.  Fender part number 0013043000.
Part #J-12B		 $4.35


Click on photo for
larger view		 JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
 Part #J-L12B		 $5.99


Click on photo for
larger view		 JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Tip has a shunt contact, ring contact is open circuit.
Part #J-13B		 $9.95


 Click on photo for
larger view		 JACK, 1/4", MONO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft™ STYLE, NYLON THREADS, 2 PINS
Common jack in Crate™ & Ampeg™, and in some solid state products from Fender™ during the early 1980s.   Nut and washer included.   2 pins.


 Part #RN111PC
 $6.95


 Click on photo for
larger view		 JACK, 1/4", MONO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft™ STYLE, NYLON THREADS, 3 PINS
Common input jack in Crate™ & Ampeg™, and in some solid state products from Fender™ during the early 1980s.   Nut and washer included.   Fender part number 018594.


 Part #RN112APC
 $6.95


 Click on photo for
larger view		 JACK, 1/4", MONO, OPEN CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft™ STYLE, NYLON THREADS, 3 PINS (TIP/RING/SLEEVE)
Found in a number of products in the 80s and 90s, including mixing consoles, effects pedals, etc.  Open circuit (no switching) tip/ring/sleeve.  3 PC board pins.   Nut and washer included.

 Part #RN112BPC
 $6.95

Click on photo for
larger view		 SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT™, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6		 $4.50
(Set of 6 washers and 6 nuts)

JACK NUT AND WASHER, METAL, SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38		 $0.89
(Set of 1 washer and 1 nut)



Click on photo for
larger view

 JACK, 1/4", TIP/RING/SLEEVE, 7 PIN, PC MOUNT, Fender™, Hartke™, B-52™, Randall™, and Crate™ Amps.  Fender™, Hartke™, Randall™, B-52™ or Crate™ PCB mount 1/4" jack.  7 pins.   Fits several Hartke™ amp models 1990 - present, and several Crate™ models, especially in the GX series.  Used in the Fender™ SKX65R and SKX100R for the input jacks.  Used in some Fender™ Squier and Sidekick amps as the headphone jack.   Replaces Hartke™ part number 350023 and 300519.  Replaces Fender™ part number 022923.  Includes nut and washer.  Replacement nut/washer set is the JN-916.

Part # J-545		 $6.70

NUT AND WASHER, NICKEL, KOBICONN OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531 , J-532, J-533, J-533G, J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560.
Part #JN-916

$0.75


Click on photo for
larger view		 ECONOMY JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed).  5 pins.     Used in Peavey™, Mesa/Boogie, Mackie and many other brands.  Replaces Switchcraft 114BPCX and 114BPCSX.  Nut and washer included.

Part #J-529		 $2.99


Click on photo for
larger view		 JACK, 1/4",  CLOSED CIRCUIT STEREO, PC BOARD MOUNTING, Switchcraft™, METAL BUSHING
Tip is open, ring is switched  (normally closed).  4 pins for inserting into PC board, metal bushing.  Unusual arrangement used in special applications.   Nut and washer included.  Genuine Switchcraft™
 Part #J-113F-PC		 $4.99


Click on photo for
larger view		 JACK, 1/4",  CLOSED CIRCUIT STEREO, PC BOARD MOUNTING, Switchcraft™, METAL BUSHING
Tip is switched  (normally closed), ring conductor is not switched.  4 pins for inserting into PC board, metal bushing.  Nut and washer included.  Genuine Switchcraft™
 Part #J-113B-PC		 $6.95


Click on photo for
larger view		 JACK, 1/4",  CLOSED CIRCUIT STEREO, PC BOARD MOUNTING, Switchcraft™, METAL BUSHING
Tip is open, ring is switched  (normally closed).  4 pins for inserting into PC board, metal bushing.  Unusual arrangement used in special applications.   Nut and washer included.  Genuine Switchcraft™
 Part #J-113F-PC		 $6.95


Click on photo for
larger view		 SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT™, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6		 $4.50
(Set of 6 washers and 6 nuts)

JACK NUT AND WASHER, METAL, SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38		 $0.89
(Set of 1 washer and 1 nut)


Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.		 INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender™ Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
 Part #ISW-3069		 $0.49
(For a pair of washers.  Each jack needs two washers.)


Click on photo for
larger view		 JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR WIRE ATTACHMENT (3/16" PUSH ON CONNECTORS OR SOLDER TABS).   Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including Ampeg™.

Part #J-NL4MP		 $4.95



Click on photo for
 larger view		 Revisit™ SPEAKER JUMPER CABLE
 polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150		 $5.99



Click on photo for
 larger view		 Revisit™ 18 GAUGE COPPER BONDED RED/BLACK ZIP CORD
Make low-cost, efficient speaker cables with this color-coded 18 gauge dual zip cord.   Red and black for easy polarity identification.  Resistance is 0.0097 ohms/ft.  Automotive grade "GPT" PVC insulation, oil and gas resistant, rated for -20 deg F to +160 deg F. Also perfect for bias testers, radio, home theatre, automotive, stereo, robotics, and model train applications.   Priced per foot, sold in lengths from 1 foot to 40 feet.
Part #RBZ-18		 $0.32
(priced per foot)

Feet (1-40):



Click on photo for
 larger view		 Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280 - NOTE: OUT OF STOCK! NONE AVAILABLE AT THIS TIME.		 $6.99


Click on photo for
 larger view

SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150

$5.99



BUILD YOUR OWN Speaker Harness for Combo Amps:

Choose the SJ-150 cable (above) along with the P-287 Plug (below).   Cut off the cable's fast-on connectors on ONE end of the cable.  Strip both conductors of cable back about 1/4" on that end.  Solder that end to the P-287 plug (black to the sleeve, white to the tip.).   This will give you a 24 inch speaker harness.   Note:  Cable-building experience strongly recommended.   Soldering equipment needed.

Total cost for materials will be $5.99 + $3.95 = $9.94.


Click on photo for
 larger view		 PLUG, 1/4", MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
 Similar to the Switchcraft 226 right-angle plug.   Nickel plated copper alloy.   2-conductor right-angle phone plug, solder terminals.
Part #P-287		 $3.95


Click on photo for
larger view		 CRATE™ JACK PLATE, BLACK PLASTIC, DUAL 1/4" JACK, SIZE 3 3/8" x 3 3/8".   Designed to fit in a 3" round hole, easily cut in a cabinet with a 3" hole saw.   Jack mounting hole is 3/8", for most Switchcraft and Cliff type jacks.  Easy to install, economical.   Found in many Crate™ speaker cabinets, including the Crate™ G412SL, GX412XSA, GX412XR, GT112SL, BX-115E and other cabinets.  Priced per jack plate.   Jacks not included - order separately below.
Part #JP-225		 $2.79


Click on photo for
larger view		 JACK SET OF 2, FOR ABOVE JP-225 JACK PLATE, 1/4", MONO PLASTIC, BRITISH STYLE, SOLDER TERMINALS,  REPLACEMENT FOR Crate™
4 solder terminals, switched. Used in the above JP-225, as found in some Crate™ speaker cabinets.  With nut and washer.  Original Cliff UK part number 1160A.  Set of 2 Jacks.
 Part #J-502-2		 $3.95
(for a set of 2 jacks)


Click on photo for
larger view

 JACK PLATE FOR SPEAKER CABINET, BLACK METAL, DUAL BRITISH 1/4"
 This is a tough, durable 1.2mm Black Oxide Steel recessed jack plate, with two British J-502 jacks  installed.   Also included are four #8 x 3/4" black mounting screws.   Wire not included.    Dimensions: 3-1/2" x 5-1/8".    See full dimensions here

Part #JPC-344B

$7.95


Click on photo for
larger view		 JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Includes 3 black oxide coarse-thread mounting screws, #6x3/4".   Jack not included - order separately.   For size specifications, click here.
Part #JP-180		 $1.89



Click on photo for
larger view		 Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180		 $4.95



Click on photos for
larger views

 JACK PLATE, MONO/STEREO, PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in. Labels shows the common 4 or 16 Ohm Mono and 8 Ohm Stereo option. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.  Requires a 3 inch x 3-7/16 inch rectangular hole cut in the cabinet.  Direct easy replacement for many existing small jack dishes.   No soldering required.  Complete wiring directions included - click here for more details.  Designed to be used with 2x12 cabinets containing two 8-ohm speakers, 4x12 cabinets with four 16-ohm speakers, or 4x12 cabinets with four 4-ohm speakers.  Can be used for the following configurations:
  • 4 ohm mono
  • 8 ohm left + 8 ohm right stereo
  • 8 ohm left only mono
  • 8 ohm right only mono
  • 16 ohm mono
    •

Part #CJP-1

 $35.95

Ampeg Knobs
(Also see our complete line of knobs)



Click on photo for
larger view		 KNOB, Ampeg™, SVT Classic
Genuine Ampeg™ amp knob, black with white pointer.   Fits pots with 1/4" D-shaft type shafts (SVT Classic).   Ampeg part number 45-231-51.
Part #K-324		 $5.95

Relay



Click on photo for
larger view		 RELAY, Ampeg™, SVT-4PRO and other models
Protection relay used in the SVT-4PRO.   Common failure item - contacts become oxidized or burned and fail to connect the speakers to the power amp, even when the relay clicks in.   There are two of these relays in the SVT-4 PRO, at locations K-101 and K-201.    Original Ampeg part number 82-090-01
Part #82-090-01		 $18.95

Note:  This relay is now considered obsolete and no longer being manufactured.  We have only 2 left in stock.



Crate Relay. 12V DC DIP Relay 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including certain Crate models.  Check coil voltage on existing relay to ensure compatibility.
Part #RLY-12		 $9.95

Crate™ Pots
(Also see our complete line of pots)


  Crate Amplifiers is no longer in business as of 2018, and potentiometers for their amps are no longer available.

Ampeg™ & Crate™ AC Power



Click on photo for
larger view		 IEC POWER CONNECTOR, AMPEG™, NON-FUSED, PCB MOUNT
Used in the Ampeg™ SVT-3-PRO, SVT-4-PRO, SVT-5-PRO, SVT-6-PRO, B2R, B4R, B5R bass amplifiers.  Original Ampeg™ part number 17-604-01.   Datasheet here.
Part #17-604-01		 $5.95


Click on photo for
larger view		 Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
 Part #PC-300		 $6.95


Click on photo for
larger view		 Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.   Replacement Cord For Many Guitar Amps, Power Amps, Effects Units, Etc. 10 Ft Length Give Extra Flexibility In Equipment Placement, Reduces Use Of Extension Cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
 Part #PC-600		 $10.95


Click on photo for
larger view		 SUPER-LONG, 16 gauge Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,    OUR LONGEST POWER CORD!  Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or 7.9mm).  Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13 amps maximum.  Used only in North America.
Part #PC-163SJT15		 $19.95


Click on photo for
larger view		 EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).   Wire gauge is 18AWG, rated at 10 amps.  This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in North America.
Part #PC-183SJT12		 $13.95


Click on photo for
larger view		 8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT8		 $9.95


Click on photo for
larger view		 8 ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line".   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).   Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp cords in smaller amplifiers where there was formerly a 2-wire cord without ground.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SVT8-TL		 $9.95


Click on photo for
larger view		 15 ft EXTENSION CORD, 3-WIRE, 16ga, 13 Amps.   Quality extension cord for use on stage, at home, office or workshop.  Cord length is 15 feet, 16 gauge, 3-wire cord thickness is 0.31 inches (about 5/16" or 7.9mm).   Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC, 13 amps maximum. Used only in North America.
Part #EC-5301		 $19.95


Click on photo for
larger view		 FUSE HOLDER, HIGH QUALITY, FITS AGC, MDL OR 3AG TYPE FUSE.
Fuse holder, Twist-lock cap.  Low profile so that cap does not extend beyond rear amp cabinet.   Fits "American" style AGC fuses (1/4" x 1 1/4")  Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.    Fits through a .50" hole in the chassis.
Part #FH-367		 $8.95


Click on photo for
larger view		 Fender™ style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender™ part number 022941.   Works on many other brands of amplifiers as well.
Part #RCC-381		 $0.99

Ampeg™ & Crate™ Reverb Tanks




Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2C1B.   Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Hughes & Kettner™, MarshallTM, Ampeg, Crate, Fender™, Mesa Boogie, Guytron, Rocktron, DOD, Summit Audio, and Smokey.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #9AB2C1B

"Bringing back the sound of vintage Accutronics tanks"

 $48.99
In stock



Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9EB2C1B.   Input impedance 800 ohms, output impedance 2575 ohms, medium decay (1.75-3.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Hughes & Kettner™, MarshallTM, Ampeg, Crate, Fender™, Mesa Boogie, Guytron, Rocktron, DOD, Summit Audio, and Smokey.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9EB2C1B

"Bringing back the sound of vintage Accutronics tanks"

 $48.99
In Stock




Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2A1C.   Input impedance 1475 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for vertical mounting, long axis horizontal, connectors up.   Common replacement for Fender, Peavey, Music Man™, Gemini, Portaflex.  Upgrade for Marshall™ 2205, 2210 (JCM800 series).  Upgrade for several vintage Ampeg™ models, including Reverberocket, Jet, Gemini, B12XT, AC12, V4, VT22, V2, VT40, GV15/22.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #9FB2A1C

"Bringing back the sound of vintage Accutronics tanks"

 $48.99
In stock



Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3A1B.   Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input grounded/output grounded, designed for horizontal mounting, open side down.   Replacement for the Gibbs Type F reverb tanks used in the 60's and early 70's, including Ampeg models Echo Jet, Echo Twin, B12X, B12XY.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4AB3A1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock



Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B.   Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Hughes & Kettner™, MarshallTM, Ampeg, Crate, Fender™, Mesa Boogie, Guytron, Rocktron, DOD, Summit Audio, and Smokey.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4AB3C1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock





Click on photo for larger view

 Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B current production.

Accutronics reverb tanks are a cheaply produced copy of the Belton tank, and are now made by Belton in South Korea.   They are of much lower quality than the original Accutronics reverb tanks made in Cary, Illinois until 2009.

Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Primarily used by all Fender™ amplifiers with tube reverb from 1963-1990.   Also used in Reissue models like:   Fender™ Princeton Reverb, Fender™ Deluxe Reverb, Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb, Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb Reissue, Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65 Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™ Dual Professional.  Also used in Mesa Boogie™ MK2C and others, LAB Series L5, L7, L9, Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52™ AT-100.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Accutronics products are made in South Korea.

Part #ACC-4AB3C1B

 $39.99



Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2C1B.   Input impedance 150 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4BB2C1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock





Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1B.   Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4BB3C1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock





Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1D.   Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for vertical mounting, connectors down.   Common replacement for  MarshallTM, Ampeg, Crate.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4BB3C1D

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock




Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1B.   Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4EB2C1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock





Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1C.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for vertical mounting, long axis horizontal, connectors up.   Exact replacement for the Gibbs Type "C" Reverb Tank found in a number of vintage Ampeg™ models, including Reverberocket, Jet, Gemini, B12XT, AC12, V4, VT22, V2, VT40, GV15/22.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB2A1C

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
 In stock





Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1A.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output insulated.  Mounts horizontal, open side up.   Common replacement in vintage Ampeg.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB2B1A

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock






Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1B.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output grounded, designed for horizontal mounting, open side down.  Used in a few Ampeg models.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB2C1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
 In stock





Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1A.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output isolated, designed for horizontal mounting, open side up.   Used in some versions of the Ampeg V4.   See explanation of Accutronics reverb tank numbering system here.   See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB2D1A

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock






Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1B.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output isolated, designed for horizontal mounting, open side down.   Used in some versions of the Ampeg V4.   See explanation of Accutronics reverb tank numbering system here.   See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB2D1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock






Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1C.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input isolated/output isolated, designed for designed for vertical mounting, long axis horizontal, connectors up.   Common replacement for Ampeg VT-22.   See explanation of Accutronics reverb tank numbering system here.   See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB2D1C

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock





Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1A.   Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input grounded/output grounded, designed for horizontal mounting, open side up.   Common replacement for certain versions of the Ampeg Gemini and also found in some vintage Kustom amps from the 1960s and early 70s.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB3A1A

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
 In stock




Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1B.   Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input grounded/output grounded, designed for horizontal mounting, open side down.   Common replacement for Ampeg and Music Man.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB3A1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock






Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1A.   Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input isolated/output isolated, designed for horizontal mounting, open side up.   Used in some versions of the Ampeg V4.   See explanation of Accutronics reverb tank numbering system here.   See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
 Part #4FB3D1A

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock






Click on photo for larger view

 Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1B.   Input impedance 1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input insulated/output insulated, designed for horizontal mounting, open side down.   Common replacement for Ampeg and Music Man.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #4FB3D1B

"Bringing back the sound of vintage Accutronics tanks"

 $43.79
In Stock






Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2A1B. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8AB2A1B

"Bringing back the sound of vintage Accutronics tanks"

 $42.89
In Stock



Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2A1B.  Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, grounded input and grounded output.  Mounts horizontal, open side down.   Primarily used by Crate and Ampeg.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8BB2A1B

"Bringing back the sound of vintage Accutronics tanks"

 $42.89
In Stock



Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1A.  Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated input and grounded output.  Used in some Crate™ models, including the Blue-Voodoo BV120H, and the Stealth GT-50.   See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8BB2C1A

"Bringing back the sound of vintage Accutronics tanks"

 $42.89
In stock



Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1B.  Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated input and grounded output.  Mounts horizontal, open side down.   Primarily used by Rivera PUBSTER 25 & CHUBSTER 40 , Rivera Knucklehead Reverb, Vox™ AC30, with solid state reverb as used in the Seventies, Ampeg™ Jet II J12R, Crate™ G212, Crate™ GT212, Crate™ Palomino V32 & V16, Crate™ Vintage Club VC3112 & VC5212, Music Man™ RD50, Kitty Hawk Supreme, Marshall™ G80RCD, Marshall™ G100RCD.   Upgrade for Laney™ VC15 (part nr. 10006), Brunetti Singleman, Mesa Boogie™ Rectoverb.   Replaces Ampeg™ / Crate™ part number 79-201-02.  See explanation of Accutronics reverb tank numbering system here.   See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8BB2C1B

"Bringing back the sound of vintage Accutronics tanks"

 $42.89
In stock



Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.   Used in Crate, Fender, Peavey, Music Man.  This is the most popular short tank.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8EB2C1B

"Bringing back the sound of vintage Accutronics tanks"

 $42.89
In Stock



Click on photo for larger view

Accutronics Reverb Tank, 9" long, 3 spring, 8EB2C1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.    This is the most popular short tank.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Replaces Fender ™ part numbers 0028055000, 028055, 025269, 020550.
Soft mounting grommets are not included with this tank.   If needed, order the RRG-4 grommet set found in this section.

Accutronics Reverb Tanks are made in South Korea.

Part #ACC-8EB2C1B

 $35.95
In stock



Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1E. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output.  Mounts on vertical wall with long axis vertical, input side up.   Used  in Crate™ Tube Driver series of amps, such as the TD-70.  See explanation of Accutronics reverb tank numbering system here.  See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8EB2C1E

"Bringing back the sound of vintage Accutronics tanks"

 $42.89



Click on photo for larger view
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2A1B. Short Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down.   Primarily used in Crate Amps.  See explanation of Accutronics reverb tank numbering system here.   See a chart which lists AC impedance and DC resistance measurements for reverb tanks here.

Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.

View the 2-year warranty details here.
Part #8FB2A1B

"Bringing back the sound of vintage Accutronics tanks"

 $42.89
In Stock



Click on photo for
larger view		 Rubber mounting grommets for reverb tanks, package of four.   Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4		 $1.99
(For a pack of 4 grommets)


Click on photo for
larger view
 Reverb Tank Bag for 17" tanks.   Used in a variety of amps, including Fender™ amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.
 Part #RB-017		 $18.90


Click on photo for
larger view
(Reverb tank not included)
 Handmade Reverb Tank Bag for 9" tanks.  Works with any short (9") reverb tank.  Reverb bags give the reverb tank better isolation which results is fuller, richer reverb and less feedback.  Handmade of single-ply black Tolex.  Replacement for Fender and many other amps.  Bag dimensions: 4.5"W x 1.5"H x 9.5"L.   Includes loops at each end for screw attachment to the amp cabinet, and a tuck-in flap to close up the end.   Mounting screws not included.
Part #RB-009		 $13.95
In Stock


Click on photo for
larger view

 Marshall™ STYLE FOOTSWITCH W/LED  Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.  Replaces Marshall™ stock numbers PED801 and PEDL-00001.   Fits the Marshall™ DSL100, DSL201 and DSL50, and the ValveState models AVT50, VS65R and VS30R.   Also the MG Series I model G30RCD.

Also works with the Crate VC3112 Vintage Club 30 and Crate VC5112 Vintage Club 50.   Mono 1/4" Plug, 16 ft. cable.   LED indicates condition of switch.  Can be rewired internally to work with other amplifiers.    Click here for wiring diagram.   NOTE:   Will not work with many amplifiers, even those that used LEDs on the original footswitch, without rewiring.   Electronics background suggested.    Also - will generally NOT work with amplifiers which did not have an LED indicator on the original footswitch.
Part #FBS-470L

 $33.95


Click on photo for
larger view

 3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173		 $5.95
In Stock


Click on photo for
larger view

 4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174		 $4.95
In stock


Click on photo for
larger view

 5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 5 feet long.
Part #RC-175		 $5.95
In stock

Switches
 (Also see our complete line of switches)




Click on photo for
larger view

 Marshall™ STYLE FOOTSWITCH W/LED  Revisit™ aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo and Marshall™ price tag.  Sturdy metal construction.  Replaces Marshall™ stock numbers PED801 and PEDL-00001.   Fits the Marshall™ DSL100, DSL201 and DSL50, and the ValveState models AVT50, VS65R and VS30R.   Also the MG Series I model G30RCD.

Also works with the Crate VC3112 Vintage Club 30 and Crate VC5112 Vintage Club 50.   Mono 1/4" Plug, 16 ft. cable.   LED indicates condition of switch.  Can be rewired internally to work with other amplifiers.    Click here for wiring diagram.   NOTE:   Will not work with many amplifiers, even those that used LEDs on the original footswitch, without rewiring.   Electronics background suggested.    Also - will generally NOT work with amplifiers which did not have an LED indicator on the original footswitch.
Part #FBS-470L

 $33.95


Click on photo for
larger view

 DUAL FOOTSWITCH W/LED  Sturdy metal construction, an aftermarket replacement footswitch from Revisit™.   Works with the Crate BV120H Blue Voodoo 120 Head.  Stereo 1/4" Plug, 16 ft. cable.   LEDs indicate condition of switches.  Can be rewired internally to work with other amplifiers.    Click here for wiring diagram.    NOTE:   Will not work with many amplifiers, even those that used LEDs on the original footswitch, without rewiring.   Electronics background suggested.    Also - will generally NOT work with amplifiers which did not have LED indicators on the original footswitch.
Part #FBS-471L		 $39.95


Click on photo for
larger view		 ORIGINAL Crate™ PUSH SWITCH
 DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for channel switching, level switching, FX switching, etc on the front panels of many Crate™ amps from the 1990s to present.    Found in the Palomino, BT50, and many other models.  Original Crate™ part number 88-302-02.   Has actuator shaft of 2.7mm square.
Part #88-302-02		 $5.95


Click on photo for
larger view		 ORIGINAL Ampeg™ PUSH SWITCH
 DPDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (2XDPDT).  Used for pre-post switch on Ampeg SVT4-PRO.  Original Ampeg™ part number 88-303-02.  Has actuator shaft of 3.3mm square.
Part #88-303-02		 $10.95


Click on photo for
larger view		 ROCKER SWITCH, BLACK.
 Has 4 electrical terminals on back of switch (DPST).   Non-lighted.  1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm)
 Part #SW-5072		 $3.95


Click on photo for
larger view		 ROCKER SWITCH, LIGHTED POWER, RED.
 Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.   Used in some Crate model amps - but may not fit all.   Verify the dimensions of the hole cutout in the panel before ordering.  Also used on many Engl Amp models.   Also replaces the # 700048-3159 power switch in most models of Furman power conditioners.  Replaces American DJ part # Z-PDP/900-PS-N for use in the American DJ PC-100A PC-4 power centers.
 Part #SW-5075		 $4.95


Click on photo for
larger view		 ROCKER SWITCH, LIGHTED POWER, AMBER.
 Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.   Used in some Crate model amps - but may not fit all.   Verify the dimensions of the hole cutout in the panel before ordering.  Also used on many Engl Amp models.
 Part #SW-5076		 $4.95


Click on photo for
larger view		 ROCKER SWITCH, LIGHTED POWER, GREEN.
 Has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.  Used in some Crate model amps - but may not fit all.   Verify the dimensions of the hole cutout in the panel before ordering.
Part #SW-5077		 $4.95


Click on photo for
larger view		 SWITCH, CARLING™ SPST TOGGLE Original replacement for 60s and 70s Fender™ power and standby switches.   Made by Carling™.  Also used by Ampeg and Crate in certain models.
Part #SW-495-C		 $7.50


Click on photo for
larger view		 SWITCH, FULL-SIZE TOGGLE HANDLE AND BUSHING, SPST, WITH MINIATURE BODY.   This Revisit™ switch is the solution when you need a full-size toggle switch with long handle, but have limited room on the inside for a large-body switch.   This ingenious switch is full-size on the exterior, but a space-saver inside the enclosure.  Specifications: • Current rating: 6A @ 125 VAC, 3A @ 250 VAC • Contacts: 2 (SPST) • Threaded bushing diameter: 12 mm (15/32") - fits in 1/2 inch hole.   See dimension drawing here.
Part #SW-320		 $2.69


Click on photo for
larger view		 SWITCH, FULL-SIZE TOGGLE HANDLE AND BUSHING, SPDT, WITH MINIATURE BODY.   This Revisit™ switch is the solution when you need a full-size toggle switch with long handle, but have limited room on the inside for a large-body switch.   This ingenious switch is full-size on the exterior, but a space-saver inside the enclosure.  Specifications: • Current rating: 6A @ 125 VAC, 3A @ 250 VAC • Contacts: 3 (SPDT) • Threaded bushing diameter: 12 mm (15/32") - fits in 1/2 inch hole.   See dimension drawing here.
Part #SW-325		 $3.59


Click on photo for
larger view		 SWITCH, CARLING DPST PROGRESSIVE TOGGLE (OFF-STANDBY-PLAY)  Replacement for amps which use a single toggle switch for both power and standby.   Or, may be used to engineer a modification to amps which have a toggle power switch switch, but do not offer a standby switch (such as the Peavey Delta Blues, Fender™ Blues Junior, etc).    See wiring information here.
 Part #SW-520		 $7.95


Click on photo for
larger view		 SWITCH, STANDARD SIZE TOGGLE - Rated at 20 Amps (125VAC) or 15 Amps (250VAC).   Fits 1/2" chassis hole.   Solder terminals or 1/4" push on, single pole / single throw (SPST).   Two position - on/off. NOTE:   RATED FOR AC SERVICE ONLY AT 250V MAX - DO NOT USE AS A GUITAR AMPLIFIER STANDBY SWITCH.
 Part #STS-20		 $3.95


Click on photo for
larger view		 SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING  Rated At 15A/125VAC, 10A/250VAC. Two Position (on/off), Double Pole (DPST). Fits 1/2" Chassis Hole. Solder Terminals Or 1/4" Push-on. Fender™ Part Number 0036570000.
 Part #SW-525		 $10.95


Click on photo for
larger view		 SWITCH, STANDARD SIZE TOGGLE - Made by Carling™ - rated at 15A/125VAC, 10A/250VAC. Two position (on/off), single pole (SPST). Fits 1/2" chassis hole. Solder terminals.
Part #SW-526		 $4.95


Click on photo for
larger view		 SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - TWO POSITION (ON/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, no center off - two positions (ON/ON).
 Part #STS-15-DPDT		 $4.95


Click on photo for
larger view		 SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - THREE POSITION (ON/OFF/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, with center off - three positions (ON/OFF/ON).
 Part #STS-15-DPDT-CO		 $5.95


Click on photo for
larger view		 FOOT SWITCH, CARLING BRAND, SPST, LATCHING, REPLACEMENT FOR Fender™, ETC.
Carling SPST footswitch. Used in Marshall™ etc. Reverb/tremolo/channel switching pedals.  Has 2 electrical terminals (single pole, single throw).  Solder lugs for wire.
Part #FS-493		 $9.95


Click on photo for
larger view		 FOOT SWITCH, DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Double-pole Double-Throw, made for direct connection to a PC board.  Has 6 electrical terminals.
Part #FS-498-PC

 (Also see our complete line of switches)		 $3.95

Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
