Capacitor Kits
for Vintage MarshallŪ and FenderŪ Amps


Featuring quality F&T and Ruby Gold Capacitors and other fine brands.

Capacitor values have changed slightly over the years due to changing manufacturing standards.   5uF has been replaced with 4.7uF.   Many 20uF and 25uF have been replaced with 22uF.    With F&T capacitors,  70uF has been replaced with 80uF.    On Ruby Gold capacitors in our standard kits, the polarity of the capacitor is indicated only by an arrow on the side of the capacitor which points toward the negative end.   On Ruby Gold capacitors, both ends of the capacitor are "dimpled", so you cannot determine polarity that way.

Due to improvements in technology, new capacitors are often about 50% smaller than original capacitors.

Disclaimer:   Fender occasionally made changes to designs which are not consistent with the model version on the tube chart.  Especially in the "silverface" years, the internal designs sometimes do not correspond with the schematic for the particular model version shown on the tube chart.    It is recommended that the values of the filter capacitors inside the capacitor housing beneath the chassis be checked and verified before ordering a specific capacitor kit, to make sure that your amp wasn't one that did not adhere to the schematic.

Warning:   Tube amplifiers contain high voltage which is stored in the filter capacitors even after the amplifier has been turned off.   Always unplug the amplifier from commercial power, and discharge all filter capacitors before working on the amplifier circuitry.   If you are unsure about this procedure, we strongly recommend that you leave your amplifier in the care of a professional service person.

  MarshallŪ Amp Electrolytic Capacitor Kits for Vintage Amps

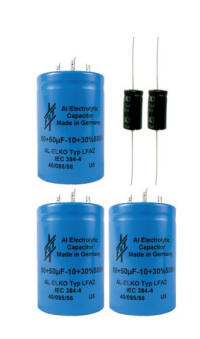

Premium Capacitor Set Shown:

Click on photo for
larger view
CAPACITOR KIT, FOR MARSHALL 1970 and 1980 AMP SERIES.   Available in Premium (F&T) Prime (JJ), or Pro (Ruby Gold).  Fits Marshall amps which have 3 can capacitors (50uF+50uF/500V) mounted to the chassis. Examples are the JCM800 50 & 100 Watt Models 1959, 1987, 2204, 4010, 4104 and later 80s Versions of the 2203 and 4103.   Also for the Silver Jubilee models 2550, 2553, 2554, 2555, and 2558.    Fits some JMP 2203 or 2204 models with 3 can capacitors.

 Contains 3 50uf+50uf/500V dual can capacitors, and two axial lead EL-CAP-10/160.   Available in Premium, Prime, or Pro grade capacitors.


Premium Set:

3 F&T 50uF+50uF-500V
2 OEM 10uF-160V


$42.95

Prime Set:

3 JJ 50uF+50uF-500V
2 OEM 10uF-160V


$37.95

Pro Set:

3 Ruby Gold 50uF+50uF
- 500V
2 OEM 10uF-160V


$31.95

Note:  This set is not for the early versions of the JCM800 2203 and 4103 from 1981-1987.

Part #MCK-1

Premium Set:
$42.95

Prime Set:
$37.95

Pro Set:
$31.95

Select Option:


Quantity:

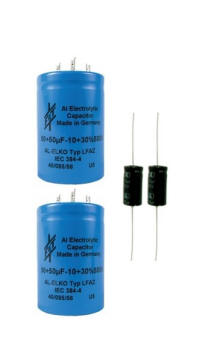

Premium Capacitor Set Shown:

Click on photo for
larger view
CAPACITOR KIT, FOR MARSHALL JCM800 AND JCM900 SERIES.  See specific model numbers below.   Available in Premium (F&T) Prime (JJ), or Pro (Ruby Gold).  Fits Marshall amps which have 2 can capacitors (50uF+50uF/500V) mounted to the chassis.  This capacitor set replaces the electrolytic filter capacitors in the JCM800 Split Channel Reverb series models 2205, 2210, 4210, 4211 and 4212.  Fits JCM900 models 2100, 2101, 2100SL-X, 2101SL-X, 2500, 2501, 2502, 2500SL-X, 2501SL-X, 2502SL-X, 4100, 4101, 4102, 4500, 4501, and 4502.  Contains 2 50uf+50uf/500V dual can capacitors, and two axial lead EL-CAP-10/160. Available in Premium, Prime, or Pro grade capacitors.

Premium Set:

2 F&T 50uF+50uF-500V
2 OEM 10uF-160V


$29.95

Prime Set:

2 JJ 50uF+50uF-500V
2 OEM 10uF-160V


$25.95

Pro Set:

2 Ruby Gold 50uF+50uF
- 500V
2 OEM 10uF-160V


$21.95


Part #MCK-2

Premium Set:
$29.95

Prime Set:
$25.95

Pro Set:
$21.95


Select Option:


Quantity:

Premium Capacitor Set Shown:



Click on photo for
larger view
CAPACITOR KIT, FOR MARSHALL JCM800.  See specific model numbers below.

Available in Premium (F&T), Prime (JJ), or Pro (Ruby Gold).  Fits Marshall amps which have 6 can capacitors (50uF+50uF/500V) mounted to the chassis.  This capacitor set replaces the electrolytic filter capacitors in the EARLY JCM800 Models 2203 and 4103 from 1981-1987.   If your amp is a model 2203 or 4103 and has 6 can capacitors mounted to the chassis, this is the correct kit.  Also fits most 1959 Super Lead Models.  Contains 6 50uf+50uf/500V dual can capacitors, and two axial lead EL-CAP-10/160.  Available in Premium, Prime, or Pro grade capacitors.

Premium Set:

6 F&T 50uF+50uF-500V
2 OEM 10uF-160V


$72.95

Prime Set:

6 JJ 50uF+50uF-500V
2 OEM 10uF-160V


$62.95

Pro Set:

6 Ruby Gold 50uF+50uF
- 500V
2 OEM 10uF-160V


$54.95

Part #MCK-3

Premium Set:
$72.95

Prime Set:
$62.95

Pro Set:
$54.95


Select Option:


Quantity:

  FenderŪ Amp Electrolytic Capacitor Kits for Vintage Amps
Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 1.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
1 F&T 100uF-100V
5 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor

$49.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
1 Ruby Gold 50uF-100V
5 Ruby Gold 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor

$38.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
1 I.C. 100uF-100V
5 I.C. 22uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor

$32.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-1

Premium Set:
$49.95

Pro Set:
$38.95

Standard Set:
$32.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 2.   Available in Premium (F&T/IC) or Pro (Ruby Gold).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

  • 5 F&T 16uF-475V
  • 1 F&T 100uF-100V
  • 5 25uF-25V
  • 2 10K-2W Resistors

$33.95

Pro Set:

  • 5 Ruby Gold 16uF-450V
  • 1 Ruby Gold 50uF-100V
  • 5 Ruby Gold 25uF-25V
  • 2 10K-2W Resistors

$28.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-2

Premium Set:
$33.95

Pro Set:
$28.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 3.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

5 F&T 22uF-500V
1 F&T 100uF-100V
5 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor

$33.95

Pro Set:

5 Ruby Gold 22uF-500V
1 Ruby Gold 50uF-100V
5 Ruby Gold 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor

$28.95

Standard (OEM) Set:

5 I.C. 22uF-500V
1 I.C. 100uF-100V
5 I.C. 22uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor

$21.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-3

Premium Set:
$33.95

Pro Set:
$28.95

Standard Set:
$21.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 4.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
1 F&T 100uF-100V
7 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$51.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
1 Ruby Gold 50uF-100V
7 Ruby Gold 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$40.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
1 I.C. 100uF-100V
7 I.C. 22uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4

Premium Set:
$51.95

Pro Set:
$40.95

Standard Set:
$34.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 4A.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
1 F&T 100uF-100V
7 25uF-25V
1 10K-2W Resistor
1 2.2K-2W Resistor
2 220K-1W Resistors

$51.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
1 Ruby Gold 50uF-100V
7 Ruby Gold 25uF-25V
1 10K-2W Resistor
1 2.2K-2W Resistor
2 220K-1W Resistors

$40.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
1 I.C. 100uF-100V
7 I.C. 22uF-50V
1 10K-2W Resistor
1 2.2K-2W Resistor
2 220K-1W Resistors

$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4A

Premium Set:
$51.95

Pro Set:
$40.95

Standard Set:
$34.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 4B.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
1 F&T 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$51.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
1 Ruby Gold 50uF-100V
6 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$40.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
1 I.C. 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4B

Premium Set:
$51.95

Pro Set:
$40.95

Standard Set:
$34.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 4C.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
1 F&T 100uF-100V
7 25uF-25V
1 10K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$51.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
1 Ruby Gold 50uF-100V
7 Ruby Gold 25uF-25V
1 10K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$40.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
1 I.C. 100uF-100V
7 I.C. 22uF-50V
1 10K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$34.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-4C

Premium Set:
$51.95

Pro Set:
$40.95

Standard Set:
$34.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 5.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

5 F&T 22uF-500V
1 F&T 100uF-100V
7 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor

$34.95

Pro Set:

5 Ruby Gold 22uF-500V
1 Ruby Gold 50uF-100V
6 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor

$29.95

Standard (OEM) Set:

5 I.C. 22uF-500V
1 I.C. 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor

$22.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-5

Premium Set:
$34.95

Pro Set:
$29.95

Standard Set:
$22.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 6.   Available in Premium (F&T/IC) or Pro (Ruby Gold).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

  • 5 F&T 16uF-475V
  • 1 F&T 100uF-100V
  • 7 25uF-25V
  • 2 10K-2W Resistors

$35.95

Pro Set:

  • 5 Ruby Gold 16uF-450V
  • 1 Ruby Gold 50uF-100V
  • 7 Ruby Gold 25uF-25V
  • 2 10K-2W Resistors

$30.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-6

Premium Set:
$35.95

Pro Set:
$30.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 6A.   Available in Premium (F&T/IC) or Pro (Ruby Gold).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

  • 5 F&T 16uF-475V
  • 1 F&T 100uF-100V
  • 7 25uF-25V
  • 1 10K-2W Resistor
  • 1 4.7K-2W Resistor

$35.95

Pro Set:

  • 5 Ruby Gold 16uF-450V
  • 1 Ruby Gold 50uF-100V
  • 7 Ruby Gold 25uF-25V
  • 1 10K-2W Resistor
  • 1 4.7K-2W Resistor

$30.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-6A

Premium Set:
$35.95

Pro Set:
$30.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 7.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
2 F&T 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$51.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
2 Ruby Gold 50uF-100V
6 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$40.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
2 I.C. 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
1 1K-2W Resistor
1 4.7K-2W Resistor
2 220K-1W Resistors

$34.95

NOTE:  Extra resistors are included in this kit to accommodate differences in different models.   You will not need all of the resistors.   In some models, you may have one cathode bypass capacitor left over.

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-7

Premium Set:
$51.95

Pro Set:
$40.95

Standard Set:
$34.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 8.   Available in Premium (F&T/IC) or Pro (Ruby Gold).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

  • 5 F&T 16uF-475V
  • 1 F&T 100uF-100V
  • 6 I.C. 22uF-50V
  • 1 I.C. 4.7uF-50V
  • 1 10K-2W Resistor
  • 1 4.7K-2W Resistor
  • 1 2.2K-2W Resistor

$35.95

Pro Set:

  • 5 Ruby Gold 16uF-450V
  • 1 Ruby Gold 50uF-100V
  • 6 Ruby Gold 25uF-25V
  • 1 I.C. 4.7uF-50V
  • 1 10K-2W Resistor
  • 1 4.7K-2W Resistor
  • 1 2.2K-2w Resistor

$30.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-8

Premium Set:
$35.95

Pro Set:
$30.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 8A.   Used in some versions of the Vibrolux Reverb (1977-1982) with a Pull-Boost Switch on the Volume Control.  *Before ordering, slide out the amp chassis and remove the capacitor cover under the chassis.   If your amp has five 16uF/450 capacitors, this FCK-8A is the kit you need.  Otherwise, look at kit FCK-8B, below.

Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors.

  • 5 F&T 16uF-475V
  • 2 F&T 100uF-100V
  • 5 I.C. 22uF-50V
  • 1 I.C. 4.7uF-50V
  • 1 10K-2W Resistor
  • 1 2.2K-2W Resistor

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-8A

$34.95

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 8B.   Available in Premium (F&T/IC), or Pro (Ruby Gold).   Used in some versions of the Vibrolux Reverb (1977-1982) with a Pull-Boost Switch on the Volume Control.  *Before ordering, slide out the amp chassis and remove the capacitor cover under the chassis.   If your amp has two 60uF/450V capacitors and three 16uF/450 capacitors, this FCK-8B is the kit you need.  Otherwise, look at kit FCK-8A, above. Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 16uF-475V
2 F&T 80uF-450V
2 F&T 100uF-100V
5 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$44.95

Pro Set:

3 Ruby Gold 16uF-450V
2 Ruby Gold 70uF-350V
2 F&T 100uF-100V
5 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$38.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-8B

Premium Set:
$47.95

Pro Set:
$41.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 9.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).    This kit is for silverface Dual Showman, Quad, Super Six, Twin and Vibrosonic Reverb amps from 1971-1972 which have a master volume control, but DO NOT have the push/pull switch for boost on the master volume.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
2 F&T 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$53.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
2 Ruby Gold 50uF-100V
6 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$42.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
2 I.C. 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$36.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-9

Premium Set:
$53.95

Pro Set:
$42.95

Standard Set:
$36.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 9A.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).   Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 100uF-350V
2 F&T 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$53.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 100uF-350V
2 Ruby Gold 50uF-100V
6 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$42.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 100uF-350V
2 I.C. 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$36.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-9A

Premium Set:
$53.95

Pro Set:
$42.95

Standard Set:
$36.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 10.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 220uF-300V
2 F&T 100uF-100V
5 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.7K-10W Resistor
1 1K-2W Resistor
1 4.7K-2W Resistor
2 100K-1W Resistors

$55.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 220uF-350V
2 Ruby Gold 50uF-100V
5 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 2.7K-10W Resistor
1 1K-2W Resistor
1 4.7K-2W Resistor
2 100K-1W Resistors

$44.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 220uF-300V
2 I.C. 100uF-100V
5 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.7K-10W Resistor
1 1K-2W Resistor
1 4.7K-2W Resistor
2 100K-1W Resistors

$38.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-10

Premium Set:
$55.95

Pro Set:
$44.95

Standard Set:
$38.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 11.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).   Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
1 F&T 10uF-500V
2 F&T 80uF-450V
2 F&T 100uF-100V
5 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$56.95

Pro Set:

3 Ruby Gold 22uF-500V
1 Ruby Gold 10uF-450V
2 Ruby Gold 70uF-350V
2 Ruby Gold 50uF-100V
5 Ruby Gold 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$44.95

Standard (OEM) Set:

3 I.C. 22uF-500V
1 I.C. 10uF-500V
2 I.C. 80uF-450V
2 I.C. 100uF-100V
5 I.C. 22uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$39.95


See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-11

Premium Set:
$56.95

Pro Set:
$44.95

Standard Set:
$39.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 11A.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).   Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
1 F&T 10uF-500V
2 F&T 80uF-450V
2 F&T 100uF-100V
3 I.C. 22uF-50V
1 I.C. 1uF-50V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$56.95

Pro Set:

3 Ruby Gold 22uF-500V
1 Ruby Gold 10uF-450V
2 Ruby Gold 70uF-350V
2 Ruby Gold 50uF-100V
3 I.C. 22uF-50V
1 I.C. 1uF-50V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$44.95

Standard (OEM) Set:

3 I.C. 22uF-500V
1 I.C. 10uF-500V
2 I.C. 80uF-450V
2 I.C. 100uF-100V
3 I.C. 22uF-50V
1 I.C. 1uF-50V
1 I.C. 4.7uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$39.95


See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-11A

Premium Set:
$56.95

Pro Set:
$44.95

Standard Set:
$39.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 12.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
2 F&T 80uF-450V
2 F&T 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$52.95

Pro Set:

3 Ruby Gold 22uF-500V
2 Ruby Gold 70uF-350V
2 Ruby Gold 50uF-100V
6 Ruby Gold 25uF-25V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$41.95

Standard (OEM) Set:

3 I.C. 22uF-500V
2 I.C. 80uF-450V
2 I.C. 100uF-100V
6 I.C. 22uF-50V
1 I.C. 4.7uF-50V
1 2.2K-2W Resistor
1 10K-2W Resistor
2 220K-1W Resistors

$35.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-12

Premium Set:
$52.95

Pro Set:
$41.95

Standard Set:
$35.95

Select Option:


Quantity:



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 13.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 80uF-450V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 2 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-13

$49.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 13A.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 100-350V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 1 I.C. 22uF-50V (Cathode Bypass)
  • 2 I.C. 4.7uF-50V (Cathode Bypass)
  • 1 2.2K-2W Resistor
  • 1 10K-2W Resistor
  • 2 220K-1W Resistors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-13A

$49.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 13B.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 220-300V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 1 I.C. 22uF-50V (Cathode Bypass)
  • 2 I.C. 4.7uF-50V (Cathode Bypass)
  • 1 2.7K-10W Resistor
  • 1 1K-2W Resistor
  • 1 4.7K-2W Resistor
  • 2 100K-1W Resistors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-13B

$51.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 13C.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 220-300V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 4 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass)
  • 1 2.7K-10W Resistor
  • 1 1K-2W Resistor
  • 1 4.7K-2W Resistor
  • 2 100K-1W Resistors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-13C

$53.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 14.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender blackface and silverface Champ (1964-1982).    Does NOT include any of the many Champ "variation" models - just the basic Champ Amp.


  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 2 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 2.2uF-100V (Cathode Bypass)
  • 470-2W Resistor (Cathode Resistor)
  • 1K-2W Resistor (Dropping Resistor)
  • 10K-2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-14

$42.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 15.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender blackface Princeton Amp (without reverb) AA964 from 1964-1967 and the Fender silverface Princeton (without reverb) AA964/AB1270 from 1968-1979.   Does NOT include any of the many Princeton "variation" models - just the basic Princeton without reverb.



Click on photos for larger view

  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 3 25uF-25V (Cathode Bypass)
  • 1 Ruby Gold 50uF-100V (Bias Filter)
  • 1-1K 2 Watt Resistor (Dropping Resistor)
  • 2-18K 2 Watt Resistors (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-15

$42.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 16.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender blackface Princeton Reverb amp from 1964-1970 and the silverface Princeton Reverb Amp AB1270 from 1970-1981.   Does NOT include any of the many Princeton "variation" models - just the basic silverface Princeton Reverb Amp AA764 or AA1164 and the AB1270 with reverb.   Does NOT include the reissue models.



Click on photos for larger view
  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 6 25uF-25V (Cathode Bypass)
  • 1 Ruby Gold 50uF-100V (Bias Filter)
  • 1-1K 2 Watt Resistor (Dropping Resistor)
  • 2-18K 2 Watt Resistors (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-16

$44.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 17.  Contains the following capacitors, used as main filters, decoupling filters, bias filters and low voltage filters in the Fender Pro Tube amps.    This includes the Pro Reverb PR448, the Concert Reverb PR450 and the Twin Amp PR449 from 2001-2005.   These amps are easy to spot, because they have only one input jack on the far left side of the front control panel.

  • 4 F&T 47-500 (Main Filters - Replaces 47uF/350)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 100uF/100V (Bias Filters)
  • 2 Radial 220uF/50V (Low Voltage Filters)
  • 2 Radial 1000uF/35V (Low Voltage Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-17

$58.95

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 18.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor). Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:

Premium Set:

3 F&T 22uF-500V
1 F&T 10uF-500V
2 F&T 80uF-450V
1 F&T 100uF-100V
5 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$54.95

Pro Set:

3 Ruby Gold 22uF-500V
1 Ruby Gold 10uF-450V
2 Ruby Gold 70uF-350V
1 Ruby Gold 50uF-100V
5 Ruby Gold 25uF-25V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$42.95

Standard (OEM) Set:

3 I.C. 22uF-500V
1 I.C. 10uF-500V
2 I.C. 80uF-450V
1 I.C. 100uF-100V
5 I.C. 22uF-50V
1 1K-2W Resistor
1 4.7K-2W Resistor
1 27K-2W Resistor
2 220K-1W Resistors

$37.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-18

Premium Set:
$54.95

Pro Set:
$42.95

Standard Set:
$37.95

Select Option:


Quantity:



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 19.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 220uF-300V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 2 Axial 4.7uF-450V (Decoupling)
  • 3 I.C. 22uF-50V (Cathode Bypass)
  • 2 I.C. 4.7uF-50V (Cathode Bypass)

NOTES:   Does not include the 750uF/3V or 150uF/6V cathode bypass capacitors.   Some Super Twin models (without reverb) will not use all of the cathode bypass capacitors provided.

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-19

$58.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 20.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender blackface and silverface Vibro Champ (1967-1975) and Bronco Amp (1964-1975).    Does NOT include the Paul Rivera blackface VibroChamp from 1981-1982, the Vibro Champ XD (2007-2012) nor the Eric Clapton Vibro Champ (2011-2013).



  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 3 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 10uF-50v (Cathode Bypass)
  • 1K-2W Resistor (Dropping Resistor)
  • 10K-2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-20

$42.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 21.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, low voltage filters and cathode bypass capacitors in the Fender 94 Twin Amp, Rev A-C.  (If your 94 Twin has a Rev D or Rev E circuit board, you will need the FCK-21D kit).  The 94 Twin Amp is blackface, is "three channel" with a boost on the clean channel and high gain overdrive on channel two.   Two input jacks, 14 knobs.  Revisions A, B and C produced 1994-1998.

Click on photo for larger view

  • 2 F&T 220uF-300V (Main Filters)
  • 4 F&T 47uF-500V (Decoupling Filters)
  • 4 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 100uF-100V (Bias Filters)
  • 4 Radial 22uF-100V (Bias and Relay Filters)
  • 7 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass)
  • 2 Radial 220uF-50V (Low Voltage Filter)
  • 2 Radial 1000uF-35V (Low Voltage Filter)
  • 1 Radial 47uF-50V (Relay Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-21

$89.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 21D.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, low voltage filters and cathode bypass capacitors in the Fender 94 Twin Amp, Rev D and Rev E.  (If your 94 Twin has a Rev A through Rev C circuit board, you will need the FCK-21 kit).  The 94 Twin Amp is blackface, is "three channel" with a boost on the clean channel and high gain overdrive on channel two.   Two input jacks, 14 knobs.  Revisions D and E produced 1999-2001.

Click on photo for larger view

  • 2 F&T 220uF-300V (Main Filters)
  • 2 F&T 47uF-500V (Decoupling Filters)
  • 5 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 100uF-100V (Bias Filters)
  • 4 Radial 22uF-100V (Bias and Relay Filters)
  • 7 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass)
  • 2 Radial 220uF-50V (Low Voltage Filter)
  • 2 Radial 1000uF-35V (Low Voltage Filter)
  • 1 Radial 47uF-50V (Relay Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-21D

$76.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 22.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, cathode bypass capacitors in the Fender 65 Princeton Reverb Reissue amp, produced from 2008 to the present.

  • 4 F&T 22uF-500V (Main and Decoupling Filters)
  • 1 Radial 100uF-100V (Bias Filters)
  • 6 25uF-25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-22

$27.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 23.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender 65 Deluxe Reverb Reissue amp, produced from 1993 to the present, and the 68 Custom Deluxe Reverb amp, produced from 2007 to the present.

  • 1 F&T 47uF-500V (Main Filter)
  • 1 Axial 220uF-100V (Main Filter)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 1 Radial 100uF-100V (Bias Filter)
  • 1 Radial 22uF-100V (Bias Filter)
  • 7 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Footswitch Suppression)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-23

$35.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 24.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender 65 Super Reverb Reissue amp, produced from 2000 to the present.

  • 2 F&T 100uF-350V (Main Filters)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 1 Radial 100uF-100V (Bias Filter)
  • 7 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Footswitch Suppression)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-24

$47.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 25.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, footswitch suppression, and cathode bypass capacitors in the Fender 65 Twin Reverb Reissue amp, produced from 1991 to the present and the Fender 68 Custom Twin Reverb amp, produced from 2009 to the present.

  • 2 F&T 220uF-300V (Main Filters)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 1 Radial 100uF-100V (Bias Filter)
  • 1 Radial 22uF-100V (Bias Filter)
  • 1 Radial 10uF-100V (Footswitch Filter)
  • 7 Radial 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-25

$45.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 26.  Contains the following capacitors, used as main filters, decoupling filters, bias filter, and cathode bypass capacitors in the Fender Custom Vibrolux Reverb amp from 1995-2010.   Note:  This is the blackface Custom Vibrolux Reverb Reissue amp with white "cupcake" knobs and the control levels printed on the front panel.  We do not currently have a recap kit for the 68 Custom Vibrolux Reverb amp that is silverface with a drip edge.

  • 5 F&T 22uF-500V (Main & Decoupling Filters)
  • 1 F&T 47uF-500V (Decoupling Filter)
  • 1 Radial 100uF-100V (Bias Filter)
  • 1 Radial 22uF-100V (Bias Filter)
  • 6 25uF-25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-26

$44.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 27.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, and cathode bypass capacitors in the Fender 59 Bassman Reissue amp from 1990 to the present.

  • 2 F&T 100uF-350V (Main Filters)
  • 2 F&T 47uF-500V (Main Filters)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 10uF-100V (Bias Filters)
  • 1 Radial 220uF-25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-27

$56.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 28.  Contains the following capacitors, used as main filters, decoupling filters, and cathode bypass capacitors in the Fender 63 Reverb (Reissue Series Brown Reverb Unit) from 1994 to the present.

  • 2 F&T 22uF-500V (Main and Decoupling Filters)
  • 1 F&T 47uF-500V (Decoupling Filter)
  • 2 I.C. 22uF-50V (Cathode Bypass Filters)
  • 1 Axial 220uF-16V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-28

$23.95



Click on photo for
larger view

FenderŪ Electrolytic Capacitor Kit 29.  Contains the following capacitors, used as main filters, decoupling filters, and cathode bypass capacitors in the Fender 93 Concert Amp (PR245) from 1993 to 1995.  (Not for the vintage Concert Amps from the 1960s.  Not for the Concert II amps from 1982-1987.  Not for the Concert Reverb Amp PR450 from 2001-2004).

  • 3 F&T 22uF-500V (Main and Decoupling Filters)
  • 4 F&T 100uF-350V (Main Filters)
  • 9 I.C. 22uF-50V (Cathode Bypass Filters - Replaces 22uf/16V)
  • 1 I.C. 2.2uF-100V (Replaces 2.2uF/50V)
  • 1 IC. 4.7uF-50V
  • 3 Radial 22uF/63V
  • 2 Radial 100uF/100V
  • 1 Radial 220uF/25V
  • 2 Radial 220uF/50V
  • 2 Radial 1000uF/35V

See the model cross reference for applicable models.

Part #FCK-29

$72.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 30.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Deluxe 6G3 (Brownface) from 1961-1963.
  • 3 Ruby Gold 16uF-450V (Main and Decoupling Filters)
  • 1 Ruby Gold 10uF-450V (Decoupling Filter)
  • 1 Ruby Gold 50uF-100V (Bias Supply Filter)
  • 3 Ruby Gold 25uF-25V (Cathode Bypass)
  • 1 1K-2W Resistor (Dropping Resistor)
  • 1 10K-2W Resistor (Dropping Resistor)
  • 1 27K-2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-30

$21.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 31.  Contains the following filter capacitors, used as main and decoupling filters, and cathode bypass capacitors in the FenderŪ Harvard 6G10 (Tweed) from 1961-1962.
  • 2 Ruby Gold 16uF-450V (Main and Decoupling Filters)
  • 2 Ruby Gold 10uF-450V (Decoupling Filter)
  • 2 Ruby Gold 25uF-25V (Cathode Bypass)
  • 1 10K-2W Resistor (Dropping Resistor)
  • 1 22K-1/2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-31

$18.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 32.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Tremolux 6G9 (Blonde) from 1961.    For the Tremolux 6G9A and 6G9B from 1962-1963, see the FCK-33 kit.
  • 5 Ruby Gold 16uF-450V (Main and Decoupling Filters)
  • 2 IC 10uF-50V (Bias Filters)
  • 4 Ruby Gold 25uF-25V (Cathode Bypass)
  • 2 10K-2W Resistor (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-32

$27.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 33.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Tremolux 6G9A and 6G9B (Blonde) from 1962-1963, and Fender Vibrolux 6G11 and 6G11A (Brownface) from 1961-1963.    For the Tremolux 6G9 from 1961, see the FCK-32 kit.
  • 5 Ruby Gold 16uF-450V (Main and Decoupling Filters)
  • 1 Ruby Gold 50uF-100V (Bias Filter)
  • 4 Ruby Gold 25uF-25V (Cathode Bypass)
  • 2 10K-2W Resistor (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-33

$27.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 34.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Bandmaster 6G7 (Brownface 3x10 combo, 1960), Concert 6G12 (Brownface combo, 1960), Pro 6G5 (Brownface combo, 1960-1961), Showman 6G14A (Blonde piggyback, 1960-1961), Super 6G4 (Brownface combo, 1960-1961), and Twin 6G8A (Blonde combo, 1962-1963).
  • 7 20uF-600V (Main and Decoupling Filters)
  • 2 8uF-150V (Bias Filters)
  • 4 25uF-25V (Cathode Bypass)
  • 1 2.2uF-100V (Cathode Bypass)
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 3 27K-2W Resistors (Dropping Resistors)
  • 3 56K-1W Resistors (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-34

$37.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 35.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Bandmaster 6G7A (Blonde piggyback, 1961-1963), Concert 6G12A (Brownface combo, 1961-1963), Showman 6G14A (Blonde piggyback, 1960-1961), Super 6G4A (Brownface combo, 1962-1963), and Vibrosonic 6G13A (Brownface combo, 1961-1963).
  • 7 20uF-600V (Main and Decoupling Filters)
  • 2 8uF-150V (Bias Filters)
  • 4 25uF-25V (Cathode Bypass)
  • 1 4.7uF-50V (Cathode Bypass)
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 3 27K-2W Resistors (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-35

$37.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 36.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Pro 6G5A (Brownface combo, 1962-1963).
  • 7 20uF-600V (Main and Decoupling Filters)
  • 1 50uF-100V (Bias Filter)
  • 4 25uF-25V (Cathode Bypass)
  • 1 2.2uF-100V (Cathode Bypass)
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 3 27K-2W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-36

$36.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 37.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Showman 6G14 (Blonde piggyback, 1960-1961).
  • 7 20uF-600V (Main and Decoupling Filters)
  • 2 8uF-150V (Bias Filters)
  • 2 25uF-25V (Cathode Bypass)
  • 2 50uF-50V (Cathode Bypass)  Replaces 50uF-25V
  • 1 4.7uF-50V (Cathode Bypass)  Replaces 4uF-25V
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 2 27K-2W Resistor (Dropping Resistor)
  • 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-37

$37.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 38.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Twin 6G8 (Blonde combo, 1961).
  • 7 20uF-600V (Main and Decoupling Filters)
  • 2 8uF-150V (Bias Filters)
  • 2 25uF-25V (Cathode Bypass)
  • 2 50uF-50V (Cathode Bypass)   Replaces 50uF-25V
  • 1 4.7uF-50V (Cathode Bypass)  Replaces 4uF-25V
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 2 27K-2W Resistor (Dropping Resistor)
  • 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-38

$37.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 39.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Vibroverb 6G16 (Brownface combo, 1963).
  • 5 Ruby Gold 16uF-450V (Main and Decoupling Filters)
  • 1 Ruby Gold 50uF-100V (Bias Filter)
  • 6 Ruby Gold 25uF-25V (Cathode Bypass)
  • 2 10K-2W Resistor (Dropping Resistors)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-39

$29.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Bassman 6G6 (Blonde piggyback, 1961-1963).
  • 6 20uF-600V (Main and Decoupling Filters)
  • 2 8uF-150V (Bias Filters)
  • 3 25uF-25V (Cathode Bypass)
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 1 27K-2W Resistor (Dropping Resistor)
  • 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-40

$31.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 41.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Bassman 6G6A (Blonde piggyback, 1962-1963).
  • 6 20uF-600V (Main and Decoupling Filters)
  • 2 8uF-150V (Bias Filters)
  • 4 25uF-25V (Cathode Bypass)
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 1 27K-2W Resistor (Dropping Resistor)
  • 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-41

$32.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 42.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Bassman 6G6B (Blonde piggyback, 1963-1964).
  • 6 20uF-600V (Main and Decoupling Filters)
  • 1 50uF-100V (Bias Filter)
  • 4 25uF-25V (Cathode Bypass)
  • 1 4.7K-2W Resistor (Dropping Resistor)
  • 1 27K-2W Resistor (Dropping Resistor)
  • 1 56K-1W Resistor (Dropping Resistor)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-42

$32.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 44.  Contains the following filter capacitors, used as main and decoupling filters and power tube cathode bypass filter in the FenderŪ Pawn Shop Excelsior (2012-2015).  Does not include the preamp section cathode bypass capacitors.
  • 4 F&T 22uF-500V (Main and Decoupling Filters)
  • 1 F&T 100uF-100V (Output Cathode Bypass Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-44

$28.95

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 50.   Available in Premium (F&T/IC), or Standard (IC).   Used in some early versions of the Vibro King Amp from 1994 to 1997.   *This kit is designed for Vibro King amps which use an EL84 or 6BQ5 tube as the reverb driver tube.  Before ordering, check the tubes in the amp.    If you find an EL84 or 6BQ5, this is the correct kit for your version of the Vibro King.  If the reverb driver tube is a 6V6, see the FCK-50A kit.  Contains the following capacitors, used as main filters, bias filter, and cathode bypass capacitors:

Premium Set:

6 F&T 22uF-500V
2 F&T 220uF-300V
2 F&T 100uF-100V
4 I.C. 22uF-50V
2 Radial 10uF-100V

$64.95

Standard Set:

6 I.C. 22uF-500V
2 I.C. 220uF-300V
2 I.C. 100uF-100V
4 I.C. 22uF-50V
2 Radial 10uF-100V

$52.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-50

Premium Set:
$64.95

Standard Set:
$52.95

Select Option:


Quantity:

Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 50A.   Available in Premium (F&T/IC), or Standard (IC).   Used in some early versions of the Vibro King Amp from 1994 to 1997.   *This kit is designed for Vibro King amps which use a 6V6 tube as the reverb driver tube.  Before ordering, check the tubes in the amp.    If you find a 6V6, this is the correct kit for your version of the Vibro King.  If the reverb driver tube is an EL84 or 6BQ5, see the FCK-50 kit.  Contains the following capacitors, used as main filters, bias filter, and cathode bypass capacitors:

Premium Set:

3 F&T 47uF-500V
2 F&T 220uF-300V
1 F&T 100uF-350V
3 F&T 100uF-100V
3 I.C. 22uF-50V
1 I.C. 2.2uF-100V
2 Radial 10uF-100V

$64.95

Standard Set:

3 I.C. 47uF-500V
2 I.C. 220uF-300V
1 I.C. 100uF-350V
3 I.C. 100uF-100V
3 I.C. 22uF-50V
1 I.C. 2.2uF-100V
2 Radial 10uF-100V

$48.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-50A

Premium Set:
$64.95

Standard Set:
$48.95

Select Option:


Quantity:



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 51.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Concert II and Twin II (Paul Rivera design) from 1982-1987.   (Not for the vintage Concert Amps from the 1960s.   Not for the Concert Amp [Pro Tube Series] PR245.   Not for the Concert Reverb Amp PR450 from 2001-2004).
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 F&T 220uF-300V (Main Filters)
  • 3 70uF-100V (Decoupling, Bias Filters)
  • 2 4.7uF-450V (Decoupling Filters)
  • 6 25uF-25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-51

$48.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 52.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the FenderŪ Super 60 "red knob" from 1988-1992.
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 4 F&T 100uF-350V (Main Filters)
  • 2 Axial 25uF-25V
  • 1 Radial 470uF-50V
  • 3 Radial 100uF-100V
  • 2 Radial 22uF-50V
  • 1 Radial 47uF-50V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-52

$66.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 53.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the original version of the FenderŪ Hot Rod Deluxe from 1996-2010.    Does not include the Hot Rod Deluxe III - for the Hot Rod Deluxe III, see the FCK-61 kit.  This kit includes only the power supply capac6tors.
  • 1 F&T 47uF-500V (Main Filter)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 3 Radial 100uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-53

$30.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 54.  Contains the following filter capacitors, used as main and decoupling filters, and bias filters in the original version of the FenderŪ Hot Rod Deville from 1996-2010.    Does not include the Hot Rod Deville III (with black control panel).  This kit includes only the power supply capacitors.
  • 2 F&T 100uF-350V (Main Filters)
  • 2 F&T 47uF-450V (Decoupling Filters)
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 4 Radial 100uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-54

$53.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 54A.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the  FenderŪ Hot Rod Deville III from 2010 to present (with black control panel).    Does not include the original Hot Rod Deville from 1996-2010.  This kit includes only the power supply capacitors.
  • 2 F&T 100uF-350V (Main Filters)
  • 2 F&T 47uF-500V (Decoupling Filters)
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 4 Radial 100uF-100V
  • 1 Radial 10uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-54A

$56.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 55.  Contains the following filter capacitors, used as main, decoupling, and bias filter capacitors in the FenderŪ "The Twin" red knob (Paul Rivera design) from 1982-1987.    Note:   This kit includes only filter capacitors - no cathode bypass capacitors are included.


Click on photo for larger view

  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 F&T 220uF-300V (Main Filters)
  • 3 F&T 100uF-100V (Decoupling, Bias Filters)
  • 2 F&T 47-500V (Decoupling Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-55

$59.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 56.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the original versions of the FenderŪ Blues Deluxe and Blues Deville from 1993-2004.    Does not include the Blues Deluxe Reissue or the Blues Deville Reissue from 2005-present.  This kit includes only the power supply capacitors.
  • 4 F&T 100uF-350V (Main Filters)
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 4 Radial 100uF-100V
  • 1 Radial 22uF-63V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-56

$58.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 56A.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the REISSUE version of the FenderŪ Blues Deville from 2005 to present.    Does not include the Blues Deville from 1993-2004.  This kit includes only the power supply capacitors.
  • 2 F&T 100uF-350V (Main Filters)
  • 2 F&T 47uF-500V (Decoupling Filters)
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 4 Radial 100uF-100V
  • 1 Radial 22uF-63V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-56A

$56.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 56B.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the REISSUE version of the FenderŪ Blues DeLuxe from 2005 to present.    Does not include the Blues DeLuxe from 1993-2004.  This kit includes only the power supply capacitors.
  • 1 F&T 47uF-500V (Main Filter)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 3 Radial 100uF-100V
  • 1 Radial 22uF-63V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-56B

$29.95





Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 57.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the FenderŪ Blues Junior and Blues Junior III from 1995-present.  This kit includes only the power supply capacitors.
  • 1 F&T 47uF-500V (Main Filter)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 470uF-50V
  • 2 Radial 220uF-25V
  • 1 Radial 100uF-25V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-57

$28.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 58.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the FenderŪ Pro Junior Versions A, B and C from 1993 through 1998. This kit includes only the power supply capacitors.
  • 4 F&T 22uF-500V (Main and Decoupling Filters)
  • 2 Axial 10uF-50V (Bias Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-58

$27.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 58A.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the FenderŪ Pro Junior Versions D, E and F and the Pro Junior III from 1998 through 2017. This kit includes only the power supply capacitors.
  • 1 F&T 47uF-500V (Main Filter)
  • 4 F&T 22uF-500V (Decoupling Filters)
  • 2 Axial 10uF-50V (Bias Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-58A

$24.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 59.  Contains the following filter capacitors, used as main and decoupling filters, and cathode bypass capacitors in the FenderŪ Champion 600 from 2006 through 2011.
  • 4 Nichicon 22uF-450V (Main and Decoupling Filters)
  • 2 Axial 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-59

$13.95

FenderŪ Electrolytic Capacitor Kit 60.  Contains the following capacitors, used in the Fender Pro 185, Stage 185 and London 185.   This kit contains replacements for all of the electrolytic capacitors in the amplifier:
  • 2 3300uF/63V Snap-In Electrolytic Capacitors
  • 7 22uF/50V Radial Electrolytic Capacitors (replace 22uF/25V)
  • 2 100uF/16V Radial Electrolytic Capacitors
  • 6 100uF/25V Radial Electrolytic Capacitors
  • 1 4.7uF/50V Radial Electrolytic Capacitors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-60

$26.95



Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 61.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the Hot Rod Deluxe III, from 2010 to the present.    Does not include the original versions of the FenderŪ Hot Rod Deluxe from 1996-2010 - see kit FCK-53 for those models.  This kit includes only the power supply capacitors.
  • 2 F&T 100uF-350V (Main Filters)
  • 2 F&T 47uF-500V (Main Filters)
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 4 Radial 100uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-61

$49.95

FenderŪ Electrolytic Capacitor Kit 70.  Contains the following electrolytic filter capacitors, used in the Fender Bassman 5E6 and 5E6A, and the Fender Twin 5E8 and 5E8A from 1955-1957:
  • 4 Ruby Gold 16uF/450V (Main & Decoupling Filters)
  • 1 F&T 100uF/100V (Cathode Bypass, replaces 100uF/25v)
  • 1 Ruby Gold 10uF/450V (Decoupling Filter, replaces 8uF/450V)
  • 1 Ruby Gold 25uF/25V (Cathode Bypass)
  • 1 Axial 220uF/16V (Cathode Bypass, replaces 250uF/6V)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-70

$25.95

FenderŪ Electrolytic Capacitor Kit 71.  Contains the following electrolytic filter capacitors, used in the Fender Bassman 5F6 and 5F6A and the Fender Twin 5F8A from 1958-1960:
  • 4 Elum 20uF/600V (Main & Decoupling Filters)
  • 1 Ruby Gold 10uF/450V (Decoupling Filter, replaces 8uF/450V)
  • 2 Axial 8uF/150V (Bias Filters)
  • 1 Axial 220uF/16V (Cathode Bypass, replaces 250uF/6V)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-71

$22.95
FenderŪ Electrolytic Capacitor Kit 72.  Contains the following electrolytic filter capacitors, used in the Fender Deluxe 5E3 Narrow Panel Tweed from 1955-1960:
  • 3 Ruby Gold 16uF/450V (Main & Decoupling Filters)
  • 3 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-72

$15.95

FenderŪ Electrolytic Capacitor Kit 73.  Contains the following electrolytic filter capacitors, used in the Fender Champ 5F1 Narrow Panel Tweed Combo from 1956-1964:
  • 1 Ruby Gold 16uF/450V (Main Filter)
  • 2 Ruby Gold 10uF/450V (Decoupling Filters, replaces 8uf/450V)
  • 2 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-73

$13.95

FenderŪ Electrolytic Capacitor Kit 74.  Contains the following electrolytic filter capacitors, used in the Fender Champ 5E1 Narrow Panel Tweed Combo from 1955-1956:
  • 3 Ruby Gold 10uF/450V (Main and Decoupling Filters, replaces 8uf/450V)
  • 2 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-74

$13.95

FenderŪ Electrolytic Capacitor Kit 75.  Contains the following electrolytic filter capacitors, used in the Fender Princeton 5F2 Narrow Panel Tweed Combo from 1956-1957:
  • 3 Ruby Gold 10uF/450V (Main and Decoupling Filters, replaces 8uf/450V)
  • 1 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-75

$12.95

FenderŪ Electrolytic Capacitor Kit 76.  Contains the following electrolytic filter capacitors, used in the Fender Princeton 5F2A Narrow Panel Tweed Combo from 1957-1960:
  • 2 Ruby Gold 16uF/450V (Main Filters)
  • 2 Ruby Gold 10uF/450V (Decoupling Filters, replaces 8uf/450V)
  • 2 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-76

$18.95

FenderŪ Electrolytic Capacitor Kit 77.  Contains the following electrolytic filter capacitors, used in the Fender Pro 5E5 Narrow Panel Tweed from 1955:
  • 4 Ruby Gold 16uF/450V (Main & Decoupling Filters)
  • 3 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-77

$19.95

FenderŪ Electrolytic Capacitor Kit 78.  Contains the following electrolytic filter capacitors, used in the Fender Pro 5E5A from 1956-1960, the Fender Super 5E4A from 1955, and the Fender Super 5F4 from 1956-1960:
  • 3 Ruby Gold 16uF/450V (Main & Decoupling Filters)
  • 1 Ruby Gold 10uF/450V (Decoupling Filters, replaces 8uf/450V)
  • 1 F&T 100uF/100V (Cathode Bypass, replaces 100uF/25v)
  • 2 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-78

$21.95

FenderŪ Electrolytic Capacitor Kit 79.  Contains the following electrolytic filter capacitors, used in the Fender Twin 5F8 from 1958:
  • 4 Elum 20uF/600V (Main & Decoupling Filters)
  • 1 Ruby Gold 10uF/450V (Decoupling Filter, replaces 8uF/450V)
  • 2 Axial 8uF/150V (Bias Filters)
  • 1 Axial 220uF/16V (Cathode Bypass, replaces 250uF/6V)
  • 1 Ruby Gold 25uF/25V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-79

$23.95
Premium Capacitor Set Shown:

Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 80.   Available in Premium (F&T/IC) Pro (Ruby Gold), or Standard OEM (Illinois Capacitor).  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors in the Fender 30 from 1980-1981:

Premium Set:

4 F&T 16uF-475V
2 F&T 220uF-300V
2 ELC 70uF-100V
5 25uF-25V
2 2.2K-2W Resistors
1 10K-2W Resistor
2 220K-1W Resistors

$47.95

Pro Set:

4 Ruby Gold 16uF-450V
2 Ruby Gold 220uF-350V
2 Electrolytic 70uF-100V
5 Ruby Gold 25uF-25V
2 2.2K-2W Resistors
1 10K-2W Resistor
2 220K-1W Resistors

$38.95

Standard (OEM) Set:

4 R.G. 16uF-450V
2 I.C. 220uF-300V
2 ELC 70uF-100V
5 I.C. 22uF-50V
2 2.2K-2W Resistors
1 10K-2W Resistor
2 220K-1W Resistors

$36.95

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-80

Premium Set:
$47.95

Pro Set:
$38.95

Standard Set:
$36.95

Select Option:


Quantity:


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 81.  Contains the following electrolytic filter capacitors, used in the Fender 57 Deluxe Reissue from 2009 to 2012.
  • 3 F&T 16uF/475V (Main & Decoupling Filters)
  • 3 I.C 22uF/50V (Cathode Bypass, replaces 25uF/50V)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-81

$21.95

FenderŪ Electrolytic Capacitor Kit 82.  Contains the following electrolytic filter capacitors, used in the Brownface Fender 63 Vibroverb Reissue from 1990 to 1995.
  • 5 F&T 22uF/500V (Main & Decoupling Filters)
  • 1 F&T 47uF/500V (Decoupling Filter, replaces 47uF/350V)
  • 6 Radial 22uF/50V (Cathode Bypass, replaces 22uF/25V)
  • 1 Radial 22uF/63V (Bias Filter)
  • 1 Radial 100uF/100V (Bias Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-82

$47.95

FenderŪ Electrolytic Capacitor Kit 83.  Contains the following electrolytic filter capacitors, used in the Blackface Fender 64 Vibroverb Custom from 2003 to 2008.
  • 2 F&T 220uF/300V (Main Filters, replaces 220uF/285V)
  • 2 F&T 22uF/500V (Decoupling Filters)
  • 2 F&T 47uF/500V (Decoupling Filters, replaces 47uF/350V)
  • 7 Axial 22uF/50V (Cathode Bypass, replaces 22uF/25V)
  • 1 Axial 4.7/50V (Footswitch Filter)
  • 1 Radial 22uF/63V (Cathode Bypass)
  • 1 Axial 100uF/100V (Bias Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-83

$59.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 84.  Contains the following electrolytic filter capacitors, used in the Fender 57 Twin Reissue from 2009 to 2012.
  • 5 F&T 22uF/500V (Main and Decoupling Filters)
  • 1 F&T 100uF/100V (Bias Filter)
  • 1 Axial 22uF/50V (Cathode Bypass, replaces 22uF/25V)
  • 1 Axial 220uF/16V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-84

$33.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 85.  Contains the following electrolytic filter capacitors, used in the Fender Deluxe Reverb II from 1982-1986.  The Deluxe Reverb II has 11 front panel controls, and the front panel is shown below:
  • 1 CE Mfr 80-40-20-20uF/525V (Main and Decoupling Filters)
  • 1 Ruby Gold 22uF/500V (Decoupling Filter)
  • 2 Axial 4.7uF/450V (Decoupling Filters)
  • 2 Axial 70uF/100V (Bias Filters)
  • 5 Axial 25uF/25V (Cathode Bypass)
  • 1 4.7K-2 Watt Resistor

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-85

$59.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 86.  Contains the following electrolytic filter capacitors, used in the Fender Champ II from 1982-1983.  The Champ II has 4 front panel controls, and the front panel is shown below:
  • 1 CE Mfr 80-40-20-20uF/525V (Main and Decoupling Filters)
  • 1 Axial 4.7uF/450V (Decoupling Filter)
  • 2 Axial 70uF/100V (Bias Filters)
  • 3 Axial 25uF/25V (Cathode Bypass)
  • 1 1K-2 Watt Resistor
  • 2 10K-2 Watt Resistors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-86

$56.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 87.  Contains the following electrolytic filter capacitors, used in the Fender Princeton Reverb II from 1982-1986.  The Princeton Reverb II has 8 front panel controls, and the front panel is shown below:
  • 1 CE Mfr 80-40-20-20uF/525V (Main and Decoupling Filters)
  • 1 Axial 4.7uF/450V (Decoupling Filter)
  • 2 Axial 70uF/100V (Bias Filters)
  • 3 Axial 25uF/25V (Cathode Bypass)
  • 1 4.7K-2 Watt Resistor
  • 1 10K-2 Watt Resistors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-87

$56.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 88.  Contains the following electrolytic filter capacitors, used in the Fender Bassman 20 Combo from 1982-1983.  The Bassman 20 has 4 front panel controls and one input jack, and the front panel is shown below:
  • 1 CE Mfr 80-40-20-20uF/525V (Main and Decoupling Filters)
  • 2 Axial 70uF/100V (Bias Filters)
  • 2 Axial 25uF/25V (Cathode Bypass)
  • 1 1K-2 Watt Resistor
  • 2 10K-2 Watt Resistors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-88

$54.95


Click on photo for
larger view
FenderŪ Electrolytic Capacitor Kit 89.  Contains the following electrolytic filter capacitors, used in the Fender Super Champ from 1982-1983.  (Not for the Super Champ XD or Super Champ X2)  The Super Champ has 6 front panel controls, and the front panel is shown below:
  • 1 CE Mfr 80-40-20-20uF/525V (Main and Decoupling Filters)
  • 1 Axial 4.7uF/450V (Decoupling Filter)
  • 2 Axial 70uF/100V (Bias Filters)
  • 4 Axial 25uF/25V (Cathode Bypass)
  • 1 1K-2 Watt Resistor
  • 1 4.7K-2 Watt Resistor
  • 2 10K-2 Watt Resistors

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-89

$58.95



Fender Cross Reference Table:

Amplifier Model and Date Code

Cap. Kit

Bandmaster Amp 5E7 (Narrow Panel Tweed 3x10 combo, 1955-1960) FCK-73
Bandmaster Amp 6G7 (Brownface 3x10 combo, 1960) FCK-34
Bandmaster Amp AA763, AB763, AC568 FCK-1
Bandmaster Reverb AA768 FCK-4
Bandmaster Reverb AA1069 FCK-4B
Bandmaster Reverb AA270 FCK-7
Bandmaster Reverb w/Master Volume, 45 Watt Output 1972-1974 FCK-7
Bandmaster Reverb w/Master Volume, 70 Watt Output U/L 1974-1980 FCK-10
Bantam Bass CFA7003 (1969-1971- Silverface Combo) FCK-13
Bassman 5E6, 5E6A (Tweed, Narrow Panel, 1955-1957) FCK-70
Bassman 5F6, 5F6A (Tweed, Narrow Panel, 1957-1960) FCK-71
Bassman 6G6 (Blonde piggyback, 1961-1963) FCK-40
Bassman 6G6A (Blonde piggyback, 1962-1963) FCK-41
Bassman 6G6B (Blonde piggyback, 1963-1964) FCK-42
Bassman AA165, AB165, AC568 FCK-18
Bassman AA864 FCK-1
Bassman AA270 FCK-11
Bassman AA371 FCK-11A
Bassman 10 or Bassman Ten (Silverface Combo, mid-1970's) FCK-13
Bassman 20 (Blackface Combo, 1982-1983) FCK-88
Bassman 50 (Silverface Head, 1972-1976) FCK-11A
Bassman 70 (Silverface Head, 1977-1983) FCK-13C
Bassman 100 (Silverface Head, 1972-1976) (Not the solid-state combo from 2000) FCK-13A
Bassman 135 (Silverface Head, 1977-1983) FCK-13B
Super Bassman (Silverface Head CFA7002, 1969-1971) (Not the blackface reissue) FCK-13
59 Bassman Reissue (Tweed Combo, 1990-present) FCK-27
Blues Deluxe (Original version only, 1993-2004) FCK-56
Blues Deluxe (Reissue version only, 2005-present) FCK-56B
Blues Deville (Original version only, 1993-2004) FCK-56
Blues Deville (Reissue version only, 2005-present) FCK-56A
Blues Junior (Original version 1995-2010) FCK-57
Blues Junior III (2010-Present) FCK-57
Bronco Amp AB764 (Silverface, 1967-1975) FCK-20
Champ 5E1 (Narrow Panel Tweed, 1955-1956) FCK-74
Champ 5F1 (Narrow Panel Tweed, 1956-1964) FCK-73
Champ AA764 (Includes all Blackface Champs from 1964-1967) FCK-14
Champ (CBS) (Includes all Silverface Champs from 1968-1982) FCK-14
Champ II (Blackface, 4 controls, 1982-1983) FCK-86
Champion 600 Reissue (2006-2011) FCK-59
Concert 6G12 (Brownface combo, 1960) FCK-34
Concert AA763, AB763 (Not Concert II, 93 Concert PR245, or Concert Reverb PR450) FCK-1
Concert II (1982-1987)  (Not 93 Concert PR245 or Concert Reverb PR450) FCK-51
93 Concert Amp (PR245 - 1993-1995) FCK-29
Concert Reverb (PR450 - Pro Tube Series - 2001-2005) FCK-17
Deluxe Amp 5E3 (Narrow Panel Tweed, 1955-1960) FCK-72
Deluxe Amp 6G3 (Brownface, 1961-1963) FCK-30
57 Deluxe Reissue (2007-Present) FCK-81
Deluxe Reverb AA763, AB763, AB868 FCK-6
Deluxe Reverb A1172, A1270, Volume Boost Model (late 70s) FCK-8
Deluxe Reverb II (Blackface, 11 controls, 1982-1986) FCK-85
65 Deluxe Reverb Reissue (Blackface, 1993-present) FCK-23
68 Custom Deluxe Reverb (Silverface, Drip Edge, 2007-present) FCK-23
Dual Showman Reverb AA769 (1969) FCK-4B
Dual Showman Reverb AA270 (1970) FCK-12
Dual Showman Reverb w/Master Volume, but NO pull switch on MV, 1971-1972 FCK-9
Dual Showman Reverb w/Master Volume & Push/Pull Switch, 100 W 1972-1974 FCK-9A
Dual Showman Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Fender 30 (1980-1981 - Blackface, 2 Channels, 9 Controls) FCK-80
Harvard 6G10 (Tweed, 1961-1962) FCK-31
Hot Rod Deluxe (1996-2010) FCK-53
Hot Rod Deluxe III (2010-Present) FCK-61
Hot Rod Deville (1996-2010) FCK-54
Hot Rod Deville III (2010-Present) FCK-54A
London 185 (Solid State, 1989-1991) FCK-60
Pawn Shop Excelsior (PR2298, 2012-2015) FCK-44
Princeton Amp 5F2 (1956-1957 - Narrow Panel Tweed) FCK-75
Princeton Amp AA964, AB1270 - Without Reverb! (1964-1979 - Blackface/Silverface) FCK-15
Princeton Reverb Amp AA764, AA1164, AB1270 (1964-1981 - Blackface, Silverface) FCK-16
Princeton Reverb II (Blackface, 8 controls, 1982-1986) FCK-87
68 Custom Princeton Reverb (2012-Present, Silverface, Drip Edge) FCK-22
Pro Amp 5E5A (Narrow Panel Tweed combo, 1956-1960) FCK-78
Pro Amp 6G5A (Brownface combo, 1962-1963) FCK-36
Pro Amp AA763 (1963) FCK-3
Pro Amp AB763 (1963) FCK-1
Pro Amp AA763 (1963) FCK-3
Pro Junior (Rev A, B, and C - 1993-1998) FCK-58
Pro Junior and Pro Junior III (Rev D, E, and F - 1998-2017) FCK-58A
Pro Reverb AA165 (1965) FCK-4
Pro Reverb AB668 (1968) FCK-4C
Pro Reverb AA1069 (1969) FCK-4B
Pro Reverb AA270 1970-1972 FCK-7
Pro Reverb w/Master Volume, 45 Watt Output 1973-1974 FCK-7
Pro Reverb w/Master Volume, 70 Watt Output Ultralinear 1974-1980 FCK-10
Pro Reverb (PR448 - Pro Tube Series - 2001-2005) FCK-17
Pro 185 (Solid State, 1989-1991) FCK-60
63 Reverb Unit (Reissue - Brown Tolex, 1994-present) FCK-28
Quad Reverb w/Master Volume, but NO pull switch on MV, 1971-1972 FCK-9
Quad Reverb w/Master Volume & Push/Pull Switch, 100 Watts, 1972-1974 FCK-9A
Quad Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Showman 6G14 (Blonde piggyback, 1960-1961 FCK-37
Showman 6G14A (Blonde piggyback, 1960-1961) FCK-34
Showman AA763, AB763, AC568 (1963-1968) FCK-1
Showman Reverb AA768 (1968) FCK-4
Stage 185 (Solid State, 1989-1991) FCK-60
Super 5E4A, 5F4 (Narrow Panel Tweed combo, 1955-1960) FCK-78
Super 6G4 (Brownface combo, 1960-1961) FCK-34
Super 60 (Red Knob, 1988-1992) FCK-52
Super Bassman (Silverface Head CFA7002, 1969-1971) (Not the blackface reissue) FCK-13
Super Champ (Blackface Combo, 1982-1983) (Not the Super Champ XD or X2) FCK-89
Super Reverb AA763 (1963) FCK-5
Super Reverb AB763, AB568 (1963-1969) FCK-4
Super Reverb AA1069 (1969-1970) FCK-4B
Super Reverb AA270 (1970-1971) FCK-7
Super Reverb w/Master Volume, 45 Watt Output 1972-1974 FCK-7
Super Reverb w/Master Volume, 70 Watt Output Ultralinear 1974-1980 FCK-10
65 Super Reverb Reissue, (Blackface, 2000-present) FCK-24
Super Six Reverb w/Master Volume, but NO pull switch on MV, 1971-1972 FCK-9
Super Six Reverb w/Master Volume & Push/Pull Switch, 100 Watts 1972-1974 FCK-9A
Super Six Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Super Twin, 180 Watt Output 1975-1976 FCK-19
Super Twin Reverb, 180 Watt Output 1977-1981 FCK-19
Fender 30 (1980-1981 - Blackface, 2 Channels, 9 Controls) FCK-80
Tremolux 6G9 (Blonde Piggyback, 1961) FCK-32
Tremolux 6G9A, 6G9B (Blonde Piggyback, 1962-1963) FCK-33
Tremolux AA763, AB763 (1973) FCK-2
Twin 5E8, 5E8A (Narrow Panel Tweed combo, 1955-1957) FCK-70
Twin 5F8 (Narrow Panel Tweed combo, 1958) FCK-79
Twin 5F8A (Narrow Panel Tweed combo, 1959-1960) FCK-71
Twin 6G8 (Blonde combo, 1961) FCK-38
Twin 6G8A (Blonde combo, 1962-1963) FCK-34
The Twin (Red Knob, 1987-1994) FCK-55
94 Twin Amp (1994-1998, Rev A, B or C circuit board) FCK-21
94 Twin Amp (1999-2001, Rev D or E circuit board) FCK-21D
Twin Amp (PR449 - Pro Tube Series - 2001-2005) FCK-17
57 Twin Reissue (2009-2012, Tweed, Custom Shop) FCK-84
Twin Reverb AB763 (1963-1968) FCK-4
Twin Reverb AC568, AA769 (1968-1970) FCK-4A
Twin Reverb AA270 (1970-1971) FCK-12
Twin Reverb w/Master Volume, but NO pull switch on MV, 1971-1972 FCK-9
Twin Reverb w/Master Volume & Push/Pull Switch, 100 Watts 1972-1974 FCK-9A
Twin Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
65 Twin Reverb Reissue (Blackface, 1991-present) FCK-25
68 Custom Twin Reverb Reissue (Silverface, 2009-present) FCK-25
Twin Reverb II (1982-1986) FCK-51
Vibro Champ AA764 (Silverface, 1967-1975) FCK-20
Vibro King (1994-1997, with EL84 or 6BQ5 reverb driver tube) FCK-50
Vibro King (1997-present, with 6V6 reverb driver tube) FCK-50A
Vibrolux 5E11, 5F11 (Narrow Panel Tweed combo, 1956-1961) FCK-72
Vibrolux 6G11, 6G11A (Brownface, 1961-1963) FCK-33
Vibrolux AA763, AB763 (1963) FCK-2
Vibrolux Reverb AA964 (1964-1968) FCK-6
Vibrolux Reverb AB568 (1968-1969) FCK-6A
Vibrolux Reverb AA270 (1970-1976) FCK-8
Vibrolux Reverb with pull-boost switch on the Volume control (1977-1982)
See notes on kits FCK-8A and FCK-8B to see which kit is right for your version.*
FCK-8A or
FCK-8B*
"Custom" Vibrolux Reverb Reissue (Blackface, White Knobs, 1995-2010) FCK-26
Vibrosonic Reverb w/Master Volume, but NO pull switch on MV, 1971-1972 FCK-9
Vibrosonic Reverb w/Master Volume & Push/Pull Switch, 100 Watts 1972-1974 FCK-9A
Vibrosonic Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Vibroverb 6G16 (Brownface combo, 1963) FCK-39
63 Vibroverb Reissue (Brownface combo, 1990-1995) FCK-82
64 Vibroverb Custom (Blackface combo, 2003-2008) FCK-83
Vibroverb AA763 (1963) FCK-5
Vibroverb AB763 (1963) FCK-4



Don't see your exact amp model (with identical date code)?    Contact us for more information.

Can't find the date code?    No tube chart in the cabinet?  Contact us for more information.

For vintage amps (blackface and some silverface), the date code is located on the tube chart inside the back of the amplifier cabinet:




Copyright Đ2018 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions
