Photo |
Description |
Price |
Purchase |
(Picture for illustrative purposes only - actual kit components will vary from this photo)
|
FENDER "S-L-O-W-E-R VIBRATO" KIT FOR REISSUE AMPS This kit changes the circuit design
of the vibrato to slow down the slow end of the vibrato speed control
considerably, giving a much wider usable speed range.
Fast speed remains virtually unchanged, and the intensity remains the same.
Fits `65 Twin Reverb™
Reissue, `65 Super Reverb™ Reissue, `65 Deluxe Reverb™ Reissue, '65 Princeton
Reverb™ Reissue, `68 Custom Twin Reverb™, `65 Custom Super Reverb™, `68 Custom
Deluxe Reverb™, '68 Custom Princeton Reverb™.
Kit includes necessary parts and instructions.
Soldering capability is required.
Part #FRSVK |
$1.25 |
|
Click on photo for
larger view |
FENDER
STYLE POT,
SINGLE GANG - BRACKET MOUNT, SMOOTH 1/4" SHAFT.
Found in the Blackface Reissue versions
(2000-present) of Deluxe Reverb, Princeton Reverb, Pro
Reverb, Super Reverb and Twin Reverb.
|
POT VALUE |
REPLACES
FENDER PART # |
APPLICATION |
|
30C50K |
0037602000 |
VIBRATO INTENSITY CONTROL, 65
REISSUE MODELS: DELUXE / PRO / SUPER / TWIN |
|
B100K |
0037600000 |
REVERB CONTROL, 65 REISSUE
MODELS: DELUXE / PRINCETON / PRO SUPER / TWIN. |
|
A250K |
0037597000
0047540000 |
BASS AND TREBLE CONTROLS, 65
REISSUE MODELS: DELUXE / PRINCETON / PRO / SUPER / TWIN. |
|
A1M |
0037596000
0036966000 |
VOLUME CONTROLS, 65 REISSUE
MODELS: DELUXE / PRINCETON / PRO / SUPER / TWIN. |
|
C3M |
0037601000 |
SPEED CONTROL |
INCLUDES NUT & WASHER
(For spare or replacement nut, order the JN-1016
nut found in this section)
Part #FPHD-XX |
Starting at
$3.95 |
|
Click on photo for
larger view |

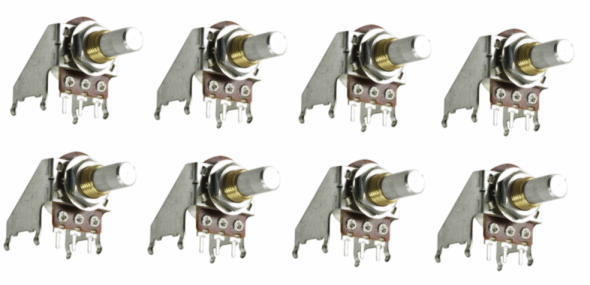

 FENDER
COMPLETE POTENTIOMETER KIT - 65 DELUXE REVERB REISSUE.
Contains all 9 control pots as found in the 65
Deluxe Reverb Reissue, from 1993 to the present. Also fits the 68
Custom Deluxe Reverb and the 68 Custom Vibrolux Reverb from 2012 to the present. Does not include the bias
pot.
INCLUDES NUTS & WASHERS
Part #FPK-110 |
$39.95 |
|
Click on photo for
larger view |
POT - Fender™ BIAS POT 10K LINEAR, SCREW
Original Fender™ 10K linear, screw, bias potentiometer.
Used in the '65 Deluxe Reverb Reissue. Original Fender™ part # 0017502000.
Includes lock washer, smooth washer and nut.
Part #P-BPF-10KL |
$4.95 |
|
Click on photo for
larger view |
KNOB, Fender™ STYLE, SET-SCREW
Fender™ style amp knob, skirted with 1-10 numbering. Traditional
"Witches Hat" design. For vintage Fender™ amps in the original blackface and silverface series,
as well as the blackface and silverface reissue series. With set-screw,
for 1/4" smooth shaft pots.
Replaces Fender™ part number 0990930000.
Part #FVSK |
$5.50 |
|
Click on photo for
larger view |
JACK, 1/4", Used in
Fender™, PCB, MONO CLOSED CIRCUIT
PCB mono closed circuit. Original Fender™ part number 0037117000.
Nut and washer are included.
Part #J-512 |
$8.50 |
|
Click on photo for
larger view |
 JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Found in vintage Fender™ (and other) amps as the input jack.
Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main
speaker out jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550). Peavey part number 71466004.
Part #J-12A |
$4.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output. Includes
nut and washer. Used as the extension speaker jack in the Fender™ 65
Deluxe Reverb Reissue.
Original Fender™ part number
Includes nut and washer. 0021956049 (originally 021956).
Part #J-11 |
$3.79 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™
Used as the footswitch jack in the '65 Deluxe Reverb Reissue. Includes
nut and washer.
Genuine Fender™ part number 0013043000.
Part #J-12B |
$4.35 |
|
Click on photo for
larger view |
SWITCH, TOGGLE - MADE BY CARLING
- RATED AT 6A, 125VAC. Two position (on/off), single pole
(SPST). Fits 1/2" chassis hole. 1/4" push on terminals.
Original Fender™ part number 003703900 (old number 037039).
Made by Carling™
Used as the standby switch in the following Fender™ amps: Vibro-King, Vibrasonic, Tonemaster, Rumble Bas, Prosonic, Hot Rod Deluxe, Hot
Rod Deville, Custom Vibrolux, Blues Junior, Blues Deluxe, Blues Deville, Bassman
300, 94 Twin, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, Twin Amp (Pro
Tube), Super-Sonic (Head & Combo), 65 Super Reverb Reissue, Pro Junior, Concert
Reverb Reissue, 64 Vibroverb Custom, 57 Twin Amp Reissue.
NOTE: FOR THE HEAVY-DUTY VERSION OF
THIS SWITCH AT A LOWER COST, SEE THE CARLING 2FA53-73 SWITCH BELOW. THE
FENDER VERSION IS RATED AT 6 AMPS WITH SMALL CONTACTS. THE 2FA53-73 IS THE
HEAVY-DUTY VERSION RATED AT 15 AMPS @ 125V AC.
Part #SW-515 |
$10.95 |
|
Click on photo for
larger view |
SWITCH, TOGGLE - MADE BY CARLING
- RATED AT 15A - 125VAC, 10A - 250VAC. Two position (on/off), single pole
(SPST). Fits 1/2" chassis hole. 1/4" push on terminals.
Made by Carling™
Part #2FA53-73 |
$9.95 |
|
Click on photo for
larger view |
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING
- RATED AT 15A/125VAC, 10A/250VAC. Two position (on/off), double pole
(DPST). Fits 1/2" chassis hole. Solder terminals or 1/4"
push on. Original Fender™ part number 003657000 (old
number 036570).
Made by Carling™ Used as the power switch in the following Fender™ amps: Vibro-King, Vibrasonic, Tonemaster, Rumble Bas, Prosonic, Hot Rod Deluxe, Hot
Rod Deville, Custom Vibrolux, Blues Junior, Blues Deluxe, Blues Deville, Bassman
300, 94 Twin, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, Twin Amp (Pro
Tube), Super-Sonic (Head & Combo), 65 Super Reverb Reissue, Pro Junior, Concert
Reverb Reissue, 64 Vibroverb Custom, 57 Twin Amp Reissue, Champion 600 Reissue.
Part #SW-525 |
$10.95 |
|
Click on photo for
larger view |
 SWITCH, SLIDE,
SWITCHCRAFT™, DPDT (6
TERMINALS), REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender™ AMPS.
Also used in many other applications, including some Electro Harmonix AC powered
effects pedals, such as the Memory Man. Also used as the slide switch on
Jazzmaster and Jaquar guitars. Used for the power switch in the vintage 60s and 70s Fender Champ, Vibro Champ, and Bronco amps. Rated at 3A, 125VAC.
Click here for physical
specifications. Two screws are included with the switch.
SW-116S |
$5.95 |
|
Click on photo for
larger view |
 SWITCH, SLIDE, DPDT (6
TERMINALS), MADE BY ALPHA (TAIWAN), MAY BE USED AS A REPLACEMENT FOR BRIGHT SWITCH IN 60's and 70's Fender™ AMPS.
Also used in many other applications, including some Electro Harmonix AC powered
effects pedals, such as the Memory Man. Click here
for physical specifications. Two screws are included with the
switch. See below for a kit of two of these switches with screws included
for refurbishing Fender™ amps.
Part #SW-242S |
$1.95 |
|
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, RED, FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
red jewel and #47 bulb complete, fits 11/16" chassis hole. Designed
for 6.3 volts. Ready for installation and wiring in the Fender™ '65 Deluxe
Reverb Reissue.
Part #FLA-124R |
$8.50 |
|
Click on photo for
larger view |
PILOT LAMP HOLDER, REPLACEMENT FOR
FENDER™,
MESA BOOGIE™,
ORANGE™,
ETC.
Pilot lamp holder, fits 11/16" Chassis Hole
Bezel inner diameter: 0.570" Bezel inner diameter (including threading): 0.527" Works with a standard bayonet lamp such as the 6.3V #47 lamp,
or the LED-47. Accepts all of the colored jewels on this page.
Part #LH-124 |
$9.95 |
|
RED
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many
others. RED - the standard on Fenders since the 1940's.
Replaces Fender™ part number 0990952000.
Part #JL-115R |
$2.99 |
|
Click on photo for
larger view |
NEW! BRIGHT LED INDICATOR LAMP,
REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life LED replacement lamp for
pilot lamps. Fits Fender amps which are designed for the P-47 type
incandescent bulb (including most Fender amps from the 1950s through the
present). The LED
replacement is long lasting, runs much cooler, and is substantially brighter
than the P-47 incandescent bulb. If less brightness is desired,
install a series resistor feeding the lamp socket (1/4 or ½ watt, value
between 560Ω and 1KΩ). Sold individually. Add new pizzazz
to your amp with a brighter lamp on the front panel, and one which pays for
itself in the long run with exceptionally long life. Works on 6
volts, AC or DC.
Color is warm white. NOTE: NOT RECOMMENDED FOR USE WITH THE
PURPLE J-115P JEWEL - WILL RESULT IN A DEEP BLUE COLOR RATHER THAN PURPLE.
Part #LED-47 |
$2.95 |
|
Click on photo for
larger view |
NEW! COOL BLUE BRIGHT OUTPUT LED INDICATOR LAMP,
REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life
BLUE OUTPUT LED replacement lamp for
pilot lamps. Fits Fender amps which are designed for the P-47 type
incandescent bulb (including most Fender amps from the 1950s through the
present). The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb. Works on 6 volts, AC or DC. Output color is cool blue. When used with different colored jewels,
creates a different color and a different vibe! See the results below:
|
Jewel Color |
Resulting Look |
Brightness Level |
| JL-115A Amber |
Yellow |
High |
| JL-115B Blue |
Medium Blue |
High |
| JL-115C Clear |
Crystal Blue |
High |
| JL-115G Green |
Light Green |
High |
| JL-115P Purple |
Deep Blue |
Medium |
| JL-115R Red |
Orange |
Medium |
| JL-115V Violet |
Bluish Violet |
Low |
| JL-115W White |
Baby Blue |
Low |
Part #LED-47B |
$2.95 |
|
Click on photo for
larger view |
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.
6.3V. Fender™ part number 0021642049
Part #P-47 |
$0.99 |
|
Click on photo for
larger view |

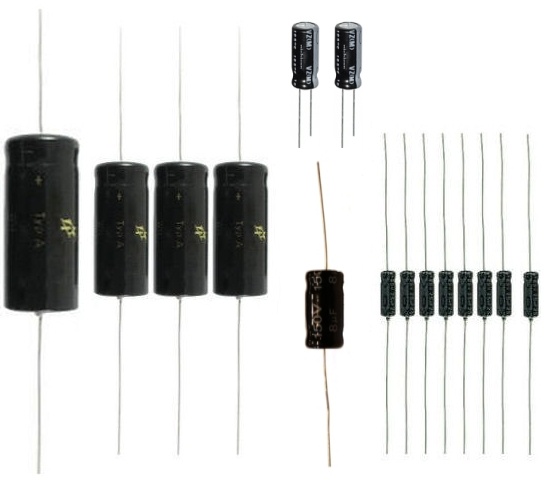

Fender™ Electrolytic Capacitor Kit 23. Contains
the following capacitors, used as main filters, decoupling filters, bias
filter, footswitch suppression, and cathode bypass
capacitors in the Fender 65 Deluxe Reverb Reissue amp, produced from 1993 to
the present.
- 1 F&T 47uF-500V (Main Filter)
- 1 Axial 220uF-100V (Main Filter)
- 3 F&T 22uF-500V (Decoupling Filters)
- 1 Radial 100uF-100V (Bias Filter)
- 1 Radial 22uF-63V (Bias Filter)
- 7 I.C. 22uF-50V (Cathode Bypass)
- 1 I.C. 4.7uF-50V (Footswitch Suppression)
Part #FCK-23 |
$45.95 |
|
Click on photo for larger view |
CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET,
crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting
centers, 1" to 1 1/4" chassis hole. Fits 6L6, EL34, 6V6 output tubes, and
5U4, 5Y3, and GZ34 rectifier tubes.
Click here for additional specs.
Fender part number 0990724000, or 023580.
Part #TS-8-807W |
$3.95
|
|
Click on photo for
larger view |
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.
Used in Fender™ and many other amps. 1 1/2" mounting
centers. Made by Belton. Fender part number 099072500.
Part #TC-142 |
$2.25
|
|
Click on photo for
larger view |
FENDER™
STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs.
Fender part number 0023606049.
Part #TS-9-700 |
$4.49
|
|
Click on photo for
larger view |
6-PACK OF FENDER™
STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart.
Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs. Pack of 6 tube sockets. Mounting screws not
included - recommend the SC-410-6 screws (2 packs of 6 screws needed for 6 tube
sockets). It is also possible to use 1/8 inch pop rivets to mount these
sockets. Replaces
Fender part number 0023606049.
Part #TS-9-700-6 |
$25.99
(for 6 sockets) |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL
WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE . Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. 9-Pin tube
socket is made of sturdy Micalex. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Requires 3/4" hole in chassis. Solder lugs for wire connection to tube
socket.
Shield, base and socket.
Part #TS-370 |
$4.99 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.
Includes new base, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Shield and base only - socket not included.
Part #TS-325S |
$2.29 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL,
SET OF 6.
Includes new bases, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
This is a great kit to replaced all 6 of the tube shields in many Fender™ amps
with 6 preamp tubes. Shield and base only - socket not included.
Part #TS-325S-6 |
$12.95 |
|
BLACK FENDER HANDLE
Click on photo for
larger view |
ORIGINAL Fender™ GUITAR AMP HANDLE.
Black amplifier handle with vinyl sleeve over steel strap and
one-screw mounting nickel-plated end caps. Includes mounting
hardware (two screws and T-nuts). Used on '65 Twin Reverb™.
Original Fender™ part number 0990947000.
Part #FAH-332 |
$17.95 |
|
|
Click on photo for
larger view |
Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for
Fender™ style FAH-332.
See Data Sheet here
Part #SC-403 |
$0.99
(for a pack of 2 screws) |
|
Click on photo for
larger view |
Fender™ Nickel Chassis Straps - Medium (4") For Deluxe, Vibrolux, etc. Includes
2 chassis straps, no screws or nuts.
Screw spacing is 4 inches center-to-center, strap length is 4 5/8"
end-to-end.
Part #FCS-4-2 |
$7.49
(Two 4 in. chassis straps, screws and nuts NOT included) |
|
Click on photo for
larger view |
Fender™ Chassis Bolt Set - Works with all Fender™
Nickel or Revisit™
Chassis Straps for Blackface, Silverface, and reissued Blackface models. Includes 4 bolts and 4 matching nuts with integral lock washers.
Fender part number 0022236049.
Part #FCB-4 |
$5.95
(4 bolts, 4 nuts - complete set for one amp) |
|
Click on photo for
larger view |
Fender™ AMP
"TAIL" LOGO. New original Fender™
reproduction. Fender™ logo with
"tail", cast
metal. Similar to the original logo found on blackface amps from the
1960s. Used on the upper left corner of the
grill cloth on most blackface era Fender™ amps. Approx. 4 1/2" wide, the "F" in
the logo is about 2 1/2" inches tall. Original Fender™ part number
0994093000. Mounting screws are included.
Part #FAL-912 |
$25.95
(each) |
|
Click on photo for
larger view
|
Black Logo Mounting Screws
Set of 4 logo mounting screws.
These are #5 x 7/16" black oxide
screws, set of 4. Fit the AL-921 Ampeg logo, and the Fender
FAL-912 logo.
Part #LS-504 |
$0.99
(for a set of 4 screws) |
|
|
Click on photo for
larger view |
Fender™ SELF-TAPPING SCREWS
Used in vintage Fender™ blackface and silverface
amps for a variety of
tasks. Used to attach capacitor pans, tube sockets, transformers on smaller amps, chokes, etc.
Pack of 12 screws. Replaces Fender™ part number 029913.
Part #SC-410-12 |
$3.50
(for a pack of 12 screws) |
|
Click on photo for
larger view |
Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
Click on photo for
larger view |
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most
vintage
guitar amplifiers with round power cords, including most vintage Fender™ amps. Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 |
$14.95 |
|
Click on photo for
larger view |
 FUSE HOLDER, ORIGINAL Fender™,
FITS MOST LATER MODEL FENDER AMPS
Fits full-size fuse.
Chassis mount type with push-on tab connectors. For standard full size 1.25" X
.25" fuses. Fits through a .50" hole in the chassis. As used on the Fender™ 60s
Super Reverb reissue and many other Fender™, SWR™ and other amps. Brand New.
Genuine Fender™ 0036702049. UPC 717669612139. Used on 65 Twin, Hot Rod Deluxe™,
Hot Rod DeVille™, Blues Deluxe™, Blues DeVille™, Prosonic™, Vibrosonic, Pro
Reverb™, Showman™ 50, 59 Bassman™, Tone Master™, Vibro-King, 63 Fender Tube
Reverb and Dual Professional amplifiers Also fits 94 Twin, 65 Super Reverb™,
Pro Tube Twin, 64 Vibroverb™, 57 Twin, Super-Sonic™ series, Princeton
Recording Amp, Band-Master™ VM Head, Deluxe™ VM, Super Bassman and Super Champ™
XD/X2 amplifiers.
Part #FH-367 |
$8.95 |
|
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
FUSE,
Fender™ 2A Slow-Blow.
Rated at 2A, for use with 65 Deluxe
Reverb Reissue in North America (120V). Note: This is a 1-1/4
inch x 1/4 inch fuse. A few `65 Deluxe
Reverb Reissue units had a 3/4 inch x 3/16 inch small fuse installed - check
your old fuse before ordering. If you have the smaller fuse, order
the GDC fuse in the 2 amp size on our Fuse page.
Part #MDL-2 |
$4.95
(Pack of 5 fuses) |
|
Click on photo for
larger view |
10 OHM, 5A NTC (Negative
Temperature Coefficient) type Thermistor.
Fender part number 028503. Used in many Fender amp models
since the 1990s. Also used in some Mesa Boogie amps. It is installed in series in a circuit
between the transformer and incoming AC power. This thermistor is rated for
5A maximum current, and is 19mm in diameter. By limiting
inrush current, it protects the transformer and other components in the power
supply at turn-on. This thermistor should only be used on amps which
have a 5 amp fuse or less.
Download data sheet here.
Part #CL-60 |
$3.99
(each) |
|
Click on photo for
larger view
 |
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B. Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting.
Replacement for Fender™ '65
Deluxe Reverb Reissue. Replaces original Fender™ part
number 020489. Up until 2010, Fender™
Deluxe Reverb Reissues used Accutronics Reverb Tanks made in Cary, Illinois.
In November, 2009, the Accutronics company was purchased by Belton, and the
manufacturing facility in Cary was closed. Today, Accutronics tanks
are made in Seoul, South Korea.
Revisit™ tanks are manufactured to the same
design and detail as the original American-made Accutronics tanks, and we
believe that they emulate the sound of the original Accutronics tanks better
than the current version of Accutronics tanks made in South Korea.
However, everyone's opinion is different, so we carry both the Revisit™ and the
Accutronics brands.
View the 2-year warranty details
here.
Part #4AB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$43.79
|
|
Click on photo for
larger view
|
Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B.
Accutronics reverb tanks are a
cheaply produced copy of the Belton tank, and are now made by Belton in South
Korea. They are of much lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
This is the Korean-made OEM reverb
used in Fender™ '65 Deluxe Reverb Reissues starting in 2010.
Accutronics was purchased by Belton in 2009, and in November of 2009 all
production was moved from Cary, Illinois to the Belton manufacturing facility in
Seoul, South Korea.
See explanation of Accutronics reverb tank numbering system here.
Part #ACC-4AB3C1B |
$39.99 |
|
Click on photo for
larger view
|
R everb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
Part #RB-017 |
$18.90 |
|
Click on photo for
larger view |
TRANSFORMER, Fender™ REVERB DRIVER. Reverb
transformer as found in the Fender™ 65 Twin Reverb Reissue, 65 Super Reverb
Reissue, 65 Princeton Reverb Reissue, and 65 Deluxe Reverb Reissue.
Fender™ part number 0037099049. 10" leads with .187 faston
connectors, X-Mount with 1 3/4" mounting centers.
Part #037099 |
$39.95 |
|
 |
RESISTOR,
FLAMEPROOF, 470 OHM, 2 WATT. Power tube screen grid
resistors in the 65 Deluxe Reverb Reissue. Original Fender™ part number
036468001.
Available individually, or in packs of 5, below.
Part #470FP2 |
$0.30 each |
|
 |
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, PACK OF 5 RESISTORS.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Part #470FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
|
