Marshall™
Capacitors

We carry a complete selection of Marshall™ Amplifier parts for both vintage and modern amps.

Back to Marshall™ Amp Parts Index


  NOTE:   MARSHALL KITS MCK-1 THROUGH MCK-4 IN THE "TOP PREMIUM" OPTION WILL BE DELAYED IN SHIPMENT UNTIL MONDAY DECEMBER 23 DUE TO SUPPLY CHAIN ISSUES.  THE "PRIME" OPTION ON THESE KITS IS NOT AFFECTED.



Click on photo for
larger view

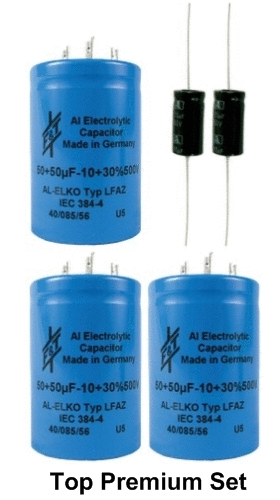

ELECTROLYTIC Electrolytic Capacitor Kit, FOR CERTAIN MARSHALL JMP, JCM800 AND SILVER JUBILEE AMP MODELS.  OR KIT, FOR CERTAIN MARSHALL  JCM800 AND JCM900 SERIES.  See specific model numbers below. Available in Top Premium (F&T/Sprague) or Prime (JJ).   Fits Marshall amps which have 3 can capacitors (50uF+50uF/500V) mounted to the chassis.
JMP SERIES JCM800 SERIES SILVER JUBLIEE
1961, 1985, 1986, 1987, 1987T, 1989, 2204 1986, 1987, 2204, 2210, 4010, 4104, 4211
LATER 2203, 4103
2550, 2553, 2554, 2555, and 2558

Contains 3 50uf+50uf/500V dual can capacitors, and two axial lead EL-CAP-10/160.   Available in Top Premium, Prime, or Pro grade capacitors.

Top Premium Set:

3 F&T 50uF+50uF -500V
2 Sprague 10uF-150V

$65.95

Prime Set:

3 JJ 50uF+50uF-500V
2 Illinois 10uF-160V

$56.95

Note:  This set is not for the early versions of the JCM800 2203 and 4103 from 1981-1987.

Part #MCK-1

Top Premium Set:
$65.95

Prime Set:
$56.95

Select Option:


Quantity:



Click on photo for
larger view

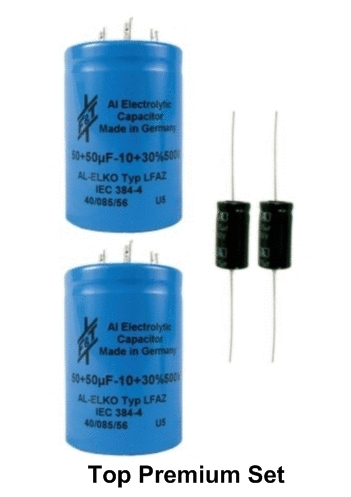

ELECTROLYTIC Electrolytic Capacitor Kit, FOR CERTAIN MARSHALL  JCM800 AND JCM900 SERIES.  See specific model numbers below.   Available in Top Premium (F&T/Sprague), or Prime (JJ).  Fits Marshall amps which have 2 can capacitors (50uF+50uF/500V) mounted to the chassis.
JCM800 SERIES JCM900 SERIES
2205, 4210, 4212 2100, 2101, 2100SL-X, 2101SL-X, 2500, 2501, 2502, 2500SL-X, 2501SL-X, 2502SL-X, 4100, 4101, 4102, 4500, 4501, and 4502

Contains 2 50uf+50uf/500V dual can capacitors, and two axial lead EL-CAP-10/160. Available in Premium, or Prime, or Pro grade capacitors.

Top Premium Set:

2 F&T 50uF+50uF -500V
2 Sprague 10uF-150V

$48.99

Prime Set:

2 JJ 50uF+50uF-500V
2 Illinois 10uF-160V

$39.95


Part #MCK-2

Top Premium Set:
$48.99

Prime Set:
$39.95


Select Option:


Quantity:




Click on photo for
larger view

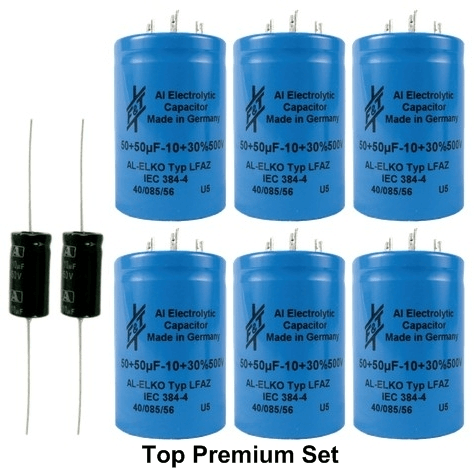

ELECTROLYTIC Electrolytic Capacitor Kit, FOR CERTAIN MARSHALL 100 WATT JMP and JCM800 Models.  See specific model numbers below.

Available in Top Premium (F&T/Sprague), or Prime (JJ).  Fits Marshall amps which have 6 can capacitors (50uF+50uF/500V) mounted to the chassis.
JMP SERIES JCM800 SERIES
1959, 1986, 1987, 1992, 2103, 2104, 2203, 2204 EARLY 2203 and 4103
1959, 1992

Contains 6 50uf+50uf/500V dual can capacitors, and two axial lead 10uF/150V.  Available in Top Premium, or Prime grade capacitors.

Top Premium Set:

6 F&T 50uF+50uF - 500V
2 Sprague 10uF-150V

$121.95

Prime Set:

6 JJ 50uF+50uF-500V
2 Illinois 10uF-160V

$110.95

Part #MCK-3

Top Premium Set:
$121.95

Prime Set:
$110.95


Select Option:


Quantity:

Prime Capacitor Set Shown:



Click on photo for
larger view

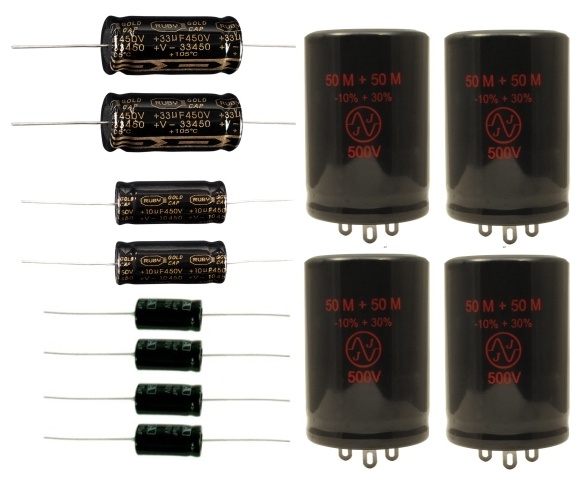

ELECTROLYTIC Electrolytic Capacitor Kit, FOR MARSHALL 9005 RACK-MOUNT POWER AMP.

Available in Top Premium (F&T/Sprague) or Prime (JJ/Illinois).  This capacitor set replaces the electrolytic filter capacitors in both channels of the Marshall 9005 power amplifier.

Top Premium Set:

4 F&T 50uF+50uF-500V
2 F&T 30uF/500V
2 F&T 10uF/5000V
4 Sprague 10uF-150V

$128.95

Prime Set:

4 JJ 50uF+50uF-500V
2 Illinois 33uF/450V
2 Illinois 10uF/500V
4 Illinois 10uF-160V

$98.95

Part #MCK-4

Top Premium Set:
$128.95

Prime Set:
$98.95

Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR KIT, FOR MARSHALL EARLY VERSION Lead 12 MicroStack (Model 3005) or the Lead 12 1x10 Combo (Model 5005) Contains the following filter capacitors, used as main and low voltage filters in the 3005 and 5005 Lead 12 Models.
  • 2 2200uF-50V (Main Filters - Replaces 2200uF-25V
  • 3 22uF-50V (Decoupling Filters)
  • 1 100uF-35V (Rolloff Filter)

This kit is for the early version of the Lead 12, which did had only one jack next the power switch (some didn't have a jack there at all).   See below:

Part #MCK-5

$11.95



CAPACITOR KIT, FOR MARSHALL LATER VERSION Lead 12 MicroStack (Model 3005) or the Lead 12 1x10 Combo (Model 5005) Contains the following filter capacitors, used as main and low voltage filters in the 3005 and 5005 Lead 12 Models.
  • 2 2200uF-25V Radial (Main Filters)
  • 3 22uF-50V (Decoupling Filters)
  • 1 100uF-25V (Rolloff Filter)
  • 1 2.2uF-50V (Coupling Capacitor)

This kit is for the later version of the Lead 12, which has TWO jacks next to the power switch.   See below:

Part #MCK-5A

$11.95


Click on photo for
larger view

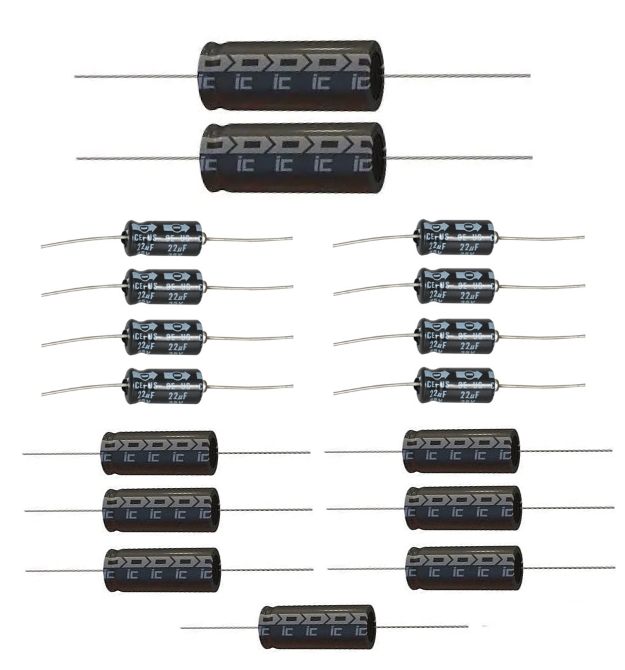

CAPACITOR KIT, FOR MARSHALL Lead 100 MOSFET (Model 3210)

Contains the following electrolytic capacitors, which includes all axial electrolytic capacitors used in the Lead 100 Mosfet Model 3210:

  • 2 2200uF-50V
  • 3 100uF-25V
  • 4 47uF-63V
  • 8 22uF-50V

Download the installation guidelines

Part #MCK-6

$35.95




Click on photo for
larger view

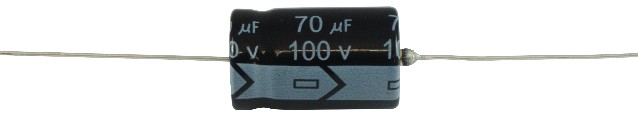

CAPACITOR, AXIAL LEAD ELECTROLYTIC, 70 uF/100V,  0.84" L x 0.51" DIA, 85° C.


Part #C-GE-70-100

$1.29

CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads.  Tolerance ±5%.  Dipped in epoxy coating.    (See Options)

1000pF = 1nF = 0.001uF

Part #C-SM-XX
Starting at
$0.80
Select Option:


Quantity:


CAPACITOR, POLYPROPYLENE, RADIAL.
  Similar to orange drop style, rated at 630 volts.  Values from 0.001uF to 0.47uF   Radial leads.  (See Options)


Part #C-PR-XX
Starting at
$0.30
Select Option:


Quantity:


CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at 630 volts.   Values from 0.001uF to 0.47uF.  Axial Leads.   (See Options)

Part #C-MF-XX
Starting at
$0.90
Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR, F&T BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great stability and reliability.  Values available include 10uF/500V, 16uF/475V, 22uF/500V, 30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.  Choose capacitor value under the Select Option box.
Part #FT-CAP-XX
Starting at
$4.95
Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR, F&T BRAND, DUAL CAN 16uF+16uF @ 450V.  Direct replacement for LCR type capacitors popular in Marshall™ and Vox™ amps.    This is a dual can style capacitor 16uF/16uF rated at 450 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their superior stability and reliability.
Part #FT-1616
$17.95


Click on photo for
larger view
CAPACITOR, F&T BRAND, DUAL CAN 32uF+32uF @ 500V.  Direct replacement for LCR type capacitors popular in Marshall™ JMP and JCM900 series amps.    This is a dual can style capacitor 32uF/32uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their superior stability and reliability.
Part #FT-3232
$18.95

CAPACITOR, F&T BRAND, DUAL CAN 50uF+50uF @ 500V  Direct replacement for LCR type capacitors popular in Marshall™ JMP and JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great tone and reliability.
Part #FT-5050
NOTE:   SHIPMENT OF ANY ORDERS INCLUDING THE FT-5050 WILL BE DELAYED UNTIL MONDAY DECEMBER 23 DUE TO SUPPLY CHAIN ISSUES.
$19.95

CAPACITOR CLAMP, for FT-1616, FT-3232, FT-5050, JJ-5050, or other 1 3/8" diameter can style capacitors.

Part #CC-122

$2.50

  Sprague Premium Axial Capacitors

Click on photo for
larger view

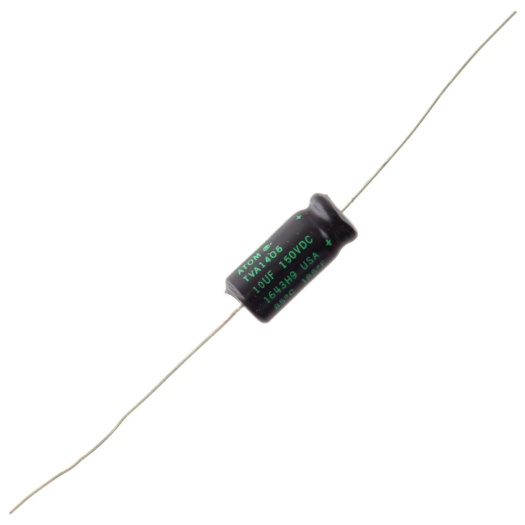

SPRAGUE AXIAL 10uf/150V  Replacement for the 10uF/160V axial bias filter capacitors commonly found in vintage Marshall amps from the 1960s through the 1990s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-10-150

$4.95

  Tube Amp Doctor Premium Capacitors


Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 8uF-475V

12mm diameter x 26mm Length
Rated
105° C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.


Part #TAD-CAP-8-475
$4.75
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 16uF-475V

12mm diameter x 30mm Length
Rated
105° C for Long Life
16uF - 475 Volts DC


Part #TAD-CAP-16-475
$4.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 22uF-500V

16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC


Part #TAD-CAP-22-500
$5.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 22uF-500V

16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC


Part #TAD-CAP-22-500
$5.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 100uF-350V

22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC


Part #TAD-CAP-100-350
$12.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor  220uF-350V

25mm diameter x 51mm Length
Rated
105° C for Long Life
220uF - 350 Volts DC


Part #TAD-CAP-220-350
$19.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 25uF-25V

6mm diameter x 14mm Length
Rated
105° C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps


Part #TAD-CAP-25-25
$1.75



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 5uF-50V

5mm diameter x 13mm Length
Rated
105° C for Long Life
5uF - 50 Volts
Perfect replacement for axial cathode bypass capacitors in the vibrato circuit of many Fender amps


Part #TAD-CAP-5-50
$3.50
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 47uF-500V

22mm diameter x 39mm Length
Rated
105° C for Long Life
47uF - 500 Volts DC


Part #TAD-CAP-47-500
$12.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 70uF-350V

18mm diameter x 40mm Length
Rated
105° C for Long Life
70uF - 350 Volts DC


Part #TAD-CAP-70-350
$8.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 100uF-350V

22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC


Part #TAD-CAP-100-350
$12.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 80uF-100V

9.5mm diameter x 21.5mm Length
Rated
105° C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-80-100
$4.95
In stock

  JJ Electronic Premium Capacitors
CAPACITOR, JJ ELECTRONIC, direct replacement for LCR type capacitors popular in Marshall™ JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately above.   Made in the Slovak Republic in eastern Europe.  Founded in 1993 by Jan Jurco, JJ Electronic is a world-renowned manufacturer of vacuum tubes, electrolytic capacitors and high-end audio amplifiers.
Part #JJ-5050
$17.95

  MOD Axial Capacitors

Click on photo for
larger view
MOD CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Mod™ Electronics electrolytic capacitors offer long-lasting performance at the highest degree. These capacitors are designed with tube amplifiers in mind; each capacitor is rated at 105°C. This temperature rating provides a highly-stable capacitance in any device, be it vacuum tube or solid state. The Mod™ electrolytic capacitor line features capacitance values that are common in many vintage amplifiers.   Values available include 8uF/150V, 8uF/475V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.   Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX
Starting at
$1.00
Select Option:


Quantity:

  Illinois Capacitor Electrolytic Capacitors

Click on photo for
larger view
CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years later continues to produce benchmark quality capacitors for industry.     Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American capacitor manufacturer tracing its roots to 1909.  Values available include 2.2uF/50V, 4.7uF/50V, 10uF/160V, 10uF/500V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V.  Choose capacitor value under the Select Option box.
Part #IC-CAP-XX
Starting at
$0.99
Select Option:


Quantity:

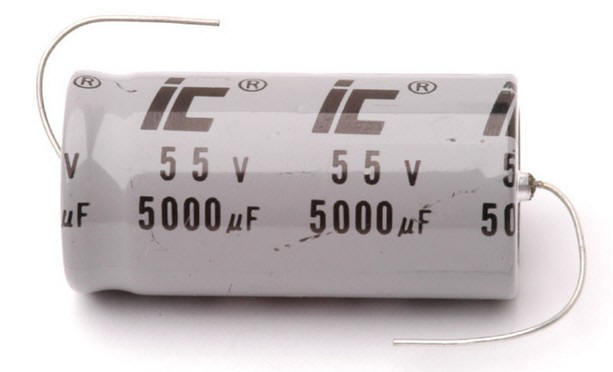

CAPACITOR, ILLINOIS 5000uF/55V   Axial electrolytic 5000uF@55V with axial leads.

Part #IC-CAP-5000-55
$5.99

  Axial Electrolytic Capacitors - Other Brands

Click on photo for
larger view
CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Values available include the following:
25uF/25V 100uF/25V 220uF/25V 2200uF/25V
100uF/50V 0.68uF/50V 25uF/50V
  47uF/63V 70uF/100V 100uF/100V
  8uF/150V 10uF/160V 100uF/350V
220uF/350V 4.7uF/450V 8uF/450V 10uF/450V
  22uF/450V 33uF/450V 47uF/450V
16uF/475V 20uF/500V 20uF/600V 80uF/500V

Choose capacitor value under the Select Option box.
Part #EL-CAP-XX

Starting at
$1.00
Select Option:


Quantity:

CAPACITOR, electrolytic 10uF @ 160V with axial leads.   Replaces 10uF @ 100V.   Used in the Marshall JCM800 and JCM900 series amplifiers.
Part #EL-CAP-10-160
$1.00

CAPACITOR, electrolytic 33uF @ 450V with axial leads.   Used in the Marshall JCM900 series amplifiers.
Part #EL-CAP-33-450
$3.99

CAPACITOR, electrolytic 100uF @ 50V with radial leads.   Used in the low voltage power supply of Marshall JCM900 series amplifiers.
Part #RAD-100-50
$0.39

CAPACITOR, electrolytic 1000uF @ 16V with radial leads.   Used in the low voltage power supply of Marshall JCM900 series amplifiers.
Part #RAD-1000-16
$0.77


Click on photo for
larger view

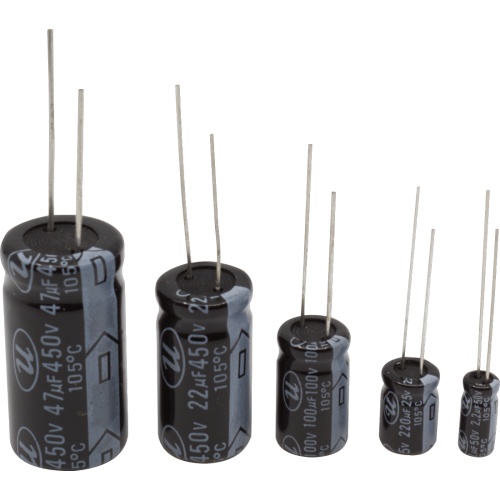

CAPACITOR, electrolytic 10uF @ 450V with radial leads.  10mm Diameter, 21mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.
Part #RAD-10-450
$1.95


Click on photo for
larger view
CAPACITOR, electrolytic 22uF @ 450V with radial leads.  132.5mm Diameter, 25mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.
Part #RAD-22-450
$2.50


Click on photo for
larger view
CAPACITOR, electrolytic 33uF @ 450V with radial leads.    16mm Diameter, 26.2mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.
Part #RAD-33-450
$2.95


Click on photo for
larger view

CAPACITOR,

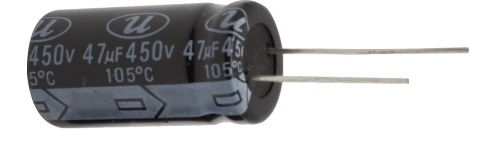

electrolytic 47uF @ 450V with radial leads.    16mm Diameter, 31.7mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.

Part #
RAD-47-450
$3.95


Click on photo for
larger view

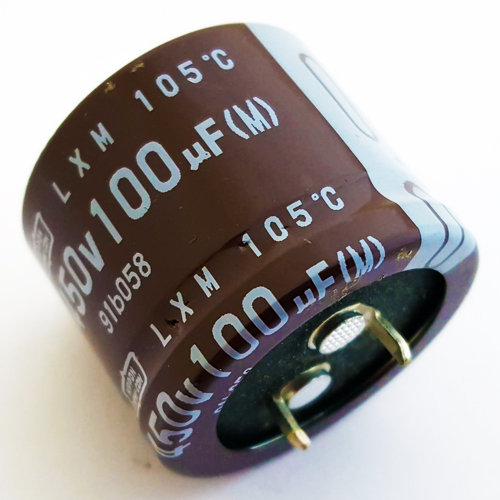

CAPACITOR, electrolytic 100uF @ 450V with radial snap-in leads.    Made by Nippon Chemi-Con.   22mm Diameter, 26mm tall.   Used in many PC board tube amplifiers, such as Marshall™, Orange, Randall™, B52, Crate, Peavey, many others.
Part #RAD-100-450
$6.95



Click on photo for
larger view
RADIAL ELECTROLYTIC CAPACITOR, 10,000uF @ 16V.    This size filter capacitor is commonly found in amplifiers which use DC voltage on the filaments of some of the preamp tubes.   Found in Marshall™, Mesa-Boogie™ as well as other brands.  Working temperature range -40°C to +105°C.   18mm diameter, 35mm tall (approximately 11/16" diameter X 1 3/8" tall)
Part #
10000-16
$2.49

CAPACITOR CLAMP, for FT-1616, FT-3232, FT-5050, JJ-5050, or other 1 3/8" diameter can style capacitors.

Part #CC-122

$2.50
