WASHER, FOR BRITISH STYLE (CLIFF) JACKS. This washer goes behind the faceplate on British style plastic nut and
chrome nut jacks to provide proper spacing. Jacks come with the
washers included, but the washers are easily lost. Without the washers,
the jacks will not fit properly. Part #W-583
$0.18
for each washer.
(Jacks not included).
Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE Stereo jack. 6 PC board terminals, switched. With nut and washer.
British style. Part #J-504
$2.15
Click on photo for
larger view
SAVE WITH MULTIPACK! JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE,
PACK OF 6
Stereo jack. 6 PC board terminals, switched. Pack of 6 jacks, with
nuts and washers. Part #J-504-6
$10.99
(Set of 6 jacks)
Click on photo for
larger view
SAVE WITH
OUR
MULTIPACK ASSORTMENT! THIS PACK CONTAINS THREE J-503 (4 PIN) AND THREE J-504 (6-PIN)
JACKS. Many amps contain both the 4 pin and the 6 pin British jacks. This
assortment gives you 3 of each jack ... Three J-503, and three J-504.
Part # J-5034-6
$10.49
(For 3 J-503 Jacks and 3 J-504 Jacks)
Click on photo for
larger view
JACK, 1/4",
T/R/S PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER. Same as the J-504, with the addition of a special ground washer which
contacts the chassis AND is inserted into the ground connection of the PC board
via dual pins under the jack. 6 PC board terminals for signal, plus
2 additional terminals for the ground washer. Only for
amplifiers so equipped for this jack, designed
to
reduced EMI/RFI interference (radio stations, ground loops). Found in some
Marshall solid state amps, as well as other brands. Note:
Must be used only on amps designed for this type of jack that have the PCB holes
to accept the pins of the ground washer. Nut is included. Part #J-504GW
$2.89
Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE, EXTRA-TALL LEGS.
May be used as a replacement for the footswitch jack on the Marshall™
MG100HDFX. 6 pins, PC mount, with nut and washer. Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.
Part #J-504SL
$3.95
Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE 4 PC board terminals, switched. Used in many modern Marshall™TM
amp models, including the JCM900 series, the Valvestate Series 1 models, JCM2000
series, MG Series and several others. Also used in many other brands of British amps.
With nut and washer. Marshall part number J3B6005A or S122.
Part #J-503
$1.99
Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER. Same as the J-503, with the addition of a special ground washer which
contacts the chassis AND is inserted into the ground connection of the PC board
via dual pins under the jack. 4 PC board terminals for signal, plus
2 additional terminals for the ground washer. Only for
amplifiers so equipped for this jack, designed
to
reduced EMI/RFI interference (radio stations, ground loops). Found in some
Marshall solid state amps, as well as other brands. Note:
Must be used only on amps designed for this type of jack that have the PCB holes
to accept the pins of the ground washer. Nut is included. Part #J-503GW
$2.59
Click on photo for
larger view
JACK,
1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
4 PC board terminals, switched. Used in many brands of amps and other
equipment. Same footprint as J-503 jack - may be used in place of
J-503 to add a touch of "chrome" class to your amp! Part #J-603
$2.79
(per jack)
Click on photo for
larger view
SAVE WITH MULTIPACK! JACK, 1/4", MONO PC MOUNT PLASTIC,
BRITISH STYLE,
PACK OF 6 4 PC board terminals, switched. Used in many modern Marshall™TM
amp models, including the JCM900 series, the Valvestate Series 1 models, JCM2000
series, and several others. Also used in many other brands of British amps.
Marshall part number J3B6005A or S122. Pack of 6 jacks, with nuts and washers. Part #J-503-6
$9.99
(Set of 6 jacks)
Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE, EXTRA-TALL LEGS.
May be used as a replacement for the rear panel jacks FX loop jacks on
the Marshall™ MG100DFX and also as the speaker jacks on the MG100HDFX. 4 pins, PC mount, with nut and washer. Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.
Part #J-503SL
$3.45
Click on photo for
larger view
JACK, 1/4", Marshall™ ORIGINAL, MG SERIES,
6 Pins
Used in the Marshall™ G50RCD, G80RCD and G100RCD as the input jack.
6 pins, as shown in the photo. No trim ring on the front of jack - only
black plastic. Low profile design. Used
only in the G50RCD, G80RCD, and G100RCD.
Includes nut and washer. Part # J-530
$6.75
Click on photo for
larger view
JACK, 1/4", MARSHALL,
MONO, 3 PINS Used as the input jack in the Marshall G10 MKII. Marshall
part number V9158. No trim ring at the mouth of the jack - black plastic. Includes nut and washer.
Part #J-9158
$6.70
Click on photo for
larger view
JACK, 1/4", Marshall™
G SERIES, INPUT, LINE OUT, FOOTSWITCH, PC MOUNT,
HAS RED STRIPE, ALSO USED IN YAMAHA, KORG, FENDER. MONO,
SWITCHED. Used in certain Marshall™ G-series amps from the late 90s -
compare with original jack. Back legs are slightly staggered -
not positioned directly across from each other. Check the
back of the existing jack - if the back is red and the back legs are
staggered, this would be the correct replacement. NUT AND WASHER
ARE INCLUDED. Used as the input jack
and the line out jack in the Marshall™ G15RCD. Used as the input, line out
and footswitch jack in the Marshall™ G30RCD. Used as the line out,
footswitch, FX send and return jacks in the Marshall™ G50RCD. Used as the
input jack on certain Fender™ SideKick amps, such as the SideKick Chorus
20. Also used in Korg and Yamaha keyboards - Korg part number 454X851003,
Yamaha part number LB202330.
Part #J-531
$4.75
Click on photo for
larger view
JACK, 1/4", 7-PIN, HEADPHONE,
USED IN Marshall™, FENDER™, YAMAHA™ & OTHERS, PC MOUNT Used as the headphone jack in the Marshall™ G15RCD and G30RCD.
Original Marshall™ part number V4550. Used as the headphone jack in Yamaha models YPR6, HE6, PSR520, YPR8, and
other models. Original Yamaha part number LB10187R. Used
in the Fender Sidekick Bass Amp as the headphone jack, Fender part number
022923. Used
in the Korg Triton Studio, Triton extreme, M3, CI8600, CI9600. Korg part
number 454005600, YKB21-5006. Casio Part # 36120665. Note: No trim ring at jack opening.
Includes nut and washer. Part # J-540
$6.70
WITH CHROME TRIM RING
Click on photo for
larger view
JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, USED AS CD OUTPUT JACK, PC MOUNT, ALSO USED IN YAMAHA,
KORG, ROLAND, ENSONIQ. CHROME SLEEVE. Used in certain Marshall™ G-series amps
from the late 90s - compare with original jack. Used as the CD
input jack in the Marshall™ G15RCD and the G30RCD. Original Marshall™
part number J1031. Used for the Headphone output of the Roland S-50
and S-770 and for the Headphone and Ext. Control jack of the Roland U-220.
It also replaces all the jacks in the Korg 01/W and 01R/W, and the CV Pedal
jacks in the Ensoniq ESQ-1, ESQ-M, and SQ-80 keyboards. The jack is
equivalent to Roland part # 13449148 (YKB21-5009), Korg part # 454004400, and
Behringer part # W64-01081-03178. Used in the Behringer V-Amp and
P16-M. The chrome sleeve at the jacks opening is cosmetic. The jack will replace
equivalent jacks that have a gold sleeve or no sleeve. Nut and
washer are included. Replacement
nut/washer set is the JN-916.
Part #J-532
$4.75
Click on photo for
larger view
MARSHALL MINI-JACK, STEREO, 3.5mm
Used as the Line Out, Headphone, or Music Source
Input Jack on the MG15CFX, MG30CFX, MG50CFX, MG100CFX, MG15FX, MG30FX, MG50FX,
MG100FX, MG15GFX, MG30GFX, MG50GFX, MG100GFX. Accepts 1/8 inch or
3.5mm stereo mini-plugs. Part #J-355
$2.50
Click on photo for
larger view
JACK NUT, PLASTIC,
BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Replacement jack nut as found on the J-503, J-504 jacks. Part #J-5NT
$0.50
Click on photo for
larger view
JACK NUT MULTI-PACK - SAVE!
6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Replacement jack nut as found on the J-503, J-504 jacks Part #J-5NT-6
$2.39
Click on photo for
larger view
JACK NUT, PLASTIC,
BRITISH STYLE, RED
Replacement nut for the J-503, J-504.
Red nuts on these jacks typically are used on later model Marshall™ amps to
designate the 'speaker' jacks. Part #J-5NTR
$1.00
Click on photo for
larger view
JACK NUT, PLASTIC,
BRITISH STYLE, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L, J-504L, J-518 and
J-519 black jacks, if you wish to create a two-tone effect. Part #J-5NTW
$1.00
NUT AND WASHER, NICKEL, KOBICONN
OR JALCO TYPE. Fits J-506, J-506A, J-507, J-530, J-531
, J-532, J-532G, J-533, J-533G,
J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560. Part #JN-916
$0.75
Potentiometer Kits
Click on photo for
larger view
Complete Marshall™ Potentiometer Kit,
14 SINGLE GANG POTS AND 1 DUAL GANG POT. ORIGINAL Marshall™
REPLACEMENT PARTS - MG100HDFX HEAD (NOT THE COMBO) Complete replacement Potentiometer Kit for the Marshall™
MG100HDFX head with 15 pots on the front panel.
Part #MPK-17
$39.95
Click on photo for
larger view
Complete Marshall™ Potentiometer Kit,
14 SINGLE GANG POTS AND 1 DUAL GANG POT. ORIGINAL Marshall™
REPLACEMENT PARTS - MG100DFX COMBO (NOT the MG100HDFX HEAD!) Complete replacement Potentiometer Kit for the Marshall™
MG100DFX combo with 15 pots on the front panel.
$39.95
Click on photo for
larger view
Complete Marshall™ Potentiometer Kit,
12 SINGLE GANG POTS AND 1 DUAL GANG POT. ORIGINAL Marshall™
REPLACEMENT PARTS - MG250DFX COMBO Complete replacement Potentiometer Kit for the Marshall™
MG250DFX combo with 13 pots on the front panel. Part #MPK-19
$36.95
Click on photo for
larger view
Complete Marshall™ Potentiometer Kit,
13 POTS TOTAL. ORIGINAL Marshall™ REPLACEMENT PARTS. Marshall™ MODEL
MG50DFX. Complete replacement Potentiometer Kit for the
Marshall™ Model MG50DFX. 13 pots on the front panel.
Part #MPK-21
$45.95
Click on photo for
larger view
Complete Marshall™ Potentiometer Kit,
13 POTS TOTAL. ORIGINAL Marshall™ REPLACEMENT PARTS. Marshall™ MODELS
G80RCD and
G100RCD. Complete replacement Potentiometer Kit for the
Marshall™ Models G80RCD or G100RCD. 13 pots on the front panel.
Part #MPK-22
$45.95
Click on photo for
larger view
Complete Marshall™ Potentiometer Kit,
10 SINGLE GANG POTS. ORIGINAL Marshall™
REPLACEMENT PARTS - MG30DFX Complete replacement Potentiometer Kit for the
Marshall™ MG30DFX with 10 pots on the front panel. Part #MPK-25
$25.95
Click on photo for
larger view
Complete Marshall™ Potentiometer Kit,
8 SINGLE GANG POTS. ORIGINAL Marshall™
REPLACEMENT PARTS - MG15DFX Complete replacement Potentiometer Kit for the
Marshall™ MG15DFX combo with 8 pots on the front panel. Instructions
included.
Part #MPK-35
$21.95
Potentiometers
Click on photo for
larger view

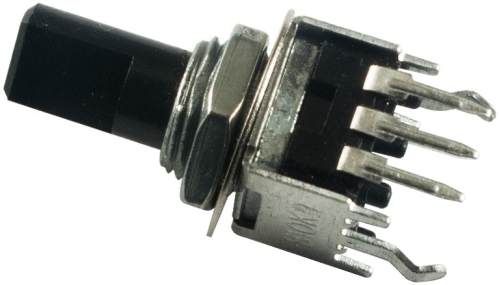

POT, PC MOUNT, MG SERIES, 16mm DIAMETER BODY,
7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT. Used in the Marshall™ G10MKII, G10CD,
G15RCD, G30RCD, G215RCD, G50RCD, G80RCD, G100RCD, B25, MG10CD, MG15CD, MG15CDR,
MG15DFX, MG30DFX, MG50DFX, MG100DFX, MG250DFX, MG100HDFX. Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 10mm. Click on photo for more detail.
Download cross-reference guide for these pots.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here). Part #P-MGP-XX
$3.95
Click on photo for
larger view
POT, DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING,
MEDIUM SHAFT. Used in the Marshall™ MG100HDFX (Loop
Level),
MG100DFX (Loop Level), MG250DFX (Master Volume). Diameter of the body of the pot is slightly smaller than a dime. Shaft length is
10mm. Click on photo for more detail.Replaces Marshall™ part number POTP-90036.Download cross-reference guide for
these pots. INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here). Part #P-MGP-10KBX2
$6.95
Click on photo for
larger view
POT, 10K LINEAR, 9mm, Marshall™, PC MOUNT. LABELED "B10K",
D-Shaft. Used
in the fourth series of MG amplifiers - the ones with the large MG on the
faceplate (see photo), such as the MG100FX. Includes nut and
washer. In the MG100FX, this pot is used in all
control locations, all functions. Replaces original Marshall™ part number
M-POTP-91001. Part #P-VMG-10KL
$9.95
Knobs
Click on photo for
larger view
KNOB, Revisit™ Quality Reproduction of Marshall™ Knob, Push-on Knurled, Single
Knob.
Excellent quality aftermarket Marshall™ control knobs, push-on type.
Black with gold top. Designed for the "knurled"
type control shafts. Used on the MG-series amps, except for
the latest MG series with the large "MG" on the front panel.
Since Marshall™ has recently changed the appearance of their original
Marshall™ brand knobs (duller and more of an orange-gold color), we believe
these reproduction knob are now actually closer in appearance to the original
Marshall™ knobs. Part #MKCPT
$1.89
(Single Knob)
Click on photo for
larger view
KNOB
SET, Revisit™ Quality Reproduction of Marshall™ Knobs, Push-on Knurled, Set of 6.
Excellent quality aftermarket Marshall™ control knobs, push-on type, set of 6
knobs. Black with gold top. Designed for the "knurled"
type control shafts. Used on the MG-series amps, except for
the latest MG series with the large "MG" on the front panel.
Since Marshall™ has recently changed the appearance of their original
Marshall™ brand knobs (duller and more of an orange-gold color), we believe
these reproduction knobs are now actually closer in appearance to the original
Marshall™ knobs. Part #MKCPT-6
$9.95
(Set of 6 knobs)
Click on photo for
larger view
KNOB
SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of
25. Excellent quality
aftermarket Marshall™ control knobs, push-on type,
set of 25 knobs. Designed for the "knurled"
type control shafts Black with gold top. Nothing perks up the tired looks of a
road-worthy Marshall™ like a complete new set of knobs. Quality reproduction of the original Marshall™ knobs at half of the
cost. This set of 25 knobs is great for repair shops, at less than $1.00
per knob. Since Marshall™ has recently changed the appearance of their
original Marshall™ brand knobs (duller and more of an orange-gold color), we
believe these reproduction knobs are now actually closer in appearance to the
original Marshall™ knobs.
Part #MKCPT-25
$24.95
(Set of 25 knobs)
Click on photo for
larger view
KNOB
SET, Revisit™ Quality REPRODUCTION of Marshall™ Knobs, Push-on Knurled, Set of
50. Excellent quality
aftermarket Marshall™ control knobs, push-on type,
set of 50 knobs. Designed for the "knurled"
type control shafts. Black with gold top. Nothing perks up the tired looks of a
road-worthy Marshall™ like a complete new set of knobs. Quality reproduction of the original Marshall™ knobs at half of the
cost. This set of 50 knobs is great for repair shops, at less than 80
cents
per knob. Since Marshall™ has recently changed the appearance of their
original Marshall™ brand knobs (duller and more of an orange-gold color), we
believe these reproduction knobs are now actually closer in appearance to the
original Marshall™ knobs.
Part #MKCPT-50
$39.95
(Set of 50 knobs)
Click on photo for
larger view
KNOB,
Revisit Marshall™, PUSH ON
D-SHAFT
Standard Revisit Marshall™ control knob, push-on type, for D-Shaft pots used in
the latest MG-series amps with the large MG on the front panel. (MG10,
MG15, MG15FX, MG30FX, MG50FX, MG100FX, MG100HFX, MG102FX).
The R-MKDS-C Knob is
constructed so that the pointer on the front of the knob is 180 degrees away
from the flat spot in the shaft hole on the back side of the knob. Part #R-MKDS-C
$2.99
(Single Knob)
Switches
Click on photo for
larger view
ORIGINAL Marshall™ MINI ROCKER SWITCH FOR Marshall™ MG SERIES
- MARKED 0-1 FOR ON/OFF DPDT Mini Rocker Switch. Has 4 electrical terminals on back of switch.
Face of switch marked with "0" and "1" for on/off. Original Marshall™ replacement. 0.51" x 0.76" mounting hole diameter, 10A-125 VAC,
6A-250VAC, DPST with .187" tabs.
Part #SW-489
$3.95
Click on photo for
larger view
ORIGINAL
Marshall™ MINI ROCKER SWITCH FOR Marshall™ MG SERIES - LIGHTED DPDT Mini Rocker Switch with internal
light. Has 4 electrical terminals on back of switch.
Red lighted version - easier to see than the tiny LED Marshall™ originally
provided as a power-on light. 0.51" x 0.76" mounting hole diameter, 10A-125 VAC,
6A-250VAC, DPST with .187" tabs. To ensure that the light
works properly, make sure that the terminals directly behind the "1" on the
rocker portion feed the power transformer, while the terminals behind the "0"
are connected to the incoming power source.
Part #SW-489L
$4.95
Click on photo for
larger view
ORIGINAL
Marshall™ , VOX, AND Blackstar™ PUSH SWITCH DPDT Mini Short-Throw Push Switch. Has
6 electrical terminals on bottom of switch (DPDT)Used by Marshall in the
following models: MG15DFX, MG30DFX, MG50DFX, MG100DFX, MG100HDFX,
MG250DFX.. Used by Marshall as
follows:
Used in the Vox™
Pathfinder, V9168R, with Reverb. Vox™ part
number V3650 and V904530002. Used in most Blackstar™ Amps as SW2;
also on back PCB: SW1; SW2; and SW3.
Blackstar™ part number MCSWH02002. Also found in other brands of
amplifiers. Actuator shaft is 3.3mm square. Part #SW-650
$4.95
Click on photo for
larger view
Marshall™ STYLE DUAL FOOTSWITCH Aftermarket replacement for the original Marshall™ footswitch - same quality, just without the Marshall™ logo
and Marshall™ price tag. Sturdy metal construction. Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.
Works with the Marshall™ MG50DFX, MG100DFX, MG100HDFX and MG250DFX models.
Stereo 1/4" Plug, 16 ft. cable. Part #FBS-471
$37.95
Click on photo for
larger view
Marshall™ STYLE FOOTSWITCH Revisit™ aftermarket replacement for the original Marshall™ footswitch -
same quality, just without the Marshall™ logo and Marshall™ price tag.
Sturdy metal construction. Mono 1/4" Plug, 16 ft. cable.
Standard design - footswitch operation shorts the tip to the sleeve - will work
with other makes and models of amplifiers as well as Marshall™.
Replaces Marshall™ stock numbers P801 and PEDL-00008. Works with the
Marshall™ models 1962, 8040, 2555, 2550, 2558, 2553, 2554. JTM60
models: JTM600-610-615-612-622. JCM600 models 600-601-602.
JCM900 models 2100-2500-2501-2101-2502. JTM30 models 310-312.
DBS models 7200-7400-72410-72115. Rackmount amps 9100-9200. MG
Series I model G50RCD. IBS models 3520-5522-3540. Part #FBS-470
$29.95
Click on photo for
larger view
UNIVERSAL STYLE
DUAL FOOTSWITCH WITH REMOVABLE CABLE. Revisit™
replacement for foot switch boxes with stereo 1/4" plug for the amplifier
connection. 10 foot long cable is removable from the foot switch box - has a stereo 1/4" plug
for connection at both the foot switch end and the amplifier end.
Replaces Marshall™ stock number P802, P803, P804, P805, PEDL-00009, PEDL-00010,
PEDL-00015, PEDL-00017. Fits the Marshall™ JCM900 series:
4100-4500-4101-4501-4102-4502. The JCM800 series
2210-2205-4210-4212-4211. The ValveState series:
8080-8100-8200-8280-8240. The MG Series 1: G80RCD-G100RCD. The Acoustic Soloist: AS80R. Includes the dual footswitch box and the
stereo cable (10 ft).
Advantages of the removable cable include:
Easy to replace cable - no disassembly or
soldering needed
Easy to change to a different
configuration footswitch by changing the cable (for example, to a mono
Y-cord for Roland amps)
Cable has metal 1/4" plugs with spring
strain reliefs for durability
Part #FBS-671
$44.95
Power Cords
Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR AT EQUIPMENT END. Common replacement cord for use on many
guitar amps, power amps, effects units, etc. Standard NEMA 5-15 plug
for North American use at 110-120 Volts AC. IEC connector at
equipment end. Used only in North America. Part #PC-300
$6.95
Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.
Replacement cord for many guitar amps, power amps, effects units, etc. 10 ft
length giveS extra flexibility in equipment placement, reduces use of extension
cords.
Standard NEMA 5-15 plug for North American
use at 110-120 Volts AC. IEC connector at equipment end.
Used only in North America. Part #PC-600
$10.95
Output Chip
Click on photo for
larger view
TDA7293 OUTPUT CHIP, COMMONLY FOUND IN Marshall™ MG Series (MG50DFX,
MG100DFX, MG100HDFX, MG250DFX). 15 pins. Rated 100 WATT output, at
up to 120V SUPPLY. Part #TDA7293 / TDA7293V
$17.95
Fans
Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG SERIES AMPS -
PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOWER NOISE
Fits many of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models. IMPORTANT
NOTE: Does NOT fit the MG50FX, MG100FX, or MG100HFX models -
these are the models with the large "MG" on the front panel. Check model
number carefully. Note: Check
size of the old fan. If the old fan is 2" x 2" x 3/8", this is the
correct fan. Some Marshall™ versions of the MG100DFX, MG100HDFX,
MG50DFX and the MG250DFX used a larger fan (2 3/8" x 2 3/8" x 1").
If your amp has the larger fan, order the OD6025-12, below. 12 volts DC, 1.10 Watts,
5000
RPM, 11.0 Cubic Feet/Minute Airflow, 26dBA Noise. Comes with 12" tinned leads - cut off and splice connector from original fan. Ratings: Reliability: A, Airflow: A,
Noise: A-, Price: B- Part #OD5010-12
Installation video for fan:
$23.95
Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG Series
PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOW NOISE
Fits some versions of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models. IMPORTANT
NOTE: Does NOT fit the MG50FX, MG100FX, or MG100HFX models -
these are the models with the large "MG" on the front panel. Check model
number carefully. Note: Check
size of the old fan. If the old fan is 2 3/8" x 2 3/8" x 1", this is
the correct fan. Some Marshall™ versions of the MG100DFX, MG100HDFX,
MG50DFX and the MG250DFX used a smaller fan (2" x 2" x 3/8").
If your amp has the smaller fan, order the OD5010-12, above. 12 volts DC,
1.70 Watts, 3500
RPM, 18.0 Cubic Feet/Minute Airflow, 27dBA Noise. Comes with 12" tinned leads - cut off and splice connector from original fan. Ratings: Reliability: A, Airflow: A,
Noise: B, Price: B Part #OD6025-12
$19.95
Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.
to
reduced EMI/RFI interference (radio stations, ground loops). Found in some
Marshall solid state amps, as well as other brands. Note:
Must be used only on amps designed for this type of jack that have the PCB holes
to accept the pins of the ground washer. Nut is included.
JACK, 1/4", Marshall™ ORIGINAL, MG SERIES,
6 Pins
Used
in the fourth series of MG amplifiers - the ones with the large MG on the
faceplate (see photo), such as the MG100FX. Includes nut and
washer. In the MG100FX, this pot is used in all
control locations, all functions. Replaces original Marshall™ part number
M-POTP-91001.
KNOB, Revisit™ Quality Reproduction of Marshall™ Knob, Push-on Knurled, Single
Knob.
Excellent quality aftermarket Marshall™ control knobs, push-on type.
Black with gold top. Designed for the "knurled"
type control shafts. Used on the MG-series amps, except for
the latest MG series with the large "MG" on the front panel.
Since Marshall™ has recently changed the appearance of their original
Marshall™ brand knobs (duller and more of an orange-gold color), we believe
these reproduction knob are now actually closer in appearance to the original
Marshall™ knobs.
Push Switch. Has
6 electrical terminals on bottom of switch (DPDT)Used by Marshall in the
following models: MG15DFX, MG30DFX, MG50DFX, MG100DFX, MG100HDFX,
MG250DFX.. Used by Marshall as
follows:
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
