Mesa/Boogie™
Potentiometers |
|
|
 |

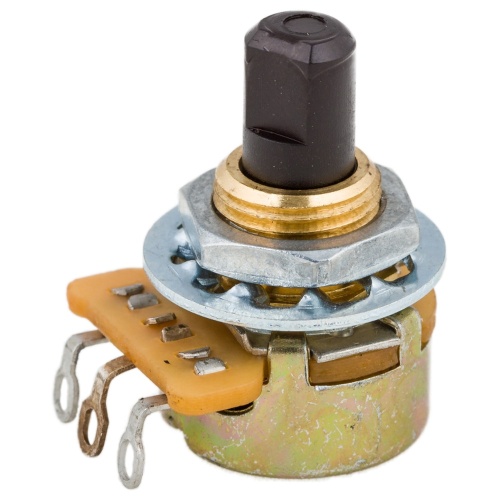

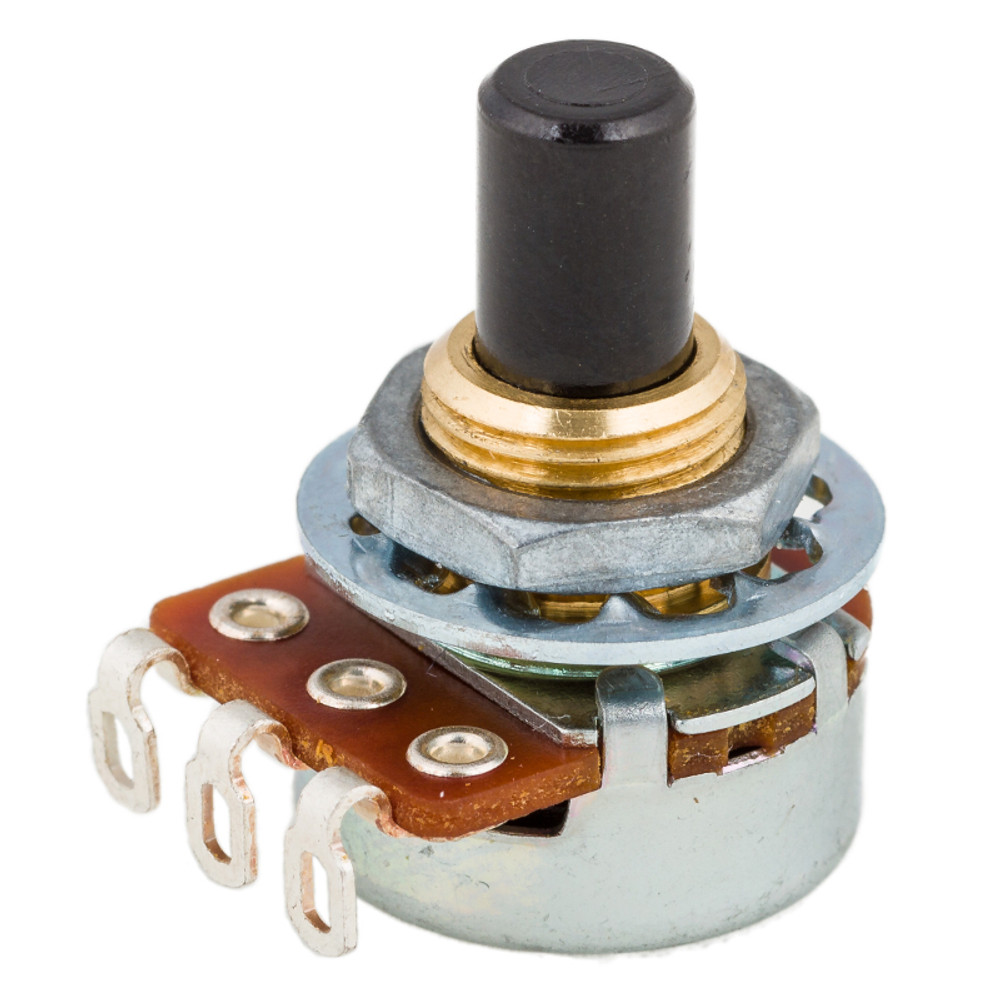

POTENTIOMETER, Mesa/Boogie™, A25K, 20% Audio
Taper.
1/4" plastic D-shaft. A25K, 20% audio taper, Mesa/Boogie part number
593736. Used as the Middle Pot in the GREEN channel of the 3-Channel Dual & Triple Rec,
the Middle Pot of the GREEN channel in the Nomad.
Unsure if this is the right part for your amp and the function in that amp?
Ask us!
593736Part #P-MB-20A25K |
$8.95
|
|
|
|
POTENTIOMETER, Mesa/Boogie™, B25K, Linear
Taper.
1/4" plastic D-shaft. B25K, linear taper, Mesa/Boogie part number
593737.
Used as "MIDDLE" control in Rectifiers,
Road King,
Maverick, Nomad, F-Series, DC-5. Presence
Control of 3 Channel Triple/Dual Rectifiers. Used on both channels of the
DC-5 as the presence controls, masters, and the mid controls.
Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
593737
Part #P-MB-B25K |
$8.95
|
|
|
|
POTENTIOMETER, Mesa/Boogie™, A100K, Linear
Taper.
1/4" plastic D-shaft. A100K, audio taper, Mesa/Boogie part number
593150.
Used as the MASTER control in the Mark IV. PRESENCE control in the
Nomad 45/55 ORANGE and RED channels. And many other applications. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
593150
Part #P-MB-A100K |
$8.95
|
|
|
|
POTENTIOMETER, Mesa/Boogie™, B100K, Linear
Taper.
1/4" plastic D-shaft. B100K, linear taper, Mesa/Boogie part number
593151.
Used as the PRESENCE control in the 2 channel
Dual & Triple Rectifier (ORANGE Channel). PRESENCE control in the 3
Channel Dual & Triple Rectifier (RED Channel). Master in the Nomad
Orange Channel. And many other applications. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
592151
Part #P-MB-B100K |
$8.95
|
|
|
|
POTENTIOMETER, Mesa/Boogie™, A250K, 5%
Audio
Taper.
1/4" plastic D-shaft. A250K, 5% audio taper, Mesa/Boogie part number
593794. Used in Rectifiers
(New and old), Roadkings, Tremoverbs as "GAIN", used as "Master" in F30, 50,
100 (# 592794) And many other applications. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
593794Part #P-MB-5A250K |
$8.95
|
|
|
|
POTENTIOMETER, Mesa/Boogie™, A250K,
Audio
Taper.
1/4" plastic D-shaft. A250K, audio taper, Mesa/Boogie part number
592148 or 593148. Used
in Dual and Triple Rectifiers (New and old) and Roadkings as the BASS pot in some channels.
Used as the SOLO control and the OUTPUT control in the 3-ch Dual Rectifier Solo Head.
Used as the TREBLE pot in some Nomads and Road Kings. And many other applications. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
593148Part #P-MB-A250K |
$8.95
|
|
|
|
POTENTIOMETER, Mesa/Boogie™, B250K,
Linear
Taper.
1/4" plastic D-shaft. B250K, linear taper, Mesa/Boogie part number 593738.
Used as the TREBLE pot on the ORANGE channel in the DC-5 and the Maverick,
TREBLE pot on both channels in the Trem-O-Verb, the presence pot in CH 1 and CH
2 in the Road King, TREBLE pot in the ORANGE and RED channels in the Nomad, Dual
Rec and Triple Rec Solo Heads. And many other applications. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
593738Part #P-MB-B250K |
|
 |
 |
POTENTIOMETER, Mesa/Boogie™, B250K,
Linear
Taper - ROUND SHAFT. 1/4" plastic
smooth shaft for set-screw knob - NOT a D-Shaft knob. B250K, linear taper, Mesa/Boogie part number 590738. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
Part #P-MBS-B250K |
$8.95
|
|
|
|
POTENTIOMETER, Mesa/Boogie™, A1M, 10%
Audio
Taper.
1/4" plastic D-shaft. A1m, 10% audio taper, Mesa/Boogie part number 593739. Used in Rectifiers
(New and old), BASS Pot in CH 3 and CH 4 in the Road King, BASS Pot in both
channels in the Trem-O-Verb and Dual/Triple Rec, BASS Pot in the ORANGE channel
in the DC-5 and the Dual/Triple Rec 3-Channel Solo Heads, GAIN control in all
channels of the Nomad and also the Gain control in ORANGE and RED channels of
the Nomad, and the Gain control of CH 1 of the Maverick. And many other applications. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
593739Part #P-MB-10A1M |
$8.95
|
|
 |

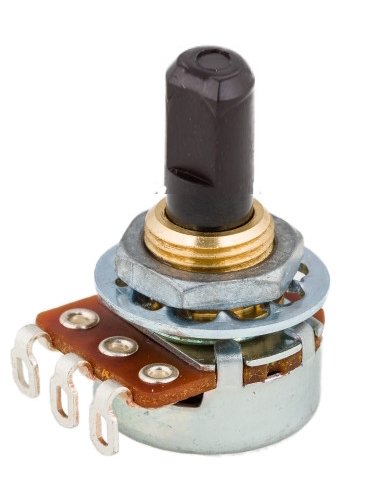

POTENTIOMETER, Mesa/Boogie™, A1M, 10%
Audio
Taper, LONG SHAFT.
1/4" plastic D-shaft. A1M, 10% audio taper, Mesa/Boogie part number
592739. This pot has a extra long 0.57 inch shaft. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
Part #P-MBL-10A1M |
$8.95
 |
|
|
|
POTENTIOMETER, Mesa/Boogie™, A1M, 20%
Audio
Taper.
1/4" plastic D-shaft. A1m, 20% audio taper, Mesa/Boogie part number 593792. Used in Rectifiers
(New and old), GAIN Pot in GREEN channel of the 3-Channel Dual/Triple Rec
Solo head, RED Master Pot in the RED channel of the Dual/Triple Rec 2-Channel
Solo Head, Master Pot in all 4 channels of the Road King, GAIN pot in CH 2 of
the Maverick, Presence Pot in the GREEN channel of the Nomad, and Master Pot in
the RED channel of the Trem-O-Verb. And many other applications. Unsure if this is the
right part for your amp and the function in that amp?
Ask us!
593792Part #P-MB-20A1M |
$8.95
|
|
|
Click on photo for
larger view |

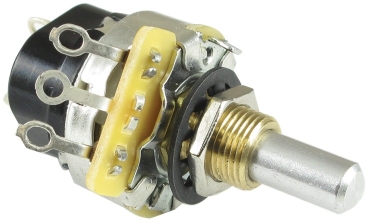

POT - CTS, 3/8" BUSHING,
WITH SPST PUSH-PULL SWITCH - A1M
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder lugs,
with push-pull SPST (two terminal) normally-open switch.
Value is A1M. Replaces the discontinued Mesa Boogie part
number 591842.

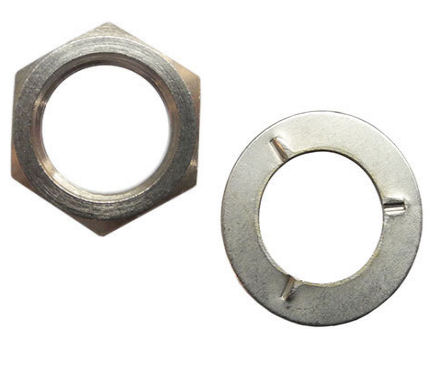

INCLUDES NUT & WASHER.
Part #P-MBLS-A1M |
$14.95 |
|
|
Click on photo for
larger view |

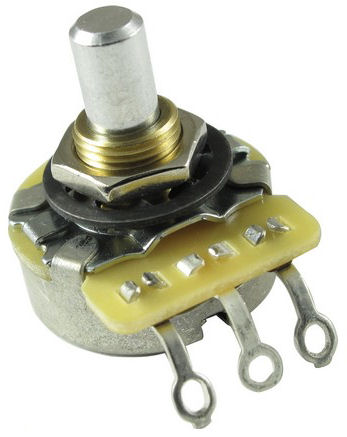

POT - CTS, 3/8" BUSHING,
MESA-BOOGIE, AUDIO TAPER 10K OHMS
24 mm carbon composition. 300°
rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder
lugs. A metal-shaft replacement for the cheaper plastic shaft pot in some Mesa
Boogie models. Value is A10K. Replaces Mesa Boogie part number 598380.
INCLUDES NUT & WASHER.
Part #P-MBL-A10K |
$5.95 |
|
|
Click on photo for
larger view |
POT - CTS, 3/8" BUSHING,
MESA-BOOGIE, AUDIO TAPER, 250K OHMS
24 mm carbon composition. 300°
rotation. 1/2 watt, 500VDC rating. 1/4" diameter solid shaft, 3/8" bushing, solder
lugs. A metal-shaft replacement for the cheaper plastic shaft pot in some Mesa
Boogie models. Value is A250K. For set-screw type knobs. Replaces Mesa Boogie part numbers 591048 and 581040.
INCLUDES NUT & WASHER.
Part #P-MBL-A250K |
$5.95 |
|
|
Click on photo for
larger view |
POT - CTS, 3/8" BUSHING,
MESA-BOOGIE, AUDIO TAPER, 1 MEG OHMS
24 mm carbon composition. 300°
rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder
lugs. A metal-shaft replacement for the cheaper plastic shaft pot in some Mesa
Boogie models. Value is A1M. For set-screw type knobs. Replaces Mesa Boogie part numbers 591047
and 598792.
INCLUDES NUT & WASHER.
Part #P-MBL-A1M |
$5.95 |
|
|
Click on photo for
larger view |
POT - CTS, 3/8" BUSHING,
MESA-BOOGIE, LINEAR TAPER, 10K OHMS
24 mm carbon composition. 300°
rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder
lugs. A metal-shaft replacement for the cheaper plastic shaft pot in some Mesa
Boogie models. Value is B10K. For set-screw type knobs. Replaces Mesa Boogie part numbers 591278
and 598379.
INCLUDES NUT & WASHER.
Part #P-MBL-B10K |
$5.95 |
|
|
Click on photo for
larger view |
POT - CTS, 3/8" BUSHING,
MESA-BOOGIE, LINEAR TAPER, 25K OHMS
24 mm carbon composition. 300°
rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder
lugs. A metal-shaft replacement for the cheaper plastic shaft pot in some Mesa
Boogie models. Value is B25K. For set-screw type knobs. Replaces Mesa Boogie part number
581737.
INCLUDES NUT & WASHER.Part #P-MBL-B25K |
$5.95 |
|
|
Click on photo for
larger view |
POT - CTS, 3/8" BUSHING,
MESA-BOOGIE, LINEAR TAPER, 100K OHMS
24 mm carbon composition. 300°
rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder
lugs. A metal-shaft replacement for the cheaper plastic shaft pot in some Mesa
Boogie models. Value is B25K. For set-screw type knobs. Replaces Mesa Boogie part numbers
591050 and 598151.
INCLUDES NUT & WASHER.Part #P-MBL-B100K |
$5.95 |
|
|
Click on photo for
larger view |
POT - CTS, 3/8" BUSHING,
MESA-BOOGIE, LINEAR TAPER, 250K OHMS
24 mm carbon composition. 300°
rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" bushing, solder
lugs. A metal-shaft replacement for the cheaper plastic shaft pot in some Mesa
Boogie models. Value is B250K. For set-screw type knobs. Replaces Mesa Boogie part number
598738.
INCLUDES NUT & WASHER.Part #P-MBL-B250K |
$5.95 |
|
|
|
Mesa/Boogie™ Knobs
(Also see our complete line of
knobs) |
|
|
Click on photo for
larger view |
KNOB, Mesa/Boogie™, Vintage Brown
Amp knob,
brown color with white pointer. Knob is secured by set-screw,
designed to fit a 1/4" shaft. Replaces Mesa/Boogie™ part number 408020. Very
similar to the original knob used on the
Mesa/Boogie™ Maverick Dual Rectifier model.
Part #MB-316 |
$2.95
|
|
Click on photo for
larger view |

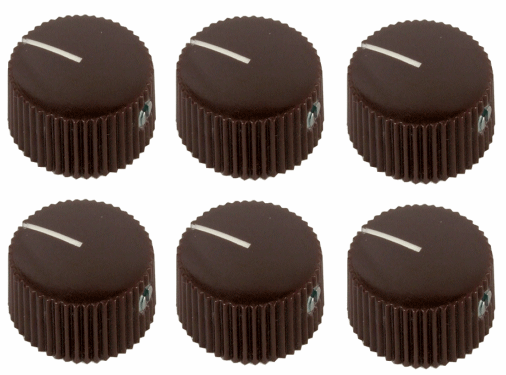

KNOB, Mesa/Boogie™, Vintage Brown,
Set of 6
Amp knob,
brown color with white pointer. Knob is secured by set-screw,
designed to fit a 1/4" shaft. Replaces Mesa/Boogie™ part number 408020. Very
similar to the original knob used on the
Mesa/Boogie™ Maverick Dual Rectifier model.
Set of 6 knobs.
Part #MB-316-6 |
$12.95
(for pack of 6 knobs) |
|
Click on photo for
larger view |

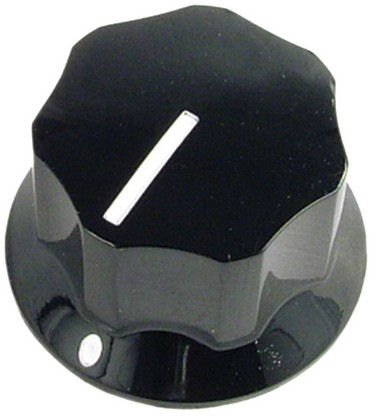

KNOB,
Mesa/Boogie™ , Vintage Black
Mesa/Boogie™ amp knob,
black color with white pointer. Includes internal brass inset. Knob is secured by set-screw, designed to fit a 1/4" shaft.
Used on F-Series Amps, Lonestar Series
Amps, Express Series Amps. Very similar to Mesa/Boogie™ part number 408015.
Part #MB-325 |
$2.95 |
|
Click on photo for
larger view |

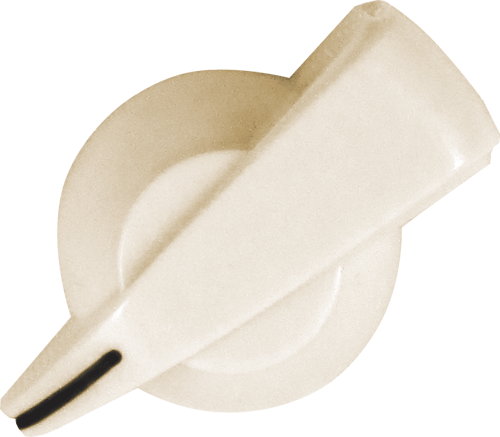

KNOB, Mesa/Boogie™ Style Chicken Head, 1/4" Set
Screw, Cream.
Used on the California Tweed Series
Amps. Fits 1/4" shaft, brass insert, with set screw.
Replaces Mesa/Boogie part number 408660.
Part #MB-640 |
$1.95 |
|
|
|
Mesa/Boogie™ Hardware
(Also see our complete line of hardware) |
|
|
|
Click on photo for
larger view
|
Choose from Black, Tan, or Havana
Brown |
|
|

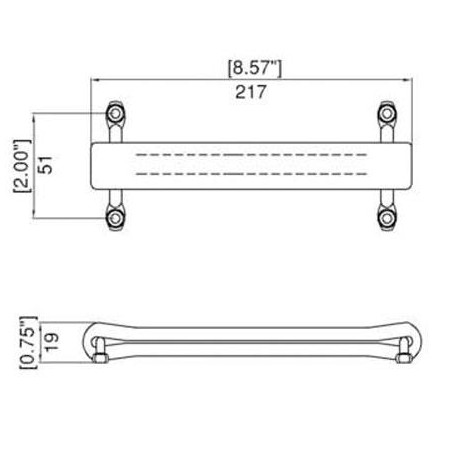

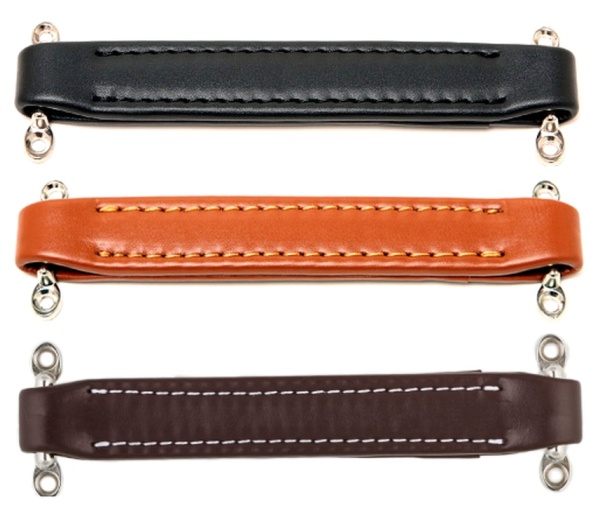

 Mesa/Boogie™ AMP HANDLE, HEAVY-DUTY STITCHED
Original Mesa/Boogie™
replacement handle. Handle
length is 8 9/16 inches (8.57"), center-to-center mounting distance is 7 3/8
inches (7.38"). Vintage Leather-look style. Available
colors: Black with black stitching, tan with tan stitching, Havana Brown
with white stitching. Nickel mounts.
More details Mounting
screws not included - use SC-403 screw pack. Choose handle color
in 'Select Color' box.
Part # MBH-X |
$16.95 |
|
|
Click on photo for
larger view
|
Choose from Black or Nickel End Caps
and Screws |
|
|

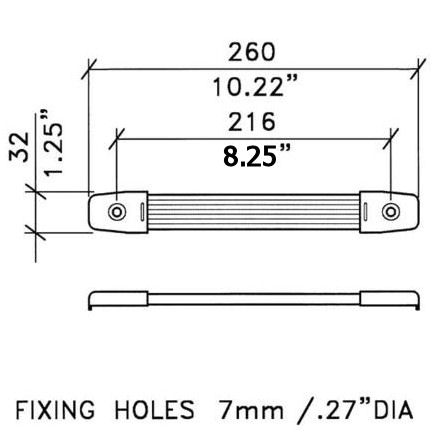

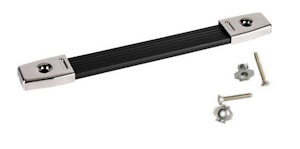

Mesa/Boogie™ AMP STRAP HANDLE KIT WITH
SCREWS,
NICKEL OR BLACK END CAPS
 Original
Mesa/Boogie™
replacement handle with hardware included.
Rugged rubber black handle strap, steel reinforced. Your choice of polished chrome
or black oxide metal caps with matching screws. Handle strap is 7/8"
wide. Designed for screw holes set 8 1/4 inches apart. Total length of handle when properly mounted is
10 1/4". Screws are 10-32 thread. Choose
end cap and screw color
in 'Select Color' box.
Part # MBH-271-X |
$12.95 |
|
Click on photo for
larger view |

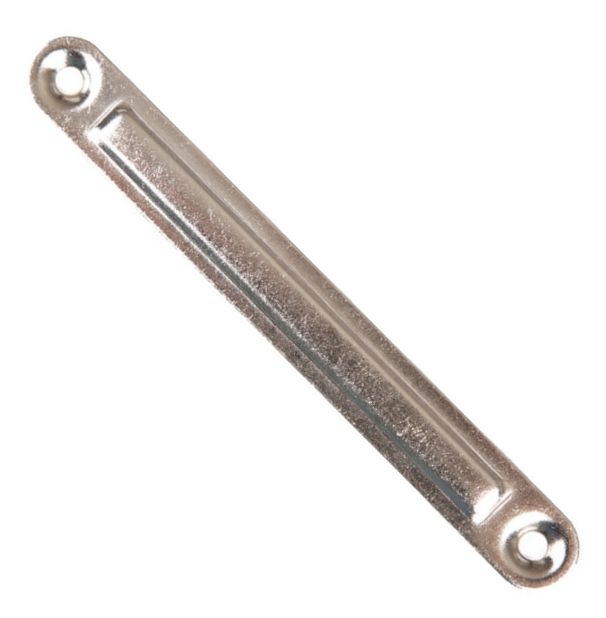

Mesa/Boogie™ Nickel Chassis Strap - Large (6"),
bright nickel finish. Single chassis strap, no screws. Screw spacing is 5.31 inches center-to-center, strap length is
6 inches
end-to-end.
Original Mesa/Boogie part number 407520. Sold individually -
ordering quantity of 1 delivers 1 strap.
Part #MBCS-6 |
$8.50
(Sold individually - One chassis strap, screws NOT included)
|
|
Click on photo for
larger view |

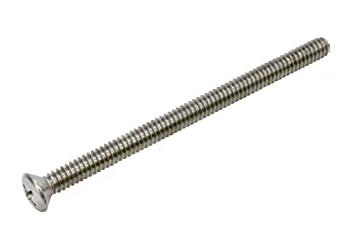

Mesa/Boogie™
Stainless Steel
Screw - 4 inches long, 10-24 thread. Used with the MBCS-6
chassis straps. Original Mesa/Boogie part number
302190. Also fits the Peavey Bandit Express.
Sold individually - ordering quantity of 1 delivers 1 screw.
Each amplifier requires a total of 4 screws.
Part #MBCB |
$1.39
(Sold individually - Each amp uses 4 screws)
|
|
Click on photo for larger view |

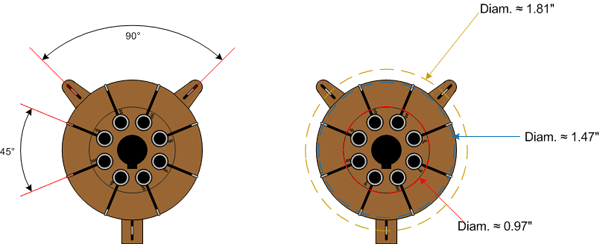

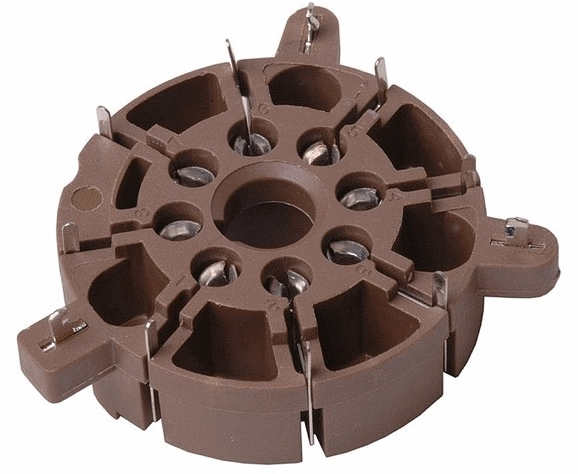

Belton 8 pin socket, Micalex,
for PC board mounting Belton 8 Pin Octal Auto Wave Solder Micalex
Socket. Very high quality. This is a specially designed socket that mounts under
the PCB. Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34
rectifier tubes.
Click here for additional specs.
Part #TS-8-BEL |
$3.99 |
|
Click on photo for larger view |

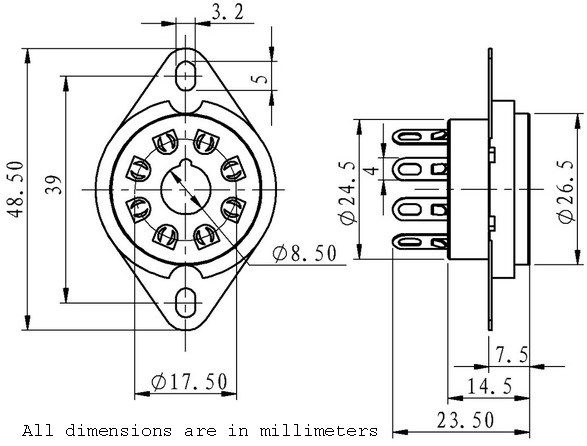

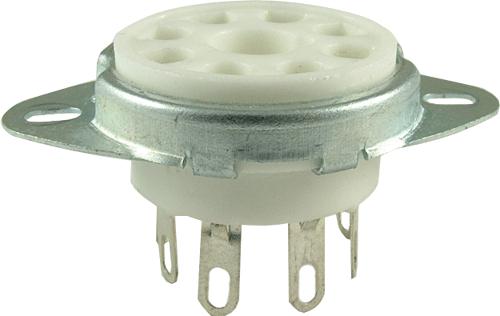

CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET,
crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting
centers, 1" to 1 1/4" chassis hole. Fits 6L6, EL34, 6V6 output tubes, and
5U4, 5Y3, and GZ34 rectifier tubes.
Click here for additional specs.
Fender part number 0990724000, or 023580.
Part #TS-8-807W |
$8.95
|
|
Click on photo for
larger view |

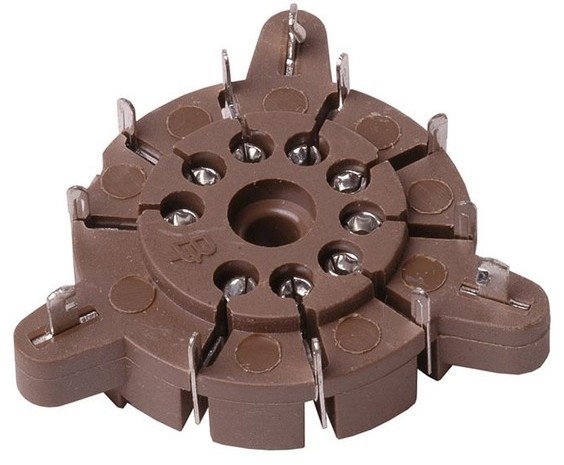

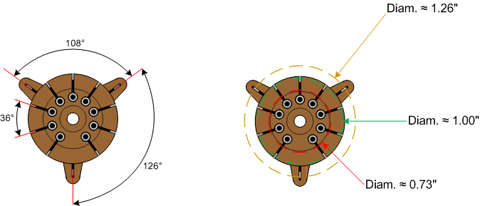

9 pin Belton Micalex socket for PC board
mounting. Mounts under the PC board. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. Used in
Mesa/Boogie™ , Peavey™
and other brands.
Click here for additional specs.
Part #TS-9-BEL |
$2.79
|
|
Click on photo for
larger view |

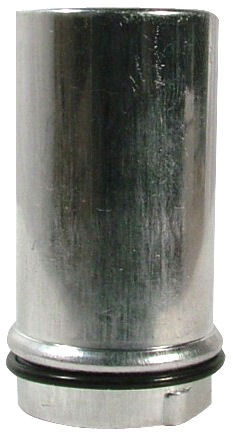

TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE FOR MATING WITH
PREFORMED CHASSIS HOLE, ALUMINUM, 2" TALL, SPRING IN TOP OF SHIELD WHICH FITS OVER the TUBE. Fits 12AX7A and similarly sized preamp tubes.
For current Mesa/Boogie models Comes with rubber gasket for sealing and noise
damping with chassis. Mesa/Boogie part number 351500.
Part #TS-601 |
$2.79 |
|
Click on photo for
larger view |

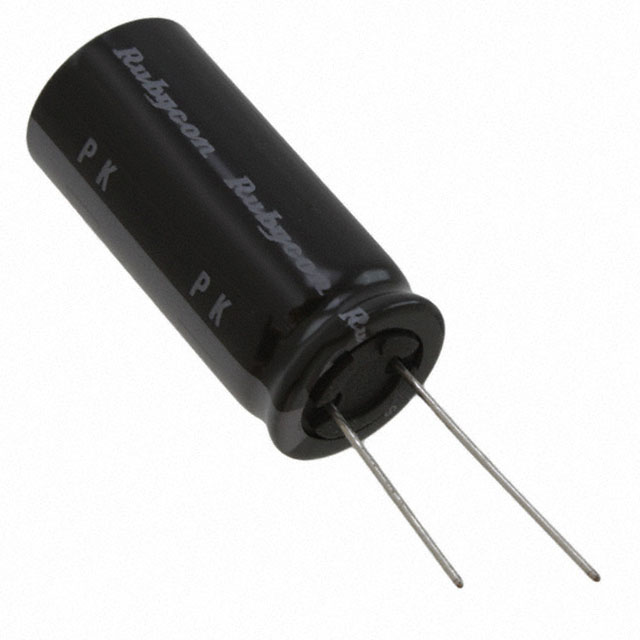

RADIAL ELECTROLYTIC
CAPACITOR, 10,000uF @ 16V. This
size filter capacitor is commonly found in amplifiers which use DC voltage on
the filaments of some of the preamp tubes. Found in Marshall™,
Mesa-Boogie™ as well as other brands. Working temperature range -40°C to
+105°C. 18mm diameter, 35mm tall (approximately 11/16" diameter X 1
3/8" tall)
Part #10000-16 |
$2.49 |
|
Click on photo for
larger view |
 CAPACITOR, F&T BRAND, AXIAL LEAD
ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)Made
in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest
capacitors available today. F&T Caps are known for their great stability and
reliability. Values available include 10uF/500V, 16uF/475V, 22uF/500V,
30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.
Choose capacitor value under the Select Option box.
F&T™ Capacitors are now part of Mersen™
Part #FT-CAP-XX |
Starting at
$4.95 |
|
Click on photo for
larger view |
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.
Used in Mesa/Boogie™ and many other amps. 1 1/2"
mounting centers. Made by Belton.
Mesa/Boogie™
part number 351500
Part #TC-142 |
$2.25
|
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE FOR MATING WITH
PREFORMED CHASSIS HOLE, ALUMINUM, 2" TALL, SPRING IN TOP OF SHIELD WHICH FITS OVER the TUBE.
Fits 12AX7A and similarly sized preamp tubes on current Mesa/Boogie™
models.
Comes with rubber gasket for sealing and noise damping with chassis.
Mesa/Boogie part number 380008.
Part #TS-601 |
$2.79 |
|
Click on photo for
larger view |

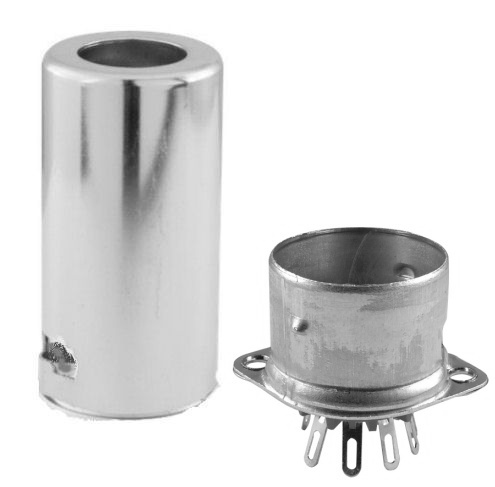

TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL
WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE . Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. 9-Pin tube
socket is made of sturdy Micalex. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Requires 3/4" hole in chassis. Solder lugs for wire connection to tube
socket.
Shield, base and socket.
Part #TS-370 |
$4.99 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.
Includes new base, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Shield and base only - socket not included.
Part #TS-325S |
$2.29 |
|
Click on photo for
larger view |

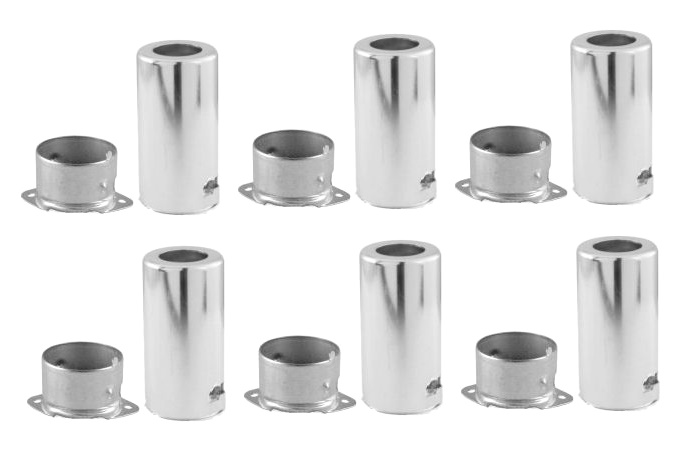

TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL,
SET OF 6.
Includes new bases, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
This is a great kit to replaced all 6 of the tube shields in many Fender™ amps
with 6 preamp tubes. Shield and base only - socket not included.
Part #TS-325S-6 |
$12.95 |
|
Click on photo for
larger view |
 Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR AT EQUIPMENT END. Mesa/Boogie part number 700915, 6 ft cord
for domestic bass amplifiers with detachable power cables.
Standard NEMA 5-15 plug for North American
use at 110-120 Volts AC. IEC connector at equipment end.
Used only in North America.
Part #PC-300 |
$6.95 |
|
Click on photo for
larger view |
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.
Replaces Mesa/Boogie part number 700915, 10 ft cord for domestic
amplifiers with detachable power cables.
Standard NEMA 5-15 plug for North American
use at 110-120 Volts AC. IEC connector at equipment end.
Used only in North America.
Part #PC-600 |
$10.95 |
|
Click on photo for
larger view |

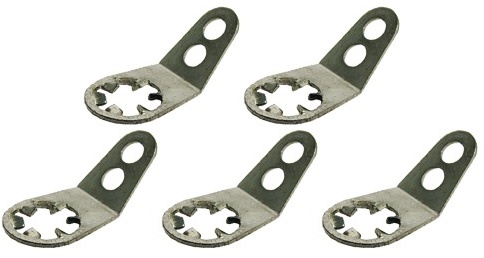

Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust. Used to connect a ground wire to a screw and nut on a chassis.
Angled,
with two holes for soldering wires. With built-in lock washer to keep the screw
and nut from loosening. Designed for a #8 size screw.
Pack of 5 terminals.
Part #GL-113 |
$1.39
(Pack of 5 terminals)
|
|
Click on photo for
larger view |

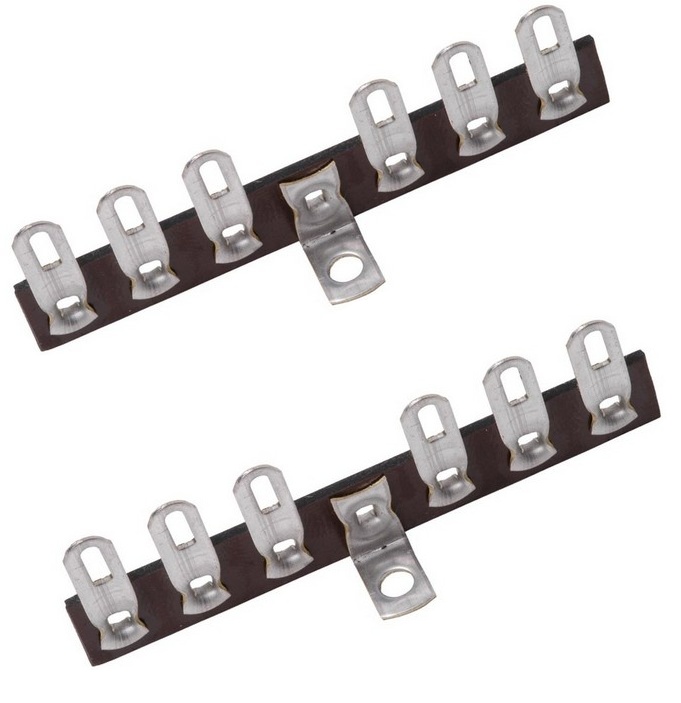

TERMINAL STRIPS, 6 LUG, SET OF
2. Perfect for amplifier circuit additions or modifications.
Center post for mounting to chassis. All 6 terminals are isolated
from ground. Each terminal strip is 2-5/8 inches
long. The lugs are set on 3/8 inch centers. Each lug
will accept wires up to 16ga - smaller gauge allows multiple wires to be
connected to each lug. Set contains 2 terminal strips as pictured.
Mounting hardware not included.
Part #TS-825 |
$2.99
(for a set of 2 terminal strips) |
|
Click on photo for
larger view |

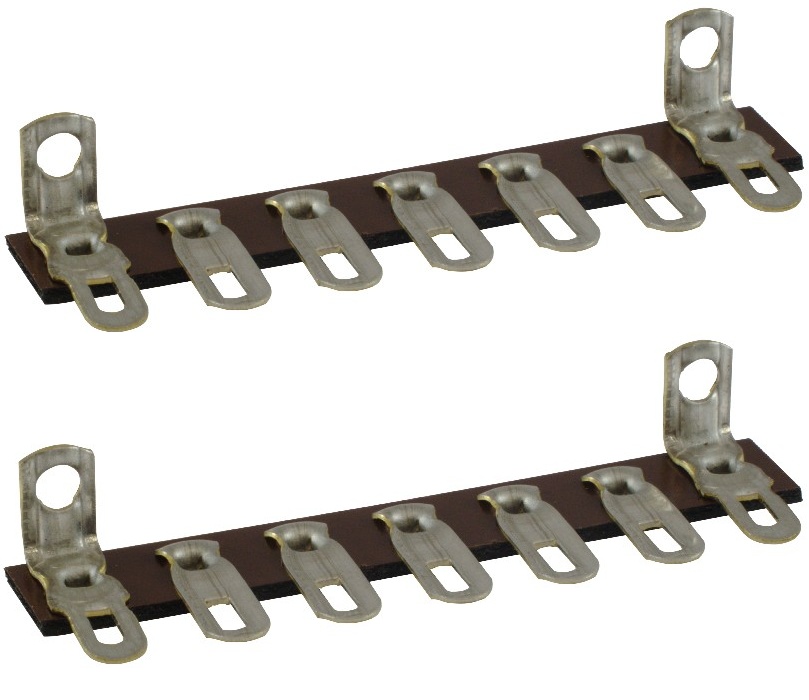

TERMINAL STRIPS, 7 LUG, SET OF
2. Perfect for amplifier circuit additions or modifications.
End terminals on each strip are the mounting lugs, so they become a ground lug
if attached to a metal chassis. Each terminal strip is 2-5/8 inches
long. The lugs are set on 3/8 inch centers. Each lug
will accept wires up to 16ga - smaller gauge allows multiple wires to be
connected to each lug. Set contains 2 terminal strips as pictured.
Mounting hardware not included.
Part #TS-712 |
$3.69
(for a set of 2 terminal strips) |
|
Click on photo for
larger view |

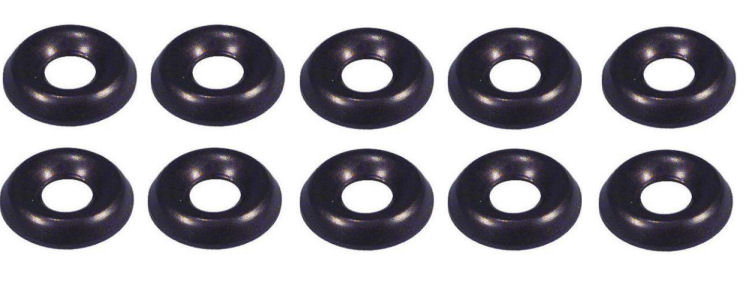

CUP WASHER, BLACK METAL, PACK OF 10. Used with #8 Black screws, on
amps and speaker cabinets.
Part #BCW-10 |
$2.49
(pack of 10) |
|
Click on photo for
larger view |

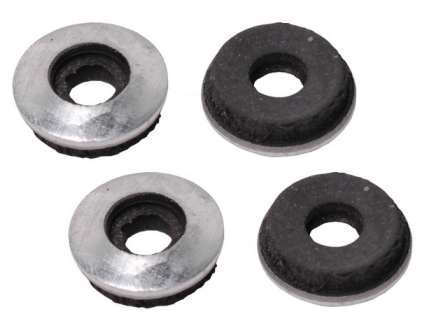

ISOLATION WASHER - 3/8" - For #8 Screws
3/8" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #8 screws. Ideal for vintage Fender
amps with #8 speaker mounting screws. Set of 4 washers.
Part #SIW-38-4 |
$0.59
(For a set of 4 washers) |
|
Click on photo for
larger view |
ISOLATION WASHER - 1/2" - For #10 Screws
Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #10 screws, such as a 10-32 machine screw. Set of 4 washers.
Part #SIW-50-4 |
$0.69
(For a set of 4 washers) |
|
Click on photo for
larger view |
BLACK PAN-HEAD WOOD SCREWS, #6 X 3/4", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #6 screw, 3/4 inch
long, pack of 10.
Part #SCR-435 |
$0.79
(pack of 10) |
|
 |
BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #8 screw, 1/2 inch
long, pack of 10.
Part #BWS8-5 |
$0.99
(pack of 10) |
|
 |
BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #8 screw, 3/4 inch
long, pack of 10.
Part #BWS8-75 |
$1.10
(pack of 10) |
|
 |
BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10. Deep
threads, sharp point, pan head with Philips drive. #8 screw, 1 inch long,
pack of 10.
Part #BWS8-1 |
$1.25
(pack of 10) |
|
 |
BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.
Deep threads, sharp point, pan head with Philips drive. #8 screw, 1-1/2
inches long, pack of 10.
Part #BWS8-15 |
$1.39
(pack of 10) |
|
Click on photo for
larger view |

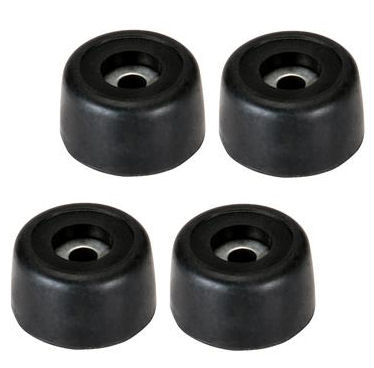

MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. USED ON: Dual Rectifier Heads, Roadster
Head, Recto-Verb 25 Heads, Solo 50 Heads
Stiletto Deuce Heads, Stiletto Trident Heads, Triple Rectifier Heads. 1" diameter x
5/8" tall. Mounting
screws not included.
Part #BRF-1692
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
LARGE
BLACK RUBBER FEET, SET OF 4. Used on All Combo Guitar Amps, All
Guitar Extension Cabs, Subway Bass Cabs, Traditional/Vintage Powerhouse Series -
1x12, 2x10, 2x12, 4x10, 1x15, 1x12, All Bass Heads,
DC Series Heads, Electra-Dyne Heads, Express & Express Plus Heads, F-Series
Heads
Heartbreaker Heads, Lone Star & Lone Star Special Heads, Mark Series Heads,
Maverick Heads, Mini Rectifier Heads, RA100 Head
Recto-Verb 50 Heads, Road King Heads, Stiletto Ace Heads, TA15 Heads, TA30
Heads, Triple Crown Heads, WalkAbout Combos. Screws not included -
use BWS8-1 as mounting screw on cabinets. Mesa/Boogie part number
424539.
Part #MBF-9107 |
$7.95
(pack of 4) |
|
Click on photo for
larger view |

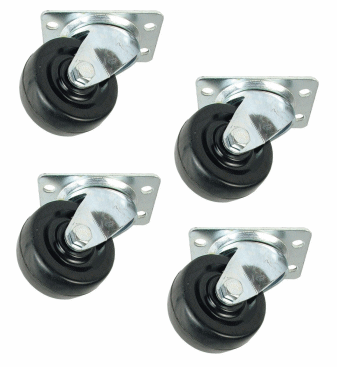

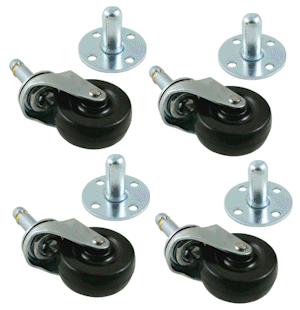

Fender™ Style Flat Mount 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.
Wheels 2" in diameter. Specifications found
here. Note:
Mounting screws NOT included.
Part #FCW-4F |
$29.95
(Set of 4 casters)
NOT SOLD OUTSIDE the USA |
|
RED
Click on photo for
larger view |

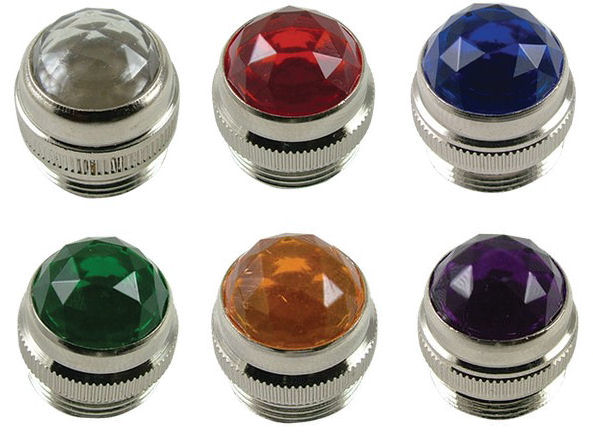

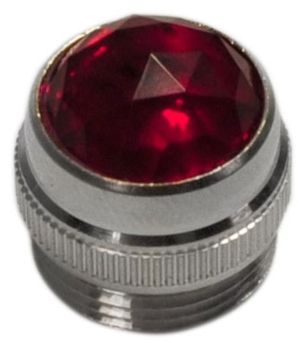

REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many
others. Red - traditional color for pilot lamps.
Part #JL-115R |
$2.99 |
|
AQUA
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many
others. AQUA - the latest addition to jewel colors! Aqua
is a greenish blue, similar to cyan or light turquoise. Replaces Fender™
part number 0990949000.
Part #JL-115Q |
$4.65 |
|
VIOLET
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. Violet - just plain cool!
NOTE: When illuminated by the bulb, this
violet jewel tends to have a hue slanted toward the red spectrum, so some call
the look a reddish-pinkish-violet color. If you like violet/purple
and want it toward the warmer end of the color spectrum, this is the jewel for
you. If you like it more bluish - toward the cooler end of the
violet color zone, choose the purple jewel JL-115P below instead.
Part #JL-115V |
$2.99 |
|
PURPLE
Click on photo for
larger view |

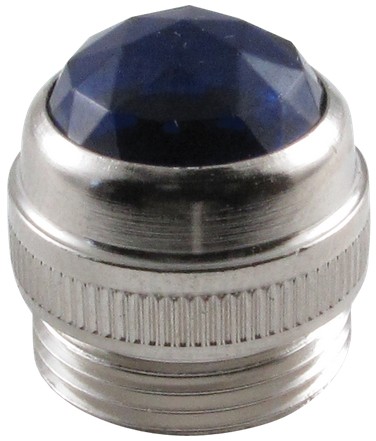

REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. Purple - just plain cool! Replaces Fender™ part number 0990953000.
NOTE: To the naked eye, this jewel looks
blue until you put it in front of the P-47 bulb. The bulb has an
amber tint to it, so the combo makes the jewel glow purple. When
illuminated by the bulb, this purple jewel tends to have a hue slanted toward
the blue spectrum, so some call the look a bluish-purple color. If
you like violet/purple and want it toward the cooler end of the color spectrum,
this is the jewel for you. If you like it more reddish - toward the
warmer end of the violet color zone, choose the violet jewel JL-115V above instead.
IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE
INSTEAD OF PURPLE.
Part #JL-115P |
$4.65 |
|

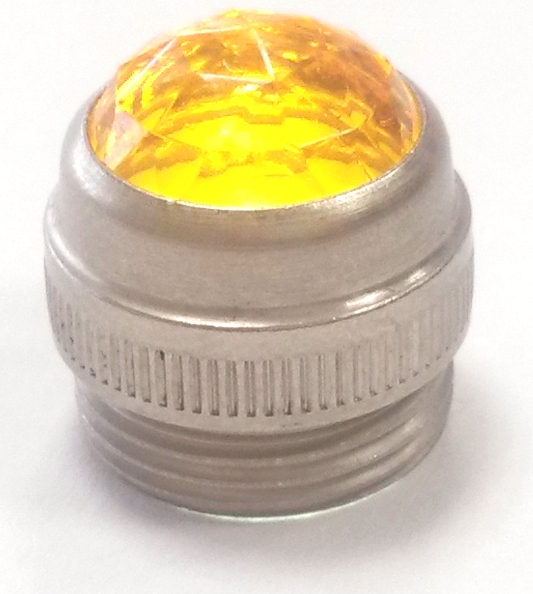

AMBER
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. AMBER.
Part #JL-115A |
$2.99 |
|
GREEN
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. GREEN.
Part #JL-115G |
$2.99 |
|
BLUE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. BLUE. NOTE: Due to
the orange glow of the bulb normally used behind this jewel, the resulting color
is not a pure brilliant blue ... head on, it looks like a somewhat washed-out
blue, and from a side angle, it looks more like purple. This is not
the fault of the jewel, but rather the combination of the blue color of the
jewel combined with the orange glow of the bulb. If used with a pure white
light (such as a white LED), the resulting look is a deep blue color.
Part #JL-115B |
$2.99 |
|
CLEAR
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. CLEAR.
Part #JL-115C |
$2.99 |
|

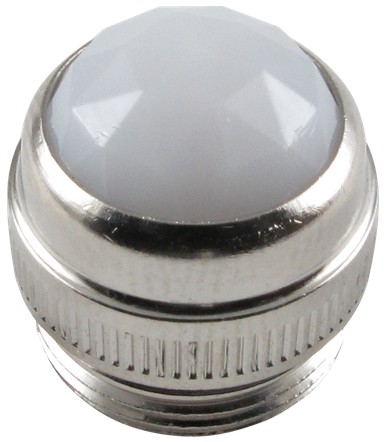

WHITE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. WHITE.
Part #JL-115W |
$4.65 |
|
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa/Boogie™ , many
others. Kit of 6 jewels - change your light color as often as you
like. Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115 |
$14.99 |
|
Click on photo for
larger view |
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.
6.3V
Part #P-47 |
$0.99 |
|
|
|
Mesa/Boogie™
Electronics |
|
|
Click on photo for
larger view |

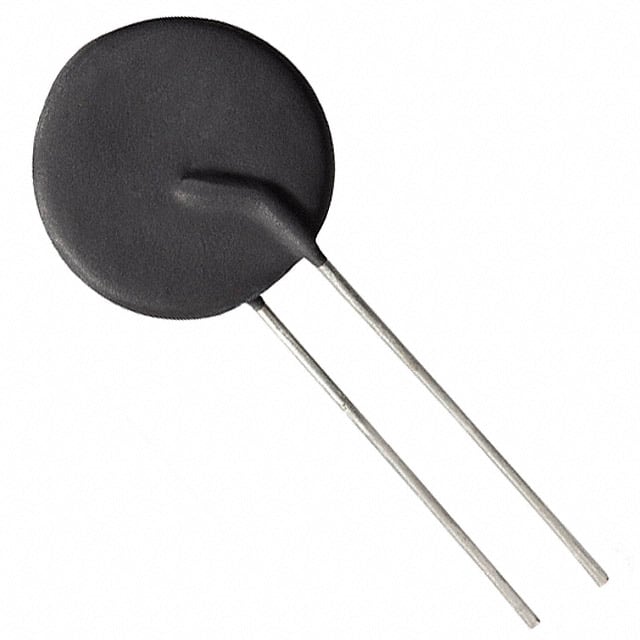

10 OHM, 5A NTC (Negative
Temperature Coefficient) type Thermistor.
Fender part number 028503. Used in many Fender amp models
since the 1990s. Also used in some Mesa Boogie amps. It is installed in series in a circuit
between the transformer and incoming AC power. This thermistor is rated for
5A maximum current, and is 19mm in diameter. By limiting
inrush current, it protects the transformer and other components in the power
supply at turn-on. This thermistor should only be used on amps which
have a 5 amp fuse or less.
Download data sheet here.
Part #CL-60 |
$3.99
(each) |
|
Click on photo for
larger view |
 Revisit™
VTL5C1 OPTO-ISOLATOR
Replaces VTL5C1 from Vactec or Excelitas at an
affordable price. Used in many Mesa/Boogie™ and Crate models in the channel
switching circuit. 100dB dynamic range, fast response (2.5ms
turn-on), very high dark resistance (50 M Ohm). Light resistance 200 Ohms
at 20mA LED current. See datasheet here.
Part #VTL5C1 |
$4.95 |
|
Click on photo for
larger view |

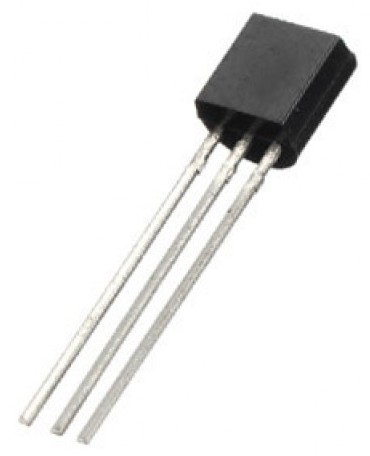

J111 JFET N-CHANNEL
General replacement N-Channel Field Effect Transistor (FET).
Used for analog switching in many Mesa/Boogie models.
Download datasheet here.
Part #J111 |
$0.99 |
|
Click on photo for
larger view |
J175 JFET P-CHANNEL (ALSO SUBS FOR J174)
General replacement p-Channel Field Effect Transistor (FET).
Used for analog switching in many Mesa/Boogie models. Also
can be used in place of the J174 JFET.
Download datasheet here.
Part #J175 |
$0.99 |
|
 |
Mesa/Boogie™ Relay. 12V DC DIP Relay, 12V, 8.3mA
coil, DPDT. Used for channel switching in a variety of Mesa/Boogie™ models.
Replaces NEC part number RSP05H2C12S1. Check coil voltage on existing relay to
ensure compatibility.
Part #MB-RLY-12 |
$9.95 |
|
|
|
Mesa/Boogie™ Relay.
5V DC DIP Relay, 12V, 8.3mA
coil, DPDT. Used for channel switching in a variety of Mesa/Boogie™ models.
Replaces NEC part number RSP05H2C05S1. Check coil voltage on existing relay to
ensure compatibility. Mesa Boogie 518006A.
Part #MB-RLY-5 |
$9.95 |
|
|
|
Mesa/Boogie™
Switches |
|
|
Click on photo for
larger view |
ROCKER
SWITCH, MESA/BOOGIE, BASS 400+
1/4" push-on terminals.
Made for 1.07" H x 0.88" W mounting hole. Rated 20A @ 125VAC.
15A @ 250VAC. Used for Power or Standby on the Bass 400+. Original
Mesa/Boogie
part number 600505.
Part #SW-547 |
$7.99 |
|
Click on photo for
larger view |

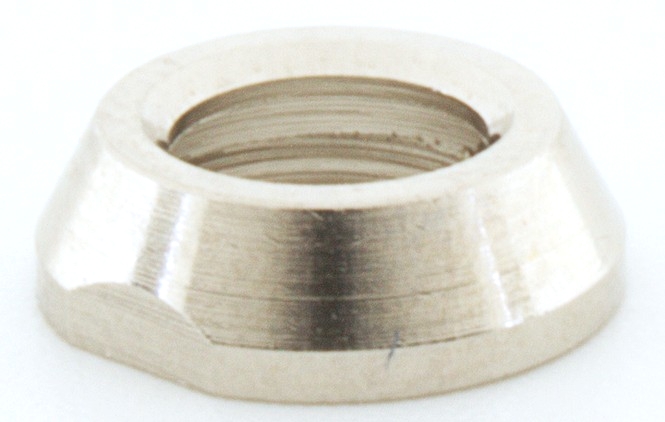

Genuine Carling Technologies dress nuts for use
with all mini toggle switches. These plated dress nuts feature a chamfered
edge for a professional look and work on any 15/32-32 UNS threaded bushing.
Note: The dress nut will only tighten down to the point where the threads
of the switch have reached the top of the nut. To use this nut
properly, adjust the back nut on the switch to allow 1/8 inch or 3.4mm thread
extension beyond the panel. Two sides are flatted for use with a tool when
fastening.
Part #DN-154 |
$0.79 |
|
ON-ON
DPDT
Click on photo for
larger view |
SWITCH, MINI DPDT TOGGLE, ON-ON SWITCHING (NO CENTER OFF POSITION),
LONG BAT HANDLE.
Used as two position mini toggle switches on front panels of many Mesa/Boogie
amps. 6 solder lug terminals, 2 position switch.
Part #SW-MTS-D11 |
$2.95 |
|
ON-OFF-ON
DPDT
Click on photo for
larger view |
SWITCH, MINI DPDT TOGGLE, ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION),
LONG BAT HANDLE.
Used as three position mini toggle
switches on front panels of many Mesa/Boogie amps. 6 solder lug terminals,
3 position switch.
Part #SW-MTS-D101 |
$2.95 |
|
ON-ON
SPDT
Click on photo for
larger view |
SWITCH, MINI SPDT TOGGLE, ON-ON SWITCHING (NO CENTER OFF POSITION),
LONG BAT HANDLE.
Used as two position mini toggle switches on front panels of many
Mesa/Boogie amps. 3 solder lug terminals, 2 position switch.
Part #SW-MTS-S11 |
$1.95 |
|
ON-OFF-ON
SPDT
Click on photo for
larger view |
SWITCH, MINI SPDT TOGGLE,
ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION),
LONG BAT HANDLE.
Used as three position mini toggle
switches on front panels of many Mesa/Boogie amps. 3 solder lug terminals,
3 position switch.
Part #SW-MTS-S101 |
$1.95 |
|
ON-OFF-ON
SPDT
Click on photo for
larger view |

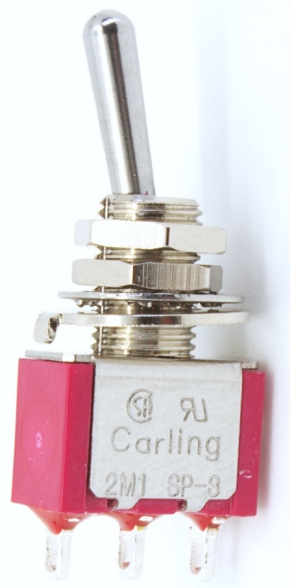

SWITCH, CARLING™ TECHNOLOGIES MINI SPDT TOGGLE, USED IN GUITARS FOR SPECIALTY PICKUP SWITCHING (COIL TAP, ETC.). ALSO USED IN SOME ELECTRONICS GEAR (EFFECTS, ETC) SOLDERED WIRE TYPE TERMINALS. ON-OFF-ON SWITCHING (CENTER OFF POSITION).
0.354" Bushing length
1/4" Mounting hole
Solder lugs
High quality Carling™ brand
Part #SW-MTS-S101-CAR |
$4.95 |
|
ON-OFF-ON
SPDT
Click on photo for
larger view |

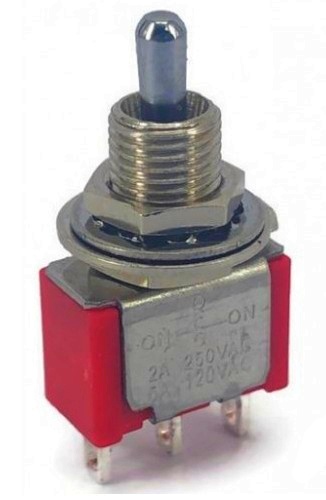

SWITCH, MINI SPDT TOGGLE,
ON-OFF-ON SWITCHING (WITH CENTER OFF POSITION),
SHORT BAT HANDLE.
Used as three position mini toggle
switches on front panels of many Mesa/Boogie amps. 3 solder lug terminals,
3 position switch with short bat handle lever.
Part #SW-MTS-S101-SL |
$1.95 |
|
ON-ON
SPDT
Click on photo for
larger view |

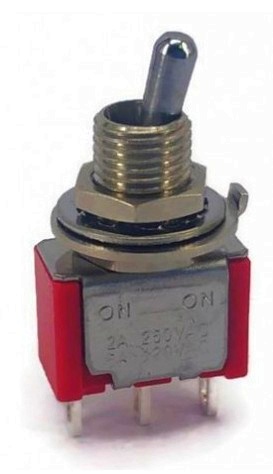

SWITCH, MINI SPDT TOGGLE,
ON-ON SWITCHING,
SHORT BAT HANDLE.
Used as two position mini toggle
switches on front panels of many Mesa/Boogie amps. 3 solder lug terminals,
2 position switch with short bat handle lever.
Part #SW-MTS-S11-SL |
$1.95 |
|
ON-OFF-ON
DPDT
Click on photo for
larger view |
SWITCH, MINI DPDT TOGGLE,
ON-ON SWITCHING,
SHORT BAT HANDLE.
Used as two position mini toggle
switches on front panels of many Mesa/Boogie amps. 6 solder lug terminals,
2 position switch with short bat handle lever.
Part #SW-MTS-D11-SL |
$1.95 |
|
|
|
Mesa/Boogie™ Jacks
(Also see our complete line of jacks) |
|
|
Click on photo for
larger view |

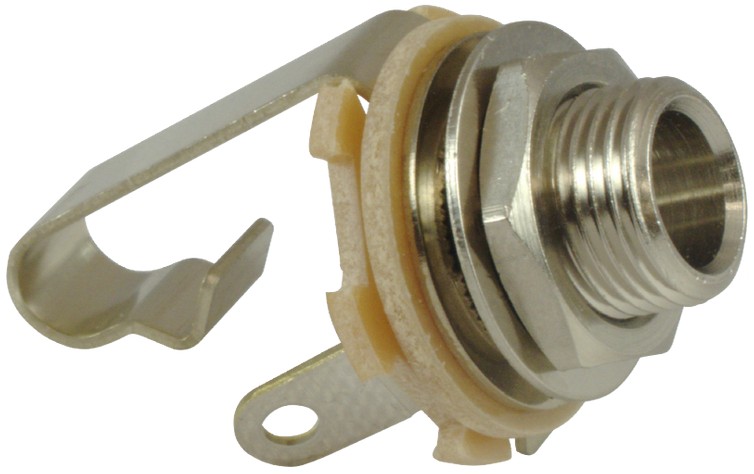

JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output. Includes nut and washer.
Part #J-11 |
$4.29 |
|
Click on photo for
larger view |

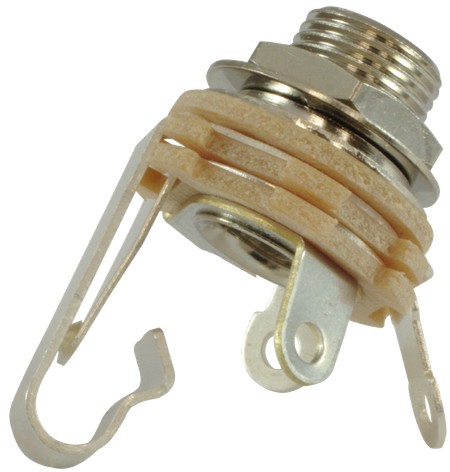

 JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Found in vintage Fender™ (and other) amps as the input jack.
Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main
speaker out jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550). Peavey part number 71466004.
Part #J-12A |
$4.79 |
|
Click on photo for
larger view |

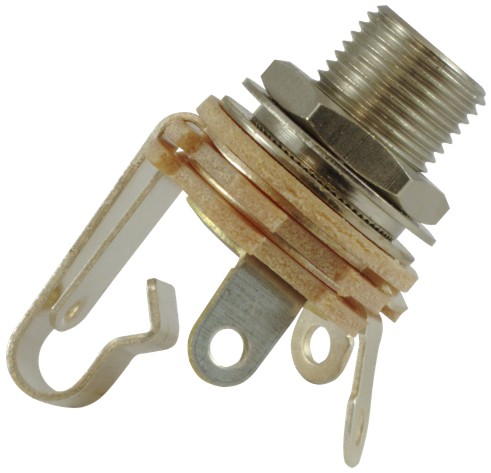

JACK, 1/4", MONO, CLOSED CIRCUIT
(SHORTING), WIRED, Switchcraft™, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L12A |
$5.50 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING. Switchcraft™
Used with for special switching applications  - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection. Used in some vintage amplifiers, including some early Fender™ models.
Isolated switch is normally open - closes when a plug is inserted.
Part #J-13 |
$10.50 |
|
Click on photo for
larger view |

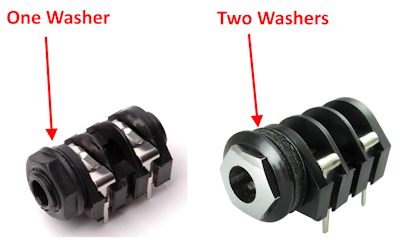

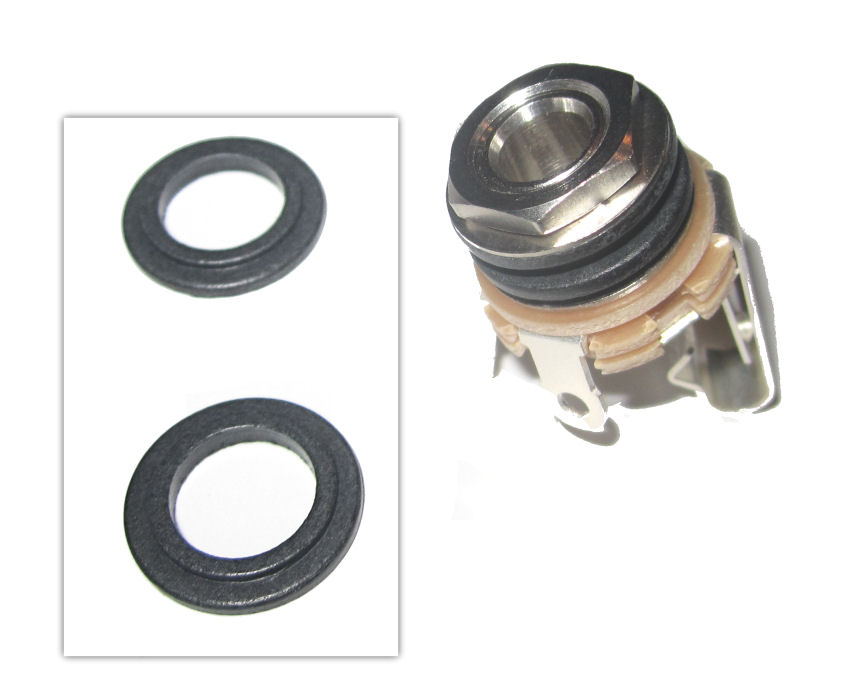

WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and
chrome nut jacks to provide proper spacing. Jacks come with the
washers included, but the washers are easily lost. Without the washers,
the jacks will not fit properly.
Part #W-583 |
$0.18
for each washer.
(Jacks not included). |
|
Click on photo for
larger view |

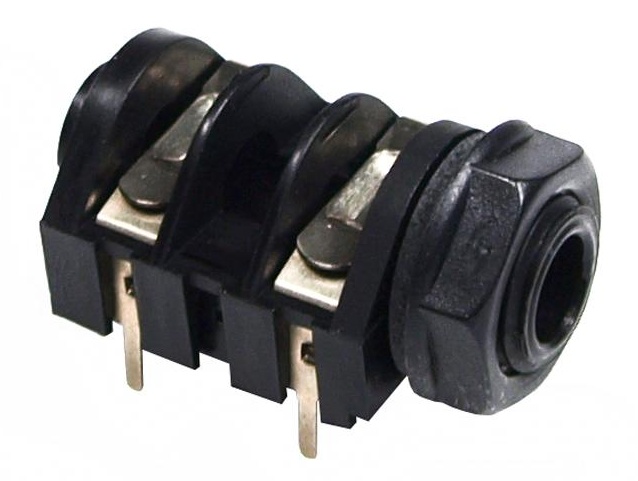

JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE
4 PC board terminals, switched. Used in many brands of amps and other equipment. With nut and washer.
Part #J-503 |
$1.99 |
|
Click on photo for
larger view |

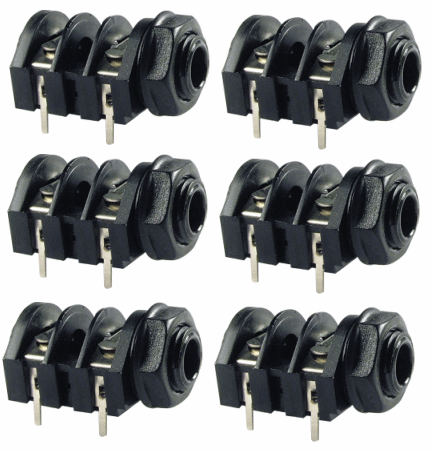

SAVE WITH MULTIPACK! JACK, 1/4", MONO PC MOUNT PLASTIC,
BRITISH STYLE,
PACK OF 6
4 PC board terminals, switched. Used in many brands of amps and other
equipment. Pack of 6 jacks, with nuts and washers.
Part #J-503-6 |
$9.99
(Set of 6 jacks) |
|
Click on photo for
larger view |

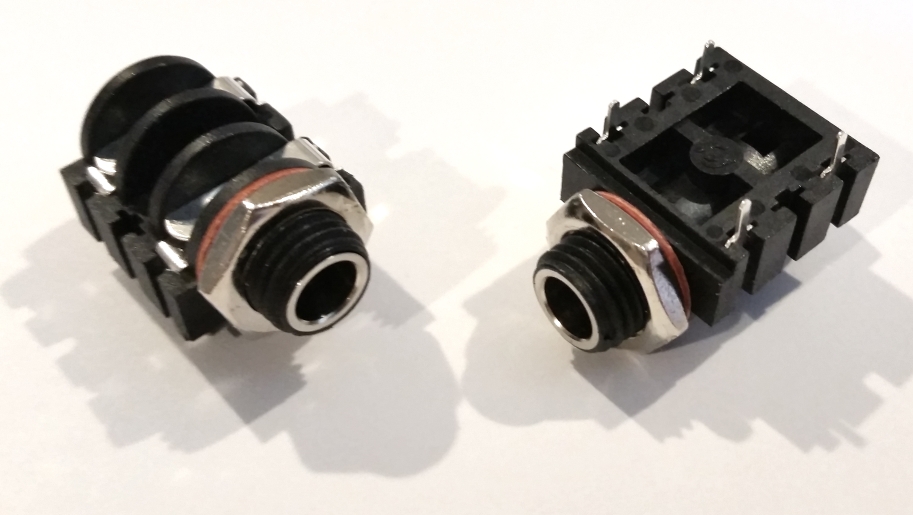

 JACK,
1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
4 PC board terminals, switched. Used in newer Mesa/Boogie™ amps, including
the Rosette, Mini Rectifier, Mark 5:Twenty-Five, etc.
Part #J-603 |
$2.79
(per jack) |
|
Click on photo for
larger view |

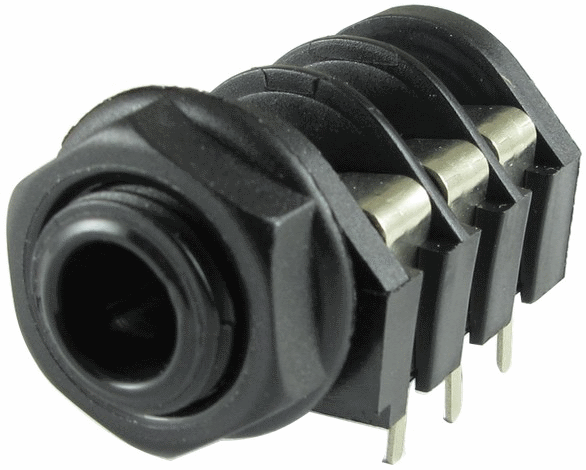

JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE
Stereo jack. 6 PC board terminals, switched. With nut and washer.
British style.
Part #J-504 |
$2.15 |
|
Click on photo for
larger view |

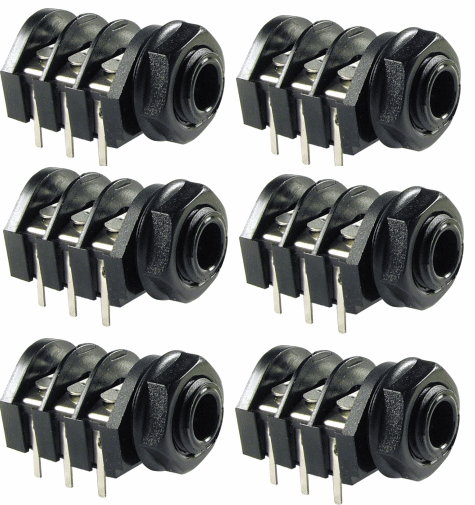

SAVE WITH MULTIPACK! JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE,
PACK OF 6
Stereo jack. 6 PC board terminals, switched. Pack of 6 jacks, with
nuts and washers.
Part #J-504-6 |
$10.99
(Set of 6 jacks) |
|
|
Click on photo for
larger view |

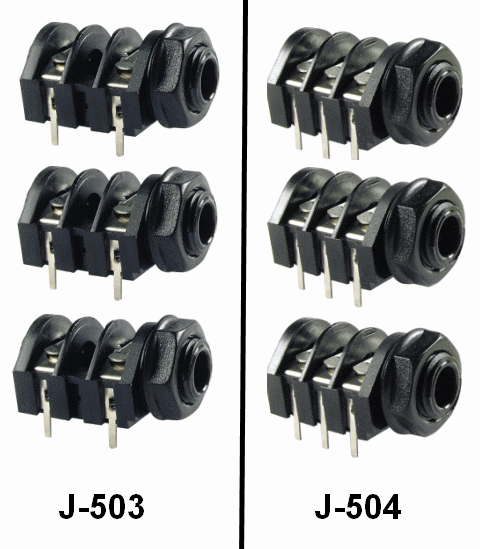

SAVE WITH
OUR
MULTIPACK ASSORTMENT! THIS PACK CONTAINS THREE J-503 (4 PIN) AND THREE J-504 (6-PIN)
JACKS.
Many amps contain both the 4 pin and the 6 pin British jacks. This
assortment gives you 3 of each jack ... Three J-503, and three J-504.
Part # J-5034-6 |
$10.49
(For 3 J-503 Jacks and 3 J-504 Jacks)
|
|
Click on photo for
larger view |

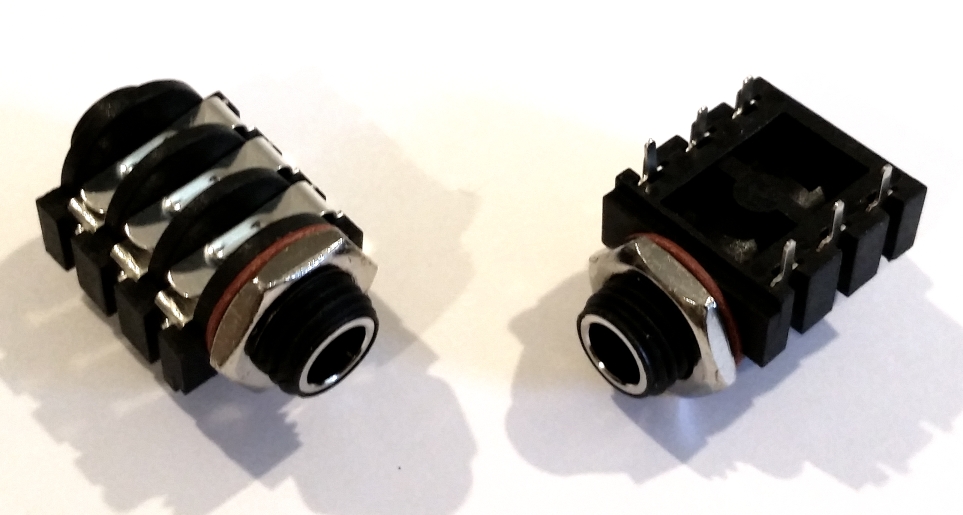

JACK,
1/4", STEREO PC MOUNT PLASTIC, BRITISH STYLE WITH NICKEL NUT AND CHROME TRIM RING
6 PC board terminals, switched. Used in newer Mesa/Boogie™ amps,
including the Rosette, Mini Rectifier, Mark 5:Twenty-Five, etc.
Part #J-604 |
$2.99
(per jack) |
|
Click on photo for
larger view |

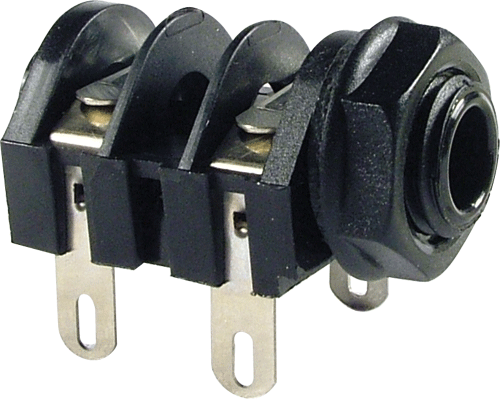

JACK, 1/4", MONO PLASTIC,
BRITISH STYLE, SOLDER TERMINALS, REPLACEMENT FOR Marshall™
4 solder terminals, switched. Used in "hand-wired" amps. With nut and washer.
Part #J-502 |
$3.29 |
|
Click on photo for
larger view |

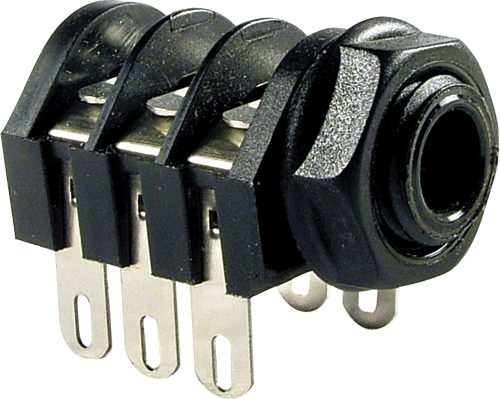

JACK, 1/4", STEREO PLASTIC,
BRITISH STYLE, SOLDER TERMINALS, REPLACEMENT FOR Marshall™
6 solder terminals, switched. Used in "hand-wired" amps. With nut and washer.
Part #J-505 |
$3.59 |
|
Click on photo for
larger view |
JACK NUT, PLASTIC,
BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Note: Replaces most black plastic jack nuts EXCEPT for
Roland. Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and
J-504L jacks. Also fits the J-518 and J-519 jacks.
Part #J-5NT |
$0.50 |
|
Click on photo for
larger view |

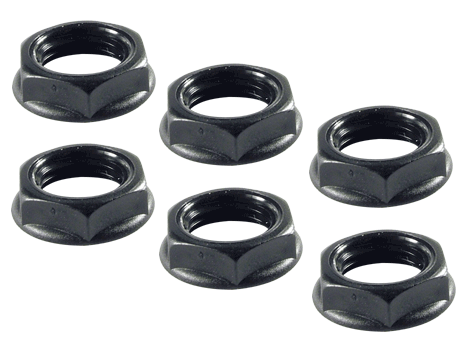

JACK NUT MULTI-PACK - SAVE!
6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.
Note: Replaces most black plastic jack nuts EXCEPT for
Roland. Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and
J-504L jacks. Also fits the J-518 and J-519 jacks.
Part #J-5NT-6 |
$2.39
(For a pack of 6 nuts) |
|
Click on photo for
larger view |

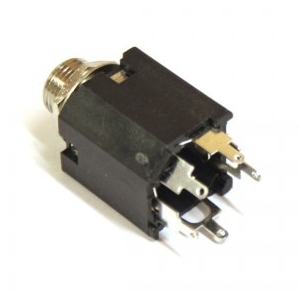

ECONOMY JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
 Both tip and
ring conductors are switched (normally closed). 5 pins. Used in Peavey™,
Mesa/Boogie, Mackie and
many other brands.
Replaces Switchcraft 114BPCX and 114BPCSX. Nut and washer included.
Part #J-529 |
$2.99 |
|
Click on photo for
larger view |

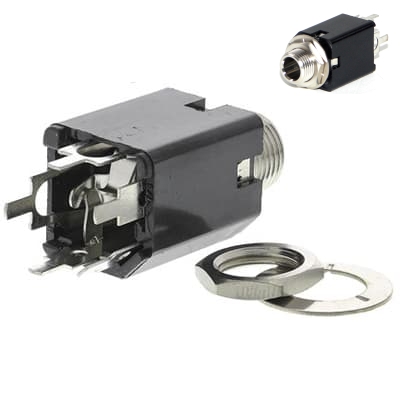

JACK, 1/4", STEREO, CLOSED CIRCUIT, PC
BOARD MOUNTING, Switchcraft™,
METAL BUSHING
Common PC mount jack in guitar amps, mixers, etc. 5 pins for
inserting into PC board,
stereo, tip and ring shunt. Shield tied to chassis mount. Often used
for headphone jacks, insert jacks, FX loop jacks, etc. Nut
and washer included. Genuine Switchcraft™.
Part #J-114B-PC |
$6.95 |
|
Click on photo for
larger view |

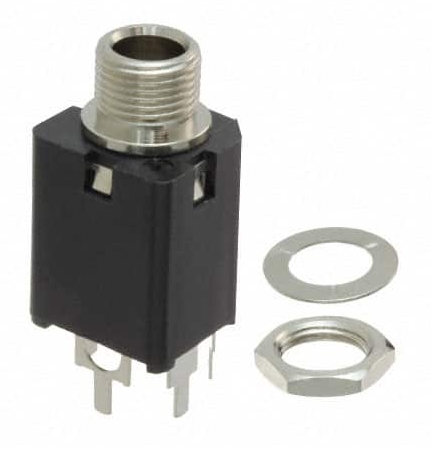

JACK, 1/4", CLOSED CIRCUIT
STEREO, PC BOARD MOUNTING, Switchcraft™,
METAL BUSHING
Tip is switched
 (normally
closed), ring conductor is not switched. 4 pins for inserting into PC
board, metal bushing. Nut and washer included. Genuine Switchcraft™
Part #J-113B-PC |
$6.95 |
|
Click on photo for
larger view |

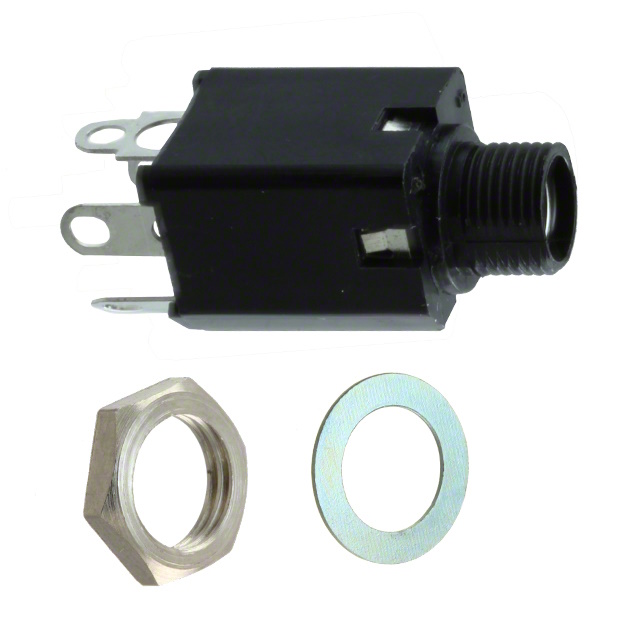

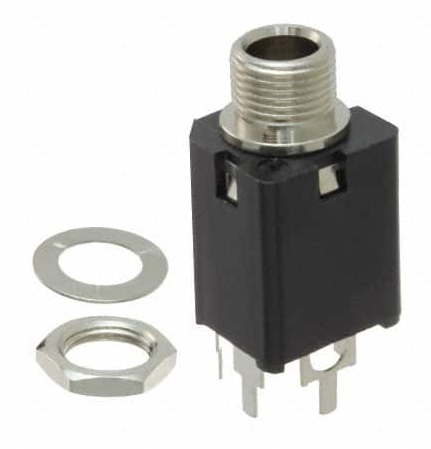

JACK, 1/4", CLOSED CIRCUIT
STEREO, PC BOARD MOUNTING, Switchcraft™,
METAL BUSHING
 Tip is
open, ring is switched (normally
closed). 4 pins for inserting into PC board, metal bushing. Unusual arrangement
used in special applications. Nut and washer included. Genuine Switchcraft™
Part #J-113F-PC |
$6.95 |
|
 |
JACK NUT AND WASHER, METAL,
SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot,
Mesa/Boogie™ pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38 |
$0.89
(Set of 1 washer and 1 nut) |
|
Click on photo for
larger view. Jack is in the picture to demonstrate how the washers
are installed - jack is NOT included with the washers. |

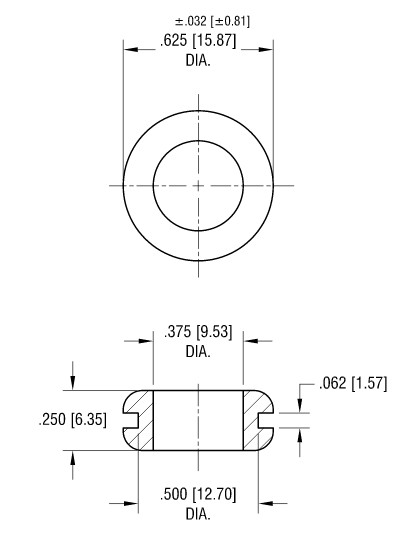

INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal
bushings. Used to mount standard jacks in a 1/2" diameter chassis
hole, while insulating the metal bushing (ground) of the jack from the chassis.
ID 3/8", OD 1/2". Works great when replacing isolated plastic jacks with a
more durable metal jack, which is frequently done on the input jacks of the
Fender™ Hot Rod Deville/Deluxe and Blues Deville/Deluxe. Two washers
are used on each jack, and the "shoulders" are placed facing each other through
the chassis. The washers not only isolate the ground of the jack
electrically for noise reduction, but also stabilize the jack in the 1/2"
diameter hole. Jack shown in picture NOT included. Works
well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13,
J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069 |
$0.49
(For a pair of washers. Each jack needs two washers.) |
|
Click on photo for
larger view |
Revisit™
SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair,
black and white. Terminated at each end in standard 3/16" speaker
fast-on connectors. Great for connecting speakers in parallel in
2x12 or 4x12 cabinets. 24 inches (61 cm) long. Made in
USA.
Part #SJ-150 |
$5.99 |
|
Click on photo for
larger view |

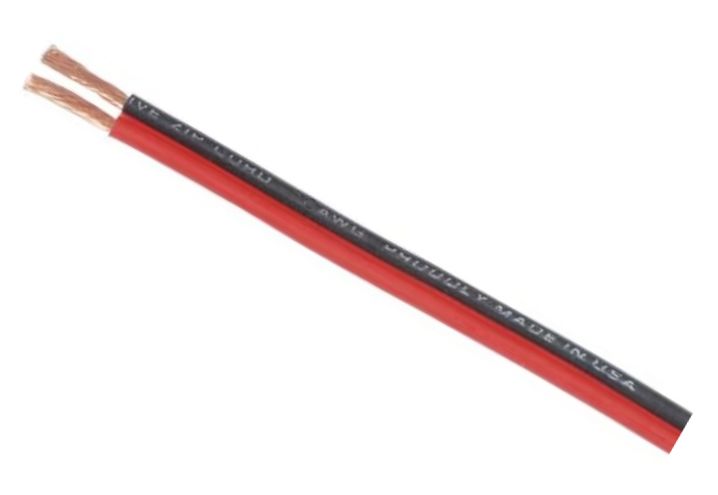

Revisit™ 18 GAUGE COPPER BONDED RED/BLACK ZIP CORD
Make low-cost, efficient speaker cables with this color-coded 18 gauge dual zip
cord. Red and black for easy polarity identification. Resistance
is 0.0097 ohms/ft.
Automotive grade "GPT" PVC insulation, oil and gas resistant, rated
for -20 deg F to +160 deg F. Also perfect
for bias testers, radio, home theatre, automotive, stereo, robotics, and model
train applications. Priced per foot, sold in lengths from 1 foot to
40 feet.
Part #RBZ-18 |
$0.32
(priced per foot) |
|
>
Click on photo for
larger view |
Revisit™

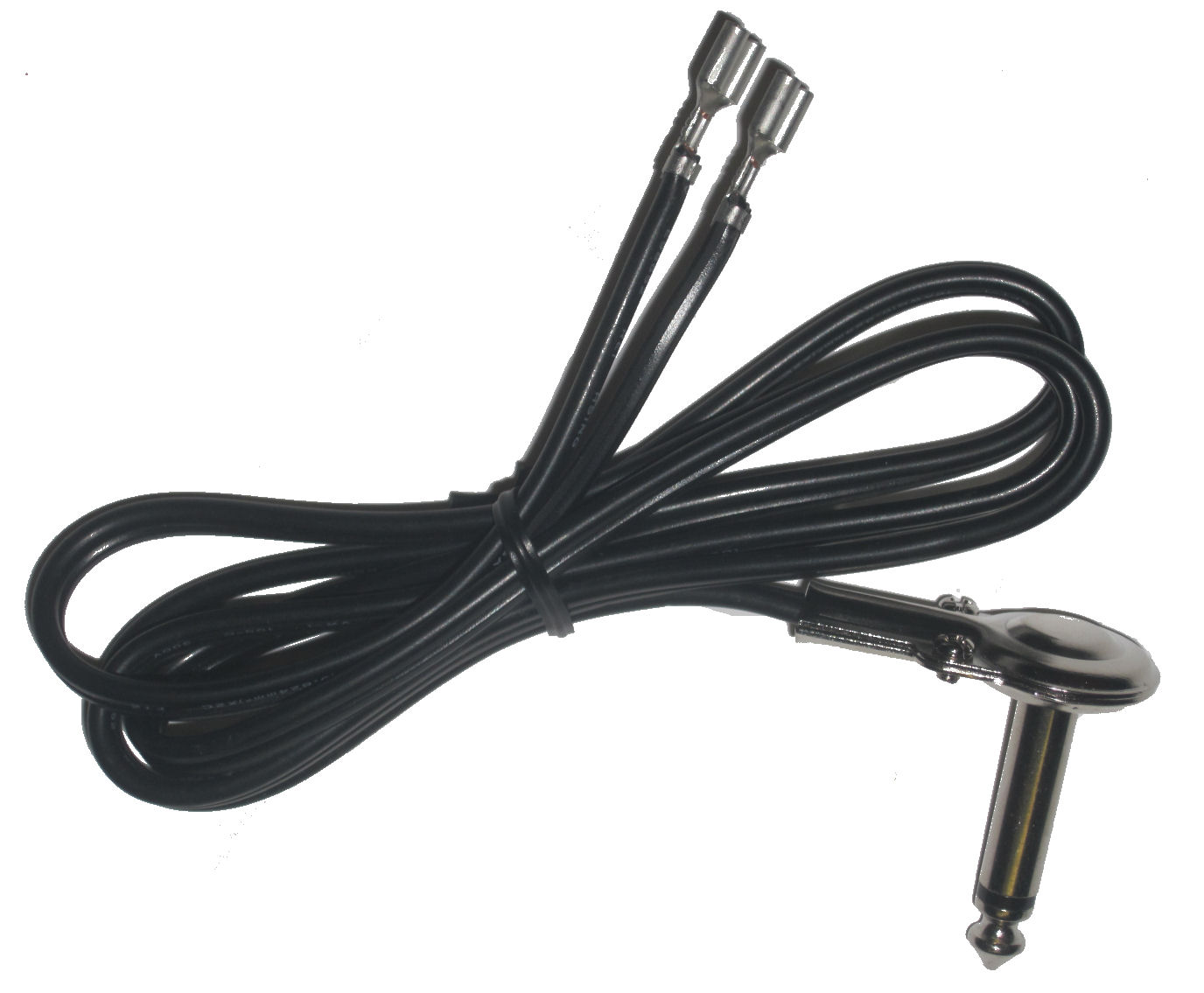

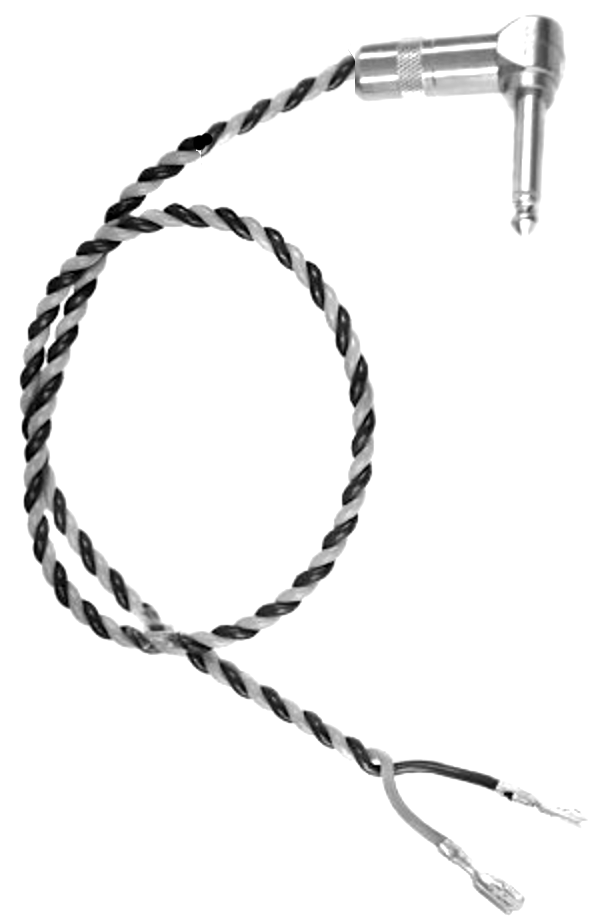

SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.
Used to replace speaker cable in most combo amplifiers where the speakers are
connected to the amplifier chassis via a 1/4" jack and plug. 18ga black zip cord,
right-angle plug and fast-on connectors for attachment to one
speaker.
Part #SCH-280 - NOTE: OUT OF STOCK! NONE AVAILABLE AT THIS TIME. |
$6.99 |
|
|
Click on photo for
larger view
|

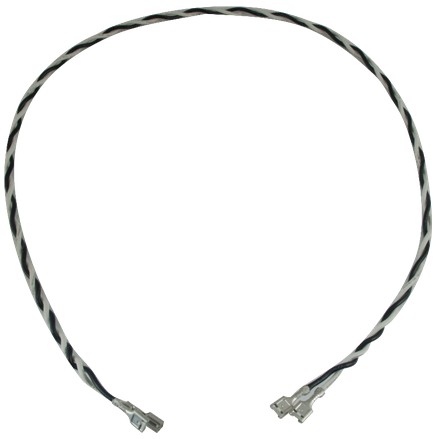

SPEAKER JUMPER CABLE
polyvinyl
insulated silver plated copper speaker wire, 18 gauge, twisted
pair, black and white. Terminated at each end in standard
3/16" speaker fast-on connectors. Great for connecting
speakers in parallel in 2x12 or 4x12 cabinets. 24 inches (61
cm) long. Made in USA.
Part #SJ-150
|
$5.99
|
|
|
 |
BUILD YOUR OWN Speaker Harness for Combo Amps: Choose the SJ-150
cable (above) along with the P-287 Plug (below). Cut off the
cable's fast-on connectors on ONE end of the cable. Strip both
conductors of cable back about 1/4" on that end. Solder that end to
the P-287 plug (black to the sleeve, white to the tip.). This
will give you a 24 inch speaker harness. Note:
Cable-building experience strongly recommended. Soldering
equipment needed. |
Total cost for materials will be $5.99 + $8.95
= $9.94. |
 |
Click on photo for
larger view |

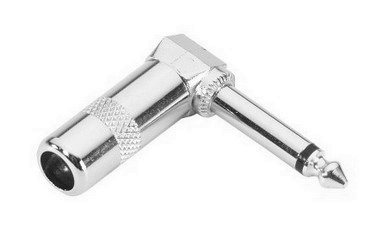

PLUG, 1/4", MONO, RIGHT ANGLE,
SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug. Nickel plated copper alloy.
2-conductor right-angle phone plug, solder terminals.
Part #P-287 |
$8.95
|
|
Click on photo for
larger view |

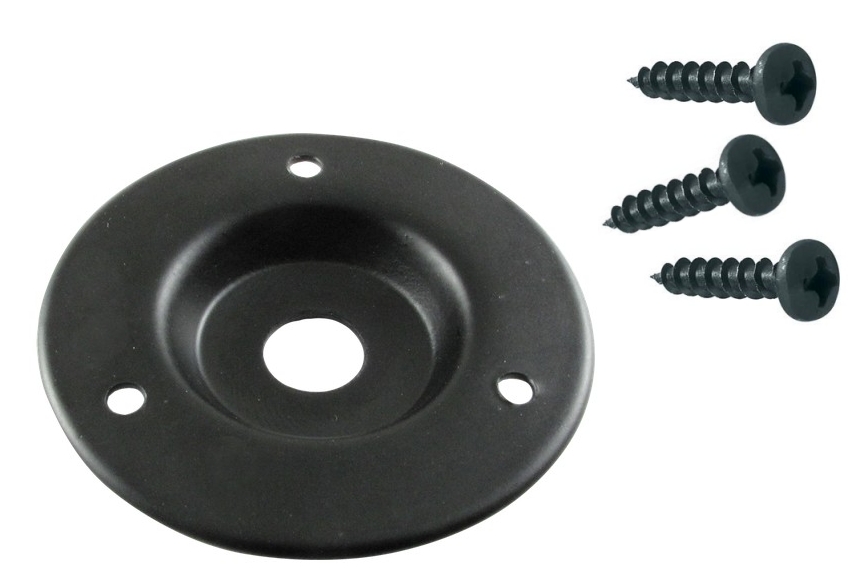

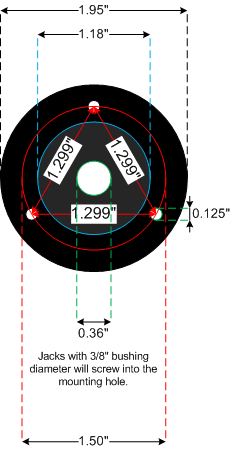

JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates. Works well with the Switchcraft J-11 1/4" jacks
that we carry. Hole is 3/8", for most Switchcraft type jacks. Easy to install, economical.
Includes 3 black oxide coarse-thread mounting screws, #6x3/4".
Jack not included - order separately. For size specifications, click here.
Part #JP-180 |
$1.89
|
|
Click on photo for
larger view |

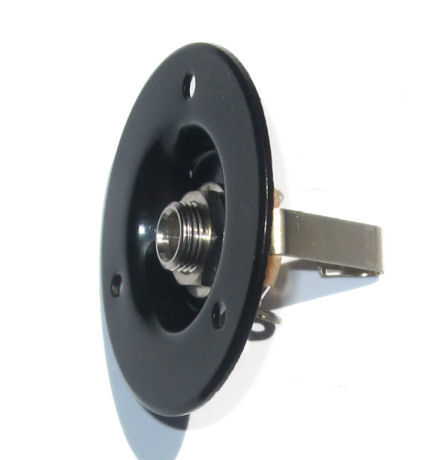

Revisit™
JACK PLATE COMPLETE WITH
SWITCHCRAFT #11 JACK.
Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180 |
$4.95
|
|
Click on photos for
larger views
 |

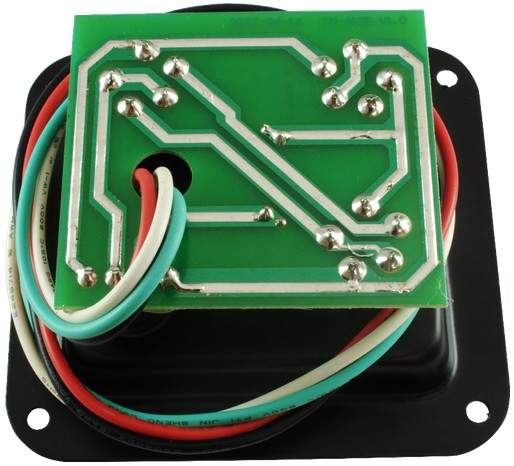

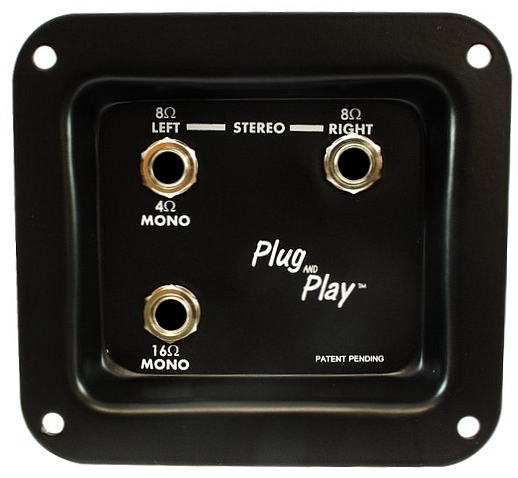

JACK PLATE, MONO/STEREO, PLUG AND PLAY
This unit eliminates the confusing switch found on most stereo cabinets. Just pick your impedance and plug in.
Labels shows the common 4 or 16 Ohm Mono and 8 Ohm Stereo option. Ready to install with a steel dish, wires, and speaker connectors already assembled - as shown in the photo.
Requires a 3 inch x 3-7/16 inch rectangular hole cut in the cabinet. Direct easy replacement for many existing small jack dishes. No soldering required. Complete wiring directions included - click here for more details.
Designed to be used with 2x12 cabinets containing two 8-ohm speakers, 4x12
cabinets with four 16-ohm speakers, or 4x12 cabinets with four 4-ohm speakers.
Can be used for the following configurations:
- 4 ohm mono
- 8 ohm left + 8 ohm right stereo
- 8 ohm left only mono
- 8 ohm right only mono
- 16 ohm mono
Part #CJP-1 |
$35.95
|
|
|
|
Mesa/Boogie™ Power Cords |
|
|
Click on photo for
larger view |
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR
AT EQUIPMENT END. Common replacement cord for use on many
guitar amps, power amps, effects units, etc. Standard NEMA 5-15 plug
for North American use at 110-120 Volts AC. IEC connector at
equipment end. Used only in North America.
Part #PC-300 |
$6.95 |
|
Click on photo for
larger view |
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END. REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.
10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT, REDUCES USE OF
EXTENSION CORDS.
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.
IEC connector at equipment end. Used only in North America.
Part #PC-600 |
$10.95 |
|
Click on photo for
larger view |

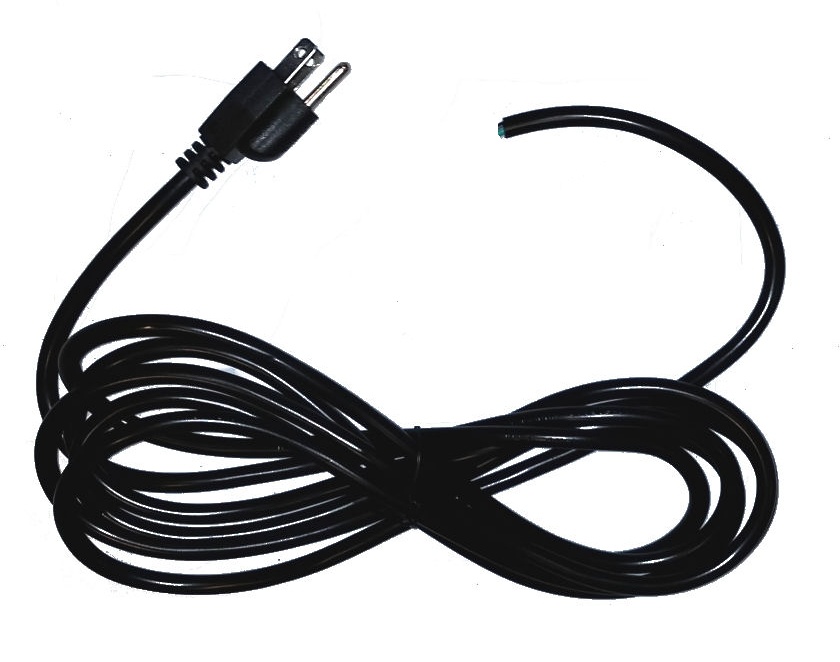

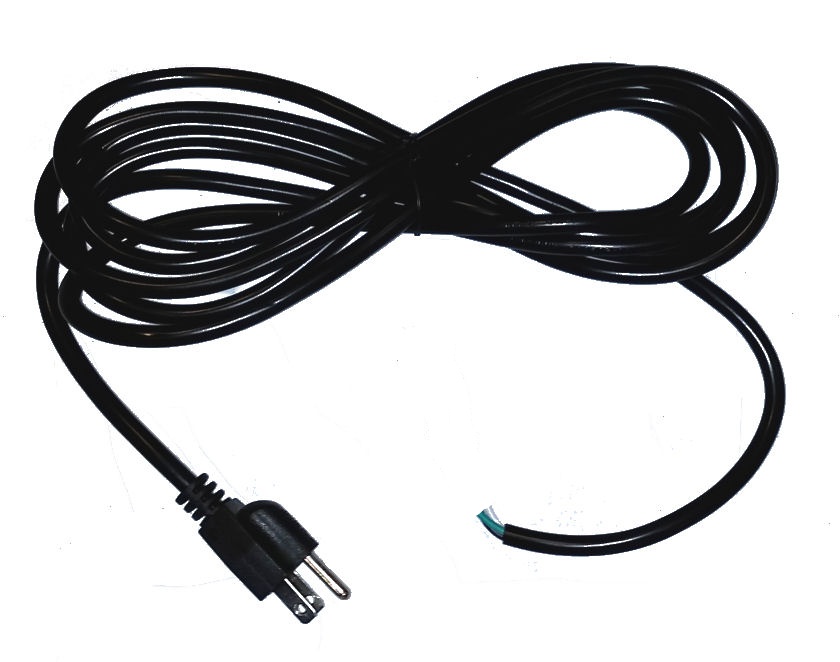

SUPER-LONG,
16 gauge
Revisit™ 12 ft POWER CORD, 3-WIRE, SJT type,
OUR LONGEST HEAVY-DUTY POWER CORD!
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length is a super-long 12 feet, cord thickness is 0.34 inches (about 11/32" or
8.6mm).
Standard NEMA 5-15P plug for North American use at 110-120 Volts AC, rated at 16
amps maximum. Used only in
North America.
Part #PC-163SJT12 |
$16.95 |
|
Click on photo for
larger view |

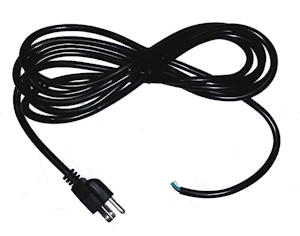

EXTRA-LONG
12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type. Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length is an
extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).
Wire gauge is 18AWG, rated at 10 amps.
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in
North America.
Part #PC-183SJT12 |
$18.95
|
|
Click on photo for
larger view |

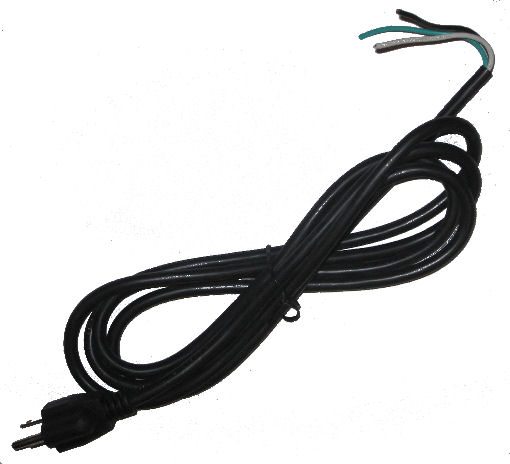

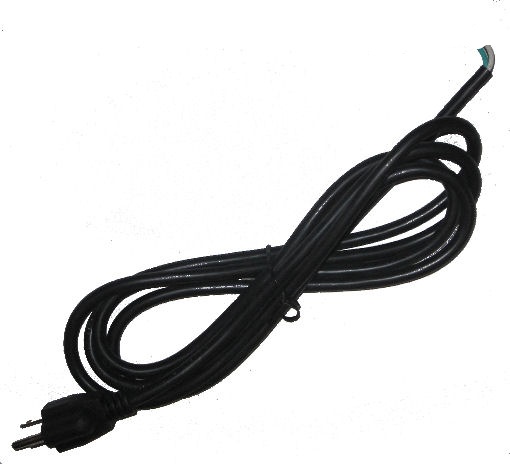

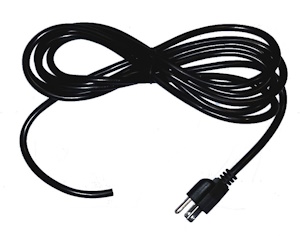

8 ft POWER CORD, 3-WIRE, 18ga, SJT type.
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SJT8 |
$9.95 |
|
Click on photo for
larger view |
8 ft POWER CORD, 3-WIRE, 18ga, SVT type,
"Thin Line". Cut ends for installing (soldered connection) into
many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older
amps). Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about
1/4" or 6.1mm).
Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp
cords in smaller amplifiers where there was formerly a 2-wire cord without
ground.
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SVT8-TL |
$9.95 |
|
Click on photo for
larger view |

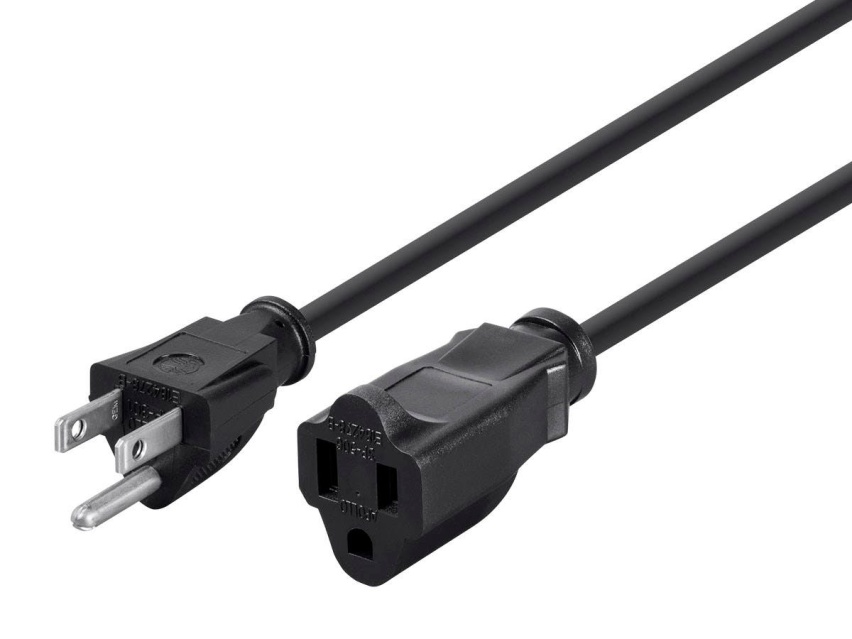

15 ft
EXTENSION CORD, 3-WIRE, 16ga, 13 Amps. Quality extension cord for use
on stage, at home, office or workshop. Cord length is 15 feet, 16 gauge,
3-wire cord thickness is 0.31 inches (about
5/16" or 7.9mm).
Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC,
13 amps maximum. Used only in
North America.
Part #EC-5301 |
$19.95 |
 |
Click on photo for
larger view |

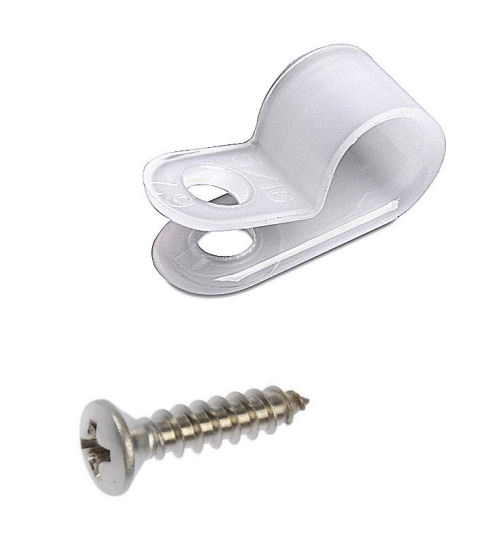

Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
Click on photo for
larger view |
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most
vintage
guitar amplifiers with round power cords, including most vintage Fender™ amps. Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 |
$14.95 |
|
Click on photo for
larger view |
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH
CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 1/4 inch diameter inner hole,
and mounts in a 3/8 inch chassis hole.
Full
datasheet here.
Part #RCG-739 |
$0.49
each |
|
Click on photo for
larger view |
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE
(GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 3/8 inch diameter inner hole,
and mounts in a 1/2 inch chassis hole.
Full
datasheet here.
Part #RCG-745 |
$0.49
each |
|
Click on photo for
larger view |
FUSE HOLDER,
ORIGINAL MESA/BOOGIE, FOR AGC, MDL OR 3AG TYPE FUSE
Fuse holder, Twist-lock cap. Used on current model Mesa/Boogie
amps built for domestic distribution in the USA or Canada. Original
Mesa/Boogie part number 790347.
Fits "American" style AGC, MDL or 3AG fuses (1/4" x 1 1/4") Connection by
3/16" push-on terminals, or wires may be soldered to the terminals.
Part #FH-347 |
$6.95 |
|
Click on photo for
larger view |
Mesa/Boogie™ IEC
POWER CONNECTOR, NON-FUSED, WIRED TYPE, SNAP-IN ATTACHMENT
TO PANEL
Original Mesa/Boogie™ IEC type AC connector found on the
Triple Rectifier and other models. Designed to snap into 0.8" x
1.10" rectangular panel hole. Connections are for 1/4"
push on terminals, or may be soldered. Rated at 10
amps. Mesa/Boogie™ part number 613713
Part
#MB-108 |
$2.95 |
|
|
|
Mesa/Boogie™
Capacitors |
|
|
Click on photo for
larger view |
RADIAL ELECTROLYTIC
CAPACITOR, 10,000uF @ 16V.
This
size filter capacitor is commonly found in amplifiers which use DC voltage on
the filaments of some of the preamp tubes. Found in Marshall™,
Mesa/Boogie™ as well as other brands. Working temperature range -40°C to
+105°C. 18mm diameter, 35mm tall (approximately 11/16" diameter X 1
3/8" tall)
Part #10000-16 |
$2.49
|
|
 |
CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads. Tolerance
±5%. Dipped in epoxy coating. (See Options)
1000pF = 1nF = 0.001uF
Part #C-SM-XX |
Starting at
$0.80 |
|
 |
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.001uF @ 630V
Part #C-PR-102-6 |
$0.30 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.0022uF @ 630V
Part #C-PR-222-6 |
$0.30 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.0047uF @ 630V
Part #C-PR-472-6 |
$0.30 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.01uF @ 630V
Part #C-PR-103-6 |
$0.35 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.022uF @ 630V
Part #C-PR-223-6 |
$0.35 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.047uF @ 630V
Part #C-PR-473-6 |
$0.40 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.1uF @ 630V
Part #C-PR-104-6 |
$0.50 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.22uF @ 630V
Part #C-PR-224-6 |
$0.70 |
|
|
|
CAPACITOR, POLYPROPYLENE, RADIAL - SIMILAR
TO ORANGE DROP STYLE,
.47uF @ 630V
Part #C-PR-474-6 |
$1.50 |
|
|
|
Mesa/Boogie™ Reverb Tanks |
|
|
Click on photo for
larger view
 |
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B. Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Used in Mesa/Boogie™ MK2C, Mesa Express and others. See explanation of
Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B
current production. Accutronics reverb tanks are a
cheaply produced copy of the Belton tank, and are now made by Belton in South
Korea. They are of much lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. Also used in Reissue
models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb,
Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin
Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb,
Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb
Reissue,
Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65
Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™
Dual Professional.
Also used in Mesa/Boogie™ MK2C and others, LAB Series L5, L7, L9,
Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52™ AT-100. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Accutronics products are made in South Korea.
Part #ACC-4AB3C1B |
$39.99 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3A1B. Input impedance 150 ohms, output impedance 2250 ohms,
medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for
horizontal mounting, open side down. Common replacement for Music
Man, and the Mesa/Boogie™ F-50. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB2A1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2A1B. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down.
Found in some Mesa/Boogie™ and
Fender™ Models. See explanation of Accutronics reverb tank numbering system here.
See a chart which lis4ts AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2A1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
|
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2A1C. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts
on vertical wall, long axis horizontal, connectors up. Used
as an upgrade external tank in the Mesa/Boogie™ Caliber 50+. See explanation of Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2A1C
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
|
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1B.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side down.
Primarily used by Rivera PUBSTER 25 & CHUBSTER 40 , Rivera Knucklehead Reverb,
Vox™ AC30, with solid state reverb as used in the Seventies, Crate Palomino V32 &
V16, Music Man RD50, Kitty Hawk Supreme, Marshall™ G80RCD, Marshall™ G100RCD. Upgrade for Laney
VC15 (part nr. 10006), Brunetti Singleman, Mesa/Boogie™ Rectoverb.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
|
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3C1B. Short
Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, insulated input
and grounded output. Mounts horizontal, open side down.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty
details here.
Part #8FB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics
9AB1A1B.
Input impedance 10 ohms, output impedance 2575 ohms, short decay (1.2 - 2.0
seconds), input grounded/output grounded, designed for horizontal mounting, open
side down. Common replacement for Mesa/Boogie™
Mark I, Mark II, Mark IIB, Mark IIC Plus, Mark III, Mark IV, Mark IV-B. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB1A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
Special Order
Ready to ship
4 business days
after we receive
your order. |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2A1B. Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input
and output grounded, designed for horizontal mounting, open side down. Common replacement for
Mesa/Boogie™ Lonestar, Lonestar Special,
Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express
Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.
Also used in some Fender™, Vox™ AC30 (1960s+70s),
and
Engl Screamer (E330, E335) See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB2A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3A1B. Input impedance 10 ohms, output impedance 2575 ohms,
long decay (2.75 - 4 seconds), input
and output grounded, designed for horizontal mounting, open side down.
A longer decay replacement for
Mesa/Boogie™ MK V, Lonestar, Lonestar Special,
Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express
Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.
Also may be used in some Fender™, Vox™ AC30 (1960s+70s),
and
Engl™
Screamer (E330, E335) See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
|
|
|
Click on photo for
larger view
|
Accutronics Reverb Tank, 17" long,
3 spring, 9BB2C1B
current production. Input impedance
190 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for
the Mesa/Boogie™ Nomad 45, Nomad 55, Nomad
100. Also fits the Vox™ AC50CPH,
AC100CPH. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Accutronics products are made in South Korea.
Part #ACC-9BB2C1B |
$42.95 |
|
Click on photo for
larger view |
Rubber mounting grommets for
reverb tanks, package of four. Provides shock absorption for
tanks mounted directly to the inside of a wooden amp cabinet. Mounting
Hole Diameter = 3/8" Outer Diameter = 1/2"
Part #RRG-4 |
$1.99
(For a pack of 4 grommets - In Stock) |
|
Click on photo for
larger view
|
Reverb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
Part #RB-017 |
$18.90
In Stock |
|
Click on photo for
larger view
(Reverb tank not included)
|
Handmade Reverb Tank Bag for 9"
tanks. Works with any short
(9") reverb tank. Reverb bags give the reverb tank better
isolation which results is fuller, richer reverb and less feedback.
Handmade of single-ply black Tolex. Replacement for Fender and many other
amps. Bag dimensions: 4.5"W x 1.5"H x 9.5"L. Includes loops at
each end for screw attachment to the amp cabinet, and a tuck-in flap to close up
the end. Mounting screws not included.
Part #RB-009 |
$18.95
In Stock |
|
Click on photo for
larger view |
TRANSFORMER,
Revisit™ Fender™ REVERB DRIVER. For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc. Equivalent to Fender™
#125A20B & #022921. For vintage Mesa-Boogie™ models, including
vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber,
Maverick, Lonestar Special, and many others . Mesa Boogie™
part number 550185. 10" cut leads, X-Mount with 1 3/4" mounting
centers. Input impedance 14.5K ohms, output impedance 4 ohms.
Part #TGR-001 |
$20.95 |
|
|
Click on photo for
larger view |
3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173 |
$8.95
In Stock |
|
|
Click on photo for
larger view |
4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174 |
$8.95
In stock |
|
|
Click on photo for
larger view |
5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 5 feet long.
Part #RC-175 |
$8.95
In stock |
|
|
|
Mesa/Boogie™ Switches
(Also see our complete line of switches) |
|
|
Click on photo for
larger view |
SWITCH, STANDARD SIZE TOGGLE -
Rated at 20 Amps (125VAC) or 15 Amps (250VAC). Fits 1/2" chassis
hole. Solder terminals or 1/4" push on, single pole / single throw (SPST).
Two position - on/off.
NOTE: RATED FOR AC SERVICE ONLY AT
250V MAX - DO NOT USE AS A GUITAR AMPLIFIER STANDBY SWITCH.
Part #STS-20 |
$8.95
|
|
Click on photo for
larger view |
SWITCH, CARLING SPST TOGGLE,
Good replacement for Mesa/Boogie™ power or standby switches in larger heads (such
as the Dual or Triple Recitifier).
Made by Carling. Not an original Mesa/Boogie™ part.
Part #SW-495-B |
$8.95 |
|
Click on photo for
larger view |
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING
- RATED AT 15A/125VAC, 10A/250VAC.
TWO POSITION (ON/OFF), DOUBLE POLE (DPST).
FITS 1/2" CHASSIS HOLE.
SOLDER TERMINALS OR 1/4" PUSH-ON.
Fender™ PART NUMBER
0036570000. Made by Carling.
Part #SW-525 |
$10.95 |
|
Click on photo for
larger view |
SWITCH, STANDARD SIZE TOGGLE - MADE BY
ELECTROSWITCH
- RATED AT 6A/125VAC, 3A/250VAC. Two position (on/off), double pole
(DPST). Fits 1/2" chassis hole. Solder terminals.
Replacement for many amps which need a 4-terminal DPST style switch with
soldered connections.
Part #SW-357 |
$8.95 |
|
Click on photo for
larger view |
SWITCH, STANDARD SIZE TOGGLE - Made by
Carling™
- rated at 15A/125VAC, 10A/250VAC. Two position (on/off), single pole (SPST). Fits
1/2" chassis hole. Solder terminals.
Part #SW-526 |
$6.50 |
|
Click on photo for
larger view |
SWITCH, STANDARD SIZE TOGGLE - RATED AT
15 Amps (125VAC) or 10 Amps (250VAC) - TWO POSITION (ON/ON).
Fits 1/2" chassis hole. Screw terminals, or remove screws for
soldered connections. Double-pole double-throw, no center
off - two positions (ON/ON).
Part #STS-15-DPDT |
$4.95 |
|
Click on photo for
larger view |
SWITCH, STANDARD SIZE TOGGLE - RATED AT
15 Amps (125VAC) or 10 Amps (250VAC) - THREE POSITION (ON/OFF/ON).
Fits 1/2" chassis hole. Screw terminals, or remove screws for
soldered connections. Double-pole double-throw, with center
off - three positions (ON/OFF/ON).
Part #STS-15-DPDT-CO |
$5.95 |
|
Click on photo for
larger view |
ROCKER
SWITCH, MESA/BOOGIE, BASS 400+
1/4" push-on terminals.
Made for 1.07" H x 0.88" W mounting hole. Rated 20A @ 125VAC.
15A @ 250VAC. Used for Power or Standby on the Bass 400+. Original
Mesa/Boogie
part number 600505.
Part #SW-547 |
$7.99 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING™ BRAND, SPDT
Found in many type of footswitches, including the earlier versions of the Dunlop Crybaby Wah pedals
(NOT the version F - see FS-435 below for Crybaby GCB-095F). Has 3 electrical terminals (single pole, double throw).
Solder lugs for wire.
Part #FS-492 |
$17.50 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING BRAND, SPST,
LATCHING, REPLACEMENT FOR Fender™, ETC.
Carling SPST footswitch. Used in Marshall™ etc. Reverb/tremolo/channel switching pedals.
Has 2 electrical terminals (single pole, single throw).
Solder lugs for wire.
Made by Carling.
Part #FS-493 |
$9.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Electrically equivalent and physically the same body size as the FS-498, but made for direct connection to a PC board. Found in the Line 6™ XPS-AB power supply for their Variax guitars. Has 6 electrical terminals (double pole, double throw).
Part #FS-498-PC
(Also see our complete line of switches) |
$8.95
|
|
|
|
Fans |
|
|
Click on photo for
larger view |
ThermoCool Fan.
120 x 38mm Ball Bearing 72 CFM.
This size is commonly found in Mesa/Boogie™ Mark I through Mark IV models and
many other MESA models designed and built prior to 2000. If your MESA amp
requires a 4 inch fan, this is it. (Cord not included).
For plug in wiring harness, order 25-0050 fan cord separately. For use on
100-125VAC System only, as found in North America, Japan, etc.
Specifications: • Power:
100-125V
AC, 50-60 Hz • Ball bearing • Terminal connection • 0.22 amps • 2200 RPM • 39dB
noise level • 72CFM air flow • Dimensions: 120 mm (H) x 120 mm (W) x 38 mm
(D).
Ratings: Reliability: A, Airflow: A,
Noise: A-, Price: B+
[4 3/4" (H) x 4 3/4" (W) x 1 1/2" (D)]
Part #G12038MAS |
$26.95 |
|
Click on photo for
larger view |
Standard 24" fan cord with 90° angled plug.
For use with 110~120 VAC cooling fans with .110" terminals; non-terminated
on opposite end. Great for use with G12038MAS fans, above.
Part #25-0050 |
$3.59 |
|
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
