Carbon composition
resistors are made by mixing carbon particles with a binder molded into a
cylindrical shaped, and then baked. Standard "classic" resistor used in
vintage amplifiers - Fender™ Blackface and Silverface are prime examples. reverb |
Carbon Composition
Resistors 1/2 Watt |
We stock the values of carbon comp resistors
typically found in vintage Fender™ Amplifiers |
|
 |
RESISTOR, CARBON COMPOSITION.
New production, 1/2 watt, 3.6mm x 9.5mm. Lead
diameter 0.7mm. Total length end-to-end 65mm. Resistors 10% tolerance. Choose resistor
value in Options.
Part #CC1/2-XX |
$0.89 |
|
|
|
Screen Grid & Other
Resistors |
|
|
 |
RESISTOR, METAL OXIDE FLAMEPROOF, 0.68 OHM, 2 WATT, 5%, INDIVIDUAL.
Commonly used as emitter resistors on output transtors in many solid state amps.
Part #D68FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 1 OHM, 2 WATT, 5%, INDIVIDUAL.
Commonly used as a resistor between the cathode and circuit ground of power
tubes, to allow for easy cathode current measurements.
Part #1FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, 5%, INDIVIDUAL.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Available individually, or in packs of 5, below.
Part #470FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, 5%, PACK OF 5 RESISTORS.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Part #470FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, 5%, INDIVIDUAL. Commonly used as the screen grid resistor in many tube amps.
Also used as power supply dropping resistors in many Fender amps™. Available individually, or in packs of 5, below.
Part #1000FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used as the screen grid resistor in many tube amps. Also used as
power supply dropping resistors in many Fender amps™.
Part #1000FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT, 5%. Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #2200FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many Fender™ amps.
Part #2200FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT, 5%. Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #4700FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many Fender™ amps.
Part #4700FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT, 5%. Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #10KFP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many Fender™ amps.
Part #10KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 18K OHM, 2
WATT, 5%.
Commonly used in the high voltage power
supplies of many Fender™ Princeton and Princeton Reverb amplifiers.
Part #18KFP2 |
$0.30 |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 18K OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many amps.
Part #18KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 27K OHM, 2
WATT, 5%.
Commonly used in the high voltage power
supplies of many Fender™ amplifiers.
Part #27KFP2 |
$0.30 |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 27K OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many amps.
Part #27KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 100K OHM, 1 WATT. Two of these are
commonly used as balancing resistors across the main filter capacitors in higher
power Fender™ Silverface Amps. Other Fender™ amps use the 220K
1 Watt resistors as balancing resistors, below. It is important that
these two resistors across the two series capacitors be fairly well-matched in
order to properly distribute the voltage equally.
Available individually, or in packs of 5, below.
Part #100KFP1 |
$0.25 |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 100K OHM, 1 WATT, PACK OF 5 RESISTORS. Two of these are
commonly used as balancing resistors across the main filter capacitors in higher
power Fender™ Silverface Amps. Other Fender™ amps use the 220K
1 Watt resistors as balancing resistors, below. It is important that
these two resistors across the two series capacitors be fairly well-matched in
order to properly distribute the voltage equally.
Part #100KFP1-5 |
$0.99
(Pack of 5 Resistors) |
|
|
|
RESISTOR, FLAMEPROOF, 220K OHM, 1 WATT. Two of these are
commonly used as balancing resistors across the main filter capacitors in small
to medium
power Fender™ Blackface and Silverface Amps. Other larger Fender™ amps use the
100K
1 Watt resistors as balancing resistors, above. It is important that
these two resistors across the two series capacitors be fairly well-matched in
order to properly distribute the voltage equally.
Available individually, or in packs of 5, below.
Part #220KFP1 |
$0.25 |
|
|
|
RESISTOR, FLAMEPROOF, 220K OHM, 1 WATT, PACK OF 5 RESISTORS. Two of these are
commonly used as balancing resistors across the main filter capacitors in small
to medium
power Fender™ Blackface and Silverface Amps. Other larger Fender™ amps use the
100K
1 Watt resistors as balancing resistors, above. It is important that
these two resistors across the two series capacitors be fairly well-matched in
order to properly distribute the voltage equally.
Part #220KFP1-5 |
$0.99
(Pack of 5 Resistors) |
|
|
|
Ultra Miniature
Resistors |
|
|
 |
RESISTORS, ULTRA-MINIATURE, 2 WATT.
New production, 2 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature. 3.9mm x 9.0mm. Lead
diameter 0.5mm, lead length 26mm. Total length end-to-end 61mm.
These are 2 watt resistors in a package about the size of a typical 1/2 Watt
resistor. Easy to work with, especially in tight spots. Great for
screen grid resistors. Made by Yageo. Available in 1 ohm, 470 ohm, 1K
ohm, 2.2k ohm, 4.7K ohm, 10K ohm. All choices in this category are 2 Watts. Choose resistor
value in Options.
Part #R-MF-UM-XX |
$0.19 |
|
|
|
RESISTORS, ULTRA-MINIATURE, 1 WATT, 100K Ohms.
New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.
2.2mm x 6.8mm. Lead
diameter 0.5mm, lead length 28mm. Total length end-to-end 61mm.
These are 1 watt resistors in a package about the size of a typical 1/4 Watt
resistor. Easy to work with, especially in tight spots. Made by Yageo.
100K Ohms. These make excellent replacements for preamp tube
plate resistors!
Part #R-MF-UM1W-100K |
$0.14 |
|
|
|
RESISTORS, ULTRA-MINIATURE, 1 WATT, 220K Ohms.
New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.
2.2mm x 6.8mm. Lead
diameter 0.5mm, lead length 28mm. Total length end-to-end 61mm.
These are 1 watt resistors in a package about the size of a typical 1/4 Watt
resistor. Easy to work with, especially in tight spots. Made by Yageo.
220K Ohms. These make excellent replacements for preamp tube plate
resistors!
Part #R-MF-UM1W-220K |
$0.14 |
|
|
|
Precision 1%
Resistors |
|
|
Click on photo for
larger view |

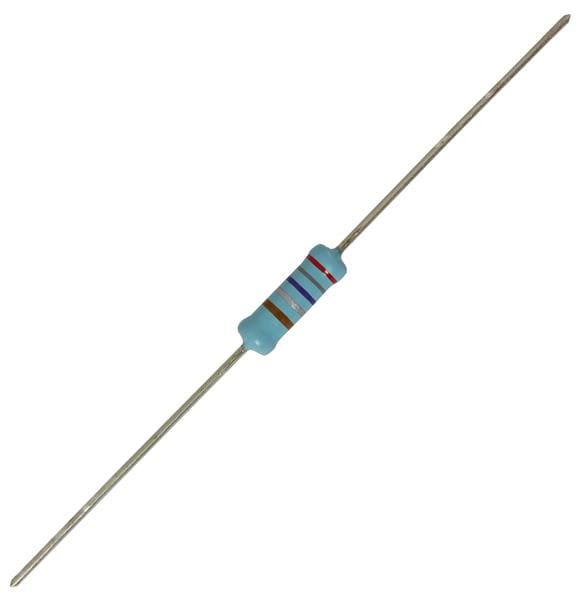

1 OHM, 1%, 1/2 WATT PRECISION
METAL-FILM RESISTOR FOR INSTALLATION ON POWER TUBES FOR BIAS MEASUREMENT.
ONLY FOR AMPS WITH BIAS ADJUSTMENT CONTROL.
Replace the ground wire on each power tube (pin 8) with this 1 ohm precision resistor.
Read the voltage drop across the resistor (in millivolts) with your meter.
The millivolt reading you obtain will be the same as the cathode current through
the tube (in milliamps).
Part #MF-05-1-1 |
$0.60 |
|
Click on photo for
larger view |
47 OHM, 1%, 1 WATT PRECISION
METAL-FILM RESISTOR FOR INSTALLATION AS A BALANCED VIRTUAL CENTER TAP ON THE
POWER TRANSFORMER.
Many amps use two matched resistors (typically either 47 ohm or 100 ohm, 1%)
between each side of the 6.3V filament winding and chassis ground. This
precision balanced network reduces hum in the amp generated by the AC filament
wiring.
Part #MF-1-1-47 |
$0.60 |
|
Click on photo for
larger view |
100 OHM, 1%, 1 WATT PRECISION
METAL-FILM RESISTOR FOR INSTALLATION AS A BALANCED VIRTUAL CENTER TAP ON THE
POWER TRANSFORMER.
Many amps use two matched resistors (typically either 47 ohm or 100 ohm, 1%)
between each side of the 6.3V filament winding and chassis ground.
This precision balanced network reduces hum in the amp generated by the AC
filament wiring.
Part #MF-1-1-100 |
$0.60 |
|
Click on photo for
larger view |
220K OHM, 1%, 1 WATT PRECISION
METAL-FILM RESISTOR FOR INSTALLATION AS PRECISION BALANCING RESISTORS
Two of these are
commonly used as balancing resistors across the main filter capacitors in small
to medium
power Fender™ Blackface and Silverface Amps. With these 1%
resistors, you are assured of equal voltage across each of the two filter
capacitors.
Part #MF-1-1-220K |
$0.60 |
|
|
|
Sandblock
Resistors |
|
|
 |
RESISTOR, SANDBLOCK 330 OHM, 5 WATT. Common failure
item in the low voltage power supply of the Fender Hot Rod
Deville, Blues Deluxe, and Blues Deville. Fender part number 028037.
Part #330W5 |
$0.99 |
|
|
|
RESISTOR, SANDBLOCK 470 OHM, 5 WATT. Commonly used as
the screen grid resistor in many tube amps. Common failure item in the low
voltage power supply of the Fender Hot Rod Deluxe and the Blues Deluxe Reissue.
Fender part number 412560000 or 041256.
Part #470W5 |
$0.99 |
|
|
|
RESISTOR, FLAMEPROOF, 1000 OHM, 5 WATT. COMMONLY USED AS the SCREEN GRID RESISTOR IN MANY TUBE AMPS.
Part #1000W5 |
$0.99 |
|
 |

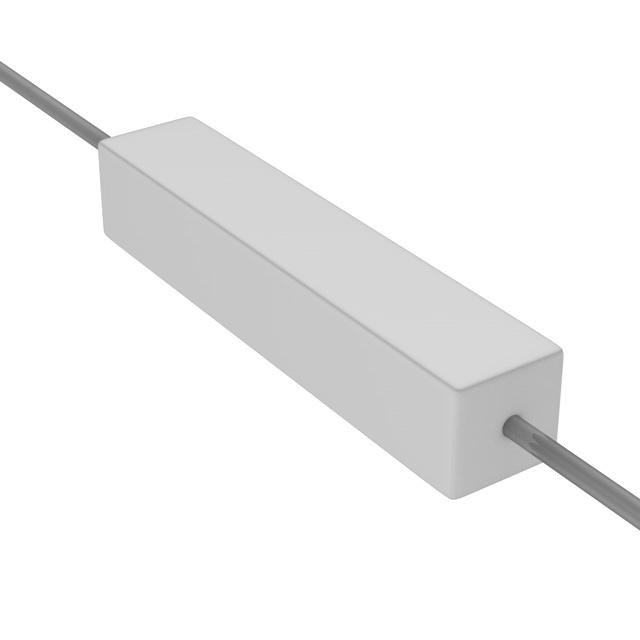

RESISTOR, SANDBLOCK 2700 OHM, 10 WATT. Used in place of
a choke in the "ultra-linear" series of Fender silverface amps (70 watt and 135
watt), starting around 1974.
Part #2700W10 |
$1.99 |
|
|
|
Resistor Lead
Forming Tool |
|
|
Click on photo for
larger view |
Revisit™
RESISTOR LEAD FORMING TOOL
You know you want one! Bend resistors to fit in PC boards,
perf boards, or turret boards exactly, uniformly. Makes your repairs and
kit builds look completely professional. Works great on vintage
Fender™ Blackface and Silverface models. One side is for 1/2 watt
resistors, the other side fits 1/4 watt resistors. Also perfect for
diodes. Slots for radial lead resistors run along the length of the high
impact ABS plastic former. Each slot is .05″ longer than the next and has radiused edges to make perfect, square, symmetrical bends without stressing the leads.
Part #LF-010 |
$7.50 |
|
|
|
Carbon Film
Resistor Kits |
|
|
 |
1/4 WATT CARBON FILM RESISTOR KIT - 365
RESISTORS TOTAL
Premium quality carbon film resistor kit.
Contains 5 each of 73 standard 1/4 watt 5% carbon film resistors. Contains 5
resistors each of the following values (ohms): 1.0, 1.2, 1.5, 1.8, 2.2, 2.7,
3.3, 3.9, 4.7, 5.6, 6.8, 8.2, 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68,
82, 100, 120, 150, 180, 220, 270, 330, 470, 560, 680, 820, 1K, 1.2K, 1.5K, 1.8K,
2.2K, 2.7K, 3.3K, 3.9K, 4.7K, 5.6K, 6.8K, 8.2K, 10K, 12K, 15K, 18K, 22K, 27K,
33K, 39K, 47K, 56K, 68K, 82K, 100K, 120K, 150K, 180K, 220K, 270K, 330K,
470K, 560K, 680K, 820K, 1M. Never be without the correct value of 1/4 watt
resistor again! A total of 365 resistors, sorted, separated and labeled into
grouped categories in a convenient storage box.
Part #CFRK-1/4 |
$19.95 |
|
|
|
1/2 WATT CARBON FILM RESISTOR KIT - 365
RESISTORS TOTAL
Premium quality carbon film resistor kit.
Contains 5 each of 73 standard 1/2 watt 5% carbon film resistors. Contains
5 resistors each of the following values (ohms): 1.0, 1.2, 1.5, 1.8, 2.2, 2.7,
3.3, 3.9, 4.7, 5.6, 6.8, 8.2, 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68,
82, 100, 120, 150, 180, 220, 270, 330, 470, 560, 680, 820, 1K, 1.2K, 1.5K, 1.8K,
2.2K, 2.7K, 3.3K, 3.9K, 4.7K, 5.6K, 6.8K, 8.2K, 10K, 12K, 15K, 18K, 22K, 27K,
33K, 39K, 47K, 56K, 68K, 82K, 100K, 120K, 150K, 180K, 220K, 270K, 330K,
470K, 560K, 680K, 820K, 1M. Never be without the correct value of 1/2 watt
resistor again! A total of 365 resistors, sorted, separated and labeled into
grouped categories in a convenient storage box.
Part #CFRK-1/2 |
$22.95 |
|
 |

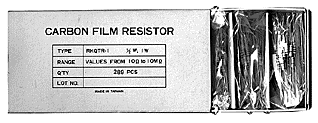

DELUXE CARBON FILM RESISTOR KIT
1/2 Watt, 1 Watt, 2 Watt. 340 Pieces Total. Values from 10 Ohm to 10M.
Conveniently packaged in self-contained box with 14 different see-through bags labeled with value, wattage and quantity.
1/2 Watt: 5 PIECES EACH OF the FOLLOWING: 10, 15, 47, 56, 68, 91, 100, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820, 1K, 1.2K, 1.5K, 1.8K, 2.2K, 2.7K,
3.3K, 3.9K, 4.7K, 5.6K, 6.8K, 8.2K, 10K, 12K, 15K, 18K, 22K, 27K, 33K, 39K, 47K, 56K, 68K, 100K,
150K, 180K, 220K, 270K, 330K, 390K, 470K, 680K, 1M, 1.2M, 2.2M, 3.3M, 4.7M, 10M
1 Watt: 2 PIECES EACH OF the FOLLOWING: 10, 22, 47, 100, 150, 220, 330, 470, 1K, 2.2K, 4.7K, 10K, 22K, 47K, 100K
2 Watt: 2 PIECES EACH OF the FOLLOWING: 10, 22, 47, 100, 150, 220, 330, 470, 1K, 2.2K, 4.7K, 10K, 22K, 47K, 100K
Part #DRK-1 |
$17.95 |
|
|
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
