Click on photo for
larger view |

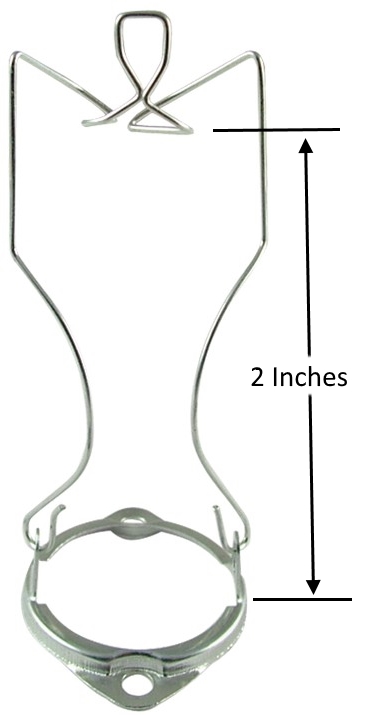

TUBE RETAINER FOR EL84 OR 6BQ5 TUBES. 2 inches between base
and top bracket which fits around the "nub" at the top of the tube.
Will not fit all situations - works best when the tube socket is recessed
below the chassis about 1/4 inch. 1-1/8" mounting centers.
Part #TR-144 |
$2.95
|
|
Click on photo for
larger view |

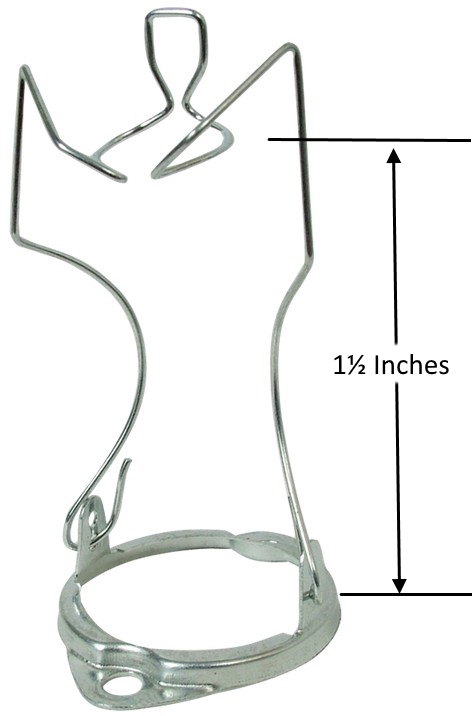

TUBE RETAINER FOR 12AX7, 12AT7 TUBES. 1˝ inches between base
and top bracket which fits around the "nub" at the top of the tube.
Will not fit all situations - works best when the tube socket is exactly
flush with the chassis. 1-1/8" mounting centers.
Part #TR-146 |
$2.95
|
|
(TUBE NOT INCLUDED)
Click on photo for
larger view |
 Revisit™ PRE-AMP TUBE DAMPER
RINGS.
Use two (or three) of these rings around a pre-amp tube to reduce noise and
microphonics. An economical alternative to more expensive tube dampers.
Will withstand high temperatures of pre-amp tubes, reusable when you change
tubes. Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes. These
dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6 |
$4.95
(Set of 6 rings) |
|
|
Click on photo for
larger view
|
Socket - Belton,
Micalex, 8 Pin, Octal PC Mount, Solder Lugs
Micalex construction, solder lugs
for attaching wire. 1 ˝" mounting centers 1 1/4" chassis hole. Applicable
for use with all types of electric and electronic equipment using vacuum tubes.
Paddle saddle mounting, easy mount with the saddle of extruded screw hole.
Phosphorous bronze pin terminal with tin plating, glass fiber field PPS
Insulating material. Used as the socket for the GZ34 rectifier tube
in the AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.
Part # TS-8-209W |
$3.95
|
|
Click on photo for
larger view |
9 pin Belton Micalex socket for PC board
mounting. Mounts under the PC board. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. Used
in the AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.
Click here for additional specs.
Part #TS-9-BEL |
$2.79
|
|
Click on photo for
larger view |
CAPACITOR, electrolytic 22uF @ 450V with radial leads. 13mm Diameter, 25mm tall. Used in many PC
board tube amplifiers, such as newer
Vox™
models.
Part #RAD-22-450 |
$2.50 |
|
Click on photo for
larger view |
CAPACITOR, electrolytic 47uF @ 450V with radial leads.
16mm Diameter, 31.3mm tall. Used in many PC board tube amplifiers,
such as newer Vox™
models.
Part #RAD-47-450 |
$3.95 |
|
Click on photo for
larger view |
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust. Used to connect a ground wire to a screw and nut on a chassis.
Angled,
with two holes for soldering wires. With built-in lock washer to keep the screw
and nut from loosening. Designed for a #8 size screw.
Pack of 5 terminals.
Part #GL-113 |
$1.39
(Pack of 5 terminals)
|
|
Click on photo for
larger view |
SMALL BLACK RUBBER FEET, SET OF 4
This 4-pack of heavy-duty rubber feet offers a sure grip
on all types of surfaces. Ideal for smaller amps, amp heads, effects units,
larger floor effects pedals, or speaker
cabinets. The integral metal washer in the mounting hole helps prevent
mounting screw "break-through" and adds overall durability.
0.84"
diameter x 0.31" high. Screws not included. Set of 4
feet.
Part #BRF-750
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
SMALL BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for smaller amps, amp heads, or speaker
cabinets. The integral metal washer in the mounting hole helps prevent
mounting screw "break-through" and adds overall durability.
Just under 1 inch - 15/16"
diameter at the top, rounded down to 5/8" diameter at the bottom, and 3/8"
tall. Screws not included. Set of 4
feet.
Part #BRF-723
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for large rack cabinets or speaker cabinets.
the integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter x 1" tall. Mounting
screws not included.
Part #BRF-1691
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK TAPERED RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for rack-mount amps, combo amps, or small speaker cabinets.
the integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter
(wide end) x 3/4" diameter (narrow end) x 0.85" tall. Mounting
screws not included. Set of 4 feet.
Part #BRF-9105
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK RUBBER FEET, SET OF 4.
This heavy-duty rubber foot offers a sure grip
on all types of surfaces. Ideal for amp heads, combo amps, or smaller speaker cabinets.
the integral metal washer in the mounting hole helps prevent mounting screw
"break-through" and adds overall durability. 1" diameter x
5/8" tall. Mounting
screws not included.
Part #BRF-1692
|
$4.95
(pack of 4) |
|
Click on photo for
larger view |
MEDIUM BLACK RUBBER FEET, SET OF 4. Tapered: 1 3/16" Diameter
At Small End, 1 1/4" Diameter At Large End. 1/2" Tall. Black Rubber With Metal
Insert. Used To Support Effects, Amps, Mixers. Mounting Screws Not Included.
Part #BRF-9112 |
$4.95
(pack of 4) |
|
Click on photo for
larger view |
X-LARGE BLACK RUBBER FEET, SET OF 4.
Tapered - 1 5/8" Diameter At Large End, 1 1/4" At Small End. 3/4" Tall. Black
Rubber With Metal Insert. Used To Support Amp Heads, Speaker Cabinets. Mounting
Screws Not Included.
Part #BRF-9107 |
$7.95
(pack of 4) |
|
Click on photo for
larger view |
 Vox™
CORNER, BLACK PLASTIC, SOLD INDIVIDUALLY. These
Tube Amp Doctor black plastic corners are great replacements for Vox™ and
Orange™ amps and cabinets that feature this type. The two larger holes are for
use with screws while the small holes are intended for pins/nails just like the
originals. 3/4" radius, 2 pins on front.
Used on some vintage
Vox™
amps. For heads, combos and straight speaker cabinets.
Screws NOT included. Use CN-304-8 nails and SC-411-8 black screws to
attach.
Part #VC-1050 |
$2.45
(Per individual corner) |
|
Click on photo for
larger view |
Vox™
BRASS VENT, VINTAGE STYLE Found on several vintage Vox™
amps from the 1960s, including the original AC15 and AC30. The vintage Vox™ amps
typically used 3 of these vents across the top of the cabinet. This
recreation from Tube Amp Doctor is hand-crafted in Germany to be a perfect match
for the original brass vents.
Measures 0.720" x 4.805" (122 x 18.3mm).
Sold individually. Special order, allow 3 business days.
Part #VV-225 |
$14.50 |
|
|
|
16mm Potentiometer, Vox, 1990-Present |
|
|
Click on photo for
larger view |
POT, VOX,
PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING
Used in many later Vox amp models with
PC board circuitry, including AC30C2, V9158 Pathfinder, V9159, V9310, Night
Train, etc. Diameter of the body of the pot is slightly smaller than a dime. Shaft length is
10mm. Click on photo for more detail.
Download cross-reference guide for these pots. Choose pot value
option in "Select Options".
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXA-XX |
$3.95 |
|
Click on photo for
larger view |
POT,
Vox™
DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING,
MEDIUM SHAFT.
Used in the Vox™
Tonelab ST and Tonelab EX
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXA-B10KX2 |
$6.95 |
|
Click on photo for
larger view |
POT,
Vox™
DUAL 100K OHM LINEAR, (B100KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING,
MEDIUM SHAFT.
Used in the Vox™
Tonelab ST and Tonelab EX
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXA-B100KX2 |
$6.95 |
|
Click on photo for
larger view |
POT,
Vox™
DUAL
200K AUDIO, (A200KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING,
MEDIUM SHAFT.
Used as the Master Volume Pot in the
Vox™
Night Train.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXA-A200KX2 |
$6.95 |
|
Click on photo for
larger view |
POT,
Vox™
10K
OHM LINEAR, (B10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT FOR VOX VALVETRONIX SERIES.
Replacement for most pots in the ADxxVT Valvetronix Series. B10K
Ohms - 10K Linear. In the
AD15VT, AD30VT, AD50VT, AD60VT, and AD100VT, replaces the Gain, Volume, Treble,
Middle, Bass, Edit 1 and Master Volume. In the AD60VT and AD120VT, also
replaces the Presence, Drive, Level, Speed, Feedback and Depth. Replaces
Vox™
part numbers 530000000288, V903620015, RV1620-40-15S-B1, and VR RV160-40-15S-B10K-C0.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-B10K |
$3.95 |
|
Click on photo for
larger view |
POT, 10K
OHM AUDIO, (A10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT.
Used in the Vox™
DA5, DA10, DA10CL, AD60VTH, and AD60VTX. A10K
Ohms - 10K Audio. Replaces
Vox™
part numbers 530000000288, V903620014, and RV160-40-15S-A10K-C0.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-A10K |
$3.95 |
|
Click on photo for
larger view |
POT,
B100K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT.
Used as the Reverb Mix pot in the AC15CC1, ACC15CC1X, AC30CC1, AC30CC2, AC30CC2X and
AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces
Vox™
part number 550020-1044111000. 100K
Ohms, Linear Taper (B100K)
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-B100K |
$3.95 |
|
Click on photo for
larger view |
POT,
A200K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT.
Used as the Tone Cut pot in the AC30CC1, AC30CC2, AC30CC2X and
AC30CC2H. Replaces
Vox™
part number 550020-2044110000. This style of pot is NOT used in the
AC15C1 or AC30C1. 200K
Ohms, Audio Taper (A200K)
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-A200K |
$3.95 |
|
Click on photo for
larger view |
POT,
A500K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT.
Used as the Top Boost Volume, Master Volume and Tremolo Depth in the AC15CC1
and AC15CC1X. Used as the Top Boost Volume, Normal Volume, Master
Volume, and Reverb Tone in the AC30CC1, AC30CC2, AC30CC2X and
AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1.
Replaces
Vox™
part number 550020-5044110000. 500K
Ohms, Audio Taper (A500K)
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-A500K |
$3.95 |
|
Click on photo for
larger view |
POT,
B500K, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT.
Used as the Tremolo Depth pot in the AC30CC1, AC30CC2, AC30CC2X and
AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces
Vox™
part number 550020-5044111000. 500K
Ohms, Linear Taper (B500K)
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-B500K |
$3.95 |
|
Click on photo for
larger view |
POT,
A1M, RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT.
Used as the Top Boost Treble and Bass pots in the AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X and
AC30CC2H. This style of pot is NOT used in the AC15C1 or AC30C1. Replaces
Vox™
part number 550020-1054110000. 1 Meg
Ohms, AudioTaper (A1M)
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-A1M |
$3.95 |
|
Click on photo for
larger view |
POT,
DUAL 10K
OHM STEREO AUDIO, (A10K), RIGHT-ANGLE PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER
THREADED BUSHING, KNURLED SPLIT SHAFT FOR VOX VALVETRONIX AD120VT SERIES.
Replacement for the Master Volume control pot in the AD120VT, AD120VTH, and
AD120VTX Valvetronix models. Stereo (dual gang) right angle A10K
Ohms - 10K Audio Taper. Replaces Vox part numbers V903620010 or
RV1620-40-15S-A10K-CO.
INCLUDES NUT & WASHER
(For spare or replacement nut,
order the PNW-16 nut and washer set found here).
Part #P-VXRA-A10KX2 |
$7.95 |
|
Click on photos for
larger view |
BRASS
POT ADAPTER SLEEVE
Do you want to put a 1/4" set-screw knob on
your 1/4" knurled shaft potentiometer? Do you need to eliminate the
off-center problem when using a 1/4" set screw knob on a 6mm shaft pot?Just slip one of
our solid brass pot adapter sleeves onto any 1/4" knurled pot shaft
or 6mm pot shaft to ensure a
snug and secure fit for a 1/4" (6.35mm) smooth shaft knob. We have tested this adapter extensively, and it really does work great!
Note: Will NOT work with 3/16" knurled
shaft pots. Those smaller knurled shafts are typically found in Crate and
Peavey amps. Not recommended for D-shaft type shafts.
Part #PAS-635 |
$0.95 |
|
Click on photo for
larger view |
KNOB, CHICKEN HEAD,
Vox™
KNURLED PUSH-ON, BLACK
Used on many
Vox™ amps - can replace any knob which uses a 1/4" knurled type shaft. Black. Fits 1/4" knurled shaft only.
Part #K-V11 |
$1.95 |
|
(Black)
Click on photo for
larger view |
Vox™ STYLE GUITAR AMP HANDLE.
Black handle strap, "dogbone" style, diamond pattern, with
brackets. Nickel end hooks - replacement for vintage
and modern Vox™ amps. Does
not contain Vox™ logo, so it may be used on other brands of amps. Center to
center measurement is 6 1/4 inches. Color of handle strap is
black. Screws not included - you might consider the pack of four SC-402 screws
found here. Note that some vintage
Vox™ amps
may have used a different thread type than the 8-32 thread of the SC-402 screws.
Part #VAH-327 |
$6.95 |
|
Click on photo for
larger view |
JACK, 1/4",
T/R/S PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND /WASHER.
Same as the J-504, with the addition of a special ground washer which
contacts the chassis AND is inserted into the ground connection of the PC board
via dual pins under the jack. 6 PC board terminals for signal, plus
2 additional terminals for the ground washer. Only for
amplifiers so equipped for this jack, designed
to
reduced EMI/RFI interference (radio stations, ground loops). Found in the
Vox™ AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X, AC30CC2H. Nut is included.
Part #J-504GW |
$2.89 |
|
Click on photo for
larger view |
WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and
chrome nut jacks to provide proper spacing. Jacks come with the
washers included, but the washers are easily lost. Without the washers,
the jacks will not fit properly.
Part #W-583 |
$0.18
for each washer.
(Jacks not included). |
|
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT,
BRITISH STYLE, STRAIGHT LEG (NOT L-LEG!)
Common input jack found in some "boutique" and independent brand amps, as well as
Vox™. 6 PC board terminals. Chrome nut has male threads, jack has female threads. Leads from jack come straight down from the contacts to go into the PC board. With nut and washer.
Part #J-581 |
$4.49 |
|
Click on photo for
larger view |
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE
4 PC board terminals, switched. Vox™ part number 530000000112.
Used in the AC15HTVH, AC100CPH, AC50CXP2, AC30H2, AC30H2L, and the Vox VR series
of amps. With nut
and washer.
Part #J-503 |
$1.99 |
|
Click on photo for
larger view |
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE
Stereo jack. 6 PC board terminals, switched. With nut and washer.
British style. Vox™ part number 530000000113. Used in the
AC100CPH, AC50CP2.
Part #J-504 |
$2.15 |
|
|
Click on photo for
larger view
|
JACK, 1/4", TIP/SLEEVE 4 PIN, PC
MOUNT. Mono, 4 pin. Fits certain Fender™, Hartke™ and Vox™ amp
models 1988 - present. Nut and washer are included. Replacement nut/washer set is the JN-916.
Part # J-506 |
$2.89 |
|
Click on photo for
larger view |
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates. Works well with the Switchcraft J-11 1/4" jacks
that we carry. Hole is 3/8", for most Switchcraft type jacks. Easy to install, economical.
Includes 3 black oxide coarse-thread mounting screws, #6x3/4".
Jack not included - order separately. For size specifications, click here.
Part #JP-180 |
$1.89
|
|
Click on photo for
larger view |
Revisit™
JACK PLATE COMPLETE WITH
SWITCHCRAFT #11 JACK.
Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180 |
$4.95
|
|
Click on photo for
larger view |
 Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC
CONNECTOR AT EQUIPMENT END. Common replacement cord for use on many
guitar amps, power amps, effects units, etc. Standard NEMA 5-15 plug
for North American use at 110-120 Volts AC. IEC connector at
equipment end. Used only in North America.
Part #PC-300 |
$6.95 |
|
Click on photo for
larger view |
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10
ft LONG, IEC CONNECTOR AT EQUIPMENT END. Replacement Cord For
Many Guitar Amps, Power Amps, Effects Units, Etc. 10 Ft Length Give Extra
Flexibility In Equipment Placement, Reduces Use Of Extension Cords.
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.
IEC connector at equipment end. Used only in North America.
Part #PC-600 |
$10.95 |
|
|
Click on photo for
larger view
|
Vox™
STYLE DUAL FOOTSWITCH
Revisit™ aftermarket replacement for the original Vox™ dual footswitch - same quality, just without the
Vox™ logo
and Vox™ price tag. Sturdy metal construction. Standard design - operation of one of the footswitches shorts the tip to the sleeve, while the other switch shorts the ring to the sleeve.
Latching switches. Works with Vox AC151C1(X), AC15C2, AC30C2(X),
AC15VR, AV30, AV60, and all Night Train G2 models. 1/4"
Stereo plug, 16 ft. cable.
Part #FBS-471 |
$37.95 |
|
|
Click on photo for
larger view
|
Vox™
STYLE FOOTSWITCH
Revisit™ aftermarket replacement for the original
Vox™
footswitch. -
same quality, just without the
Vox™
logo and Vox™
price tag.
Sturdy metal construction. Mono 1/4" Plug, 16 ft. cable.
Replaces Vox™
stock numbers VFS-1 and 530000002298. Works with the
Vox™
model AC15HW.
Part #FBS-470 |
$29.95 |
|
Click on photo for
larger view |
Revisit™
SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.
Used to replace speaker cable in most combo amplifiers where the speakers are
connected to the amplifier chassis via a 1/4" jack and plug. 18ga black zip cord,
right-angle plug and fast-on connectors for attachment to one
speaker.
Part #SCH-280 - NOTE: OUT OF STOCK! NONE AVAILABLE AT THIS TIME. |
$6.99 |
 |
Click on photo for
larger view |
Revisit™ SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair,
black and white. Terminated at each end in standard 3/16" speaker
fast-on connectors. Great for connecting speakers in parallel in
2x12 or 4x12 cabinets. 24 inches (61 cm) long. Made in
USA.
Part #SJ-150 |
$5.99 |
|
|
 |
BUILD YOUR OWN Speaker Harness for Combo Amps: Choose the SJ-150
cable (above) along with the P-287 Plug (below). Cut off the
cable's fast-on connectors on ONE end of the cable. Strip both
conductors of cable back about 1/4" on that end. Solder that end to
the P-287 plug (black to the sleeve, white to the tip.). This
will give you a 24 inch speaker harness. Note:
Cable-building experience strongly recommended. Soldering
equipment needed. |
Total cost for materials will be $5.99 + $3.95 = $9.94. |
 |
Click on photo for
larger view |
PLUG, 1/4", MONO, RIGHT ANGLE,
SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug. Nickel plated copper alloy.
2-conductor right-angle phone plug, solder terminals.
Part #P-287 |
$3.95 |
|
Click on photo for larger view
 |
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1B.
Short Tank, Medium Decay, input
impedance 190 ohms, output 2575 ohms, insulated input and grounded output.
Mounts horizontal, open side down. Primarily used
Vox™ AC30, with solid state reverb as used in the
1970s,
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB3C1B. Short
Tank, Long Decay, input impedance 800 ohms, output 2575 ohms, insulated input
and grounded output. Mounts horizontal, open side down. Used in the
AC15CC1, AC15CC1X, AC30CC1, AC30CC2, AC30CC2X and AC30CC2H.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
View the 2-year warranty
details here.
Part #8EB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2A1B. Input impedance 150 ohms, output impedance 2250 ohms,
medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for
horizontal mounting, open side down. Replaces
the 53-5004-2 Vox reverb tank used in the V1133 Royal Guardsman, the V1123
Buckingham, and the V1154 Viscount Combo Amp. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB2A1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1C.
Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75
seconds), input grounded/output grounded, designed for vertical mounting, long
axis horizontal, connectors up.
Replaces Vox reverb tank 23-5002-2 in the
solid state Berkeley II, solid state and tube Cambridge Reverb, V-8 Berkeley
Super Reverb, Viscount, and Super Beatle (V14, V114, V1141 and V1142). See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2A1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9BC2C1B. Input impedance 190 ohms, output impedance
12,000 ohms,
medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Vox™ AC30TBR Top Boost Reverb model (1991-1993. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9BC2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9EB2C1B.
Input impedance 800 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75
seconds), input insulated/output grounded, designed for horizontal mounting,
open side down. Common replacement for
Vox™
AC50CPH, AC100CPH.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9EB2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view |
Rubber mounting grommets for reverb tanks, package of four.
Provides shock absorption for tanks mounted directly to the inside of a wooden
amp cabinet. Mounting Hole Diameter = 3/8" Outer Diameter = 1/2"
Part #RRG-4 |
$1.99
(For a pack of 4 grommets) |
|
Click on photo for
larger view
|
Reverb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
Part #RB-017 |
$18.90
In Stock |
|
Click on photo for
larger view
(Reverb tank not included)
|
Handmade Reverb Tank Bag for 9"
tanks. Works with any short
(9") reverb tank. Reverb bags give the reverb tank better
isolation which results is fuller, richer reverb and less feedback.
Handmade of single-ply black Tolex. Replacement for Fender and many other
amps. Bag dimensions: 4.5"W x 1.5"H x 9.5"L. Includes loops at
each end for screw attachment to the amp cabinet, and a tuck-in flap to close up
the end. Mounting screws not included.
Part #RB-009 |
$13.95
In Stock |
|
|
Click on photo for
larger view |
3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173 |
$8.95
In Stock |
|
|
Click on photo for
larger view |
4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174 |
$8.95
In stock |
|
|
Click on photo for
larger view |
5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 5 feet long.
Part #RC-175 |
$8.95
In stock |
|
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
