Fender™ Hardware
(Also see our complete line of hardware) |
|
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL
WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE . Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. 9-Pin tube
socket is made of sturdy Micalex. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Requires 3/4" hole in chassis. Solder lugs for wire connection to tube
socket.
Shield, base and socket.
Part #TS-370 |
$4.99 |
|
Click on photo for
larger view |

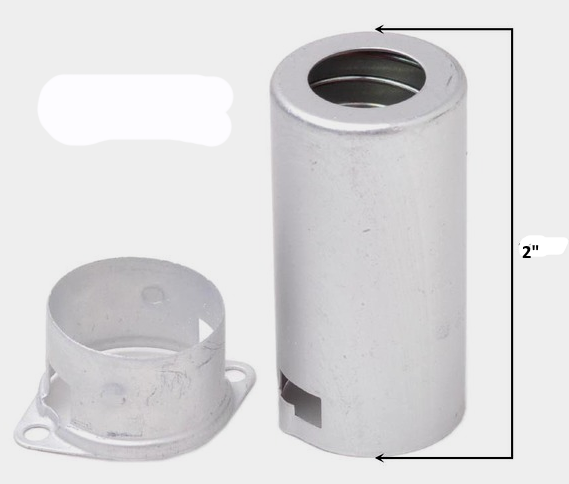

TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.
Includes new base, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Shield and base only - socket not included.
Part #TS-325S |
$2.29 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL,
SET OF 6.
Includes new bases, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
This is a great kit to replaced all 6 of the tube shields in many Fender™ amps
with 6 preamp tubes. Shield and base only - socket not included.
Part #TS-325S-6 |
$12.95 |
|
(TUBE NOT INCLUDED)
Click on photo for
larger view |
 Revisit™ PRE-AMP TUBE DAMPER
RINGS.
Use two (or three) of these rings around a pre-amp tube to reduce noise and
microphonics. An economical alternative to more expensive tube dampers.
Will withstand high temperatures of pre-amp tubes, reusable when you change
tubes. Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes. These
dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6 |
$4.95
(Set of 6 rings) |
|
Click on photo for
larger view |
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.
Used in Fender™ and many other amps. 1 1/2" mounting
centers. Made by Belton. Fender part number 099072500.
Part #TC-142 |
$2.25
|
|
Click on photo for
larger view |

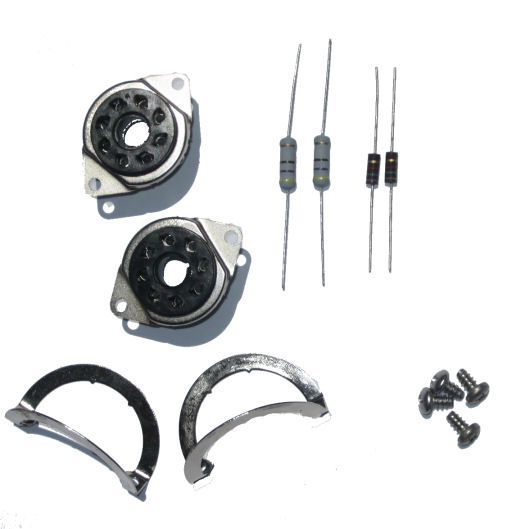

Fender™ Vintage Amp (60`s Blackface and 70`s Silverface) Power Tube Socket
replacement kit. For vintage Fender™ amps (NOT Reissues!)
from the original blackface and silverface eras which have two power tubes (6L6
or 6V6). Contains two phenolic 8-pin sockets, two "bear trap" retainers, four
mounting screws, two 470 ohm screen grid resistors (Metal-Film Flameproof for
safety), and two carbon composition 1500 ohm control grid resistors.
Princeton and Princeton Reverb do not need the resistors.
Perfect for Vibrolux Reverb, Vibroverb, Super Reverb, Deluxe Reverb, Pro Reverb,
Bassman, Bandmaster Reverb, Tremolux, etc.
Part #FPTSK-2 |
$13.95 |
|
Click on photo for
larger view |

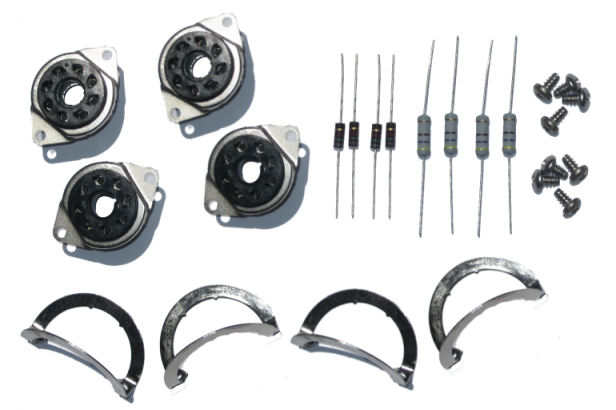

Fender™ Vintage Amp (60`s Blackface and 70`s Silverface) Power Tube Socket
replacement kit. For vintage Fender™ amps (NOT Reissues!)
from the original blackface and silverface eras which have four power tubes
(6L6). Contains four phenolic 8-pin sockets, four "bear trap" retainers,
eight mounting screws, four 470 ohm screen grid resistors (Metal-Film Flameproof
for safety), and four carbon composition 1500 ohm control grid resistors.
Perfect for Twin Reverb, Showman and Dual Showman, Quad Reverb, Bassman 100,
etc.
Part #FPTSK-4 |
$26.95 |
|
Click on photo for
larger view |

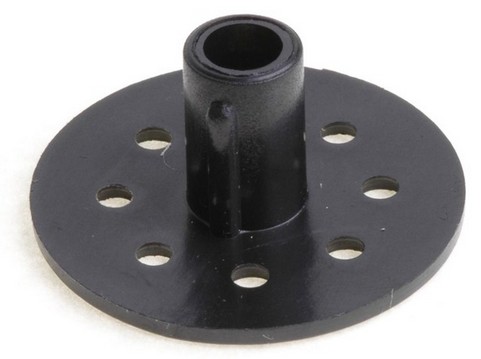

OCTAL TUBE KEYWAY, SET OF 2
If you have a cherished octal power
tube or rectifier with a broken keyway, here is a great solution. By cleaning
the remainder of the broken keyway from the tube base and properly installing
this keyway replacement (a little dab of silicone sealant works great to hold it
in place), your tube can safely be reinstalled into your equipment.
These great tube-savers are sold in sets of 2. Note: When using an adhesive to secure the keyway to the tube base, DO NOT use a
water-based glue. Silicone sealant (RTV) which is acryllic-based or
butyl-based is fine. Latex sealant or hot-glue is NOT.
Part #OTK8-2 |
$8.99
(for a set of 2 tube keyways) |
|
Click on photo for
larger view |

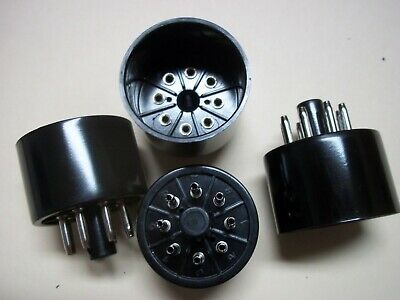

OCTAL TUBE BASE, SOLD
INDIVIDUALLY
Octal tube bases are used to construct tube socket savers, solid-state
rectifiers, bias probes, etc. 8-pin plug with room inside the base
for circuitry and wiring. Sold individually.
Part #OTB-100 |
$3.99 ea |
|
Click on photo for
larger view |

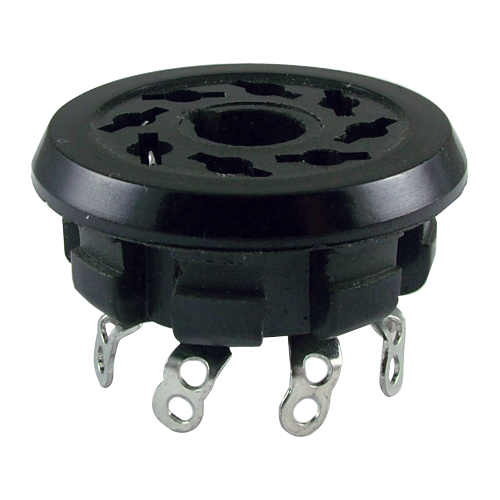

TUBE SOCKET, OCTAL 8-PIN, commonly used with the Octal Tube Base to build
bias probes, tube socket savers, tube extenders, etc. This socket
has no mounting bracket.
Part #TS-8-810 |
$4.40 |
|
Click on photo for
larger view |

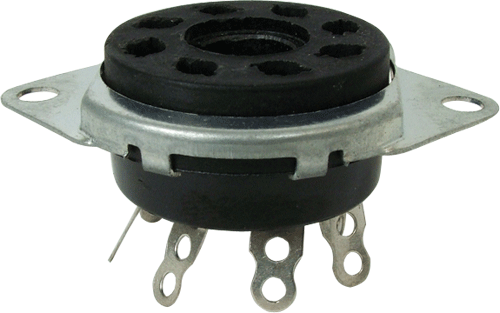

PHENOLIC TUBE SOCKET FOR OCTAL TUBES. EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall™ (including the JCM900 Series), and many others. Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes. For 1" to 1 1/8" hole. Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.
Unlike some phenolic tube sockets on the market, this one fits the 1" hole found
in most vintage Fenders.
Part #TS-8-600 |
$5.70 |
|
Click on photo for larger view |
CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET,
crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting
centers, 1" to 1 1/4" chassis hole. Fits 6L6, EL34, 6V6 output tubes, and
5U4, 5Y3, and GZ34 rectifier tubes.
Click here for additional specs.
Fender part number 0990724000, or 023580.
Part #TS-8-807W |
$3.95
|
|
Click on photo for
larger view |
FENDER™

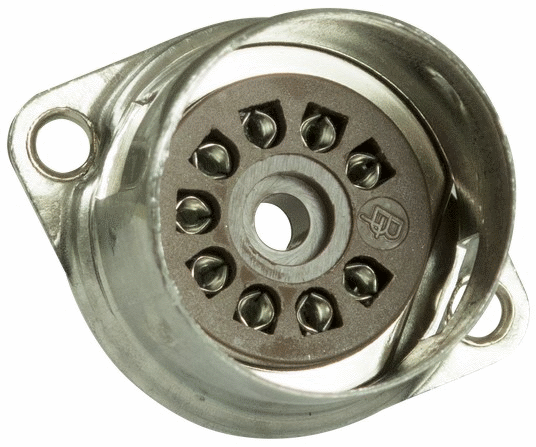

STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs.
Fender part number 0023606049.
Part #TS-9-700 |
$4.49
|
|
Click on photo for
larger view |

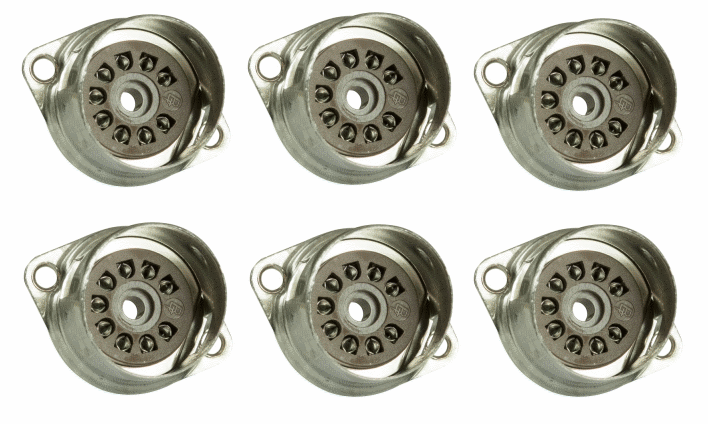

6-PACK OF FENDER™
STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart.
Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs. Pack of 6 tube sockets. Mounting screws not
included - recommend the SC-410-6 screws (2 packs of 6 screws needed for 6 tube
sockets). It is also possible to use 1/8 inch pop rivets to mount these
sockets. Replaces
Fender part number 0023606049.
Part #TS-9-700-6 |
$25.99
(for 6 sockets) |
|
Click on photo for
larger view |

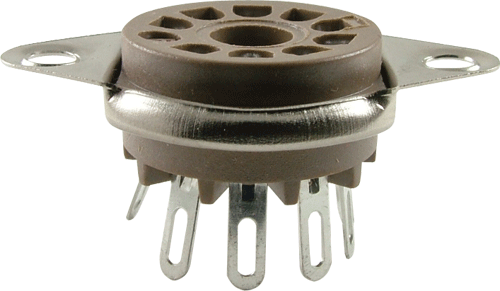

TUBE SOCKET FOR MINIATURE 9-PIN TUBES. EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. For 3/4" hole. Bottom mounting (mounted from the inside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the
TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-601 |
$2.49
|
|
Click on photo for
larger view |

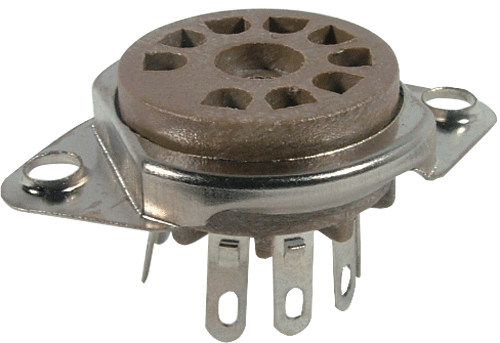

TUBE SOCKET FOR MINIATURE 9-PIN TUBES. EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. For 3/4" hole. Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-610 |
$2.49
|
|
Click on photo for
larger view |

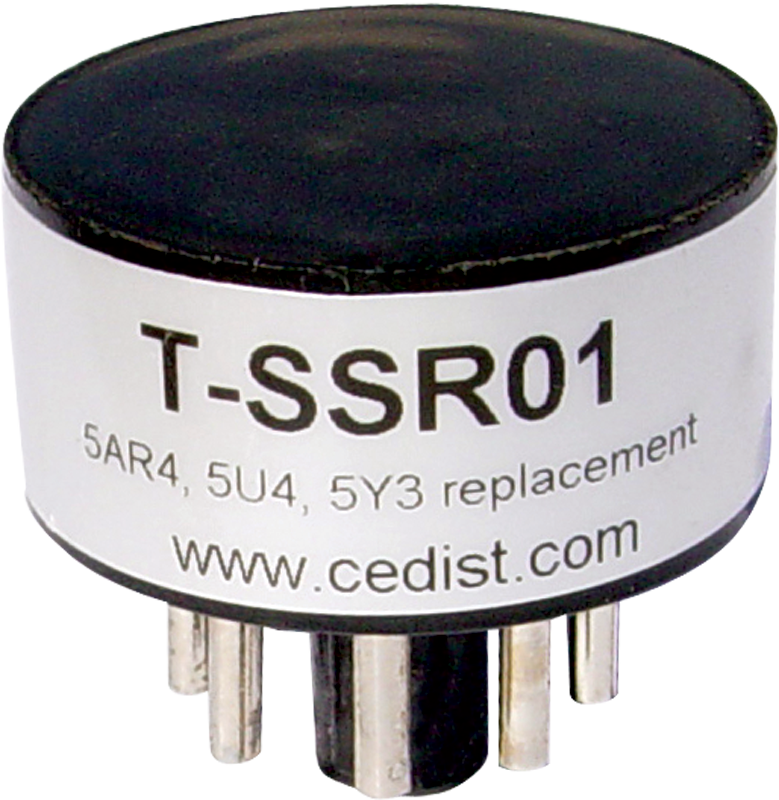

Solid-State Tube Rectifier Replacement.
Replaces 5AR4, GZ34, 5U4, 5Y3 rectifier tubes. Use when less "sag" is
desired in the power supply. 1.31" diameter, 0.89" tall (not
including pins and center post).
Costs about 35% less than a new rectifier tube,
and unlike tubes, should last indefinitely. No deterioration
over time. Doesn't generate any heat, which lowers the heat given
off by the amp.
NOTE!
Because there is no warm up of a rectifier tube when using this solid state
device, it is absolutely
 necessary that a standby switch is used in
conjunction with this device. Do not install in an amplifier that
does not have a standby switch - always use the standby switch in amps so
equipped when using the TSSR01.
Part #TSSR01 |
$14.95 |
|
|
|
Fender™ Style
Capacitors |
|
|
 |
CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads. Tolerance
±5%. Dipped in epoxy coating. (See Options)
1000pF = 1nF = 0.001uF
Part #C-SM-XX |
Starting at
$0.80 |
|
 |
CAPACITOR, POLYPROPYLENE, RADIAL. Similar to orange drop style, rated
at 630 volts. Values from 0.001uF to 0.47uF
Radial leads. (See Options)
Part #C-PR-XX |
Starting at
$0.30 |
|
 |

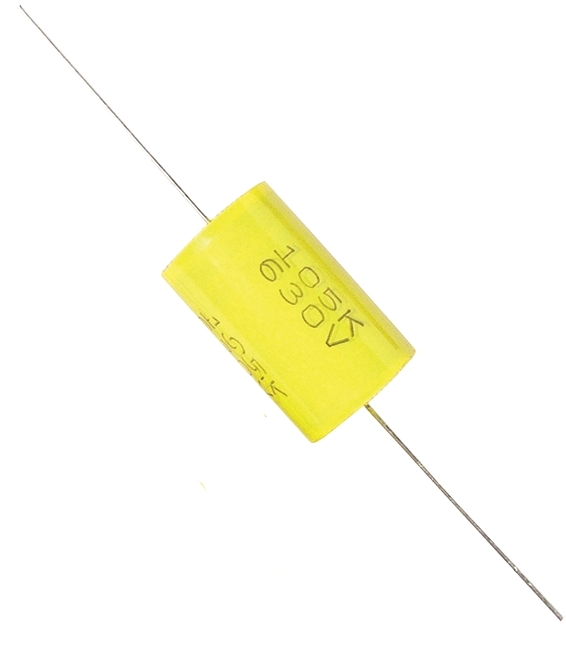

CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at
630 volts. Values from 0.001uF to 0.47uF. Axial Leads.
(See Options)
Part #C-MF-XX |
Starting at
$0.90 |
|
Click on photo for
larger view |

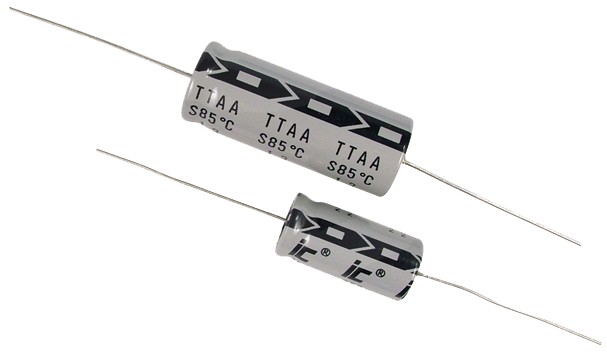

Fender™ Electrolytic Capacitor Kits
Fender capacitor kits contain all of the main filter, decoupling filter,
bias filter and preamp cathode bypass electrolytic capacitors for most amps from
the blackface and silverface eras. The kits are assembled from
premium capacitors made by F&T of Germany (filter capacitors) and Illinois
Capacitor (cathode bypass capacitors). |
Prices starting at $32.95 |
Click here to see the full
selection of Fender capacitor kits. |
|
|
 F&T Premium Capacitors |
|
|
Click on photo for
larger view |
CAPACITOR, F&T BRAND, AXIAL LEAD
ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS) Made
in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest
capacitors available today. F&T Caps are known for their great stability and
reliability. Values available include 10uF/500V, 16uF/475V, 22uF/500V,
30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.
Choose capacitor value under the Select Option box.
Part #FT-CAP-XX |
Starting at
$4.95 |
|
|
|
 Sprague Premium
Cathode Bypass Axial Capacitors |
|
|
Click on photo for
larger view |

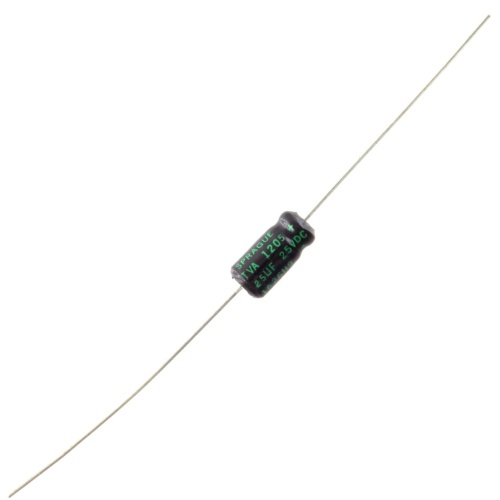

SPRAGUE AXIAL 25uf/50V
Replacement
for the 25uF/25V axial cathode bypass capacitors commonly found in vintage
Fender™
amps from the 1950s through the 1980s. Sprague, founded in 1926, is
considered one of the premier capacitor manufacturers in the world.
Part #SP-CAP-25-50 |
$4.95 |
|
|
|
 Tube
Amp Doctor Premium Capacitors |
|
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 8uF-475V
12mm diameter x 26mm Length
Rated
105° C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.
Part #TAD-CAP-8-475 |
$4.75
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 16uF-475V
12mm diameter x 30mm Length
Rated
105° C for Long Life
16uF - 475 Volts DC
Part #TAD-CAP-16-475 |
$4.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 22uF-500V
16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC
Part #TAD-CAP-22-500 |
$5.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 22uF-500V
16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC
Part #TAD-CAP-22-500 |
$5.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 100uF-350V
22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC
Part #TAD-CAP-100-350 |
$12.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 220uF-350V
25mm diameter x 51mm Length
Rated
105° C for Long Life
220uF - 350 Volts DC
Part #TAD-CAP-220-350 |
$19.95
In stock |
|
Click on photo for
larger view |

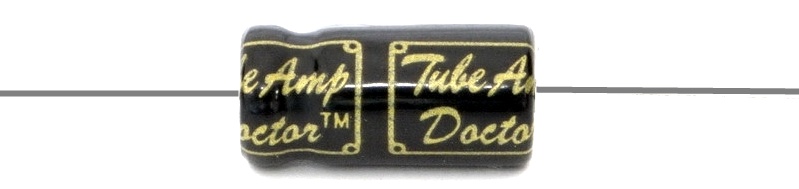

Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 25uF-25V
6mm diameter x 14mm Length
Rated
105° C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps
Part #TAD-CAP-25-25 |
$1.75
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 5uF-50V
5mm diameter x 13mm Length
Rated
105° C for Long Life
5uF - 50 Volts
Perfect replacement for axial cathode bypass capacitors in the vibrato circuit
of many Fender amps
Part #TAD-CAP-5-50 |
$3.50
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 47uF-500V
22mm diameter x 39mm Length
Rated
105° C for Long Life
47uF - 500 Volts DC
Part #TAD-CAP-47-500 |
$12.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 70uF-350V
18mm diameter x 40mm Length
Rated
105° C for Long Life
70uF - 350 Volts DC
Part #TAD-CAP-70-350 |
$8.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 100uF-350V
22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC
Part #TAD-CAP-100-350 |
$12.95
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 80uF-100V
9.5mm diameter x 21.5mm Length
Rated
105° C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps
Part #TAD-CAP-80-100 |
$4.95
In stock |
|
|
|
MOD Axial Capacitors |
|
|
Click on photo for
larger view |

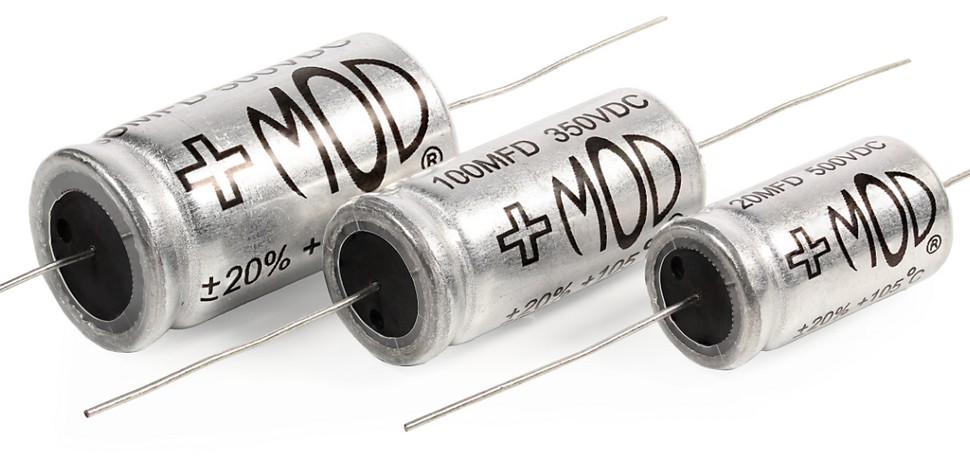

 MOD™ CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Mod™ Electronics electrolytic capacitors offer long-lasting performance at the
highest degree. These capacitors are designed with tube amplifiers in mind; each
capacitor is rated at 105°C. This temperature rating provides a highly-stable
capacitance in any device, be it vacuum tube or solid state. The Mod™
electrolytic capacitor line features capacitance values that are common in many
vintage amplifiers. Values available include
8uF/150V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.
Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX |
Starting at
$1.00 |
|
|
|
Illinois
Capacitor  Electrolytic Capacitors |
|
|
Click on photo for
larger view |
CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD
ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years
later continues to produce benchmark quality capacitors for industry.
Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American
capacitor manufacturer tracing its roots to 1909. Values available include
2.2uF/50V, 4.7uF/50V, 10uF/160V, 10uF/450V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 80uF/450V,
100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V. Choose capacitor value
under the Select Option box.
Part #IC-CAP-XX |
Starting at
$0.99Note: Illinois Capacitor is
discontinuing the 80uF/450V size. We have only a few left. |
|
|
|
Axial Electrolytic
Capacitors - Other Brands |
|
|
Click on photo for
larger view |

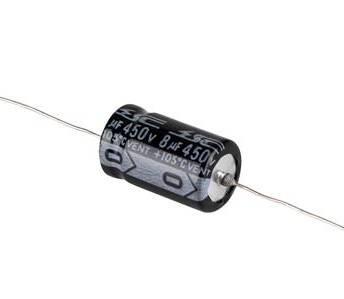

CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Values
available include the following:
|
25uF/25V |
100uF/25V |
220uF/25V |
2200uF/25V |
|
100uF/50V |
0.68uF/50V |
25uF/50V |
|
| |
47uF/63V |
70uF/100V |
100uF/100V |
| |
8uF/150V |
10uF/160V |
100uF/350V |
|
220uF/350V |
4.7uF/450V |
8uF/450V |
10uF/450V |
| |
22uF/450V |
33uF/450V |
47uF/450V |
|
16uF/475V |
20uF/500V |
20uF/600V |
|
Choose capacitor
value under the Select Option box.
Part #EL-CAP-XX |
Starting at
$1.00 |
|
Click on photo for
larger view |

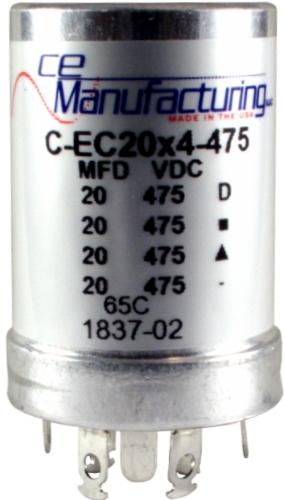

CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 20uF/20uF/20uF/20uF
@ 475V,
1 3/8" D X 2" H. Made in USA on the
original Mallory equipment. Twist-lock tabs for mounting
to chassis. Replacement for Fender Princeton and Princeton
Reverb main filter capacitor on blackface and silverface amps from the 1960s and
1970s. Also may be used for Fender Champ, Vibro-Champ and
Bronco amps from the same era (one extra 20uF section unused on these amps).
Rated 85 degrees C, -10%/+50% tolerance.
Part #C-EC20X4-475 |
$51.95 |
|
Click on photo for
larger view |

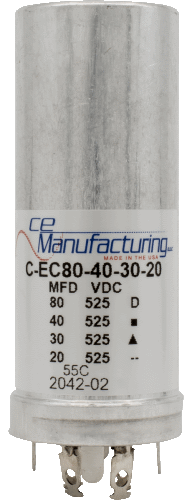

CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 80uF/40uF/30uF/20uF
@ 525V,
1 3/8" D X 3-1/2" H. Made in USA on
the original Mallory equipment. Twist-lock tabs for mounting
to chassis. Replacement for Fender main filter capacitor on Princeton
Reverb II, Deluxe Reverb II, Bassman 20, Super Champ, and Champ II from the 1980s.
Rated 85 degrees C, -10%/+50% tolerance, 1-3/8" diameter x 3-1/2" tall.
Part #C-EC-80403020 |
$56.99 |
|
|
|
Fender™
Transformers |
|
|
Click on photo for
larger view |

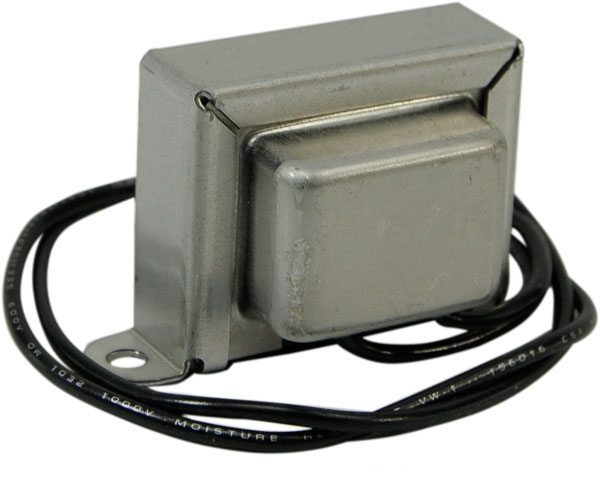

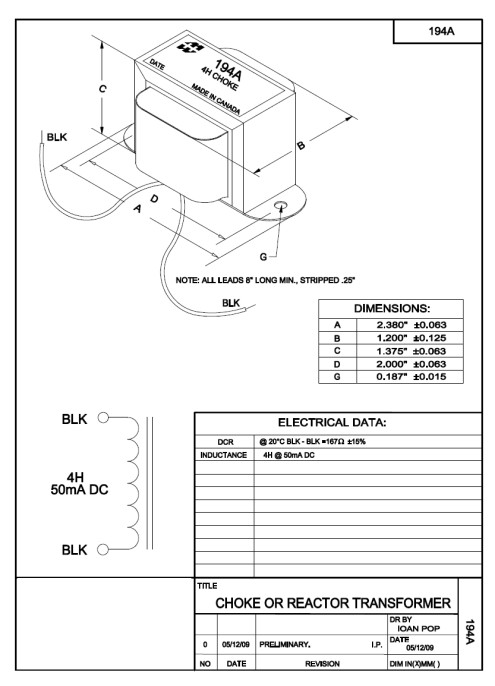

CHOKE,
Revisit™ Filter Choke for
medium size Fender™ amps.
Replacement filter choke for Fender™
Deluxe, Deluxe Reverb, Vibrolux and Vibrolux Reverb. Replaces Fender™
part number 125C3A & 022707.
Inductance 4H, +/- 15%, DC current 50mA. Vacuum impregnated with
polyurethane varnish for quiet and long life operation. For dimensions and
technical specifications, click here.
Part #FC-194A |
$17.95 |
|
|
Click on photo for
larger view |

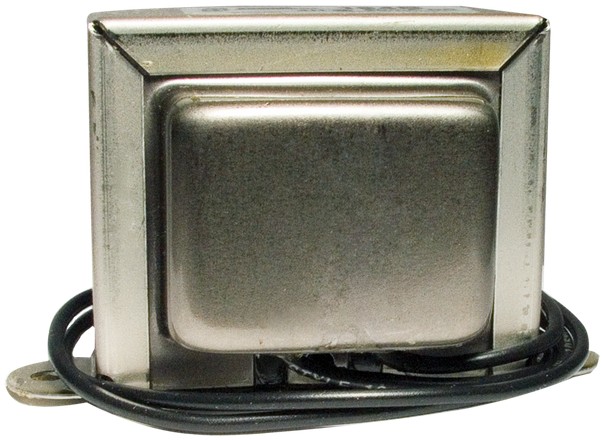

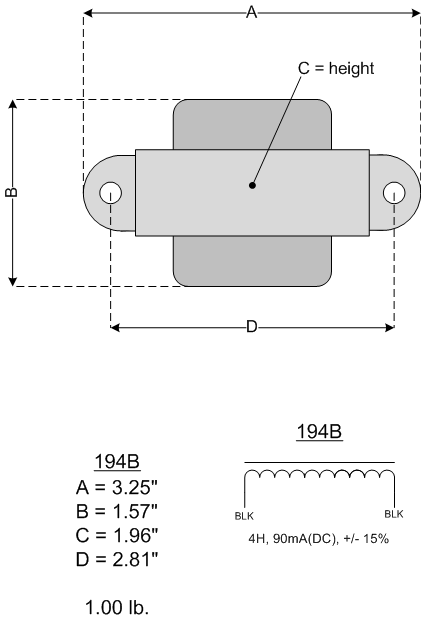

CHOKE,
Revisit™ Filter Choke for
most larger Fender™ amps with 6L6 power tubes.
Replacement filter choke for Fender™
Bassman,
Bandmaster, Concert, Showman, Dual Showman, Pro Reverb, Super Reverb, Twin Reverb,
Vibroverb, etc.
Not used with the Vibrolux - see the FC-194A choke for the Vibrolux. Replaces Fender™
part number 125C1A, 022699 and 036486.
Inductance 4H, +/- 15%, DC current 90mA. Vacuum impregnated with
polyurethane varnish for quiet and long life operation. For dimensions and
technical specifications, click here.
Part #FC-194B |
$28.95 |
|
Click on photo for
larger view |
TRANSFORMER,
Revisit™ Fender™ REVERB DRIVER. For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc. Equivalent to Fender™
#125A20B & #022921. For vintage Mesa-Boogie™ models, including
vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber,
Maverick, Lonestar Special, and many others . Mesa Boogie™
part number 550185. 10" cut leads, X-Mount with 1 3/4" mounting
centers. Input impedance 14.5K ohms, output impedance 4 ohms.
Part #TGR-001 |
$20.95 |
|
Click on photo for
larger view |

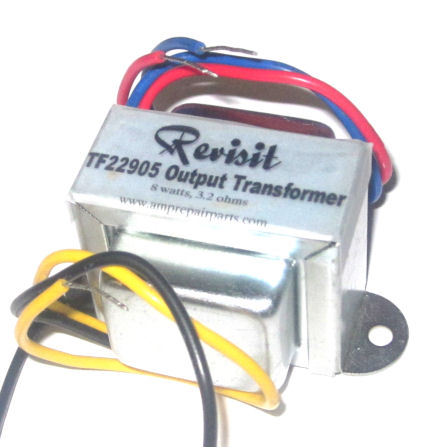

Revisit™ OUTPUT TRANSFORMER, FENDER. Replacement for
Fender™ Champ, VibroChamp, Champion 600 and Bronco amps. Equivalent to #125A35A &
#022905.
X-Mount with mounting centers at 2 3/8".
Part #TF22905 |
$44.95 |
|
 |

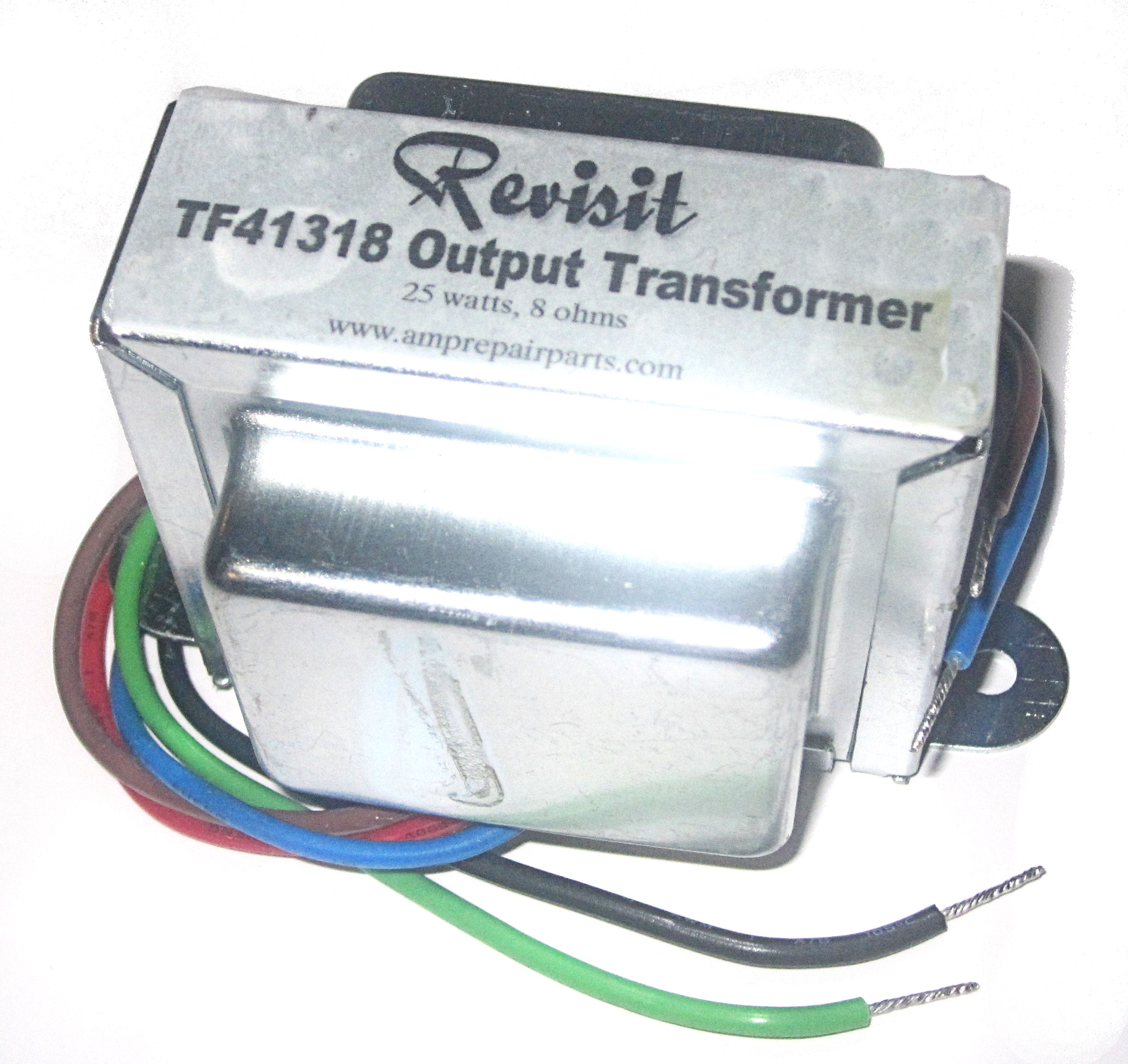

Revisit™ OUTPUT TRANSFORMER, FENDER. Replacement for
Fender™ Deluxe, Deluxe Reverb. Equivalent to #125A1A &
#041318.
X-Mount with mounting centers at 3 1/4". 25 Watts, 8 ohms.
Part #TF41318 |
$34.95 |
|
Click on photo for
larger view |
CUP WASHER, STAINLESS STEEL, SMALL, SET OF 4. OD 3/8", ID 5/32".
Typically found on the back panel of some Fender™ Blonde/Brown era amps, and some Blackface vintage
amps. Set of 4 washers. Fender™ part number 0037215049. OUTSIDE EDGE OF WASHER IS BARELY
LARGER THAN THE HEAD OF the Fender™ BACK PANEL SCREWS.
Part # CW-401-4 |
$0.99
(for a set of 4 washers) |
|
Click on photo for
larger view |
CUP WASHER, STAINLESS STEEL, SMALL, SET OF 8. OD 3/8", ID 5/32".
Typically found on the back panel of some Fender™ Blonde/Brown era amps, and some Blackface vintage
amps. Set of 8 washers. Fender™ part number 0037215049. OUTSIDE EDGE OF WASHER IS BARELY
LARGER THAN the HEAD OF the Fender™ BACK PANEL SCREWS.
Part # CW-401-8 |
$1.79
(for a set of 8 washers) |
|
Click on photo for
larger view |
CUP WASHER, STAINLESS STEEL, MEDIUM, SET OF 4. OD 7/16", ID 3/16"
Typically found on the back panel of some Fender™ Blackface/Silverface vintage
amps and the reissues of those amps. Larger than the CW-401-4 Currently out of stock. -
Fender™ was not consistent in which washers they used on back panels over the
years. Set of 4 washers.
Part #CW-501-4 |
$0.99
(for a set of 4 washers) |
|
Click on photo for
larger view |
CUP WASHER, STAINLESS STEEL, MEDIUM, SET OF 8. OD 7/16", ID 3/16"
Typically found on the back panel of some Fender™ Blackface/Silverface vintage
amps and the reissues of those amps. Larger than the CW-401-4 Currently out of stock. /
CW-401-8 Currently out of stock. sets -
Fender™ was not consistent in which washers they used on back panels over the
years. Set of 8 washers.
Part #CW-501-8 |
$1.79
(for a set of 8 washers) |
|
Click on photo for
larger view |
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust. Used to connect a ground wire to a screw and nut on a chassis.
Angled,
with two holes for soldering wires. With built-in lock washer to keep the screw
and nut from loosening. Designed for a #8 size screw.
Pack of 5 terminals.
Part #GL-113 |
$1.39
(Pack of 5 terminals)
|
|
Click on photo for
larger view |
TERMINAL STRIPS, 6 LUG, SET OF
2. Perfect for amplifier circuit additions or modifications.
Center post for mounting to chassis. All 6 terminals are isolated
from ground. Each terminal strip is 2-5/8 inches
long. The lugs are set on 3/8 inch centers. Each lug
will accept wires up to 16ga - smaller gauge allows multiple wires to be
connected to each lug. Set contains 2 terminal strips as pictured.
Mounting hardware not included.
Part #TS-825 |
$2.99
(for a set of 2 terminal strips) |
|
Click on photo for
larger view |
TERMINAL STRIPS, 7 LUG, SET OF
2. Perfect for amplifier circuit additions or modifications.
End terminals on each strip are the mounting lugs, so they become a ground lug
if attached to a metal chassis. Each terminal strip is 2-5/8 inches
long. The lugs are set on 3/8 inch centers. Each lug
will accept wires up to 16ga - smaller gauge allows multiple wires to be
connected to each lug. Set contains 2 terminal strips as pictured.
Mounting hardware not included.
Part #TS-712 |
$3.69
(for a set of 2 terminal strips) |
|
BLACK FENDER HANDLE
Click on photo for
larger view |
 ORIGINAL
BLACK Fender™ GUITAR AMP HANDLE.
Black amplifier handle with vinyl sleeve over steel strap and
one-screw mounting nickel-plated end caps. Includes mounting
hardware (two screws and T-nuts).
Introduced on Blonde, Brown, and Blackface™-era Fender™ amplifiers. Used
on 65 Twin Reverb™, 65 Deluxe Reverb™, 65 Super Reverb™, 65 Princeton
Reverb™, 64 Vibroverb Custom, Custom Vibrolux™, Vibro-King™ 212 Enclosure,
Blues Junior™, Pro Junior™, Acoustasonic™ Jr. DSP, Acoustasonic 30, Acoustasonic
SFX II, Bassman™ 25, Bassman 60, Jazzmaster Ultralight™ Enclosure, Princeton
650™, Cyber Champ™, Rumble™ 112, Rumble 2x8, Super-Sonic™ 100 Head, Super-Sonic
Twin, Super Champ™ X2/XD, and Bullet 15 DSP amplifier. Fits most vintage
and modern amplifiers. 7 3/4" center to center screw placement. 9 1/4" handle length without
end caps.
Original Fender™ part number 0990947000.
Part #FAH-332 |
$17.99 |
|
Click on photo for
larger view |
GUITAR AMP HANDLE - SIMILAR TO Fender™ HANDLE.
Black handle strap, metal reinforced. Nickel metal caps - may be used
as replacement for vintage
and reissue Fender™ amps. Handle strap is 7/8"
wide. Designed for screw holes set 7 3/4 inches apart.
Looks similar to the original Fender™ part number 0990947000. Screws and T-Nuts included.
Part #FAH-261 |
$8.49 |
|
|
Click on photo for
larger view |
Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender™
style FAH-332, FAH-261 handle. 1" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 3/4".
See Data Sheet here
Part #SC-403 |
$0.99
(for a pack of 2 screws) |
|
|
Click on photo for
larger view |
Fender™
EXTRA LONG VINTAGE HANDLE SCREWS
Pack of 2 stainless steel extra long handle screws for Fender™
style FAH-332, FAH-261 handle. Used for vintage Fender™ style strap
handles used on speaker cabinets, such as Bandmaster, Bassman, Showman,
and Blonde or Blackface Tremolux. 1-1/4" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 1-1/8" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 1-1/8".
See Data Sheet here
Part #SC-403A |
$0.99
(for a pack of 2 screws) |
|
Click on photo for
larger view |
Premium-quality steel T-nuts feature
three razor-sharp teeth
and 8-32 fine thread. Works with all 8-32 screws - recommended for mounting
many guitar amp handles. Pack of 4 nuts.
Part TNUT-832 |
99 cents
(pack of 4) |
|
Click on photo for
larger view |
Premium-quality steel T-nuts feature six razor-sharp teeth and extra-long barrels.
1/4"-20 coarse thread.
The result is a T-nut that goes in straighter and holds tighter than ordinary T-nuts. As a bonus, the 6-prong design ensures that your T-nut will stay in place even when working at the edge of a driver hole. We guarantee that these are the finest T-nuts that you will find on the market. Recommended hole size is 1/4", thread is 10-32,
barrel length is 11mm, or about 7/16". Pack of 4 nuts.
Part 6-TNUT-1032 |
$1.59
(pack of 4) |
|
Click on photo for
larger view |
Fender™ AMP
"TAIL" LOGO. New original Fender™
reproduction. Fender™ logo with
"tail", cast
metal. Similar to the original logo found on blackface amps from the
1960s. Used on the upper left corner of the
grill cloth on most blackface era Fender™ amps. Approx. 4 1/2" wide, the "F" in
the logo is about 2 1/2" inches tall. Original Fender™ part number
0994093000. Mounting screws are included.
Part #FAL-912 |
$25.95
(each) |
|
Click on photo for
larger view
|
Black Logo Mounting Screws
Set of 4 logo mounting screws.
These are #5 x 7/16" black oxide
screws, set of 4. Fit the AL-921 Ampeg logo, and the Fender
FAL-912 logo.
Part #LS-504 |
$0.99
(for a set of 4 screws) |
|
Click on photo for
larger view |
Fender™ Nickel Chassis Straps - Large (5") for Twin, Bassman, Super, Showman, Vibro-King, Pro, Pro Reverb, Prosonic, etc. Includes
2 straps, no screws or nuts.
Screw spacing is 5 inches center-to-center, strap length is 5 5/8"
end-to-end.
Part #FCS-5-2 |
$7.95
(Two chassis straps, screws and nuts NOT included)
|
|
Click on photo for
larger view |
Fender™ Nickel Chassis Straps - Medium (4") For Deluxe, Vibrolux, etc. Includes
2 chassis straps, no screws or nuts.
Screw spacing is 4 inches center-to-center, strap length is 4 5/8"
end-to-end.
Part #FCS-4-2 |
$7.49
(Two 4 in. chassis straps, screws and nuts NOT included) |
|
Click on photo for
larger view |
Fender™ Nickel Chassis Straps - Small (3") For
Champ, Music Master Bass, etc. Includes 2 chassis straps, no screws or
nuts.
Screw spacing is 3 inches center-to-center, strap length is 3 5/8"
end-to-end.
Part #FCS-3-2 |
$6.99
(Two 3 in. chassis straps, screws and nuts NOT included) |
|
Click on photo for
larger view |
Fender™ Chassis Bolt and Nut Set - Works with all Fender™
Nickel or Revisit™
Chassis Straps for vintage Blackface models from the 1960s. Includes 4 bolts and 4 matching nuts with integral lock washers.
Fender™ part number 0022236049.
Part #FCB-4 |
$5.95
(4 bolts, 4 nuts - complete set for one amp) |
|
Click on photo for
larger view |
KEPS NUT, ZINC, 8-32
THREAD, SET OF 4 NUTS. Typically used on Fender™ Nickel Chassis Straps bolts, and for
speaker mounting.
Works with all 8-32 screws.
Captive lock washer keeps nut tight. Zinc coating retards oxidation.
Sold in a pack of 4.
Part NT-832-4 |
$0.69
(pack of 4 nuts) |
|
 |
ORIGINAL Fender™
THUMBSCREWS Fender™ piggyback thumbscrews, holds head to cabinet on
Showman, Bandmaster, Tremolux, Tone Master™
212, Super-Sonic™ 212 and Super-Sonic 60 speaker enclosures and other head/cabinet sets. Heavy
nickel plated
steel, heavy knurling on knob. Set Of Two. Genuine Fender™ part number 0990720000.
Part #TS-251 |
$12.95
(Set of 2 Thumbscrews) |
|
|
|
Fender™
TILT-BACK LEG SCREWS AND CAPTIVE NUTS
Pack of 2 stainless steel tilt-back leg screws,
1-1/2 inches long, along with hex nuts with special nylon inserts. Used on tilt-back legs of larger Fender combo
amps and speaker cabinets. Replaces Fender part numbers 021998 and 022277.
Part #SCW-403T-2 |
$1.79
(for a pack of 2 screws and
2 nuts) |
|
|
|
Fender™
TILT-BACK LEG STOP SCREWS
Pack of 2 stainless steel tilt-back leg stop screws,
3/4 inches long. Used on the tilt-back legs stops of larger Fender combo
amps and speaker cabinets.
Part #SC-506-2 |
$0.99
(for a pack of 2 screws) |
|
Click on photo for
larger view |
BACK PANEL
STAINLESS STEEL SCREWS (SET OF 4) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface
Combo Series). Set of 4 screws, stainless steel, 1 1/4 inches long, Phillips, oval head. This set of four
screws fits either the top or bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps. Use with
either the CW-401 or CW-501 cup washers.
Part #SC-401-4 |
$0.99
(for a pack of 4 screws) |
|
Click on photo for
larger view |
BACK PANEL
STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface
Combo Series). Set of 8 screws, stainless steel, 1 1/4 inches long, Phillips, oval head. This set of
eight screws fits both the top and bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps. Set of 8
completely replaces all of the screws on the two back panels. Use with
either the CW-401 or CW-501 cup washers.
Part #SC-401-8 |
$1.79
(for a pack of 8 screws) |
|
Click on photo for
larger view |
BACK PANEL STAINLESS STEEL SCREWS (SET
OF 8) FOR CLOSED BACK CABINETS (SUCH AS Fender™ Bassman, Bandmaster,
etc ). Set
of 8 screws, Stainless Steel, 1 3/4" long, Phillips, oval head. Use with either the
CW-400 or CW-501 cup washers.
Part #SC-400-8 |
$1.99
(for a pack of 8 screws) |
|
Click on photo for
larger view |

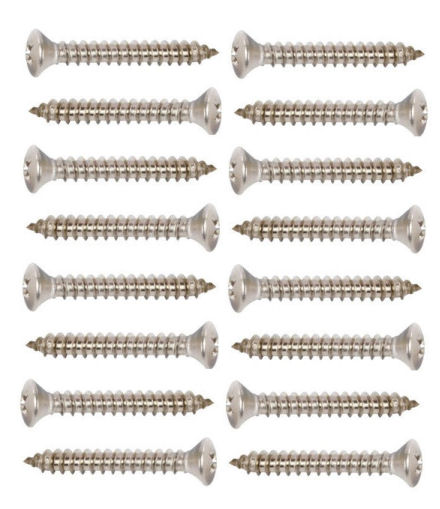

BACK PANEL STAINLESS STEEL SCREWS
(SET OF 16) FOR CLOSED BACK CABINETS (SUCH AS Fender™ Bassman,
Bandmaster, etc ). Set
of 16 screws, Stainless Steel, 1 3/4" long, Phillips, oval head. Use with either the
CW-400 or CW-501 cup washers.
Part #SC-400-16 |
$3.69
(for a pack of 16 screws)
|
|
Click on photo for
larger view |
SATIN BLACK
BACK PANEL
STAINLESS STEEL SCREWS (SET OF 4) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series). Set of 4 screws,
satin black stainless steel, 1 1/4 inches long, Phillips, oval head. This set of four
screws fits either the top or bottom rear panels on Fender™ combo amps from the
60s and 70s, and todays reissues of those BF and SF May be used with the
BCW-10 cup washers. See data sheet
Part #SC-405-4 |
$0.99
(for a pack of 4 screws) |
|
Click on photo for
larger view |
SATIN BLACK BACK PANEL
STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series). Set of 8 screws,
satin black stainless steel, 1 1/4 inches long, Phillips, oval head. This set of
eight screws fits both the top and bottom rear panels on Fender™ combo amps from
the 60s and 70s, and today`s reissues of those BF and SF amps. Set of 8
completely replaces all of the screws on the two back panels. May be used
with the BCW-10 cup washers. See data sheet
Part #SC-405-8 |
$1.89
(for a pack of 8 screws) |
|
Click on photo for
larger view |
CUP WASHER, BLACK METAL, PACK OF 10. Used with #8 Black screws, on
amps and speaker cabinets.
Part #BCW-10 |
$2.49
(pack of 10) |
|
Click on photo for
larger view |
SPEAKER BAFFLE MOUNTING
STAINLESS STEEL SCREWS AND WASHERS (SET OF 6) FOR Fender™ Blackface and Silverface Series. Set of 6 screws with oval Philips heads, stainless steel #8, 1 3/4 inches long, and matching set of 6 stainless steel cup washers. This set of
six screws w/washers fastens the speaker baffle board to the cabinet on Fender™
blonde, brownface, blackface and silverface combo amps from
the 60s and 70s, and today`s reissues of those BF and SF amps. Replaces Fender part number 011678.
Part #SC-407-6 |
$2.29
(for a pack of 6 screws and washers) |
|
Click on photo for
larger view |
Fender™
GRILLE SCREWS (SET OF 4) FOR BROWN, BLONDE, BLACKFACE AND SILVERFACE HEADS. Set of 4 screws, Stainless Steel, 1 3/4" long, Phillips, oval head, with matching cup washers. Fits all
Fender™ vintage heads such as Bassman, Bandmaster, Showman, Dual Showman,
Tremolux,etc and holds the grille to the front of the cabinet.
Part #FGS-4 |
$1.49
(for a pack of 4 screws and 4 washers)
|
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
8
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 8 screws, for four FVC-2L corners.
Part #SC-406-8
|
$2.99
(for a pack of 8 screws) |
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
12
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 12 screws, for four FVC-3 corners.
Part #SC-406-12
|
$4.29
(for a pack of 12 screws) |
|
|
Click on photo for
larger view |
Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender™
style FAH-332, FAH-261 handle. 1" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 3/4".
See Data Sheet here
Part #SC-403 |
$0.99
(for a pack of 2 screws) |
|
|
Click on photo for
larger view |
Fender™
EXTRA LONG VINTAGE HANDLE SCREWS
Pack of 2 stainless steel extra long handle screws for Fender™
style FAH-332, FAH-261 handle. Used for vintage Fender™ style strap
handles used on speaker cabinets, such as Bandmaster, Bassman, Showman,
and Blonde or Blackface Tremolux. 1-1/4" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 1-1/8" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 1-1/8".
See Data Sheet here
Part #SC-403A |
$0.99
(for a pack of 2 screws) |
|
|
Click on photo for
larger view |
Fender™ SELF-TAPPING SCREWS
Used in vintage Fender™ blackface and silverface
amps for a variety of
tasks. Used to attach capacitor pans, tube sockets, transformers on smaller amps, chokes, etc.
Pack of 12 screws. Replaces Fender™ part number 029913.
Part #SC-410-12 |
$3.50
(for a pack of 12 screws) |
|
Click on photo for
larger view |
FENDER™
SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 12. Locking
nut and washer included. Phillips head. Drill hole, insert and
tighten screws into wood from front of baffle. Install grill cloth, and
you have professional speaker mounting studs. Replacement for
original Fender™ speaker mounting studs. Fender™ part number
0992094000. Set of 12.
Part #SC-409-12 |
$13.95
(For a pack of 12 screws with nuts and lock washers) |
|
Click on photo for
larger view |
FENDER™
SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4. Locking
nut and washer included. Phillips head. Drill hole, insert and
tighten screws into wood from front of baffle. Install grill cloth, and
you have professional speaker mounting studs. Replacement for
original Fender™ speaker mounting studs. Fender™ part number
0992094000. Set of 4.
Part #SC-409-4 |
$3.99
(For a pack of 4 screws with nuts and lock washers) |
|
Click on photo for
larger view |
ISOLATION WASHER - 3/8" - For #8 Screws
3/8" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #8 screws. Ideal for vintage Fender
amps with #8 speaker mounting screws. Set of 4 washers.
Part #SIW-38-4 |
$0.59
(For a set of 4 washers) |
|
Click on photo for
larger view |
ISOLATION WASHER - 1/2" - For #10 Screws
Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #10 screws, such as a 10-32 machine screw. Set of 4 washers.
Part #SIW-50-4 |
$0.69
(For a set of 4 washers) |
|
Click on photo for
larger view |
Vintage Fender™
Combo Style Style Blackface
and
Silverface 2-Leg Wrap-Around Cabinet Corner
with Lip - Bright Nickel Plated Steel
(Not designed for the Blackface or Silverface REISSUES.
NOT for
vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman, etc.
These corners fit most vintage Fender combo amps.)
Recreation of the vintage Fender™ corners with
counter-sunk screw holes. Set of 4, includes screws.
Part #FVC-2L
|
$5.99
(Set of 4 corners with screws) |
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
8
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 8 screws, for four FVC-2L corners.
Part #SC-406-8
|
$2.99
(for a pack of 8 screws) |
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
12
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 12 screws, for four FVC-3 corners.
Part #SC-406-12
|
$4.29
(for a pack of 12 screws) |
|
Click on photo for
larger view |
Black Oval-Head Corner Screws, Set of
8
Black oval-head Phillips corner screws for counter-sunk amp corners.
Works with Vox black plastic corners, and Fender style black metal corners with
recessed screw holes. #6 x 3/4 inches long, Phillips head,
black oxide. Screws are beveled under the head for use in countersunk
holes. Length measured from the edge of the head to tip of the
screw. Set
of 8 screws.
Part #SC-411-8 |
$1.50
(For a set of 8 black oval-head Phillips screws) |
|
Click on photo for
larger view |
 Fender™ Style Pop-Out 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable
supporting 45 lbs, or 180 lbs total for the set of 4. Wheels 2" in
diameter. The same type of removable caster wheels used on Fender™ amps
since the 1960s. Note:
Mounting screws NOT included. Must drill 5/8" hole in bottom of
cabinet to accommodate post for wheel.
Part #FCW-4R |
$30.95
(Set of 4 pop-out casters)
NOT SOLD OUTSIDE the USA
|
|
Click on photo for
larger view |
Fender™ Style Flat Mount 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.
Wheels 2" in diameter. Specifications found
here. Note:
Mounting screws NOT included.
Part #FCW-4F |
$30.95
(Set of 4 casters)
NOT SOLD OUTSIDE the USA |
|
Click on photo for
larger view |
 NICKEL GLIDE FEET,
Revisit™, PACK OF 4, SCREWS INCLUDED.
Nickel cover over rubber foot. 15/16" Diameter, 0.33" Tall.
Replacement for glides used
on many Fender™ amplifiers, including the blackface and silverface designs.
Set of 4, includes 7/8" wood screws. Replaces Fender™ part number 0993900000.
Part #SG-239 |
$4.95
(pack of 4 with screws) |
|
Click on photo for
larger view |
GENUINE Fender™
SPHINX GLIDE FEET, PACK OF 4, SCREWS INCLUDED.
- Set of four metal amplifier cabinet glide feet with
rubber bushings and mounting screws. 1-1/4" diameter.
Fender™ part number 0993900000.
- Fits Cyber-Champ™, Stage™ 100/112SE, Ultimate Chorus,
Princeton 65 DSP/650, GE-112 Enclosure, Tone-Master™ Enclosures, Vibro-King™
212 Enclosure, Pro Reverb, Deluxe 90 DSP/900, Acoustasonic™ 30/SFX II,
Stage™ 1000/1600, Super-Sonic™ Series, Bassman™ Enclosures, Concert™, "The
Twin", 65 Twin Custom™ 15, Steel King™, Hot Rod Deluxe™ Enclosures, Cyber
Deluxe, and Cyber-Twin™ amplifiers.
- Fits most vintage and modern Fender™
amplifiers, but is larger than the traditional 1" diameter glide on
most blackface and silverface amps.
Part #SG-939 |
$12.99
(pack of 4 with screws) |
|
Click on photo for
larger view |
NICKEL GLIDE FEET, Fender™ STYLE, PACK OF 4,
3 PRONG HAMMER TYPE.
Older style 3-prong glide feet for Fender™
amplifiers - metal cap has 3 prongs, and the cap is hammered into the base of
the amplifier.
Part #CG-068 |
$3.95
(pack of 4) |
|
|
|
Fender™ Cosmetic Refurb Kits |
|
|
Click on photo for
larger view |
Fender™ LARGE COMBO AMP COSMETIC REFURB KIT For original
1960s blackface and pre-1975 silverface Fender™ Twin Reverb, Super Reverb, Pro Amp, Pro
Reverb, Concert, Vibrosonic models which use 5 5/8" long chassis straps.
(Not designed for the Blackface or Silverface REISSUES. NOT for
vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman,
Tremolux, etc. Not for the Bassman Ten Combo.)
Model not listed? - Contact us. Not for amps made after 1974,
not for reissued blackface and silverface amps. Contains original
Fender™ handle with mounting hardware, 5 5/8" chassis straps with bolts and keps
nuts,
nickel 15/16" glides, set of cabinet corners with mounting screws.
Spruce up the looks of your vintage amp! For additional
refurbishing, see the Fender™ logo plates here,
Fender™ knobs here, Fender™ lamp jewels
here and Fender™ casters
here
Part #FRK-5 |
$34.95 |
|
Click on photo for
larger view |
Fender™ MEDIUM
COMBO AMP COSMETIC REFURB KIT For original
1960s blackface and pre-1975 silverface Fender™ Deluxe, Deluxe Reverb, Princeton,
Princeton Reverb, Tremolux, Musicmaster Bass, Vibrolux Reverb models which use 4 5/8" long chassis straps. (Not designed for the Blackface or Silverface REISSUES. NOT for
vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman,
Tremolux, etc. Not for the Bassman Ten Combo.)
Model not listed? - Contact us. Not for amps made after 1974,
not for reissued blackface and silverface amps. Contains original
Fender™ handle with mounting hardware, 4 5/8" chassis straps with bolts and keps
nuts,
nickel 15/16" glides, set of cabinet corners with mounting screws.
Spruce up the looks of your vintage amp! For additional
refurbishing, see the Fender™ logo plates here,
Fender™ knobs here, Fender™ lamp jewels
here and Fender™ casters
here
Part #FRK-4 |
$33.95 |
|
Click on photo for
larger view |
Fender™ SMALL
COMBO AMP COSMETIC REFURB KIT For original
1960s and pre-1975 silverface Fender™ Champ, Vibro Champ, Bronco models which
use 3 5/8" long chassis straps.
Model not listed? - Contact us. Not for amps made after 1974,
not for reissued blackface and silverface amps. Contains original
Fender™ handle with mounting hardware, 3 5/8" chassis straps with bolts and keps
nuts,
nickel 15/16" glides.
Spruce up the looks of your vintage amp! For additional
refurbishing, see the Fender™ logo plates here,
Fender™ lamp jewels here and Fender™ knobs here
Part #FRK-3 |
$26.95 |
|
|
|
Fender™ Front Panel Rehab
Kits for Vintage Blackface & Silverface (60s & 70s) |
|
|
Click on photo for
larger view |

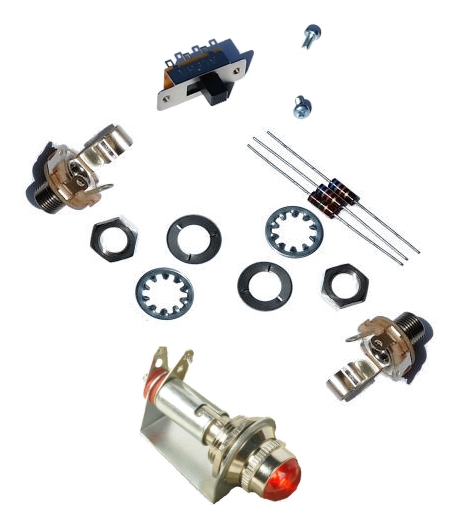

Fender™ Front Panel Rehab Kit for one channel amplifiers For vintage Fender™ amps
made before 1980
from the original blackface and silverface eras. Not for reissues. Contains two
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 100 ohm, two 68K and one 1 Meg carbon composition resistors. Also contains a
new bright switch with screws, and a new pilot light (your choice of color).
Scratchy, intermittent jacks and bright switch? Pilot light
dim, or intermittent? This kit will take care of those problems.
Add a Potentiometer Kit for a complete front panel
component replacement. (Note:
On Bronco, Champ and Vibro Champ, the switch in this kit replaces the power
switch). Select lamp jewel color in options. Fits the following one-channel amplifiers:
Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and
silverface), Princeton
(1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764
(Blackface 1964-67, Silverface 1968-1982). Select lamp jewel color in
options.
Part #FPRK-1-X |
$19.50 |
|
Click on photo for
larger view |

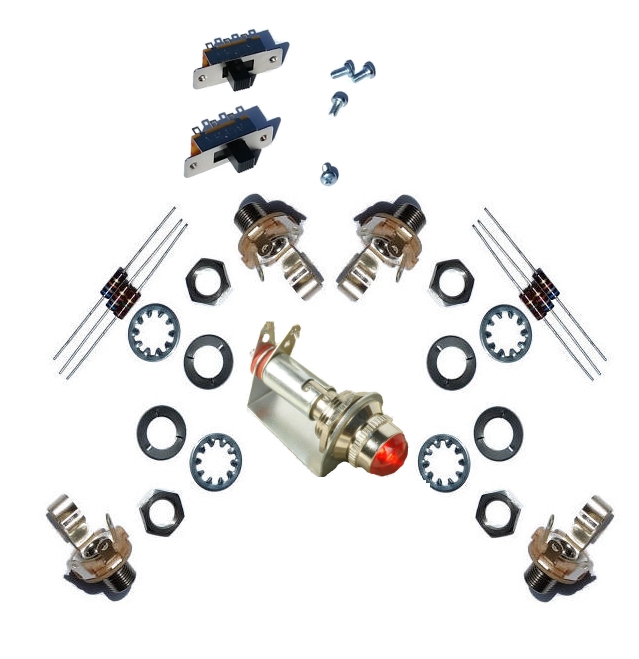

Fender™ Front Panel Rehab Kit for two channel amplifiers For vintage Fender™ amps
made before 1980
from the original blackface and silverface eras. Not for reissues.
Contains four Switchcraft 12A switched jacks, with nuts, locking washer and trim
washer, plus four 68K and two 1 Meg carbon composition resistors. Also
contains two new bright switches with screws, and a new pilot light (your choice
of color). Scratchy, intermittent jacks and bright switch?
Pilot light dim, or intermittent? This kit will take care of those
problems. Add a Potentiometer Kit for a
complete front panel component replacement.
Bandmaster (1964-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1964-1982), Bassman 10 (Silverface 1972-1982), Concert (1964-1965 Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman
(1967-69 Silverface), Dual Showman Reverb (1968-1981), Pro (1964-1965 Blackface), Pro Reverb (1965-1982 Blackface and
Silverface), Quad Reverb (1972-1979 Silverface) Showman (1964-1967 Blackface), Showman (1968-1970 Silverface), Super
Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979), Tremolux (1964-1966 Blackface), Twin Reverb (1963-1982 Blackface and Silverface), Vibrolux (1964 Blackface), Vibrolux Reverb (1964-1982
Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb
(1964 Blackface).
Select lamp jewel color in options.
Part #FPRK-2-X |
$30.95 |
|
|
|
Fender™ Input Jack Replacement
Kits for Vintage
Blackface Amps |
|
|
Click on photo for
larger view |

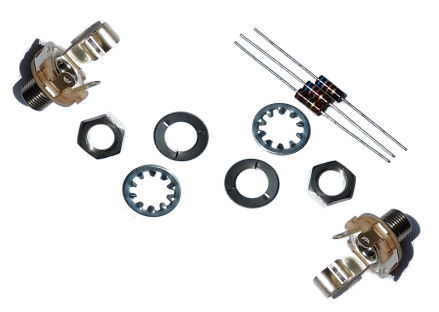

Fender™ Input Jack Replacement Kit for one channel amplifiers (or for just one
channel of a two-channel amp). For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains two
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following one-channel amplifiers:
Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface), Champ 5E1 (1955-1956), Champ 5F1 (1956-1964), Princeton
(1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764
(Blackface 1964-67, Silverface 1968-1982). Note: Does
NOT work with the Fender Super Twin, 300PS, or Fender 75.
Part #FJK-1 |
$9.95 |
|
Click on photo for
larger view |

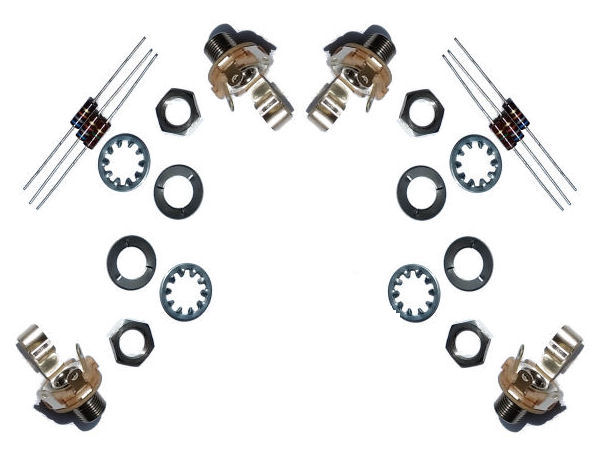

Fender™ Input Jack Replacement Kit for two channel amplifiers. For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains
four
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus
four 68K and two 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following two-channel amplifiers:
Bandmaster (1956-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1961-1982), Bassman 10 (Silverface 1972-1982), Concert (1959-1965 Brown
and Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman
(1967-69 Silverface), Dual Showman Reverb (1968-1981), Harvard 6G10 (1955-1962
Tweed), Pro (1960-1965 Brown and Blackface), Pro Reverb (1965-1982 Blackface and
Silverface), Quad Reverb (1972-1979 Silverface) Showman (1960-1967 Blonde and
Blackface), Showman (1968-1970 Silverface), Super (1960-1963 Brown), Super
Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979),
Tremolux (1955-1966 Tweed, Blonde and Blackface), Twin (1958-1963 Tweed and
Blonde), Twin Reverb (1963-1982 Blackface and Silverface), Vibrosonic (1959-1963
Brown), Vibrolux (1961-1964 Brown and Blackface), Vibrolux Reverb (1964-1982
Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb
(1963-1964 Brown and Blackface).
Part #FJK-2 |
$19.95 |
|
|
|
Fender™ Rear Panel Jack Replacement
Kits for Vintage Blackface |
|
|
Click on photo for
larger view |
Fender™ Rear Panel Jack Replacement Kit for Blackface and Silverface amps
(1960s/1970s) For vintage Fender™ amps
made before 1980
from the original blackface and silverface eras. For all models
which have both Vibrato and Reverb, and whose back panel looks similar to
the one shown below. Contains the two speaker jacks and the four
reverb/vibrato RCA jacks.
Part #FRJK-1 |
$13.95 |
|
|
|
Fender™ Vibrato Rebuild Kits
and other parts for the Vibrato circuit. Vintage
Blackface & Silverface (1963-1981) |
|
|
Click on photo for
larger view |
Fender™ VIBRATO
REBUILD KIT by
Revisit™
For all vintage blackface and
silverface Fender amplifiers with opto-isolator type vibrato from the 1963-1981 era (not reissue
models). This would include most all 60s and 70s Fender amps with
vibrato except for the Bronco, Vibro-Champ, Princeton, or Princeton Reverb - kit
will not work on those models. If you have vibrato problems, changing the vibrato 12AX7
oscillator tube should be the first step (2nd preamp tube away from the power
tubes).
If that does not solve the problem, changing the components contained in this kit
should do the trick. Contains 3 phase shift ceramic disc capacitors,
two resistors
and one opto-isolator. More info here.
Part #VRK-1 |
$16.95 |
|
Click on photo for
larger view |
Fender™ VIBRATO OPTOISOLATOR LDR ("BUG")
Used in the vibrato circuit of vintage Fender™ Blackface and Silverface amps.
Replaces Fender™ part number 0037836000
Part #LDR-1020 |
$9.95 |
|
 |
CAPACITOR, CERAMIC DISC, RADIAL. Replacement for the ceramic disc
vibrato phase shift capacitors in vintage Blackface and Silverface Fender™
amplifiers from the 60s and 70s. Rated at 500 volts. Available in .01uF and .02uF (See Options
to select value)
Part #C-CD-XX |
$0.75 |
|
|
Click on photo for
larger view
|
Fender™
RCA VIBRATO SHORTING PLUG
by
Revisit™ - GOLD-PLATED. Did you know that on
vintage Fender™ amps (Blackface, Silverface), the reverb
will work without a footswitch plugged in, but the vibrato will not?
This handy-dandy little RCA shorting plug will fix that problem, if you do
not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™
amp. This version is made of gold-plated brass for a low
resistance connection and highest immunity to oxidation. Just plug this little RCA plug gadget into the vibrato
footswitch jack on the back panel, and your vibrato will come alive.
Turn the intensity knob to zero to cut out the vibrato when this plug is
inserted. Note: Does not apply to Bronco, Vibro Champ, Princeton, or Princeton Reverb
amps. Inserting this plug turns the vibrato off in those models, removing
the plug turns it on.
Part #FSP-200
|
$2.50
|
|
(Picture for illustrative purposes only - actual kit components will vary from this photo)
|
FENDER "S-L-O-W-E-R VIBRATO" KIT This kit changes the circuit design
of the vibrato to slow down the slow end of the vibrato speed control
considerably, giving a much wider usable speed range. Fast
speed remains virtually unchanged, and the intensity remains the same.
Jazz players especially love the slower vibrato. The official Fender vibrato "tick cure" is also included in this kit, as listed
on a Fender service bulletin from several years ago. The tick cure
is not applicable and does not apply to Bronco, Princeton or VibroChamp
circuits. Kit includes necessary parts and instructions.
Soldering capability is required.
Part #FSVK-100 |
$3.50 |
|
|
|
Fender™
Modification
Kits |
|
|
(Picture for illustrative purposes only - actual kit components will vary from this photo)
|
FENDER "S-L-O-W-E-R VIBRATO" KIT This kit changes the circuit design
of the vibrato to slow down the slow end of the vibrato speed control
considerably, giving a much wider usable speed range. Fast
speed remains virtually unchanged, and the intensity remains the same.
Jazz players especially love the slower vibrato. The official Fender vibrato "tick cure" is also included in this kit, as listed
on a Fender service bulletin from several years ago. This kit is applicable
to all two-channel vintage Blackface and Silverface amps from the 1960-1970 era.
This kit does not apply to Bronco, Princeton or VibroChamp
circuits. Kit includes necessary parts and instructions.
Soldering capability is required.
Part #FSVK-100 |
$3.50 |
|
|
|
Fender™ Potentiometer Sets |
|
|
Click on photo for
larger view |
Fender™ Potentiometer Sets
Fender potentiometer sets contain all of the potentiometers for a particular
amplifier. Large selection for many models from the 1950s up
to the present day. Most potentiometer sets for amps in the blackface and
silverface era offer a choice of metal shafts or nylon shafts. Many
kits for 60s and 70s models include the resistors which are soldered directly to
the pots. |
Prices starting at $12.95 |
Click here to see the full
selection of Fender potentiometer sets. |
|
|
Fender™ Jewel
Kits |
|
|
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa/Boogie™ , many
others. Kit of 6 jewels - change your light color as often as you
like. Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115 |
$14.99 |
|
Click on photo for
larger view |
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most
vintage
guitar amplifiers with round power cords, including most vintage Fender™ amps. Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 |
$14.95 |
|
Click on photo for
larger view |
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH
CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 1/4 inch diameter inner hole,
and mounts in a 3/8 inch chassis hole.
Full
datasheet here.
Part #RCG-739 |
$0.49
each |
|
Click on photo for
larger view |
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE
(GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 3/8 inch diameter inner hole,
and mounts in a 1/2 inch chassis hole.
Full
datasheet here.
Part #RCG-745 |
$0.49
each |
|
Click on photo for
larger view |
FUSE HOLDER, Fender™ STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE
Fender™ style fuse holder, replacement for many other brands. Twist-lock cap. Durable, rugged design - better than OEM.
Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-201 |
$4.50 |
|
Click on photo for
larger view |
F-CAP
This is the frequently lost Fender-logo plastic cap that
snaps onto the 1/4" right-angle speaker plug on vintage Blackface and
Silverface Fender™ amplifiers from the 1960s and 1970s. Exact fit
and replacement. For the plug, see the P-055 plug below.
Part #F-CAP |
$9.95 |
|
Click on photo for
larger view |
Fender™ Right-Angle Speaker Plug
Replacement Fender™ right-angle speaker plug
on vintage Blackface and Silverface Fender™ amplifiers from the 1960s and
1970s. Uses the F-CAP, above (not included - sold separately). Note: Requires a very hot soldering iron used
for minimal time when soldering to the case or center post of the plug.
Heat applied for an extended time will damage the plug.
Part #P-055 |
$11.99 |
|
Click on photo for
larger view |
 Revisit™
F1 to F2 Faston Push-on Terminal Adapters
Used to change the size of speaker terminals from .187" (3/16") to .250"
(1/4"). Also used to change some PC board connectors size.
Female .187" to male .250"
Part #F1F2 |
$1.89
(Set of 2 Adapters) |
|
Click on photo for
larger view |
Revisit™
F2 to F1 Faston Push-on Terminal Adapters
Used to change the size of speaker terminals from .250" (1/4") to .187"
(3/16"). Also used to change some PC board connectors' size.
Female .250" to male .187"
Part #F2F1 |
$1.89
(Set of 2 Adapters) |
|
Click on photo for
larger view |
Revisit™ Fender™
STYLE "SPIDER" DISTRIBUTION CONNECTOR FOR BLACKFACE SPIDER SPEAKER HARNESSES
Replacement vintage style Spider distribution board, used to tie together
speaker wires in some vintage blackface Fender™ amps, particularly the vintage
blackface Super Reverb. Also found in some blackface 2-speaker amps,
including the
Pro Reverb, Twin Reverb, Vibrolux Reverb, and Vibroverb amplifiers from the 60s.
Part #FSJ-428 |
$6.50 |
|
Click on photo for
larger view |
Revisit™
SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.
Used to replace speaker cable in most combo amplifiers where the speakers are
connected to the amplifier chassis via a 1/4" jack and plug. 18ga black zip cord,
right-angle plug and fast-on connectors for attachment to one
speaker.
Part #SCH-280 - NOTE: OUT OF STOCK! NONE AVAILABLE AT THIS TIME. |
$6.99 |
 |
|
Click on photo for
larger view
|
SPEAKER JUMPER CABLE
polyvinyl
insulated silver plated copper speaker wire, 18 gauge, twisted
pair, black and white. Terminated at each end in standard
3/16" speaker fast-on connectors. Great for connecting
speakers in parallel in 2x12 or 4x12 cabinets. 24 inches (61
cm) long. Made in USA.
Part #SJ-150
|
$5.99
|
|
|
 |
BUILD YOUR OWN Speaker Harness for Combo Amps: Choose the SJ-150
cable (above) along with the P-287 Plug (below). Cut off the
cable's fast-on connectors on ONE end of the cable. Strip both
conductors of cable back about 1/4" on that end. Solder that end to
the P-287 plug (black to the sleeve, white to the tip.). This
will give you a 24 inch speaker harness. Note:
Cable-building experience strongly recommended. Soldering
equipment needed. |
Total cost for materials will be $5.99 + $3.95 = $9.94. |
 |
Click on photo for
larger view |
PLUG, 1/4", MONO, RIGHT ANGLE,
SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug. Nickel plated copper alloy.
2-conductor right-angle phone plug, solder terminals.
Part #P-287 |
$3.95 |
|
Click on photo for
larger view |
Revisit™ 18 GAUGE COPPER BONDED RED/BLACK ZIP CORD
Make low-cost, efficient speaker cables with this color-coded 18 gauge dual zip
cord. Red and black for easy polarity identification. Resistance
is 0.0097 ohms/ft.
Automotive grade "GPT" PVC insulation, oil and gas resistant, rated
for -20 deg F to +160 deg F. Also perfect
for bias testers, radio, home theatre, automotive, stereo, robotics, and model
train applications. Priced per foot, sold in lengths from 1 foot to
40 feet.
Part #RBZ-18 |
$0.32
(priced per foot) |
|
>
Click on photo for
larger view |
Fender™
STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster,
Showman, etc). Complete with long-bushing Switchcraft jack
with nut and trim washer, and two
nickel jack ferrules for the inside and outside of
the cabinet back. For wood panels between 3/8 inch and 1/2 inch thick.
Keep your vintage Fender™ cabinet looking original!
Part #JPC-577 |
$16.95
|
|
Click on photo for
larger view |
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates. Works well with the Switchcraft J-11 1/4" jacks
that we carry. Hole is 3/8", for most Switchcraft type jacks. Easy to install, economical.
Includes 3 black oxide coarse-thread mounting screws, #6x3/4".
Jack not included - order separately. For size specifications, click here.
Part #JP-180 |
$1.89
|
|
Click on photo for
larger view |
Revisit™
JACK PLATE COMPLETE WITH
SWITCHCRAFT #11 JACK.
Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180 |
$4.95
|
|
|
Click on photo for
larger view
|
Fender™ Style RCA Plug from
Switchcraft
This is the original Switchcraft RCA plug used on vintage Fender
amps for footswitch and reverb in / out connections. For cable up to
0.125" (3.18mm) diameter.
Part #P-3501MX
|
$1.49
|
|
|
|
Fender™ Jacks
(Also see our complete line of jacks) |
|
|
Click on photo for
larger view |
Fender™ Input Jack Replacement Kit for one channel amplifiers (or for just one
channel of a two-channel amp). For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains two
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following one-channel amplifiers:
Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface), Champ 5E1 (1955-1956), Champ 5F1 (1956-1964), Princeton
(1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764
(Blackface 1964-67, Silverface 1968-1982). Note: Does
NOT work with the Fender Super Twin, 300PS, or Fender 75.
Part #FJK-1 |
$9.95 |
|
Click on photo for
larger view |
Fender™ Input Jack Replacement Kit for two channel amplifiers. For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains
four
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus
four 68K and two 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following two-channel amplifiers:
Bandmaster (1956-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1961-1982), Bassman 10 (Silverface 1972-1982), Concert (1959-1965 Brown
and Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman
(1967-69 Silverface), Dual Showman Reverb (1968-1981), Harvard 6G10 (1955-1962
Tweed), Pro (1960-1965 Brown and Blackface), Pro Reverb (1965-1982 Blackface and
Silverface), Quad Reverb (1972-1979 Silverface) Showman (1960-1967 Blonde and
Blackface), Showman (1968-1970 Silverface), Super (1960-1963 Brown), Super
Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979),
Tremolux (1955-1966 Tweed, Blonde and Blackface), Twin (1958-1963 Tweed and
Blonde), Twin Reverb (1963-1982 Blackface and Silverface), Vibrosonic (1959-1963
Brown), Vibrolux (1961-1964 Brown and Blackface), Vibrolux Reverb (1964-1982
Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb
(1963-1964 Brown and Blackface).
Part #FJK-2 |
$19.95 |
|
Click on photo for
larger view |
Fender™ Rear Panel Jack Replacement Kit for Blackface and Silverface amps
(1960s/1970s) For vintage Fender™ amps
made before 1980
from the original blackface and silverface eras. For all models
which have both Vibrato and Reverb, and whose back panel looks similar to
the one shown below. Contains the two speaker jacks and the four
reverb/vibrato RCA jacks.
Part #FRJK-1 |
$14.95 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output. Includes nut and washer.
Part #J-11 |
$3.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft™, LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L11 |
$4.79
|
|
Click on photo for
larger view |
 JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Found in vintage Fender™ (and other) amps as the input jack.
Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main
speaker out jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550). Peavey part number 71466004.
Part #J-12A |
$4.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT
(SHORTING), WIRED, Switchcraft™, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L12A |
$5.50 |
|
Click on photo for
larger view |
 JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™
Used with T/R/S plugs for either balanced connections or stereo connections. Also very common in guitars with active pickups, and as the input jack on some effects pedals.
The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Fender part number 0013043000.
Part #J-12B |
$4.35 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING. Switchcraft™
Used with for special switching applications  - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection. Used in some vintage amplifiers, including some early Fender™ models.
Isolated switch is normally open - closes when a plug is inserted.
Part #J-13 |
$10.50 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING. Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place. Used in a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models). Original
 Fender™ part number 0041701000
(originally 042701). Also found in some Peavey amps, such as the
Classic 50 speaker jack.
Part #J-13A |
$9.95 |
|
Click on photo for
larger view |
JACK, 1/4", TIP/RING/SLEEVE, WITH
TIP SHUNT. Switchcraft 13B Jack.
 Tip/Ring/Sleeve
Switchcraft jack. Tip has a shunt contact, ring contact is open
circuit.
Part #J-13B |
$9.95 |
|
Click on photo for
larger view |
Revisit™
RCA JACK, PANEL MOUNT,
CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS
SPEAKER JACK.
RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic
base, round. Chrome RCA jack. Used as the speaker jack in some Fender Tweed amps from the 1950s,
as well as the Fender™ blackface and silverface Champ, VibroChamp and Bronco
Amps from the 60s and 70s. Also used in vintage USA-Made Accutronic Reverb Tanks
made before 2010. Black phenolic base.
Part #J-351 |
$3.50 |
|
Click on photo for
larger view |
Fender™
STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster,
Showman, etc). Complete with long-bushing Switchcraft jack
with nut and trim washer, and two
nickel jack ferrules for the inside and outside of
the cabinet back. For wood panels between 3/8 inch and 1/2 inch thick.
Keep your vintage Fender™ cabinet looking original!
Part #JPC-577 |
$16.95
|
|
Click on photo for
larger view |
RCA JACK, PANEL MOUNT
Exact
replacement for the reverb tank and footswitch jacks on the rear panel of Fender™
Blackface and Silverface amplifiers. Also may be used as an alternative RCA
jack replacement for the RCA speaker jacks used on some Fender™ Tweed models
from the 1950s. Made by Switchcraft.
Part #J-122
(Also see our complete line of jacks) |
$2.99 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK!
JNUT-38 JACK NUT AND WASHER, METAL,
SWITCHCRAFT™, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots. Set of
6 washers and 6 nuts.
Part #JNUT-38-6 |
$4.50
(Set of 6 washers and 6 nuts) |
|
 |
JACK NUT AND WASHER, METAL,
SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38 |
$0.89
(Set of 1 washer and 1 nut) |
|
Click on photo for
larger view |
JACK LOCK WASHER, METAL
Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots,
as well as Switchcraft 1/4" jacks.
Part #W-38 |
$0.49 |
|
|
|
Fender™ Jewels |
|
|
RED
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many
others. RED - the standard on Fenders since the 1940's.
Replaces Fender™ part number 0990952000.
*Does not fit the Fender
SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP,
Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.
Part #JL-115R |
$2.99 |
|
AQUA
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many
others. AQUA - the latest addition to jewel colors! Aqua
is a greenish blue, similar to cyan or light turquoise. Replaces Fender™
part number 0990949000.
*Does not fit the
Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton
65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.
Part #JL-115Q |
$4.65 |
|
VIOLET
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Violet - just plain cool!
*Does not fit the Fender
SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP,
Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.NOTE: When illuminated by the bulb, this
violet jewel tends to have a hue slanted toward the red spectrum, so some call
the look a reddish-pinkish-violet color. If you like violet/purple
and want it toward the warmer end of the color spectrum, this is the jewel for
you. If you like it more bluish - toward the cooler end of the
violet color zone, choose the purple jewel JL-115P below instead.
Part #JL-115V |
$2.99 |
|
PURPLE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. Purple - just plain cool! Replaces Fender™ part number 0990953000.
*Does not fit the Fender SuperChamp X2
or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster
Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues
Junior series, Pro Junior, Princeton Chorus DSP, or similar models.
NOTE: To the naked eye, this jewel looks
blue until you put it in front of the P-47 bulb. The bulb has an
amber tint to it, so the combo makes the jewel glow purple. When
illuminated by the bulb, this purple jewel tends to have a hue slanted toward
the blue spectrum, so some call the look a bluish-purple color. If
you like violet/purple and want it toward the cooler end of the color spectrum,
this is the jewel for you. If you like it more reddish - toward the
warmer end of the violet color zone, choose the violet jewel JL-115V above instead.
IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE
INSTEAD OF PURPLE.
Part #JL-115P |
$4.65 |
|
BLUE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Blue, for the California vibe. Replaces Fender™ part number 0990959000.
*Does not fit the Fender
SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP,
Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.
NOTE: Due to the orange glow of the bulb
normally used behind this jewel, the resulting color is not a pure brilliant
blue ... head on, it looks like a somewhat washed-out blue, and from a side
angle, it looks more like purple. This is not the fault of the
jewel, but rather the combination of the blue color of the jewel combined with
the orange glow of the bulb. If used with a pure white light (such as a
white LED), the resulting look is a deep blue color.
Part #JL-115B |
$2.99 |
|
AMBER
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Amber - jazzy look! Replaces Fender™ part number 0990950000.
*Does not fit the
Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton
65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.
Part #JL-115A |
$2.99 |
|
GREEN
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Green - Texas style! Replaces Fender™ part number 0990951000.
*Does not fit the
Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton
65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.
Part #JL-115G |
$2.99 |
|
CLEAR
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many
others. Clear, for the brightest light output.
*Does not fit the Fender
SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP,
Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.
Part #JL-115C |
$2.99 |
|
WHITE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. WHITE.
Part #JL-115W |
$4.65 |
|
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa/Boogie™ , many
others. Kit of 6 jewels - change your light color as often as you
like. Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115 |
$14.99 |
|
RED
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, RED, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
red jewel and your choice of #47 bulb or equivalent LED-47. The LED option
provides a cooler, yet brighter light with much longer life. LED color is
`warm white`, for a color very close to that of a bulb. Fits 11/16" chassis hole.
Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring.
Available with 6V `warm white`
LED or standard 6V incandescent bulb - choose in "Options"
Part #FLA-124R |
Starting at
$8.50 |
|
BLUE
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, BLUE, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
blue jewel and your choice of #47 bulb or equivalent LED-47. The LED option
provides a cooler, yet brighter light with much longer life. LED color is
`warm white`, for a color very close to that of a bulb. Fits 11/16" chassis hole.
Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring.
Available with 6V `warm white`
LED or standard 6V incandescent bulb - choose in "Options"
Part #FLA-124B |
Starting at
$8.50 |
|
AMBER
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, AMBER, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
amber jewel and your choice of #47 bulb or equivalent LED-47. The LED option
provides a cooler, yet brighter light with much longer life. LED color is
`warm white`, for a color very close to that of a bulb. Fits 11/16" chassis hole.
Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring.
Available with 6V `warm white`
LED or standard 6V incandescent bulb - choose in "Options"
Part #FLA-124A |
Starting at
$8.50 |
|
CLEAR
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, CLEAR, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
clear jewel and your choice of #47 bulb or equivalent LED-47. The LED option
provides a cooler, yet brighter light with much longer life. LED color is
`warm white`, for a color very close to that of a bulb. Fits 11/16" chassis hole.
Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring.
Available with 6V `warm white`
LED or standard 6V incandescent bulb - choose in "Options"
Part #FLA-124C |
Starting at
$8.50 |
|
GREEN
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, GREEN, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
green jewel and your choice of #47 bulb or equivalent LED-47. The LED option
provides a cooler, yet brighter light with much longer life. LED color is
`warm white`, for a color very close to that of a bulb. Fits 11/16" chassis hole.
Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring.
Available with 6V `warm white`
LED or standard 6V incandescent bulb - choose in "Options"
Part #FLA-124G |
Starting at
$8.50 |
|
VIOLET
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, VIOLET, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
violet jewel and your choice of #47 bulb or equivalent LED-47. The LED option
provides a cooler, yet brighter light with much longer life. LED color is
`warm white`, for a color very close to that of a bulb. Fits 11/16" chassis hole.
Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring.
Available with 6V `warm white`
LED or standard 6V incandescent bulb - choose in "Options"
Part #FLA-124V |
Starting at
$8.50 |
|
WHITE
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, WHITE, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
white jewel and your choice of #47 bulb or equivalent LED-47. The LED option
provides a cooler, yet brighter light with much longer life. LED color is
`warm white`, for a color very close to that of a bulb. Fits 11/16" chassis hole.
Designed for 6 volts (filament voltage in tube amps). Ready for installation and wiring.
Available with 6V `warm white`
LED or standard 6V incandescent bulb - choose in "Options"
Part #FLA-124W |
Starting at
$9.50 |
|
PURPLE
Click on photo for
larger view |
PILOT LAMP ASSEMBLY, PURPLE, REPLACEMENT FOR FENDER™
Complete pilot lamp assembly:
Includes pilot lamp holder,
purple jewel and #47 bulb complete, fits 11/16" chassis hole.
Designed for 6.3 volts. Ready for installation and wiring.
The purple color on this lamp jewel is toward the
cool end of the purple/violet range - so it has more of a bluish tint
to the purple color. In fact, the lamp jewel cover looks blue if the light
is not turned on. If you prefer a warmer tone (toward the red/pink end of
the scale), choose the FLA-124V violet lamp assembly. Not available with
the LED option, as the color when using an LED is a deep blue rather than
purple.
Part #FLA-124P |
$9.50 |
|
|
|
Fender™ Knobs
(Also see our complete line of knobs) |
|
|
Click on photo for
larger view |
KNOB, Fender™ STYLE, SET-SCREW
Fender™ style amp knob, skirted with 1-10 numbering. Traditional
"Witches Hat" design. For vintage Fender™ amps in the original blackface and silverface series,
as well as the blackface and silverface reissue series. With set-screw,
for 1/4" smooth shaft pots.
Replaces Fender™ part number 0990930000.
Part #FVSK |
$5.50 |
|
|
|
Fender™ Lamps
(Also see our complete line of lamps) |
|
|
Click on photo for
larger view |
NEW! BRIGHT LED INDICATOR LAMP,
REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life LED replacement lamp for
pilot lamps. Fits Fender amps which are designed for the P-47 type
incandescent bulb (including most Fender amps from the 1950s through the
present). The LED
replacement is long lasting, runs much cooler, and is substantially brighter
than the P-47 incandescent bulb. If less brightness is desired,
install a series resistor feeding the lamp socket (1/4 or ½ watt, value
between 560Ω and 1KΩ). Sold individually. Add new pizzazz
to your amp with a brighter lamp on the front panel, and one which pays for
itself in the long run with exceptionally long life. Works on 6
volts, AC or DC.
Color is warm white. NOTE: NOT RECOMMENDED FOR USE WITH THE
PURPLE J-115P JEWEL - WILL RESULT IN A DEEP BLUE COLOR RATHER THAN PURPLE.
Part #LED-47 |
$2.95 |
|
Click on photo for
larger view |
NEW! COOL BLUE BRIGHT OUTPUT LED INDICATOR LAMP,
REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life
BLUE OUTPUT LED replacement lamp for
pilot lamps. Fits Fender amps which are designed for the P-47 type
incandescent bulb (including most Fender amps from the 1950s through the
present). The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb. Works on 6 volts, AC or DC. Output color is cool blue. When used with different colored jewels,
creates a different color and a different vibe! See the results below:
|
Jewel Color |
Resulting Look |
Brightness Level |
| JL-115A Amber |
Yellow |
High |
| JL-115B Blue |
Medium Blue |
High |
| JL-115C Clear |
Crystal Blue |
High |
| JL-115G Green |
Light Green |
High |
| JL-115P Purple |
Deep Blue |
Medium |
| JL-115R Red |
Orange |
Medium |
| JL-115V Violet |
Bluish Violet |
Low |
| JL-115W White |
Baby Blue |
Low |
Part #LED-47B |
$2.95 |
|
Click on photo for
larger view |
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.
6.3V.
Replaces Fender™ part number 0021642049
Part #P-47 |
$0.99 |
|
Click on photo for
larger view |
Fender™ VIBRATO OPTOISOLATOR LDR ("BUG")
Used in the vibrato circuit of vintage Fender™ Blackface and Silverface amps.
Replaces Fender™ part number 0037836000
Part #LDR-1020 |
$9.95 |
|
|
|
Fender™ Pots
For complete Fender™ pot sets
(Blackface / Silverface) click here. |
|
|
Click on photo for
larger view
|
POT - CTS, 3/8" BUSHING
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter
solid metal shaft, 3/8" bushing, solder lugs. Fits perfectly in vintage amps
like Fender™ (Tweed, Brownface, Blonde, original Blackface and original Silverface Models), all
Marshalls up to 1979 and some of the JCM800 versions, vintage Vox, vintage
Orange, vintage Hiwatt, vintage Boogie, Sound City, Music Man, and many more. With correct
1/4" shaft and 3/8" bushing. Superior quality, solderable back!
CTS was the original OEM supplier for vintage Fender™ pots. Note:
250K J-Taper, 1 Meg J-Taper, and 3 Meg Reverse Audio (C3M) pots have brass
colored shafts.
Select Pot Value in Options
INCLUDES NUT & WASHER
(For spare or replacement nut, order the JNUT-38
nut found in this section)
Part #P-VC-XX |
Starting at
$5.95 |
|
Click on photo for
larger view
|
POT - CTS, 3/8" BUSHING,
NYLON SHAFT
Top quality 24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter
nylon shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired amplifiers such as vintage Fender™,
Marshall and others.
Nylon shaft pots were used in most Fender silverface series amps from the late
60s and 70s. Some Marshall JCM800 series amps used this pot in the 1980s.
CTS was the original OEM supplier for vintage Fender™ and Marshall pots.
INCLUDES NUT & WASHER
(For spare or replacement nut, order the JNUT-38
nut found in this section)
Part #P-VCT-XX |
Starting at $4.95 |
|
Click on photo for
larger view |
 POT - Fender™ BIAS POT 10K LINEAR, SCREW
Original Fender™ 10K linear,
screw, bias potentiometer. Used in blonde, brownface and blackface models
primarily. Does not have a center tap, so it is not applicable to
silverface models unless the bias circuit has been restored to the blackface
design. Original Fender™ part # 0017502000.
Includes lock washer, smooth washer and nut.
Part #P-BPF-10KL |
$4.95 |
|
Click on photo for
larger view |
POT, Revisit™,
3/8" BUSHING, 24mm, SMOOTH SHAFT.
24 mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter
shaft, 3/8" bushing, solder lugs. Exact fit for hand-wired American made
amplifiers such as vintage Fender™, all Marshalls up to 1979 and some of
the JCM800 versions, vintage Vox, vintage
Orange, vintage Hiwatt, vintage Boogie, Sound City, Music Man, and many more.
Select Pot Value in Options
INCLUDES NUT & WASHER
(For spare or replacement nut, order the JNUT-38
nut found in this section)
Part #P-38-XX |
Starting at
$2.95 |
|
|
|
Fender™ Power Cords |
|
|
Click on photo for
larger view |
SUPER-LONG,
16 gauge
Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,
OUR LONGEST POWER CORD!
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or
7.9mm).
Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13
amps maximum. Used only in
North America.
Part #PC-163SJT15 |
$19.95 |
|
Click on photo for
larger view |
EXTRA-LONG
12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type. Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length is an
extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).
Wire gauge is 18AWG, rated at 10 amps.
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in
North America.
Part #PC-183SJT12 |
$13.95 |
|
Click on photo for
larger view |
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SJT8 |
$9.95 |
|
Click on photo for
larger view |
8 ft POWER CORD, 3-WIRE, 18ga, SVT type,
"Thin Line". Cut ends for installing (soldered connection) into
many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older
amps). Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about
1/4" or 6.1mm).
Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp
cords in smaller amplifiers where there was formerly a 2-wire cord without
ground.
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SVT8-TL |
$9.95 |
|
Click on photo for
larger view |
15 ft
EXTENSION CORD, 3-WIRE, 16ga, 13 Amps. Quality extension cord for use
on stage, at home, office or workshop. Cord length is 15 feet, 16 gauge,
3-wire cord thickness is 0.31 inches (about
5/16" or 7.9mm).
Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC,
13 amps maximum. Used only in
North America.
Part #EC-5301 |
$19.95 |
|
Click on photo for
larger view |
 Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
|
|
Fender™ Reverb Tanks |
|
|
Click on photo for larger view
 |
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B.
Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0
seconds), input insulated/output grounded, designed for horizontal mounting,
open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC
impedance and DC resistance measurements for reverb tanks
here.
Replaces original Fender™ part number
0064063000.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B
current production.
Accutronics reverb tanks are a
cheaply produced copy of the Belton tank, and are now made by Belton in South
Korea. They are of much lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. Also used in Reissue
models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb,
Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin
Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb,
Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb
Reissue,
Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65
Twin Reverb Reissue, Fender™ `65 Twin Custom(TM) 15, Fender™ Concert II, Fender™
Dual Professional.
Also used in Mesa Boogie™ MK2C and others, LAB Series L5, L7, L9,
Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52™ AT-100. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Accutronics products are made in South Korea.
Part #ACC-4AB3C1B |
$39.99 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1B. Input impedance 10 ohms, output impedance 2575 ohms,
long decay (2.75 - 4 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Fender™.
Upgrade for the 4AB3C1B 2-spring tank. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC
impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view |
Rubber mounting grommets for
reverb tanks, package of four. Provides shock absorption for
tanks mounted directly to the inside of a wooden amp cabinet. Mounting
Hole Diameter = 3/8" Outer Diameter = 1/2"
Part #RRG-4 |
$1.99
(For a pack of 4 grommets) |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable - universal. Made
with the same style shielded wire and RCA connectors as the originals.
Warning: Not designed for use in amps other than Fender, due to the bare
shields. These reverb cables perfectly replicate the original cables found in vintage
Fender™ vintage blackface and some silverface amplifiers. One cable is 3 ft
long, and the other is 5 ft long. By coiling up any excess cable into the
reverb isolation bag, these cable lengths are suitable for most vintage Fender™
combo amps, with these exceptions: Super Reverb, Quad Reverb, Super Six
Reverb.
Part #RC-200 |
$29.95
In stock |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Super Reverb (blackface
and early silverface). Long length for larger amplifiers. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 43 inches (110 cm), long one is 55 inches (140
cm).
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Warning: Not designed for use in amps other than Fender, due to the bare
shields.
Instructions not included - assumes you are familiar with building this type of
cable. Soldering skills and tools required.
Part #RK-279L |
$15.95
Assembly required (with soldering skills needed) |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Twin Reverb, Pro Reverb and Vibrosonic Reverb (blackface
and early silverface). Medium length for medium-sized amplifiers. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 39 inches (99 cm), long one is 51 inches (130 cm).
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Instructions not included - assumes you are familiar with building this type of
cable.
Warning: Not designed for use in amps other than Fender, due to the bare
shields. Soldering skills and tools required.
Part #RK-279M |
$14.95
Assembly required (with soldering skills needed) |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Deluxe Reverb, Vibrolux Reverb and Princeton Reverb (blackface
and early silverface). Short length for smaller amps. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 36 inches, long one is 47 inches.
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Warning: Not designed for use in amps other than Fender, due to the bare
shields.
Instructions not included - assumes you are familiar with building this type of
cable. Soldering skills and tools required.
Part #RK-279S |
$13.95
Assembly required (with soldering skills needed) |
|
Click on photo for
larger view |
Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
Click on photo for
larger view
|
R everb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
Part #RB-017 |
$18.90 |
|
|
|
Fender™ Switches
(Also see our complete line of switches) |
|
|
|
Click on photo for
larger view |
Fender™ STYLE VINTAGE FOOTSWITCH - NICKEL PLATED
Fender™ style vintage two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy
nickel metal construction.
Dual RCA Plugs, 12 ft cable, cable enters rear of pedal.
Replaces Fender™
part # 0994051000
Part #FBS-241 |
$48.95 |
|
|
Click on photo for
larger view |
PREMIUM
Fender™ STYLE FOOTSWITCH - BLACK
This is the highest quality reproduction of the iconic Fender Style 2-Button
Footswitch on the market. Our Premium 2-button Footswitches are hand-wired by
our custom shop and contain USA-sourced wire as well as Carling 110-P Footswitch
components. These are the same spec SPST footswitch components used in the
original Fender 2-Button Footswitches. The result is a robust housing with
comfortable action and the most reliable functionality on the market.
The Premium Fender Style Vintage Black 2-Button Footswitch connects to the
amplifier via RCA plugs. Cable enters rear of pedal.
Replaces Fender™
part # 0994051000
Part #FBS-322 |
$59.99
|
|
|
Click on photo for
larger view
|
Fender™
RCA VIBRATO SHORTING PLUG
by
Revisit™ - GOLD-PLATED. Did you know that on
vintage Fender™ amps (Blackface, Silverface), the reverb
will work without a footswitch plugged in, but the vibrato will not?
This handy-dandy little RCA shorting plug will fix that problem, if you do
not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™
amp. This version is made of gold-plated brass for a low
resistance connection and highest immunity to oxidation. Just plug this little RCA plug gadget into the vibrato
footswitch jack on the back panel, and your vibrato will come alive.
Turn the intensity knob to zero to cut out the vibrato when this plug is
inserted. Note: Does not apply to Bronco, Vibro Champ, Princeton, or Princeton Reverb
amps. Inserting this plug turns the vibrato off in those models, removing
the plug turns it on.
Part #FSP-200
|
$2.50
|
|
|
Click on photo for
larger view |
Revisit™ Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy
nickel metal construction.
Dual RCA Plugs, 16 ft cable. Replaces Fender™ part number 0994051000
Part #FBS-271 |
$34.95 |
|
|
Click on photo for
larger view |
Revisit™ Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy black metal
construction. Dual RCA Plugs, 16 ft cable.
Part #FBS-271-B |
$32.95 |
|
|
Click on photo for
larger view |
Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller
vintage blackface
and silverface amps. Sturdy
nickel metal construction.
Single RCA Plug.
Part #FBS-270 |
$24.95 |
|
|
Click on photo for
larger view |
Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller
vintage blackface
and silverface amps. Sturdy black metal construction.
Single RCA Plug.
Part #FBS-270B |
$27.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING BRAND, SPST, REPLACEMENT FOR Fender™, ETC.
Carling SPST footswitch. Used in Fender™ etc. Reverb/tremolo/channel switching pedals.
Has 2 electrical terminals (single pole, single throw).
Solder lugs for wire.
Part #FS-493 |
$9.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING™ BRAND, SPDT
Found in many type of footswitches, including the earlier versions of the Dunlop Crybaby Wah pedals
(NOT the version F - see FS-435 below for Crybaby GCB-095F). Has 3 electrical terminals (single pole, double throw).
Solder lugs for wire.
Part #FS-492 |
$17.50 |
|
Click on photo for
larger view |
Hex footswitch nut, pack of
4
These replacement nuts fit all
Carling™
brand footswitches and toggle switch and some (but not
all) other switches which are not made by Carling™.
Carling™
toggle switches are used in Fender™
amps. Hex outer
surface (9/16"), M12 thread for 15/32" bushing.
Part
HFN-4 |
$0.99
(for a pack of 4 nuts) |
|
Click on photo for
larger view |
SWITCH, CARLING™ SPST TOGGLE
Original replacement for 60s and 70s Fender™
power and standby switches.
Made by Carling™
Part #SW-495 |
$8.95 |
|
Click on photo for
larger view |
SWITCH, CARLING SPDT 2-POSITION TOGGLE
SWITCH, Original Carling™
replacement for 60s and 70s Fender™
ground switch.
Part #SW-494 |
$12.95 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK! 3
SWITCHES: Two Carling™
SPST toggle switches and one
Carling™
SPDT toggle switch.
Original replacement for 60s and 70s Fender™ Amps (Power, standby, and ground
switches).
Change the power, standby, and ground switches on your Fender™ at the same time, and
save!
Part #SW-4945 |
$23.95 |
|
Click on photo for
larger view |
 SWITCH, SLIDE,
SWITCHCRAFT™, DPDT (6
TERMINALS), REPLACEMENT FOR BRIGHT SWITCH IN 60s and 70s Fender™ AMPS.
Also used in many other applications, including some Electro Harmonix AC powered
effects pedals, such as the Memory Man. Also used as the slide switch on
Jazzmaster and Jaquar guitars. Used for the power switch in the vintage 60s and 70s Fender Champ, Vibro Champ, and Bronco amps. Rated at 3A, 125VAC.
Click here for physical
specifications. Two screws are included with the switch.
SW-116S |
$5.95 |
|
Click on photo for
larger view |
 SWITCH, SLIDE, DPDT (6
TERMINALS), MADE BY ALPHA (TAIWAN), MAY BE USED AS A REPLACEMENT FOR BRIGHT SWITCH IN 60`s and 70`s Fender™ AMPS.
Also used in many other applications, including some Electro Harmonix AC powered
effects pedals, such as the Memory Man. Click here
for physical specifications. Two screws are included with the
switch. See below for a kit of two of these switches with screws included
for refurbishing Fender™ amps.
Part #SW-242S |
$1.95 |
|
Click on photo for
larger view |
Capacitor cover for
Fender™ Twin Reverb and other full-size Fender™ silverface and blackface
amps, such as the Super Reverb, Pro Reverb, Bandmaster and Bassman heads. Mounting centers are 7" x 3.5" Measurements are 7 1/8" x 3
1/2" x 1 1/4". Replaces Fender™ part number 0037854000.
Part #CC-170 |
$34.95 |
|
|
Carbon composition
resistors are made by mixing carbon particles with a binder molded into a
cylindrical shaped, and then baked. Standard classic resistor used in
vintage amplifiers - Fender™ Blackface and Silverface are prime examples.
|
Fender™ Carbon Comp.
Resistors 1/2 Watt |
|
|
 |
RESISTOR, CARBON COMPOSITION.
New production, 1/2 watt, 3.6mm x 9.5mm. Lead
diameter 0.7mm. Total length end-to-end 65mm. Resistors below
100K are 5% tolerance, resistors of 100K and higher are 10% tolerance. Choose resistor
value in Options.
Part #CC1/2-XX |
$0.89 |
|
Click on photo for
larger view |
Revisit™
RESISTOR LEAD FORMING TOOL
You know you want one! Bend resistors to fit in PC boards,
perf boards, or turret boards exactly, uniformly. Makes your repairs and
kit builds look completely professional. Works great on vintage
Fender™ Blackface and Silverface models. One side is for 1/2 watt
resistors, the other side fits 1/4 watt resistors. Also perfect for
diodes. Slots for radial lead resistors run along the length of the high
impact ABS plastic former. Each slot is .05″ longer than the next and has radiused edges to make perfect, square, symmetrical bends without stressing the leads.
Part #LF-010 |
$7.50 |
|
 |
RESISTORS, ULTRA-MINIATURE, 1 WATT, 100K Ohms.
New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.
2.2mm x 6.8mm. Lead
diameter 0.5mm, lead length 28mm. Total length end-to-end 61mm.
These are 1 watt resistors in a package about the size of a typical 1/4 Watt
resistor. Easy to work with, especially in tight spots. Made by Yageo.
100K Ohms. These make excellent replacements for preamp tube
plate resistors!
Part #R-MF-UM1W-100K |
$0.14 |
|
|
|
RESISTORS, ULTRA-MINIATURE, 1 WATT, 220K Ohms.
New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.
2.2mm x 6.8mm. Lead
diameter 0.5mm, lead length 28mm. Total length end-to-end 61mm.
These are 1 watt resistors in a package about the size of a typical 1/4 Watt
resistor. Easy to work with, especially in tight spots. Made by Yageo.
220K Ohms. These make excellent replacements for preamp tube plate
resistors!
Part #R-MF-UM1W-220K |
$0.14 |
|
|
|
RESISTORS, ULTRA-MINIATURE, 2 WATT.
New production, 2 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature. 3.9mm x 9.0mm. Lead
diameter 0.5mm, lead length 26mm. Total length end-to-end 61mm.
These are 2 watt resistors in a package about the size of a typical 1/2 Watt
resistor. Easy to work with, especially in tight spots. Great for
screen grid resistors. Made by Yageo. Available in 470 ohm, 1K
ohm, 2.2k ohm, 4.7K ohm, 10K ohm. All choices in this category are 2 Watts. Choose resistor
value in Options.
Part #R-MF-UM-XX |
$0.19 |
|
|
|
Screen Grid & Other
Resistors |
|
|
 |
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, INDIVIDUAL.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Available individually, or in packs of 5, below.
Part #470FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, PACK OF 5 RESISTORS.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Part #470FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, INDIVIDUAL. Commonly used as the screen grid resistor in many tube amps.
Also used as power supply dropping resistors in many Fender amps™. Available individually, or in packs of 5, below.
Part #1000FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, PACK OF 5 RESISTORS.
Commonly used as the screen grid resistor in many tube amps. Also used as
power supply dropping resistors in many Fender amps™.
Part #1000FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #2200FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Part #2200FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #4700FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Part #4700FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #10KFP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Part #10KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 18K OHM, 2
WATT.
Commonly used in the high voltage power
supplies of many Fender™ Princeton and Princeton Reverb amplifiers.
Part #18KFP2 |
$0.30 |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 18K OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many amps.
Part #18KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 27K OHM, 2
WATT.
Commonly used in the high voltage power
supplies of many Fender™ amplifiers.
Part #27KFP2 |
$0.30 |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 27K OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many amps.
Part #27KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, FLAMEPROOF, 220K OHM, 1 WATT. Two of these are
commonly used as balancing resistors across the main filter capacitors in small
to medium
power Fender™ Blackface and Silverface Amps. Other larger Fender™ amps use the
100K
1 Watt resistors as balancing resistors, above. It is important that
these two resistors across the two series capacitors be fairly well-matched in
order to properly distribute the voltage equally.
Available individually, or in packs of 5, below.
Part #220KFP1 |
$0.25 |
|
|
|
RESISTOR, FLAMEPROOF, 220K OHM, 1 WATT, PACK OF 5 RESISTORS. Two of these are
commonly used as balancing resistors across the main filter capacitors in small
to medium
power Fender™ Blackface and Silverface Amps. Other larger Fender™ amps use the
100K
1 Watt resistors as balancing resistors, above. It is important that
these two resistors across the two series capacitors be fairly well-matched in
order to properly distribute the voltage equally.
Part #220KFP1-5 |
$0.99
(Pack of 5 Resistors) |
|
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
