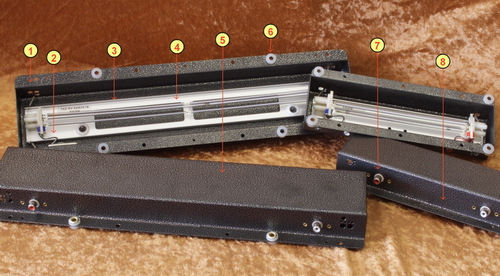

Why choose a Revisit™ reverb tank?
 |
1. Multiple holes to adjust mounting grommets and screws for any applications.
2. Internal wires with stress relief and sufficient length to avoid breakage.
3. Solid aluminum tray holding custom wound input and output transducers producing clear, deep tone.
4. Counter wound asymmetric coupled springs with separator (types 4 and 9).
5. Rugged black finish.
6. Soft grommets with brass inserts to decouple outer channel from amplifier cabinet.
7. Classic standard audio connectors (white=input, red=output)
8. Classic part number system helping to find the correct Revisit™ reverb tank for your amp.
And, a one-of-a-kind 2 year manufacturer
warranty! |
|
"Bringing back the sound of vintage Accutronics tanks"
|
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3A1A.
Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0
seconds), input grounded/output grounded, designed for horizontal mounting, open
side up. Replacement for the Gibbs Type F reverb tanks used in the
60s and early 70s, including the Sunn™
Solarus and Sentura I. Also used in the 1969 version of the Kustom K100-2.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3A1B.
Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0
seconds), input grounded/output grounded, designed for horizontal mounting, open
side down. Replacement for the Gibbs Type F reverb tanks used in the
60s and early 70s, including Ampeg™
models Echo Jet, Echo Twin, B12X, B12XY.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB2C1A.
Input impedance 8 ohms, output impedance 2250 ohms, medium decay (1.5 -
2.75 seconds), input insulated/output grounded, designed for horizontal
mounting, open side up. Used in the Yamaha G100 Series I and Series II.
See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB2C1A
"Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB2C1B. Input impedance
8 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B. Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. Also used in Reissue
models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb,
Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin
Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb,
Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb
Reissue,
Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65
Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™
Dual Professional.
Also used in Mesa Boogie™ MK2C and others, LAB™ Series L5, L7, L9,
Koch™ Powertone I, Ampeg™
VT-40, Ampeg™ Super Rocket SR212 and B-52 AT-100.
Used in the Epiphone™ Blues Custom 30 Amp.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B
current production.
Accutronics reverb tanks are a
cheaply produced copy of the Belton tank, and are now made by Accu-Bel in South
Korea. They are of much lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. Also used in Reissue
models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb,
Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin
Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb,
Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb
Reissue,
Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65
Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™
Dual Professional.
Also used in Mesa Boogie™ MK2C and others, LAB Series L5, L7, L9,
Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52™ AT-100. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Soft mounting grommets are not included with
this tank. If needed, order the RRG-4 grommet set found in
this section.
Accutronics Reverb Tanks are made in South Korea by Belton. Please be aware that these are NOT the same tanks as originally made by Accutronics in Cary, Illinois, USA.
Part #ACC-4AB3C1B |
$39.95 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1C. Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for
vertical wall mounting, long axis horizontal, connectors up.
Original Fender™ number 0047604000, used in the Fender™ stand-alone reverb unit,
and the Fender™ 63 Reverb. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3C1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2A1B. Input impedance 150 ohms, output impedance 2250 ohms,
medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for
horizontal mounting, open side down. Common replacement for
Music Man™,
and the Mesa Boogie™ F-30 and F-50. Also replaces the 53-5004-2 Vox
reverb tank used in the V1133 Royal Guardsman, the V1123 Buckingham, and the
V1154 Viscount Combo Amp. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB2A1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2A1C. Input impedance 150 ohms, output impedance 2250 ohms,
medium decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for
vertical wall mounting, long axis horizontal, connectors up. Common replacement for
many Gibson amps from the 1960s era.
Replacement for the Hammond RV4C-1
tank. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB2A1C"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB2C1B. Input impedance 150 ohms, output impedance 2250 ohms,
medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for
horizontal mounting, open side down. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB2C1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3A1B. Input impedance 150 ohms, output impedance 2250 ohms,
long decay (1.5 - 2.75 seconds), input grounded/output grounded, designed for
horizontal mounting, open side down. Longer decay replacement for
Music Man™,
and Mesa Boogie™. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB3A1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1B. Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting. Common replacement for Fender™ Blues Deluxe (original 90s version), Fender™ Blues Deville (original 90s version).
Also found in Fender™ London Reverb, Harvard Reverb II, Studio Lead, and Showman
115 (1980s). Used in the Rivera™ Rake, Fandango and Jake Studio
Combo. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB3C1B"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4BB3C1D. Input impedance 150 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded.
Mounts on vertical wall, long axis horizontal, connectors down. Common replacement for Marshall™ (DSL100, TSL100, DSL60, TSL60, TSL122,
DSL201, DSL401) Also found in certain Laney™ models. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4BB3C1D"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In Stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB2C1C. Input impedance
250 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for
vertical wall, long axis horizontal, connectors up. Common
replacement for Polytone™ amps, including the Polytone 103, Polytone Studio 212
and other models.
See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4DB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4DB2C1D. Input impedance
250 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for
vertical wall, long axis horizontal, connectors down. Common
replacement for Marshall™ 2550, 2558, 2558V, 3005, 3210, 4212, 5213, 5275, 8200, 8280,
JCM3005, JCM600, JCM602, JTM310, JTM312, JTM610, JTM612, JTM615, JTM622
and some ValveState models. Also fits the Vox™ AC15TB
and AC15TBX. Also is an
upgrade tank for the 9" tank in the Fender™ Frontman FM210 and FM212.
See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4DB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics
4DB3A1D. Input impedance 250 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input and output grounded, designed for
vertical wall, long axis horizontal, connectors down. Common
replacement in some Marshall™ models.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4DB3A1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics
4DB3C1D. Input impedance 250 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for
vertical wall, long axis horizontal, connectors down. Common
replacement for Marshall™ 3203, 4203, 5275 and some ValveState models.
Also is an upgrade tank for the 9" tank in the Fender™ Frontman FM210 and FM212, and an
upgrade tank for the Roland™
JC90.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4DB3C1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2A1A. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side up. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2A1B. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side down. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1A. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side
up. Generally used in heads where the tank is mounted with the open
side up, but is also found in some combo amps.
Peavey part number 71011113. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1B. Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Peavey™ (including Bravo 112,
Encore 65, Valveking 100 (VK100), Classic 30, Classic 50, Backstage 30,
Windsor Studio, Ultra Plus 120, Special 112, Special 212 [version 1] etc. Peavey™
part number 71011114).
Upgrade for Vox™ AC30CC. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3A1D. Input impedance 600 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input
grounded/output grounded. Mounts on vertical wall, long axis
horizontal, connectors down. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB3A1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3C1B. Input impedance 600 ohms, output impedance 2250 ohms,
long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe Reissue and Blues Deville Reissue.
Fender™ part number 0050394000. Also found in Peavey™, Music Man™. Used in the Traynor™ Custom Valve 50
(Model YCV50).
Upgrade for Vox™ AC30CC See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4EB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1A. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side up.
Common replacement for
certain Randall™ amps, including the RG-120-410.
Replacement for Gibson™ GSS-100 Solid State Amp, and the Gibson™ Dual Medalist.
Also used in the
Gibson™ Reverb III external reverb unit. Replacement
for the Kustom K-200-A. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for horizontal mounting, open side down. Common
replacement for vintage Gibson™, Epiphone™ and Kalamazoo™
amplifiers which used a driver
transformer for the reverb input side. Exact replacement for
certain Gibson™ amps, including the GA-2RVT (Maestro), GA3-RV, GA19RVT (Falcon), G40 solid state and Medalist 410. Exact
replacement for the Laub Unique 26R amplifier (60s-70s) as well as several
Magnatone models. Exact replacement for the Randall RG-80 combo. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2A1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Exact replacement for Marshall™ 2040,
4140, 4145, 4210, 4211, and 4212 (JCM800 series).
Exact replacement for the Gibbs Type "C" Reverb Tank found in a number of
vintage Ampeg™ models, including
Reverberocket, Jet, Gemini, B12XT, AC12,
V4, VT22, V2, VT40, GV15/22.
Exact replacement for Gibbs Type "C" Reverb tank found in a number of Gibson™
amps, including the GA-15RVT (Explorer, 1964), GA-35RVT (Lancer, 1965), GA-55RVT
(1965), GA-77RVT (1963). Replaces Vox reverb tank 23-5002-2 in the
solid state Berkeley II, solid state and tube Cambridge Reverb, V-8 Berkeley
Super Reverb, Viscount, and Super Beatle (V14, V114, V1141 and V1142). See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2A1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1A. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output insulated. Mounts horizontal, open side up.
Primarily found in Peavey, including the Peavey Classic 4x10 combo amp.
Also used in the classic Shure Vocal Master VA-300C. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2B1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output insulated. Mounts horizontal, open side down.
Primarily found in Traynor and Yorkville, including the Traynor YGM-3 and YGM-4. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2B1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1A.
Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75
seconds), input isolated/output grounded. Mounts horizontal, open
side up. Exact replacement for Kustom™ K100-2 (1968), K100-5, K150-2,
K200-B5, K250-2, K250-4, and K400-B5. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for horizontal mounting, open side down.
Used in a few Ampeg models. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Exact replacement for Marshall™ 5210, 5212 (JCM800 series). See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2C1D. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors down. Exact replacement for Genz Benz™
El Diablo 100. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1A.
Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75
seconds), input isolated/output isolated, designed for horizontal mounting, open
side up. Used in some versions of the Ampeg™ V4. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2D1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1B. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output isolated, designed for horizontal mounting, open side down.
Exact replacement for Tapco™
4400 / 4400A Reverb Unit, some versions of the Ampeg™ V4. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2D1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2D1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output isolated, designed for designed for vertical mounting, long axis
horizontal, connectors up. Exact replacement for Ampeg™ VT-22. See explanation of Accutronics reverb tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB2D1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1A. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output grounded, designed for horizontal mounting, open side up.
Common replacement for
certain versions of the Ampeg™ Gemini amps. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3A1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1B. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output grounded, designed for horizontal mounting, open side down.
Common replacement for Ampeg™, Music Man™
RP and RD series, Epiphone™
EA-28RVT, Gibson™ GA19RVT, Gibson™ GA20RVT and others. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3A1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3A1C. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output grounded, designed for vertical mounting, long axis horizontal,
connectors up.
See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3A1C "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3B1B. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
grounded/output insulated, designed for horizontal mounting, open side down.
Exact replacement for
Fisher™
Spacexpander from the
1960s. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3B1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1A. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
insulated/output insulated, designed for horizontal mounting, open side up.
Common replacement for most vintage Kustom amps
from the 1960s and early 70s. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3D1A "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB3D1B. Input impedance
1475 ohms, output impedance 2250 ohms, long decay (2.75 - 4 seconds), input
insulated/output insulated, designed for horizontal mounting, open side down.
Common replacement for Ampeg™
(Type C) . See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #4FB3D1B "Bringing back the sound of vintage Accutronics tanks" |
$43.79
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2A1B. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts
horizontal, open side down.
Found in some Mesa Boogie™ and
Fender™ Models. Also used in the PRS SE-20, Reverend Goblin, Kingsnake and
early Hellhound models. See explanation of Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2A1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2A1C. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts
on vertical wall, long axis horizontal, connectors up. Used
as an upgrade external tank in the Mesa Boogie™ Caliber 50+. See explanation of Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2A1C
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1A. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side up.
Replacement for tanks in early Yamaha solid-state amps from the 1970s and early
80s. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1B. Short Tank, Medium Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side down.
Found in Orange™ Rockerverb
(HEAD ONLY),
Orange™
Rockerverb MKII (HEAD ONLY), and Orange™
Rockerverb MKIII (HEAD ONLY).
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2D1A. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts
horizontal, open side up.
Found in some Roland™ JC120 (very
early versions and also the JC120UT). The 8DB2C1B is used in some
other versions of the Jazz Chorus 120. Unsure? Measure
input resistance on old tank - if it is less than 5 ohms, the 8AB2D1A is the
replacement) Also used in the Roland™ Space Echo RE-501, RE-301, and RE-201.
as well as
the Roland™ Bolt 60,
and the Roland Jazz Chorus JC77. See explanation of
Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2D1A
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring,
equivalent to Accutronics
8AB2D1B. Short Tank, Medium Decay, input
impedance 10 ohms, output 2575 ohms, isolated input and isolated output. Mounts
horizontal, open side down.
Found in some versions of the Roland™
Space Echo RE-501 and RE-201 with the tank
mounted on the bottom. Also used in the Acoustic™
G60T (Model 162 or Model 163). See explanation of Accutronics reverb tank numbering system
here. See a chart which lists AC impedance and DC resistance
measurements for reverb tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB2D1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB3C1B. Short
Tank, Long Decay, input impedance 10 ohms, output 2575 ohms, grounded input and grounded output. Mounts horizontal, open side down. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB3A1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB3C1B. Short Tank,
Long Decay, input impedance 10 ohms, output 2575 ohms,
insulated input and grounded output. Mounts horizontal, open side down.
Found in Fender™ Super Champ, Fender™ Princeton Reverb II, and Orange Rockerverb,
and Kitty Hawk Supreme Series I.
Also found in later versions
of the Reverend Hellhound amps. Fender™ part number 0018454000 (018454). See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8AB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2A1B.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, grounded
input and grounded output. Mounts horizontal, open side down.
Primarily used by Musicman™, Crate™ and Ampeg™.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2A1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1A.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side up.
Primarily used by Gibson™, Epiphone™. Used in the Crate™ Blue-Voodoo
BV120H and Stealth GT-50.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2C1B.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side down.
Primarily used by Fender™ Sidekick 15R, 25R, 35R, and 65R, Rivera PUBSTER 25 & CHUBSTER 40 , Rivera Knucklehead Reverb,
Vox™ AC30, with solid state reverb as used in the Seventies, Ampeg™ Jet II J12R, Crate™ G212,
Crate™ GT212, Crate™ Palomino V32 &
V16, Crate™ Vintage Club VC3112 & VC5212, Music Man™ RD50, Kitty Hawk Supreme, Marshall™ G80RCD, Marshall™ G100RCD. Upgrade for
Laney™
VC15 (part nr. 10006), Brunetti Singleman, Mesa Boogie™ Rectoverb.
Replaces Ampeg™ / Crate™ part number 79-201-02.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB2D1B.
Short Tank, Medium Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and output. Mounts horizontal, open side down. Fits the SWR California Blonde
and Strawberry Blonde amplifiers. Upgrade
for the 1BB1D1B reverb tanks used in Acoustic™ amplifiers from the 1970s, such
as the models 230 and 330.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB2D1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB3C1B.
Short Tank, Long Decay, input impedance
190 ohms, output 2575 ohms, insulated input and grounded output. Used in
the Fender™ Yale Reverb and Harvard Reverb II amps which use the "short" tank.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8BB3D1B.
Short Tank, Long Decay, input impedance 190 ohms, output 2575 ohms, insulated
input and output. Mounts horizontal, open side down. Primarily
used in Rivera™ amplifiers
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8BB3D1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1D.
Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Designed for horizontal
mounting, open side up. Primarily found in the Marshall™ 4100,
4101, 4102, 4500, 4501, 4502 in situations where the tank is mounted "upside
down".
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1B.
Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side down. Primarily used by Marshall™ VS100,
Marshall™ VS265, a few versions of the Marshall JCM900 series, Polytone™ Minibrute
I through Minibrute IV, Polytone™
Megabrute, Fender™ FM212R, FM210R, FM65R, Frontman 212R, Frontman 210R,
Frontman 65R.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1D.
Short Tank, Medium Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Mounts on vertical wall, long axis
horizontal, connectors down.
Primarily found in the Marshall™ 4100, 4101, 4102, 4500, 4501, 4502, 5150,
5205, 8080, 8100, 8240, AS50, AS50R, AS80R, AVT50, AVT50H, JCM600, JCM602,
JTM310, JTM312, JTM610, JTM612, JTM615, JTM622, MA50C, MA100C, MA100H, G25R, G50RCD, VS100R,
VS100RH, VS102R, VS230, VS232, VS265, and VS65R.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB2C1E.
Short Tank, Medium Decay, input
impedance 310 ohms, output 2575 ohms, insulated input and grounded output. Mounts
on vertical wall with long axis vertical, input side up. Primarily used
BY Roland™
GC-408, Roland™
Jazz Chorus JC90, Roland™ Jazz Chorus JC120B
as well as some other versions (the 8AB2D1A is also used in certain JC120 models
... Unsure? Measure resistance of the input side of the old tank.
If it is around 35 ohms or so, the 8DB2C1E is correct). Also the Roland™
Cube 40 and Cube
60 models from the 1980s, and the Roland
Blues Cube BC60 from the 1990s. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB2C1E "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8DB3C1B.
Short Tank, Long Decay, input impedance 310 ohms, output 2575 ohms, insulated
input and grounded output. Mounts horizontal, open side down. Primarily used by
Marshall™ JCM900.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #8DB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2B1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms,
grounded input and insulated output. Mounts horizontal, open side down. Used in
Jet City™ amps.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2B1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1A. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side
up. Used in Peavey™ 6505+ and Yamaha™ JX30.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2C1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1B. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.
Used in Fender™ Blues Junior, Fender™ Transistor Amps such as:
Fender™ Deluxe 85, Fender™
Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series
(Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™
Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™
Ultimate Chorus, Fender™ Princeton Chorus, Fender™ Vaporizer, Fender™ Acoustasonic Junior,
Fender™ M-80 HM Series Combo, Peavey Envoy 110, Peavey™ Ultra 60/120,
Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior
Hot Rod, Tech 21™ Trademark 30. This is the most popular short tank.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces Fender ™ part numbers 0028055000,
028055, 025269, 020550.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty
details here.
Part #8EB2C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
|
Click on photo for larger view
|
Accutronics Reverb Tank, 9" long, 3 spring, 8EB2C1B.
Accutronics reverb tanks are a
cheaply produced copy of the Belton tank, and are now made by Accu-Bel in South
Korea. They are of much lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.
Used in Fender™ Blues Junior, Fender™ Transistor Amps such as:
Fender™ Deluxe 85, Fender™
Deluxe 90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series
(Super 60, Super 112), Fender™ Frontman 65R, Fender™ Eighty-Five, Fender™
Sidekick Reverb 35, Fender™ Sidekick Keyboard 60, Fender™ Ultra Chorus, Fender™
Ultimate Chorus, Fender™ Princeton Chorus, Fender™ Vaporizer, Fender™ Acoustasonic Junior,
Fender™ M-80 HM Series Combo, Peavey Envoy 110, Peavey™ Ultra 60/120,
Peavey™ Backstage, Peavey™ Valveking series etc., Vox™ AC15CC, Vox™ AC15C, and Epiphone™ Valve Junior
Hot Rod, Tech 21™ Trademark 30. This is the most popular short tank.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces Fender ™ part numbers 0028055000,
028055, 025269, 020550.
Soft mounting grommets are not included
with this tank. If needed, order the RRG-4 grommet set found in
this section.
Accutronics Reverb Tanks are made in South Korea by Belton. Please be aware that these are NOT the same tanks as originally made by Accutronics in Cary, Illinois, USA.
Part #ACC-8EB2C1B |
$35.95
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1C. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output.
Mounts on vertical wall, long axis horizontal, connectors up.
Used in the Burriss Royal Bluesman amp.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1D. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts
vertical wall, long axis horizontal, connectors down. Used in
Fender™ Acoustasonic Junior, Fender™ M-80 HM Series Head, Tech 21™
Trademark 30.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Replaces original Fender™ part number
0031669000.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty
details here.
Part #8EB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1E. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output.
Mounts on vertical wall with long axis vertical, input jack up. Used in Crate™ Tube Driver
series of amps, such as the TD-70.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8EB2C1E "Bringing back the sound of vintage Accutronics tanks" |
$42.89 Special Order
Ready to ship
4 business days
after we receive
your order. |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB3C1B. Short
Tank, Long Decay, input impedance 800 ohms, output 2575 ohms, insulated input
and grounded output. Mounts horizontal, open side down. Used as an
upgrade in Fender™ Blues Junior, Fender™ Transistor Amps such as: Fender™ Deluxe
90, Fender™ Princeton 65, Fender™ Stage Series, Fender™ Tube 60 Series (Super
60, Super 112), Peavey™ Ultra 60/120 etc, Tech 21™ Trademark 30. VOX™ Upgrade for
Vox™ AC15CC and Vox™ AC15C.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
View the 2-year warranty
details here.
Part #8EB3C1B "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8AB2C1A. Short Tank, Medium Decay, input impedance
1925 ohms, output 2575 ohms,
grounded input and grounded output. Mounts horizontal, open side up.
Replacement for multiple Valco amplifier models. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB2A1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3A1A. Short Tank,
Long Decay, input impedance
1925 ohms, output 2575 ohms,
grounded input and grounded output. Mounts horizontal, open side up.
Replacement for multiple Valco amplifier models. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB3A1A "Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2A1B. Short
Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input
and grounded output. Mounts horizontal, open side down.
Primarily used in Crate™
and Music Man™ Amps. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB2A1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2B1B. Short
Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input
and insulated output. Mounts on horizontal wall with open side down.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB2B1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB2B1F. Short
Tank, Medium Decay, input impedance 1925 ohms, output 2575 ohms, grounded input
and insulated output. Mounts on vertical wall with long axis vertical, output
jack
up.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB2B1F
"Bringing back the sound of vintage Accutronics tanks" |
$42.89 |
|
Click on photo for larger view
|
Revisit™ Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8FB3C1B. Short
Tank, Long Decay, input impedance 1925 ohms, output 2575 ohms, insulated input
and grounded output. Mounts horizontal, open side down.
See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #8FB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$42.89
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB1A1B. Input impedance 10 ohms, output impedance 2575 ohms,
short decay (1.2 - 2.0 seconds), input grounded/output grounded, designed for horizontal mounting, open side down.
Common replacement for Mesa Boogie™
Mark I, Mark II, Mark IIB, Mark IIC Plus, Mark III, Mark IV, Mark IV-B. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB1A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
Special Order
Ready to ship
4 business days
after we receive
your order. |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB1C1B. Input impedance 10 ohms, output impedance 2575 ohms,
short decay (1.2 - 2.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Common replacement for Diezel™.
Also a great upgrade for the Epiphone™ So-Cal from the original two-spring tank. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB1C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
Special Order
Ready to ship
4 business days
after we receive
your order. |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2A1B. Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input
and output grounded, designed for horizontal mounting, open side down.
Exact replacement for
Mesa Boogie™ MK V, Lonestar, Lonestar Special,
Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express
Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.
Also used in some Fender™, Vox™ AC30 (1960s+70s),
and
Engl™
Screamer (E330, E335) See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB2A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3A1B. Input impedance 10 ohms, output impedance 2575 ohms,
long decay (2.75 - 4 seconds), input
and output grounded, designed for horizontal mounting, open side down.
A longer decay replacement for
Mesa Boogie™ MK I, MK II, MK III, MK IV, MK V, Lonestar, Lonestar Special,
Electradyne, Royal Atlantic 100, Roadster, RoadKing II, TremoVerb, Express
Series, DC Series, Hearbreaker, Blue Angel, TransAtlantic TA-30, and Maverick.
Also may be used in some Fender™, Vox™ AC30 (1960s+70s),
and
Engl™
Screamer (E330, E335) See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3A1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB2C1B. Input impedance 10 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Fender™. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1B. Input impedance 10 ohms, output impedance 2575 ohms,
long decay (2.75 - 4 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Fender™.
Upgrade for the 4AB3C1B 2-spring tank. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
 |
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics
9AB3C1C.
Input impedance 10 ohms, output impedance 2575 ohms, long decay (2.75 - 4
seconds), input insulated/output grounded, designed for vertical mounting. A longer decay replacement for
the Fender 6G15 Reverb Unit (1960s).
See explanation of Accutronics reverb tank numbering system here. See
a chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3C1C
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
|
Click on photo for
larger view
|
Accutronics Reverb Tank, 17" long,
3 spring, 9BB2C1B
current production. Accutronics reverb tanks are a
cheaply produced copy of the Belton tank, and are now made by Accu-Bel in South
Korea. They are of much lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Input impedance
190 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
This tank fits the Mesa Boogie™ Nomad 45, Nomad 55, Nomad
100. Also fits the Vox™ AC50CPH,
AC100CPH. See explanation of Accutronics reverb tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Soft mounting grommets are not included with
this tank. If needed, order the RRG-4 grommet set found in
this section.
Accutronics Reverb Tanks are made in South Korea by Belton. Please be aware that these are NOT the same tanks as originally made by Accutronics in Cary, Illinois, USA.
Part #ACC-9BB2C1B |
$42.95 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9BC2C1B. Input impedance 190 ohms, output impedance
12,000 ohms,
medium decay (1.75 - 3 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Gibson™ GA-30RV
(2004),
Gibson™ GA-60RV
(2004), Vox™ AC30TBR Top Boost Reverb model (1991-1993), and Orange
AD30R. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9BC2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9EB2C1B. Input impedance 800 ohms, output impedance 2575 ohms,
medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for Peavey™ Nashville 112, Vox™ AC50CPH, AC100CPH.
Upgrades Vox™ AC30CC, deeper reverb for the Fender™ Hot Rod Deluxe/DeVille! See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9EB2C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, replacement for Accutronics 9EB3C1B
and Belton BL3EB3C1B.
Input impedance 800 ohms, output impedance 2575 ohms, long decay (2.75 - 4
seconds), input insulated/output grounded, designed for horizontal mounting,
open side down. Common replacement for Tech 21™ Trademark 60 and
Trademark 120, Vox™ AC30C2X, AC50CPH, AC100CPH.
Upgrades Vox™ AC30CC. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9EB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2A1C. Input impedance
1475 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input
grounded/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Common replacement for
Fender, Peavey, Music Man™, Gemini,
Portaflex. Upgrade for several
vintage Ampeg™ models, including Reverberocket, Jet, Gemini, B12XT, AC12,
V4, VT22, V2, VT40, GV15/22. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2A1C
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2C1C. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors up. Upgrade replacement for Marshall™ 5210, 5212 (JCM800 series). See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2C1C "Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2C1D. Input impedance
1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input
isolated/output grounded, designed for vertical mounting, long axis horizontal,
connectors down. Upgrade replacement for Genz Benz™
El Diablo 100. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2C1D "Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock
|
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2D1B. Input impedance
1475 ohms, output impedance 2575 ohms, medium decay (1.5 - 2.75 seconds), input
insulated/output insulated, designed for horizontal mounting, open side down.
Replacement for the DIY project Tellun 156 Neural Agonizer.
Upgrade
for the Tapco™
4400 / 4400A Reverb Unit, some versions of the Ampeg™ V4. See explanation of Accutronics reverb tank numbering system here. See a
chart which lists AC impedance and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9FB2D1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99
In stock |
|
Click on photo for
larger view |
Rubber mounting grommets for
reverb tanks, package of four. Provides shock absorption for
tanks mounted directly to the inside of a wooden amp cabinet, preventing hum,
roar, shock sensitivity and feedback. Mounting Hole Diameter = 3/8"
Outer Diameter = 1/2"
Part #RRG-4 |
$1.99
(For a pack of 4 grommets) |
|
Click on photo for
larger view
|
Reverb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
Part #RB-017 |
$18.90
In Stock |
|
Click on photo for
larger view
(Reverb tank not included)
|
Handmade Reverb Tank Bag for 9"
tanks. Works with any short
(9") reverb tank. Reverb bags give the reverb tank better
isolation which results is fuller, richer reverb and less feedback.
Handmade of single-ply black Tolex. Replacement for Fender and many other
amps. Bag dimensions: 4.5"W x 1.5"H x 9.5"L. Includes loops at
each end for screw attachment to the amp cabinet, and a tuck-in flap to close up
the end. Mounting screws not included.
Part #RB-009 |
$13.95
In Stock |
|
Click on photo for
larger view |
 Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
Click on photo for
larger view |
 Revisit™
RCA JACK, PANEL MOUNT,
CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS
SPEAKER JACK.
RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic
base, round. Chrome RCA jack. Used in vintage USA-Made Accutronic Reverb Tanks
made before 2010. Black phenolic base.
Part #J-351 |
$3.50 |
|
Click on photo for
larger view |
T RANSFORMER, Fender™ REVERB DRIVER. Reverb
transformer as found in the Fender™ 65 Twin Reverb Reissue, 65 Super Reverb
Reissue, 65 Princeton Reverb Reissue, and 65 Deluxe Reverb Reissue.
Fender™ part number 0037099049. 10" leads with .187 faston
connectors, X-Mount with 1 3/4" mounting centers.
Part #037099 |
$39.95 |
|
Click on photo for
larger view |
TRANSFORMER,
Revisit™ Fender™ REVERB DRIVER. For vintage blackface and silverface Deluxe Reverb, Princeton Reverb, Twin Reverb, Pro Reverb, Super Reverb, Vibrolux Reverb, etc. Equivalent to Fender™
#125A20B & #022921. For vintage Mesa-Boogie™ models, including
vintage Mark I through Mark IV, Subway Blues, Studio 22, Studio Caliber,
Maverick, Lonestar Special, and many others . Mesa Boogie™
part number 550185. 10" cut leads, X-Mount with 1 3/4" mounting
centers. Input impedance 14.5K ohms, output impedance 4 ohms.
Part #TGR-001 |
$20.95 |
|
Click on photo for
larger view |
3 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173 |
$8.95
In Stock |
|
|
Click on photo for
larger view |
4 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174 |
$8.95
In stock |
|
|
Click on photo for
larger view |
5 foot Revisit™ right angle RCA cables for Reverb Tanks and other electronic devices.
Dual cable, excellent shielding properties, 5 feet long.
Part #RC-175 |
$8.95
In stock |
|
Click on photo for
larger view |
Fender™ Reverb Cable. Molded
plastic straight dual RCA on both ends. This cable is used on the 65 Twin
Reverb Reissue, 65 Princeton Reverb Reissue, 65 Deluxe Reverb Reissue and
probably some others. 36" long Fender™ part number 0025722000.
Part #RC-300 |
$5.95
In Stock |
|
Click on photo for
larger view |
Fender™ Reverb Cable. Molded
plastic right-angle dual RCA on both ends. This cable is used on the 65 Super
Reverb Reissue, 64 Vibroverb Custom and
probably some others. 48" long Fender™ part number 0056931000.
Part #RC-310 |
$5.95
In Stock |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable - universal. Made
with the same style shielded wire and RCA connectors as the originals.
Warning: Not designed for use in amps other than Fender, due to the
bare shields. These reverb cables perfectly replicate the original cables found in vintage
Fender™ vintage blackface and some silverface amplifiers. One cable is 3 ft
long, and the other is 5 ft long. By coiling up any excess cable into the
reverb isolation bag, these cable lengths are suitable for most vintage Fender™
combo amps, with these exceptions: Super Reverb, Quad Reverb, Super Six
Reverb.
Part #RC-200 |
$29.95 |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Super Reverb, Quad Reverb, and Super Six Reverb (blackface
and early silverface). Long length for larger amplifiers. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 43 inches (110 cm), long one is 55 inches (140
cm).
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Warning: Not designed for use in amps other than Fender, due to the bare
shields.
Instructions not included - assumes you are familiar with building this type of
cable. Soldering skills and tools required.
Part #RK-279L |
$15.95
Assembly required (with soldering skills needed) |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Twin Reverb, Pro Reverb and Vibrosonic Reverb (blackface
and early silverface). Medium length for medium-sized amplifiers. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 39 inches (99 cm), long one is 51 inches (130 cm).
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Warning: Not designed for use in amps other than Fender, due to the bare
shields.
Instructions not included - assumes you are familiar with building this type of
cable. Soldering skills and tools required.
Part #RK-279M |
$14.95
Assembly required (with soldering skills needed) |
|
|
Click on photo for
larger view |
Revisit™ vintage Fender™ style
reverb cable KIT for Deluxe Reverb, Vibrolux Reverb and Princeton Reverb (blackface
and early silverface). Short length for smaller amps. Set of
parts for you to make two cables (reverb input and reverb
output) Short one is 36 inches, long one is 47 inches.
Open face
braided shielded cable with metal RCA ends that you install - near-duplicate of the original O.E.M.
Fender™ cables used in the 1960s.
Compare with similar cable sets costing up to $45.
Instructions not included - assumes you are familiar with building this type of
cable.
Warning: Not designed for use in amps other than Fender, due to the bare
shields. Soldering skills and tools required.
Part #RK-279S |
$13.95
Assembly required (with soldering skills needed) |
|
Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
|
