Fender™ Hardware
(Also see our complete line of hardware) |
|
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL
WITH 9-PIN TUBE SOCKET AND INTEGRAL TUBE SHIELD BASE . Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. 9-Pin tube
socket is made of sturdy Micalex. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Requires 3/4" hole in chassis. Solder lugs for wire connection to tube
socket.
Shield, base and socket.
Part #TS-370 |
$4.99 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL.
Includes new base, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
Shield and base only - socket not included.
Part #TS-325S |
$2.29 |
|
Click on photo for
larger view |
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL,
SET OF 6.
Includes new bases, if needed. Spring in top of shield fits over the
tube. Fits 12AX7A and similarly sized preamp tubes. Replacement for Fender™ and many other brands. Holes in base spaced 1 1/8" apart.
This is a great kit to replaced all 6 of the tube shields in many Fender™ amps
with 6 preamp tubes. Shield and base only - socket not included.
Part #TS-325S-6 |
$12.95 |
|
(TUBE NOT INCLUDED)
Click on photo for
larger view |
 Revisit™ PRE-AMP TUBE DAMPER
RINGS.
Use two (or three) of these rings around a pre-amp tube to reduce noise and
microphonics. An economical alternative to more expensive tube dampers.
Will withstand high temperatures of pre-amp tubes, reusable when you change
tubes. Set of 6 rings - will equip either 2 or 3 tubes, depending on the number of rings you choose for each tube. Note: Tube shields will not fit over the damper rings, and must be removed from the tubes. These
dampers are NOT for 9-pin power tubes, such as the EL84 or 6BQ5.
Part #PTD-6 |
$4.95
(Set of 6 rings) |
|
Click on photo for
larger view |
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.
Used in Fender™ and many other amps. 1 1/2" mounting
centers. Made by Belton. Fender part number 099072500.
Part #TC-142 |
$2.25
|
|
Click on photo for
larger view |
OCTAL TUBE KEYWAY, SET OF 2
If you have a cherished octal power
tube or rectifier with a broken keyway, here is a great solution. By cleaning
the remainder of the broken keyway from the tube base and properly installing
this keyway replacement (a little dab of silicone sealant works great to hold it
in place), your tube can safely be reinstalled into your equipment.
These great tube-savers are sold in sets of 2. Note: When using an adhesive to secure the keyway to the tube base, DO NOT use a
water-based glue. Silicone sealant (RTV) which is acryllic-based or
butyl-based is fine. Latex sealant or hot-glue is NOT.
Part #OTK8-2 |
$8.99
(for a set of 2 tube keyways) |
|
Click on photo for
larger view |
OCTAL TUBE BASE, SOLD
INDIVIDUALLY
Octal tube bases are used to construct tube socket savers, solid-state
rectifiers, bias probes, etc. 8-pin plug with room inside the base
for circuitry and wiring. Sold individually.
Part #OTB-100 |
$3.99 ea |
|
Click on photo for
larger view |
TUBE SOCKET, OCTAL 8-PIN, commonly used with the Octal Tube Base to build
bias probes, tube socket savers, tube extenders, etc. This socket
has no mounting bracket.
Part #TS-8-810 |
$4.40 |
|
Click on photo for
larger view |
PHENOLIC TUBE SOCKET FOR OCTAL TUBES. EXACT REPLACEMENT FOR VINTAGE FENDER, VINTAGE Marshall™ (including the JCM900 Series), and many others. Fits 6L6, EL34, 6V6 output tubes, and 5U4, 5Y3, and GZ34 rectifier tubes. For 1" to 1 1/8" hole. Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/2" apart.
Unlike some phenolic tube sockets on the market, this one fits the 1" hole found
in most vintage Fenders.
Part #TS-8-600 |
$5.70 |
|
Click on photo for larger view |
CERAMIC 8-PIN WIRED OUTPUT TUBE OR RECTIFIER TUBE SOCKET,
crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting
centers, 1" to 1 1/4" chassis hole. Fits 6L6, EL34, 6V6 output tubes, and
5U4, 5Y3, and GZ34 rectifier tubes.
Click here for additional specs.
Fender part number 0990724000, or 023580.
Part #TS-8-807W |
$3.95
|
|
Click on photo for
larger view |
FENDER™
STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs.
Fender part number 0023606049.
Part #TS-9-700 |
$4.49
|
|
Click on photo for
larger view |
6-PACK OF FENDER™
STYLE MICALEX TUBE SOCKET FOR MINIATURE 9-PIN TUBES. INCLUDES INTEGRAL
BASE FOR TWIST-LOCK TUBE SHIELD. Fits
12AX7, 12AU7, 12AT7, etc. Sturdy Micalex construction, for 3/4" hole.
Solder tabs for wire connections. Top mounting (mounted from
the outside of the chassis), mounting holes spaced 1 1/8" apart.
Designed to work with the TS-325S tube shield,
or vintage Fender™
tube shields.
Used in Fender™
vintage Blonde, Brownface, Blackface, Silverface and some early Rivera designs.
Also applicable to early Marshall™
designs. Pack of 6 tube sockets. Mounting screws not
included - recommend the SC-410-6 screws (2 packs of 6 screws needed for 6 tube
sockets). It is also possible to use 1/8 inch pop rivets to mount these
sockets. Replaces
Fender part number 0023606049.
Part #TS-9-700-6 |
$25.99
(for 6 sockets) |
|
Click on photo for
larger view |
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. For 3/4" hole. Bottom mounting (mounted from the inside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the
TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-601 |
$2.49
|
|
Click on photo for
larger view |
TUBE SOCKET FOR MINIATURE 9-PIN TUBES. EXACT REPLACEMENT FOR MANY MAKES AND MODELS OF AMPS WITH HAND-WIRED TUBE SOCKETS. Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes. For 3/4" hole. Top mounting (mounted from the outside of the chassis), mounting holes spaced 1 1/8" apart. Designed to work with the TR-144 or TR-146 tube retainers, or the TS-325S tube shield.
Part #TS-9-610 |
$2.49
|
|
Click on photo for
larger view |
Solid-State Tube Rectifier Replacement.
Replaces 5AR4, GZ34, 5U4, 5Y3 rectifier tubes. Use when less "sag" is
desired in the power supply. 1.31" diameter, 0.89" tall (not
including pins and center post).
Costs about 35% less than a new rectifier tube,
and unlike tubes, should last indefinitely. No deterioration
over time. Doesn't generate any heat, which lowers the heat given
off by the amp.
NOTE!
Because there is no warm up of a rectifier tube when using this solid state
device, it is absolutely
 necessary that a standby switch is used in
conjunction with this device. Do not install in an amplifier that
does not have a standby switch - always use the standby switch in amps so
equipped when using the TSSR01.
Part #TSSR01 |
$14.95 |
|
Click on photo for
larger view |
CUP WASHER, STAINLESS STEEL, SMALL, SET OF 4. OD 3/8", ID 5/32".
Typically found on the back panel of some Fender™ Blonde/Brown era amps, and some Blackface vintage
amps. Set of 4 washers. Fender™ part number 0037215049. OUTSIDE EDGE OF WASHER IS BARELY
LARGER THAN THE HEAD OF THE Fender™ BACK PANEL SCREWS.
Part # CW-401-4 |
$0.99
(for a set of 4 washers) |
|
Click on photo for
larger view |
CUP WASHER, STAINLESS STEEL, SMALL, SET OF 8. OD 3/8", ID 5/32".
Typically found on the back panel of some Fender™ Blonde/Brown era amps, and some Blackface vintage
amps. Set of 8 washers. Fender™ part number 0037215049. OUTSIDE EDGE OF WASHER IS BARELY
LARGER THAN THE HEAD OF THE Fender™ BACK PANEL SCREWS.
Part # CW-401-8 |
$1.79
(for a set of 8 washers) |
|
Click on photo for
larger view |
Ground Lug Terminals - Angled
Made from tin-plated brass - will not rust. Used to connect a ground wire to a screw and nut on a chassis.
Angled,
with two holes for soldering wires. With built-in lock washer to keep the screw
and nut from loosening. Designed for a #8 size screw.
Pack of 5 terminals.
Part #GL-113 |
$1.39
(Pack of 5 terminals)
|
|
Click on photo for
larger view |
TERMINAL STRIPS, 6 LUG, SET OF
2. Perfect for amplifier circuit additions or modifications.
Center post for mounting to chassis. All 6 terminals are isolated
from ground. Each terminal strip is 2-5/8 inches
long. The lugs are set on 3/8 inch centers. Each lug
will accept wires up to 16ga - smaller gauge allows multiple wires to be
connected to each lug. Set contains 2 terminal strips as pictured.
Mounting hardware not included.
Part #TS-825 |
$2.99
(for a set of 2 terminal strips) |
|
Click on photo for
larger view |
TERMINAL STRIPS, 7 LUG, SET OF
2. Perfect for amplifier circuit additions or modifications.
End terminals on each strip are the mounting lugs, so they become a ground lug
if attached to a metal chassis. Each terminal strip is 2-5/8 inches
long. The lugs are set on 3/8 inch centers. Each lug
will accept wires up to 16ga - smaller gauge allows multiple wires to be
connected to each lug. Set contains 2 terminal strips as pictured.
Mounting hardware not included.
Part #TS-712 |
$3.69
(for a set of 2 terminal strips) |
|
BLACK FENDER HANDLE
Click on photo for
larger view |
 ORIGINAL
BLACK Fender™ GUITAR AMP HANDLE.
Black amplifier handle with vinyl sleeve over steel strap and
one-screw mounting nickel-plated end caps. Includes mounting
hardware (two screws and T-nuts).
Introduced on Blonde, Brown, and Blackface™-era Fender™ amplifiers. Used
on 65 Twin Reverb™, 65 Deluxe Reverb™, 65 Super Reverb™, 65 Princeton
Reverb™, 64 Vibroverb Custom, Custom Vibrolux™, Vibro-King™ 212 Enclosure,
Blues Junior™, Pro Junior™, Acoustasonic™ Jr. DSP, Acoustasonic 30, Acoustasonic
SFX II, Bassman™ 25, Bassman 60, Jazzmaster Ultralight™ Enclosure, Princeton
650™, Cyber Champ™, Rumble™ 112, Rumble 2x8, Super-Sonic™ 100 Head, Super-Sonic
Twin, Super Champ™ X2/XD, and Bullet 15 DSP amplifier. Fits most vintage
and modern amplifiers. 7 3/4" center to center screw placement. 9 1/4" handle length without
end caps.
Original Fender™ part number 0990947000.
Part #FAH-332 |
$17.99 |
|
BROWN FENDER HANDLE
Click on photo for
larger view |
ORIGINAL
BROWN Fender™ GUITAR AMP HANDLE.
Brown amplifier handle with vinyl sleeve over steel strap and
one-screw mounting nickel-plated end caps. Includes mounting
hardware (two screws and T-nuts).
Introduced on some Blonde and Brownface-era Fender™ amplifiers. 7 3/4" center to center screw placement. 9 1/4" handle length without
end caps.
Original Fender™ part number 0990944000.
Part #FAH-944 |
$16.99 |
|
Click on photo for
larger view |
GUITAR AMP HANDLE - SIMILAR TO Fender™ HANDLE.
Black handle strap, metal reinforced. Nickel metal caps - may be used
as replacement for vintage
and reissue Fender™ amps. Handle strap is 7/8"
wide. Designed for screw holes set 7 3/4 inches apart.
Looks similar to the original Fender™ part number 0990947000. Screws and T-Nuts included.
Part #FAH-261 |
$8.49 |
|
|
Click on photo for
larger view |
Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender™
style FAH-332, FAH-261 handle. 1" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 3/4".
See Data Sheet here
Part #SC-403 |
$0.99
(for a pack of 2 screws) |
|
|
Click on photo for
larger view |
Fender™
EXTRA LONG VINTAGE HANDLE SCREWS
Pack of 2 stainless steel extra long handle screws for Fender™
style FAH-332, FAH-261 handle. Used for vintage Fender™ style strap
handles used on speaker cabinets, such as Bandmaster, Bassman, Showman,
and Blonde or Blackface Tremolux. 1-1/4" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 1-1/8" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 1-1/8".
See Data Sheet here
Part #SC-403A |
$0.99
(for a pack of 2 screws) |
|
Click on photo for
larger view |
Premium-quality steel T-nuts feature six razor-sharp teeth and extra-long barrels.
1/4"-20 coarse thread.
The result is a T-nut that goes in straighter and holds tighter than ordinary T-nuts. As a bonus, the 6-prong design ensures that your T-nut will stay in place even when working at the edge of a driver hole. We guarantee that these are the finest T-nuts that you will find on the market. Recommended hole size is 1/4", thread is 10-32,
barrel length is 11mm, or about 7/16". Pack of 4 nuts.
Part 6-TNUT-1032 |
$1.59
(pack of 4) |
|
Click on photo for
larger view |
Fender™ VINTAGE STYLE GUITAR AMP HANDLE,
RAISED, MEDIUM BROWN
STITCHED SIMULATED LEATHER.
Medium brown simulated leather handle strap, replacement for Fender™ "tweed" style amps (as
well as other vintage amps). Has slight "raised" bump near the center of the
handle. Medium brown, white stitched. 5-7/8" from post position
to post position, total length of strap when completely flat is 8-3/4". Comes complete with two
nickel-plated handle mounts and four screws.
Part #GAH-282 |
$18.95 |
|
Click on photo for
larger view |
Fender™ or Ampeg™ VINTAGE STYLE GUITAR AMP HANDLE, RAISED,
BLACK STITCHED
SIMULATED LEATHER. Black raised handle strap, made of simulated leather,
replacement for Fender™ "tweed" style amps or vintage Ampeg amps (as well as
other vintage amps). Has slight "raised" bump near the center of the handle.
Black, white stitched. 5-7/8" from post position to post position, total
length of strap when completely flat is 8-3/4". Mounts and screws
are included.
Part #GAH-782 |
$18.95 |
|
Click on photo for
larger view |
HANDLE MOUNTING KIT - FOR STRAP HANDLES
Complete set of hardware for mounting one leather style strap handle,
including machine screws and T-Nuts. Excellent for repairing
strap handles where the old wood screws have pulled out of their holes.
Remove amp chassis, drill new holes with 3/16" or 5mm drill bit, tap in T-Nuts on
the underside and mount the handle. Fits Fender™ "tweed" style
amps and some vintage Ampeg™ amps. Works with our handles GAH-2, GAH-782. Part #THH-2 |
$4.95 |
|
(Brown)
Click on photo for
larger view |
Fender™ STYLE GUITAR AMP HANDLE.
Brown handle strap, "dogbone" style. Nickel end hooks - replacement for vintage
and modern Fender™ amps. Replacement for Fender™ part number 0990946000. Does
not contain Fender™ logo, so it may be used on other brands of amps. Used on vintage
and modern brownface and blonde tolex amps such as the 59 Bassman, Hot Rod
Deluxe, Blues Deluxe, Blues Deville, Super-Sonic etc. Color of handle strap is
brown. Screws not included - order screw SC-402 separately (takes a
pack of 4
screws).
Part #FAH-328 |
$7.99 |
|
(Black)
Click on photo for
larger view |
Fender™ STYLE GUITAR AMP HANDLE.
Black handle strap, "dogbone" style. Nickel end hooks -
replacement for vintage and modern Fender™ amps. Replacement for Fender™ part number 0990943000. Does
not contain Fender™ logo, so it may be used on other brands of amps. Used on vintage
and modern black tolex amps such as the Hot Rod
Deville, Blues Deluxe, Blues Deville, Super-Sonic, etc. Color of handle strap is
black. Screws not included - order screw SC-402 separately (takes a
pack of 4
screws).
Part #FAH-329 |
$7.99 |
|
|
Click on photo for
larger view |
Fender™ "DOGBONE" HANDLE SCREWS
Pack of 4
nickel "Dogbone" handle screws for Fender™
style FAH-328 and FAH-329 handles. Fits the handle on the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, and Blues Deville, as well as other Fender™ amps of similar design. Also
works with Hiwatt handles and other British design amp handles. 8-32
thread.
Part #SC-402 |
$1.59
(for a pack of 4 screws) |
|
Click on photo for
larger view |
Premium-quality steel T-nuts feature
three razor-sharp teeth
and 8-32 fine thread. Works with all 8-32 screws - recommended for mounting
many guitar amp handles. Pack of 4 nuts.
Part TNUT-832 |
99 cents
(pack of 4) |
|
Click on photo for
larger view |
Fender™ AMP LOGO,
FLAT BLACK. New original Fender™
reproduction, used in many recent and current model Fenders. "Flat" Fender™ logo,
with black "tail", cast
metal, mounting screws included. Used on the upper left corner of the
grill cloth on some recent and vintage era Fender™ amps. Approx. 5 1/2" wide, the "F" in
the logo is about 2 7/8" inches tall. Original Fender™ part
number 0994095000.
Part #FAL-916 |
$19.95
(each) |
|
Click on photo for
larger view |
Fender™ Nickel Chassis Straps - Large (5") for Twin, Bassman, Super, Showman, Vibro-King, Pro, Pro Reverb, Prosonic, etc. Includes
2 straps, no screws or nuts.
Screw spacing is 5 inches center-to-center, strap length is 5 5/8"
end-to-end.
Part #FCS-5-2 |
$7.95
(Two chassis straps, screws and nuts NOT included)
|
|
Click on photo for
larger view |
Fender™ Nickel Chassis Straps - Medium (4") For Deluxe, Vibrolux, etc. Includes
2 chassis straps, no screws or nuts.
Screw spacing is 4 inches center-to-center, strap length is 4 5/8"
end-to-end.
Part #FCS-4-2 |
$7.49
(Two 4 in. chassis straps, screws and nuts NOT included) |
|
Click on photo for
larger view |
Fender™ Nickel Chassis Straps - Small (3") For
Champ, Music Master Bass, etc. Includes 2 chassis straps, no screws or
nuts.
Screw spacing is 3 inches center-to-center, strap length is 3 5/8"
end-to-end.
Part #FCS-3-2 |
$6.99
(Two 3 in. chassis straps, screws and nuts NOT included) |
|
Click on photo for
larger view |
Fender™ Chassis Bolt and Nut Set - Works with all Fender™
Nickel or Revisit™
Chassis Straps for Brownface models. Includes 4 bolts and 4 matching nuts with integral lock washers.
Fender™ part number 0022236049.
Part #FCB-4 |
$5.95
(4 bolts, 4 nuts - complete set for one amp) |
|
Click on photo for
larger view |
KEPS NUT, ZINC, 8-32
THREAD, SET OF 4 NUTS. Typically used on Fender™ Nickel Chassis Straps bolts, and for
speaker mounting.
Works with all 8-32 screws.
Captive lock washer keeps nut tight. Zinc coating retards oxidation.
Sold in a pack of 4.
Part NT-832-4 |
$0.69
(pack of 4 nuts) |
|
 |
ORIGINAL Fender™
THUMBSCREWS Fender™ piggyback thumbscrews, holds head to cabinet on
Showman, Bandmaster, Tremolux, Tone Master™
212, Super-Sonic™ 212 and Super-Sonic 60 speaker enclosures and other head/cabinet sets. Heavy
nickel plated
steel, heavy knurling on knob. Set Of Two. Genuine Fender™ part number 0990720000.
Part #TS-251 |
$12.95
(Set of 2 Thumbscrews) |
|
Click on photo for
larger view |
BACK PANEL
STAINLESS STEEL SCREWS (SET OF 4) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series). Set of 4 screws, stainless steel, 1 1/4 inches long, Phillips, oval head. This set of four
screws fits either the top or bottom rear panels on Fender™ combo amps from the 60s and 70s, and recent reissues of those BF and SF amps. Use with
either the CW-401 or CW-501 cup washers.
Part #SC-401-4 |
$0.99
(for a pack of 4 screws) |
|
Click on photo for
larger view |
BACK PANEL
STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series). Set of 8 screws, stainless steel, 1 1/4 inches long, Phillips, oval head. This set of
eight screws fits both the top and bottom rear panels on Fender™ combo amps from the 60s and 70s, and recent reissues of those BF and SF amps. Set of 8
completely replaces all of the screws on the two back panels. Use with
either the CW-401 or CW-501 cup washers.
Part #SC-401-8 |
$1.79
(for a pack of 8 screws) |
|
Click on photo for
larger view |
SATIN BLACK
BACK PANEL
STAINLESS STEEL SCREWS (SET OF 4) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series). Set of 4 screws,
satin black stainless steel, 1 1/4 inches long, Phillips, oval head. This set of four
screws fits either the top or bottom rear panels on Fender™ combo amps from the
60s and 70s, and recent reissues of those BF and SF May be used with the
BCW-10 cup washers. See data sheet
Part #SC-405-4 |
$0.99
(for a pack of 4 screws) |
|
Click on photo for
larger view |
SATIN BLACK BACK PANEL
STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series). Set of 8 screws,
satin black stainless steel, 1 1/4 inches long, Phillips, oval head. This set of
eight screws fits both the top and bottom rear panels on Fender™ combo amps from
the 60s and 70s, and recent reissues of those BF and SF amps. Set of 8
completely replaces all of the screws on the two back panels. May be used
with the BCW-10 cup washers. See data sheet
Part #SC-405-8 |
$1.89
(for a pack of 8 screws) |
|
Click on photo for
larger view |
CUP WASHER, BLACK METAL, PACK OF 10. Used with #8 Black screws, on
amps and speaker cabinets.
Part #BCW-10 |
$2.49
(pack of 10) |
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
8
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 8 screws, for four FVC-2L corners.
Part #SC-406-8
|
$2.99
(for a pack of 8 screws) |
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
12
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 12 screws, for four FVC-3 corners.
Part #SC-406-12
|
$4.29
(for a pack of 12 screws) |
|
|
Click on photo for
larger view |
Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender™
style FAH-332, FAH-261 handle. 1" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 3/4".
See Data Sheet here
Part #SC-403 |
$0.99
(for a pack of 2 screws) |
|
|
Click on photo for
larger view |
Fender™
EXTRA LONG VINTAGE HANDLE SCREWS
Pack of 2 stainless steel extra long handle screws for Fender™
style FAH-332, FAH-261 handle. Used for vintage Fender™ style strap
handles used on speaker cabinets, such as Bandmaster, Bassman, Showman,
and Blonde or Blackface Tremolux. 1-1/4" Long, 10-32 threads. Designed
to work with a 10-32 T-Nut, in cabinet wood of 1-1/8" or less.
Will not work with external nut - must be a T-Nut. Will not work
with cabinet wood thicker than 1-1/8".
See Data Sheet here
Part #SC-403A |
$0.99
(for a pack of 2 screws) |
|
|
Click on photo for
larger view |
Fender™ SELF-TAPPING SCREWS
Used in vintage Fender™ blackface and silverface
amps for a variety of
tasks. Used to attach capacitor pans, tube sockets, transformers on smaller amps, chokes, etc.
Pack of 12 screws. Replaces Fender™ part number 029913.
Part #SC-410-12 |
$3.50
(for a pack of 12 screws) |
|
Click on photo for
larger view |
FENDER™
SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 12. Locking
nut and washer included. Phillips head. Drill hole, insert and
tighten screws into wood from front of baffle. Install grill cloth, and
you have professional speaker mounting studs. Replacement for
original Fender™ speaker mounting studs. Fender™ part number
0992094000. Set of 12.
Part #SC-409-12 |
$14.95
(For a pack of 12 screws with nuts and lock washers) |
|
Click on photo for
larger view |
FENDER™
SPEAKER MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS, SET OF 4. Locking
nut and washer included. Phillips head. Drill hole, insert and
tighten screws into wood from front of baffle. Install grill cloth, and
you have professional speaker mounting studs. Replacement for
original Fender™ speaker mounting studs. Fender™ part number
0992094000. Set of 4.
Part #SC-409-4 |
$3.99
(For a pack of 4 screws with nuts and lock washers) |
|
Click on photo for
larger view |
ISOLATION WASHER - 3/8" - For #8 Screws
3/8" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #8 screws. Ideal for vintage Fender
amps with #8 speaker mounting screws. Set of 4 washers.
Part #SIW-38-4 |
$0.59
(For a set of 4 washers) |
|
Click on photo for
larger view |
ISOLATION WASHER - 1/2" - For #10 Screws
Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for
bolting speakers to cabinets. It will securely hold the speaker in place and
stop any rattling. For use with #10 screws, such as a 10-32 machine screw. Set of 4 washers.
Part #SIW-50-4 |
$0.69
(For a set of 4 washers) |
|
Click on photo for
larger view |
Vintage Fender™
Combo Style Style Blackface
and
Silverface 2-Leg Wrap-Around Cabinet Corner
with Lip - Bright Nickel Plated Steel
(Not designed for the Blackface or Silverface REISSUES.
NOT for
vintage Fender™ Speaker Cabinets or Heads, such as Bassman, Bandmaster, Showman, etc.
These corners fit most vintage Fender combo amps.)
Recreation of the vintage Fender™ corners with
counter-sunk screw holes. Set of 4, includes screws.
Part #FVC-2L
|
$5.99
(Set of 4 corners with screws) |
|
Click on photo for
larger view |
Vintage Fender™ Style 2-Leg and 3-Leg Corners with
counter-sunk screw holes. Bright nickel-plated steel.
Recreation of the vintage style corners with counter-sunk screw holes from
the 60s and 70s. Two FVC-2L type corners with two legs and a lip, and
two FVC-3 corners with three legs. Typically used around the bottom of the
Bassman Ten (or Bassman 10) Combo Amp from 1972 to 1982. Set of 4
corners total - two FVC-2L for the front, and two FVC-3 for the back. Includes oval-head
tapered stainless screws.
Part #FVC-23
|
$6.50
(Set of 4 corners with screws) |
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
8
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 8 screws, for four FVC-2L corners.
Part #SC-406-8
|
$2.99
(for a pack of 8 screws) |
|
Click on photo for
larger view |
Fender™ Style Stainless Steel Corner Screws, Set of
12
Oval-head Phillips corner screws for counter-sunk amp corners,
such as the FVC-2L and FVC-3 Fender™ corners. 3/4 inches long, Phillips head,
stainless steel for long rust-free life. Set
of 12 screws, for four FVC-3 corners.
Part #SC-406-12
|
$4.29
(for a pack of 12 screws) |
|
Click on photo for
larger view |
Black Oval-Head Corner Screws, Set of
8
Black oval-head Phillips corner screws for counter-sunk amp corners.
Works with Vox black plastic corners, and Fender style black metal corners with
recessed screw holes. #6 x 3/4 inches long, Phillips head,
black oxide. Screws are beveled under the head for use in countersunk
holes. Length measured from the edge of the head to tip of the
screw. Set
of 8 screws.
Part #SC-411-8 |
$1.50
(For a set of 8 black oval-head Phillips screws) |
|
Click on photo for
larger view |
 Fender™ Style Pop-Out 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable
supporting 45 lbs, or 180 lbs total for the set of 4. Wheels 2" in
diameter. The same type of removable caster wheels used on Fender™ amps
since the 1960s. Note:
Mounting screws NOT included. Must drill 5/8" hole in bottom of
cabinet to accommodate post for wheel.
Part #FCW-4R |
$30.95
(Set of 4 pop-out casters)
NOT SOLD OUTSIDE the USA
|
|
Click on photo for
larger view |
Fender™ Style Flat Mount 2" Caster Wheels - Set
of 4.
Great for Fender™ and many other brands of amps or cabinets. Each
wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.
Wheels 2" in diameter. Specifications found
here. Note:
Mounting screws NOT included.
Part #FCW-4F |
$30.95
(Set of 4 casters)
NOT SOLD OUTSIDE the USA |
|
Click on photo for
larger view |
 NICKEL GLIDE FEET,
Revisit™, PACK OF 4, SCREWS INCLUDED.
Nickel cover over rubber foot. 15/16" Diameter, 0.33" Tall.
Replacement for glides used
on many Fender™ amplifiers, including the blackface and silverface designs.
Set of 4, includes 7/8" wood screws. Replaces Fender™ part number 0993900000.
Part #SG-239 |
$4.95
(pack of 4 with screws) |
|
Click on photo for
larger view |
GENUINE Fender™
SPHINX GLIDE FEET, PACK OF 4, SCREWS INCLUDED.
- Set of four metal amplifier cabinet glide feet with
rubber bushings and mounting screws. 1-1/4" diameter.
Fender™ part number 0993900000.
- Fits Cyber-Champ™, Stage™ 100/112SE, Ultimate Chorus,
Princeton 65 DSP/650, GE-112 Enclosure, Tone-Master™ Enclosures, Vibro-King™
212 Enclosure, Pro Reverb, Deluxe 90 DSP/900, Acoustasonic™ 30/SFX II,
Stage™ 1000/1600, Super-Sonic™ Series, Bassman™ Enclosures, Concert™, "The
Twin", 65 Twin Custom™ 15, Steel King™, Hot Rod Deluxe™ Enclosures, Cyber
Deluxe, and Cyber-Twin™ amplifiers.
- Fits most vintage and modern Fender™
amplifiers, but is larger than the traditional 1" diameter glide on
most blackface and silverface amps.
Part #SG-939 |
$12.99
(pack of 4 with screws) |
|
Click on photo for
larger view |
NICKEL GLIDE FEET, Fender™ STYLE, PACK OF 4,
3 PRONG HAMMER TYPE.
Older style 3-prong glide feet for Fender™
amplifiers - metal cap has 3 prongs, and the cap is hammered into the base of
the amplifier.
Part #CG-068 |
$3.95
(pack of 4) |
|
Click on photo for
larger view |
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most
vintage
guitar amplifiers with round power cords, including most vintage Fender™ amps. Designed for 5/16" cord diameter (3 conductor 18ga power cable).
Click here for specific dimensions of chassis hole.
For a strain relief removal / installation tool to make the job much easier,
see the YTH-205 below.
Part #SR-1200 |
$0.99 |
|
Click on photo for
larger view |
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.
Standard pliers just do not get the job done and can damage the strain relief.
These special strain relief pliers are just what you need. They fit
perfectly on the AC power cord strain relief and give you the leverage you need to
compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 |
$14.95 |
|
Click on photo for
larger view |
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH
CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 1/4 inch diameter inner hole,
and mounts in a 3/8 inch chassis hole.
Full
datasheet here.
Part #RCG-739 |
$0.49
each |
|
Click on photo for
larger view |
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE
(GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for
electrical insulation, wire protection and management, shock absorption, or
mechanical isolation. This grommet has a 3/8 inch diameter inner hole,
and mounts in a 1/2 inch chassis hole.
Full
datasheet here.
Part #RCG-745 |
$0.49
each |
|
|
|
Fender™
Capacitors |
|
|
 |
CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads. Tolerance
±5%. Dipped in epoxy coating. (See Options)
1000pF = 1nF = 0.001uF
Part #C-SM-XX |
Starting at
$0.80 |
|
 |
CAPACITOR, POLYPROPYLENE, RADIAL. Similar to orange drop style, rated
at 630 volts. Values from 0.001uF to 0.47uF
Radial leads. (See Options)
Part #C-PR-XX |
Starting at
$0.30 |
|
 |
CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at
630 volts. Values from 0.001uF to 0.47uF. Axial Leads.
(See Options)
Part #C-MF-XX |
Starting at
$0.90 |
|
|
|
 F&T Premium Capacitors |
|
|
Click on photo for
larger view |
CAPACITOR, F&T BRAND, AXIAL LEAD
ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS) Made
in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest
capacitors available today. F&T Caps are known for their great stability and
reliability. Values available include 10uF/500V, 16uF/475V, 22uF/500V,
30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.
Choose capacitor value under the Select Option box.
Part #FT-CAP-XX |
Starting at
$4.95 |
|
|
|
 Sprague Premium
Cathode Bypass Axial Capacitors |
|
|
Click on photo for
larger view |
SPRAGUE AXIAL 25uf/50V
Replacement
for the 25uF/25V axial cathode bypass capacitors commonly found in vintage
Fender™
amps from the 1950s through the 1980s. Sprague, founded in 1926, is
considered one of the premier capacitor manufacturers in the world.
Part #SP-CAP-25-50 |
$4.95 |
|
|
|
 Tube
Amp Doctor Premium Capacitors |
|
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 8uF-475V
12mm diameter x 26mm Length
Rated
105° C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.
Part #TAD-CAP-8-475 |
$4.75
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 16uF-475V
12mm diameter x 30mm Length
Rated
105° C for Long Life
16uF - 475 Volts DC
Part #TAD-CAP-16-475 |
$4.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 22uF-500V
16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC
Part #TAD-CAP-22-500 |
$5.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 22uF-500V
16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC
Part #TAD-CAP-22-500 |
$5.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 100uF-350V
22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC
Part #TAD-CAP-100-350 |
$12.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 220uF-350V
25mm diameter x 51mm Length
Rated
105° C for Long Life
220uF - 350 Volts DC
Part #TAD-CAP-220-350 |
$19.95
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 25uF-25V
6mm diameter x 14mm Length
Rated
105° C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps
Part #TAD-CAP-25-25 |
$1.75
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 5uF-50V
5mm diameter x 13mm Length
Rated
105° C for Long Life
5uF - 50 Volts
Perfect replacement for axial cathode bypass capacitors in the vibrato circuit
of many Fender amps
Part #TAD-CAP-5-50 |
$3.50
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 47uF-500V
22mm diameter x 39mm Length
Rated
105° C for Long Life
47uF - 500 Volts DC
Part #TAD-CAP-47-500 |
$12.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 70uF-350V
18mm diameter x 40mm Length
Rated
105° C for Long Life
70uF - 350 Volts DC
Part #TAD-CAP-70-350 |
$8.95
In stock |
|
Click on photo for
larger view
|
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 100uF-350V
22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC
Part #TAD-CAP-100-350 |
$12.95
In stock |
|
Click on photo for
larger view |
Tube Amp Doctor™
Gold Cap Electrolytic Axial Capacitor 80uF-100V
9.5mm diameter x 21.5mm Length
Rated
105° C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps
Part #TAD-CAP-80-100 |
$4.95
In stock |
|
|
|
MOD Axial Capacitors |
|
|
Click on photo for
larger view |
 MOD™ CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Mod™ Electronics electrolytic capacitors offer long-lasting performance at the
highest degree. These capacitors are designed with tube amplifiers in mind; each
capacitor is rated at 105°C. This temperature rating provides a highly-stable
capacitance in any device, be it vacuum tube or solid state. The Mod™
electrolytic capacitor line features capacitance values that are common in many
vintage amplifiers. Values available include
8uF/150V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.
Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX |
Starting at
$1.00 |
|
|
|
Illinois
Capacitor  Electrolytic Capacitors |
|
|
Click on photo for
larger view |

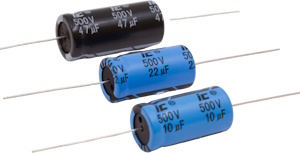

CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD
ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years
later continues to produce benchmark quality capacitors for industry.
Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American
capacitor manufacturer tracing its roots to 1909. Values available include
2.2uF/50V, 4.7uF/50V, 10uF/160V, 10uF/500V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V. Choose capacitor value
under the Select Option box.
Part #IC-CAP-XX |
Starting at
$0.99 |
|
|
|
Axial Electrolytic Capacitors - Other Brands |
|
|
Click on photo for
larger view |
CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)
Values
available include the following:
|
25uF/25V |
100uF/25V |
220uF/25V |
2200uF/25V |
|
100uF/50V |
0.68uF/50V |
25uF/50V |
|
| |
47uF/63V |
70uF/100V |
100uF/100V |
| |
8uF/150V |
10uF/160V |
100uF/350V |
|
220uF/350V |
4.7uF/450V |
8uF/450V |
10uF/450V |
| |
22uF/450V |
33uF/450V |
47uF/450V |
|
16uF/475V |
20uF/500V |
20uF/600V |
|
Choose capacitor
value under the Select Option box.
Part #EL-CAP-XX |
Starting at
$1.00 |
|
Click on photo for
larger view |

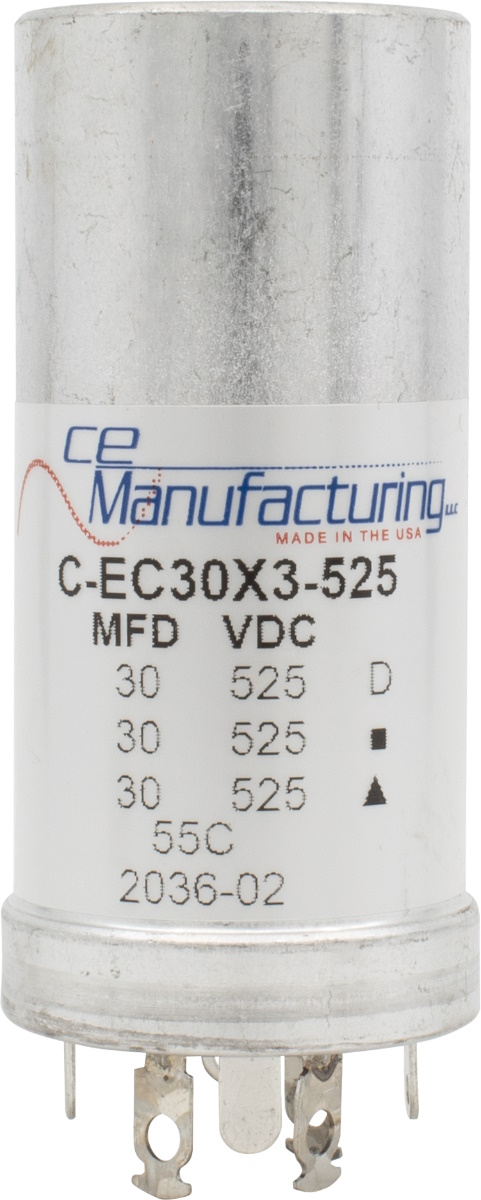

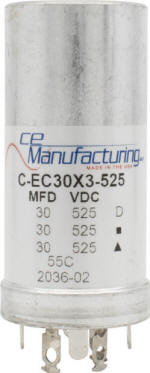

CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN,
30uF/30uF/30uF
@ 525V,
1 3/8" D X 3-1/2" H. Made in USA on
the original Mallory equipment. Twist-lock tabs for mounting
to chassis. Replacement for Fender main filter capacitor on
the Princeton 6G2, from 1960-1962.
Rated 85 degrees C, -10%/+50% tolerance, 1-3/8" diameter x 3-1/2" tall.
Part #C-EC-30X3-525 |
$56.99 |
|
Click on photo for
larger view |
Fender™ Electrolytic Capacitor Kits
Fender capacitor kits contain all of the main filter, decoupling filter,
bias filter and preamp cathode bypass electrolytic capacitors for most amps from
the blackface and silverface eras. |
Prices starting at $32.95 |
Click here to see the full
selection of Fender capacitor kits. |
Click on photo for
larger view |
FUSE HOLDER, Fender™ STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE
Fender™ style fuse holder, replacement for many other brands. Twist-lock cap. Durable, rugged design - better than OEM.
Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-201 |
$4.50 |
|
Click on photo for
larger view |
FUSE HOLDER, MODERN TWEED Fender™ STYLE,
This fuse holder is similar to the fuse
holders used on the Fender Tweed Series Amplifiers back in the late 1940s to
the early 1960s. This fuse holder will serve as an excellent replacement for
any Fender Tweed Amplifier in need of a repair. Amplifiers like the
 Fender
Tweed Champ, Fender Tweed Princeton, Fender Tweed Deluxe, and so on. In the
event your original fuse holder cap was lost or damaged, the cap on this fuse
holder will fit on your original fuse holder.
Fits "American" style AGC fuses (1/4" x 1 1/4").
Part #FH-211 |
$4.95 |
|
Click on photo for
larger view |
 Revisit™
F1 to F2 Faston Push-on Terminal Adapters
Used to change the size of speaker terminals from .187" (3/16") to .250"
(1/4"). Also used to change some PC board connectors size.
Female .187" to male .250"
Part #F1F2 |
$1.89
(Set of 2 Adapters) |
|
Click on photo for
larger view |
Revisit™
F2 to F1 Faston Push-on Terminal Adapters
Used to change the size of speaker terminals from .250" (1/4") to .187"
(3/16"). Also used to change some PC board connectors' size.
Female .250" to male .187"
Part #F2F1 |
$1.89
(Set of 2 Adapters) |
|
Click on photo for
larger view |
Revisit™
SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.
Used to replace speaker cable in most combo amplifiers where the speakers are
connected to the amplifier chassis via a 1/4" jack and plug. 18ga black zip cord,
right-angle plug and fast-on connectors for attachment to one
speaker.
Part #SCH-280 - NOTE: OUT OF STOCK! NONE AVAILABLE AT THIS TIME. |
$6.99 |
 |
|
Click on photo for
larger view
|
SPEAKER JUMPER CABLE
polyvinyl
insulated silver plated copper speaker wire, 18 gauge, twisted
pair, black and white. Terminated at each end in standard
3/16" speaker fast-on connectors. Great for connecting
speakers in parallel in 2x12 or 4x12 cabinets. 24 inches (61
cm) long. Made in USA.
Part #SJ-150
|
$5.99
|
|
|
 |
BUILD YOUR OWN Speaker Harness for Combo Amps: Choose the SJ-150
cable (above) along with the P-287 Plug (below). Cut off the
cable's fast-on connectors on ONE end of the cable. Strip both
conductors of cable back about 1/4" on that end. Solder that end to
the P-287 plug (black to the sleeve, white to the tip.). This
will give you a 24 inch speaker harness. Note:
Cable-building experience strongly recommended. Soldering
equipment needed. |
Total cost for materials will be $5.99 + $3.95 = $9.94. |
 |
Click on photo for
larger view |
PLUG, 1/4", MONO, RIGHT ANGLE,
SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug. Nickel plated copper alloy.
2-conductor right-angle phone plug, solder terminals.
Part #P-287 |
$3.95 |
|
Click on photo for
larger view |
Fender™
STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster,
Showman, etc). Complete with long-bushing Switchcraft jack
with nut and trim washer, and two
nickel jack ferrules for the inside and outside of
the cabinet back. For wood panels between 3/8 inch and 1/2 inch thick.
Keep your vintage Fender™ cabinet looking original!
Part #JPC-577 |
$16.95 |
|
Click on photo for
larger view |
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender™ jack plates. Works well with the Switchcraft J-11 1/4" jacks
that we carry. Hole is 3/8", for most Switchcraft type jacks. Easy to install, economical.
Includes 3 black oxide coarse-thread mounting screws, #6x3/4".
Jack not included - order separately. For size specifications, click here.
Part #JP-180 |
$1.89
|
|
Click on photo for
larger view |
Revisit™
JACK PLATE COMPLETE WITH
SWITCHCRAFT #11 JACK.
Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180 |
$4.95
|
|
|
Click on photo for
larger view
|
Fender™ Style RCA Plug from
Switchcraft
This is the original Switchcraft RCA plug used on vintage Fender
amps for footswitch and reverb in / out connections. For cable up to
0.125" (3.18mm) diameter.
Part #P-3501MX
|
$1.49
|
|
|
|
Fender™ Jacks
(Also see our complete line of jacks) |
|
|
Click on photo for
larger view |
Fender™ Input Jack Replacement Kit for one channel amplifiers (or for just one
channel of a two-channel amp). For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains two
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following one-channel amplifiers:
Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface), Champ 5E1 (1955-1956), Champ 5F1 (1956-1964), Princeton
(1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764
(Blackface 1964-67, Silverface 1968-1982). Note: Does
NOT work with the Fender Super Twin, 300PS, or Fender 75.
Part #FJK-1 |
$9.95 |
|
Click on photo for
larger view |
Fender™ Input Jack Replacement Kit for two channel amplifiers. For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains
four
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus
four 68K and two 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following two-channel amplifiers:
Bandmaster (1956-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1961-1982), Bassman 10 (Silverface 1972-1982), Concert (1959-1965 Brown
and Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman
(1967-69 Silverface), Dual Showman Reverb (1968-1981), Harvard 6G10 (1955-1962
Tweed), Pro (1960-1965 Brown and Blackface), Pro Reverb (1965-1982 Blackface and
Silverface), Quad Reverb (1972-1979 Silverface) Showman (1960-1967 Blonde and
Blackface), Showman (1968-1970 Silverface), Super (1960-1963 Brown), Super
Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979),
Tremolux (1955-1966 Tweed, Blonde and Blackface), Twin (1958-1963 Tweed and
Blonde), Twin Reverb (1963-1982 Blackface and Silverface), Vibrosonic (1959-1963
Brown), Vibrolux (1961-1964 Brown and Blackface), Vibrolux Reverb (1964-1982
Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb
(1963-1964 Brown and Blackface).
Part #FJK-2 |
$19.95 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT,
WIRED, Switchcraft™
Found in many guitars, effects pedals, amps speaker output. Includes
nut and washer.
Part #J-11 |
$3.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, OPEN CIRCUIT,
WIRED, Switchcraft™,
LONG BUSHING
Same as the J-11 jack, but with longer (3/8") threaded bushing for mounting
in thicker panels. Includes nut and washer.
Part #J-L11 |
$4.79
|
|
Click on photo for
larger view |
 JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft™
Found in vintage Fender™ (and other) amps as the input jack.
Also used in the Hot Rod Deluxe/Deville, Blues Deluxe/Deville as the main
speaker out jack. Includes nut and washer. Fender™ part
number 0021550000 (originally 021550). Peavey part number 71466004.
Part #J-12A |
$4.79 |
|
Click on photo for
larger view |
JACK, 1/4", MONO, CLOSED CIRCUIT
(SHORTING), WIRED, Switchcraft™, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels. Includes nut and washer.
Part #J-L12A |
$5.50 |
|
Click on photo for
larger view |
 JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft™
Used with T/R/S plugs for either balanced connections or stereo connections. Also very common in guitars with active pickups, and as the input jack on some effects pedals.
The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Fender part number 0013043000.
Part #J-12B |
$4.35 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING. Switchcraft™
Used with for special switching applications  - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection. Used in some vintage amplifiers, including some early Fender™ models.
Isolated switch is normally open - closes when a plug is inserted.
Part #J-13 |
$10.50 |
|
Click on photo for
larger view |
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING. Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place. Used in a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models). Original
 Fender™ part number 0041701000
(originally 042701). Also found in some Peavey amps, such as the
Classic 50 speaker jack.
Part #J-13A |
$9.95 |
|
Click on photo for
larger view |
JACK, 1/4", TIP/RING/SLEEVE, WITH
TIP SHUNT. Switchcraft 13B Jack.
 Tip/Ring/Sleeve
Switchcraft jack. Tip has a shunt contact, ring contact is open
circuit.
Part #J-13B |
$9.95 |
|
Click on photo for
larger view |
Fender™
STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster,
Showman, etc). Complete with long-bushing Switchcraft jack
with nut and trim washer, and two
nickel jack ferrules for the inside and outside of
the cabinet back. For wood panels between 3/8 inch and 1/2 inch thick.
Keep your vintage Fender™ cabinet looking original!
Part #JPC-577 |
$16.95 |
|
Click on photo for
larger view |
RCA JACK, PANEL MOUNT
Exact
replacement for the reverb tank and footswitch jacks on the rear panel of Fender™
brownface amplifiers. Also may be used as an alternative RCA jack
replacement for the RCA speaker jacks used on some Fender™ Tweed models from the
1950s. Made by Switchcraft.
Part #J-122
(Also see our complete line of jacks) |
$2.99 |
|
|
|
Fender™ Input Jack Replacement
Kits for Vintage
Blonde, Brown Amps (1959-1963) |
|
|
Click on photo for
larger view |
Fender™ Input Jack Replacement Kit for one channel amplifiers (or for just one
channel of a two-channel amp). For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains two
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus two 68K and one 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following one-channel amplifiers:
Bronco AB764 (1967-1975), Champ AA764 (1964-1982, both blackface and silverface), Champ 5E1 (1955-1956), Champ 5F1 (1956-1964), Princeton
(1963-1979), Princeton Reverb (1964-1981), VibroChamp AA764
(Blackface 1964-67, Silverface 1968-1982). Note: Does
NOT work with the Fender Super Twin, 300PS, or Fender 75.
Part #FJK-1 |
$9.95 |
|
Click on photo for
larger view |
Fender™ Input Jack Replacement Kit for two channel amplifiers. For vintage Fender™ amps
made before 1980
from the original tweed, blonde, brown, blackface and silverface eras. Contains
four
Switchcraft 12A switched jacks, with nuts, locking washer and trim washer, plus
four 68K and two 1 Meg carbon composition resistors. This is the
input circuit replacement kit for the following two-channel amplifiers:
Bandmaster (1956-1975), Bandmaster Reverb (1968-1980), Bantam Bass (1969-1971), Bassman (1961-1982), Bassman 10 (Silverface 1972-1982), Concert (1959-1965 Brown
and Blackface), Deluxe (1963-1966), Deluxe Reverb (1963-1982), Dual Showman
(1967-69 Silverface), Dual Showman Reverb (1968-1981), Harvard 6G10 (1955-1962
Tweed), Pro (1960-1965 Brown and Blackface), Pro Reverb (1965-1982 Blackface and
Silverface), Quad Reverb (1972-1979 Silverface) Showman (1960-1967 Blonde and
Blackface), Showman (1968-1970 Silverface), Super (1960-1963 Brown), Super
Reverb (1963-1981 Blackface and Silverface), Super Six Reverb (1972-1979),
Tremolux (1955-1966 Tweed, Blonde and Blackface), Twin (1958-1963 Tweed and
Blonde), Twin Reverb (1963-1982 Blackface and Silverface), Vibrosonic (1959-1963
Brown), Vibrolux (1961-1964 Brown and Blackface), Vibrolux Reverb (1964-1982
Blackface and Silverface), Vibrosonic (1972-1981 Silverface), Vibroverb
(1963-1964 Brown and Blackface).
Part #FJK-2 |
$19.95 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK!
JNUT-38 JACK NUT AND WASHER, METAL,
SWITCHCRAFT™, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots. Set of
6 washers and 6 nuts.
Part #JNUT-38-6 |
$4.50
(Set of 6 washers and 6 nuts) |
|
 |
JACK NUT AND WASHER, METAL,
SWITCHCRAFT™
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the
CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™
blackface and silverface), as well as Peavey™ and Switchcraft™
1/4" jacks. Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38 |
$0.89
(Set of 1 washer and 1 nut) |
|
Click on photo for
larger view |
JACK LOCK WASHER, METAL
Replacement lock washer for all Alpha pots with 3/8" bushing and Mesa Boogie pots,
as well as Switchcraft 1/4" jacks.
Part #W-38 |
$0.49 |
|
|
|
Fender™ Jewels |
|
|
RED
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many
others. RED - the standard on Fenders since the 1940's.
Replaces Fender™ part number 0990952000.
Part #JL-115R |
$2.99 |
|
AQUA
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many
others. AQUA - the latest addition to jewel colors! Aqua
is a greenish blue, similar to cyan or light turquoise. Replaces Fender™
part number 0990949000.
*Does not fit the
Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton
65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX
Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar
models.
Part #JL-115Q |
$4.65 |
|
VIOLET
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Violet - just plain cool!
NOTE: When illuminated by the bulb, this
violet jewel tends to have a hue slanted toward the red spectrum, so some call
the look a reddish-pinkish-violet color. If you like violet/purple
and want it toward the warmer end of the color spectrum, this is the jewel for
you. If you like it more bluish - toward the cooler end of the
violet color zone, choose the purple jewel JL-115P below instead.
Part #JL-115V |
$2.99 |
|
PURPLE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. Purple - just plain cool! Replaces Fender™ part number 0990953000.
*Does not fit the Fender SuperChamp X2
or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster
Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues
Junior series, Pro Junior, Princeton Chorus DSP, or similar models.
NOTE: To the naked eye, this jewel looks
blue until you put it in front of the P-47 bulb. The bulb has an
amber tint to it, so the combo makes the jewel glow purple. When
illuminated by the bulb, this purple jewel tends to have a hue slanted toward
the blue spectrum, so some call the look a bluish-purple color. If
you like violet/purple and want it toward the cooler end of the color spectrum,
this is the jewel for you. If you like it more reddish - toward the
warmer end of the violet color zone, choose the violet jewel JL-115V above instead.
IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE
INSTEAD OF PURPLE.
Part #JL-115P |
$4.65 |
|
BLUE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Blue, for the California vibe. Replaces Fender™ part number 0990959000.
NOTE: Due to the orange glow of the bulb
normally used behind this jewel, the resulting color is not a pure brilliant
blue ... head on, it looks like a somewhat washed-out blue, and from a side
angle, it looks more like purple. This is not the fault of the
jewel, but rather the combination of the blue color of the jewel combined with
the orange glow of the bulb. If used with a pure white light (such as a
white LED), the resulting look is a deep blue color.
Part #JL-115B |
$2.99 |
|
AMBER
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Amber - jazzy look! Replaces Fender™ part number 0990950000.
Part #JL-115A |
$2.99 |
|
GREEN
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others. Green - Texas style! Replaces Fender™ part number 0990951000.
Part #JL-115G |
$2.99 |
|
CLEAR
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many
others. Clear, for the brightest light output.
Part #JL-115C |
$2.99 |
|
WHITE
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others. WHITE.
Part #JL-115W |
$4.65 |
|
Click on photo for
larger view |
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa/Boogie™ , many
others. Kit of 6 jewels - change your light color as often as you
like. Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115 |
$14.99 |
|
Click on photo for
larger view |
PILOT LAMP HOLDER, REPLACEMENT FOR
FENDER™,
MESA BOOGIE™,
ORANGE™,
ETC.
Pilot lamp holder, fits 11/16" Chassis Hole
Bezel inner diameter: 0.570" Bezel inner diameter (including threading): 0.527" Works with a standard bayonet lamp such as the 6.3V #47 lamp,
or the LED-47. Accepts all of the colored jewels on this page.
Part #LH-124 |
$9.95 |
|
|
|
Fender™ Knobs
(Also see our complete line of knobs) |
|
|
Click on photo for
larger view |
KNOB, Fender™ Style, Vintage Cream
Replaces
Fender™ part number
0990933000. "Fender™ Barrel" knob, cream white with brass inset and
set-screw as used by
Fender™ blonde series amps.
Part #K-315 |
$2.95 |
|
Click on photo for
larger view |
KNOB, Fender™ Style, Vintage Cream,
Set of 6
Replaces
Fender™ part number 0990933000.
"Fender™ Barrel" knob, cream white with brass inset and set-screw as used by:
Fender™ 1960-1964 for the Fender™ Bassman, Showman and Bandmaster Amp, and for
several Fender™ Custom Shop and Fender™ Reissue amps:
Tone Master, Custom Vibrolux Reverb, Vibroking, Super Sonic Amp (blonde) etc.
Set of 6 knobs.
Part #K-315-6 |
$16.95
(for pack of 6 knobs) |
|
Click on photo for
larger view |
KNOB, Fender™ Style, Vintage Brown
Fender™ style amp knob,
brown color with white pointer. Used on Fender™ "Brownface" series
amps from 1961 through 1963. Knob is secured by set-screw,
designed to fit a 1/4" shaft. Includes internal brass inset.
Replaces Fender™ part number 0990934000,
these knobs were used by
Fender™ in the early 1960s for the Brown-Tolex Amps (Princeton 6G2, Deluxe 6G3,
Super 6G4, Pro 6G5, Tremolux 6G9, Vibrolux 6G11, Concert 6G12, Reverb Unit 6G15,
Vibroverb 6G16), and others . Also very similar to the
knob used on the Mesa-Boogie Maverick Dual
Rectifier model - Mesa Boogie part number 408020.
Part #K-316 |
$2.95 |
|
Click on photo for
larger view |
KNOB, Fender™ Style, Vintage Brown,
Set of 6
Fender™ style amp knob,
brown color with white pointer. Used on Fender™ "Brownface" series
amps from 1961 through 1963. Knob is secured by set-screw,
designed to fit a 1/4" shaft. Includes internal brass inset.
Replaces Fender™ part number 0990934000,
these knobs were used by
Fender™ in the early 1960s for the Brown-Tolex Amps (Princeton 6G2, Deluxe 6G3,
Super 6G4, Pro 6G5, Tremolux 6G9, Vibrolux 6G11, Concert 6G12, Reverb Unit 6G15,
Vibroverb 6G16), and others . Also very similar to the
knob used on the Mesa-Boogie Maverick Dual
Rectifier model - Mesa Boogie part number 408020.
Set of 6 knobs.
Part #K-316-6 |
$16.95
(for pack of 6 knobs) |
|
|
|
Fender™ Lamps
(Also see our complete line of lamps) |
|
|
Click on photo for
larger view |
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
Long life general replacement lamps for dials, indicators, etc. Sold individually. Replacement for Fender™
Replaces Fender™ part number 0021642049
Part #P-47 |
$0.99 |
|
|
|
Pots for Blonde and Brown
Series Amps from
1960-1963
(Not Reissues) |
Fender amps from 1960-1963 underwent many design
changes, as Leo Fender was in a period of experimentation to achieve the
ultimate Fender sound, so it is very difficult to assemble accurate Potentiometer Kits.
We do offer these individual pots which cover most of the needs of the "brownface"
era. For the model number and version, look on the tube chart
in the back of the amp. |
Click on photo for
larger view
|
POT -
Revisit™, 24MM,
SOLID SHAFT
24 mm carbon composition,
300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8"
diameter bushing, solder lugs.
For hand-wired American made amplifiers such as vintage Fender™ and others. For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX |
Starting at
$2.95 |
|
Click on photo for
larger view
|
POT -
Revisit™, 24MM,
SOLID SHAFT, 3M & 10M REVERSE AUDIO
24 mm carbon composition,
300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 8mm
diameter bushing, solder lugs.
For hand-wired American made amplifiers such as vintage Fender™ and others. For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX |
Starting at
$3.95 |
|
Click on photo for
larger view |
POT -
Revisit™
, 350K AUDIO
WITH 70K TAP, 9MM BUSHING, FENDER™ BROWNFACE SERIES TREBLE POT
16mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft,
9mm" bushing, solder lugs. Special manufacture, to replace the treble pots on
certain Fender™ 1961-1963 Brownface models, such as Bassman 6G6, Concert 6G12A,
Pro 6G5A, Showman 6G14, Super 6G4A, Tremolux 6G9, Vibrolux 6G11, and the
Vibroverb 6G16. For a downloadable pot cross-reference for Fender
brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-350KA-70KT |
$4.95 |
|
|
|
Fender™ Power Cords |
|
|
Click on photo for
larger view |
SUPER-LONG,
16 gauge
Revisit™ 12 ft POWER CORD, 3-WIRE, SJT type,
OUR LONGEST HEAVY-DUTY POWER CORD!
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length is a super-long 12 feet, cord thickness is 0.34 inches (about 11/32" or
8.6mm).
Standard NEMA 5-15P plug for North American use at 110-120 Volts AC, rated at 16
amps maximum. Used only in
North America.
Part #PC-163SJT12 |
$16.95 |
|
Click on photo for
larger view |
EXTRA-LONG
12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type. Cut ends for
installing (soldered connection) into many vintage amps using a 3-wire cord (or
for upgrading 2 wire cords in older amps). Cord length is an
extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).
Wire gauge is 18AWG, rated at 10 amps.
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in
North America.
Part #PC-183SJT12 |
$13.95 |
|
Click on photo for
larger view |
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.
Cut ends for installing (soldered connection) into many vintage amps using a
3-wire cord (or for upgrading 2 wire cords in older amps).
Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).
This cord is of appropriate gauge and physical thickness for application in most
medium to large guitar amps with "hard-wired" power cords (Fender, for example).
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SJT8 |
$9.95 |
|
Click on photo for
larger view |
8 ft POWER CORD, 3-WIRE, 18ga, SVT type,
"Thin Line". Cut ends for installing (soldered connection) into
many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older
amps). Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about
1/4" or 6.1mm).
Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp
cords in smaller amplifiers where there was formerly a 2-wire cord without
ground.
Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in
North America.
Part #PC-183SVT8-TL |
$9.95 |
|
Click on photo for
larger view |
15 ft
EXTENSION CORD, 3-WIRE, 16ga, 13 Amps. Quality extension cord for use
on stage, at home, office or workshop. Cord length is 15 feet, 16 gauge,
3-wire cord thickness is 0.31 inches (about
5/16" or 7.9mm).
Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC,
13 amps maximum. Used only in
North America.
Part #EC-5301 |
$19.95 |
 |
Click on photo for
larger view |
Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
|
|
Fender™ Reverb Tanks |
|
|
Click on photo for larger view
 |
Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B.
Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0
seconds), input insulated/output grounded, designed for horizontal mounting,
open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. Also used in Reissue
models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb,
Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin
Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb, Fender™ Vibrosonic ,
Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb Reissue
Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65
Twin Reverb Reissue , Fender™65 Twin Custom(TM) 15, Fender™ Concert II.
Also used in Mesa Boogie™, LAB Series, L5, L7, L9
and Koch™ Powertone I.
See explanation of Korean-made Accutronics Reverb Tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Replaces original Fender™ part number
0064063000.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.
View the 2-year warranty details
here.
Part #4AB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$43.79 |
|
Click on photo for
larger view
|
Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B
current production. Korean-made Accutronics Reverb Tanks are a
cheaply produced copy of the Belton tank, and are now made by Belton in South
Korea. They are of much lower quality than the original Accutronics
reverb tanks made in Cary, Illinois until 2009.
Input impedance
8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.
Primarily used by all Fender™
amplifiers with tube reverb from 1963-1990. Also used in Reissue
models like: Fender™ Princeton Reverb, Fender™ Deluxe Reverb,
Fender™ Vibrolux Reverb, Fender™ Pro Reverb, Fender™ Super Reverb , Fender™ Twin
Reverb, Fender™ Quad Reverb , Fender™ Super Six Reverb,
Fender™ Vibrosonic , Fender®`63 Reverb Unit Reissue, Fender®`65 Princeton Reverb
Reissue,
Fender®`65 Deluxe Reverb Reissue, Fender®`65 Super Reverb Reissue, Fender®`65
Twin Reverb Reissue, Fender™ 65 Twin Custom(TM) 15, Fender™ Concert II, Fender™
Dual Professional.
Also used in Mesa Boogie™ MK2C and others, LAB Series L5, L7, L9,
Koch™ Powertone I, Ampeg™ VT-40, Ampeg™ Super Rocket SR212 and B-52™ AT-100. See explanation of Korean-made Accutronics Reverb Tank numbering system here.
See a chart which lists AC impedance and DC resistance measurements for reverb
tanks here.
Accutronics products are made in South Korea.
Part #ACC-4AB3C1B |
$39.99 |
|
Click on photo for
larger view
|
Revisit™ Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9AB3C1B. Input impedance 10 ohms, output impedance 2575 ohms,
long decay (2.75 - 4 seconds), input insulated/output grounded, designed for horizontal mounting, open side down. Common replacement for
Fender™.
Upgrade for the 4AB3C1B 2-spring tank. See explanation of Korean-made Accutronics Reverb Tank numbering system here. See a chart which lists AC impedance
and DC resistance measurements for reverb tanks
here.
Unlike some tanks, Revisit™ Reverb Tanks include the soft mounting grommets to acoustically decouple the outer channel from the amplifier cabinet.View the 2-year warranty
details here.
Part #9AB3C1B
"Bringing back the sound of vintage Accutronics tanks" |
$48.99 |
|
Click on photo for
larger view |
Rubber mounting grommets for
reverb tanks, package of four. Provides shock absorption for
tanks mounted directly to the inside of a wooden amp cabinet. Mounting
Hole Diameter = 3/8" Outer Diameter = 1/2"
Part #RRG-4 |
$1.99
(For a pack of 4 grommets) |
|
Click on photo for
larger view |
Fender™ style
reverb or AC cable clamp. Used on Fender amps since the early 60s to
hold the reverb cable to the side of the cabinet. Clamp is 3/8"
diameter, comes with 3/4" screw for mounting. Also used in some amplifiers
to hold the AC cord to the cabinet wall. Fender part number 022941.
Works on many other brands of amplifiers as well.
Part #RCC-381 |
$0.99 |
|
Click on photo for
larger view
|
 Reverb Tank Bag for 17"
tanks. Used in a variety of amps, including Fender™ amps. Works with any long
(17") reverb tank. Mounting screws not included. Reverb
bags give the reverb tank better isolation which results is fuller, richer
reverb and less feedback.
Part #RB-017 |
$18.90
In Stock |
|
|
|
Fender™ Switches
(Also see our complete line of switches) |
|
|
|
Click on photo for
larger view |
PREMIUM
Fender™ STYLE VINTAGE FOOTSWITCH - NICKEL PLATED
Fender™ style vintage two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy
nickel metal construction.
Dual RCA Plugs, 12 ft cable, cable enters rear of pedal.
Replaces Fender™
part # 0994051000
Part #FBS-241 |
$48.95 |
|
|
Click on photo for
larger view |
PREMIUM
Fender™ STYLE FOOTSWITCH - BLACK
This is the highest quality reproduction of the iconic Fender Style 2-Button
Footswitch on the market. Our Premium 2-button Footswitches are hand-wired by
our custom shop and contain USA-sourced wire as well as Carling 110-P Footswitch
components. These are the same spec SPST footswitch components used in the
original Fender 2-Button Footswitches. The result is a robust housing with
comfortable action and the most reliable functionality on the market.
The Premium Fender Style Vintage Black 2-Button Footswitch connects to the
amplifier via RCA plugs. Cable enters rear of pedal.
Replaces Fender™
part # 0994051000
Part #FBS-322 |
$59.99
|
|
|
Click on photo for
larger view
|
Fender™
RCA VIBRATO SHORTING PLUG
by
Revisit™ - GOLD-PLATED. Did you know that on
vintage Fender™ amps (Blackface, Silverface), the reverb
will work without a footswitch plugged in, but the vibrato will not?
This handy-dandy little RCA shorting plug will fix that problem, if you do
not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™
amp. This version is made of gold-plated brass for a low
resistance connection and highest immunity to oxidation. Just plug this little RCA plug gadget into the vibrato
footswitch jack on the back panel, and your vibrato will come alive.
Turn the intensity knob to zero to cut out the vibrato when this plug is
inserted. Note: Does not apply to Bronco, Vibro Champ, Princeton, or Princeton Reverb
amps. Inserting this plug turns the vibrato off in those models, removing
the plug turns it on.
Part #FSP-200
|
$2.50
|
|
|
Click on photo for
larger view |
Revisit™ Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy
nickel metal construction.
Dual RCA Plugs, 16 ft cable. Replaces Fender™ part number 0994051000
Part #FBS-271 |
$38.95 |
|
|
Click on photo for
larger view |
Revisit™ Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ two-button footswitch found on 60s and
70s blackface
and silverface amps with vibrato and reverb. Sturdy black metal
construction. Dual RCA Plugs, 16 ft cable.
Part #FBS-271-B |
$32.95 |
|
|
Click on photo for
larger view |
Fender™ STYLE FOOTSWITCH - NICKEL
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller
vintage blackface
and silverface amps. Sturdy
nickel metal construction.
Single RCA Plug.
Part #FBS-270 |
$24.95 |
|
|
Click on photo for
larger view |
Fender™ STYLE FOOTSWITCH - BLACK
Aftermarket replacement for the original Fender™ one-button footswitch found on smaller
vintage blackface
and silverface amps. Sturdy black metal construction.
Single RCA Plug.
Part #FBS-270B |
$27.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING BRAND, SPST, REPLACEMENT FOR Fender™, ETC.
Carling SPST footswitch. Used in Fender™ etc. Reverb/tremolo/channel switching pedals.
Has 2 electrical terminals (single pole, single throw).
Solder lugs for wire.
Part #FS-493 |
$9.95 |
|
Click on photo for
larger view |
FOOT SWITCH,
CARLING™ BRAND, SPDT
Found in many type of footswitches, including the earlier versions of the Dunlop Crybaby Wah pedals
(NOT the version F - see FS-435 below for Crybaby GCB-095F). Has 3 electrical terminals (single pole, double throw).
Solder lugs for wire.
Part #FS-492 |
$17.50 |
|
Click on photo for
larger view |
Hex footswitch nut, pack of
4
These replacement nuts fit all
Carling™
brand footswitches and toggle switch and some (but not
all) other switches which are not made by Carling™.
Carling™
toggle switches are used in Fender™
amps. Hex outer
surface (9/16"), M12 thread for 15/32" bushing.
Part
HFN-4 |
$0.99
(for a pack of 4 nuts) |
|
Click on photo for
larger view |
SWITCH, CARLING™ SPST TOGGLE
Original replacement for 60s and 70s Fender™
power and standby switches.
Made by Carling™
Part #SW-495 |
$8.95 |
|
Click on photo for
larger view |
SWITCH, CARLING SPDT 2-POSITION TOGGLE
SWITCH, Original Carling™
replacement for 60s and 70s Fender™
ground switch.
Part #SW-494 |
$12.95 |
|
Click on photo for
larger view |
SAVE WITH MULTIPACK! 3
SWITCHES: Two Carling™
SPST toggle switches and one
Carling™
SPDT toggle switch.
Original replacement for 60s and 70s Fender™ Amps (Power, standby, and ground
switches).
Change the power, standby, and ground switches on your Fender™ at the same time, and
save!
Part #SW-4945 |
$23.95 |
|
Click on photo for
larger view |
Capacitor cover for
Fender™ Twin Reverb and other full-size Fender™ silverface and blackface
amps, such as the Super Reverb, Pro Reverb, Bandmaster and Bassman heads. Mounting centers are 7" x 3.5" Measurements are 7 1/8" x 3
1/2" x 1 1/4". Replaces Fender™ part number 0037854000.
Part #CC-170 |
$34.95 |
|
|
Carbon composition
resistors are made by mixing carbon particles with a binder molded into a
cylindrical shaped, and then baked. Standard classic resistor used in
vintage amplifiers - Fender™ Blackface and Silverface are prime examples.
|
Fender™ Carbon Comp.
Resistors 1/2 Watt |
|
|
 |
RESISTOR, CARBON COMPOSITION.
New production, 1/2 watt, 3.6mm x 9.5mm. Lead
diameter 0.7mm. Total length end-to-end 65mm. Resistors below
100K are 5% tolerance, resistors of 100K and higher are 10% tolerance. Choose resistor
value in Options.
Part #CC1/2-XX |
$0.89 |
|
Click on photo for
larger view |
Revisit™
RESISTOR LEAD FORMING TOOL
You know you want one! Bend resistors to fit in PC boards,
perf boards, or turret boards exactly, uniformly. Makes your repairs and
kit builds look completely professional. Works great on vintage
Fender™ Blackface and Silverface models. One side is for 1/2 watt
resistors, the other side fits 1/4 watt resistors. Also perfect for
diodes. Slots for radial lead resistors run along the length of the high
impact ABS plastic former. Each slot is .05″ longer than the next and has radiused edges to make perfect, square, symmetrical bends without stressing the leads.
Part #LF-010 |
$7.50 |
|
|
|
Screen Grid & Other
Resistors |
|
|
 |
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, INDIVIDUAL.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Available individually, or in packs of 5, below.
Part #470FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 470 OHM, 2 WATT, PACK OF 5 RESISTORS.
Commonly used as the screen grid resistor in many tube amps including Fender™.
Part #470FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, INDIVIDUAL. Commonly used as the screen grid resistor in many tube amps.
Also used as power supply dropping resistors in many Fender amps™. Available individually, or in packs of 5, below.
Part #1000FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 1000 OHM, 2 WATT, PACK OF 5 RESISTORS.
Commonly used as the screen grid resistor in many tube amps. Also used as
power supply dropping resistors in many Fender amps™.
Part #1000FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #2200FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 2200 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Part #2200FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #4700FP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 4700 OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Part #4700FP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Available individually, or in packs of 5, below.
Part #10KFP2 |
$0.30 each |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 10K OHM, 2 WATT.
Commonly used in the power supply of many Fender™ amps.
Part #10KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 18K OHM, 2
WATT.
Commonly used in the high voltage power
supplies of many Fender™ Princeton and Princeton Reverb amplifiers.
Part #18KFP2 |
$0.30 |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 18K OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many amps.
Part #18KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 27K OHM, 2
WATT.
Commonly used in the high voltage power
supplies of many Fender™ amplifiers.
Part #27KFP2 |
$0.30 |
|
|
|
RESISTOR, METAL OXIDE FLAMEPROOF, 27K OHM, 2 WATT, 5%, PACK OF 5 RESISTORS. Commonly used in the power supply of many amps.
Part #27KFP2-5 |
$1.15
(Pack of 5 Resistors) |
|
 |
RESISTORS, ULTRA-MINIATURE, 1 WATT, 100K Ohms.
New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.
2.2mm x 6.8mm. Lead
diameter 0.5mm, lead length 28mm. Total length end-to-end 61mm.
These are 1 watt resistors in a package about the size of a typical 1/4 Watt
resistor. Easy to work with, especially in tight spots. Made by Yageo.
100K Ohms. These make excellent replacements for preamp tube
plate resistors!
Part #R-MF-UM1W-100K |
$0.14 |
|
|
|
RESISTORS, ULTRA-MINIATURE, 1 WATT, 220K Ohms.
New production, 1 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature.
2.2mm x 6.8mm. Lead
diameter 0.5mm, lead length 28mm. Total length end-to-end 61mm.
These are 1 watt resistors in a package about the size of a typical 1/4 Watt
resistor. Easy to work with, especially in tight spots. Made by Yageo.
220K Ohms. These make excellent replacements for preamp tube plate
resistors!
Part #R-MF-UM1W-220K |
$0.14 |
|
|
|
RESISTORS, ULTRA-MINIATURE, 2 WATT.
New production, 2 watt, Metal Film Flameproof, 5% tolerance, ultra-miniature. 3.9mm x 9.0mm. Lead
diameter 0.5mm, lead length 26mm. Total length end-to-end 61mm.
These are 2 watt resistors in a package about the size of a typical 1/2 Watt
resistor. Easy to work with, especially in tight spots. Great for
screen grid resistors. Made by Yageo. Available in 470 ohm, 1K
ohm, 2.2k ohm, 4.7K ohm, 10K ohm. All choices in this category are 2 Watts. Choose resistor
value in Options.
Part #R-MF-UM-XX |
$0.19 |
|
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
