These are the most commonly replaced parts in Fender® 65 Twin Reverb Reissue models from 1995 through the present.


Description

Price Purchase

Click on photo for
larger view
POT - BRACKET MOUNT,  SMOOTH 1/4" SHAFT.
Found in the Blackface Reissue versions (2000-present) of Deluxe Reverb, Princeton Reverb, Pro Reverb, Super Reverb and Twin Reverb.

POT VALUE REPLACES
FENDER PART #
APPLICATION
A10K 0037598000 MIDDLE CONTROL, 65 REISSUE MODELS:   PRO / SUPER / TWIN
C50K 0037602000 VIBRATO INTENSITY CONTROL, 65 REISSUE MODELS:  DELUXE / PRO / SUPER / TWIN
B100K 0037600000 REVERB CONTROL, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO SUPER / TWIN.
A250K 0037597000
0047540000
BASS AND TREBLE CONTROLS, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO / SUPER / TWIN.  VIBRATO INTENSITY, PRINCETON REVERB REISSUE
A1M 0037596000
0036966000
VOLUME CONTROLS, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO / SUPER / TWIN.
C3M 0037601000 VIBRATO SPEED CONTROL, 65 REISSUE MODELS:  DELUXE / PRINCETON / PRO / SUPER / TWIN

INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1016 nut found in this section)
Part #FPHD-XX

$3.95

Select Option:


Quantity:


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - 65 TWIN REVERB REISSUE.  Contains all 11 control pots as found in the 65 Twin Reverb Reissue, from 1991 to the present.  Does not include the bias pot.
INCLUDES NUTS & WASHERS

Part #FPK-109
$43.95


Click on photo for
larger view
POT - Fender® BIAS POT 10K LINEAR, SCREW
Original Fender® 10K linear, screw, bias potentiometer.  Used in the '65 Twin Reverb Reissue.  Original Fender® part # 0017502000.   Includes lock washer, smooth washer and nut.
Part #P-BPF-10KL
$4.95


Click on photo for
larger view
MULTI-PACK KNOB, Fender®, SET-SCREW, SET OF 6 - SAVE!
Genuine Fender® amp knobs, skirted with 1-10 numbering.  Traditional "Witches Hat" design.   For vintage Fender® amps in the original blackface and silverface series.  Fits 1/4" shaft, with set-screw.   Original Fender® part number 0990930000.
Part #FVSK-6
$16.95


Click on photo for
larger view
KNOB, Fender®, SET-SCREW
Genuine Fender® amp knobs, skirted with 1-10 numbering.  Traditional "Witches Hat" design.   For vintage Fender® amps in the original blackface and silverface series.  Fits 1/4" shaft, with set-screw.   Original Fender® part number 0990930000.
Part #FVSK
$3.50


Click on photo for
larger view
KNOB, CLONE OF Fender® SKIRTED 'WITCHES HAT' KNOB, SET-SCREW
Aftermarket amp knobs, reproduction of original Fender® design, skirted with 1-10 numbering.  Traditional "Witches Hat" design.   For vintage Fender® amps in the original blackface and silverface series.  Fits 1/4" shaft, with set-screw.   Replaces Fender® part number 0990930000.
Part #FVSK-C
$2.50


Click on photo for
larger view
JACK, 1/4", Used in Fender®, PCB, MONO CLOSED CIRCUIT
PCB mono closed circuit.   Original Fender® part number 0037117000.    Nut and washer are included.
Part #J-512
$4.99


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®
Used in the 65 Twin Reverb Reissue as the main speaker out jack.  Includes nut and washer.   Genuine Fender® part number 0021550000 (originally 021550).

Part #J-12A
$2.79


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®
Used as the extension speaker jack in the Fender® 65 Twin Reverb Reissue.
 Original Fender® part number  Includes nut and washer.  0021956049 (originally 021956).
Part #J-11
$2.25


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft®
Used as the footswitch jack in the '65 Twin Reverb Reissue.  Includes nut and washer.  Genuine Fender® part number 0013043000.
Part #J-12B
$2.99


Click on photo for
larger view
SWITCH, TOGGLE - MADE BY CARLING - RATED AT 15A, 125VAC.    Two position (on/off), double pole (DPST).   Fits 1/2" chassis hole.   1/4" push on terminals.     Original Fender® part number 003657000 (old number 036570).    Used as the power switch in the '65 Twin Reverb Reissue.
Part #SW-525
$6.95


Click on photo for
larger view
SWITCH, TOGGLE - MADE BY CARLING - RATED AT 15A, 125VAC.    Two position (on/off), single pole (SPST).   Fits 1/2" chassis hole.   1/4" push on terminals.     Original Fender® part number 003703900 (old number 037039).    Used as the standby switch in the '65 Twin Reverb Reissue.
Part #SW-515
$6.95


Click on photo for
larger view
SWITCH, SLIDE, DPDT (6 TERMINALS),  REPLACEMENT FOR BRIGHT SWITCH IN 60's and 70's Fender® AMPS.   Also may be used as the power switch on the Fender® blackface or silverface Champ and the silverface Vibro Champ or Bronco Amp.  Click here for physical specifications.   Two screws are included with the switch.
Part #SW-242S
$1.79


Click on photo for
larger view
MOUNTING SCREWS for the SW-242S slide switch (above) Set of two machine screws, (metric M3x0.5x6) designed to fit the SW-242S slide switch.
Part #SCR-242
$0.59
(Set of 2 screws)




Click on photo for
 larger view
PILOT LAMP ASSEMBLY, RED,  FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, red jewel and #47 bulb complete, fits 11/16" chassis hole.   Designed for 6.3 volts. Ready for installation and wiring in the Fender® '65 Twin Reverb Reissue.
Part #FLA-124R
$6.95



Click on photo for
 larger view
PILOT LAMP HOLDER, FENDER®
The pilot lamp holder only, for the Fender® '65 Twin Reverb Reissue.    Does not include bulb or red jewel.
Part #LH-124
$2.95



Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, for the Fender® '65 Twin Reverb Reissue.   Fender® part number 0990952000.

Part #JL-115R
$2.99


Click on photo for
larger view

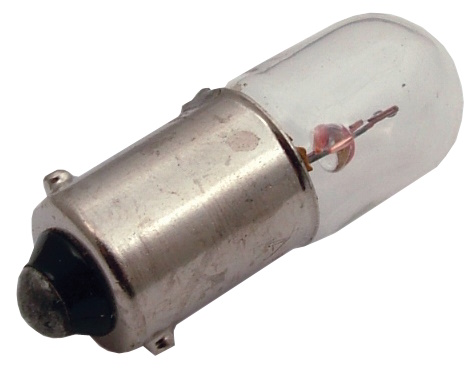

INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
Long life replacement pilot lamp bulb for the Fender® '65 Twin Reverb Reissue.   for dials, indicators, etc. Sold individually.  Fender® part number 0021642049
Part #P-47
$0.99


Click on photo for
larger view
ORIGINAL Fender® GUITAR AMP HANDLE.  Black amplifier handle with vinyl sleeve over steel strap and one-screw mounting nickel-plated end caps.   Includes mounting hardware (two screws and T-nuts).   Used on '65 Twin Reverb®.    Original Fender® part number 0990947000.
Part #FAH-332
$13.99


Click on photo for
larger view

Fender® VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender® style FAH-332.  See Data Sheet here
Part #SC-403
$0.99
(for a pack of 2 screws)



Click on photo for
larger view
Fender® Chassis Straps with hardware - Large (5") for the current-day '65 Twin Reverb Reissue.  Contains 2 straps, 4 long bolts.   Screw spacing is 5 inches center-to-center, strap length is 5 5/8" end-to-end.  Nuts not needed on the reissue versions, as the chassis is internally threaded.
Part #FCS-5-R
$10.95
(Complete set for one amp)




Click on photo for
larger view
Fender® AMP "TAIL" LOGO.     Fender® logo with "tail", cast metal, mounting screws included.   Used on the upper left corner of the grill cloth on the Fender® '65 Deluxe Reverb Reissue.  Approx. 4 1/2" wide, the "F" in the logo is about 2 1/2" inches tall.  Original Fender® part number 0994093000
Part #FAL-912
$11.99
(each)




Click on photo for
 larger view
Black Logo Mounting Screws
Set of 4 logo mounting screws.   These are #5 x 7/16" black oxide screws, set of 4.    Fit the AL-921 Ampeg logo, and the Fender FAL-912 and FAL-915 logos.
Part #LS-504
$0.99
(for a set of 4 screws)


Click on photo for
larger view
Fender® 8 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 8 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   Fender® part number 0026541049.    The power cord as used in North America only on the 65 Twin Reverb Reissue.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541
$12.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 12 feet, cord thickness is 0.30 inches (about 9/32" or 7.3mm).   Replaces Fender® part number 0026541049 with a longer 12 ft cord option for more convenience.    Longer cord for the Fender® Vibrosonic, Custom Vibrolux, Ultimate Chorus, Rumble Bass, Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior, Acoustasonic SFX, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, BXR200, 57 Twin Amp Reissue   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541-12
$16.95


Click on photo for
larger view
Fender® style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender® amps.   Designed for 5/16" cord diameter.   Click here for specific dimensions of chassis hole.   For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing strain reliefs can be a frustrating job.   Standard pliers just don't get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on AC power cord strain reliefs and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$10.95


Click on photo for
larger view
FUSE HOLDER,  Fender® STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE.
Replacement fuse holder for the Fender® 65 Twin Reverb Reissue.   Fits "American" style AGC fuses (1/4" x 1 1/4").

Part #FH-301
$3.95

MDL-4
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)

FUSE,  Fender® 4A Slow-Blow. Rated at 4A, for use with '65 Twin Reverb Reissue in North America (120V).

Part #MDL-4

$4.95
(Pack of 5 fuses)



Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4AB3C1B.   Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting.    Replacement for Fender® '65 Twin Reverb Reissue.  Replaces original Fender® part number 020489.

Up until 2010, Fender® Twin Reverb Reissues used Accutronics Reverb Tanks made in Cary, Illinois.    In November, 2009, the Accutronics company was purchased by Belton, and the manufacturing facility in Cary was closed.   Today, Accutronics tanks are made in Seoul, South Korea.

Revisit™ tanks are manufactured to the same design and detail as the original American-made Accutronics tanks, and we believe that they emulate the sound of the original Accutronics tanks better than the current version of Accutronics tanks made in South Korea.    However, everyone's opinion is different, so we carry both the Revisit™ and the Accutronics brands.

View the 3-year warranty details here.
Part #4AB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$29.99







Click on photo for larger view



Accutronics Reverb Tank, 17" long, 2 spring, 4AB3C1B.   Input impedance 8 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   This is the Korean-made OEM reverb used in Fender® '65 Twin Reverb Reissues starting in 2010.   Accutronics was purchased by Belton in 2009, and in November of 2009 all production was moved from Cary, Illinois to the Belton manufacturing facility in Seoul, South Korea.

See explanation of Accutronics reverb tank numbering system here
Part #ACC-4AB3C1B

$32.99


Click on photo for
larger view

Original Fender® reverb tank bag for 17" tanks.   Used in a variety of Fender® amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Original Fender® part number 0031849000
Part #RB-017
$13.99


Click on photo for
larger view
Capacitor cover for Fender® Used to cover the main filter capacitors in the Fender® '65 Twin Reverb Reissue.   Screws not included - see below. Original Fender® part number 0037854000.
Part #CC-710
$20.99


Click on photo for
larger view

Fender® SELF-TAPPING SCREWS
Used in the Fender® '65 Twin Reverb Reissue for a variety of tasks.   Used to attach the capacitor cover, power tube sockets, choke, reverb transformer.   Pack of 6 screws.  Original Fender® part number 029913
Part #SC-410-6
$1.69
(for a pack of 6 screws)



Click on photo for
larger view
TRANFORMER, Fender® REVERB DRIVER.  Reverb transformer as found in the Fender® '65 Twin Reverb Reissue.    Fender® part number 0037099049.  10" leads with .187 faston connectors, X-Mount with 1 3/4" mounting centers.
Part #037099
$15.95

RESISTOR, FLAMEPROOF, 470 OHM, 2 WATT.    Power tube screen grid resistors in the 65 Twin Reverb Reissue.   Original Fender® part number 036468001.
Part #470FP2
$0.29
