These are the most commonly replaced parts in Fender® Hot Rod Deluxe models from 1995 through the present.


Description

Price Purchase

Click on photo for
larger view
POT - BRACKET MOUNT 25K - 30C TAPER,  SMOOTH 1/4" SHAFT.  REPLACES Fender® PART NUMBER 0047031000.  Used as the presence control in the Hot Rod Deluxe.   INCLUDES NUT & WASHER
Part #FPHD-25KC
$4.95


Click on photo for
larger view
POT - BRACKET MOUNT 25K LINEAR,   SMOOTH 1/4" SHAFT.  REPLACES Fender® PART NUMBER 0041510000.   Used as the middle and reverb controls in the original Hot Rod Deluxe (1996-2010).  INCLUDES NUT & WASHER
Part #FPHD-25KL
$4.95


Click on photo for
larger view
POT - BRACKET MOUNT 100K - LINEAR TAPER,  SMOOTH 1/4" SHAFT.  REPLACES Fender® PART NUMBER 0037601000 Used as the Master Volume in the original Hot Rod Deluxe (1996-2010) INCLUDES NUT & WASHER
Part #FPHD-100KL
$4.95


Click on photo for
larger view
POT - BRACKET MOUNT 250K AUDIO,  SMOOTH 1/4" SHAFT.  REPLACES Fender® PART NUMBER 0047540000 AND 037597.   Used as the volume, drive, bass and treble controls in the original Hot Rod Deluxe (1996-2010).   INCLUDES NUT & WASHER  (For spare or replacement nut, order the JN-1016 nut found in this section)
Part #FPHD-250KA
$4.95


Click on photo for
larger view
FENDER COMPLETE POTENTIOMETER KIT - HOT ROD DELUXE AND HOT ROD DEVILLE (ORIGINAL VERSIONS - NOT VERSION III).  Contains all 8 control pots as found in the Hot Rod Deluxe and Hot Rod Deville models, from 1996 to 2010.  Does not include the Hot Rod Deluxe III or Hot Rod Deville III (with black control panel).
INCLUDES NUTS & WASHERS

Part #FPK-113
$31.95


Click on photo for
larger view

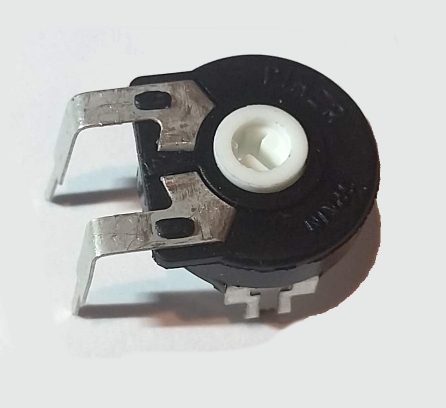

POT - Fender® BIAS POT 25K LINEAR, SCREW
Original Fender® 25K linear bias potentiometer.  Used in  reissue Hot Rod Deluxe and Hot Rod Deluxe III Original Fender® part # 0027873000.
Part #FBP-25KL
$2.95


Click on photo for
larger view
KNOB, Fender® Style Chicken Head, 1/4" Set Screw, Black.   Used on the Hot Rod Deluxe, 8 knobs total.  Fender® part number 36620000.  1/4" shaft, brass insert, with set screw.
Part #K-300F
$1.95


Click on photo for
larger view
KNOB, Fender® Style Chicken Head, 1/4" Set Screw, Cream.   Used on certain versions of the Hot Rod Deluxe III, Hot Rod DeVille III, 59 Bassman, Blues Deluxe, Blues Deville, Prosonic, 57 Twin, 57 Bandmaster, EC Series, and Bassman TV series.   Fender® part number 0058164049.   Fits 1/4" shaft, brass insert, with set screw.
Part #K-640F
$1.95


Click on photo for
larger view
KNOB, Fender® Style Chicken Head, 1/4" Set Screw, White.   Used on certain versions of the EVH 5150, Hot Rod Deluxe III, Hot Rod DeVille III, 59 Bassman, Blues Deluxe, Blues Deville, Prosonic, 57 Twin, 57 Bandmaster, EC Series, and Bassman TV series.   Fender® part number 0073688049 and 0073688000.   Fits 1/4" shaft, brass insert, with set screw.
Part #K-688F
$1.95


Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JN-916.

JACK, 1/4", TIP/SLEEVE 4 PIN, PC MOUNT, Fender®, Original and Reissue Hot Rod Deluxe.
Fender
® PC mount 1/4" jack. Mono, 4 pin.  Used as the two input jacks, preamp out jack, and the footswitch jack only on the original 1990s Hot Rod Deluxe.   Not used on the Hot Rod Deluxe Reissue (2000s) or the Hot Rod Deluxe III (2009- ).  Fender® part number 0990912000 and 037036.
NUT & WASHER NOT INCLUDED - Reuse original nut and washer, or order JN-916.
Part # J-506

$1.99



Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JN-916.

JACK, 1/4", TIP/RING/SLEEVE, 9 PIN, PC MOUNT, Fender®, Original and Reissue Hot Rod Deluxe.
Fender
® PCB mount 1/4" jack.  Stereo, 9 pin. Used as the Power Amp In jack only on the original 1990s Hot Rod Deluxe. Not used on the Hot Rod Deluxe Reissue (2000s) or the Hot Rod Deluxe III (2009- ).     Fender® part number 0990913000 and 031570.   Click here for specifications.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JN-916, BELOW
Part #J-507

$2.29




Click on photo for
larger view
JACK, 1/4",  Fender® 9-PIN Low Profile.  Used in the reissue and Series III versions of the Fender® Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe and Blues Deville as the preamp out / power amp in jacks.   Fender® part number 0059922000.   Nut and washer are included.
Part #J-6074
$11.95

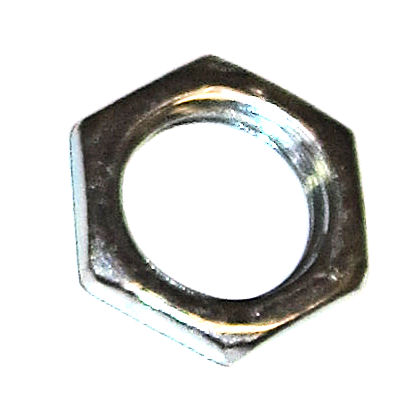

NUT AND WASHER, CHROME, KOBICONN OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531, J-532, J-532G, J-533, J-533G, J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560
Part #JN-916

$0.79


Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-510.

JACK, 1/4", MONO, REAN TYPE, PC MOUNT, Fender®, others.
Fender
® PCB mount 1/4" jack. Mono, 4 pin. Used as the two input jacks and the footswitch jack on the Hot Rod Deluxe Reissue (2000s)and the Hot Rod Deluxe III (2009-Present)  Fender® part number 0051658000.  Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.
Part #J-509

$2.95


Click on photo for
larger view

NUT, CHROME, Fender® Hot Rod Deluxe III input and footswitch jacks.   Fender® nut, fits J-509 jacks.
Part #J-510

$ 0.60


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®
Used in the Hot Rod Deluxe as the main speaker out jack.  Includes nut and washer.   Genuine Fender® part number 0021550000 (originally 021550).

Part #J-12A
$2.79


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft.
Used as the external speaker jack in the Fender® Hot Rod Deluxe.
 Original Fender® part number 0041701000.

Part #J-13A

$6.99


Click on photo for
larger view
SWITCH, TOGGLE - MADE BY CARLING - RATED AT 15A, 125VAC.    Two position (on/off), double pole (DPST).   Fits 1/2" chassis hole.   1/4" push on terminals.     Original Fender® part number 003657000 (old number 036570).    Used as the power switch in the Hot Rod Deluxe.
Part #SW-525
$6.95


Click on photo for
larger view
SWITCH, TOGGLE - MADE BY CARLING - RATED AT 15A, 125VAC.    Two position (on/off), single pole (SPST).   Fits 1/2" chassis hole.   1/4" push on terminals.     Original Fender® part number 003703900 (old number 037039).    Used as the standby switch in the Hot Rod Deluxe.
Part #SW-515
$6.95


Click on photo for
larger view
ORIGINAL Fender® PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used as the Normal/Bright, More Drive, and Channel Select switches in the Hot Rod Deluxe.  Original Fender® part number 002809100.   Also Fender® part number 028091, and 028091049.   Button not included, see K-058 below
Part #SW-028
$4.95


Click on photo for
larger view
BUTTON, for push switch, Black.  This black button pushes onto the switch stem of the Normal/Bright, More Drive, and Channel Select switches in the Hot Rod Deluxe.  Original Fender® part number 0028104000.   Button only - not the complete switch.  See the SW-028 switch above.
Part #K-058
$2.99



Click on photo for
 larger view
PILOT LAMP ASSEMBLY, RED,  FENDER®
Complete pilot lamp assembly:  Includes pilot lamp holder, red jewel and #47 bulb complete, fits 11/16" chassis hole.   Designed for 6.3 volts. Ready for installation and wiring in the Fender® Hot Rod Deluxe.
Part #FLA-124R
$6.95



Click on photo for
 larger view
PILOT LAMP HOLDER, FENDER®
The pilot lamp holder only, for the Fender® Hot Rod Deluxe.    Does not include bulb or red jewel.
Part #LH-124
$2.95



Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, for the Fender® Hot Rod Deluxe.   Fender® part number 0990952000.

Part #JL-115R
$2.99


Click on photo for
larger view
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
Long life replacement pilot lamp bulb for the Fender® Hot Rod Deluxe.   for dials, indicators, etc. Sold individually.  Fender® part number 0021642049
Part #P-47
$0.99


(Brown)

Click on photo for
larger view
Fender® STYLE GUITAR AMP HANDLEBrown handle strap, "dogbone" style. Chrome end hooks - replacement for vintage and modern Fender® amps.   Replacement for Fender® part number 0990946000.   Does not contain Fender® logo, so it may be used on other brands of amps.  Used on vintage and modern brownface and blonde tolex amps such as the Hot Rod Deluxe.  Color of handle strap is brown.   Screws not included - order screw pack SC-402 separately (takes a pack of 4 screws).
Part #FAH-328
$6.99


(Black)

Click on photo for
larger view
Fender® STYLE GUITAR AMP HANDLEBlack handle strap, "dogbone" style. Chrome end hooks - replacement for vintage and modern Fender® amps.  Replacement for Fender® part number 0990943000.   Does not contain Fender® logo, so it may be used on other brands of amps.  Used on vintage and modern black tolex amps such as the Hot Rod Deluxe.   Color of handle strap is black.  Screws not included - order screw pack SC-402 separately (takes a pack of 4 screws).
Part #FAH-329
$6.99


Click on photo for
larger view

Fender® "DOGBONE" HANDLE SCREWS
Pack of 4 chrome "Dogbone" handle screws for Fender® style FAH-328 and FAH-329 handles.   Fits the handle on the Fender® Hot Rod Deluxe  8-32 thread.
Part #SC-402
$1.59
(for a pack of 4 screws)



Click on photo for
larger view

Fender® STAINLESS STEEL BACK-PANEL SCREWS
Pack of 6 stainless steel back panel screws for Fender® original and reissue "Tweed" series amps.   Fits the Fender® Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior and Blues Deville, 59 Bassman reissue, as well as the original Tweed amps from the 1950s:   Tweed Vibrolux, Tweed Twin, Tweed Tremolux, Tweed Super, Tweed Pro, Tweed Princeton, Tweed Harvard, Tweed Deluxe, Tweed Champ, and Tweed Bassman.   3/4" long, 10-32 thread.    Fender® Original Part number 0015990049.   Pack of 6 screws.
Part #FBP-6
$2.99
(for a pack of 6 screws)


Click on photo for
larger view

Fender® STAINLESS STEEL CHASSIS MOUNTING SCREWS
Pack of 6 stainless steel chassis mounting screws for Fender® reissue "Tweed" series amps.   Mounts the chassis to the cabinet on top as well as the sides of the cabinet.  Fits the Fender® Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue. 1 1/2" long, 10-32 thread.    Fender® Original Part number 0036619049.   Pack of 6 screws.
Part #FCM-6
$2.99
(for a pack of 6 screws)



Click on photo for
larger view
SPEAKER BAFFLE MOUNTING BRONZE SCREWS AND STAINLESS STEEL KEPS NUTS (SET OF 4) FOR Fender® TWEED AMPS.   Set of 4 screws, bronze 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nuts with integral washers.   This set of four bronze screws connects the speaker baffle board to the cabinet on Fender® tweed combo amps from the 50s, as well as today's reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue.    Replaces Fender part number 036618 or 0036618049.   For amps which require additional baffle screws, see the individual screw/nut part number SC-415, below.
Part #SC-415-4
$3.99
(for a pack of 4 screws and 4 nuts)



Click on photo for
larger view
SPEAKER BAFFLE MOUNTING BRONZE SCREW AND STAINLESS STEEL KEPS NUT FOR Fender® TWEED AMPS.  Individual screw, bronze 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nut with integral washer.   These screws connect the speaker baffle board to the cabinet on Fender® tweed combo amps from the 50s, as well as today's reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue.    Replaces Fender part number 036618 or 0036618049.
Part #SC-415
$1.09
(for a single screw with nut)



Click on photo for
larger view
Fender® Amp Tweed Block Logo
Fender® tweed amp logo includes mounting pins and is designed for the Hot Rod Deluxe III.
  Approx. 2 15/16" wide and 7/8" tall.   Original Fender® part number 0994096000.
Part #FAL-917
$10.99
(each)



Click on photo for
larger view
Fender® 8 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 8 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   Fender® part number 0026541049.    The power cord as used in North America only on the Hot Rod Deluxe.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541
$12.95


Click on photo for
larger view
EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, SJT type, .250 TAB ends.   Black and White wires terminated in 1/4 inch push on terminals.   Green wire terminated in screw terminal for ground connection to chassis.  Cord length 12 feet, cord thickness is 0.30 inches (about 9/32" or 7.3mm).   Replaces Fender® part number 0026541049 with a longer 12 ft cord option for more convenience.    Longer cord for the Fender® Vibrosonic, Custom Vibrolux, Ultimate Chorus, Rumble Bass, Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior, Acoustasonic SFX, 65 Twin Reverb Reissue, 65 Deluxe Reverb Reissue, BXR200, 57 Twin Amp Reissue   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #026541-12
$14.95


Click on photo for
larger view
Fender® style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender® amps.   Designed for 5/16" cord diameter.   Click here for specific dimensions of chassis hole.   For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing strain reliefs can be a frustrating job.   Standard pliers just don't get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on AC power cord strain reliefs and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$10.95


Click on photo for
larger view
FUSE HOLDER,  Fender® STYLE, HIGH QUALITY USED WITH AGC TYPE FUSE.
Replacement fuse holder for the Fender® Hot Rod Deluxe.   Fits "American" style AGC fuses (1/4" x 1 1/4").

Part #FH-301
$3.95

AGC3SB
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter)

FUSE,  Fender® 3A Slow-Blow. Rated at 3A, for use with Hot Rod Deluxe in North America (120V).

Part #AGC3SB

$4.95 (Pack of 5 fuses)



Click on photo for larger view

Revisit™ Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB3C1B.   Input impedance 600 ohms, output impedance 2250 ohms, long decay (2.75 - 4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.    Replacement for Fender® Hot Rod Deluxe.  Replaces original Fender® part number 0050394000.


View the 3-year warranty details here.
Part #4EB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$29.99




Click on photo for
larger view

Original Fender® reverb tank bag for 17" tanks.   Used in a variety of Fender® amps.  Works with any long (17") reverb tank.   Mounting screws not included.  Original Fender® part number 0031849000
Part #RB-017
$13.99


Click on photo for
larger view
Fender® Reverb Cable. Molded plastic dual RCA on one end, jacketed wires with braided shields on the other. This cable is used on the Hot Rod Deluxe.   Fender® part number 0041311000.
Part #RC-311
$5.95


Click on photo for
larger view

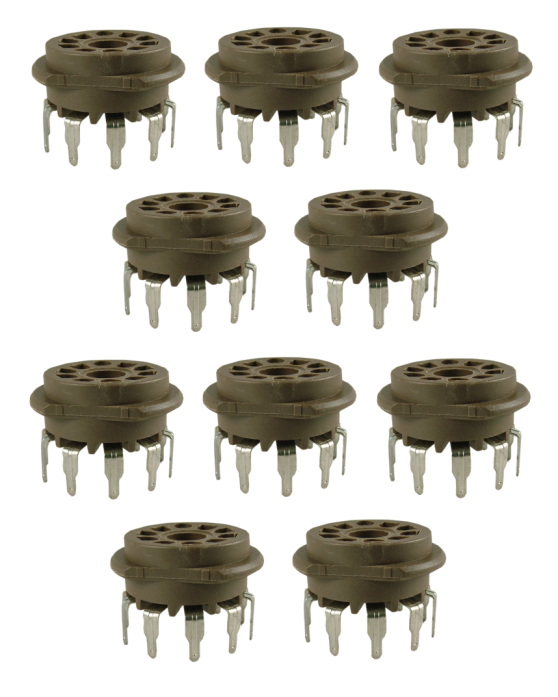

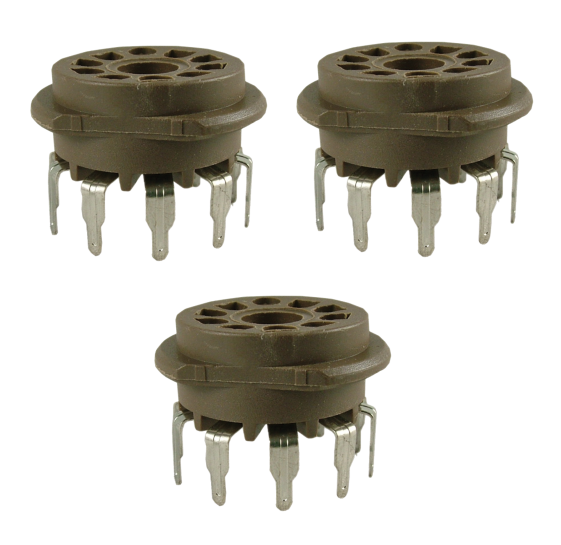

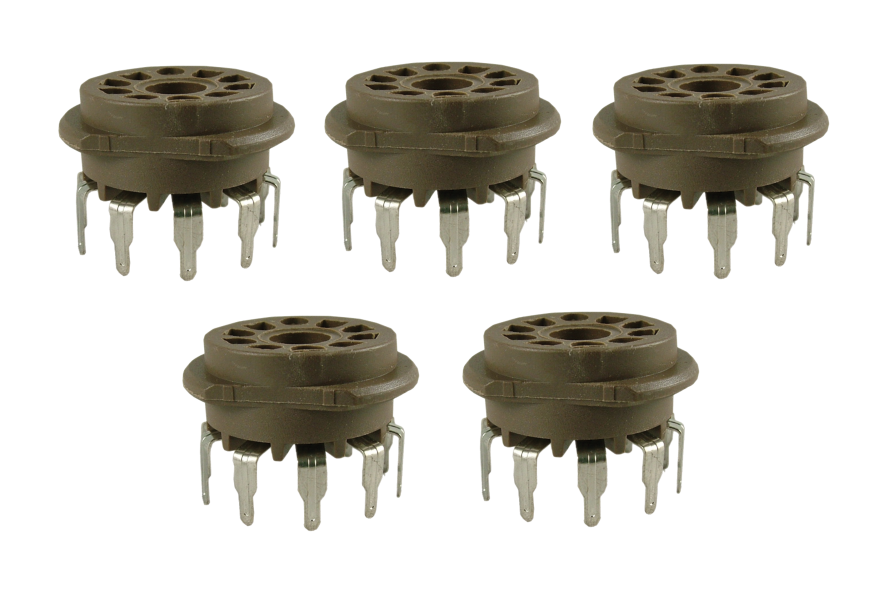

TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  PC MOUNT, MICALEX.    9 pin ceramic PC mount socket, stand-off mounting, 3/4" diameter, 3/4" tail diameter.  For bottom mounting (mounted from the inside of the chassis, below the chassis hole).   Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.    Micalex replacement for the tube sockets in the Fender® Blues Junior, and the Fender® Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Part #TS-9-620
$2.19


Click on photo for
larger view

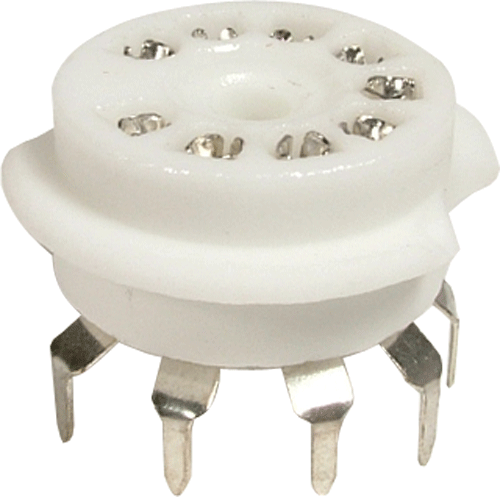

TUBE SOCKET FOR MINIATURE 9-PIN TUBES.  PC MOUNT, CERAMIC.    9 pin ceramic PC mount socket, stand-off mounting, 3/4" diameter, 3/4" tail diameter.  For bottom mounting (mounted from the inside of the chassis, below the chassis hole).   Fits 12AX7, 12AU7, 12AT7, 6BQ5, EL84 tubes.    Ceramic replacement for the tube sockets in the Fender® Blues Junior, and the Fender® Hot Rod Deluxe/Deville and Blues Deluxe/Deville.
Part #TS-9-217
$1.49


Click on photo for larger view

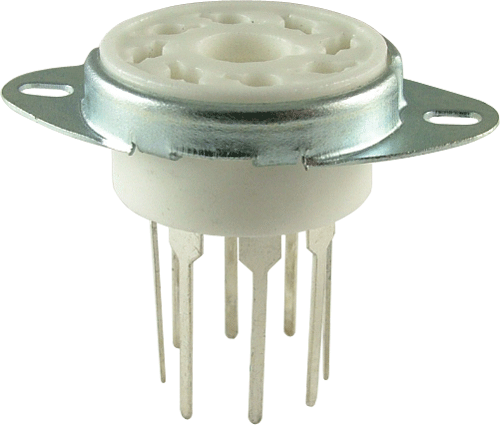

CERAMIC 8-PIN PC MOUNT OUTPUT TUBE OR RECTIFIER TUBE SOCKET, crimped bracket, bottom mount 1 1/4", top mount 1" to 1 1/8", 1 1/2" mounting centers, 1" to 1 1/4" chassis hole.  Use for the 6L6 power tubes in the Fender® Hot Rod Deluxe.
Part #TS-8-807

$3.50


Click on photo for
larger view

Fender® 24V DC DIP Relay 24V, 8.3mA coil, DPDT.   Used for channel switching in the Hot Rod Deluxe.  Original Fender® part # 0036613000.
Part #RLY-24

$9.95

RESISTOR, FLAMEPROOF, 470 OHM, 2 WATT.    Power tube screen grid resistors in the Hot Rod Deluxe.   Original Fender® part number 036468001.
Part #470FP2
$0.29

16V 5W Zener 1N5353/NTE5131
(Equivalent to NTE5131).  Used in the power supply of the Fender® Hot Rod Deluxe.  Fender® part number 028119.
Part #1N5353

$1.95


Click on photo for
larger view
FOOT SWITCH, SPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
This is the footswitch used in the footswitch box for the Fender® Hot Rod Deville.   Fender® part number 0028714000.
Part #FS-398-PC
$3.95
